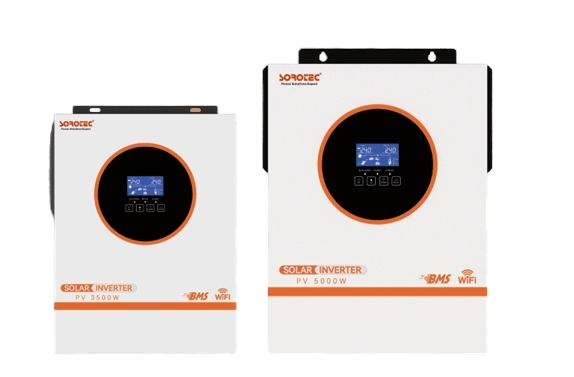

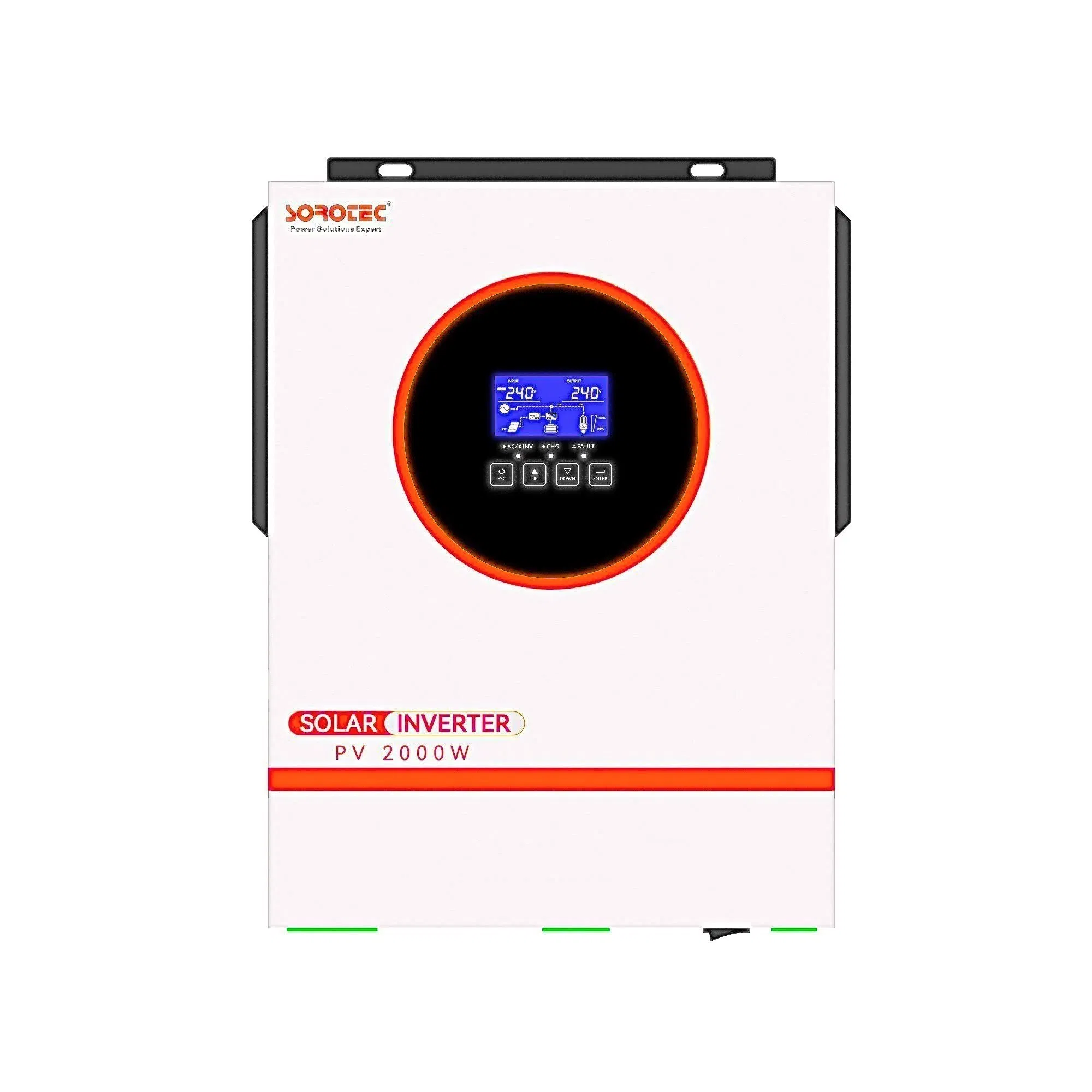

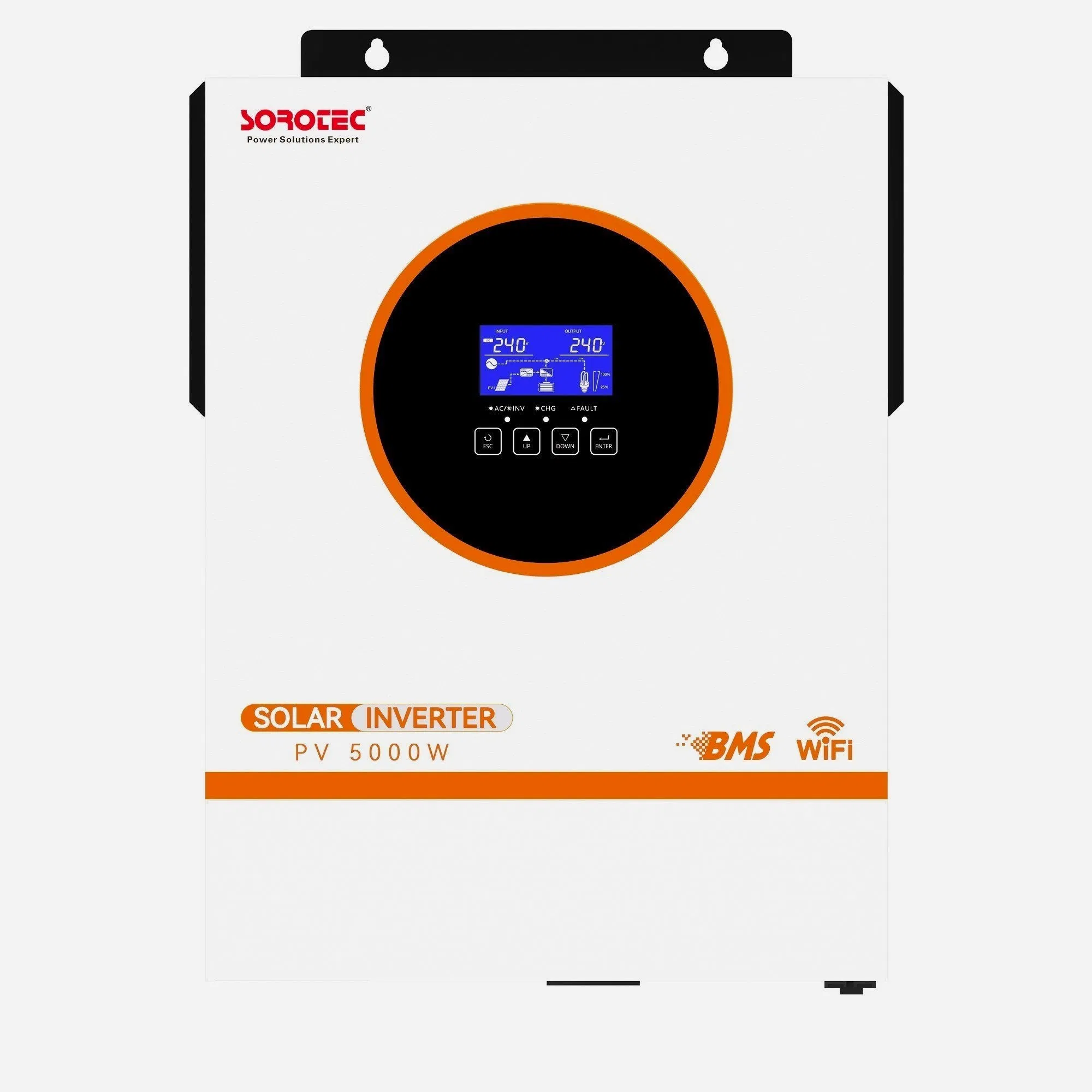

Sorotec 3kw 3.2kw 5.5kw on/off Grid Pure Sine Wave Solar Power Inverters with Energy Storage System

Customization:	Available
After-sales Service:	Technical Support,Video Tutorial,Replace Parts
Warranty:	2 Years

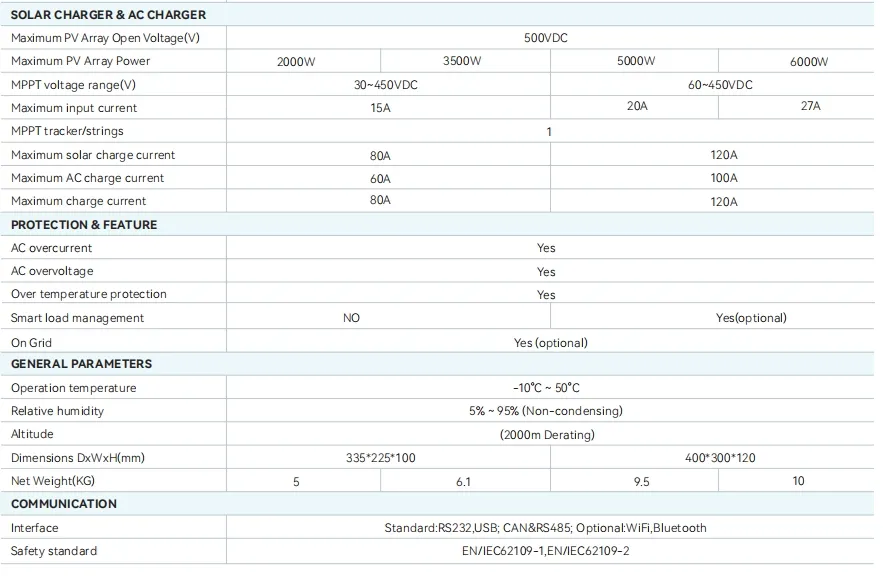

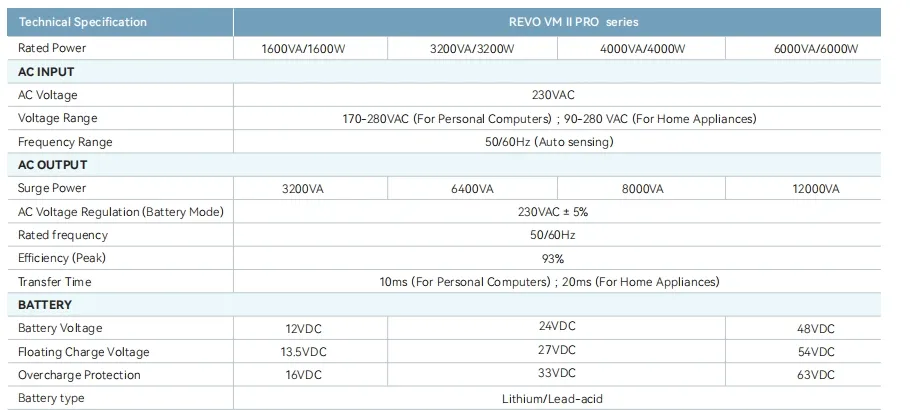

Technical Specifications

Model NO.REVO VM II PRO

Nature of SourcePassive Inverter

PhaseSingle

Output Power>1000W

TypeDC/AC Inverters

Wave StringSine Wave

Output Voltage220/230/240VAC

Max EfficiencyUp to 93.5%

Solar Charge Current90A

Operating Temp0 to 50 °C

Product Overview

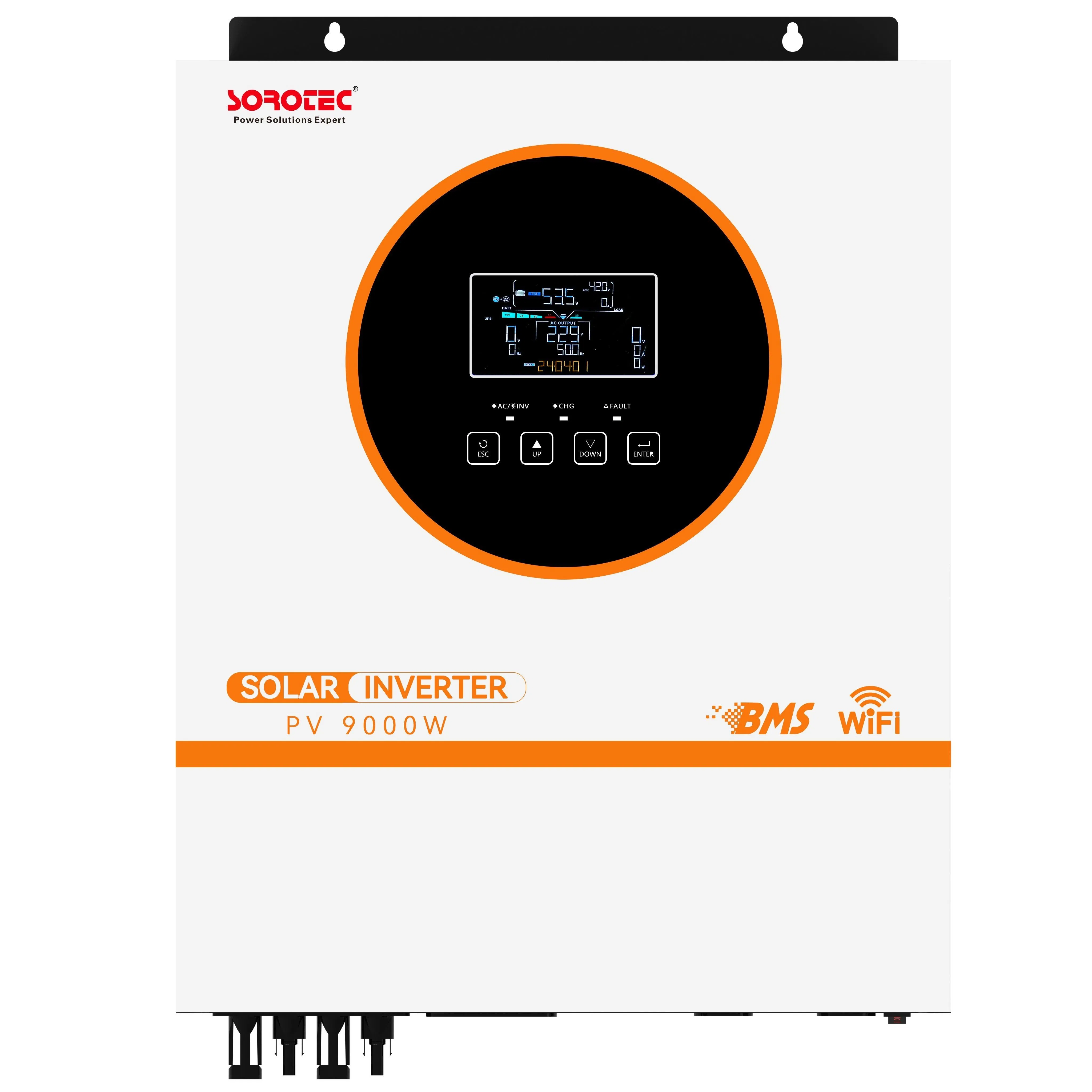

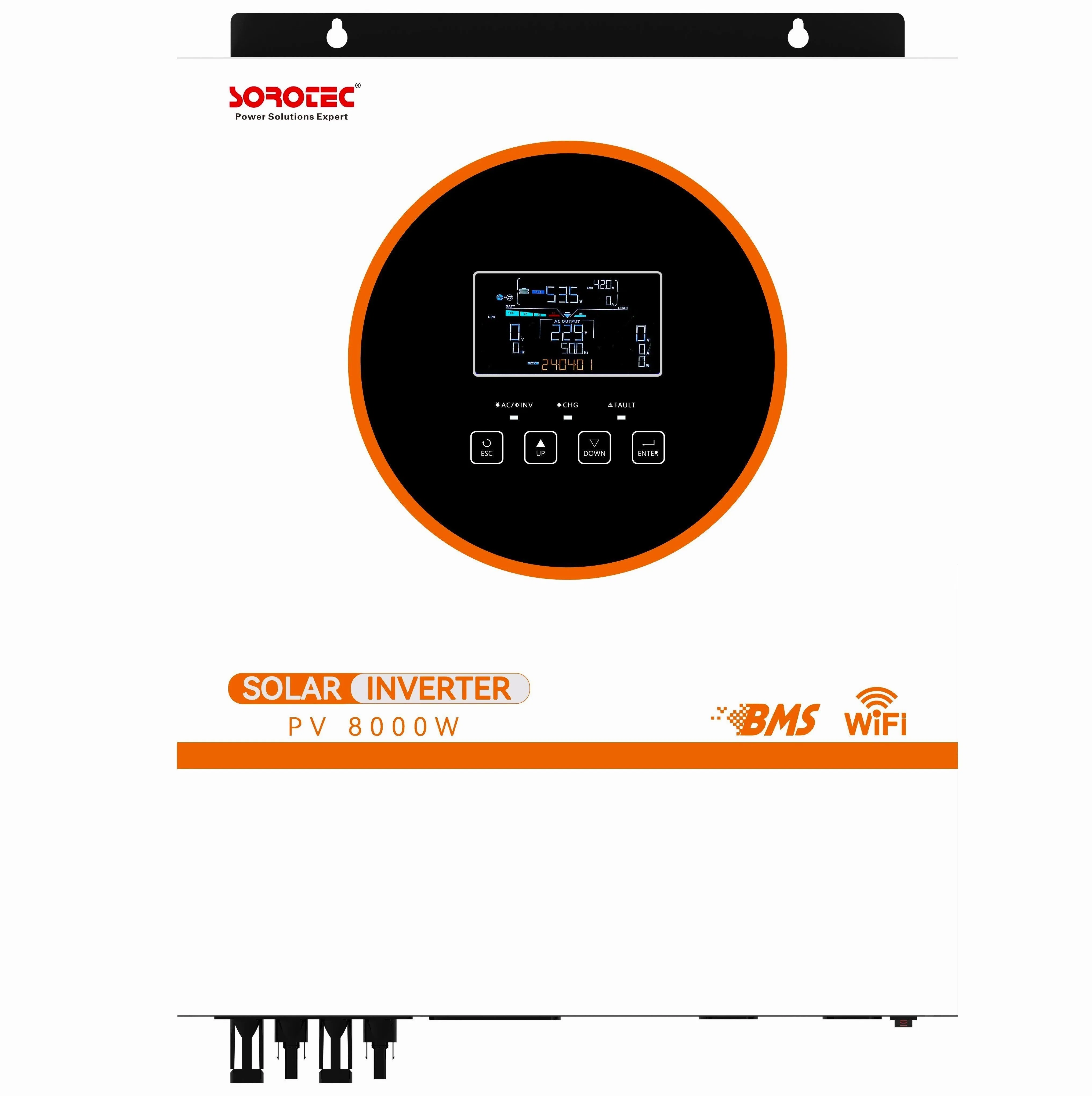

REVO-II Series Touch Display Screen 3-5.5KW Hybrid Solar Inverter

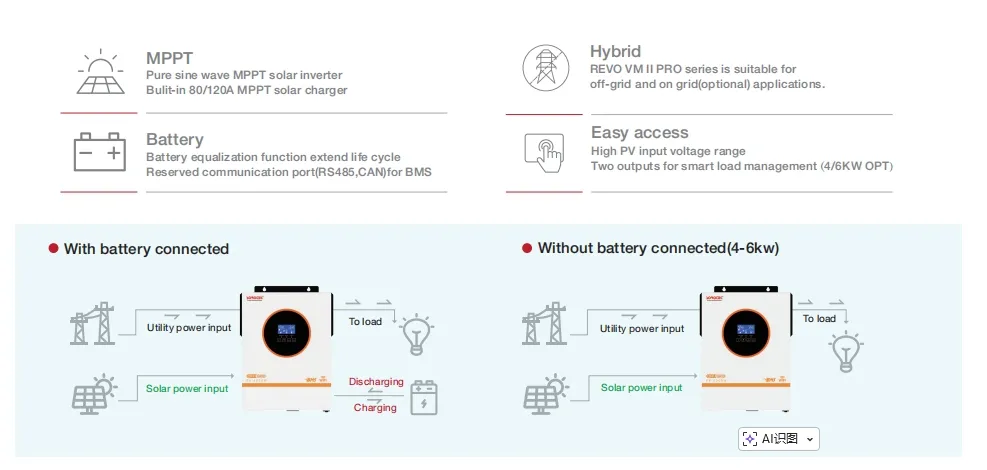

Key Features:

Intuitive Touch Screen Display
Simultaneous PV and Utility Power Load Sharing
Output Power Factor PF=1.0
On & Off Grid with Energy Storage Capability
Built-in Dust Filter for Harsh Environments
Wide PV Input Range (120-450VDC)
Parallel Operation up to 9 Units
Integrated Energy Generation & Fault Records

The REVO VM II PRO is engineered as an affordable yet highly reliable hybrid solar inverter, designed to deliver strong performance in regions where power stability is a daily challenge. With a power range from 1.6kW to 10kW, it supports both Lithium and Lead-acid batteries, ensuring compatibility with a wide range of household and commercial loads.

Product Name	Hybrid Solar Inverter
Model Range	REVO II Series
Output Power	3KW - 5.5KW
Frequency	50 Hz / 60 Hz (Auto Sensing)
Monitoring	WiFi / GPRS Optional

Packaging & Logistics

Package Size70.00cm * 40.00cm * 51.00cm

Gross Weight10.000kg

Why Choose Our Solutions

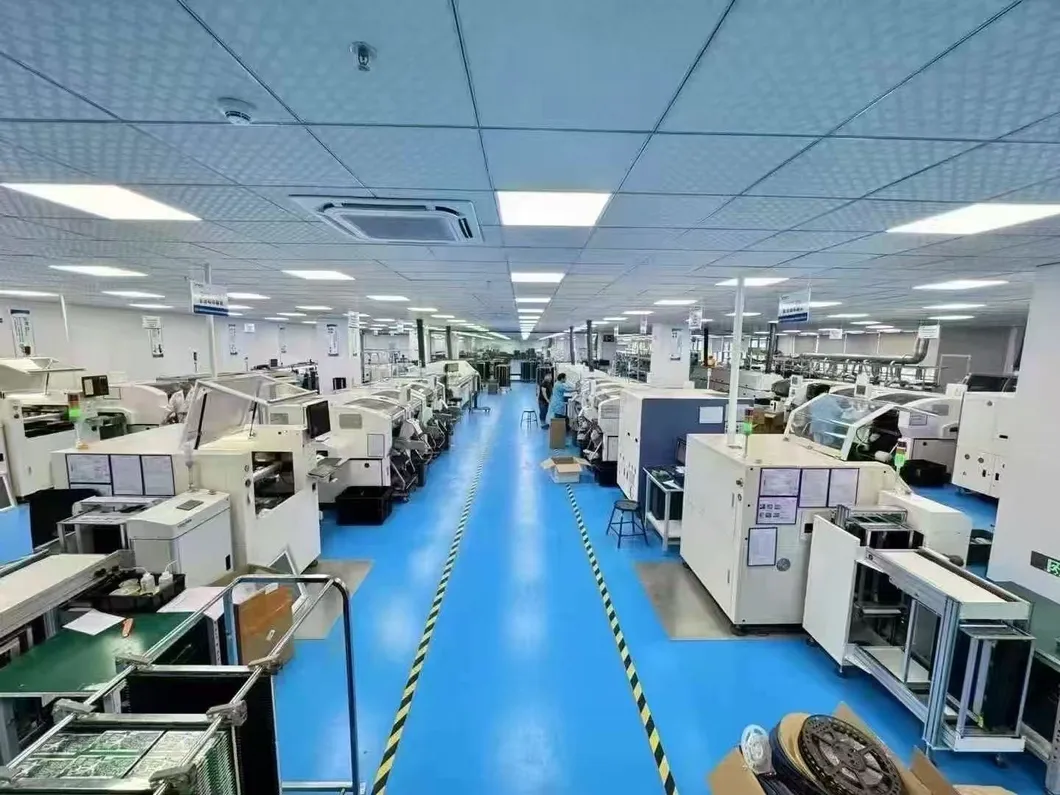

Source Factory Strength

Standardized production lines with independent assembly processes. We offer competitive factory-direct pricing and controllable delivery times for large-scale batch orders.

Global Market Expertise

Deep experience across Africa, Middle East, and Southeast Asia. Our products are optimized for local grid conditions and high-temperature environments.

Strict Quality Control

Full-process quality control mechanism from raw materials to finished products, including rigorous aging and functional testing before shipment.

Frequently Asked Questions

1. How to choose a suitable inverter based on load type?

For resistive loads like bulbs, a modified wave inverter works. However, for inductive or capacitive loads (fans, air conditioners, fridges, computers), we strongly recommend a pure sine wave inverter to ensure long-term equipment life and stability.

2. How do I determine the correct inverter size?

It depends on the load: Resistive loads require the same power as the load; capacitive loads need 2-5 times the load power; inductive loads require 4-7 times the rated power to handle startup surges.

3. What is the recommended cable length between battery and inverter?

Shorter is always better. Standard cables should be less than 0.5M to prevent voltage drops. Long distances can cause the inverter to trigger under-voltage alarms due to reduced voltage at the terminal.

4. How to calculate battery runtime for my load?

Formula: Work Hours = Battery Capacity (AH) * Battery Voltage (V) * 0.8 / Load Power (W). Note: This is a reference value as battery health and loss factors vary.

5. Does this inverter support parallel operation?

Yes, selected models (typically 4kW-10kW) support parallel operation for up to 6 to 9 units, allowing you to scale your system as your energy needs grow.

6. Can I monitor the system remotely?

Yes, the system supports external Wi-Fi or GPRS modules. You can monitor energy generation, load status, and history records via a mobile app or dedicated monitoring software.
