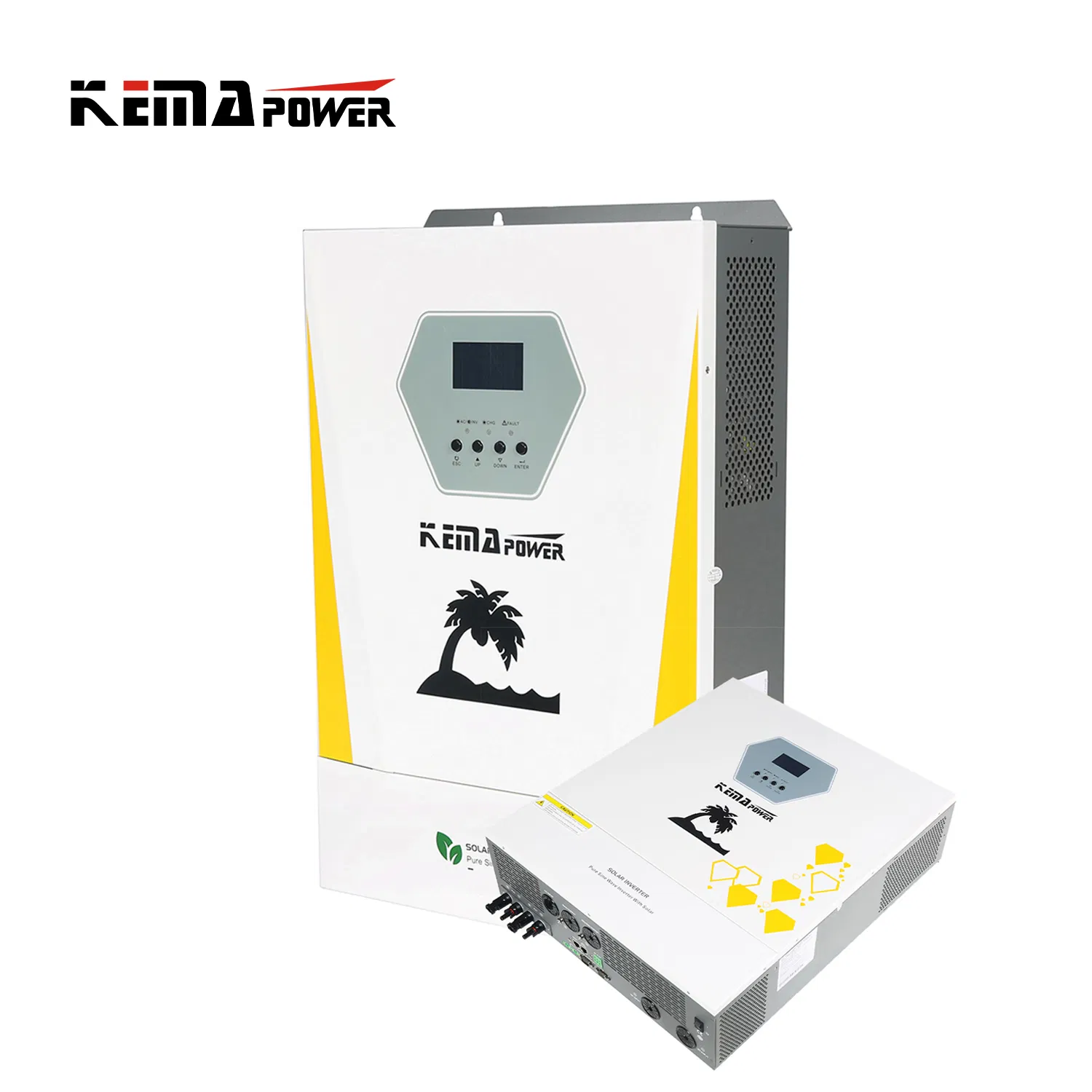

Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
1 / 5
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.
SUB-D
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Charge Controller Solar Hybrid off Inverter
Specification
SUB(SB)3200-24
Origin
China
HS Code
8504403090
Production Capacity
60, 000PCS/Year
Key Features
  • ◈ High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • ◈ 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • ◈ Working without battery during daytime
  • ◈ Support lithium activation wake-up and cold start function
  • ◈ Auto restart while AC is recovering
  • ◈ Intelligent power supply mode & Distribution of solar/mains/battery power
  • ◈ Adjustable AC and PV charge voltage for various battery types
  • ◈ Selectable Lead acid / Lithium battery charging parameters
  • ◈ Energy complementation between Solar, Grid, and Battery
  • ◈ Communication: RS232, BMS/RS485, Dry Contact
  • ◈ WiFi Plug or GPRS option for Mobile App monitoring

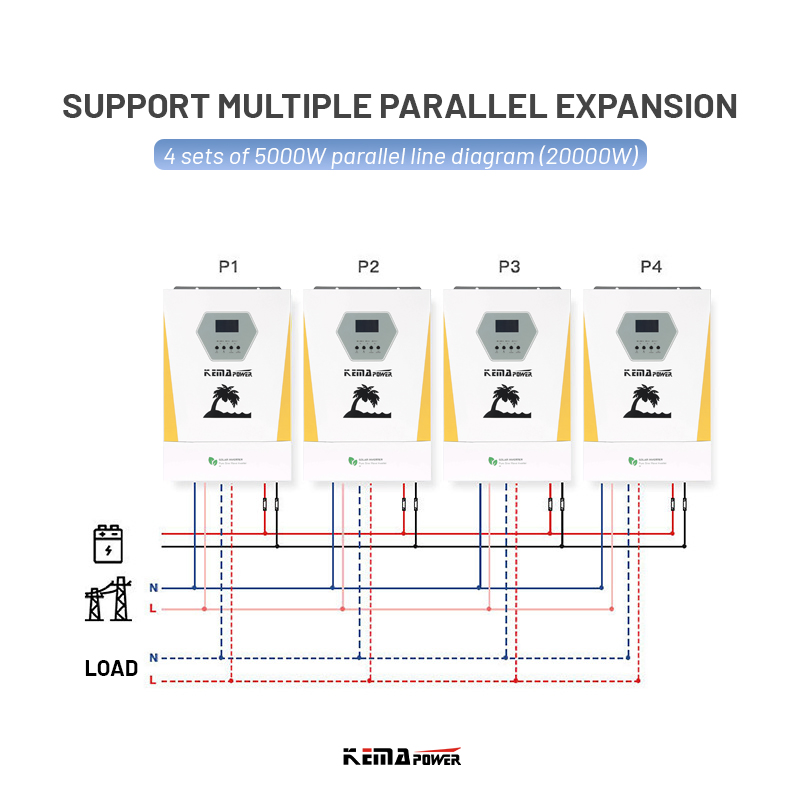

  • ◈ 6.2KW/11KW models support parallel function up to 9 units
  • ◈ Wide MPPT range up to 500VDC
  • ◈ Pure sine wave output suitable for sensitive loads
  • ◈ Comprehensive protection: Overload, Temp, Short-circuit, Battery Low/Reverse
Technical Specifications
ITEM / Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048 SUB-D-6248GP SUB-D-11048GP
INPUT Rated Power 3KW 3.6KW 6.2KW 11KW 6.2KW 11KW
Voltage 220/230/240VAC (90-280VAC Selectable)
OUTPUT Efficiency PV to INV: 97%; Battery to INV: 94%
Waveform Pure sine wave
Parallel N/A N/A N/A N/A Max 9PCS Max 9PCS
BATTERY Voltage 24 VDC 48 VDC
Max Charge 100A 120A 120A 150A 120A 150A
SOLAR Max PV Array 3KW 4.2KW 6.2KW 2*5.5KW 6.2KW 2*5.5KW
MPPT Range 50-500VDC 150-500VDC
Product Display

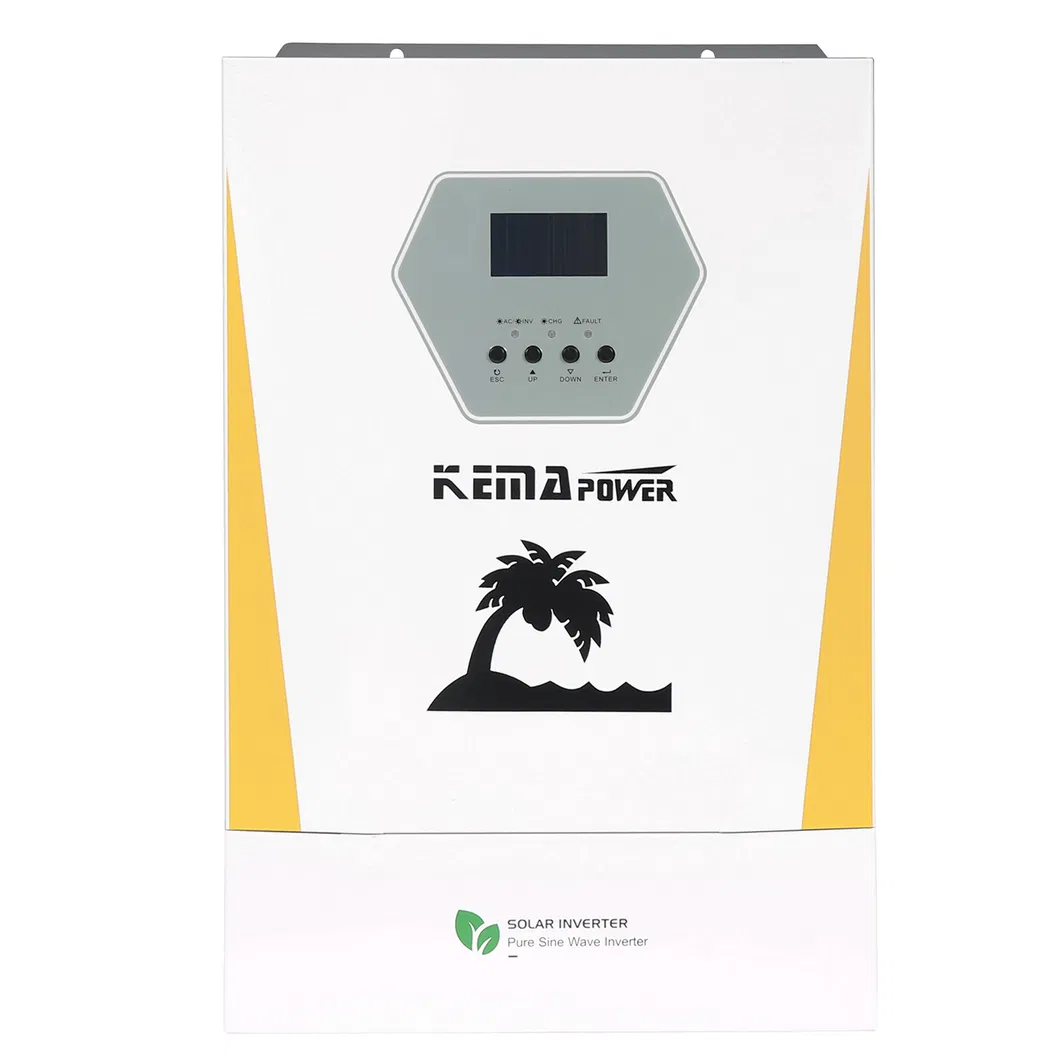

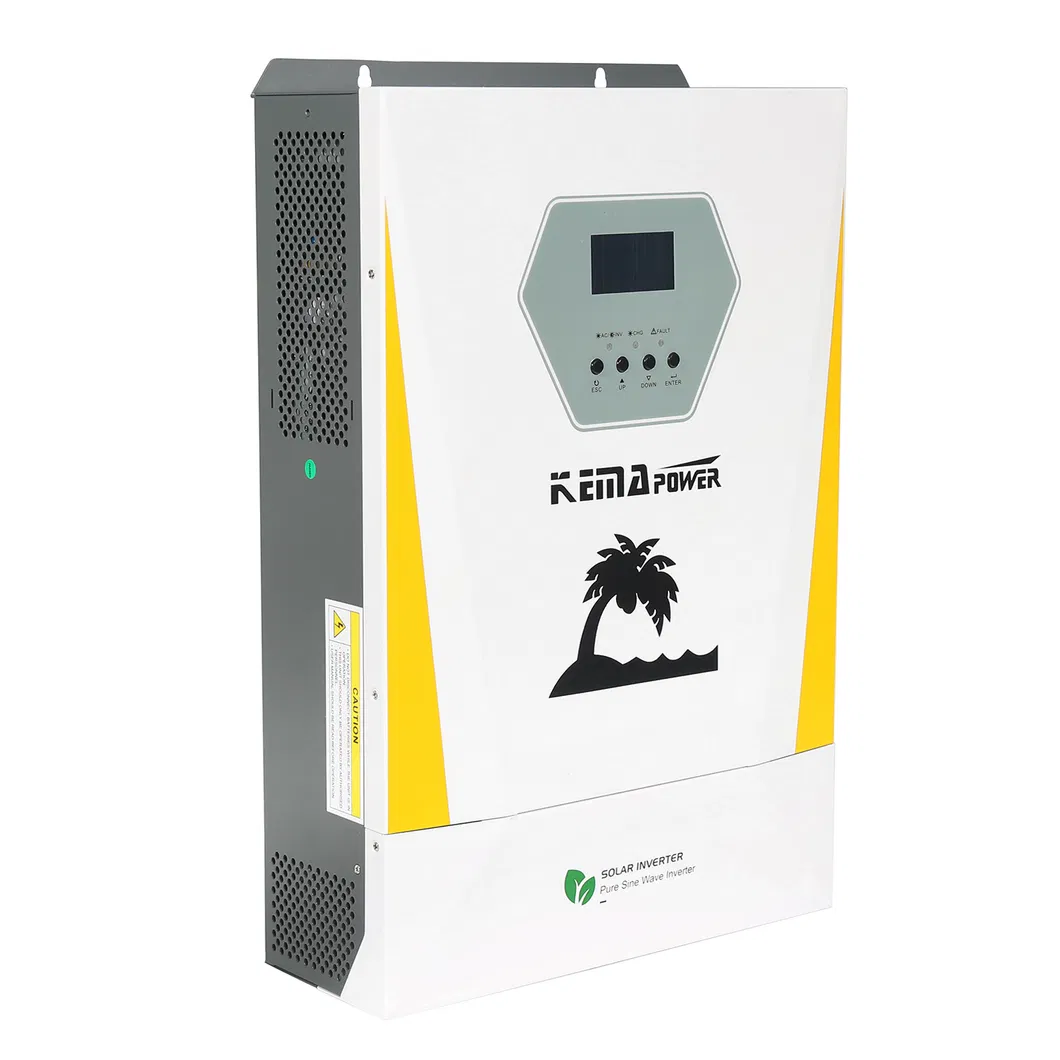

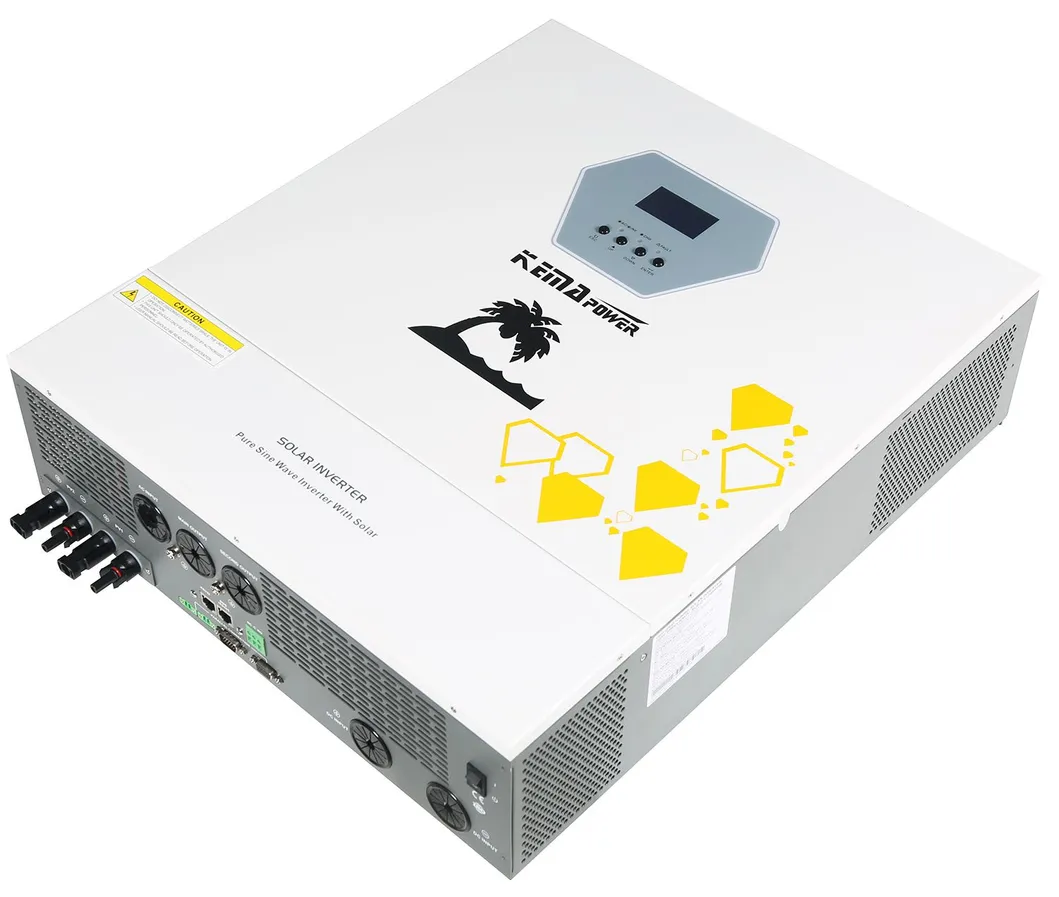

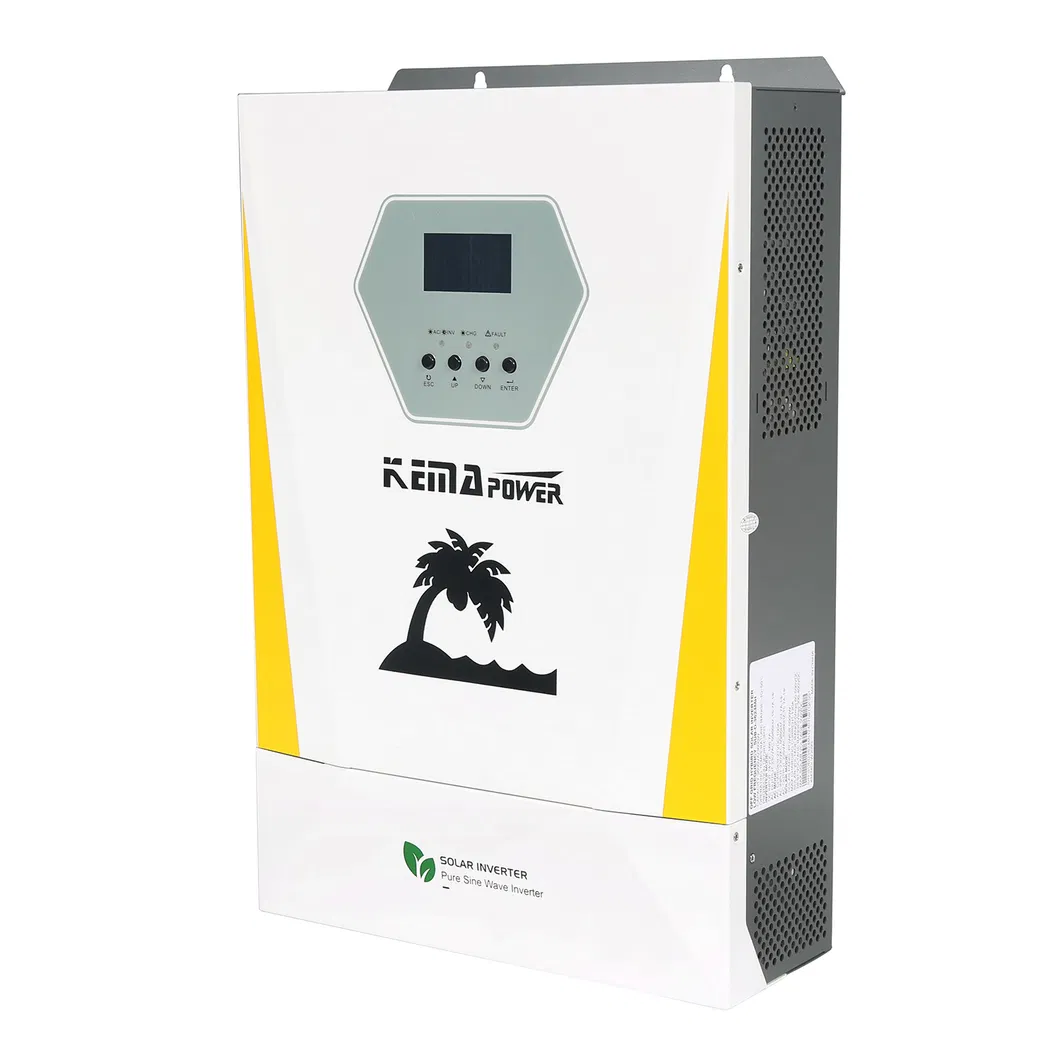

Hybrid off Grid Solar Inverter Front View Hybrid off Grid Solar Inverter Side View Hybrid off Grid Solar Inverter Back View

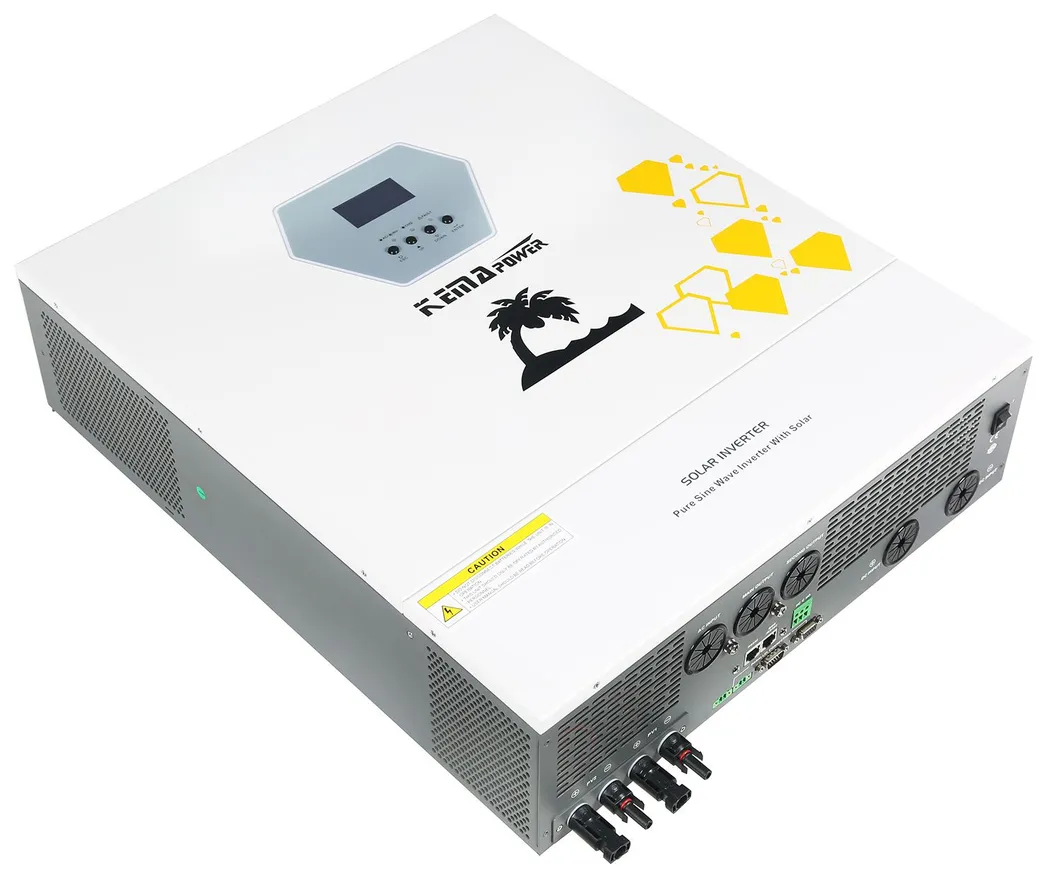

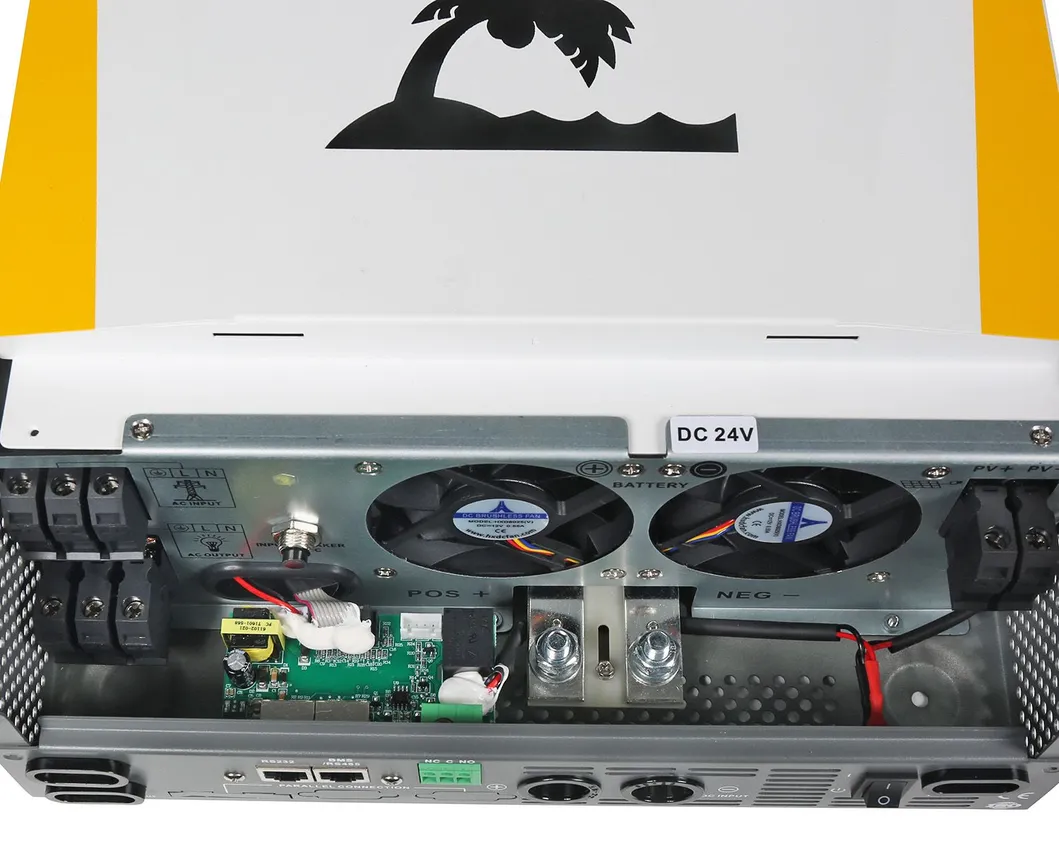

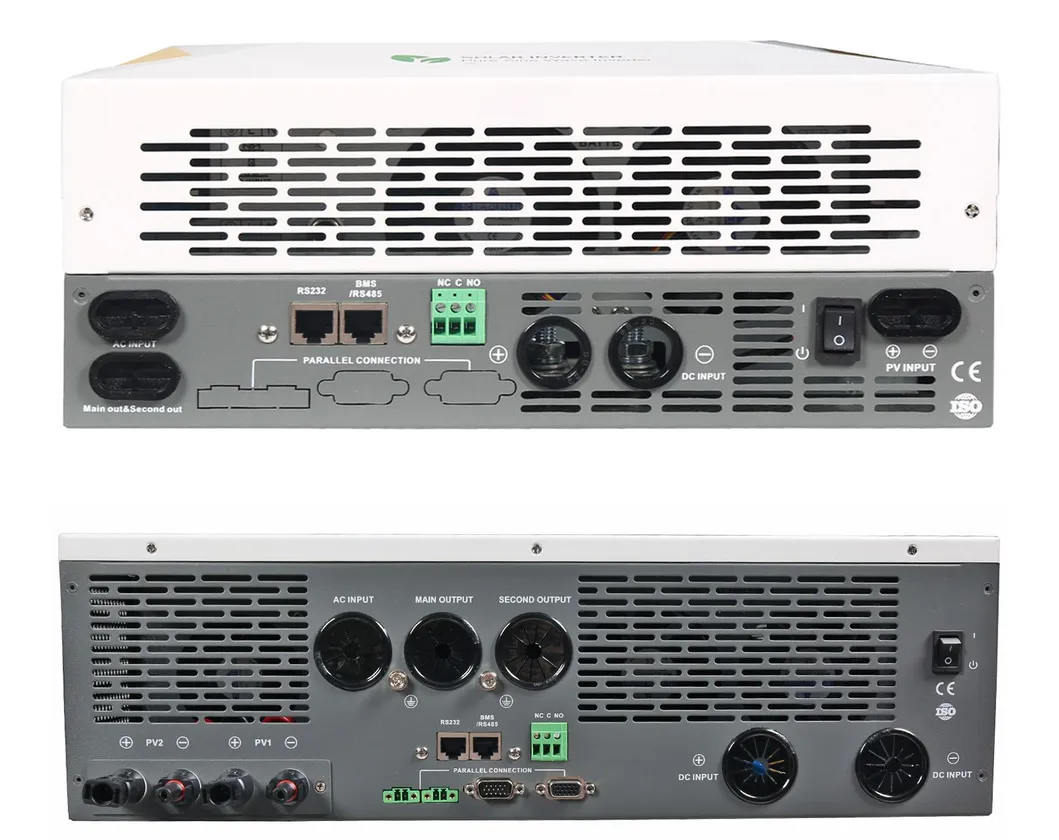

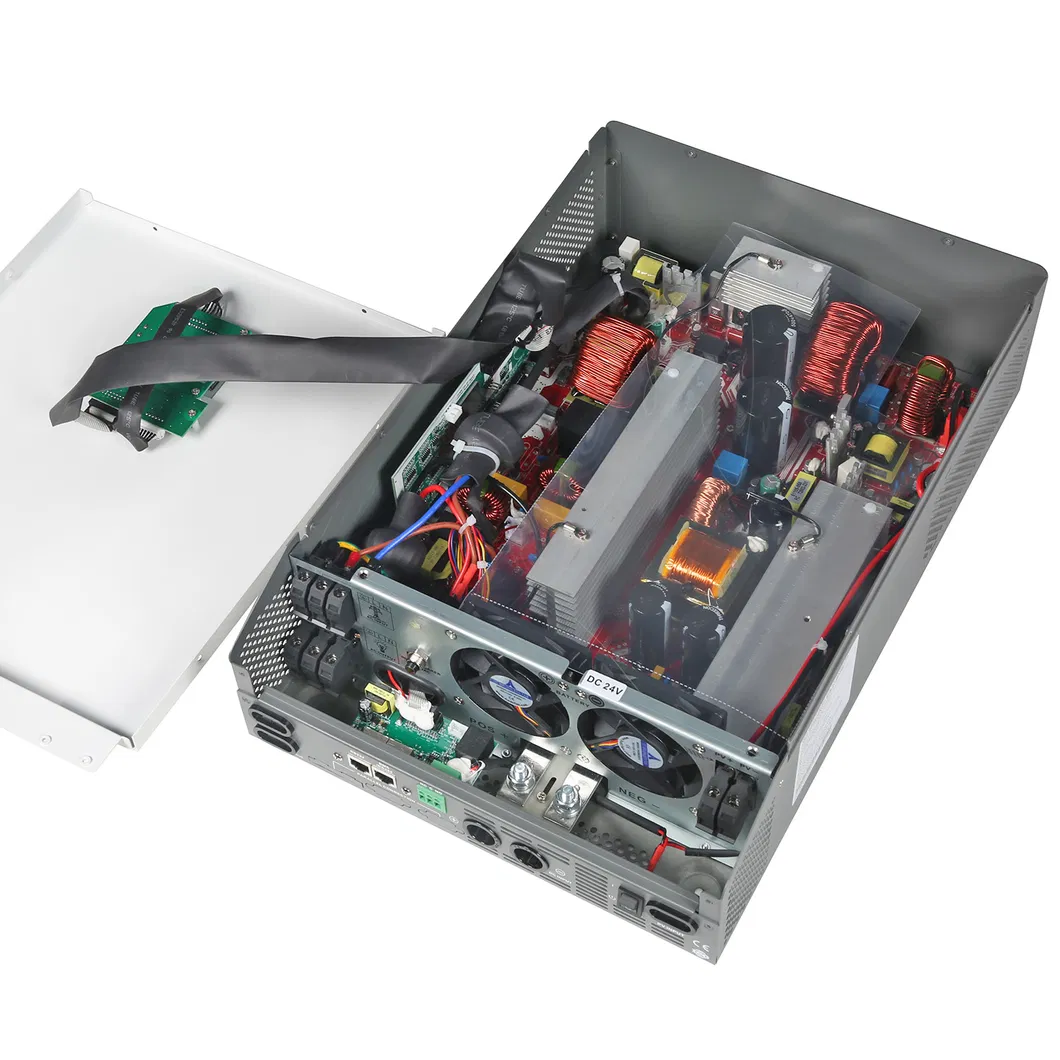

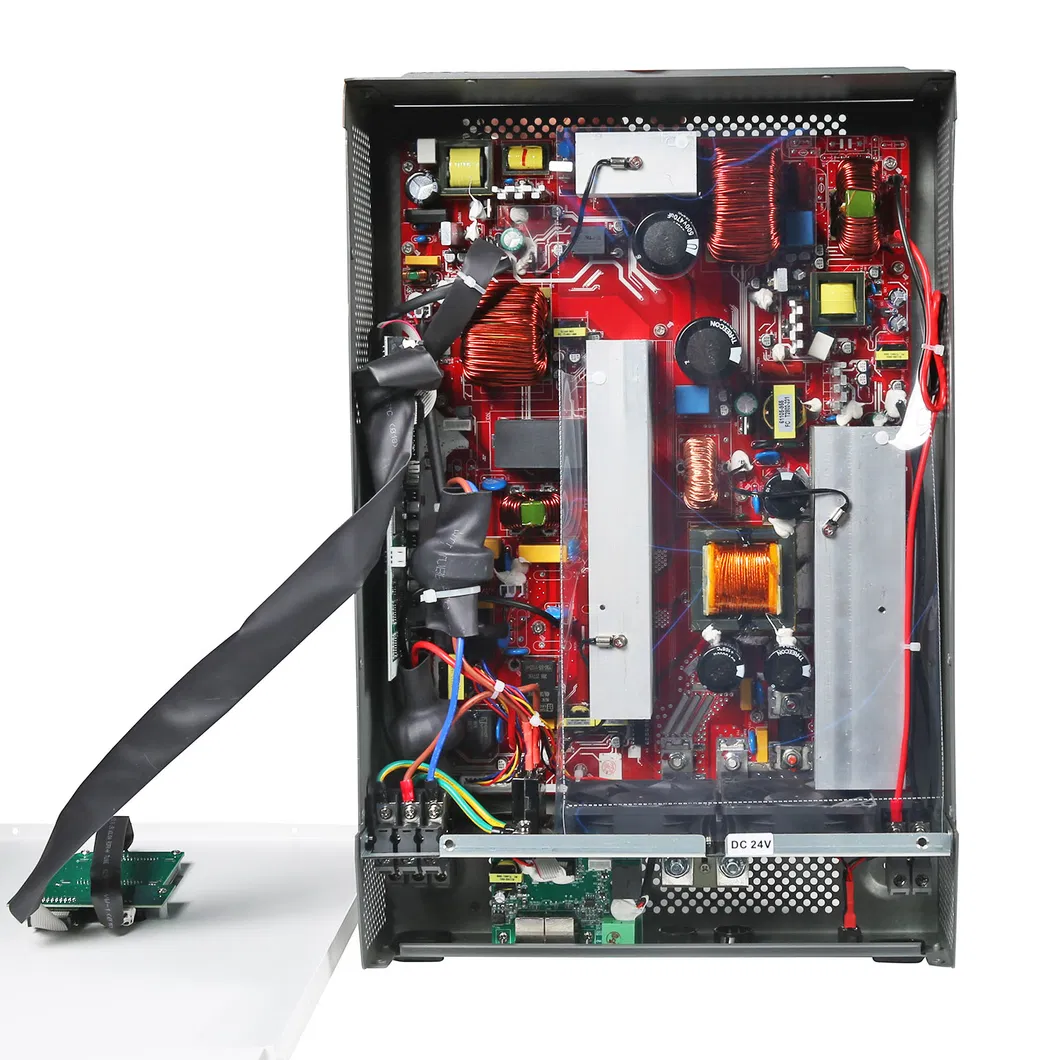

Inverter Internal Components Inverter Connection Ports

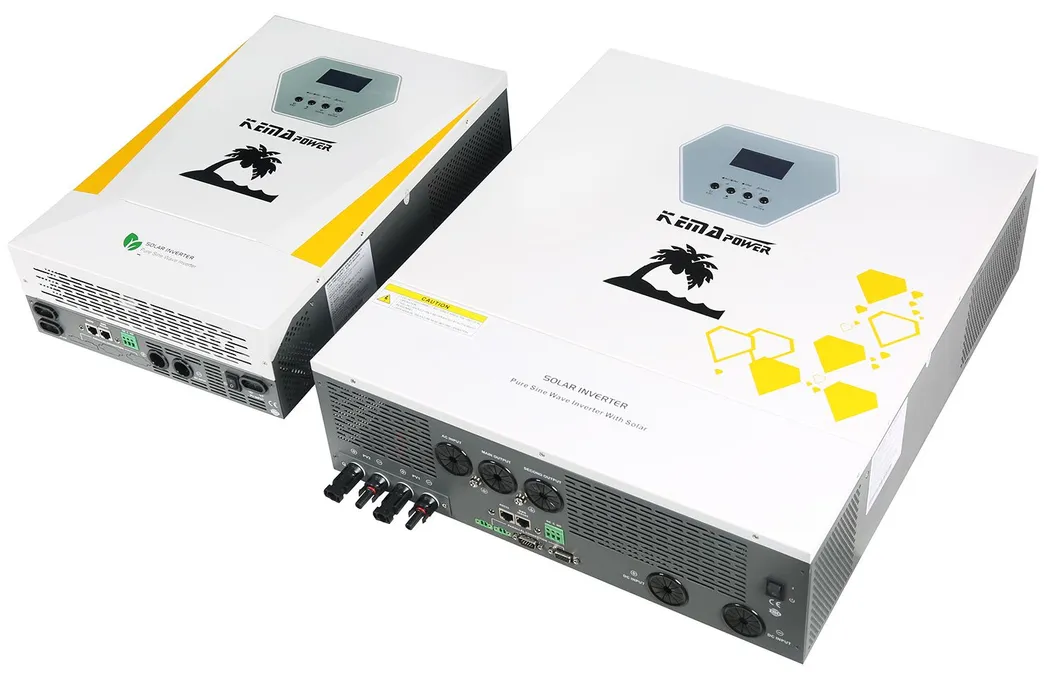

Inverter Display Screen Application Scenario 1 Application Scenario 2

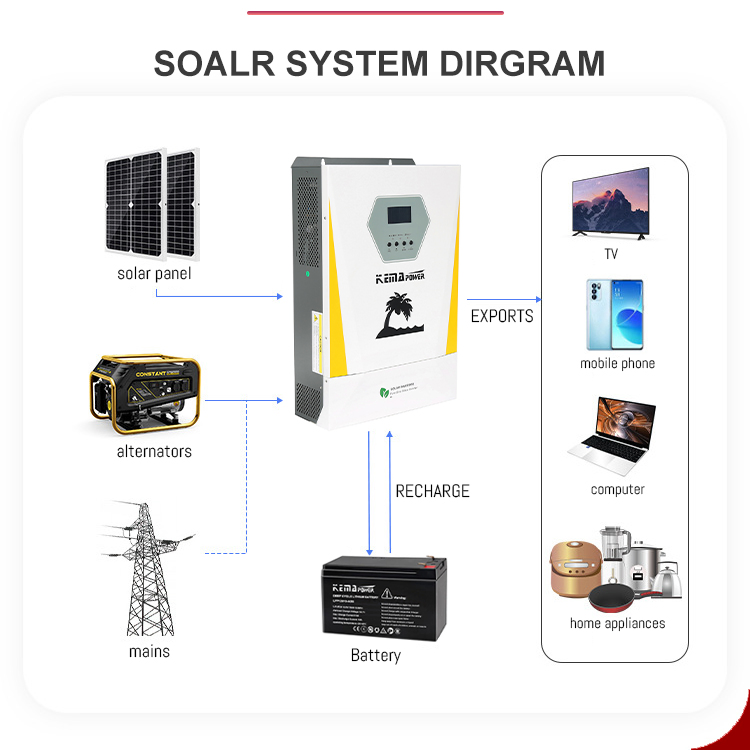

Solar Power System Diagram Inverter Packaging
Technical Detail 1 Technical Detail 2 Technical Detail 3 Technical Detail 4
Frequently Asked Questions
Can this hybrid inverter work without a battery?
Yes, the SUB-D series is designed to support operation without a battery during the daytime, utilizing solar power directly to support the loads.
Does it support parallel connection for higher power needs?
The 6.2KW and 11KW models feature a parallel function, allowing you to connect up to 9 units in parallel to expand your system capacity.
What types of batteries are compatible with this system?
The inverter is compatible with both Lead-acid and Lithium batteries. It also includes a specialized lithium battery activation wake-up function.
What is the maximum efficiency of the unit?
The inverter achieves a peak efficiency of 97% when converting from PV to Inverter, and 94% when operating from Battery to Inverter.
What kind of remote monitoring options are available?
Users can opt for a WiFi Plug or GPRS module, which enables remote monitoring and management via a mobile application.
What safety protections are built into the inverter?
The system includes comprehensive protection for overload, over-temperature, short-circuits, low battery voltage, and battery reverse connection.
