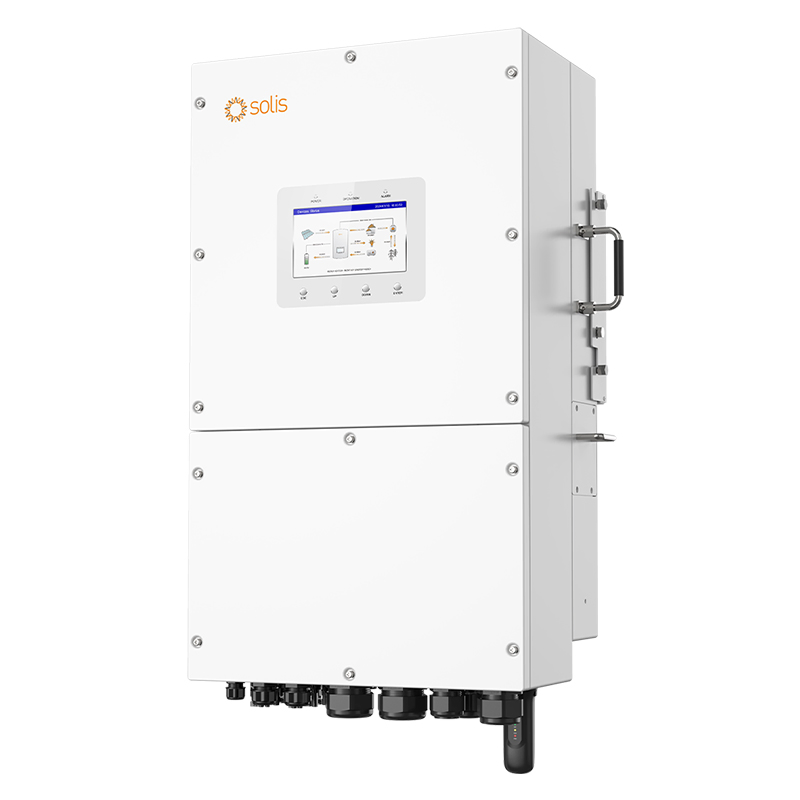

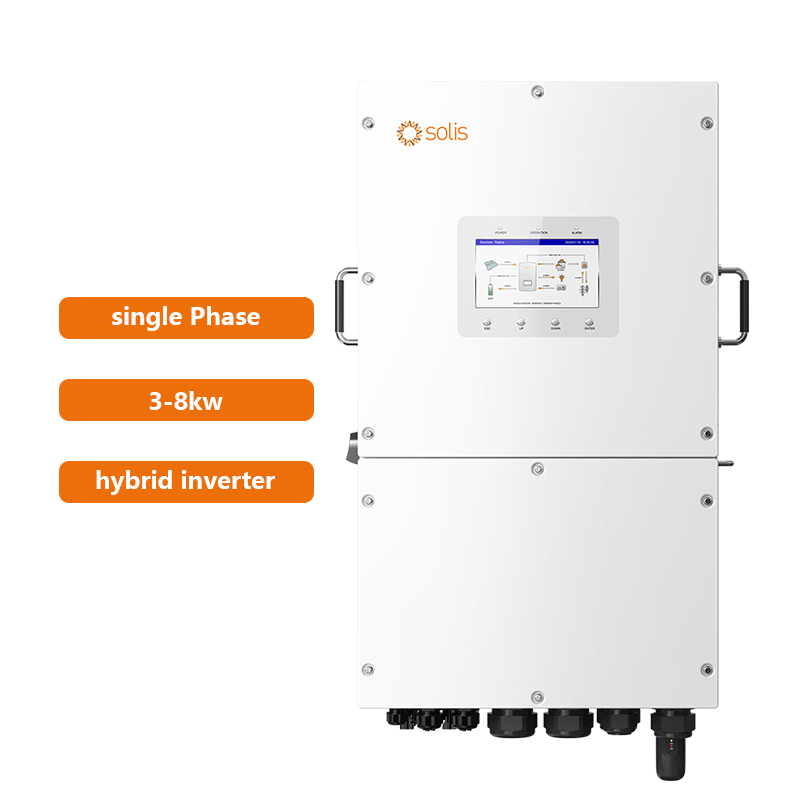

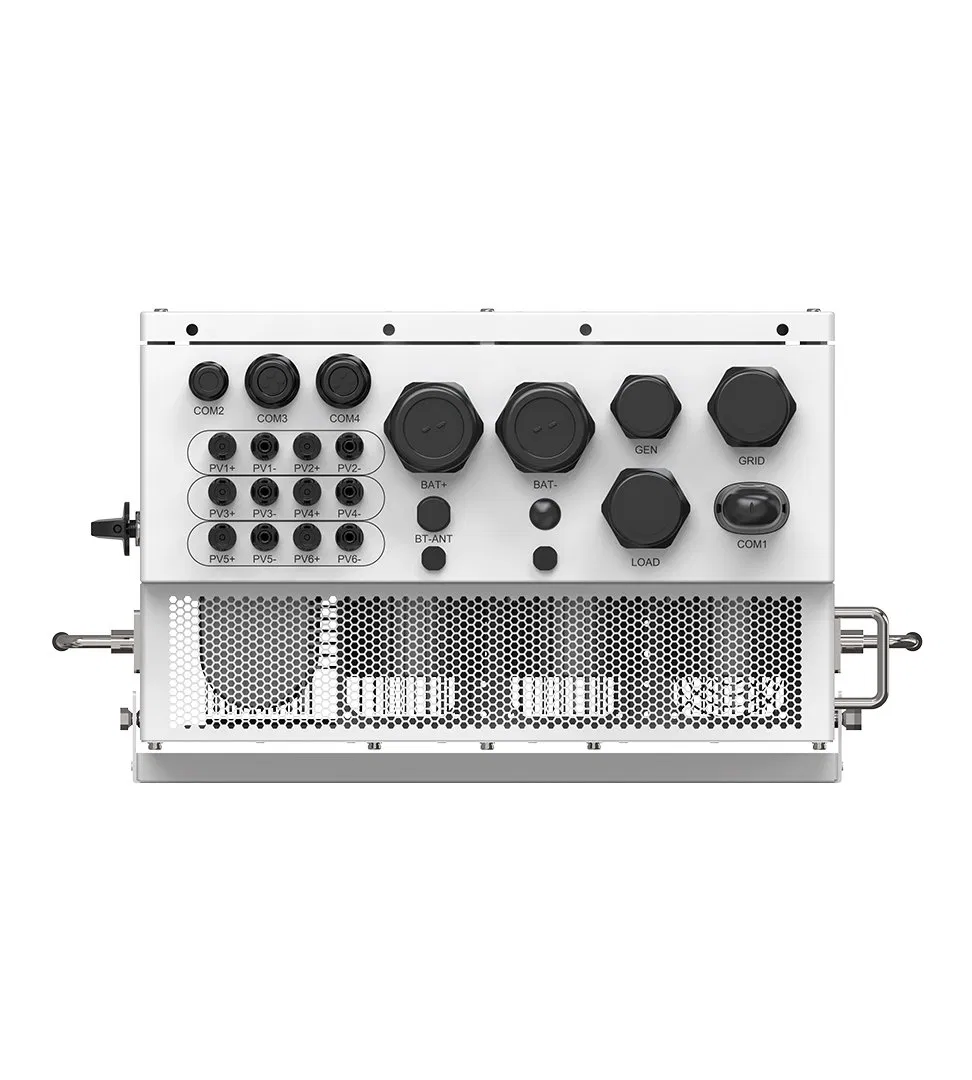

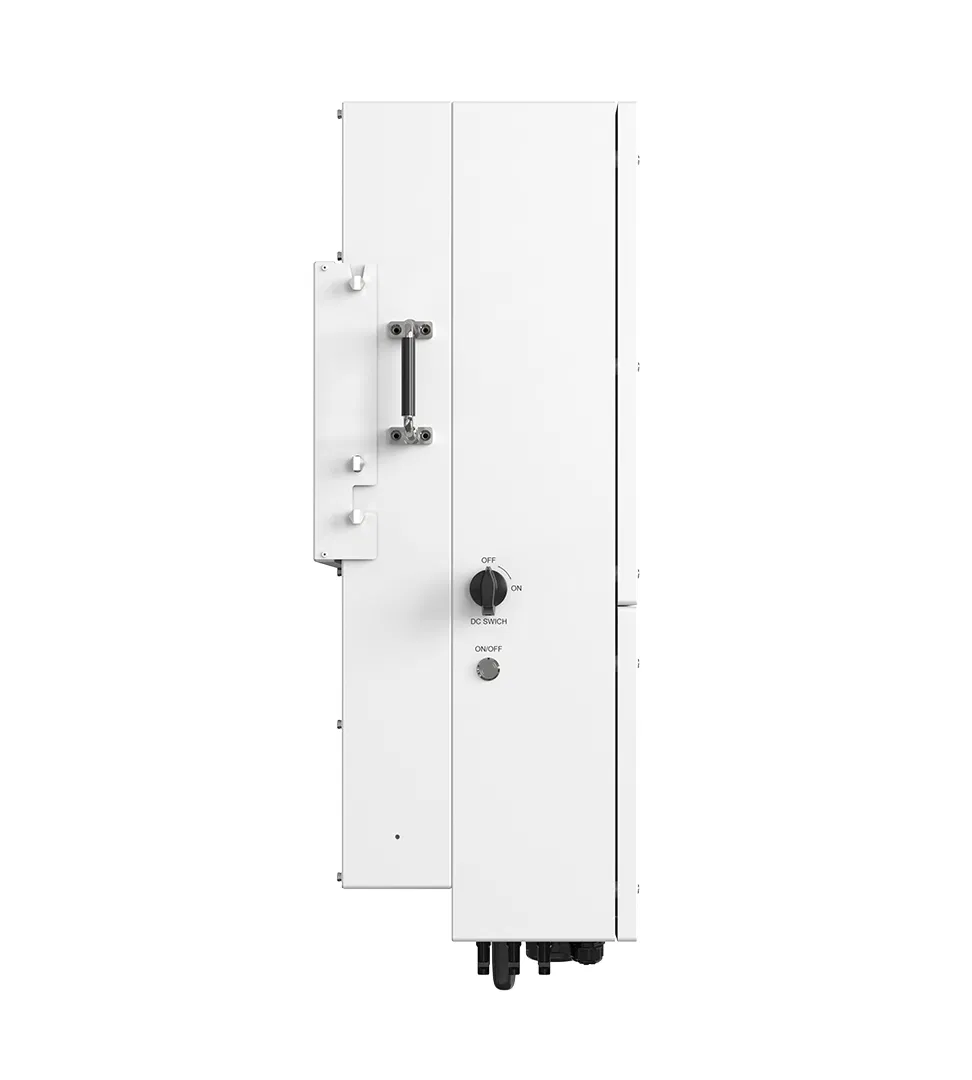

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
S6-EH1P(3-8)K-L-PLUS
Phase
Single
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Solis
Type
DC/AC Inverters
Power Source
Solar Power
Input Voltage
500V
Output Voltage
220V/230V
Output Frequency
50 Hz / 60 Hz
Communication
RS485, Can, Optional: Wi-Fi, GPRS, LAN
Protection
IP66
Battery Type
Lead Acid / Lithium
Specification
335 * 560 * 227 mm
Product Description
Solis Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS: Single Phase Low Voltage Energy Storage Inverter available in 3kw, 3.6kw, 5kw, 6kw, and 8kw capacities.
Solis Hybrid Inverter Overview

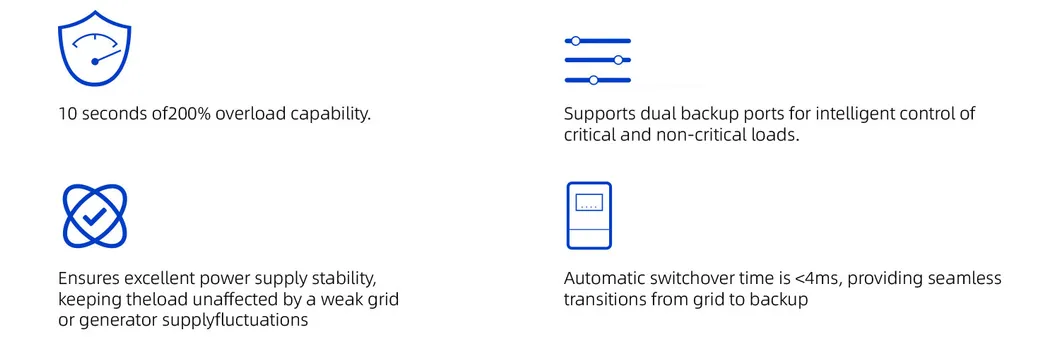

Solis Hybrid Inverter Features
Product Parameters
Models 3K 3.6K 5K 6K 8K
Input DC (PV side)
Max. PV array size6 kW7.2 kW10 kW12 kW16 kW
Max. input voltage500 V
MPPT voltage range90-435 V
Max. input current16 A / 16 A32 A / 32 A
Battery
Battery typeLi-ion / Lead-acid
Battery voltage range40-60 V
Max. charge/discharge power3 kW3.6 kW5 kW6 kW8 kW
Output AC (Grid side)
Rated output power3 kW3.6 kW5 kW6 kW8 kW
Rated grid voltage220 V / 230 V
Back-up switch time< 4ms
Efficiency
Max. efficiency97.5%
EU efficiency96.5%
Basic System Architecture

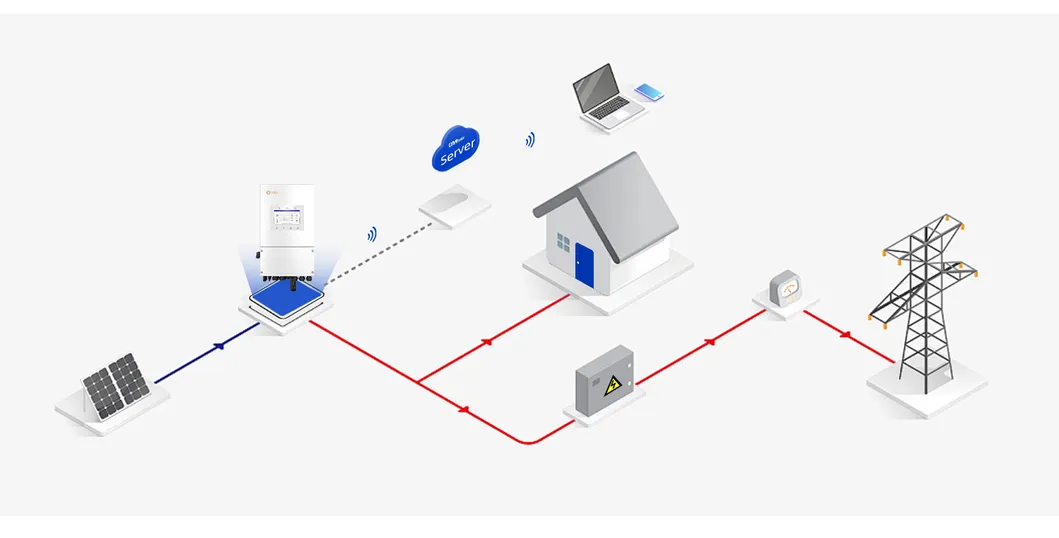

System Architecture Diagram
Packaging & Shipping

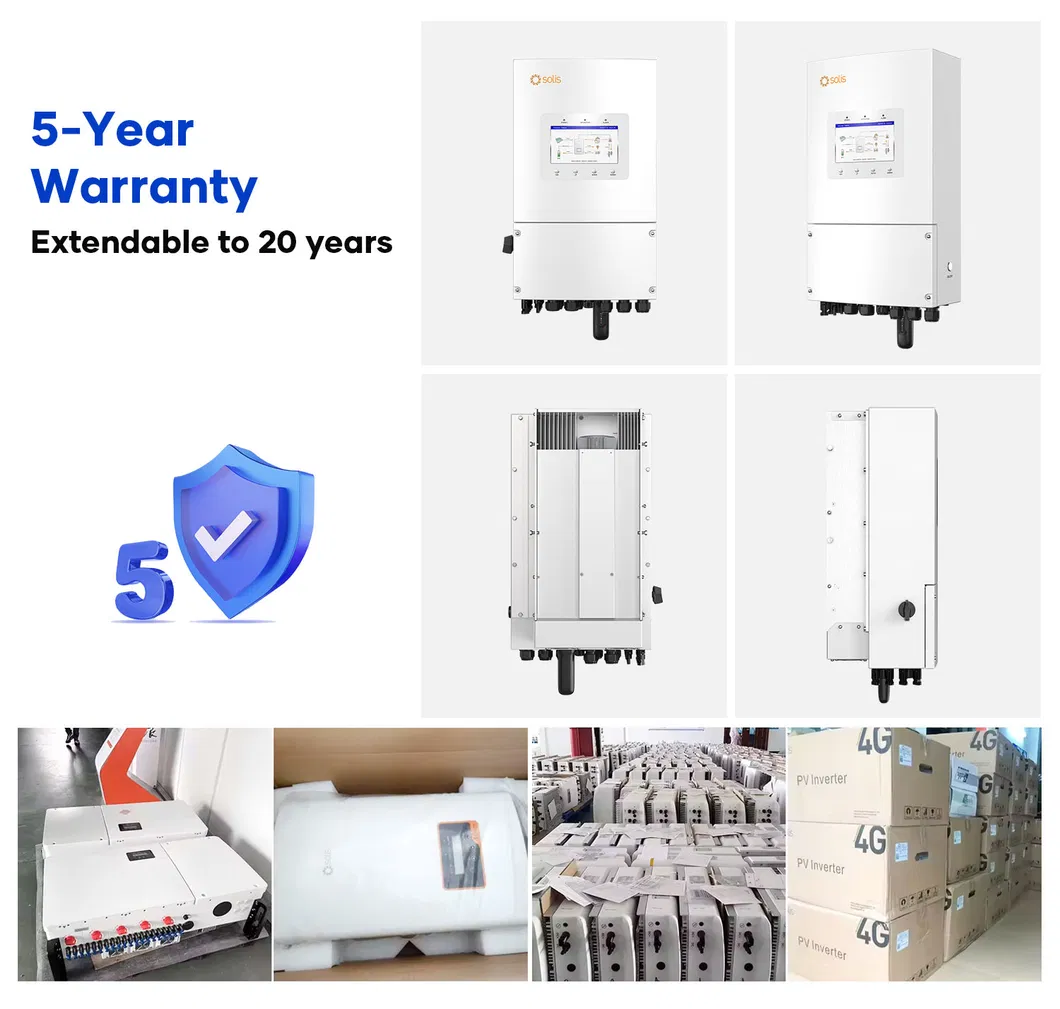

Packaging Details
Project Cases

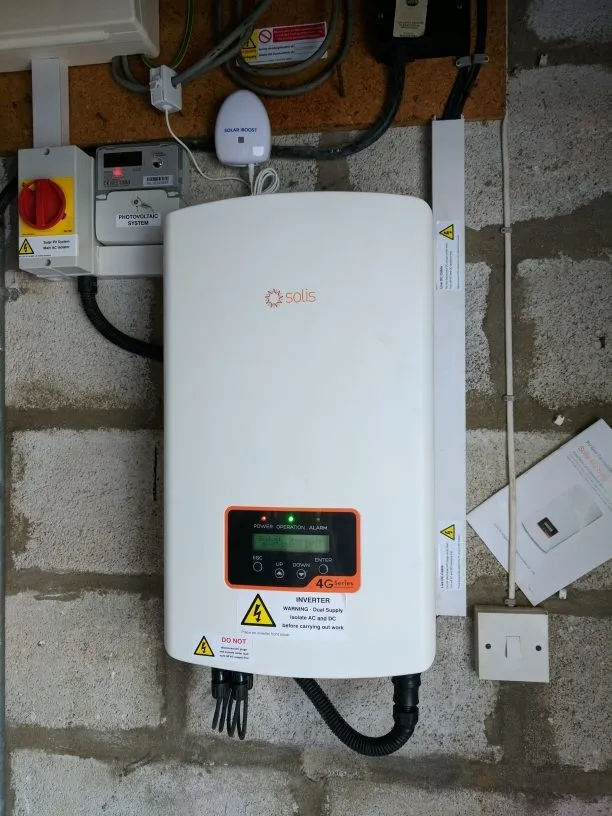

Project Case 1

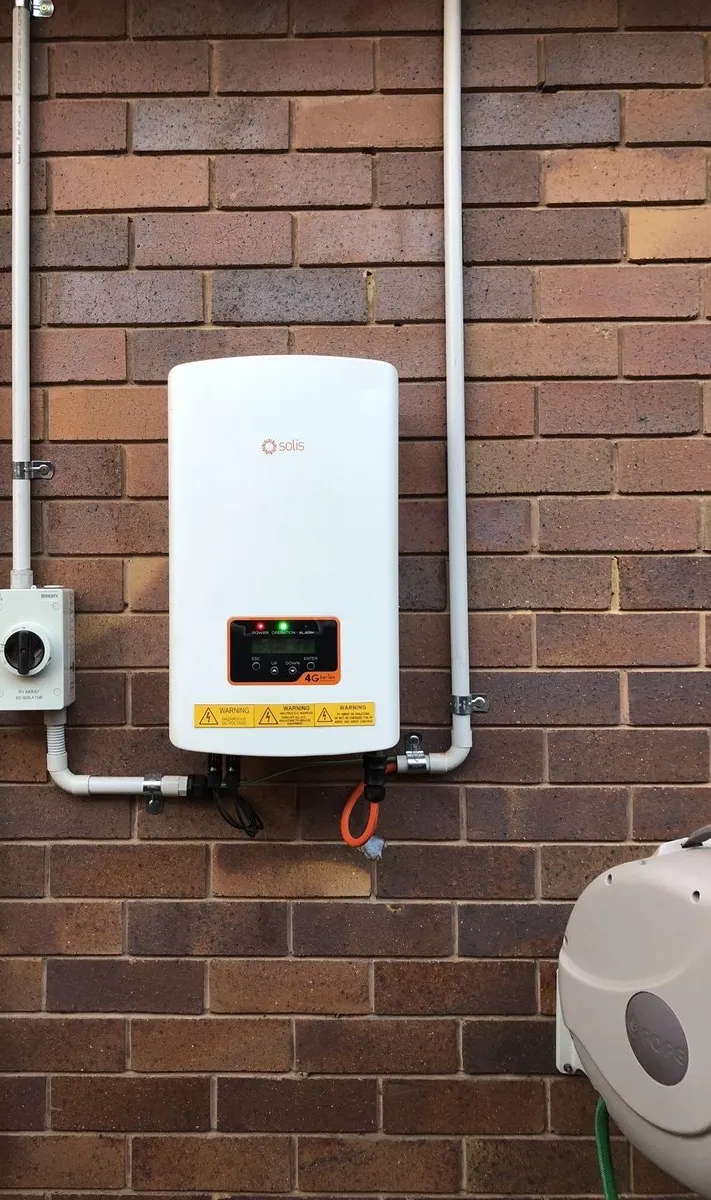

Project Case 2

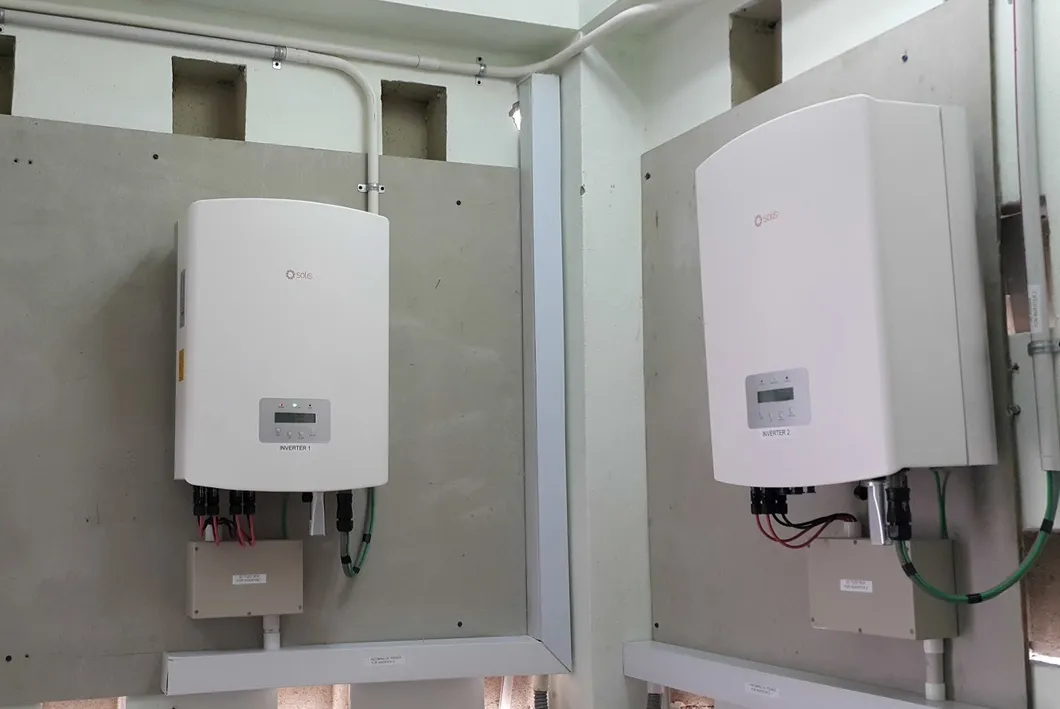

Project Case 3

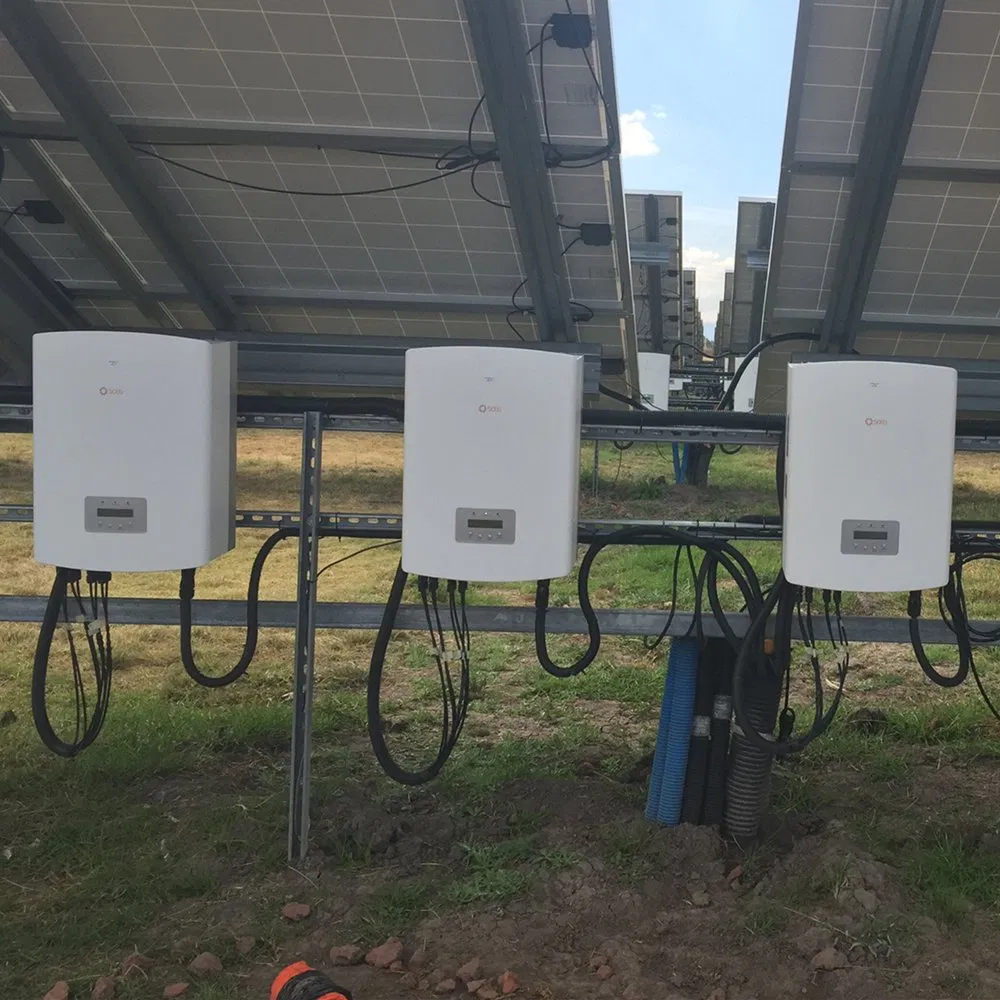

Project Case 4

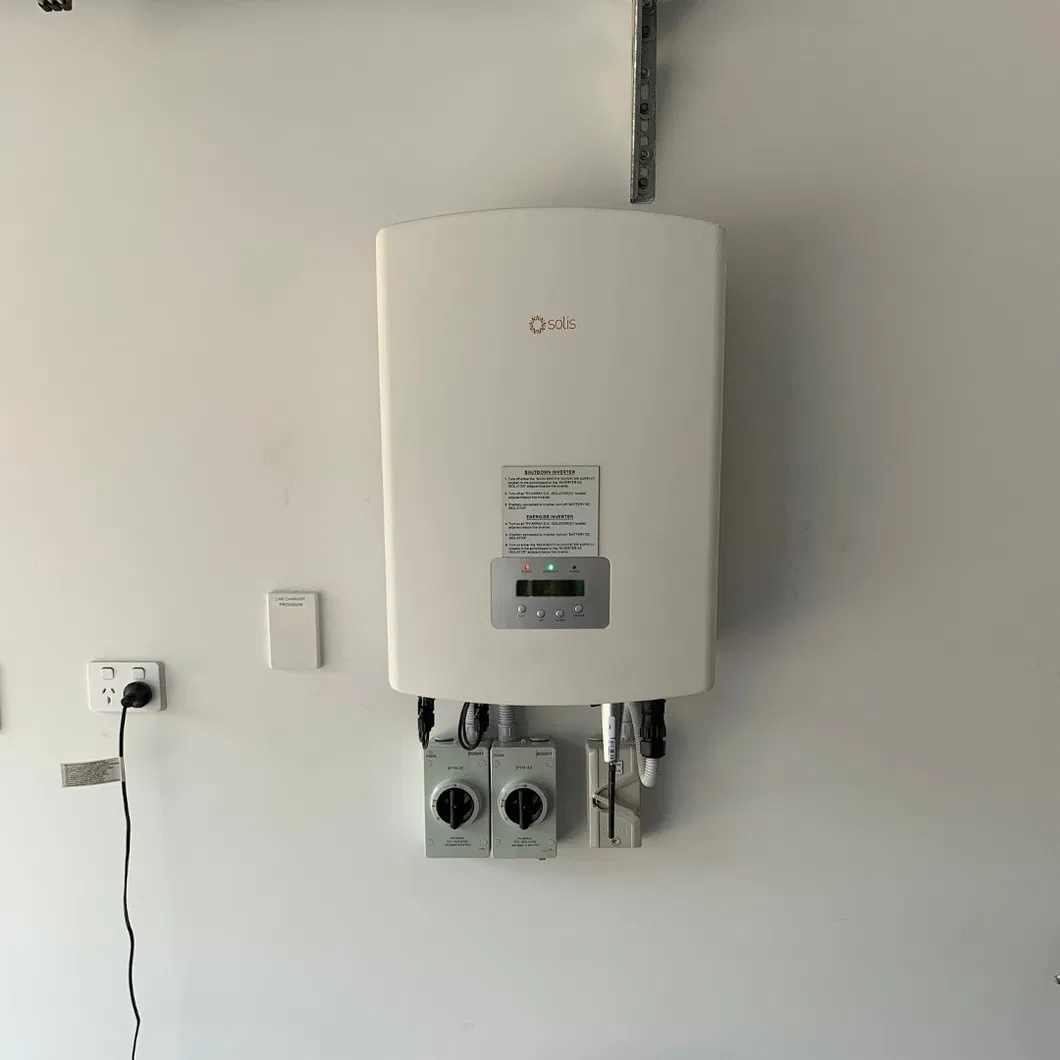

Project Case 5
Frequently Asked Questions
What battery types are compatible with the S6-EH1P series?
The inverter is compatible with both Lithium-ion and Lead-acid batteries, providing flexibility for different energy storage needs.
How fast does the inverter switch to back-up mode during a power outage?
The back-up switch time is less than 4ms, ensuring an almost instantaneous transition to keep your critical loads running.
Is this inverter suitable for outdoor installation?
Yes, it features an IP66 ingress protection rating, making it highly resistant to dust and powerful water jets, suitable for various outdoor environments.
What is the maximum efficiency of the Solis Hybrid Inverter?
The series achieves a maximum efficiency of 97.5%, with an EU efficiency rating of 96.5%.
What monitoring options are available?
Standard communication includes RS485 and CAN. Optional modules are available for Wi-Fi, GPRS, and LAN connectivity for remote monitoring.
What is the operating temperature range for this device?
The inverter is designed to operate in a wide temperature range from -40°C to +60°C.
