off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

1 / 5

off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

SUB-D

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Sine Wave Inverter

Specification

3KW-11KW

Origin

China

★

Off Grid Hybrid Solar Inverter SUB-D 3-11KW

KEY FEATURES

High Frequency off grid hybrid solar inverter, PF=1

3 in 1 design: Power Inverter + MPPT controller + Grid Charger

Working without battery during daytime

Support lithium activation wake-up and cold start function

Intelligent power supply mode: Distribution of solar/mains/battery power

Adjustable Charge Current & Voltage (Lead acid / Lithium)

WiFi Plug or GPRS option for Mobile App monitoring

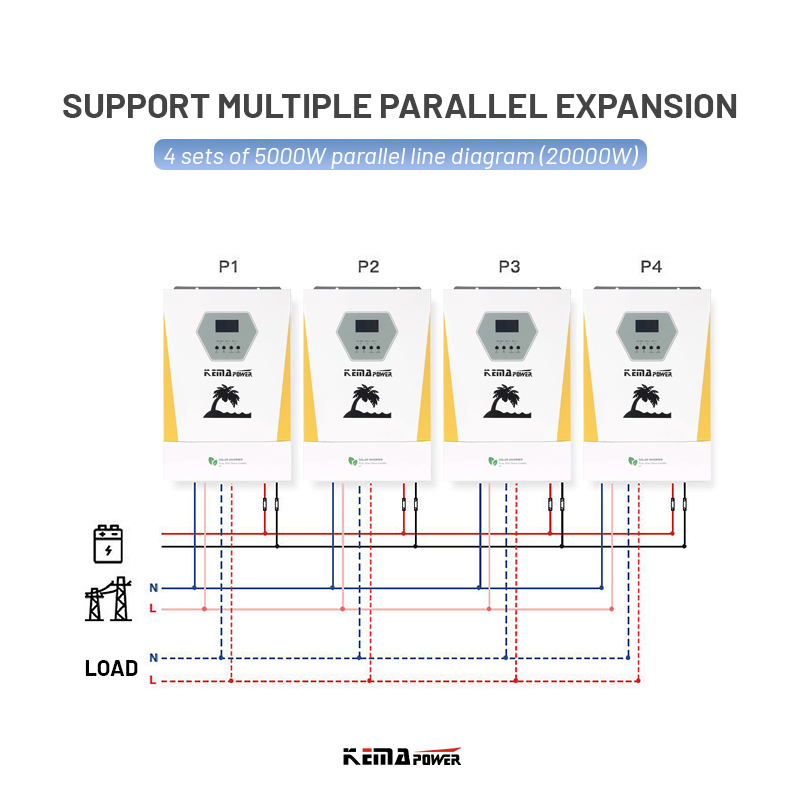

6.2KW/11KW models support parallel function up to 9 units

Wide MPPT range 40-500VDC / 120-500VDC

Pure sine wave output suitable for various loads

🖼

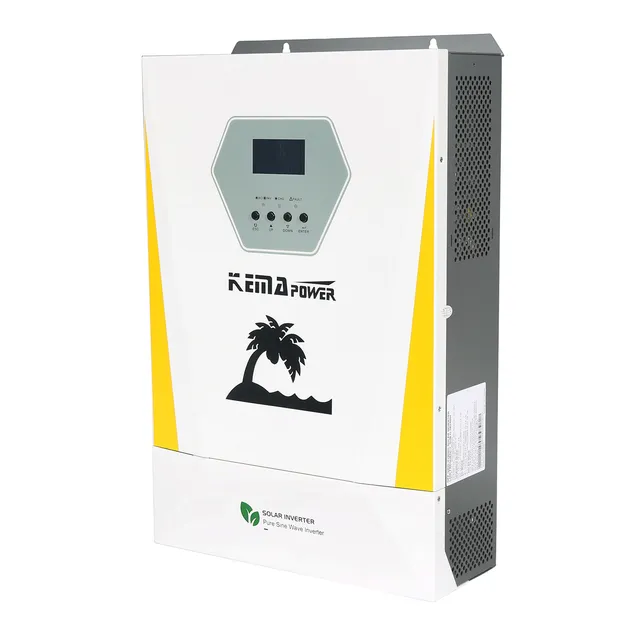

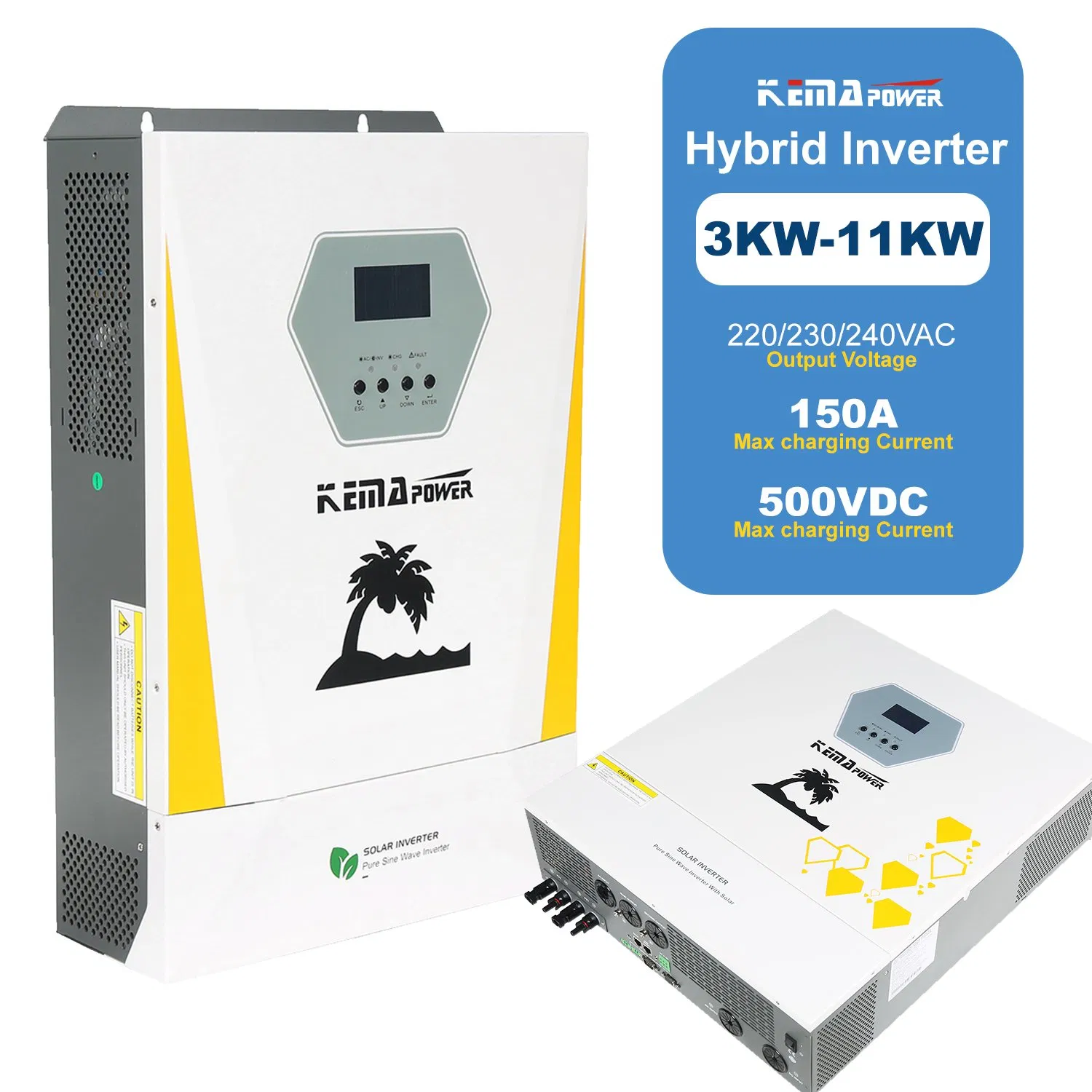

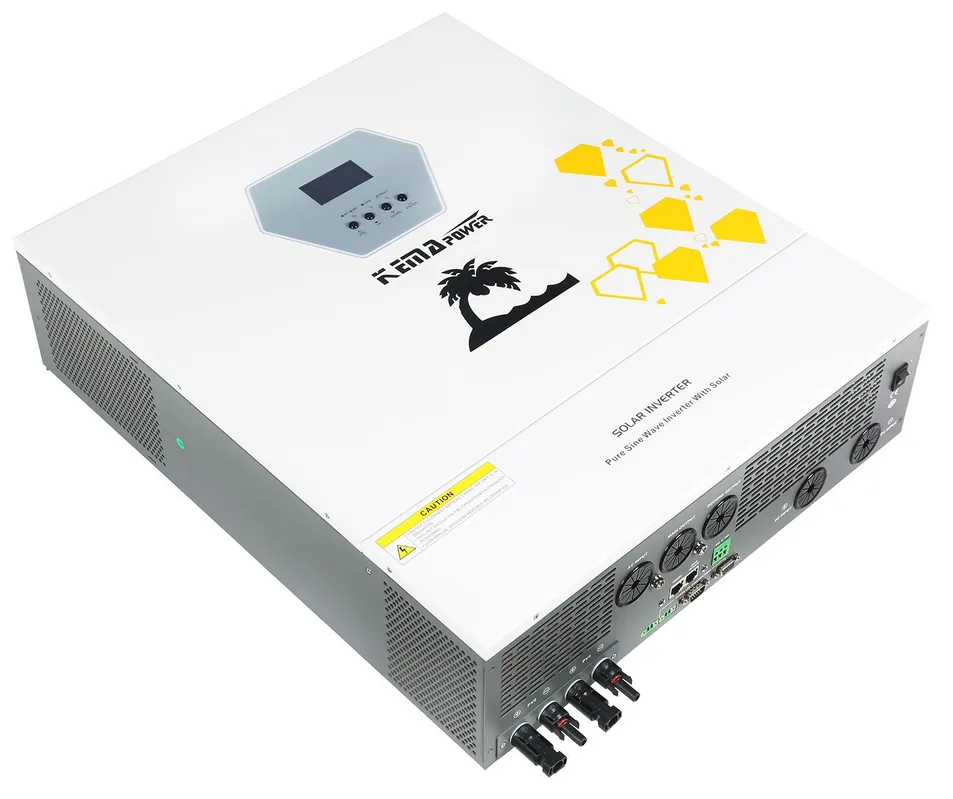

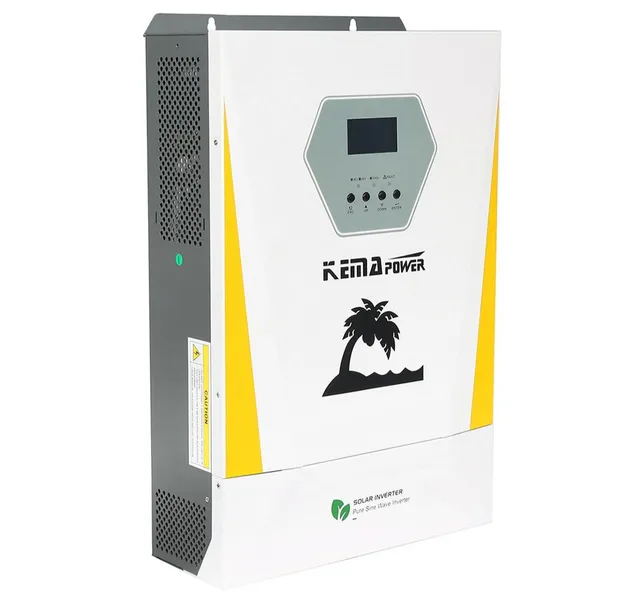

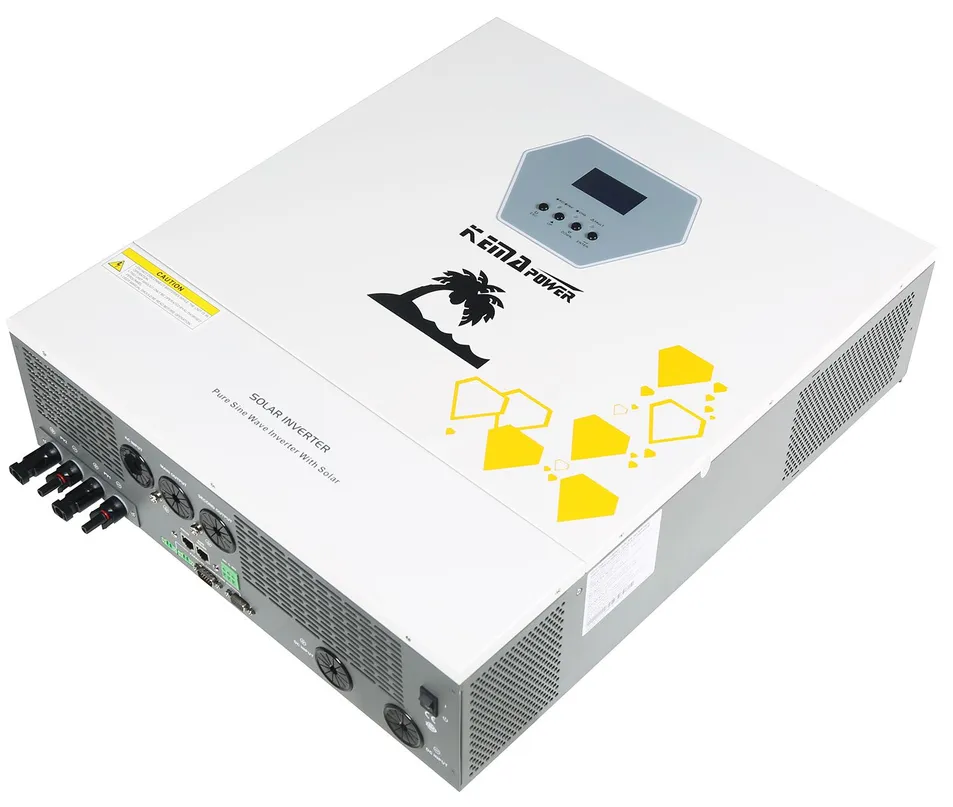

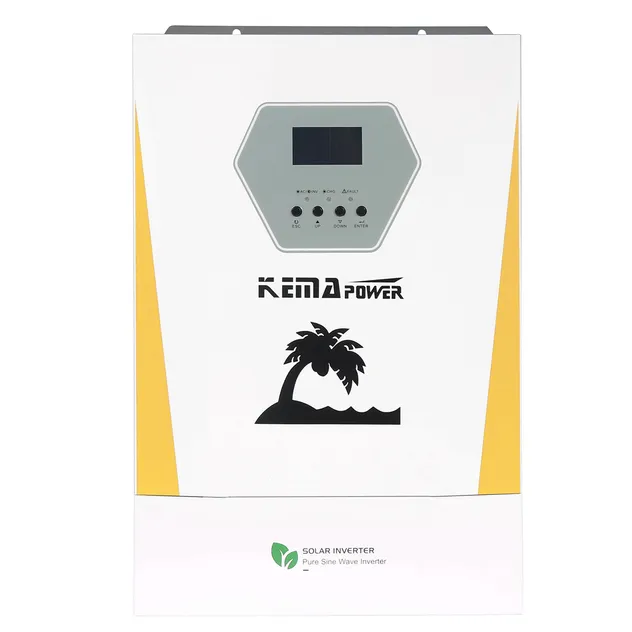

Product Display

📋

Technical Specifications

ITEM	Model SUB-D	3KW	3.6KW	6.2KW	11KW
INPUT	Voltage	220/230/240VAC
OUTPUT	Surge Power	2 times Rated power for 5 seconds
BATTERY	Voltage	24 VDC	24 VDC	48 VDC	48 VDC
SOLAR	PV Array Power	3KW	4.2KW	6.2KW	2*5.5KW
MPPT	Range	50-500 VDC	150-500 VDC
EFFICIENCY	Peak	97% (PV to INV) / 94% (Battery to INV)

⚙

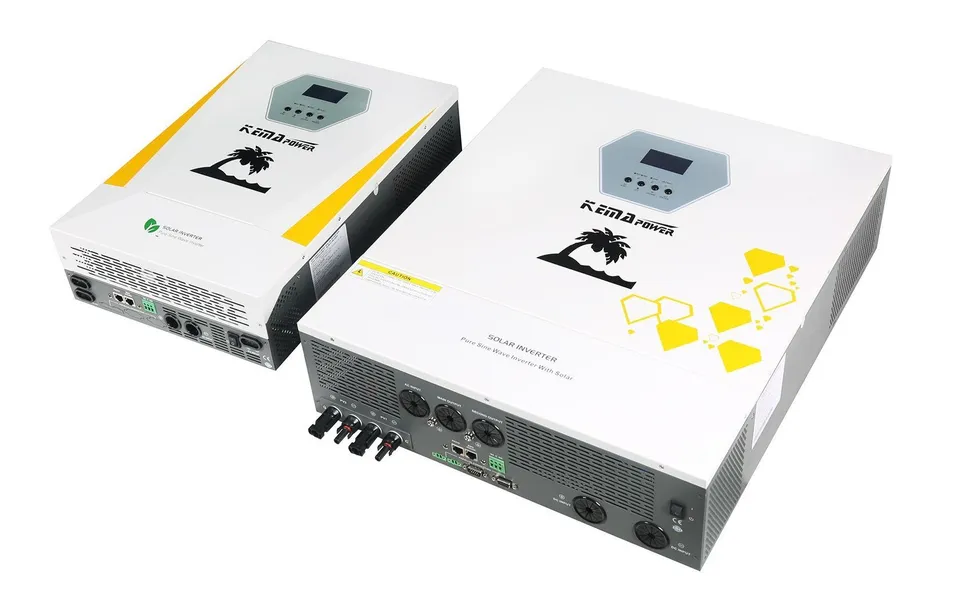

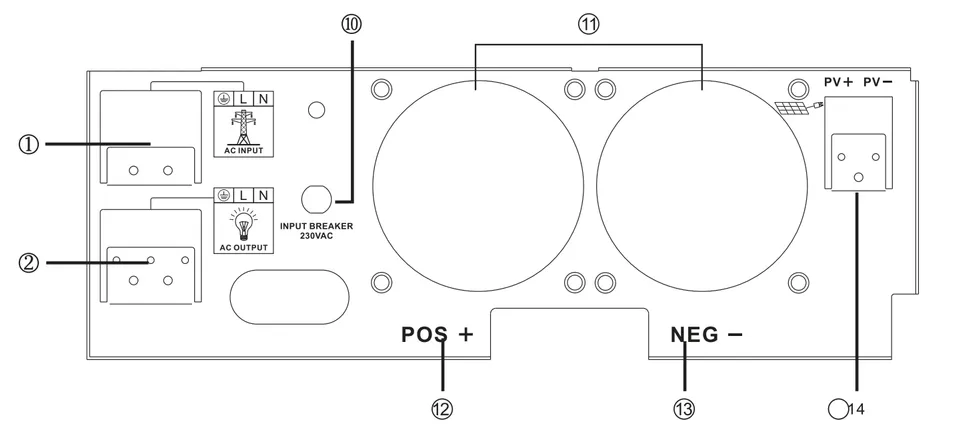

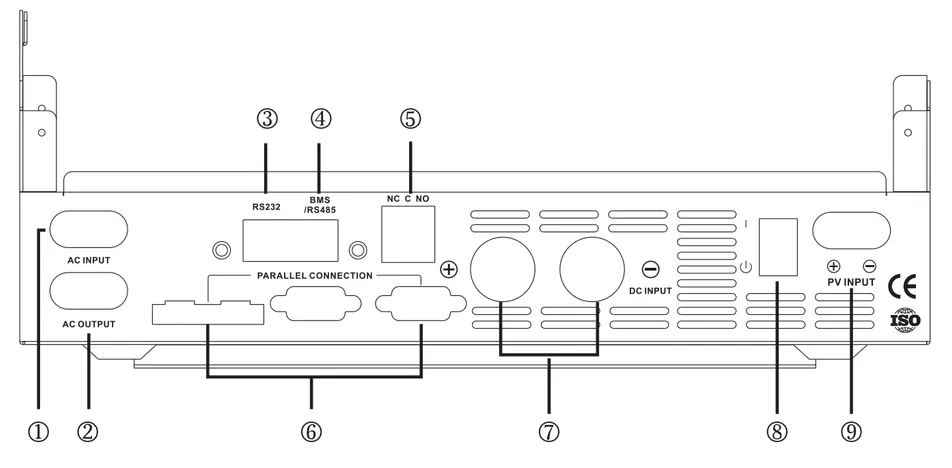

System Layout & Ports

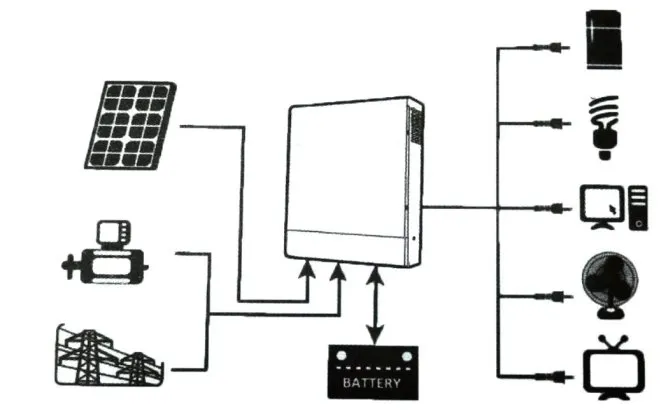

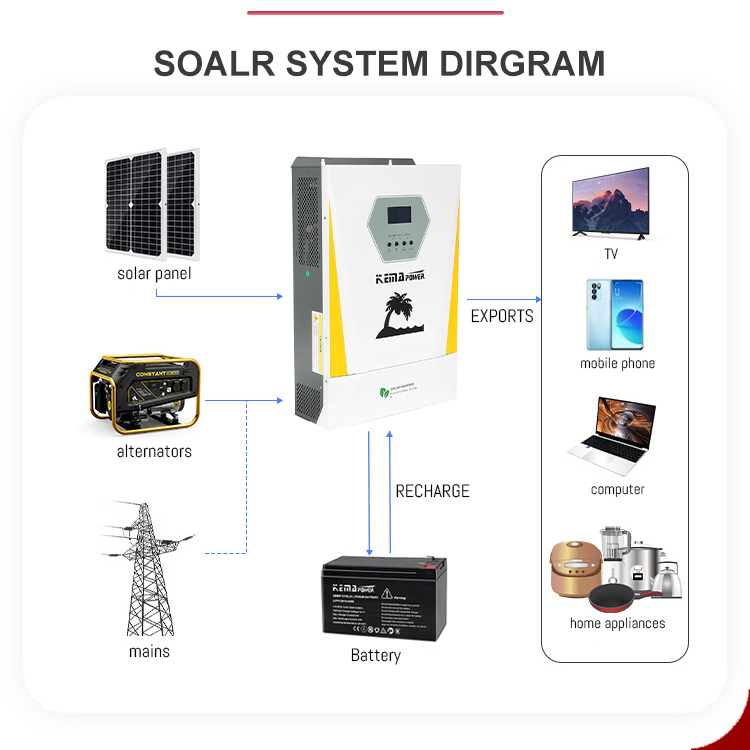

Working Mode Diagram

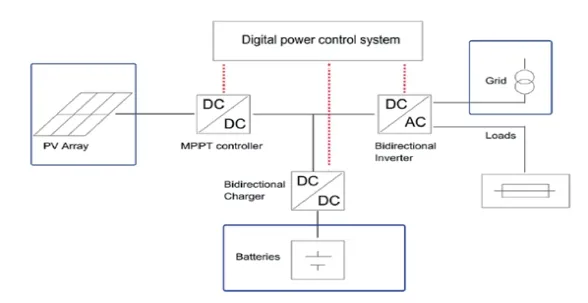

Design Layout

❓

Frequently Asked Questions

Can this hybrid inverter work without a battery?

Yes, the SUB-D series is designed to work without a battery during the daytime, utilizing solar power directly to support the loads.

What is the maximum number of units that can be connected in parallel?

The 6.2KW and 11KW models support parallel functionality, allowing a maximum of 9 units to be connected together.

Does the inverter support lithium batteries?

Yes, it supports selectable Lead-acid or Lithium battery types and includes a lithium activation wake-up function.

What kind of output waveform does the SUB-D provide?

It provides a pure sine wave output, which is suitable for a wide variety of sensitive electronic loads and home appliances.

What are the built-in communication interfaces?

The inverter comes with RS232, BMS/RS485, and Dry Contact communication. There are also options for WiFi or GPRS for mobile app monitoring.

What protections are included in the system?

The system includes comprehensive protection for overload, over temperature, short-circuit, battery low voltage, and battery reverse connection.
