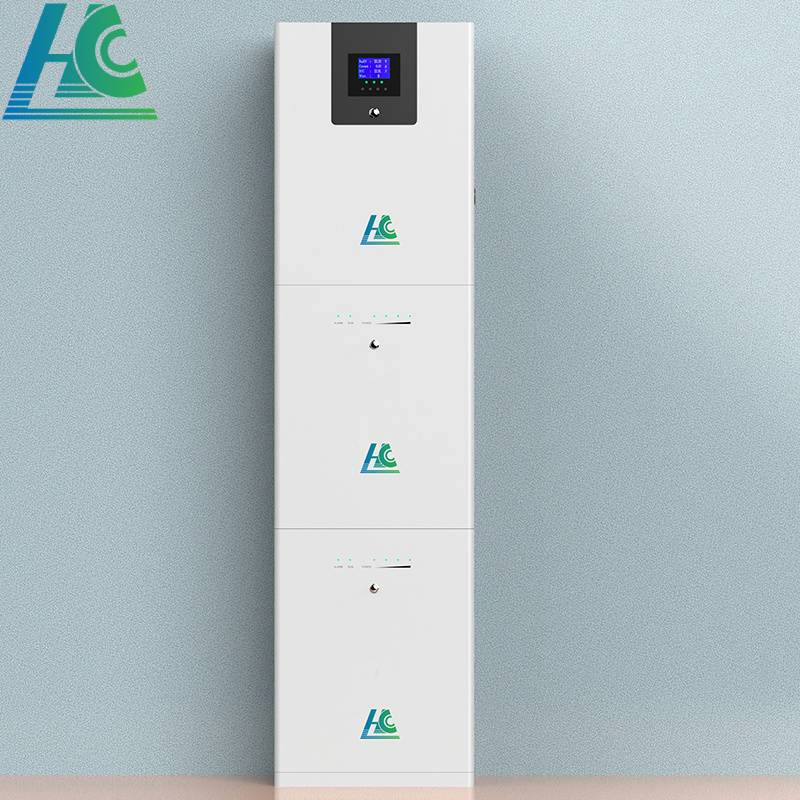

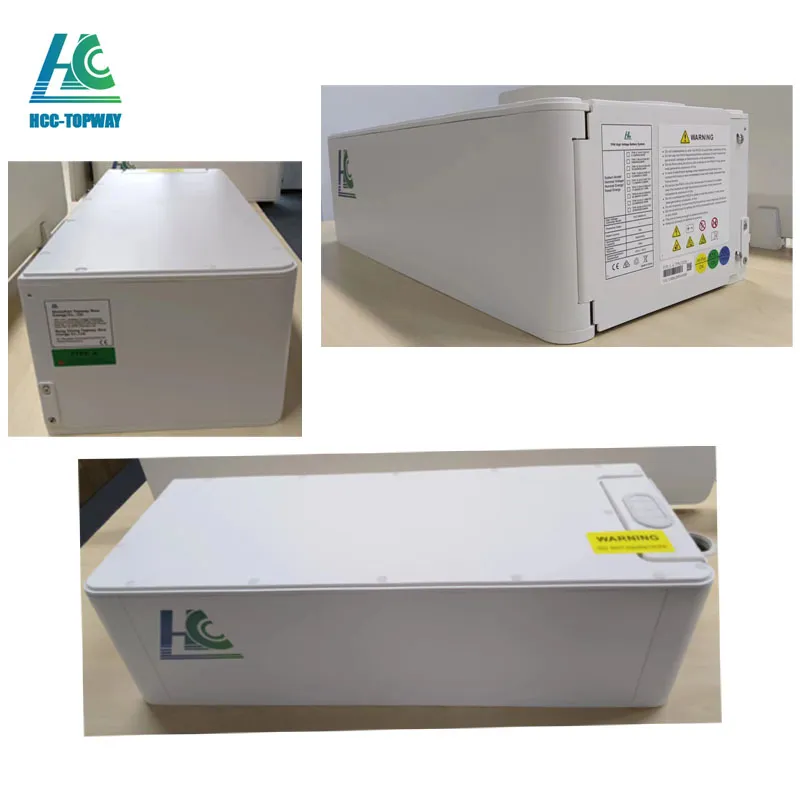

OEM ODM 5kwh 10kwh 15kwh 20kwh Home Energy Storage Supply

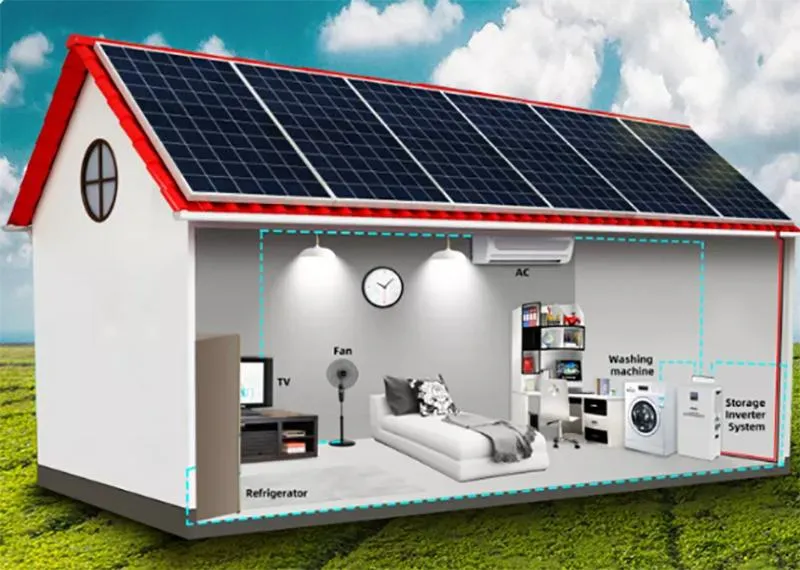

The energy storage system is mainly designed to store excess power generated by solar panels into the battery pack, providing families with convenient access to power at any time. During the day, the battery stores energy from the sun, ensuring a reliable power supply at night or on rainy days. This system optimizes electricity usage and ensures the effective operation of a family's power ecosystem.
In the event of a sudden power suspension, the household energy storage system maintains continuity with an extremely short response time. It makes solar panel power generation more reliable, overcoming the limitations of weather-dependent energy production.
| Model Parameter | LFP48V100AH | LFP48V200AH | LFP48V300AH | LFP48V400AH |
|---|---|---|---|---|
| Battery Capacity [Ah] | 100Ah | 200Ah | 300Ah | 400Ah |
| Nominal Battery Energy [kwh] | 5.12 | 10.24 | 15.36 | 20.48 |
| Max Discharge Current [A] | 100 | 200 | 300 | 400 |
| Weight [kg] | 55 | 110 | 165 | 220 |
| Dimension [H*W*D, mm] | 380*480*480 | 570*480*480 | 760*480*480 | 950*480*480 |
| Operating Temp Range | -20 ~ 50 [ºC] | |||
| Life Cycles | >6000 | |||
| Nominal Voltage [V] | 48Vdc | |||
| Communication | CAN / RS485 / DRY CONTACT | |||

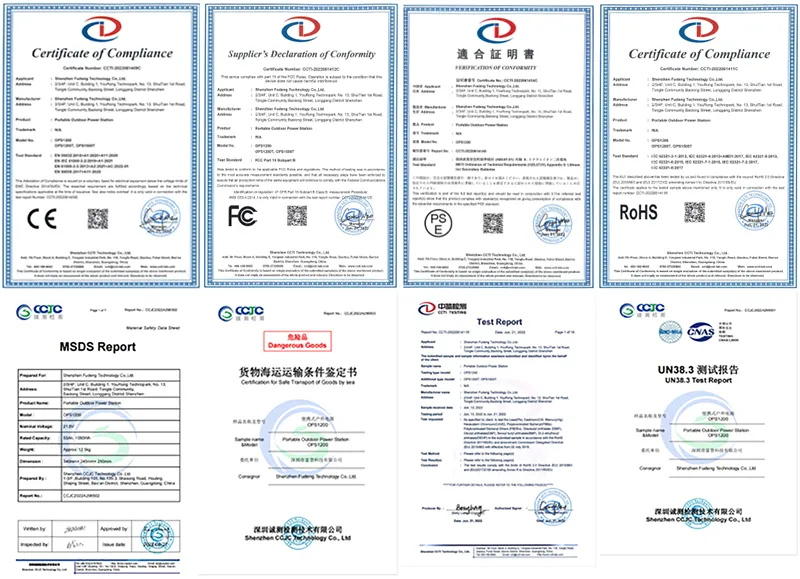

| Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | |||
| Warranty | 5 Years | |||
We are a dedicated manufacturer specializing in renewable energy storage systems, including portable solar power stations, solar generators, and advanced battery panels. Our products are widely utilized in outdoor travel, hiking, home energy storage, and as critical backup power solutions.
We provide comprehensive OEM/ODM services, focusing on delivering the most cost-effective and reliable battery design solutions to meet global customer demands.
