in Stock in Europe 233kwh Lithium Battery Solar Energy System 105kw 215kwh 233kwh Battery Energy Storage System Bess Container

Customization:	Available
Container Size:	L1560mmD1380mmH2385mm
Weight:	2600kg

Send Inquiry

Product Description

Overview

Model NO.Corey-233

Nominal Voltage230V/400V

Warranty5 years

Nominal Capacity233kWh

Cycle Life9000

Battery TypeLiFePO4

Grid ConnectionHybrid Grid

Cooling MethodIntelligent Liquid Cooling

Protection LevelIP54

Discharge Depth95% Dod

Packaging & Delivery

Package Size166.00cm * 153.00cm * 260.00cm

Package Gross Weight2600.000kg

Product Description

Intelligent energy storage + peak shaving and valley filling

Saving 30% of annual electricity bills through advanced energy management.

Profit Analysis for European Customers

Based on wholesale time-of-use electricity prices in Germany (approx. 0.238 euros per kWh difference), a single 100kWh system can achieve significant returns.

Project	Unit	Numerical Value
Power	kW	50
System Capacity	kWh	100
Construction cost	€/wh	0.326
Total investment	€	32,609
Daily charge/discharge cycles	times	1
Peak and valley charges	€/kwh	0.238
Annual net income	€/year	7,447
Static payback period	year	4.4

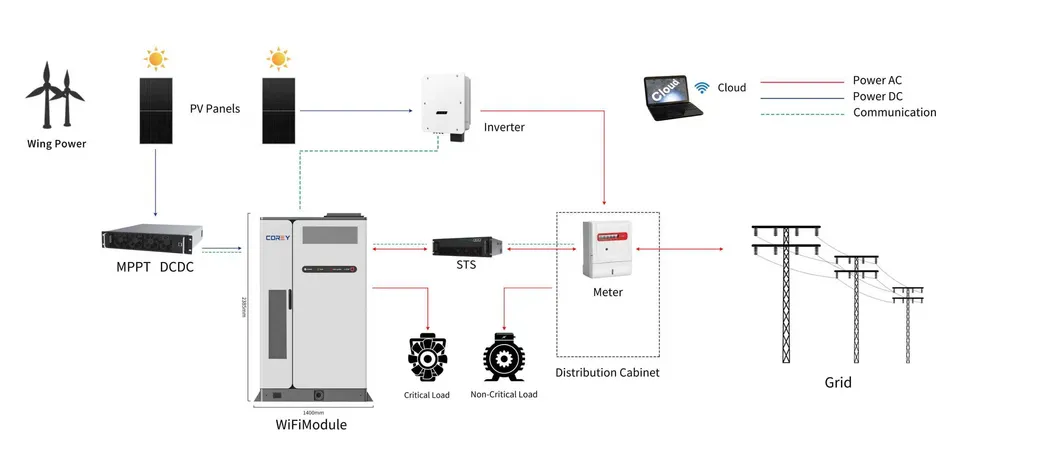

Revenue Model

Peak - valley arbitrage: Charge during low-cost valley periods and discharge during high-cost peak periods to cut expenses.

Enhance power supply reliability: Functions as a backup power source during grid outages for industrial facilities.

Improve power quality: Mitigate fluctuations and ensure stable operation of electrical equipment.

Demand response: Modify usage patterns in response to grid requirements for financial incentives.

Product Advantages

✅ Safe and reliable: C4 anti-corrosion, IP54 protection, multiple fire protection.
✅ Intelligent BMS: Advanced management to extend battery life.
✅ Low Maintenance: Intelligent operation reduces long-term costs.
✅ Grid-friendly: Seamless grid-connected/off-grid switching.

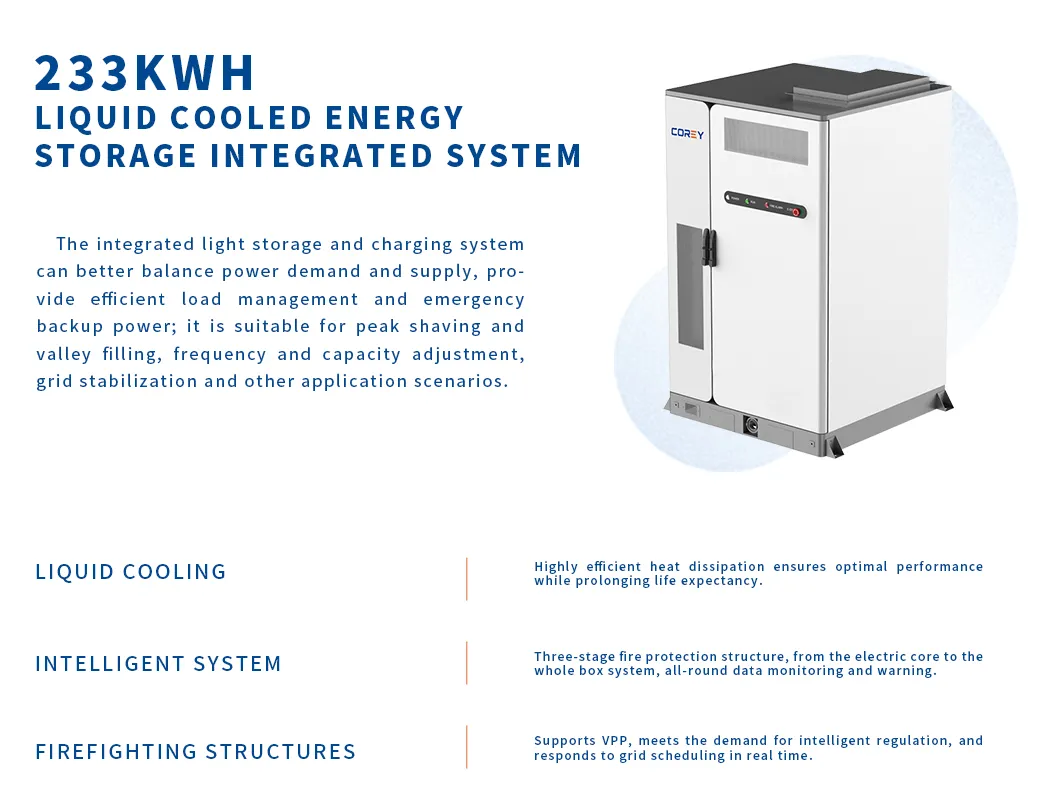

Technical Parameters

Product Model		COREY 233CE
System	Battery Cell	LFP(LiFePO4) 3.2V 280Ah
	System Capacity	233kWh
	Rated Power	105kW
	Cooling Method	Intelligent Liquid Cooling
	Fire Fighting	Aerosol + Water Fire Protection
AC Side	Rated Voltage	230V/400V(±15%)
	Rated Frequency	50/60 Hz
	Maximum Current	167A
	Switching Time	20ms (optional)
DC Side	Rated Voltage	832V
	Maximum Current	159A
	Discharge Depth	95% DOD

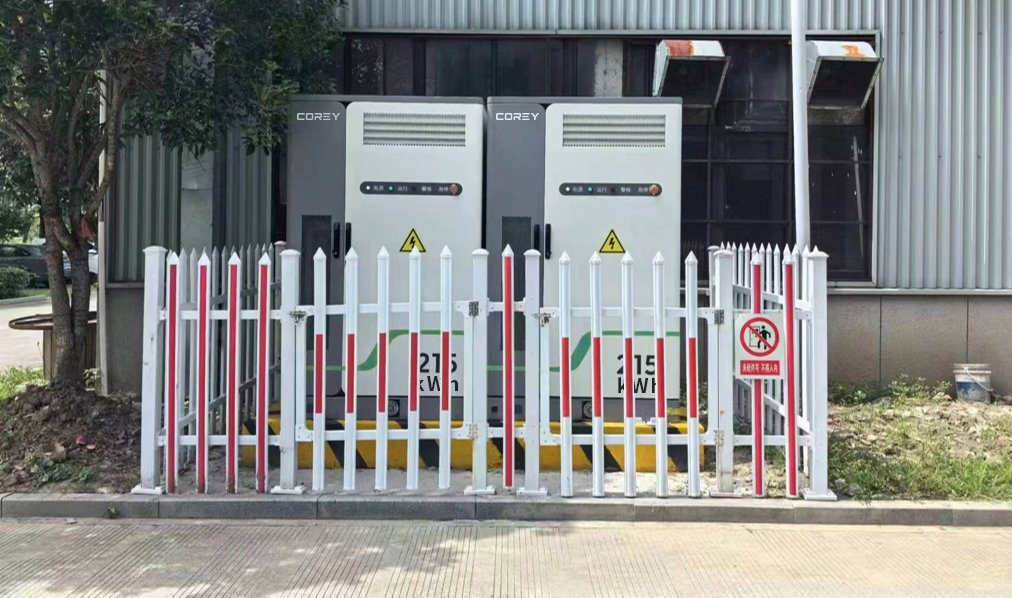

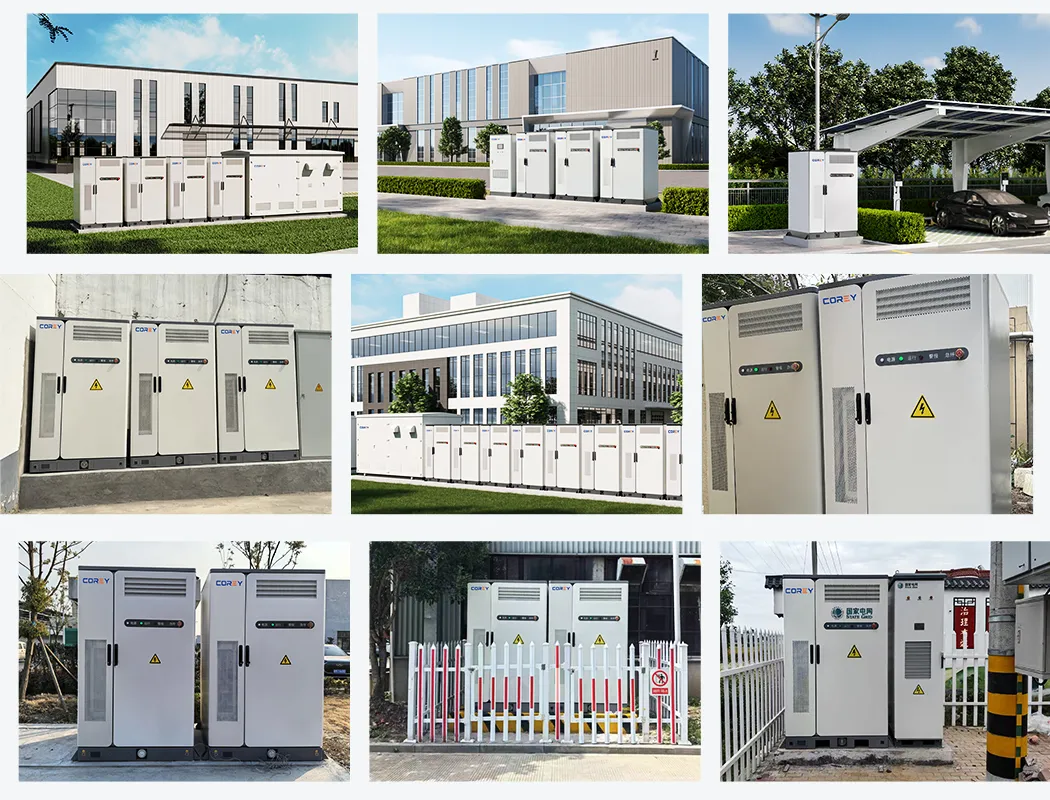

Project Case

Manufacturing Excellence

Frequently Asked Questions

Q1: What is the total capacity of this energy storage system?

The system features a nominal capacity of 233kWh with a rated power of 105kW, ideal for commercial and industrial applications.

Q2: What type of battery technology is used?

It utilizes high-quality LiFePO4 (Lithium Iron Phosphate) cells, known for their safety, stability, and long cycle life of up to 9000 cycles.

Q3: How does the liquid cooling system benefit the battery?

The intelligent liquid cooling system ensures uniform temperature distribution across the battery cells, which significantly extends battery life and improves safety during high-power operations.

Q4: Can this system work during a power outage?

Yes, the system supports automatic on-grid and off-grid switching with an optional switching time of 20ms, providing reliable backup power.

Q5: What is the typical payback period for this investment?

Based on European market data and peak-valley electricity price differences, the static payback period is approximately 4.4 years.

Q6: Is the system suitable for harsh outdoor environments?

Absolutely. It is designed with IP54 protection and C4 anti-corrosion levels, making it durable for various industrial and commercial outdoor settings.
