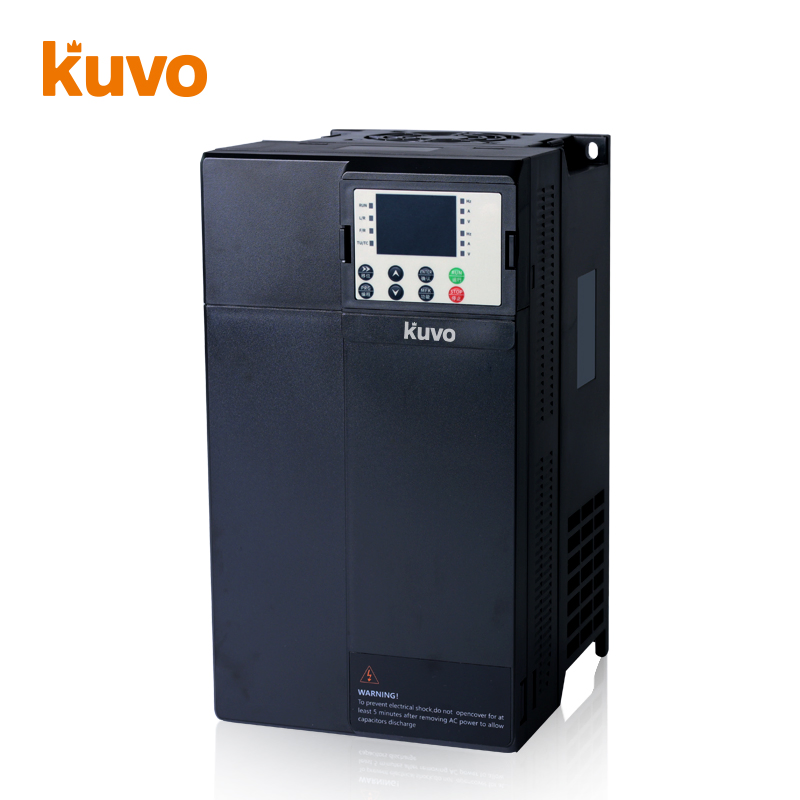

| Model NO. | KV90-PV |
|---|---|
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Power Supply | Low Voltage Variable-Frequency Drive |
| Transformation | AC-DC-AC Variable-Frequency Drive |
| Function | Solar Pump Inverter |
| Output Frequency | 0-400Hz |
| Protection Level | IP20 |
| Installation | Wall-Mounted, Cabinet Installation |

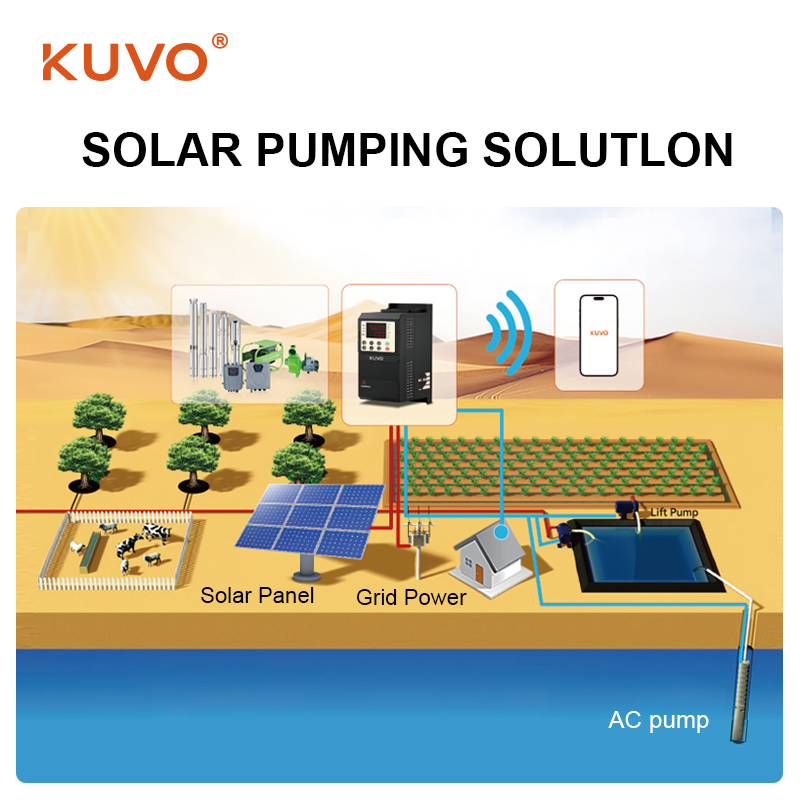

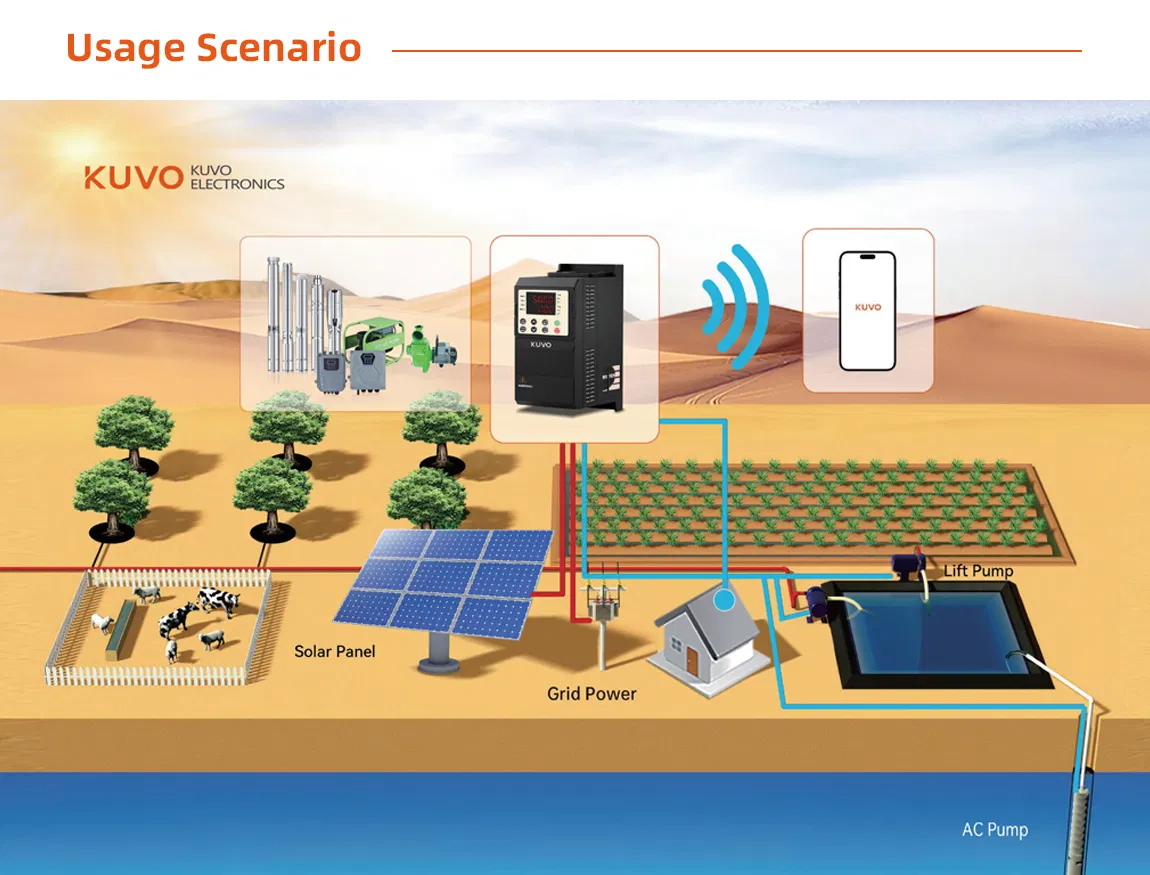

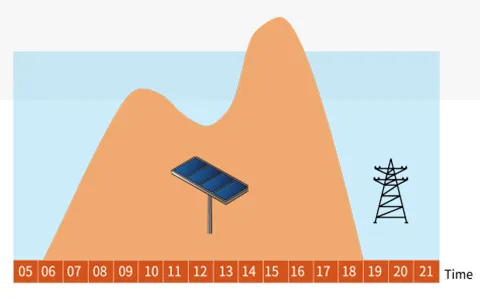

Systems mainly use solar power. If set up with proper solar panels and water storage, you'll have sufficient water. It also supports regular electricity from the power grid or a generator as backup.
Having water storage is highly beneficial for handling peak demand during certain seasons and ensures water availability overnight without needing extra power sources.
The controller acts as the brain of the system, monitoring various inputs and making constant adjustments to maximize water output efficiency.
Supports various submersible and surface pumps. Submersible pumps can reach depths of 1500 feet (450 meters), while surface pumps handle flows up to 265 US GPM.
Hybrid AC/DC input (solar/grid) with 900VDC max input for continuous pump operation.
High-Efficiency MPP tracking provides a cost-effective solution with a high return on investment.
Multiple protections: Over-voltage, Under-voltage, Over-current, Short-circuit, and Over-temperature.
Remote monitoring with GPS, WiFi, real-time pump status, and intelligent remote start/stop.
| PV Input | |||
|---|---|---|---|
| Input Voltage Range | 150-450V (-S2) | 60-450V (-1) | 350-900V (-4) |
| Recommended Voc | 300-380V | 175-380V | 620-750V |
| MPPT Efficiency | Up to 99% | ||
| Output Performance | |||

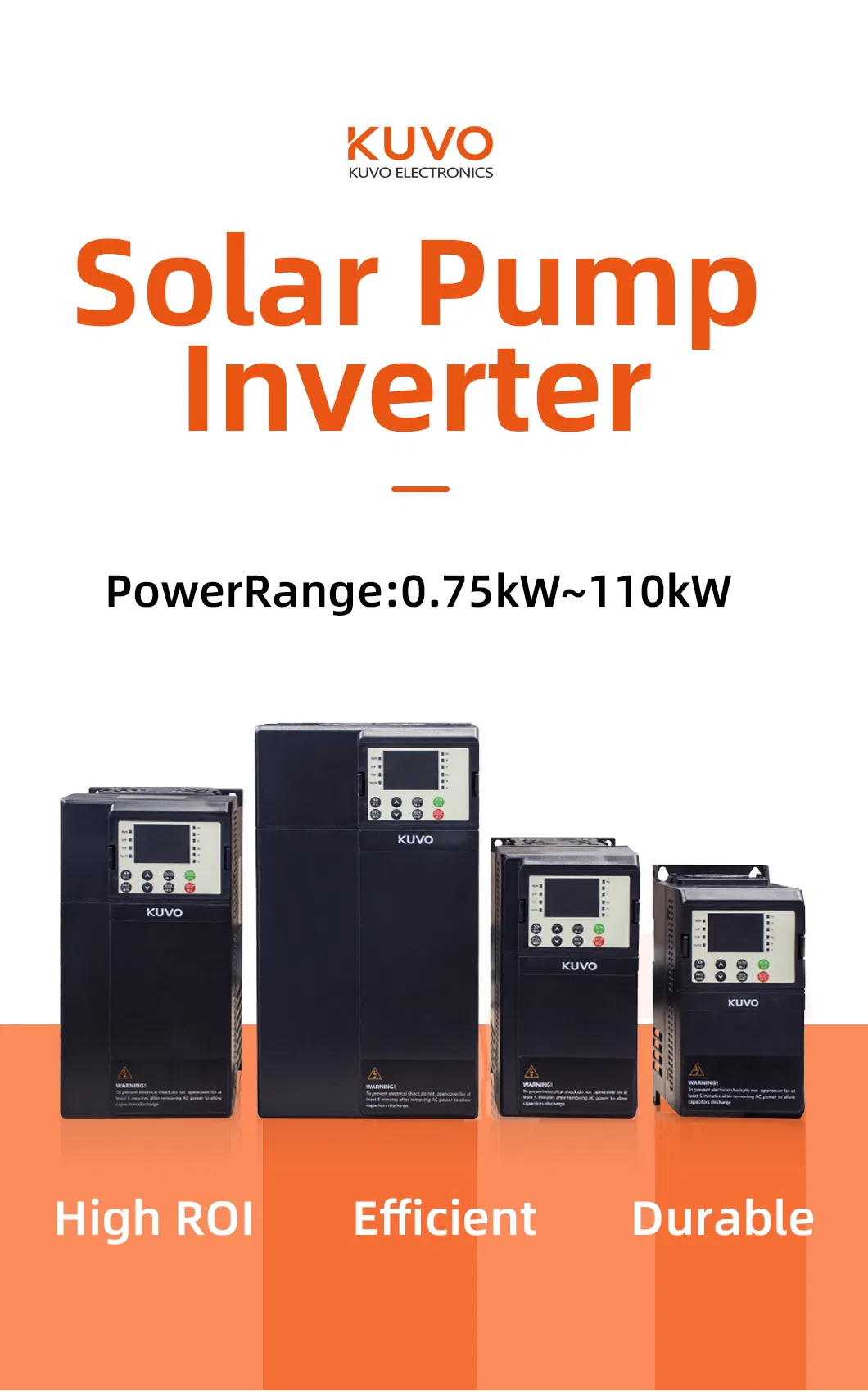

| Output Power Range | 0.75-4kW | 0.75-4kW | 0.75-185kW |
| Control Mode | V/F control, Open-Loop Vector, Closed-Loop Vector | ||
| Overload Capacity | 150% for 60s, 180% for 10s, 200% for 0.5s | ||
