MPPT 5600W Pure Sine Wave Hybrid Solar Power Inverter Without Lithium Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

◈ Basic Information

Model NO.

THON-5.6KW-01P

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Nature of Wave

Sine Wave Inverter

Rated Power

5.6kw/8kw/10kw/11kw/12kw

AC Output Voltage

230VAC

Battery Voltage

40~60VDC

IP Grade

IP20

◈ Product Description

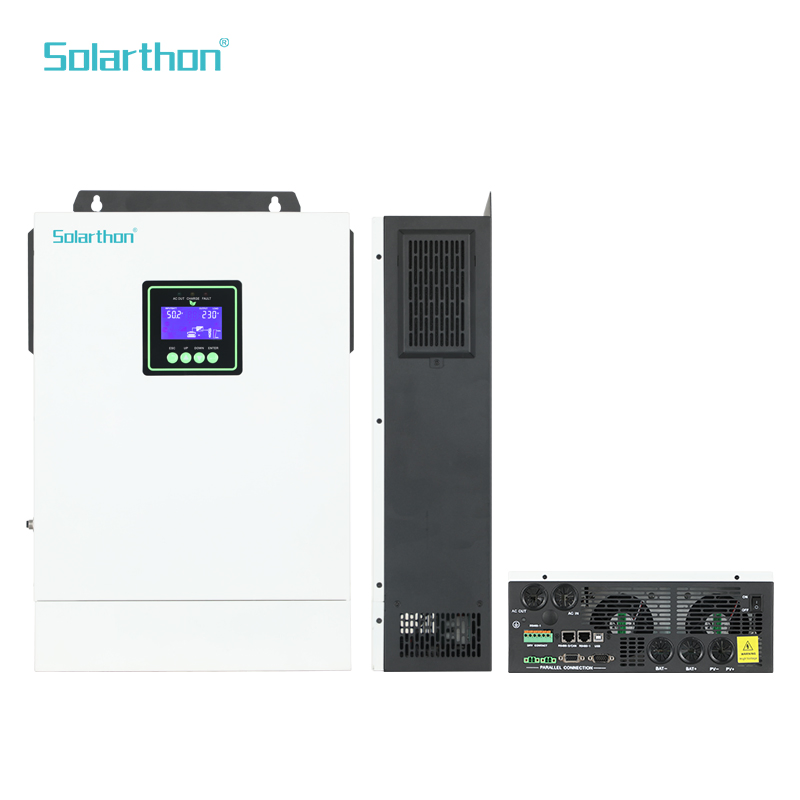

MPPT 5600W Pure Sine Wave Hybrid Solar Power Inverter

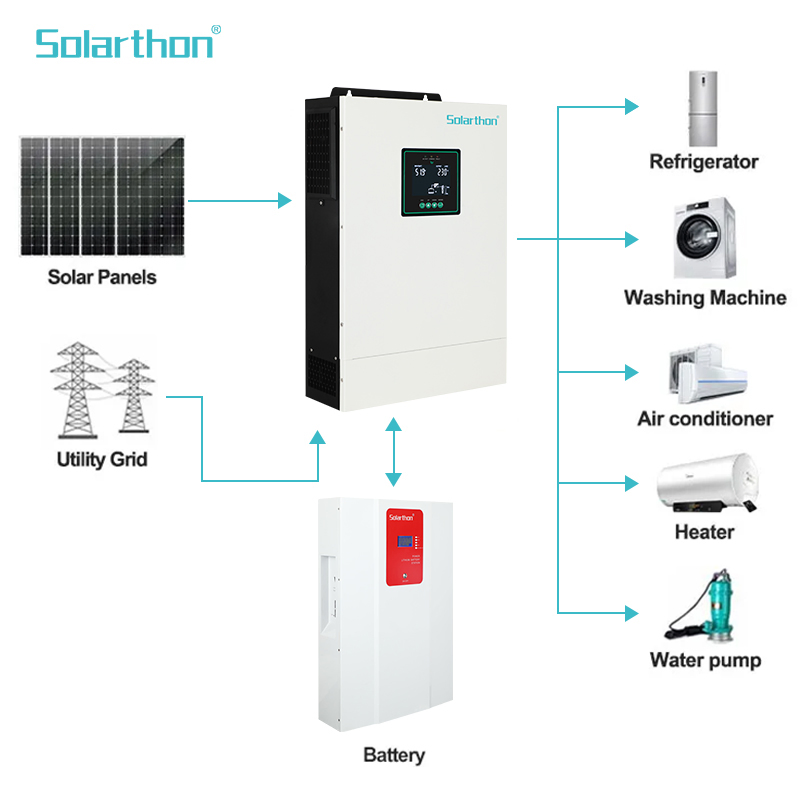

The THON series is a new solar storage inverter integrating solar energy storage, mains charging, and AC sine wave output. Utilizing advanced DSP control and algorithms, it offers high reliability and fast response speeds. It supports four charging modes: Only Solar, Mains Priority, Solar Priority, and Hybrid (Mains & Solar).

✓Sectional charge and discharge function.

✓Anti-countercurrent grid-connected capability.

✓Operates without a battery; solar and grid can power loads simultaneously.

✓Dual activation function for lithium batteries.

✓Dual output modes: Mains bypass and inverter output for UPS functionality.

✓360° all-round protection (over/under voltage, overload, reverse).

✓Full digital voltage and current double closed loop control.

✓Intelligent variable speed fan for efficient heat dissipation.

◈ Technical Specifications

Model	THON-5.6KW-01P	THON-8KW-02P	THON-10KW-01P	THON-11KW-01P	THON-12KW-01P
Battery Voltage	51.2VDC	51.2VDC	51.2VDC	51.2VDC	51.2VDC
Rated Power	5600W	8000W	10000W	11000W	12000W
AC Output Voltage	230VAC	230VAC	230VAC	230VAC	230VAC
Max PV Input	5600W	4500W*2	6000W*2	5500W*2	6000W*2
PV Voltage Range	120-450VDC	90-450VDC	90-450VDC	90-450VDC	90-500VDC
Max Charge Current	100A	150A	220A	150A	220A
Parallel Capacity	Up to 6 Sets	Up to 6 Sets	Up to 6 Sets	Up to 6 Sets	Up to 6 Sets

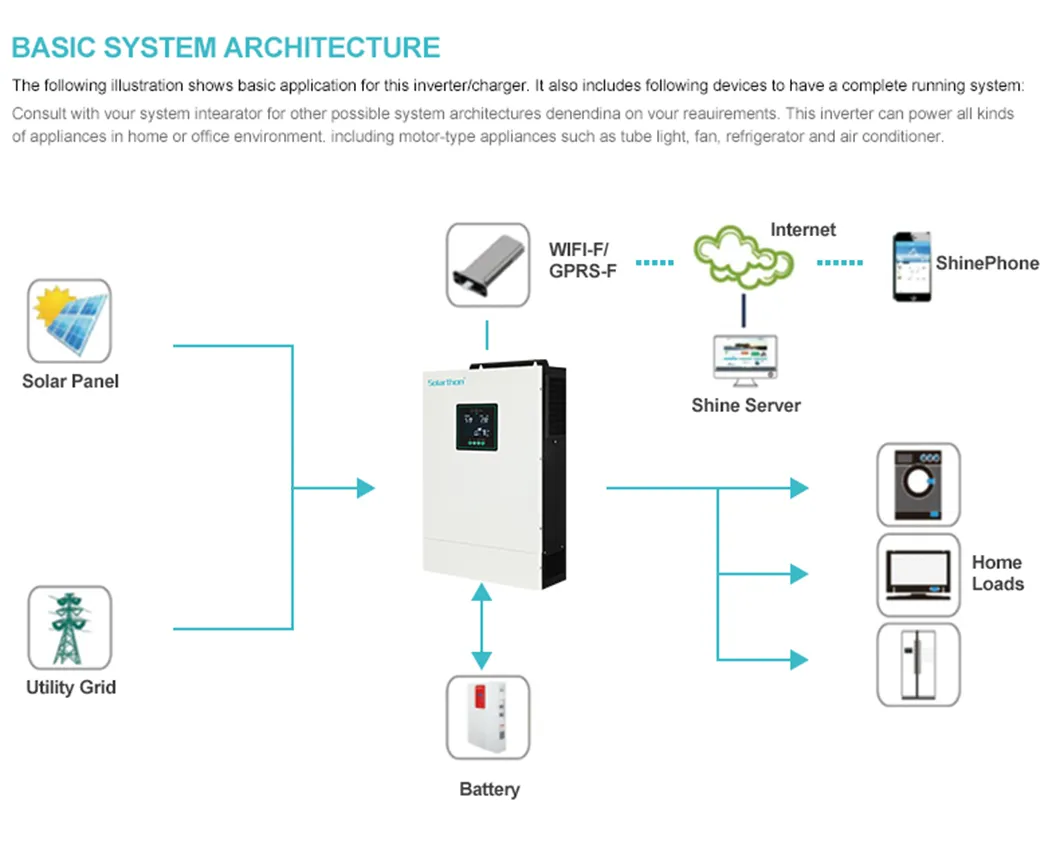

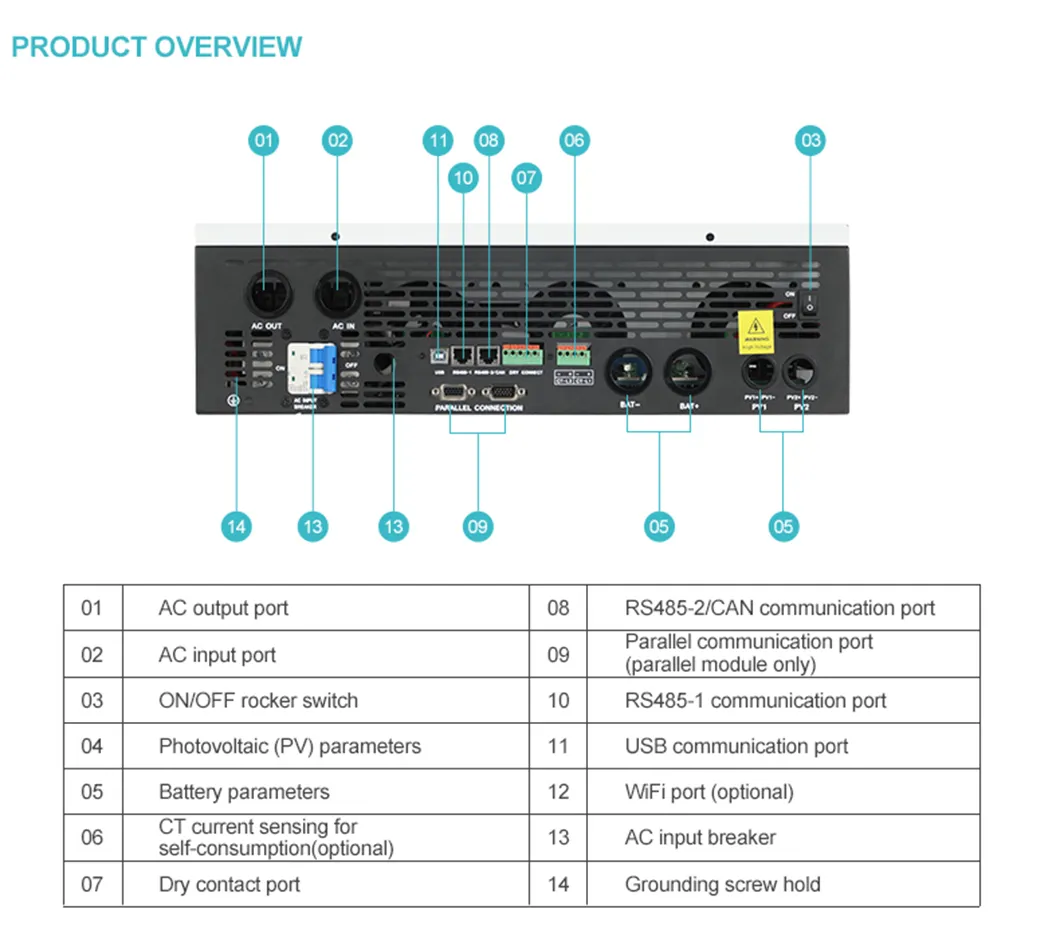

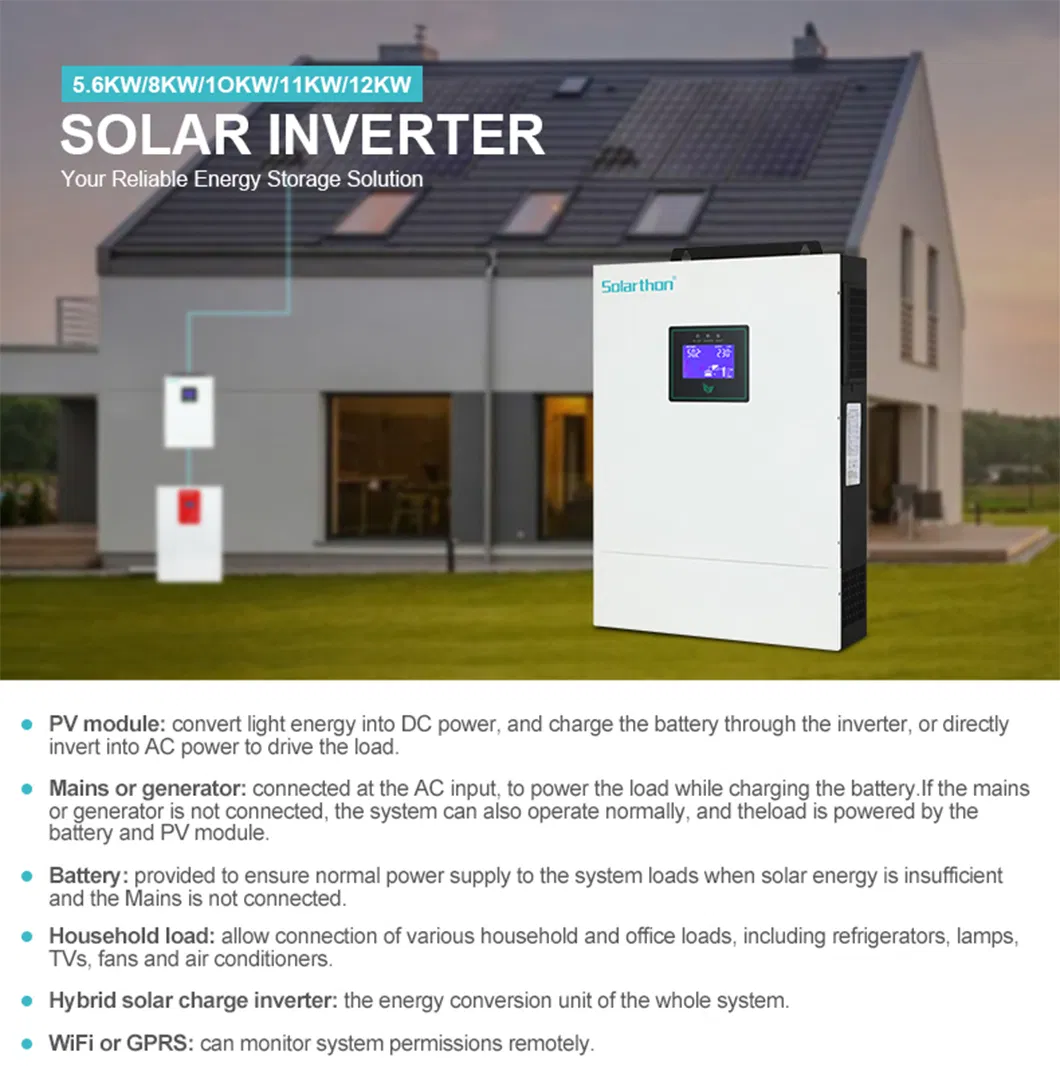

◈ Product Details & Application

◈ Key Advantages

◈ Packaging & Shipping

Package Size

53.20cm * 40.20cm * 19.50cm

Gross Weight

11.800kg

Standard Lead Time

30 days (1 - 100 Pieces)

◈ Frequently Asked Questions

Q: Are your inverters pure sine wave output?

A: Yes, all our inverters provide a true pure sine wave output, ensuring compatibility with sensitive electronics and appliances.

Q: What appliances can your inverters load?

A: Our inverters can be used with household, office, and agricultural appliances, including inductive loads like refrigerators, air conditioners, and water pumps.

Q: What is the difference between pure sine wave and modified sine wave inverters?

A: Pure sine wave inverters provide power equivalent to the public grid with no harmonic pollution, protecting your appliances. Modified sine wave inverters may negatively impact inductive loads and have higher repair rates.

Q: Can the inverter be used without a battery?

A: Yes, this model can operate without a battery. Solar energy and the utility grid can power the loads at the same time.

Q: What should I do if the product is faulty?

A: Please provide pictures or videos of the issue. We offer 24-hour after-service consultancy and provide free spare parts for the PCB board as part of our support.

Q: How do I choose the right inverter for my needs?

A: Simply share your power requirements and appliance types with our sales team, and we will recommend the most suitable model for you.
