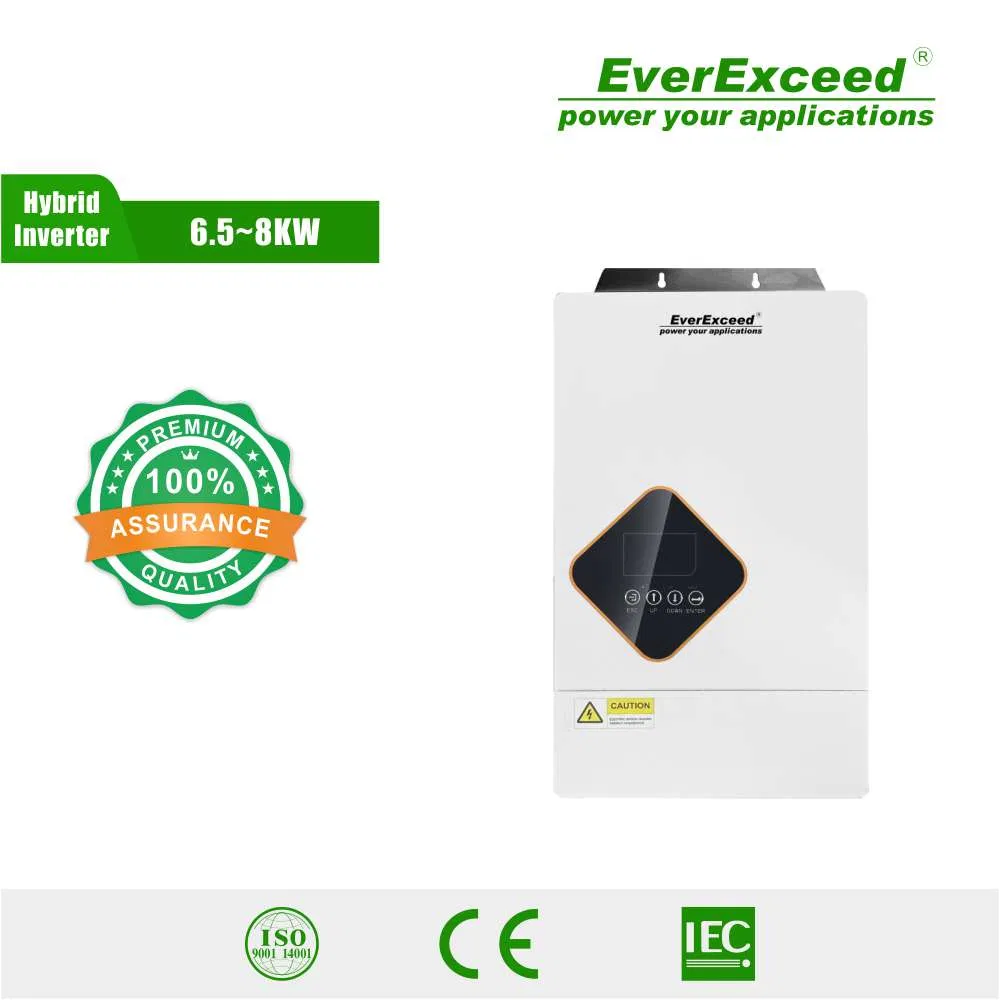

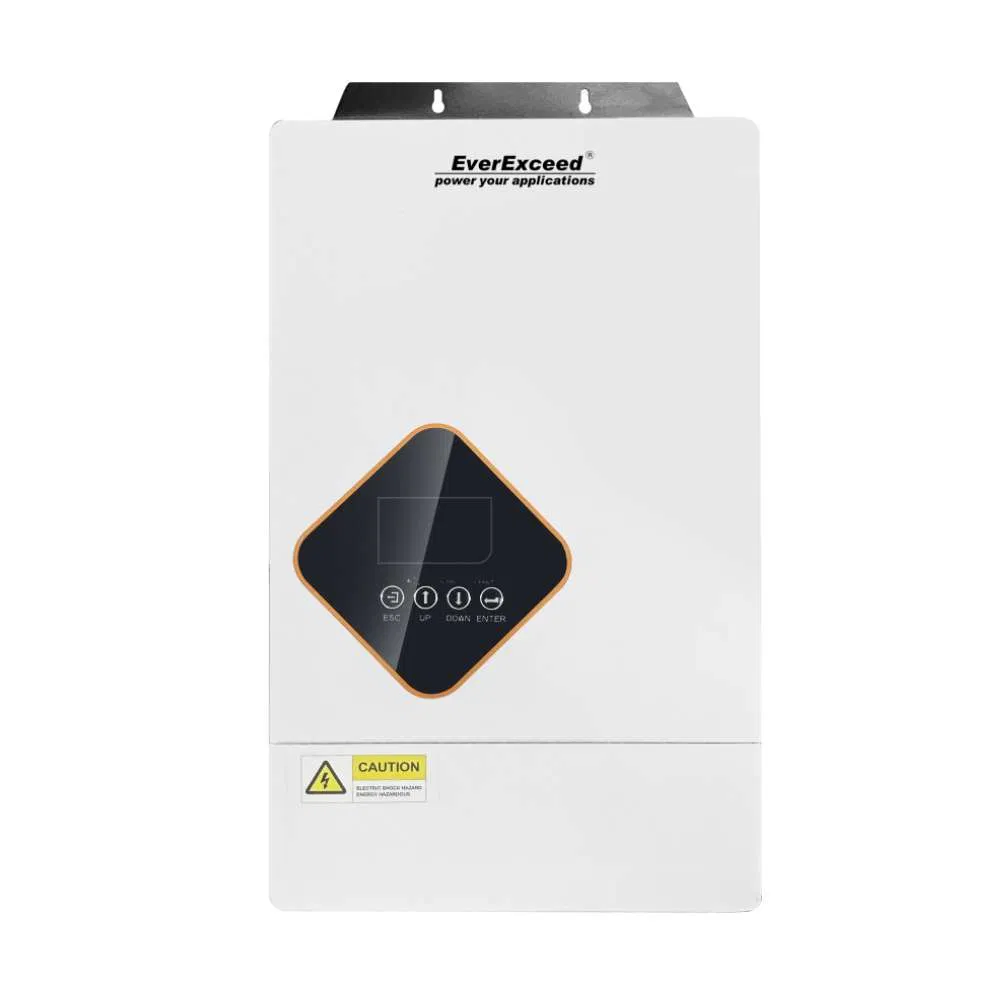

6kW / 8kW Hybrid Solar Inverter for Home & Commercial Use | Single & Three Phase | WiFi Monitoring Supported

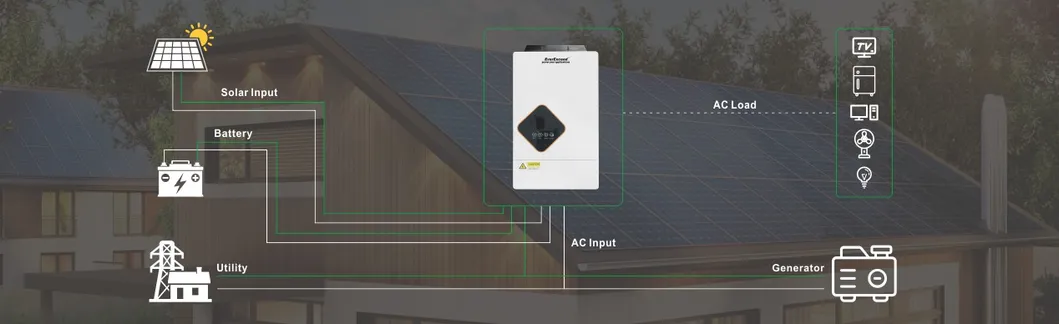

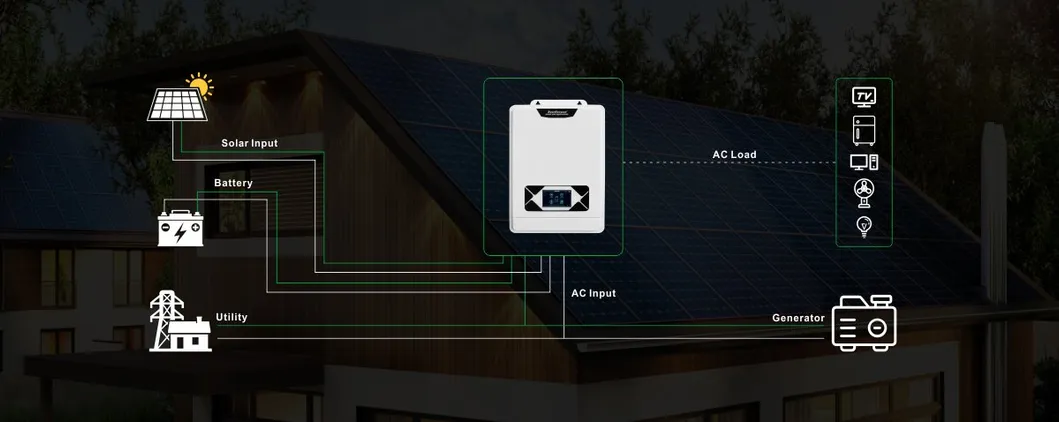

The EHCS series inverter is a high-end solar hybrid inverter designed for households and small commercial solar power plants. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply of your home. It helps optimize solar consumption, reduce energy costs permanently, and provides independence from energy providers.
Pure sine wave output, selectable charging current based on application.
Perfect match for a variety of batteries: Lithium, AGM, GEL, etc.
Short circuit / over voltage / over temperature / overload / Reverse current protection.
Support APP remote monitoring with WIFI module (optional).
Up to 9 units in parallel for fast capacity expansion.
Maximum support up to 80A/110A for rapid battery charging.
| Models | EHCS-6.5K-Pro | EHCS-8K-Pro | |
|---|---|---|---|
| AC Input | Input Voltage | 90-264VAC (Normal) / 170-264VAC (UPS) | |
| Frequency | 50/60Hz | ||
| AC Output | Rated Power | 6500W | 8000W |
| Waveform | Pure Sine Wave | ||
| Efficiency | ≥92% | ||
| Battery | Rated Voltage | 48VDC | |
| PV Charge | Max. PV Power | 6500W | 7000W |
| MPPT Range | 60-430VDC | ||
| Max. Charge Current | 100A | 110A | |
| General | Dimension | 440x300x120mm | |
