| Model NO. | HE200-7200-F | Phase | Single |
| Output Power | >1000W | Certification | CE, ISO9001 |
| Type | DC/AC Inverters | Power Source | Solar Power |
| Circuit Topologies | Half-Bridge Type | Wave String | Sine Wave Inverter |
| Product Name | Solar Inverter | Power Factor | >0.99 |
| Max Charging Current | 120A | Full Load | 6200W |

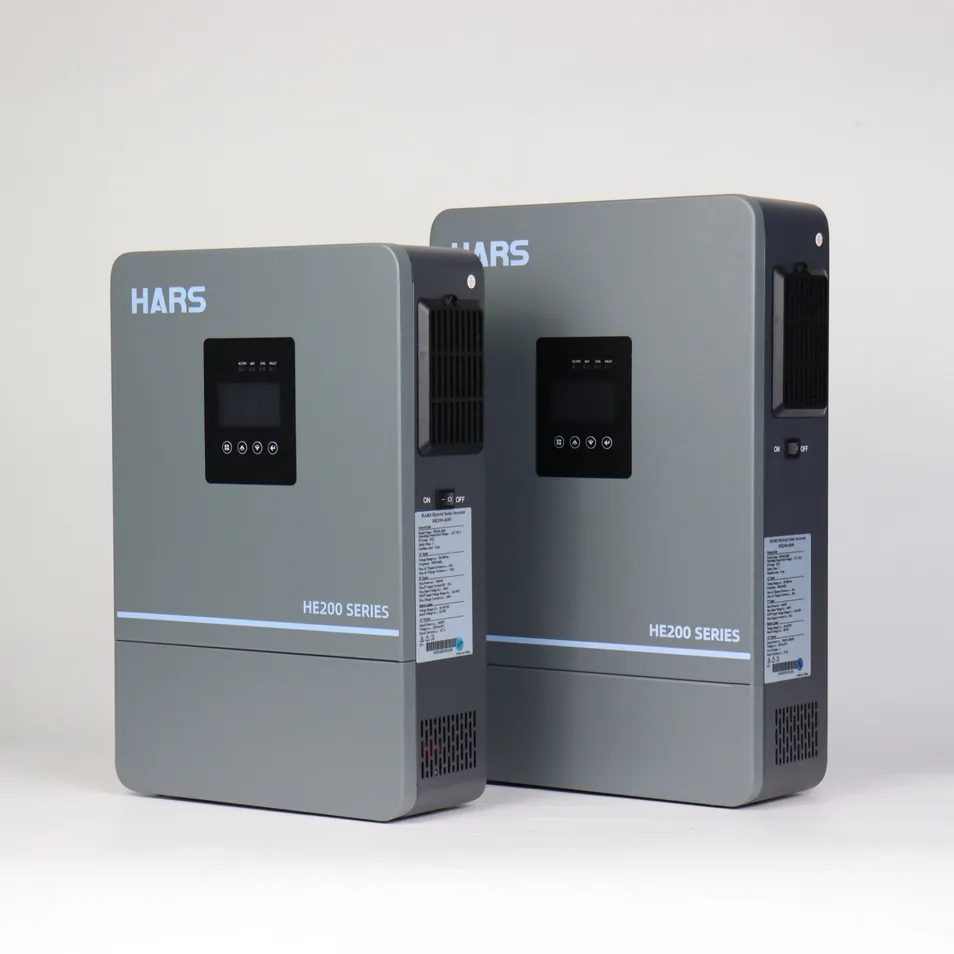

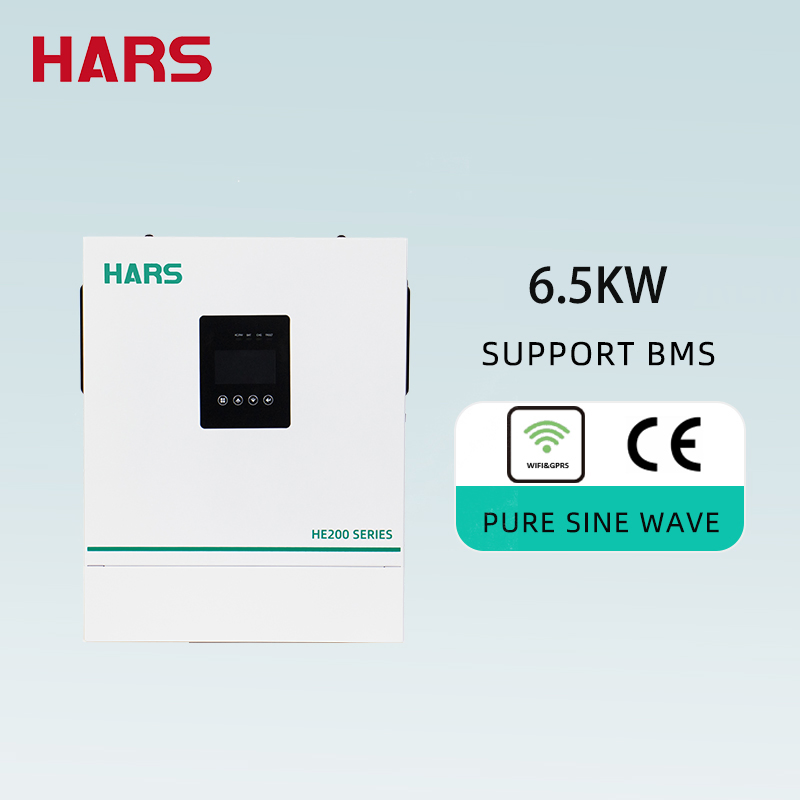

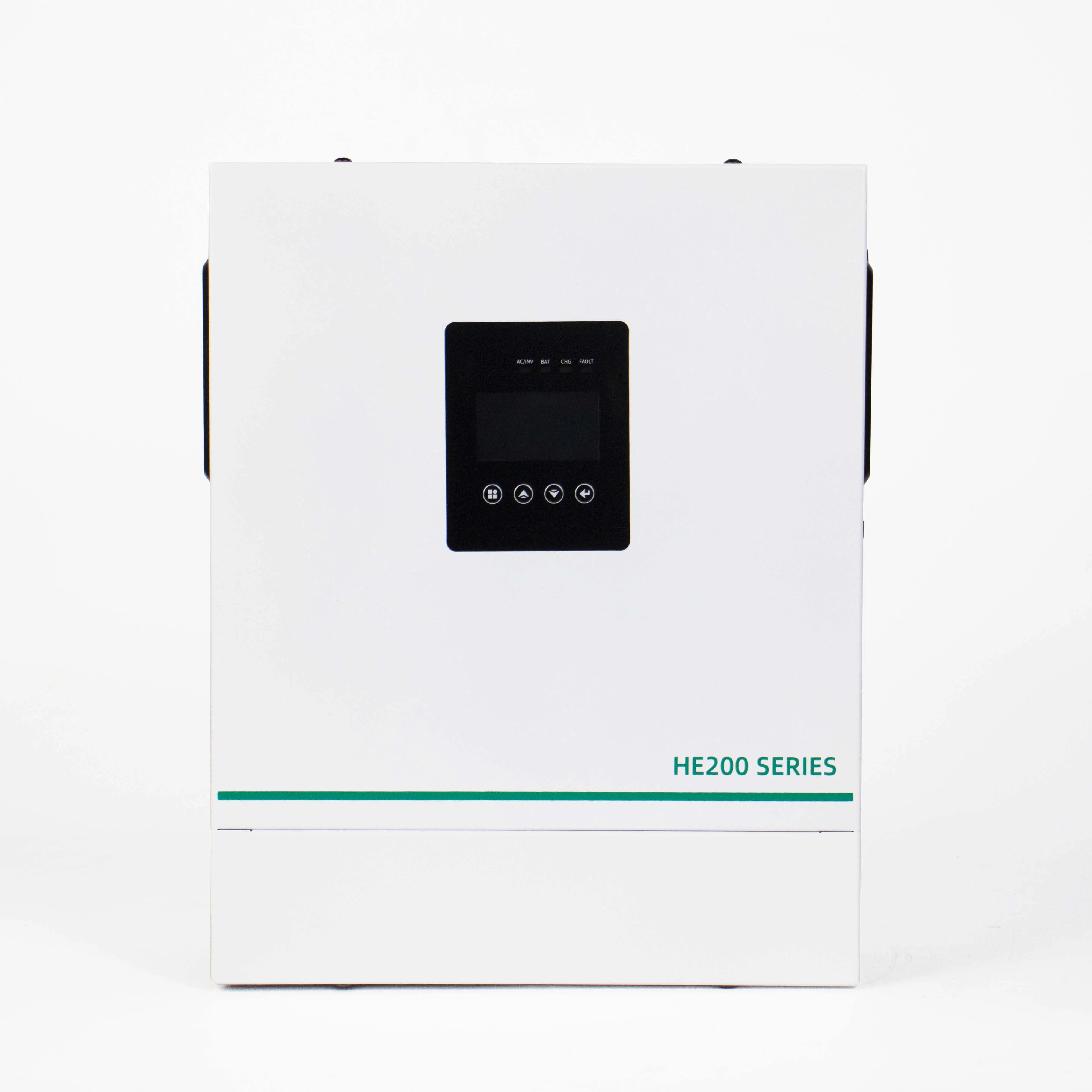

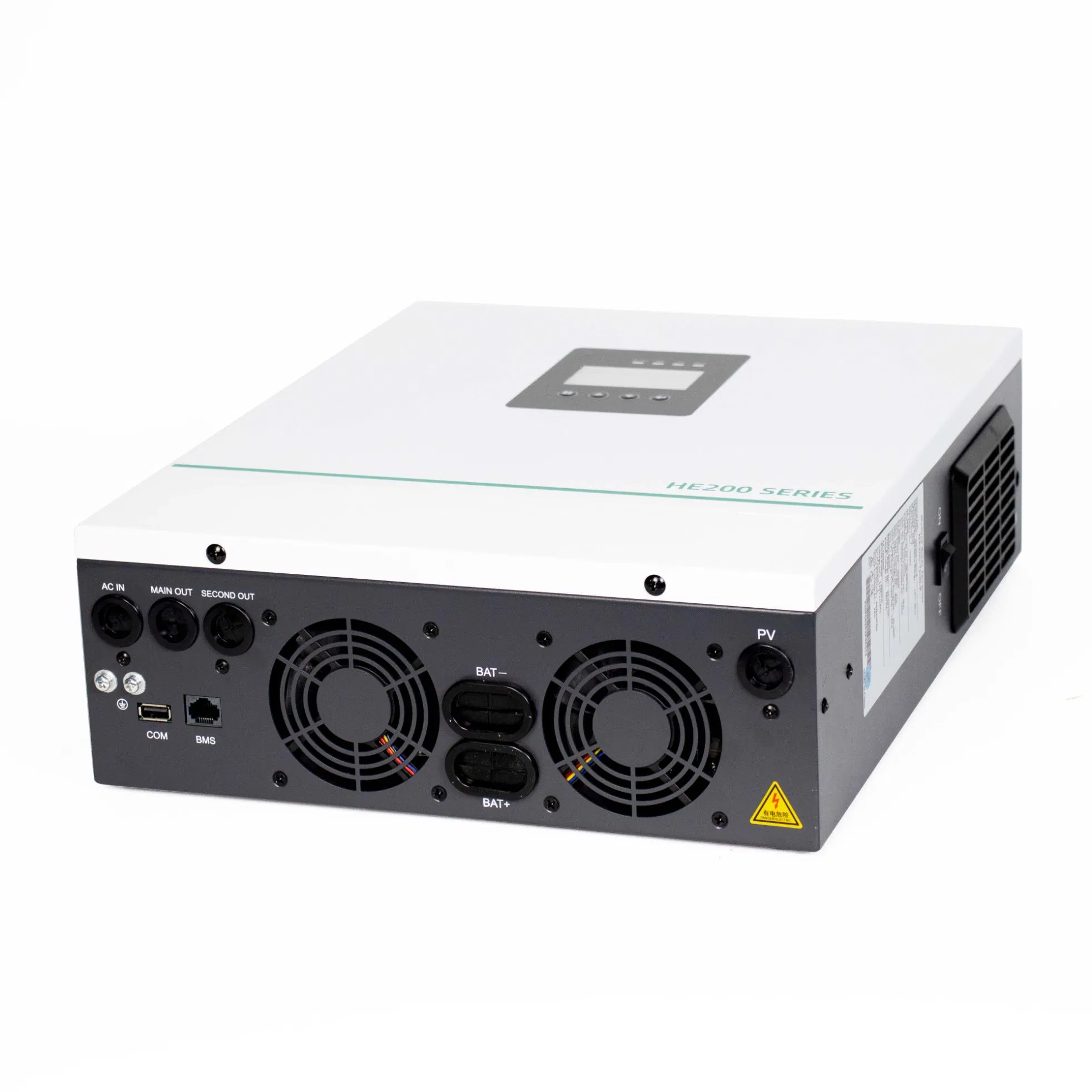

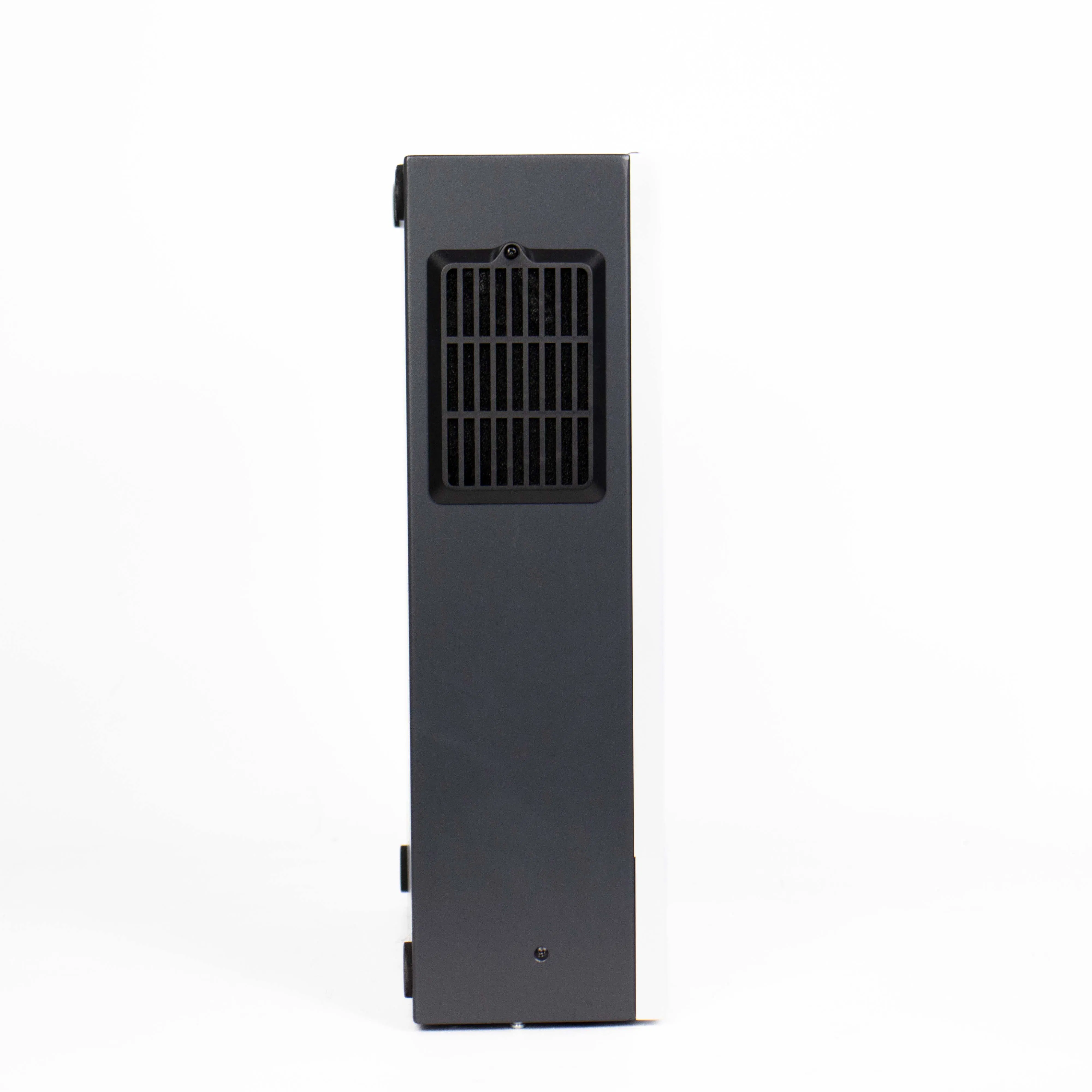

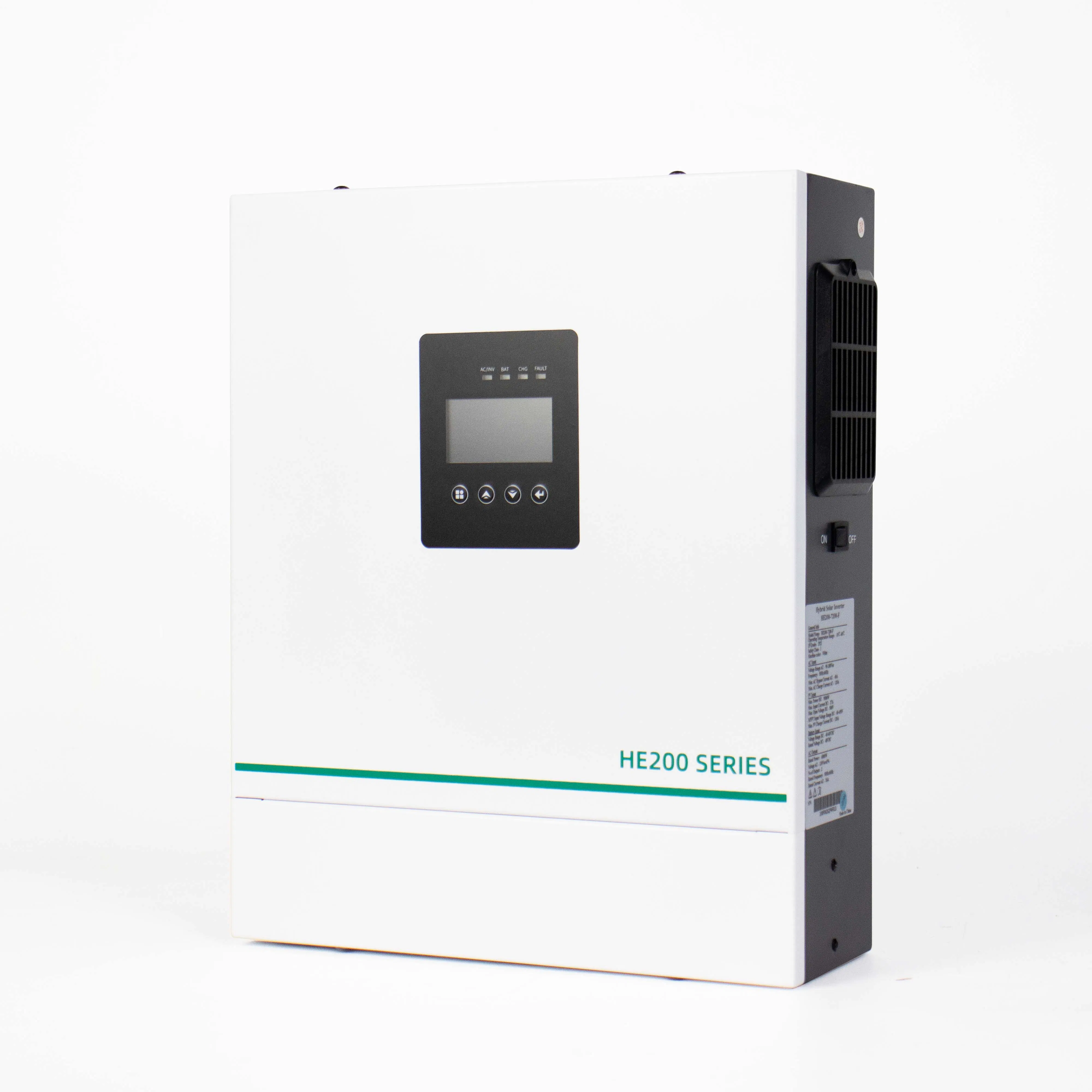

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size and supports uninterruptible power supply (UPS) switching. It features integrated functions for setting battery charging voltage and current, along with multiple power input and output priority settings.
✔ Output AC voltage and frequency can be set to suit various grid environments.

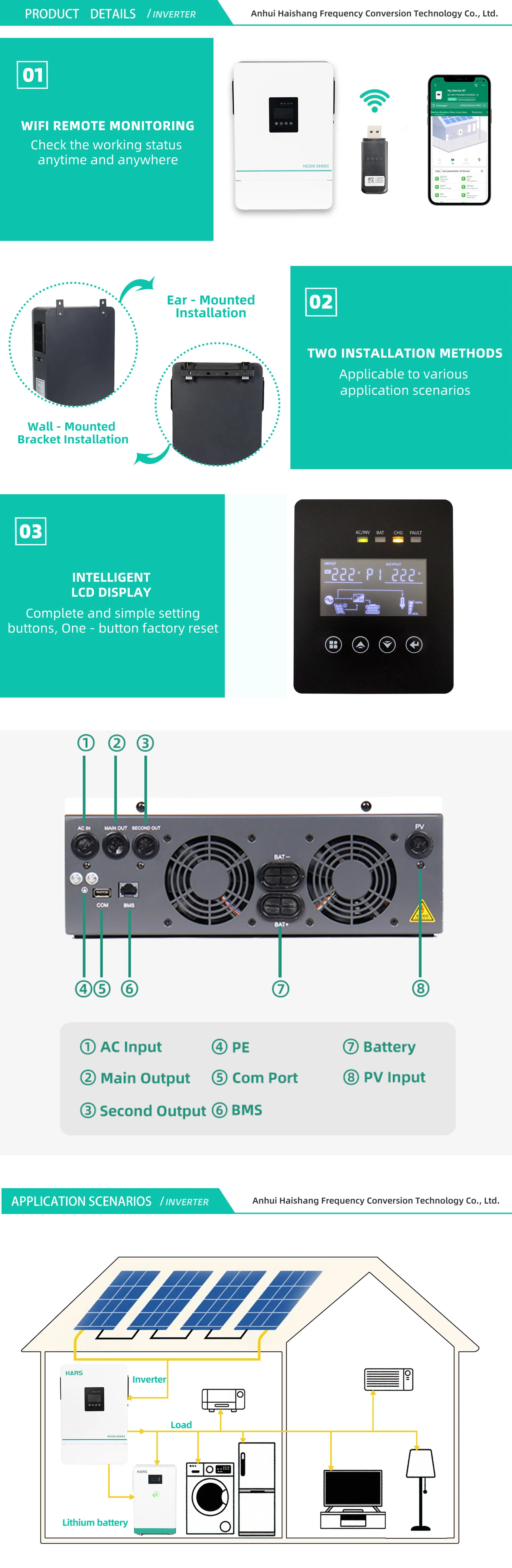

✔ Includes a mobile phone APP for online real-time data monitoring.
| Inverter Output Specification | |
|---|---|

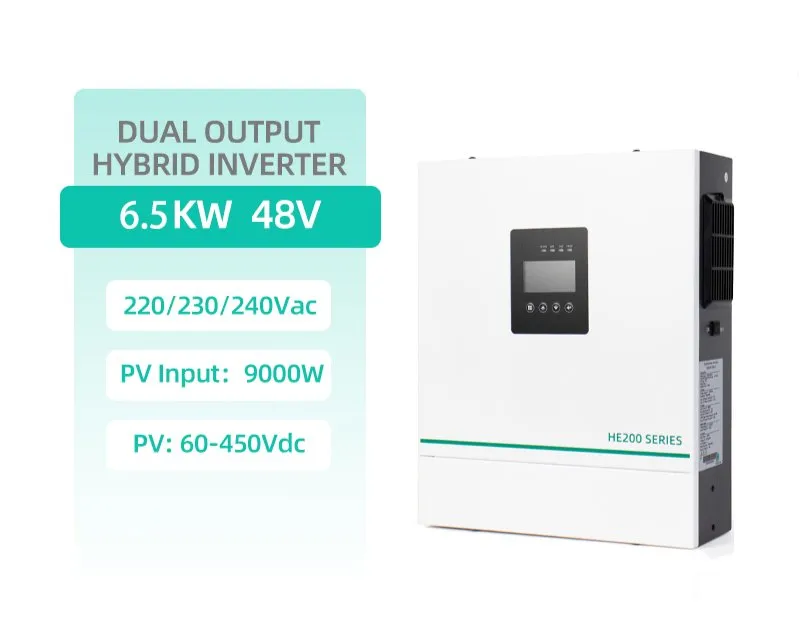

| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac±5% (Single Phase) |
| Rated Output Current | 27A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
|---|---|
| Battery Type | Lead acid / Gel / Lithium battery |
| Rated Battery Voltage | 48V |
| Max PV Input Power | 9000W |
| Max PV Charging Current | 120A |
| MPPT Voltage Range | 60~450V |

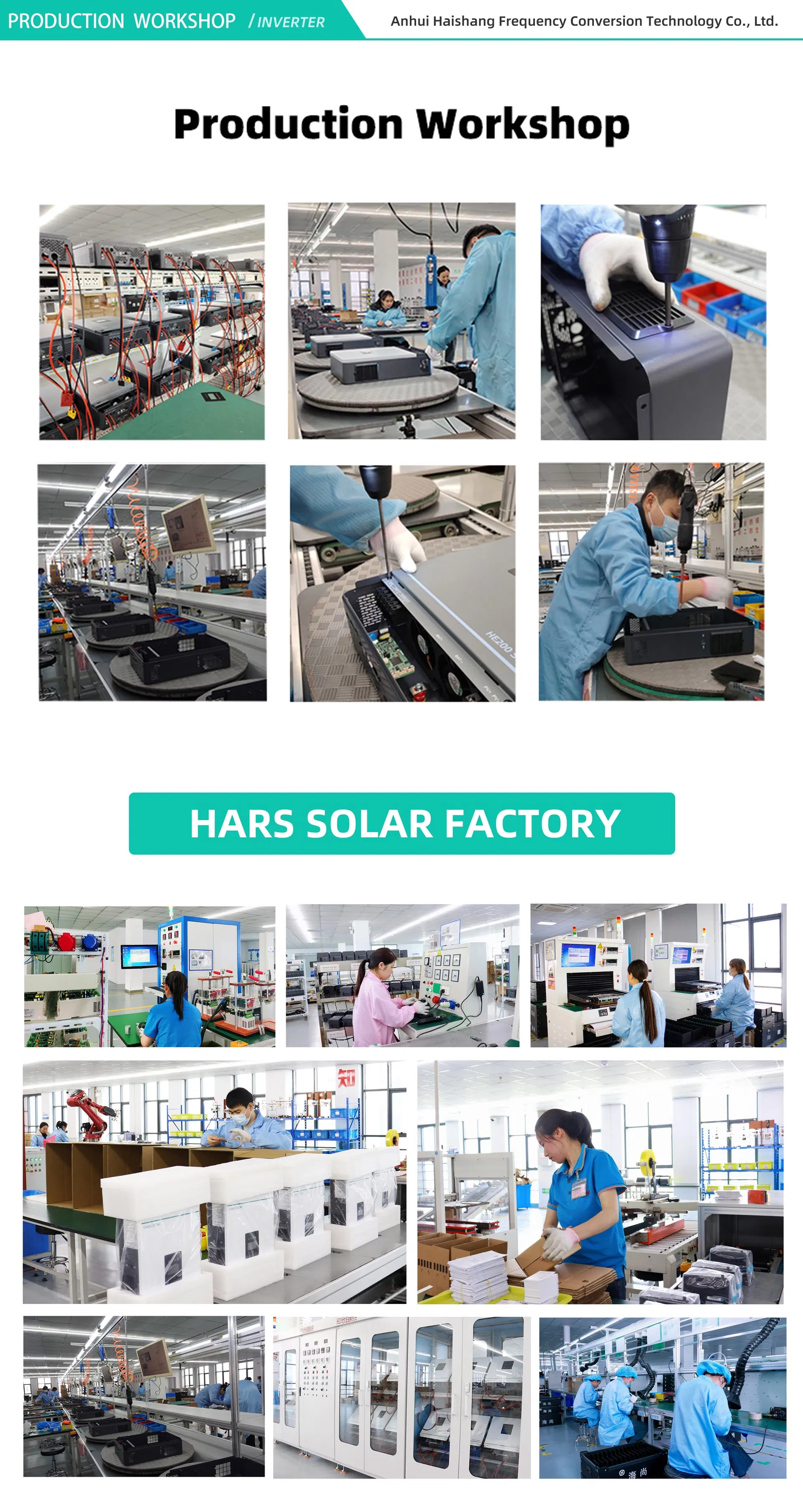

Our solutions integrate advanced R&D with high-precision technical services. The proportion of automated production is as high as 80%, ensuring consistent quality and stable supply. We provide strong technical support and versatile options to meet global energy demands.
