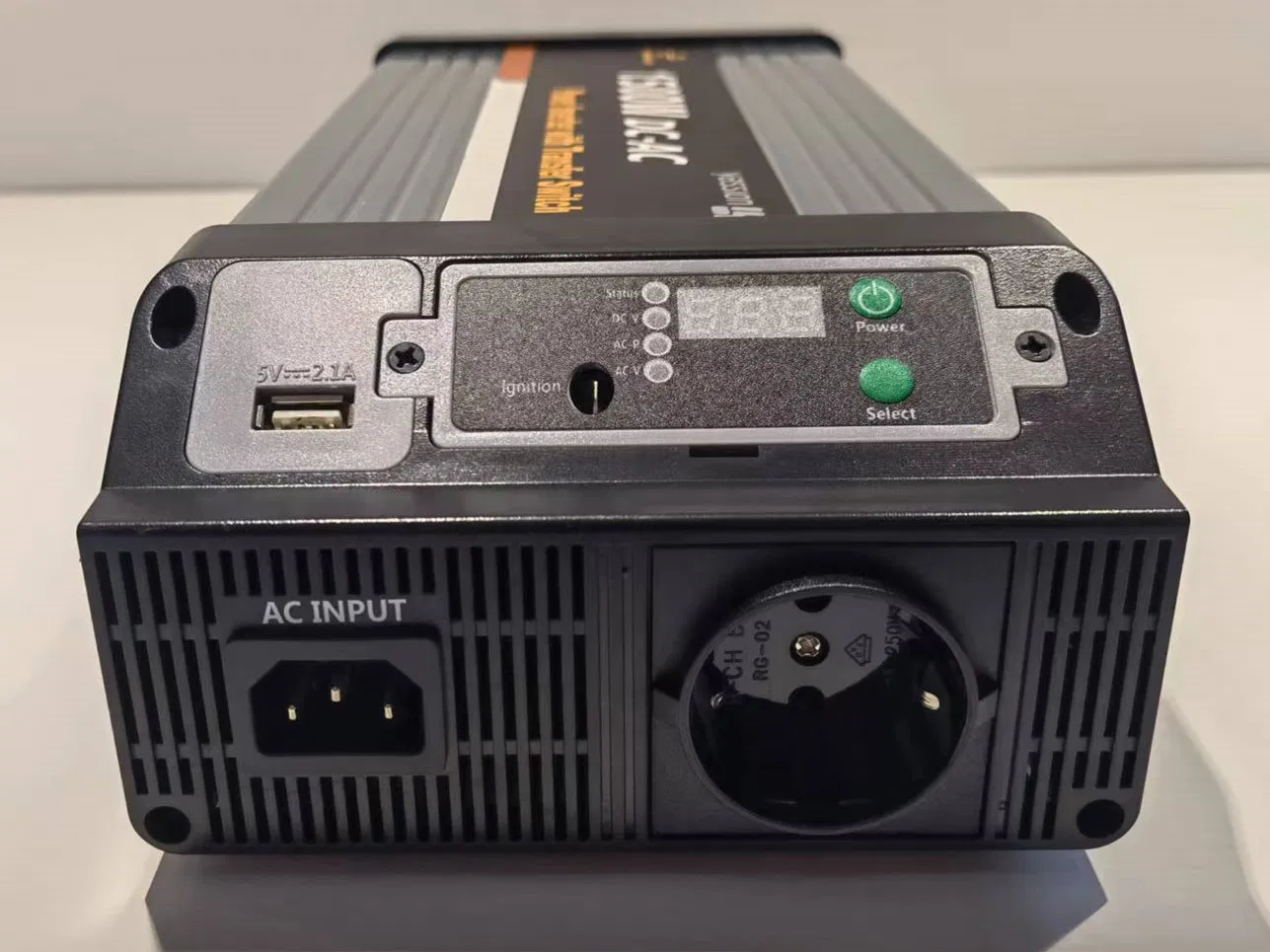

High Frequency Solar Inverter 1000W True Sine Wave Inverter with Remote

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Specifications
Model No.
YX-1KUS (removable)
Input Voltage
12V / 24V
Output Voltage
110V / 220V
Waveform
Pure Sine Wave
Frequency
50Hz or 60Hz
Efficiency
91%
Warranty
18 Months
Origin
China
🚀 Product Overview

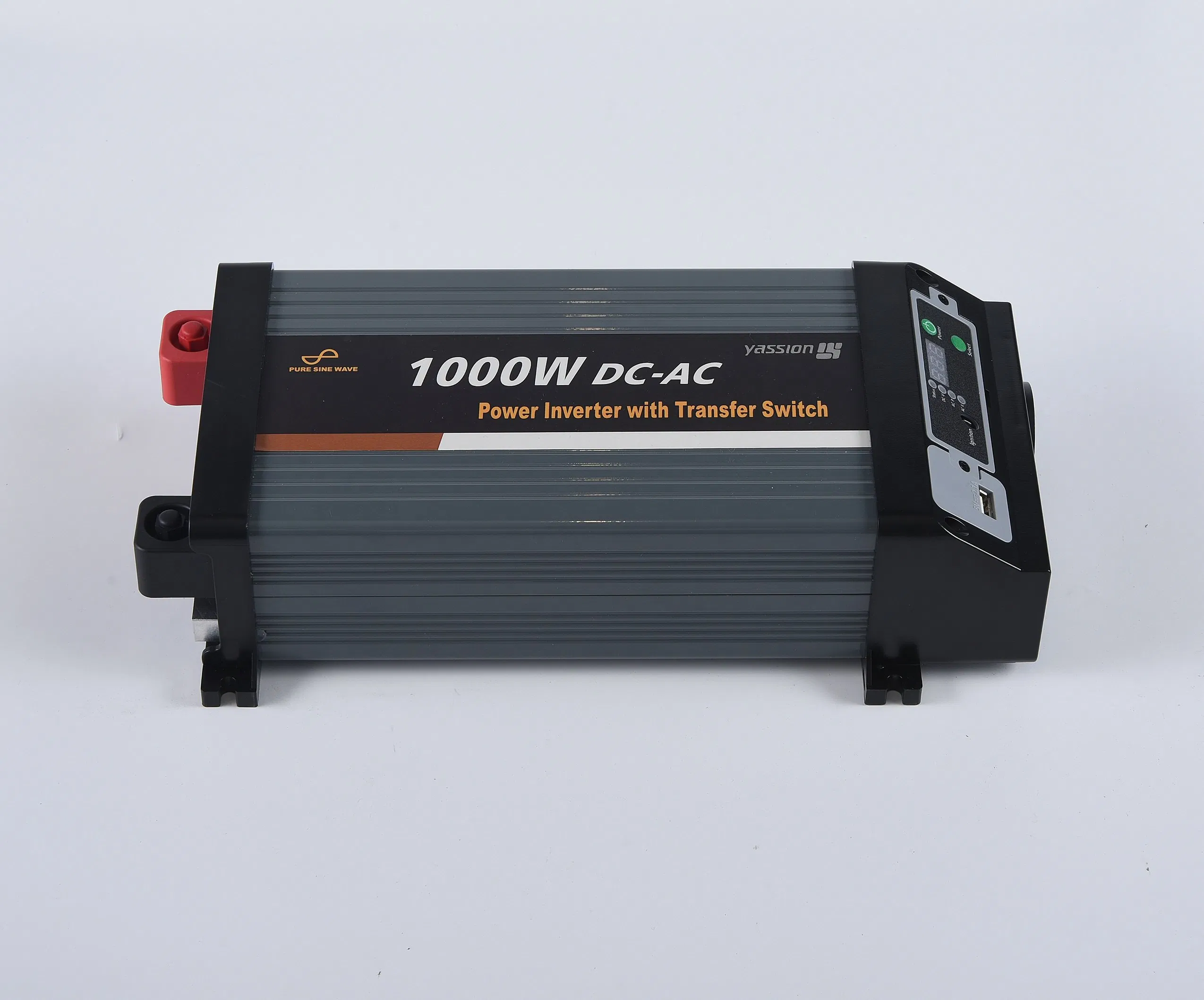

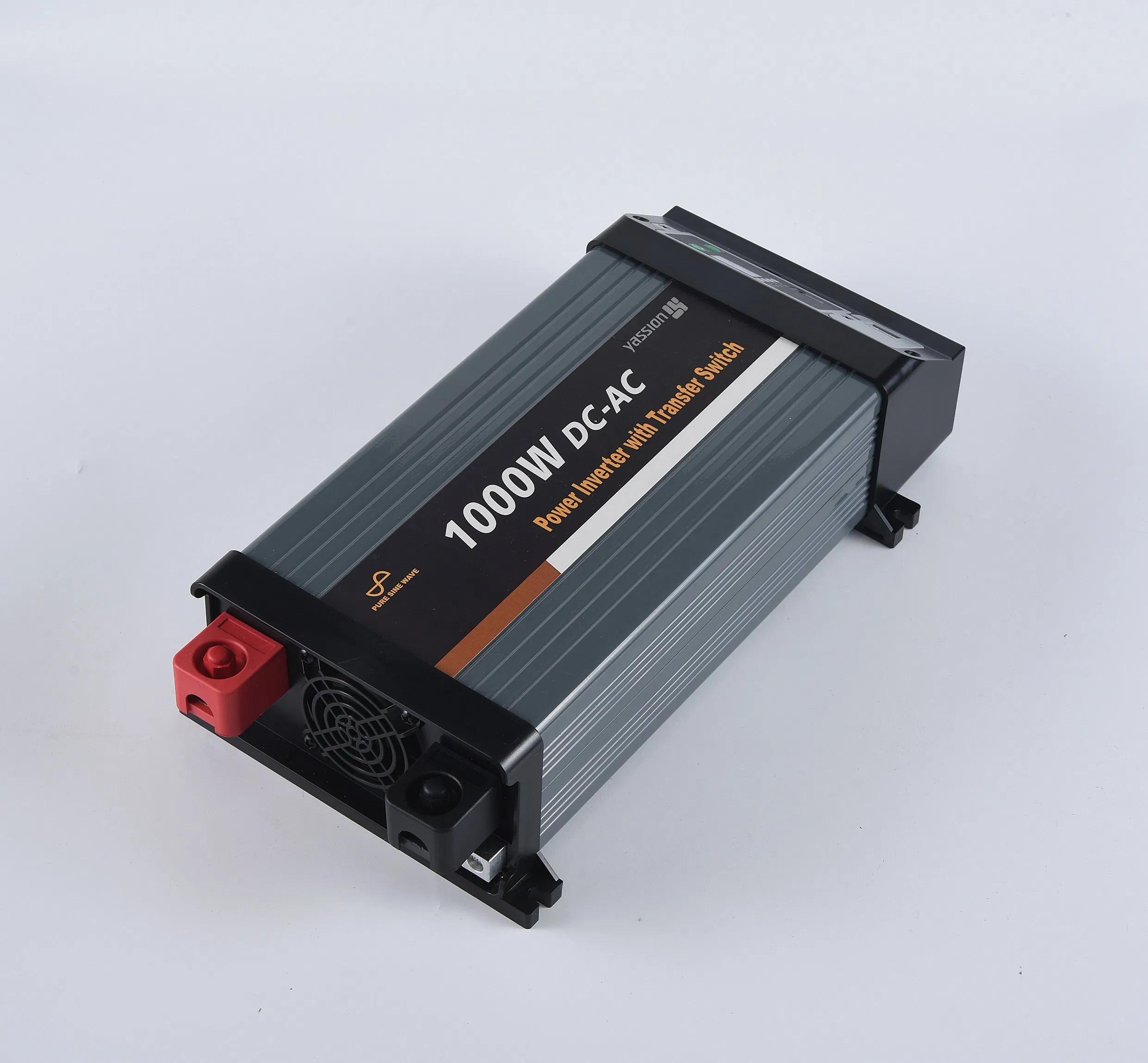

1000W Pure Sine Wave Inverter with Transfer Switch (Removable Display)

Main Features:

  • 1000W continuous pure sine wave power and 2000W surge power.
  • Ultra-clean pure sine wave power with less than 3% total harmonic distortion.
  • Automatic switching between city power and battery power with included 16A transfer switch.

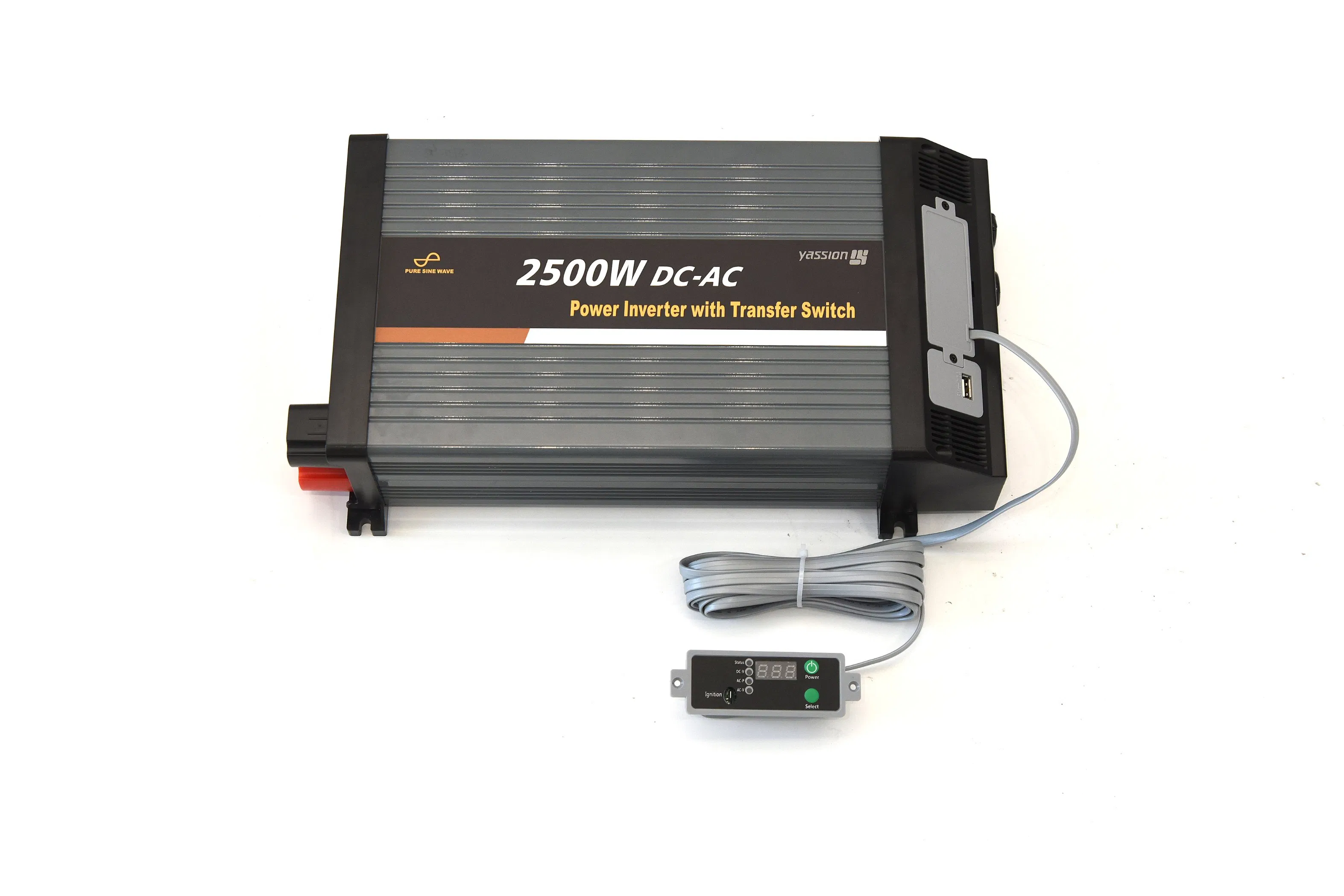

  • Removable display panel for remote mounting, control, and system monitoring.
  • Lighter and more compact design utilizing high-frequency switching technology.

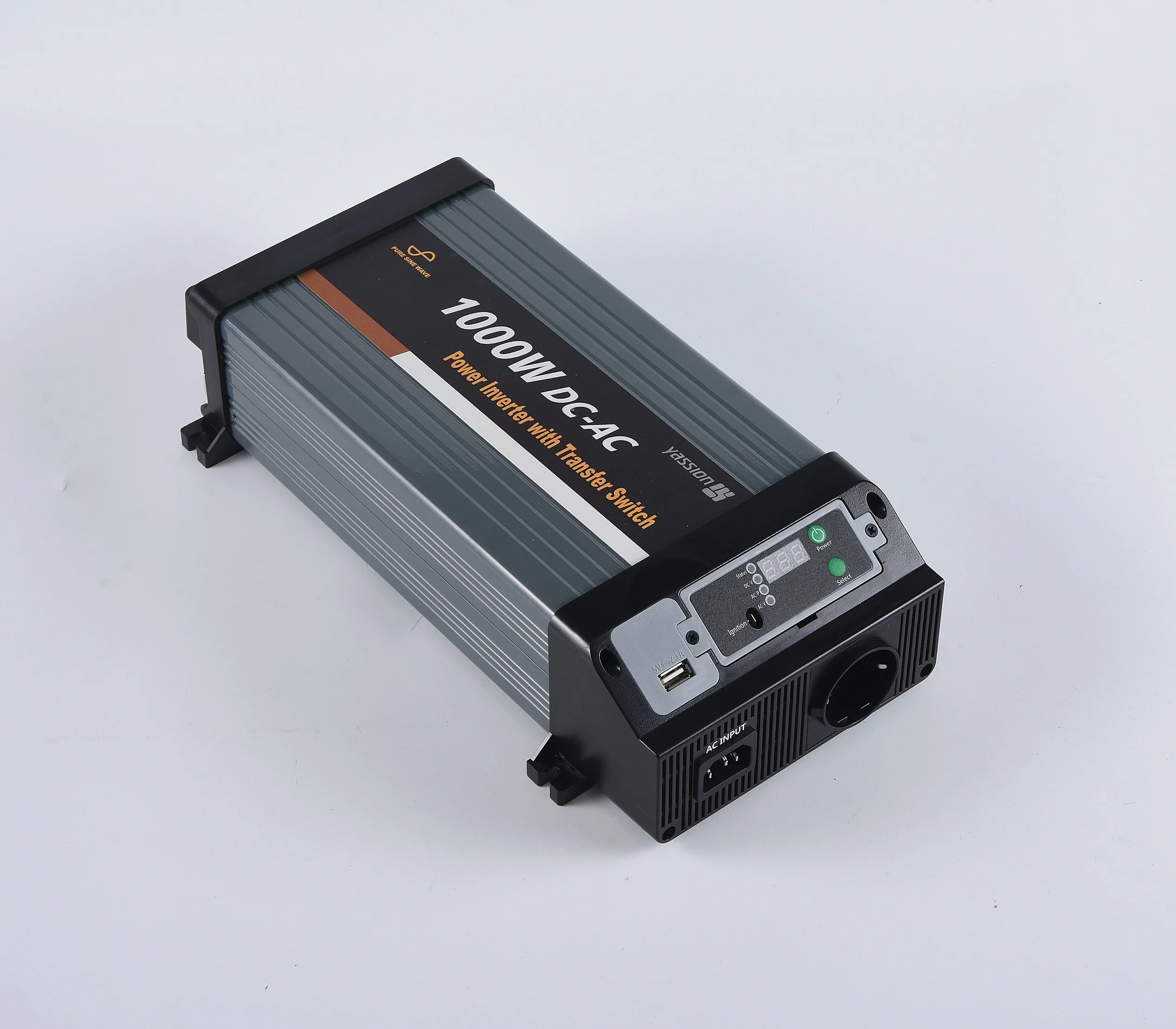

  • Digital display for real-time monitoring of DC voltage, AC voltage, output power, and protection codes.
  • Extended 18 months warranty coverage.

🛡️ Protection Features:

  • Over voltage and under voltage protection
  • Over temperature and over load protection
  • Short circuit and reverse polarity protection

📦 What is included in the package:

1000W pure sine inverter with transfer switch, 2x battery cables (black and red), an AC cable with plug, a 5m remote cable, user manual, car ignition port, and a set of spare fuses.

📸 Product Visuals
📊 Technical Parameters
Parameter YX-1KUS-1-1 / 1-2 YX-1KUS-2-1 / 2-2
Continuous Power1000W
Peak Power2000W
DC VoltageDC12VDC24V
AC Voltage100V/110V/120VAC ± 3V220V/230V/240VAC ± 3V
No Load Current1A0.5A
DC Voltage Range10-15.5V20-31V
Low Voltage Alarm11V ± 0.3V22V ± 0.3V
Low Voltage Shut Down10.5V ± 0.3V21V ± 0.3V
Frequency50Hz / 60Hz ± 0.5Hz
EfficiencyUp to 91%
Transfer TimeLess than 30ms
Cooling WayIntelligent cooling fan
CertificationCE, E-mark, FCC

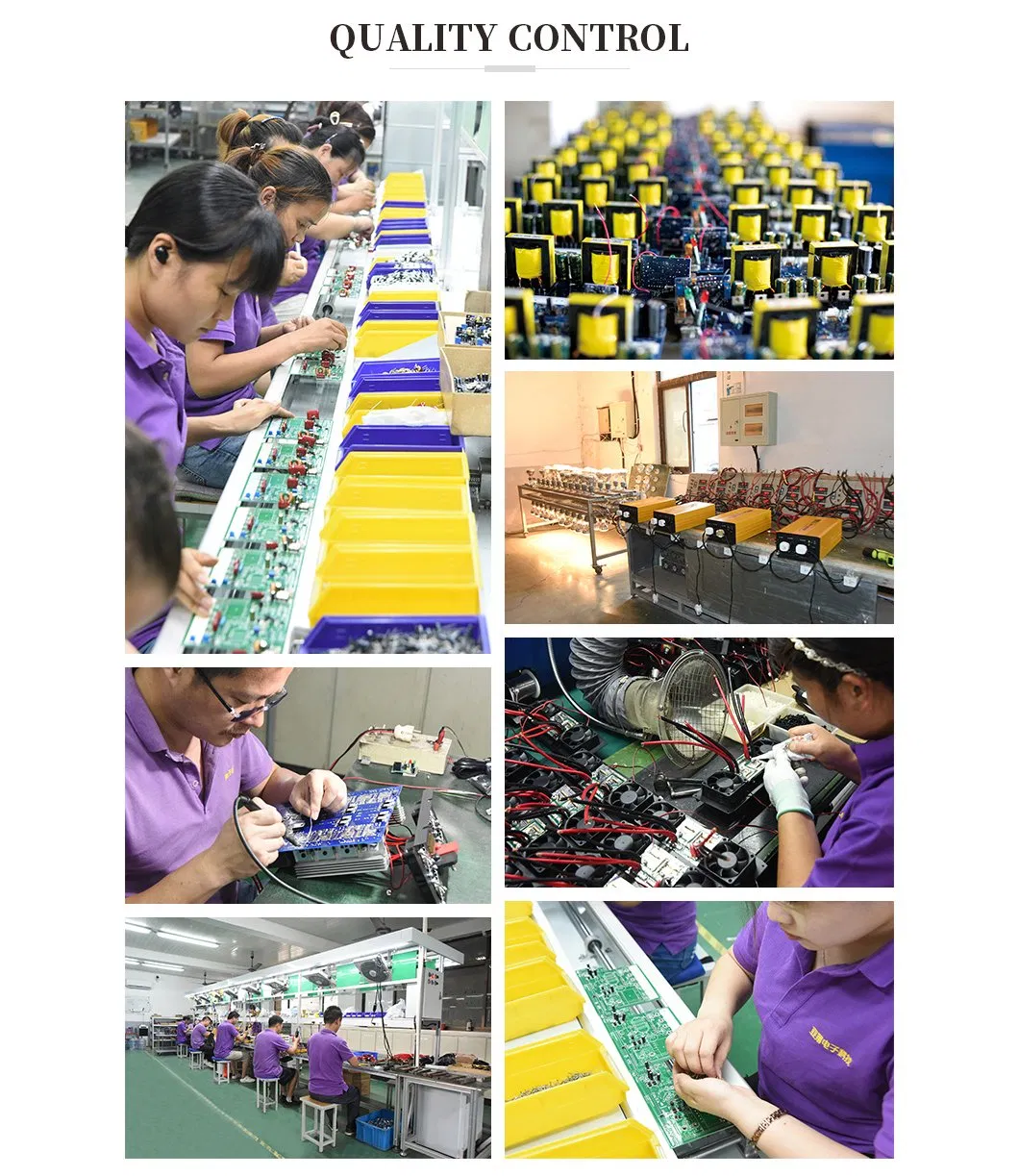

🏭 Production & Quality Control
❓ Frequently Asked Questions
What are the advantages of a pure sine wave inverter?
Pure sine wave inverters provide high-quality electricity with less than 3% harmonic distortion, ensuring that sensitive electronics run smoothly, quietly, and without interference.
How does the automatic transfer switch work?
The built-in 16A transfer switch allows the inverter to automatically detect and switch between city power and battery power in less than 30ms, ensuring continuous operation for your devices.
Can the display panel be installed away from the inverter?
Yes, the display is removable and comes with a 5-meter remote cable, allowing you to monitor and control the inverter from a more convenient location.
What safety protections are integrated into this model?
It includes a full suite of protections: over/under voltage shutdown, over-temperature protection, overload protection, short circuit protection, and reverse polarity protection via built-in fuses.
Is this inverter compatible with vehicle ignition systems?
Yes, it features an ignition function that can be connected to the vehicle's battery or starter pole, allowing the inverter to power on and off automatically with the vehicle.
What is the warranty period for this product?
The product comes with an 18-month warranty from the date of purchase, covering manufacturing defects and technical reliability.
