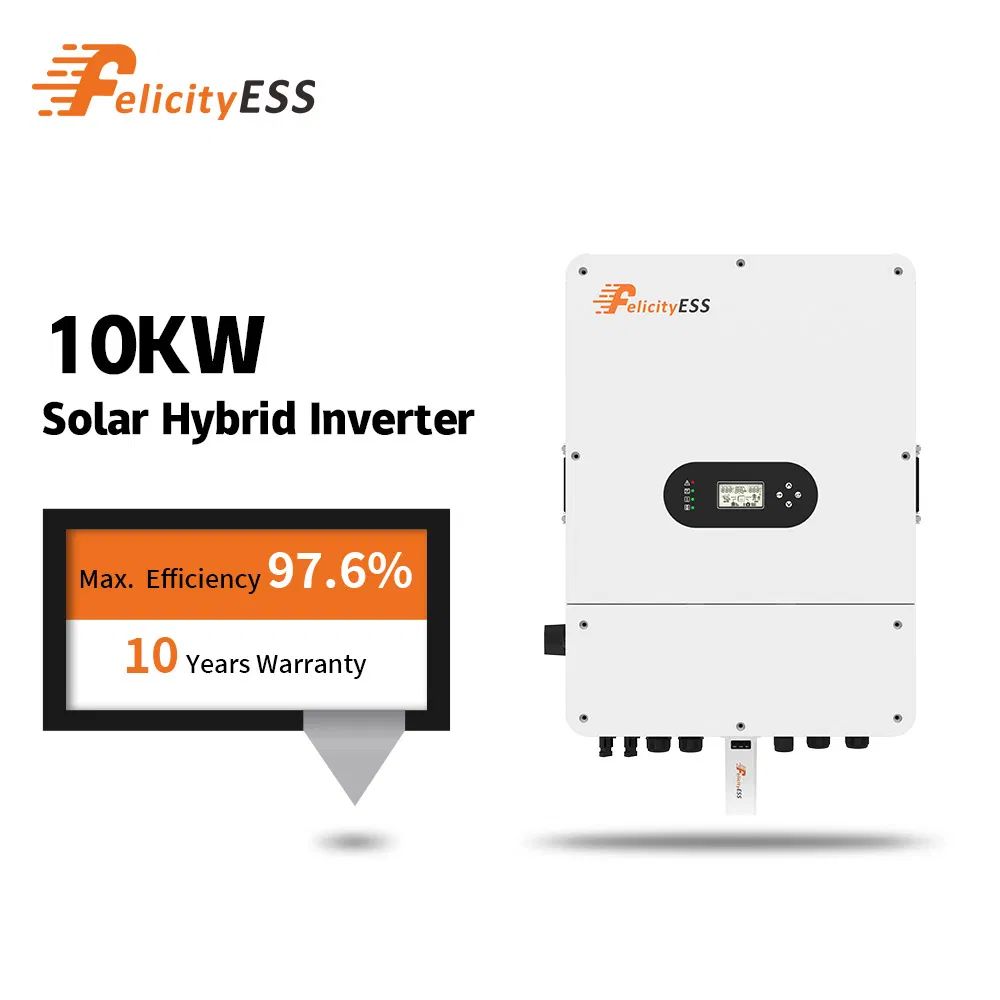

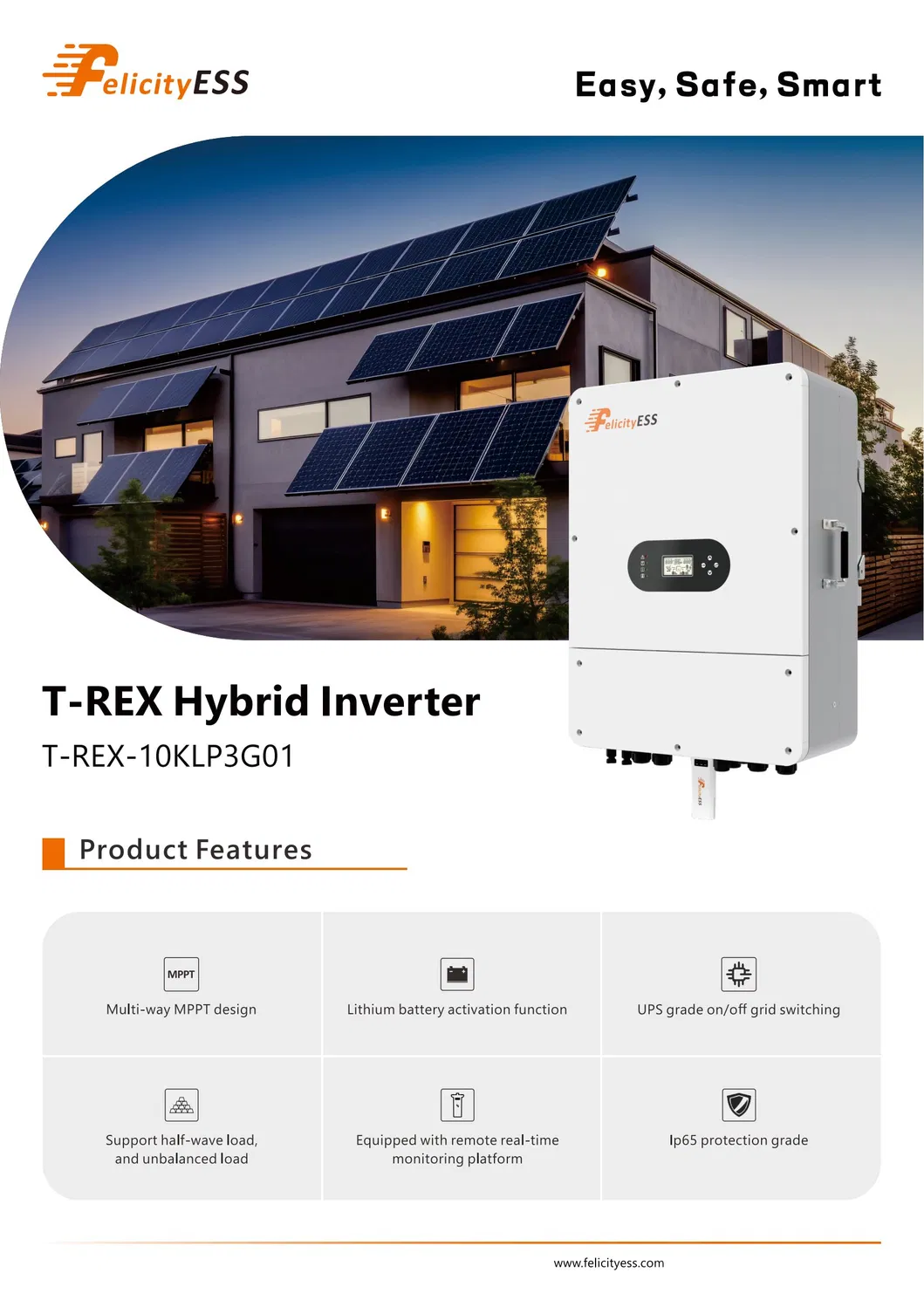

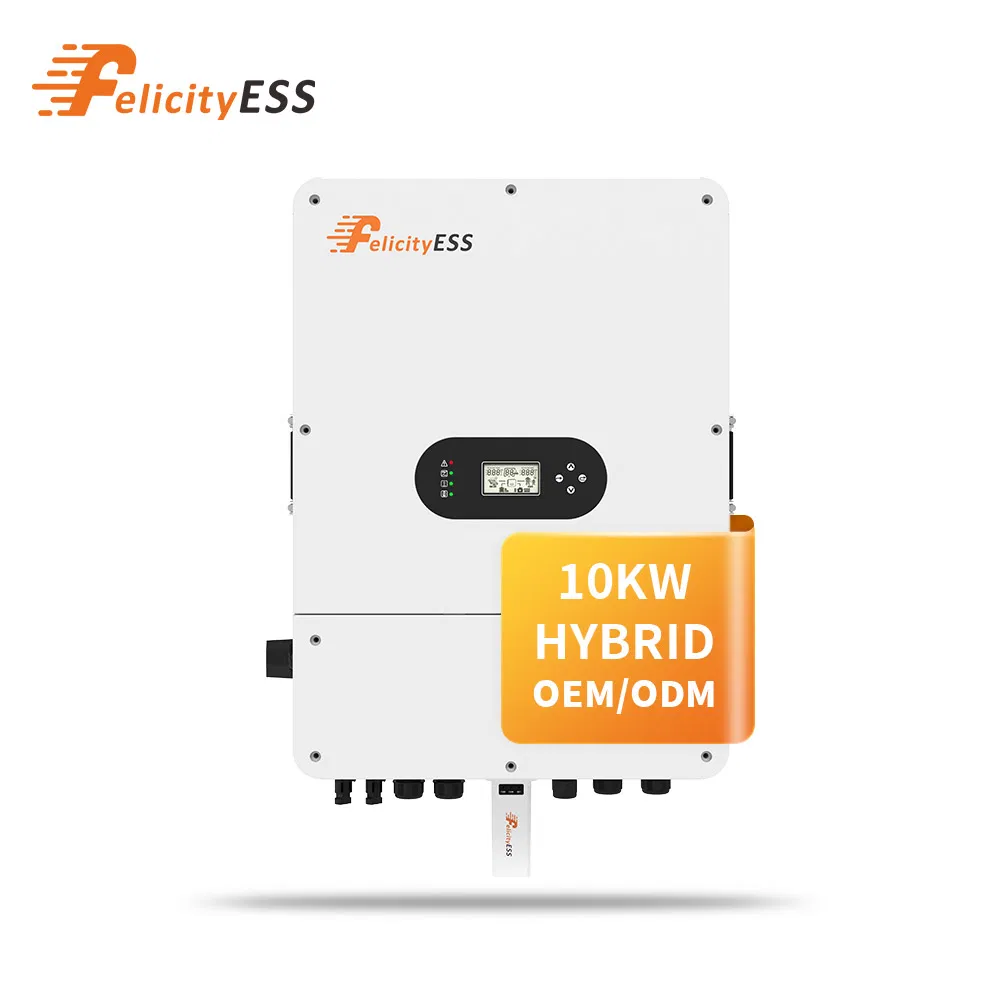

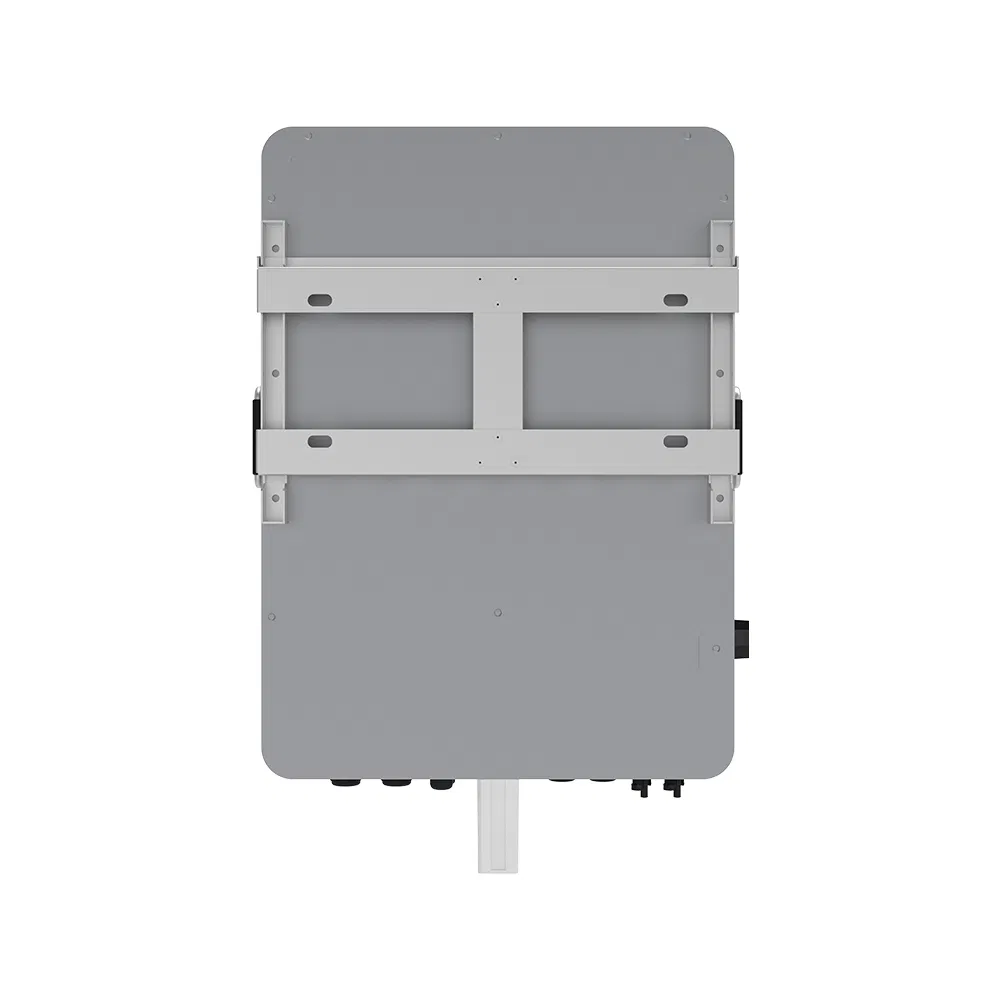

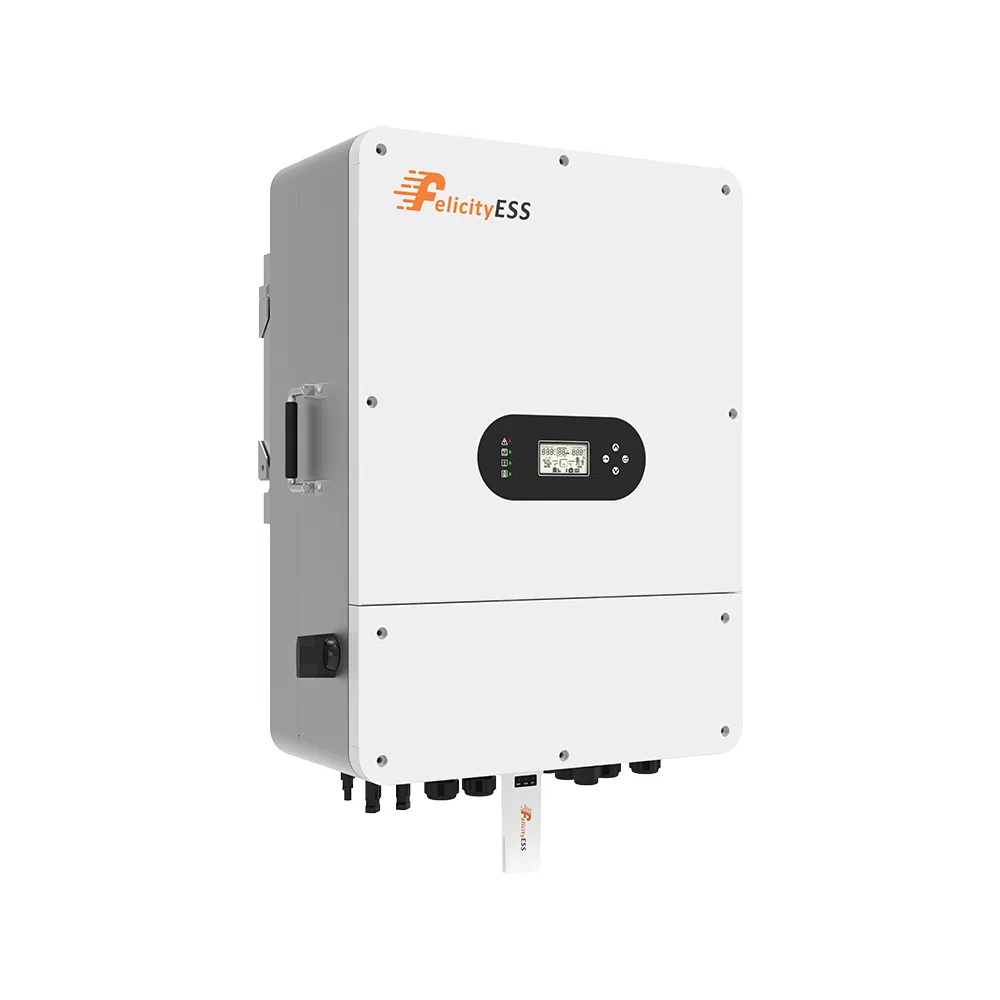

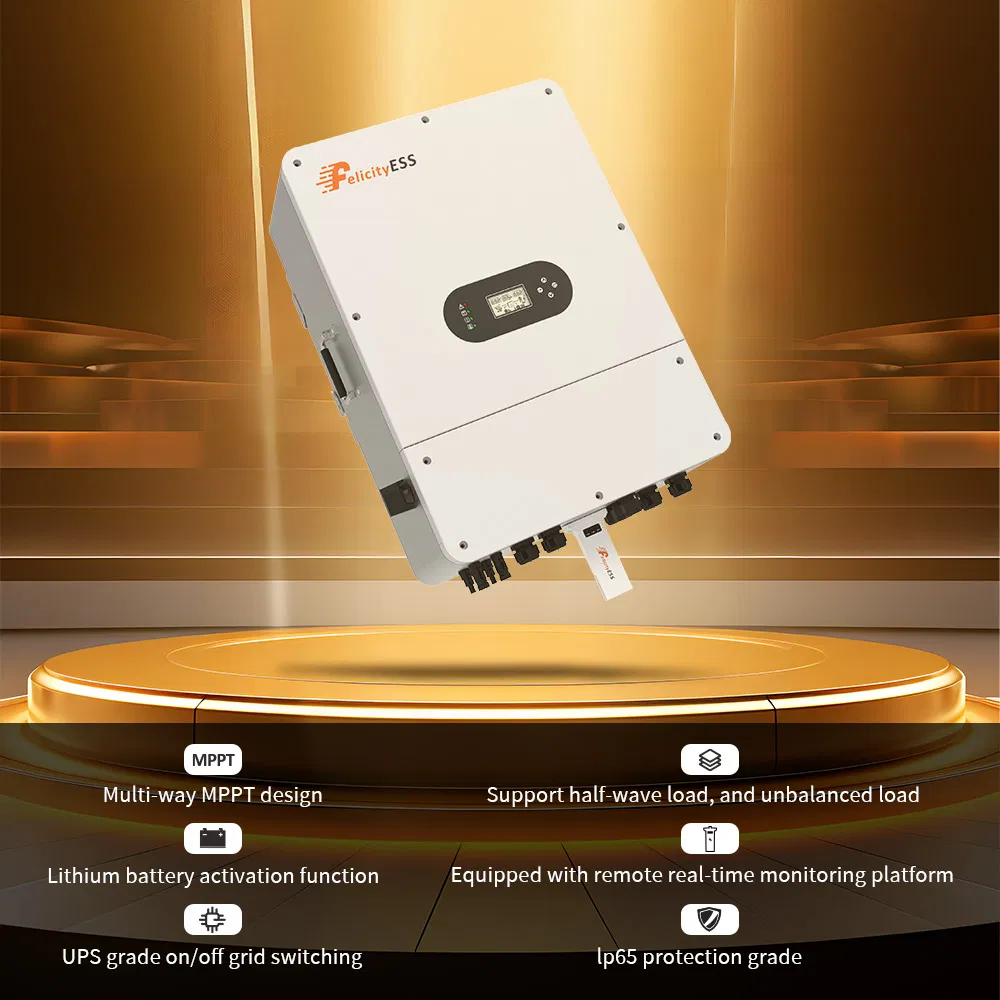

10kw On/Off Grid High Frequency Hybrid Solar Inverter with MPPT Controller Technology
IP65 Protection for robust performance in various environments.
| Battery Input Data | |

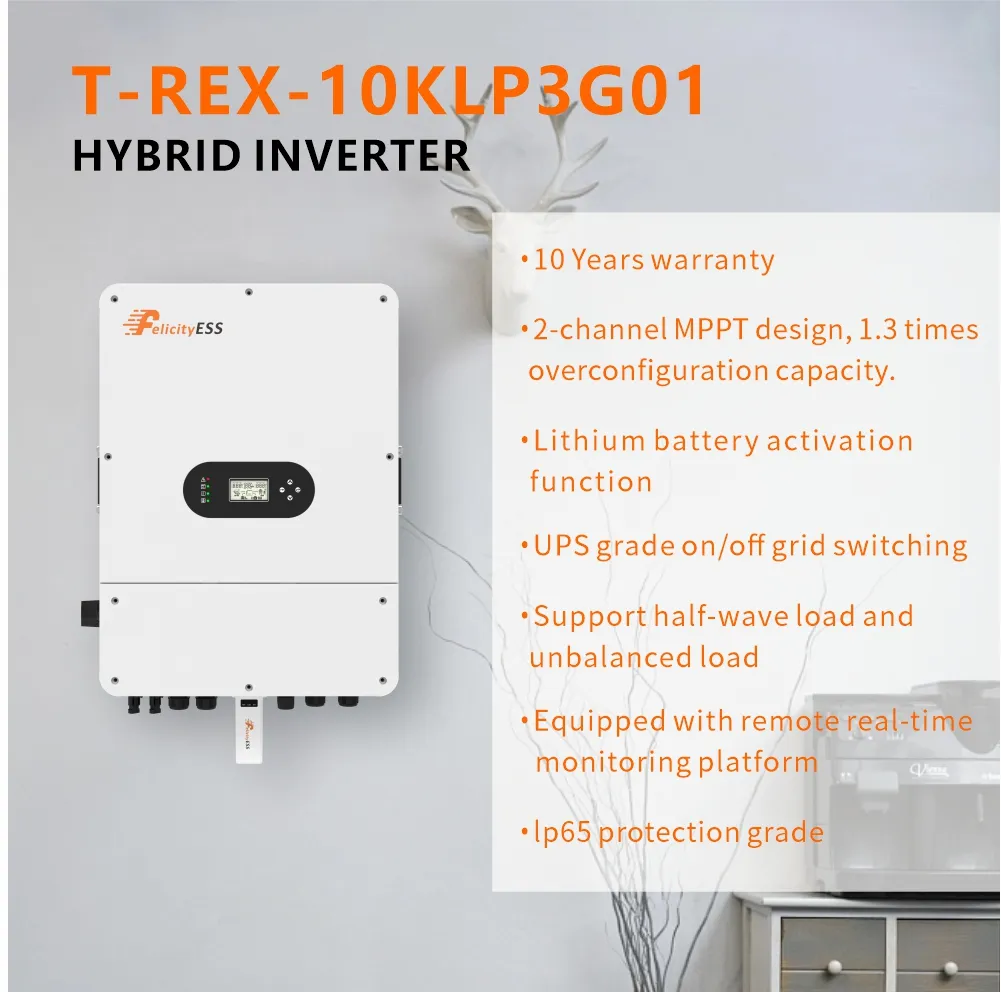

| Model | T-REX-10KLP3G01 |
| Battery Voltage Range | 40V~60V |
| Max. Charging/Discharging Current | 200A/200A |
| Max. Charging/Discharging Power | 10000W |
| DC Input Data (PV Side) | |
| Max. Recommended PV Power | 13000W |
| Max. PV Voltage | 900V |
| MPPT Voltage Range | 200V-850V |
| Number of MPPT Trackers | 2/1 |
| Grid Data | |
| Nominal Input Voltage | L1/L2/L3/N/PE, 230/400Vac |
| Max. AC Output Power | 10000W |
| Max. Efficiency | 97.6% |
| General Data | |
| Protection Degree | IP65 |
| Operating Temperature | -25°C~60°C |
| Warranty | 10 Years |

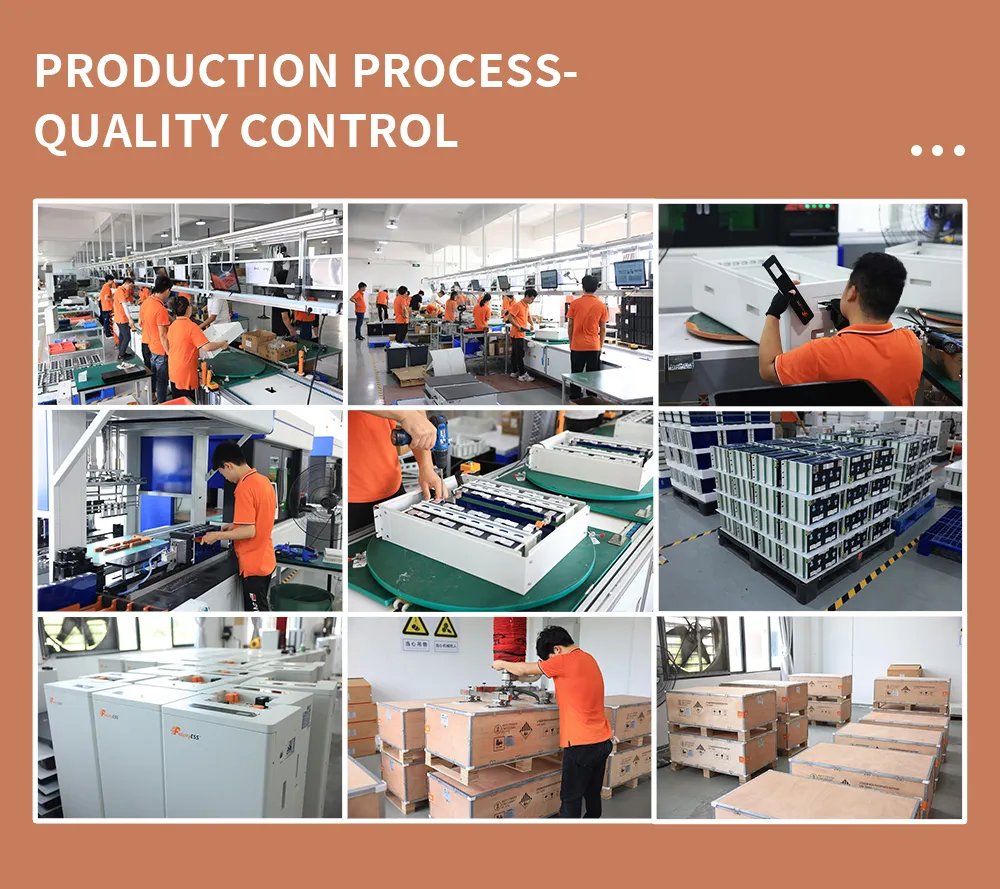

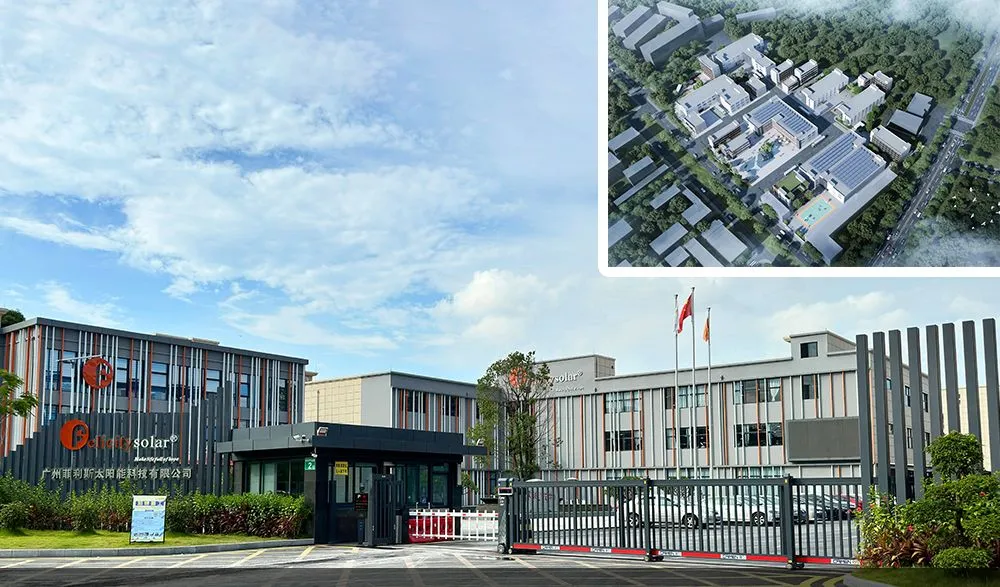

Leading inverter manufacturer and energy system integrator with 17 years of experience. Operating a 40,000 square meter facility with more than 1,000 employees. Products include home energy storage batteries, all-in-one systems, and solar inverters, offering flexible energy conversion and efficient storage solutions.
