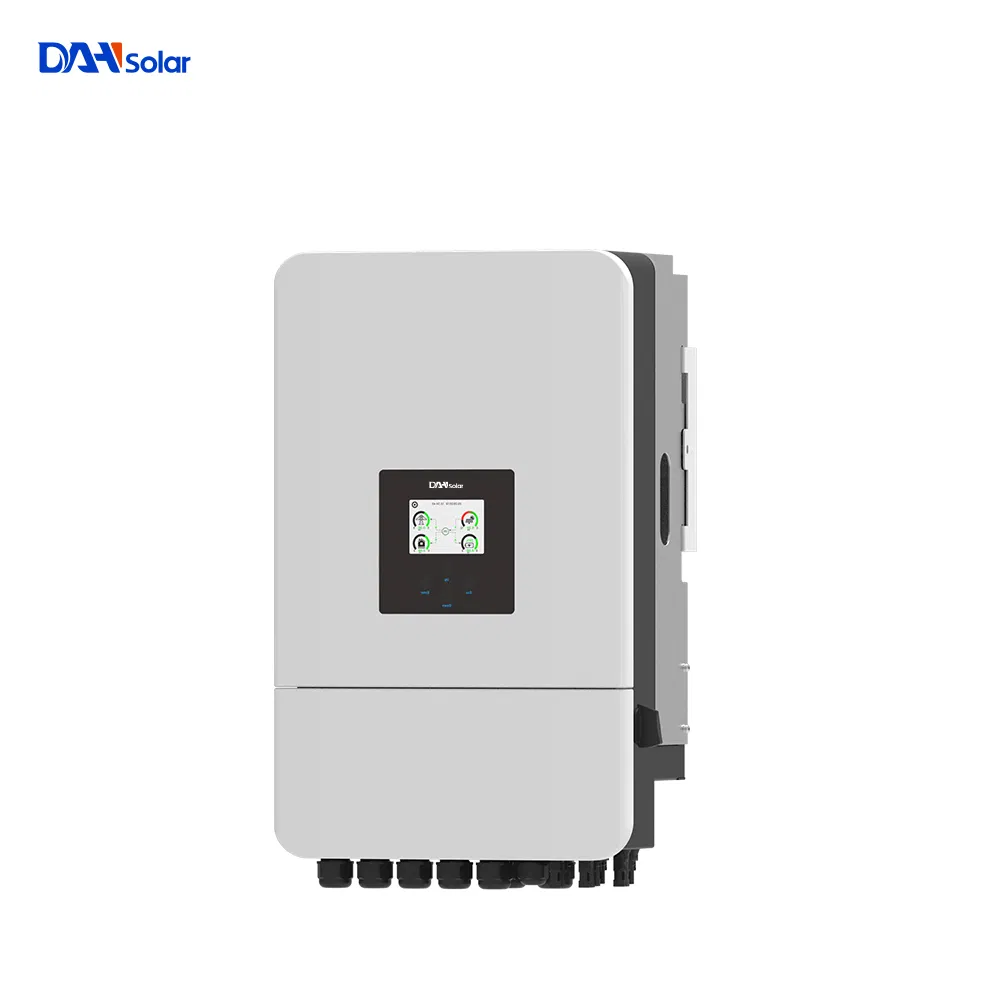

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
1 / 5
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters
Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ⓘ
Basic Information
Model NO.
SUN-8K-SG05LP1-EU-SM2
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
6000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Solar Power System
Max PV Power
3.6kw - 8kw
MPPT Efficiency
99.9%
Frequency
50/60 Hz
Ingress Protection
IP 65
Monitor Mode
GPRS/WiFi/Bluetooth/4G/LAN
Inverter Topology
Non-Isolated
📦
Packaging & Delivery
Package Size
62.00cm * 46.00cm * 35.00cm
Package Gross Weight
30.000kg
Transport Package
Carton
Production Capacity
50,000 pieces/Year
💻
Product Description
Smart Monitoring Platform

Smart Monitoring Platform

Thanks to the smart monitoring platform, full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

Model SUN-3.6K SUN-5K SUN-6K SUN-7K SUN-7.6K SUN-8K
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Voltage Range(V) 40-60
Max. Charging Current(A) 90 120 135 175 190 190
PV String Input Data
Max PV Input Power(W) 4680 6500 7800 10000 9880 10400
MPPT Voltage Range(V) 150-425
AC Output Data
Rated Power(W) 3600 5000 6000 7000 7600 8000
Max Efficiency 97.6%

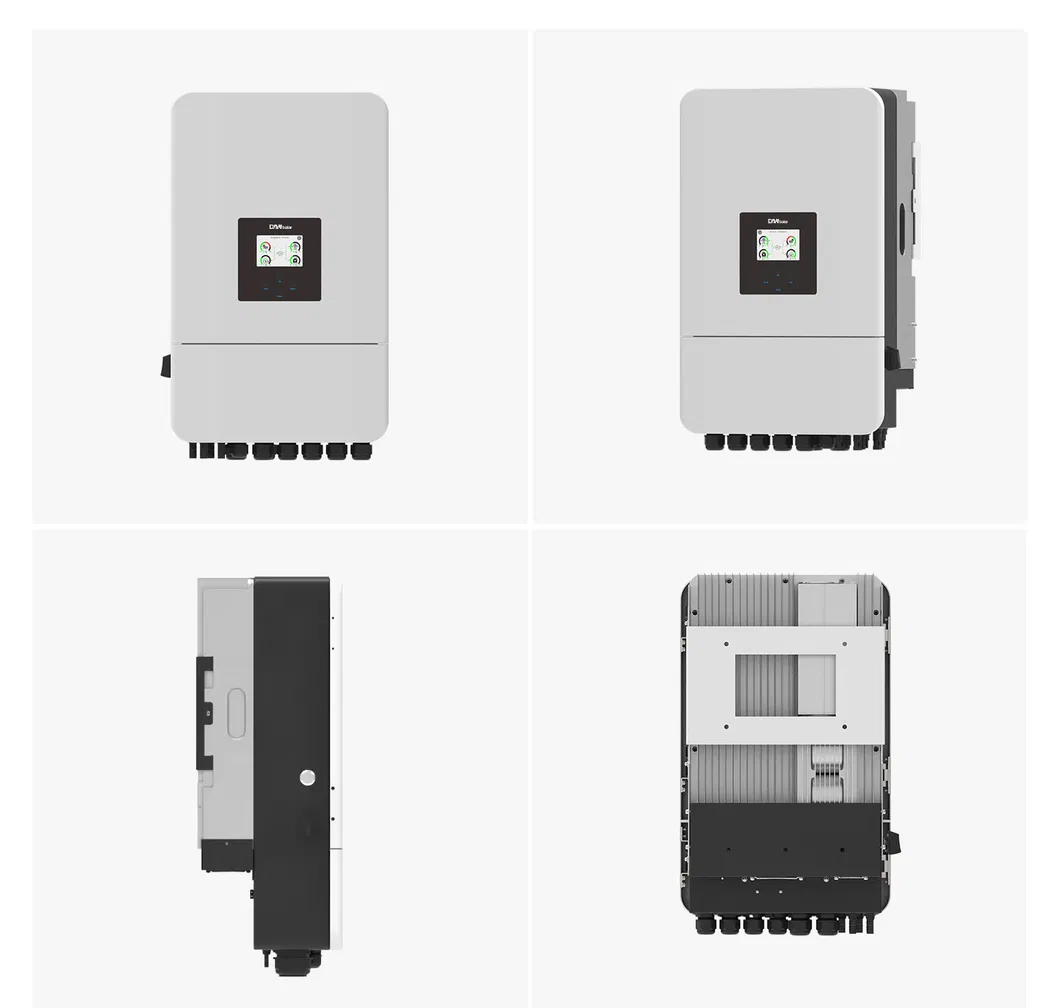

Inverter Details
Technical Features
🚢
Packaging & Shipping

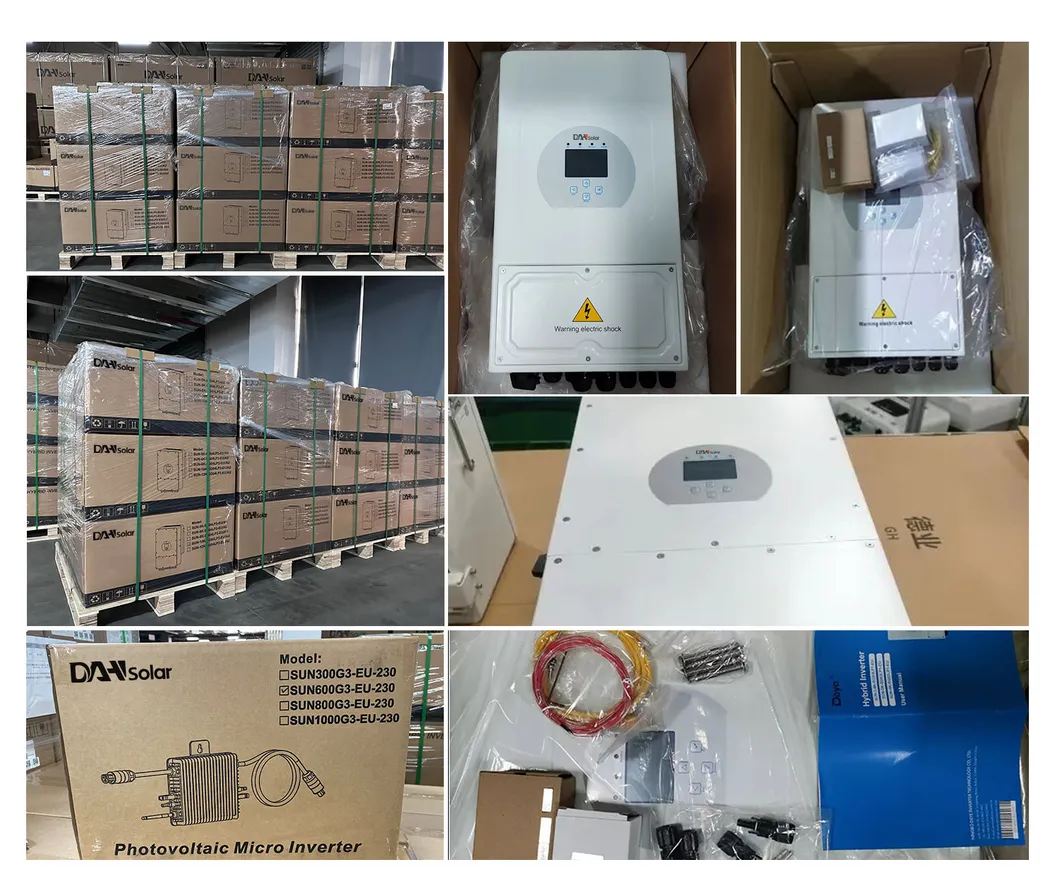

Shipping Process
🏗
Project Showcase

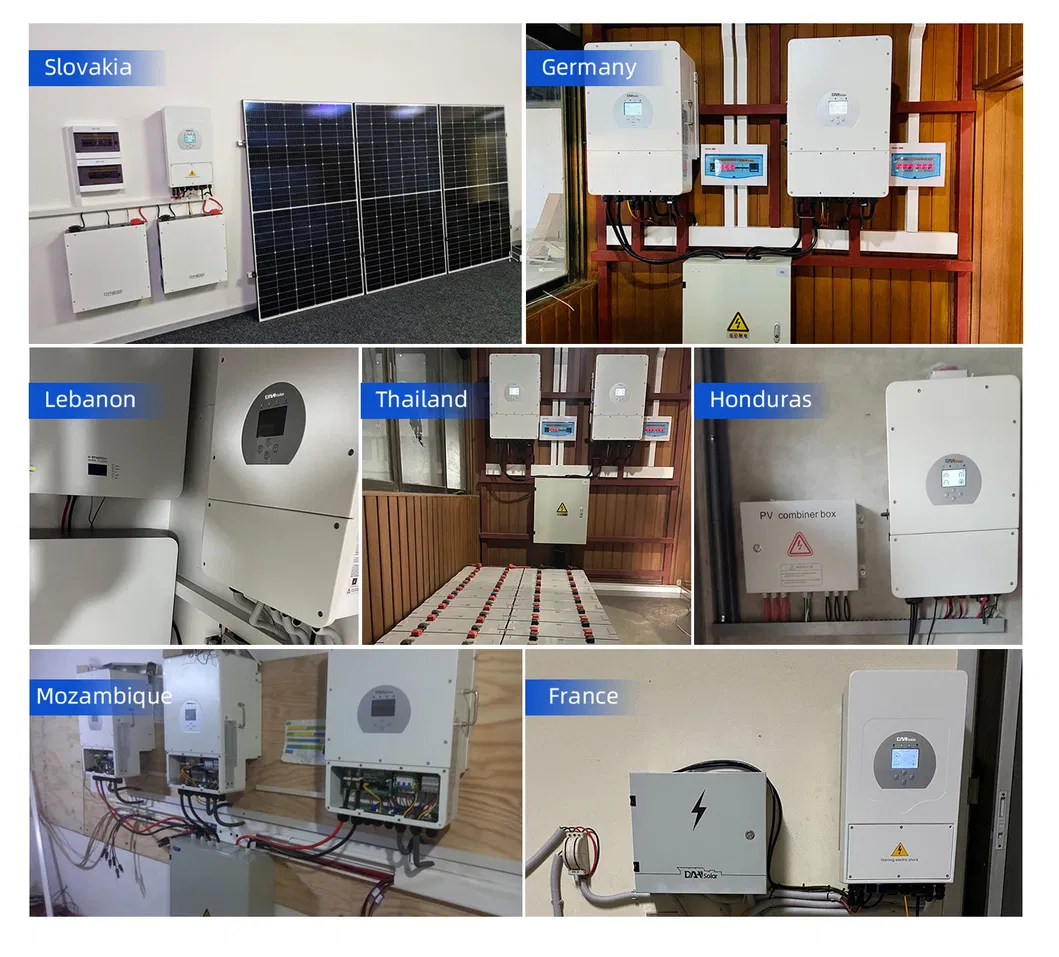

Project Display
Frequently Asked Questions
What types of batteries are compatible with this hybrid inverter?
The inverter is compatible with both Lead-acid and Lithium-ion batteries, featuring a battery voltage range of 40V to 60V and self-adaption to BMS for Lithium-ion types.
Can the inverter be installed outdoors?
Yes, the inverter has an IP65 ingress protection rating, making it suitable for outdoor installation as it is protected against dust and low-pressure water jets.
How does the smart monitoring platform benefit the user?
The smart monitoring platform allows for immediate remote shutdown in case of accidents, remote parameter setting, and firmware updates, significantly simplifying plant operation and maintenance.
What is the maximum efficiency of this solar inverter?
The inverter achieves a maximum efficiency of 97.6% and a Euro efficiency of 96.5%, with MPPT efficiency exceeding 99.9% for optimal energy harvest.
What communication interfaces are supported for monitoring?
It supports multiple communication interfaces including RS485, RS232, and CAN. Monitoring can be done via GPRS, WiFi, Bluetooth, 4G, or LAN (optional).
Does the inverter include integrated protection features?
Yes, it includes comprehensive protection such as DC polarity reverse connection, AC overcurrent/overvoltage protection, short circuit protection, thermal protection, and ground fault monitoring.
