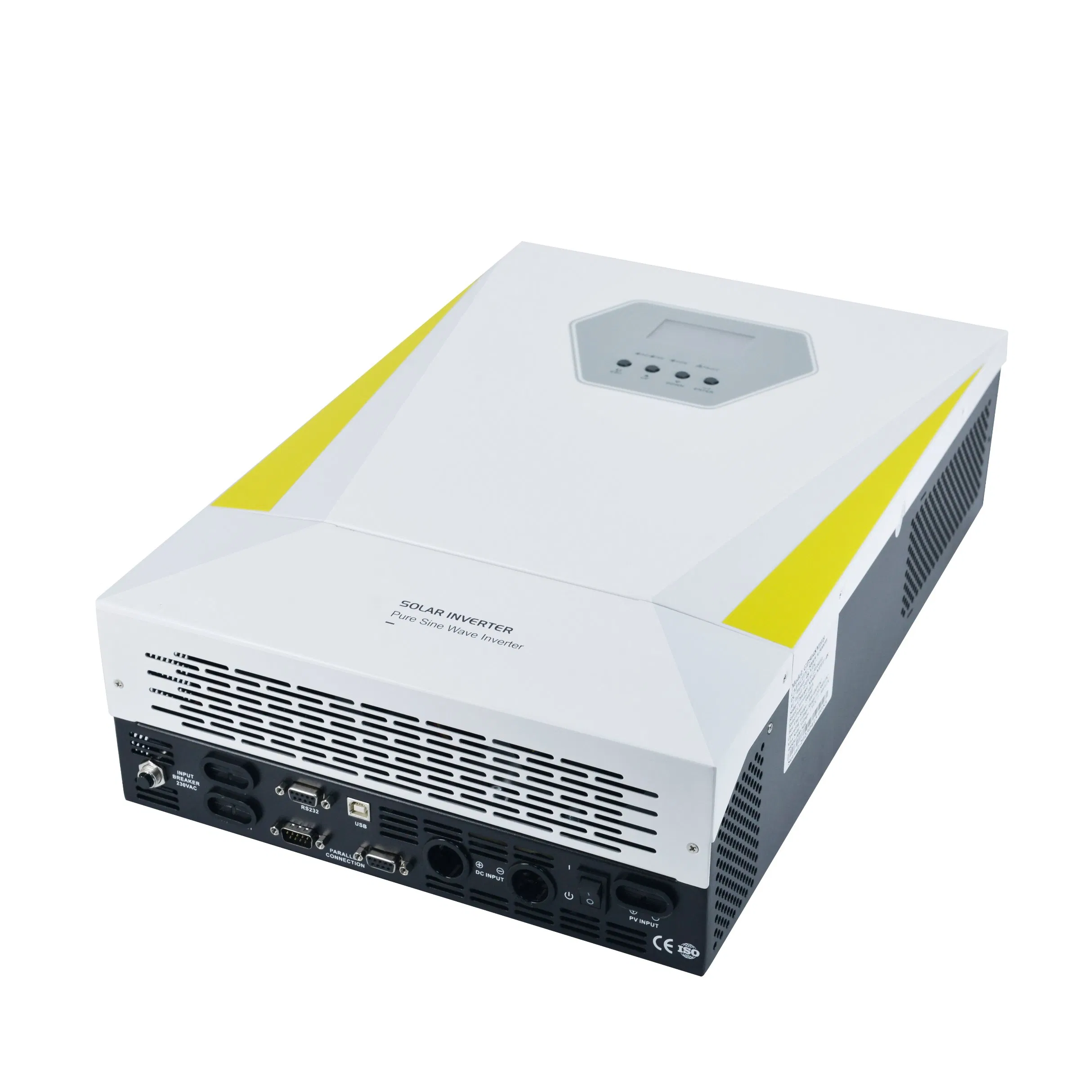

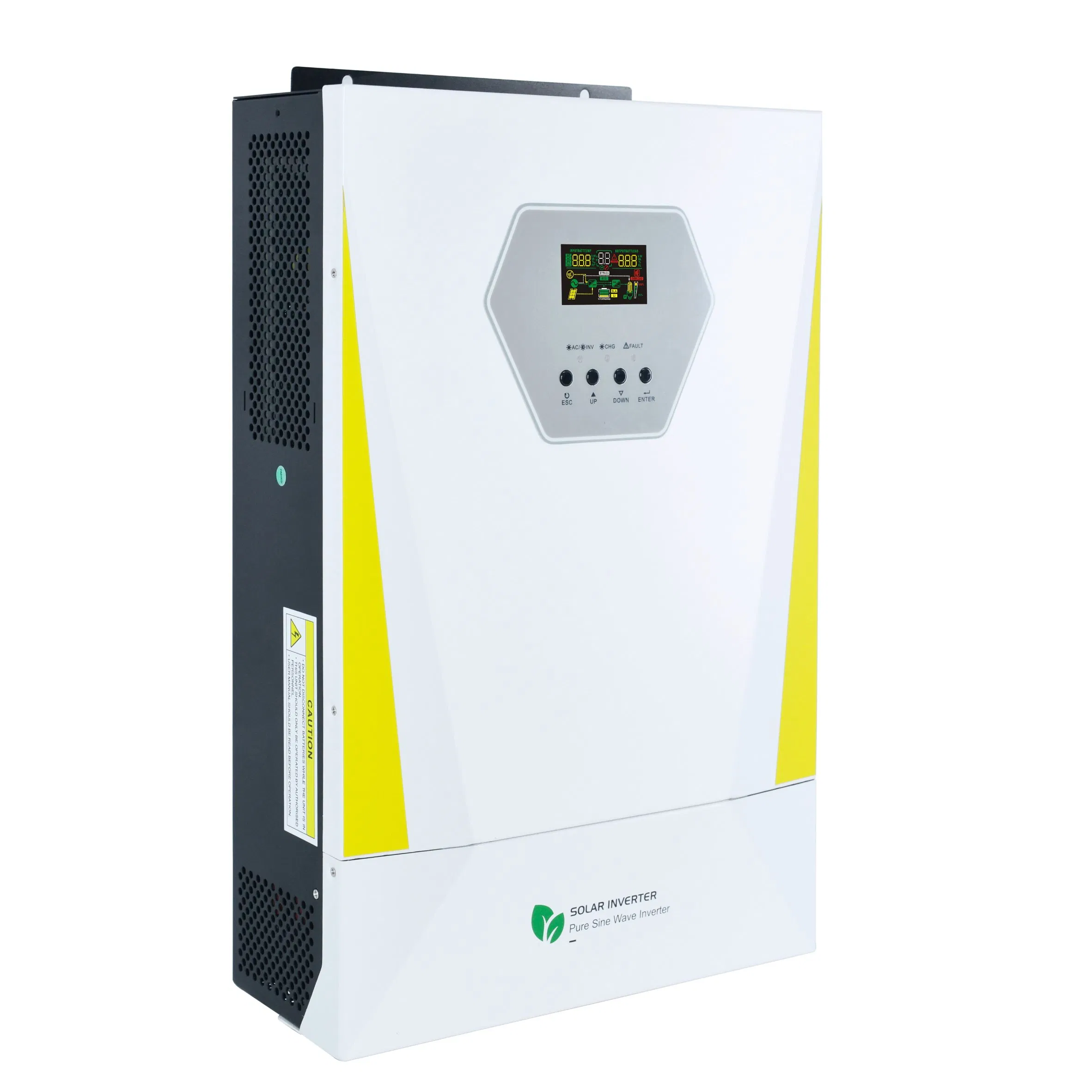

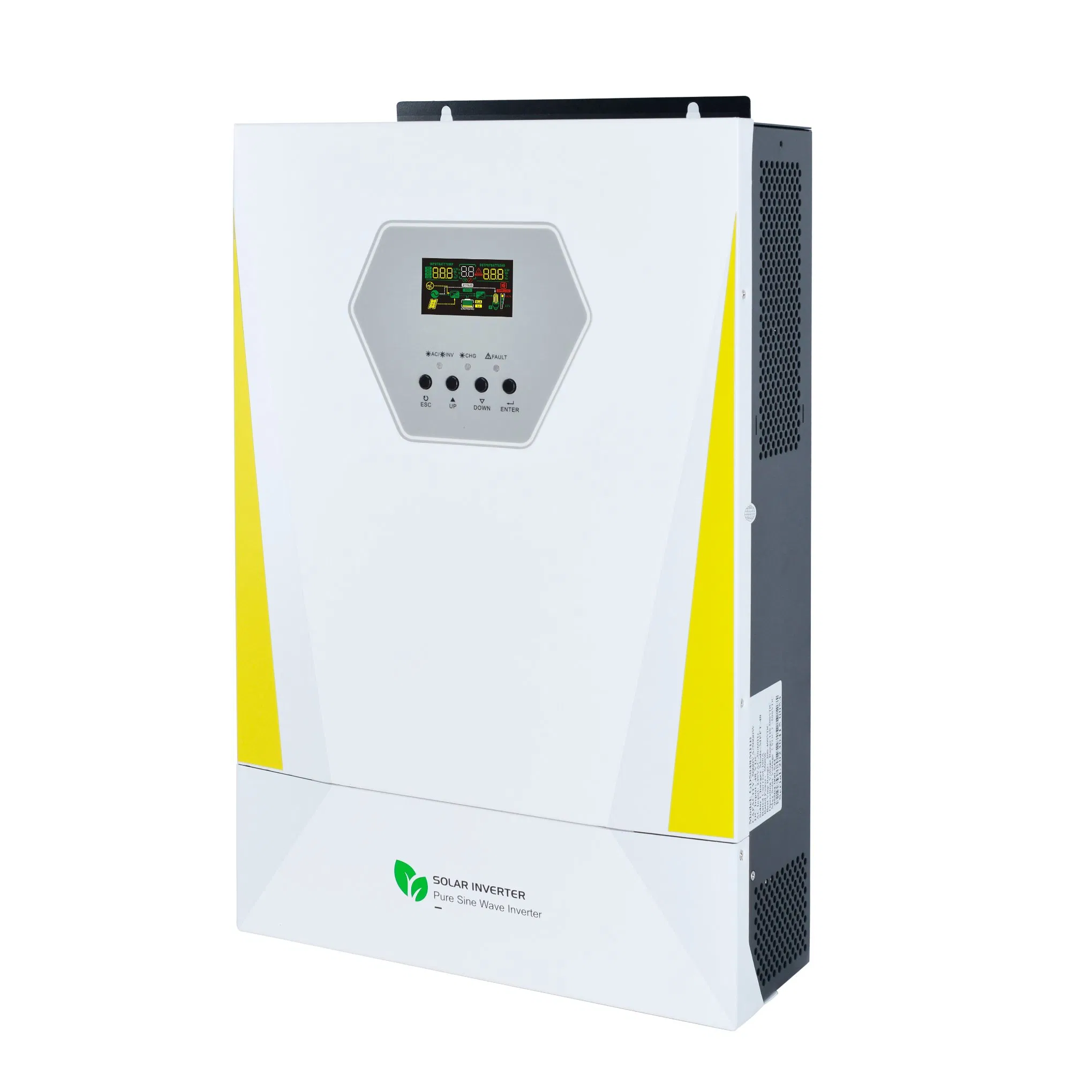

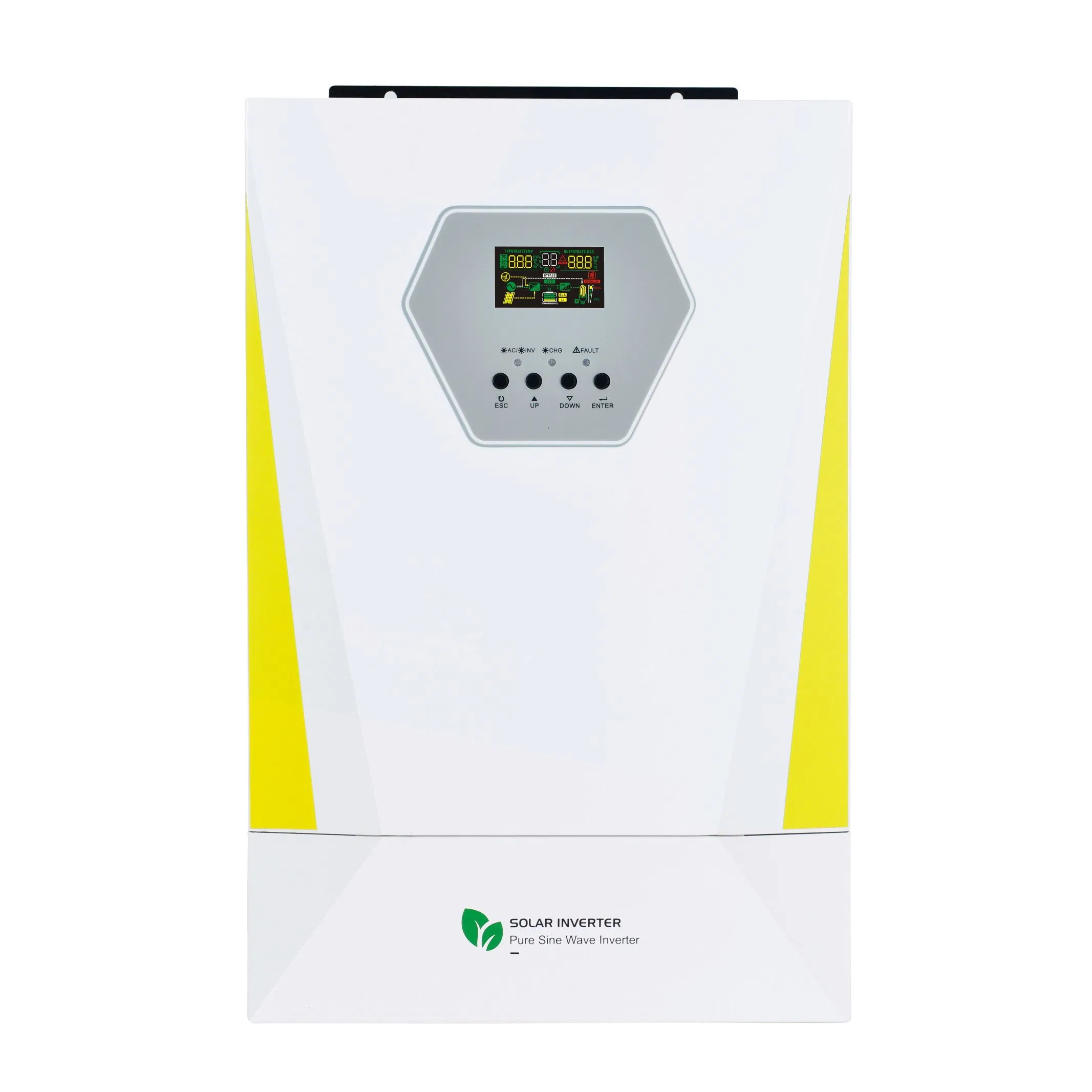

Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
1 / 5
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter
Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter

Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

■ Basic Information
Model NO.
GD Series B
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Output Wave
Pure Sine Wave
AC Input
220/230/240VAC
Package Size
57.00cm * 50.00cm * 14.80cm
Gross Weight
10.000kg
■ Product Features
Hybrid Solar Inverter
✓Lithium battery self-starting, better match lithium battery charging.
✓Intelligent power supply mode, distribution of solar/mains/battery ratio.
✓Adjustable mains/PV charging voltage to match various battery types.
✓Convenient for installation and transportation.
✓Battery reverse connection protection with fuse switch.
✓PF1.0 High efficiency inverter, energy saving and cost saving.
✓Support work without battery to reduce system costs.
✓Up to nine parallel machines supported for simple expansion.
✓Lithium battery BMS protocol integration.
✓External wifi connectivity for real-time data monitoring.
■ Product Parameters
Solar Inverter GD Series B (5500-11000W)
Model GD5548JMHB GD6248JMHB GD8648MHB GD11048MHB
Input AC input 220/230/240VAC
Frequency 50-60Hz (Adaptive)
Output Rated power 5500W 6200W 8600W 11000W
Output wave Pure sine wave
Peak power 11000W 12400W 17200W 22000W
Charger MAX PV input 6200W 6200W 2*5500W 2*5500W
MAX PV charge current 100A 120A 150A 150A
MAX charge current 100A 120A 150A 150A
Dimension L*W*H(mm) 495*312*146mm 570*500*148mm
■ Detailed Photos
Inverter Detail 1
Inverter Detail 2
Inverter Detail 3

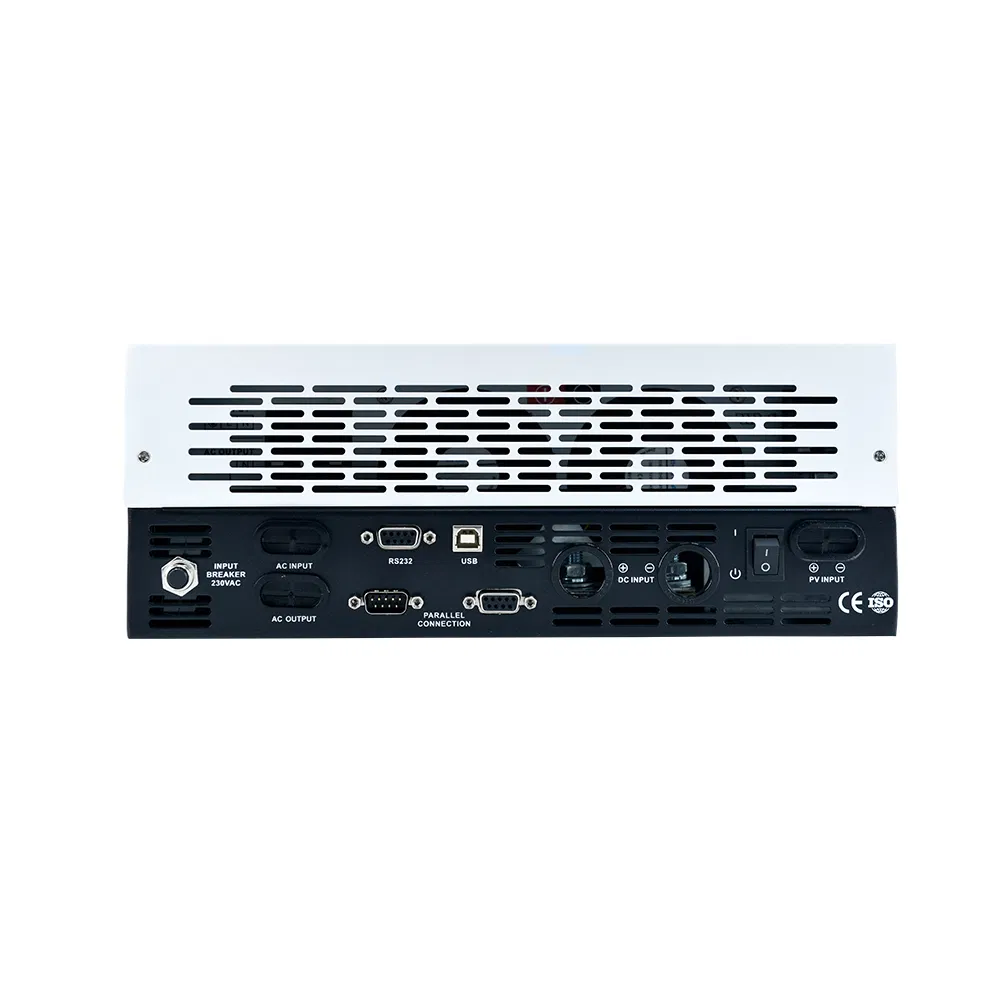

Inverter Detail 4

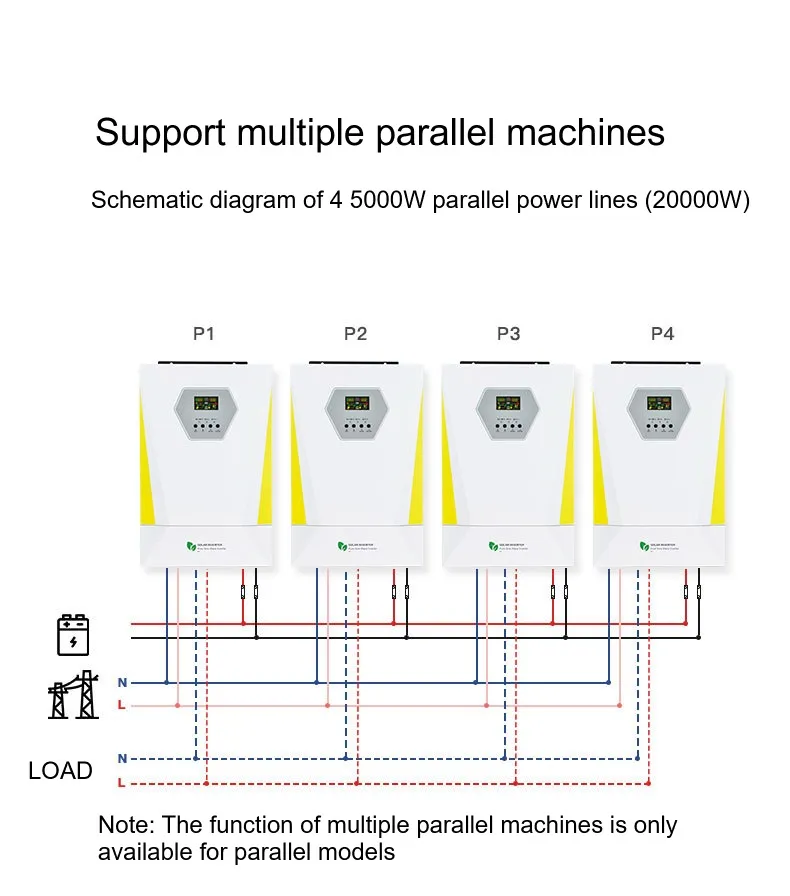

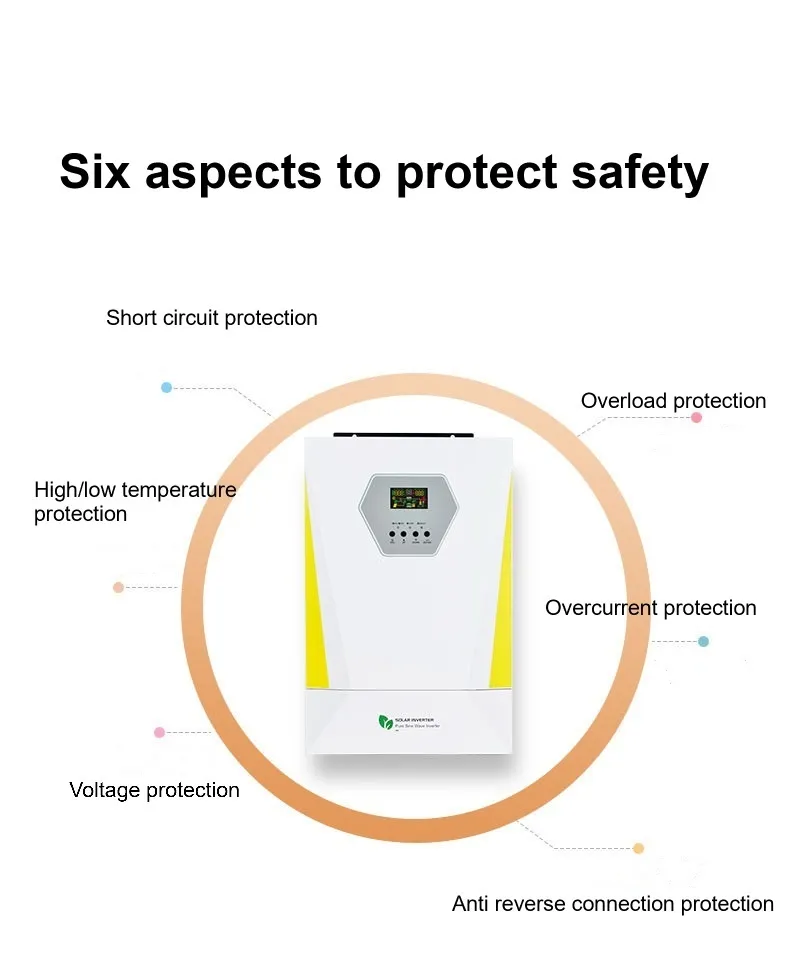

Application Diagram 1 Application Diagram 2
■ Production & Quality Control

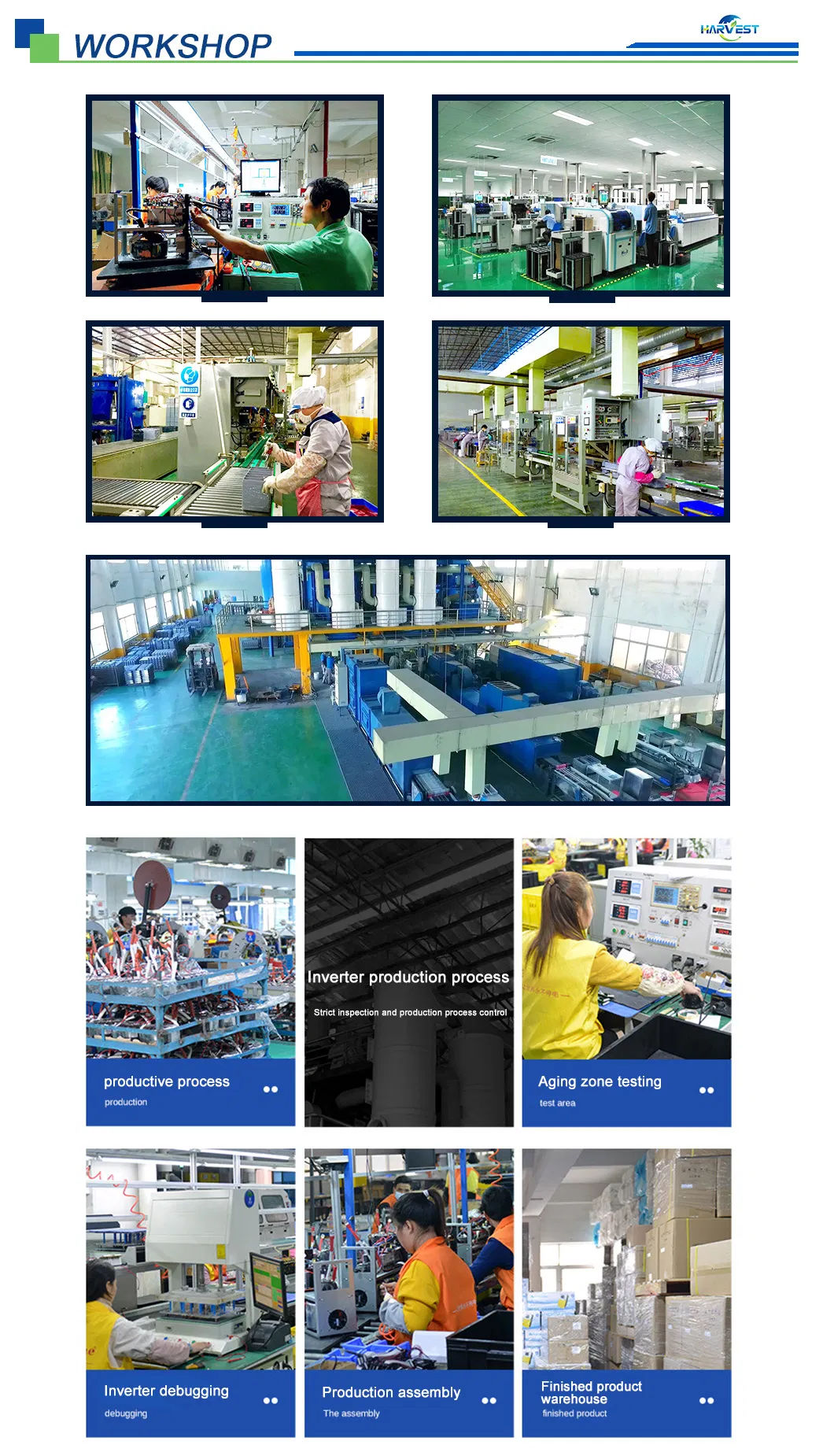

Production Overview Testing Process
Workshop 1
Workshop 2
Workshop 3
■ Frequently Asked Questions
? Q1: Are you a factory or just a trading company?
A1: We are a manufacturer, and we focus on the development and production of the electrical industry for more than 10 years.
? Q2: Is customized service available?
A2: Of course, OEM & ODM both are available to meet your specific requirements.
? Q3: How can I get a quotation?
A3: Leave us a message with your purchase requirements and we will reply to you promptly. You may also contact us via Trade Manager.
? Q4: Can I buy one as a sample?
A4: Yes, sample orders are welcome for quality testing and market evaluation.
? Q5: How about your quality control?
A5: Our professional QC team checks the quality during production and performs final tests before shipment. Inspection reports are provided with every shipment.
? Q6: Do your products have certifications?
A6: Yes, our products meet international standards including CE certification and conform to ROHS requirements.
