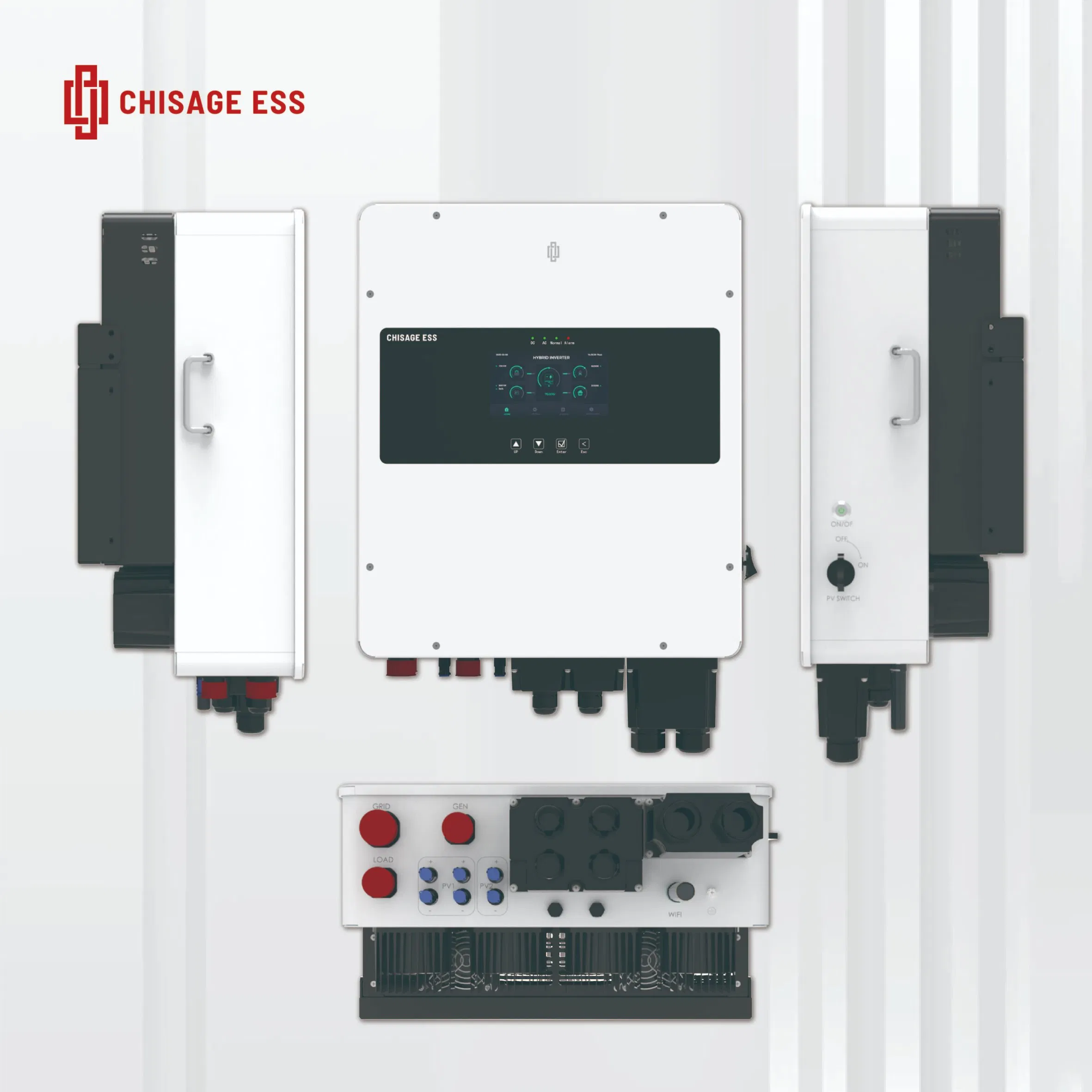

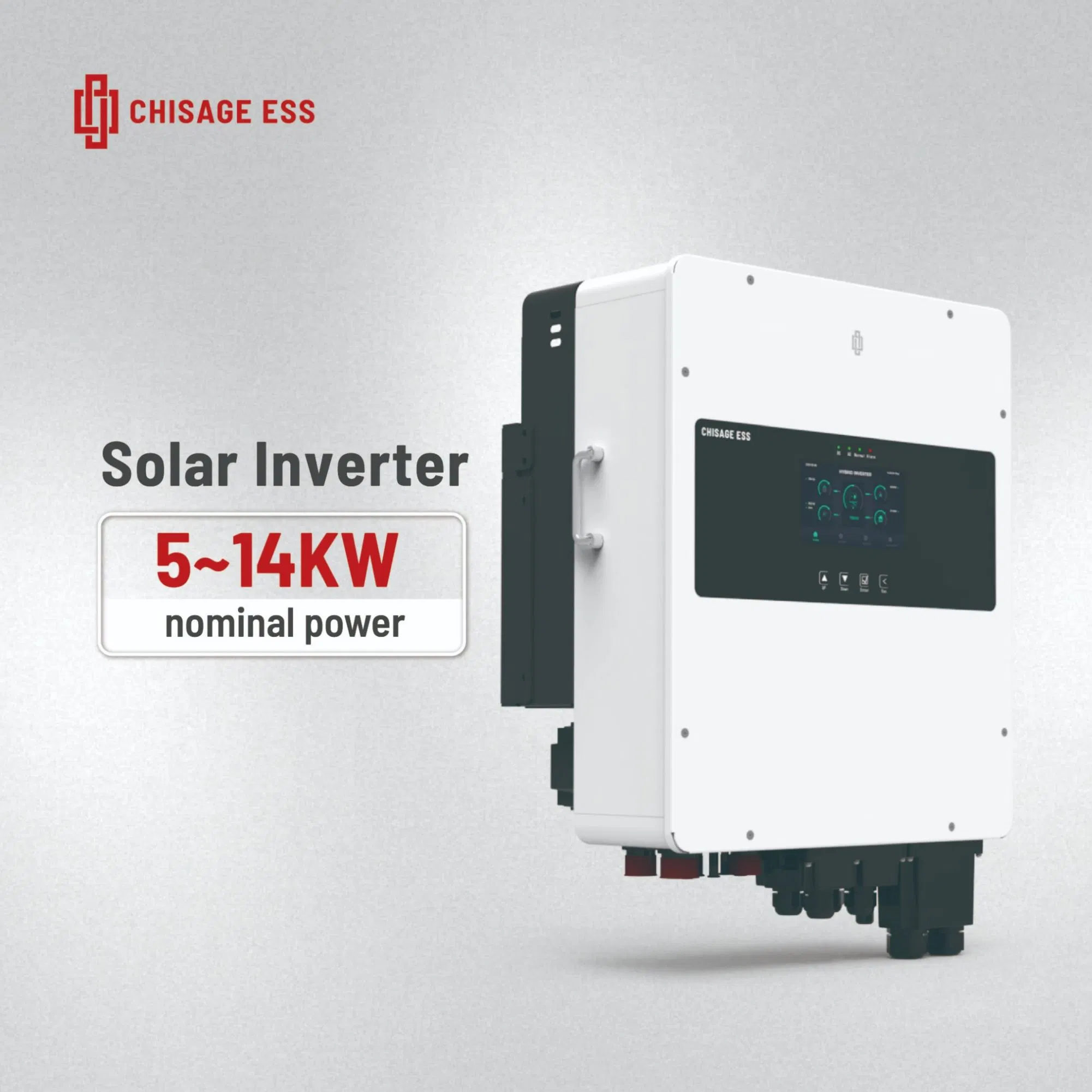

China Factory Price 48V 5000W 5kw 6kw 8kw 10kw 12kw 14kw PV System DC to AC Solar Power Triple Phase Inverter Pure Sine Wave Hybrid Inverter

📋 Basic Information

Model NO.Mars-5G2-LE

PhaseThree

Output Power>1000W

CertificationSAA, CE, ROHS, ISO9001, CCC

TypeDC/AC Inverters

Power SourceSolar Power

Circuit TopologiesFull-Bridge Type

Nature of Wave StringSine Wave Inverter

Battery TypeLead-Acid or Lithium-Ion

No. of MPPT Trackers2

Max.Efficiency97.90%

Protection DegreeIP65

📦 Packaging & Delivery

Package Size83.00cm * 64.00cm * 42.00cm

Package Gross Weight51.000kg

Lead Time 15 days (1 - 1 Pieces)
30 days (2 - 100 Pieces)
To be negotiated (> 100 Pieces)

💡 Product Description

Advanced PV System DC AC Solar Power Triple Phase Inverter. Pure Sine Wave Hybrid Inverter compatible with 5kw to 14kw systems.

⚡

Rapid Switching & Parallel Support

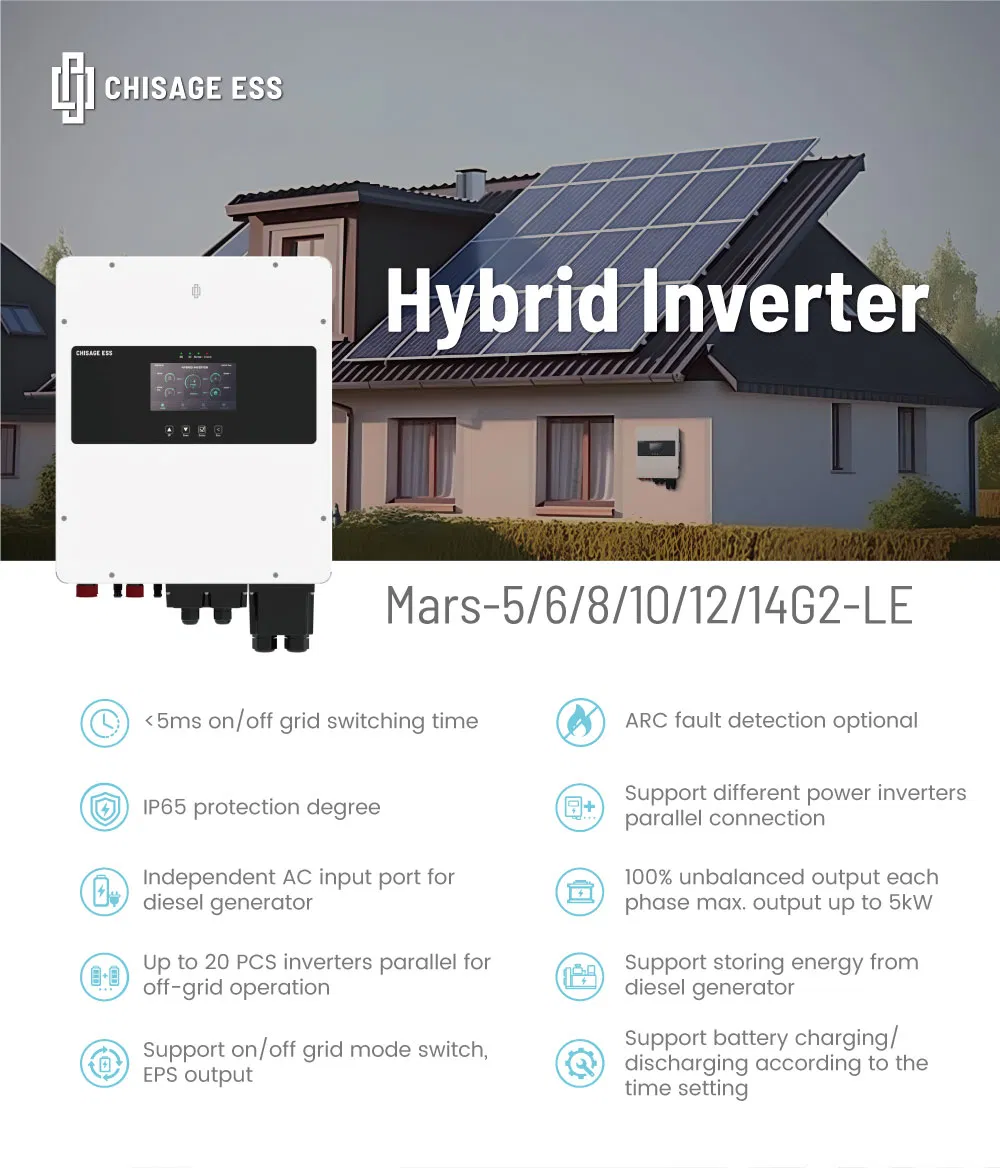

Less than 5ms on/off grid switching time. Supports up to 20pcs paralleled in off-grid mode with EPS output.

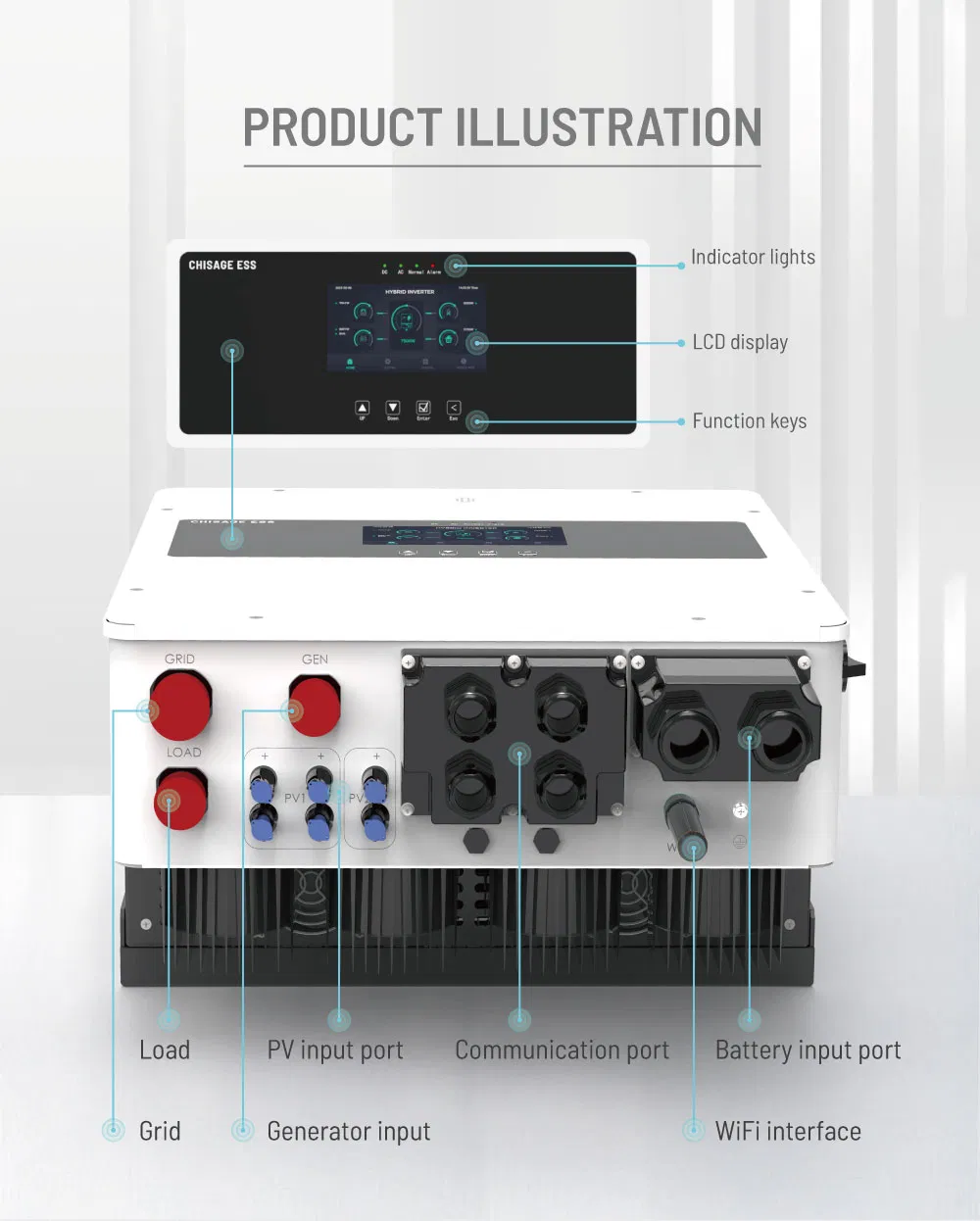

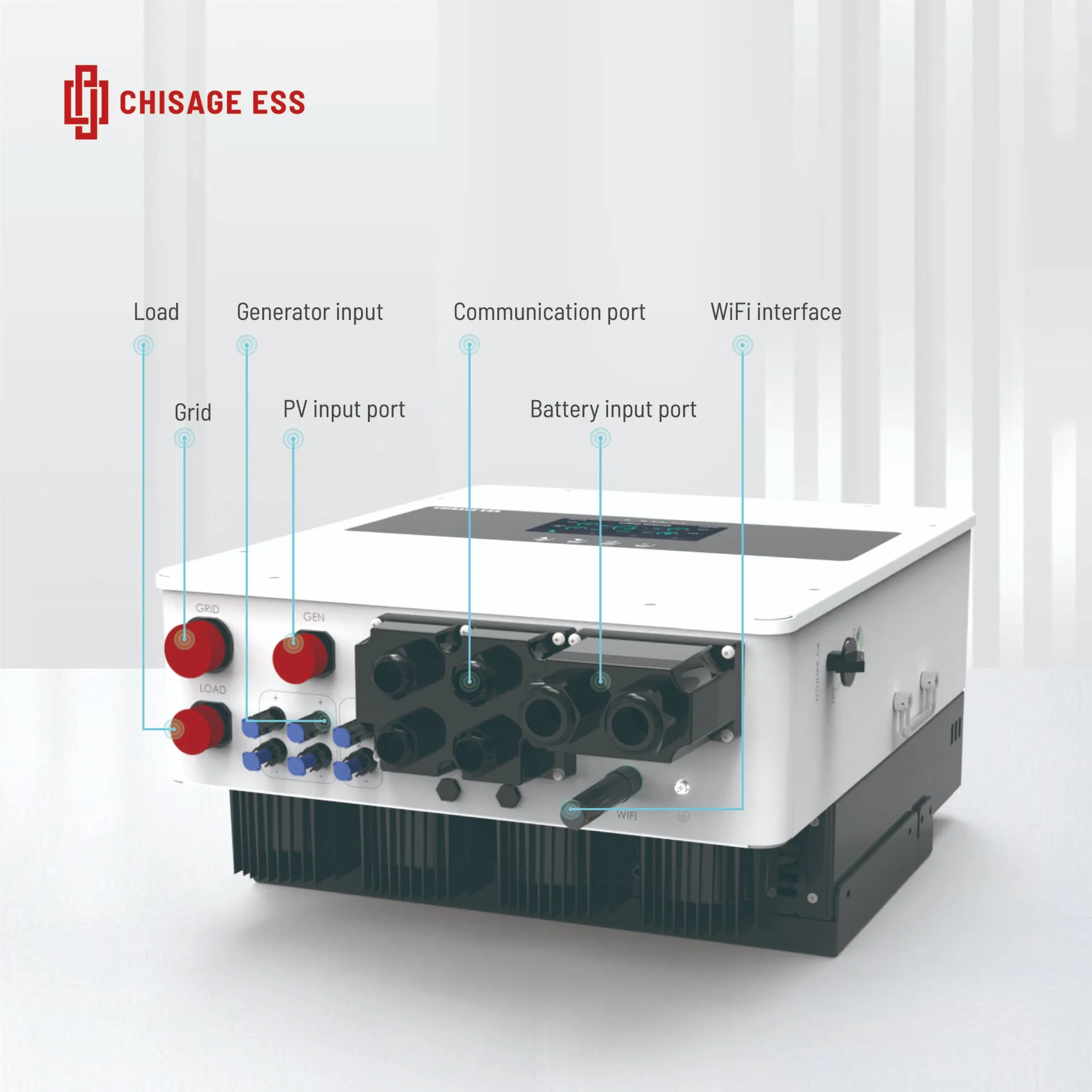

Features a colorful 7-inch touch LCD and independent AC input port for diesel generators. Intelligent battery charging/discharging management based on time settings.

📊 Technical Specifications

Technical Data Overview
Model	Mars-5G1/2-LE	Mars-6G1/2-LE	Mars-8G1/2-LE	Mars-10G1/2-LE	Mars-12G1/2-LE	Mars-14G1/2-LE
Battery Input
Max. Charge (A)	120	130	200	220	250	280
Max. Discharge (A)	120	130	200	220	250	280
PV String Input
Max. DC Input (W)	7500	9000	12000	15000	18000	20000
PV Input Voltage (V)	650 (160~800)
AC Output
Rated Output (W)	5000	6000	8000	10000	12000	14000
Max. AC Output (W)	6000	7200	9600	12000	13200	15400
Grid Type	Three phase

✔ Why Choose Our Solutions

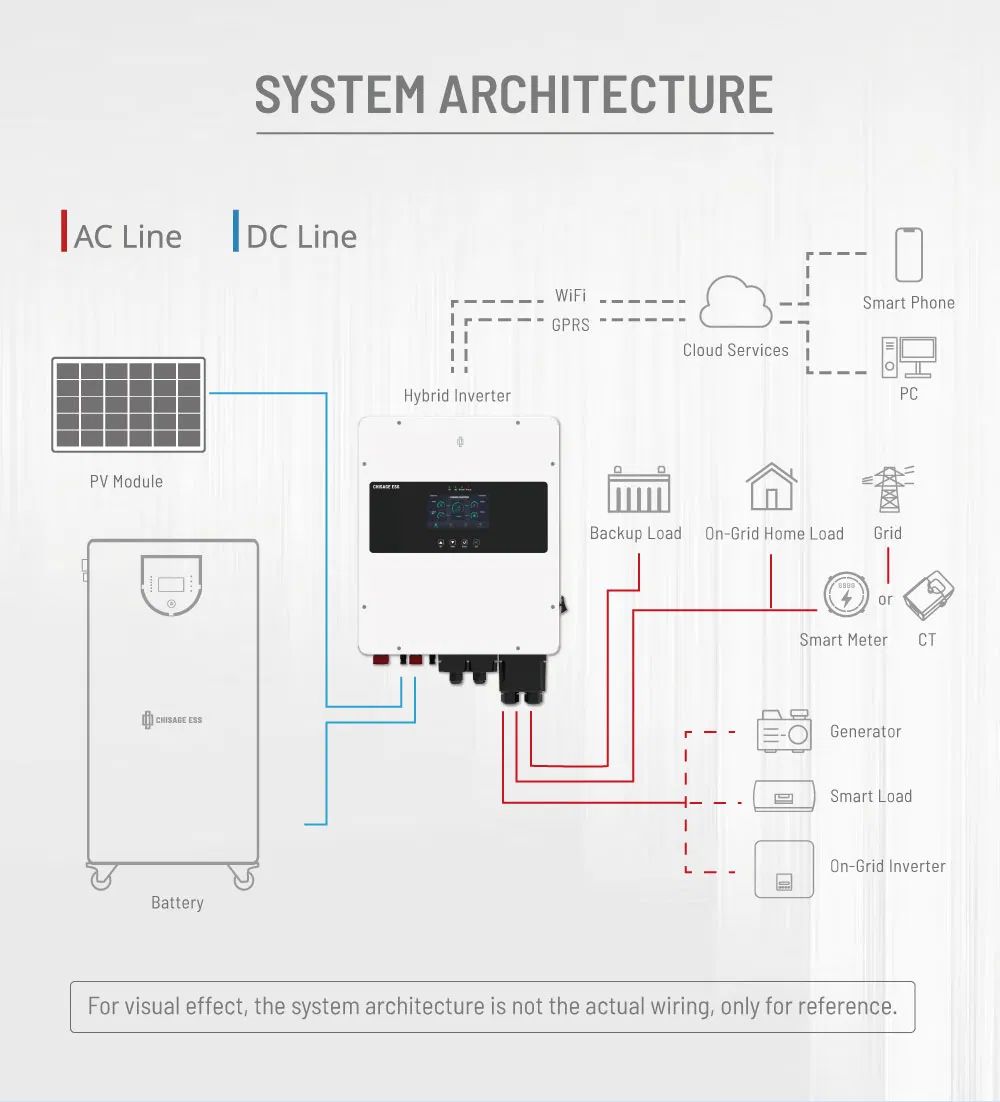

Supports energy storage from diesel generators and optional ARC fault detection for enhanced safety.

❓ Frequently Asked Questions

Are you a factory or trading company?

We are a factory specialising in the field of solar inverter and solar energy storage system with advanced intelligent production lines and an experienced production team prioritizing innovation and reliability.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 unit. For items in stock, we typically ship within 7 business days.

Do you accept custom products (OEM/ODM)?

Yes, OEM and ODM are fully supported. Our professional R&D team has over 20 years of experience in providing customization for packaging, functionality, and more.

What is your after-sales service policy?

We provide 7x24h online service, product replacement for quality issues during the warranty period, and flexible training services. For large volume orders, local technical support can be established.

What are the available payment terms?

We support T/T, L/C, Trade Guarantee, PayPal, and Alipay. Strategic partners may negotiate advanced methods such as DP.

What batteries are compatible with the inverters?

Our hybrid inverters are designed to work with both Lead-Acid and Lithium-Ion battery types, featuring self-adaptation to BMS.
