| Model NO. | SET-ESS-MAT344Y | Size | 1300*1325*2200mm |
|---|---|---|---|
| Rated Voltage | 1228.8Vdc | Weight | 3500kg |
| Origin | China | Specification | CUSTOMIZED |

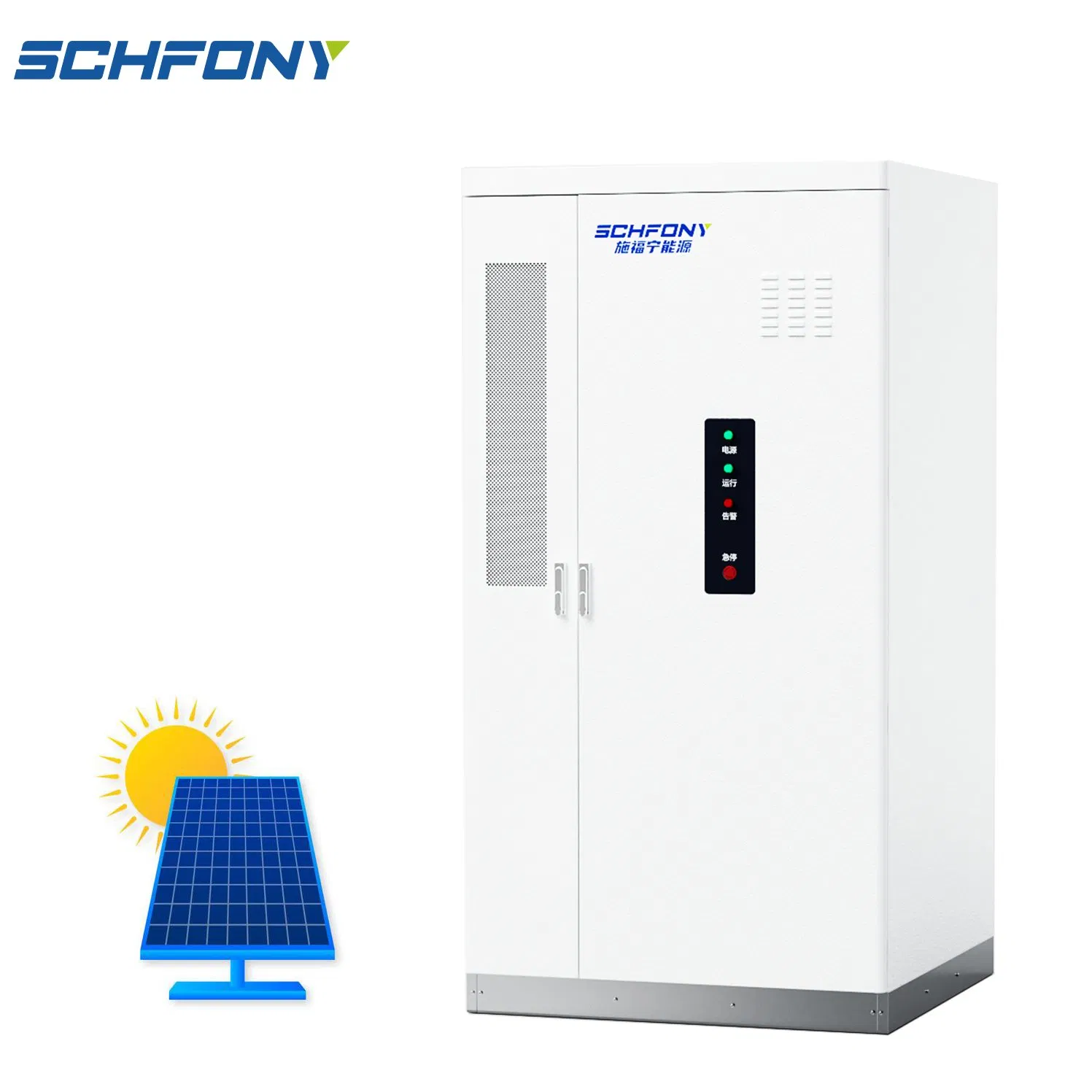

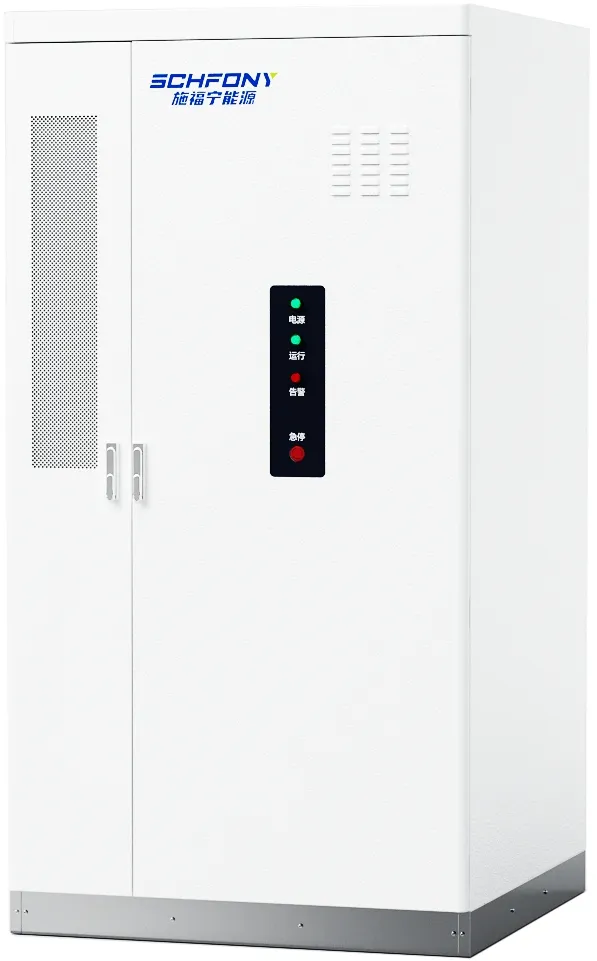

Model: SET-ESS-MAT344Y
Rated Capacity: 344kWh
Rated Voltage: 1228.8Vdc
Fire Suppression: Perfluorohexanone + water full immersion fire fighting for enhanced safety.
Cooling Mode: Advanced liquid cooling for optimal temperature control.

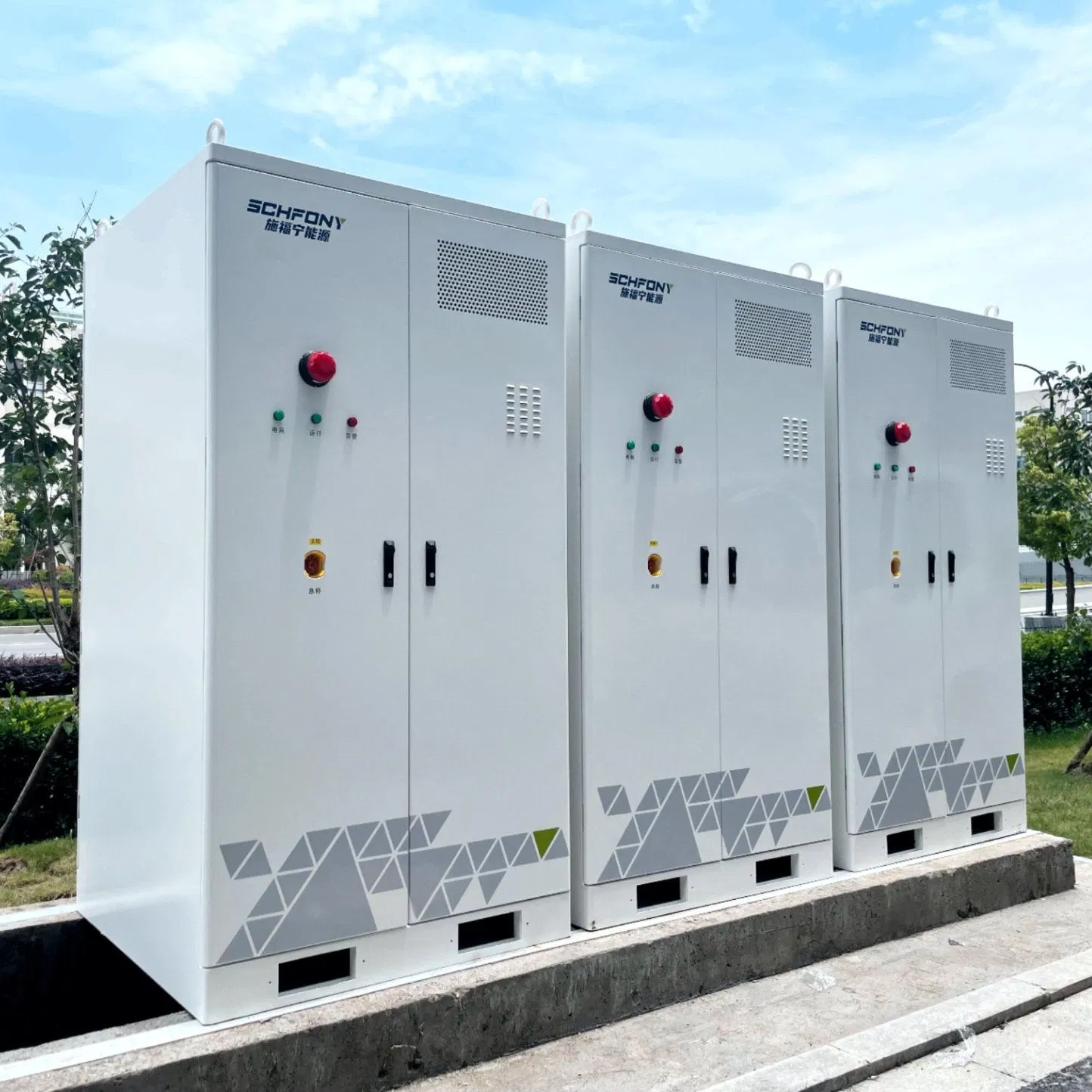

Dimensions: 1300(W) * 1325(D) * 2200(H) mm
| DC Side Parameters | System Parameters | ||
|---|---|---|---|
| Battery Type | Lithium Iron Phosphate (LFP) | Protection Level | IP54 |
| Rated Capacity | 344 kWh | Communication | CAN / RS485 |
| Rated Voltage | 1228.8 Vdc | Cooling Method | Liquid Cooling |
| Rated Current | 140 Adc | Fire Protection | Perfluorohexanone + Water |

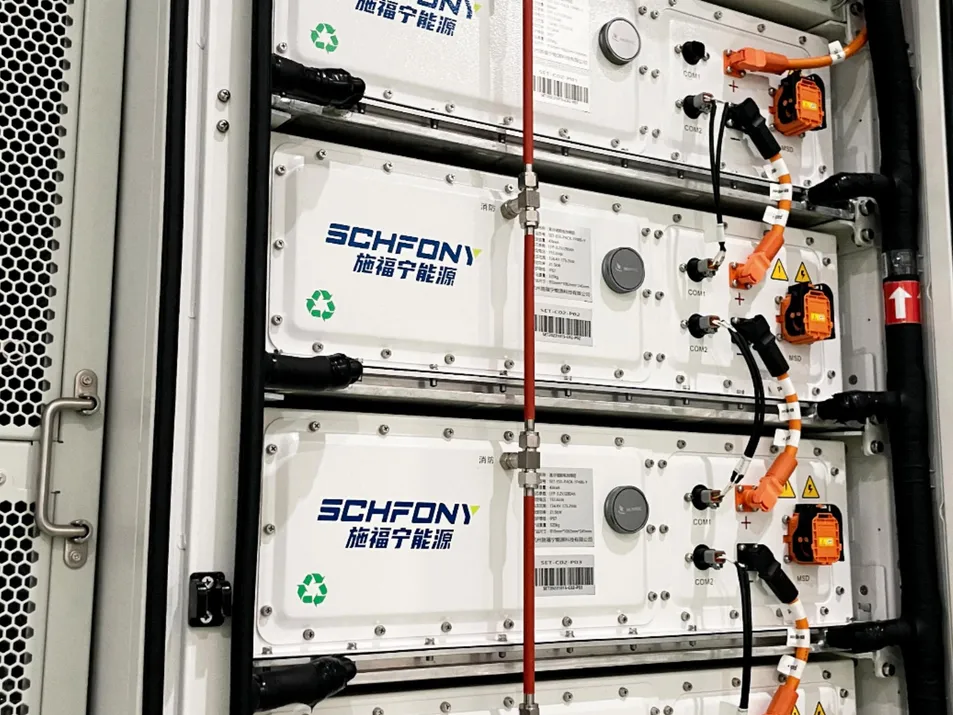

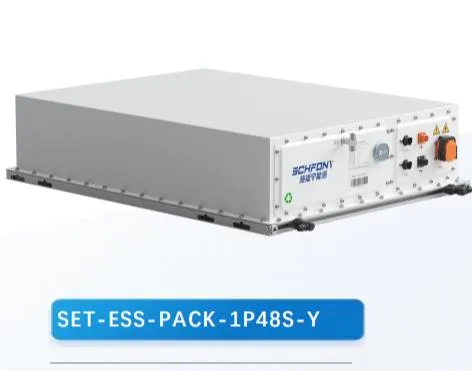

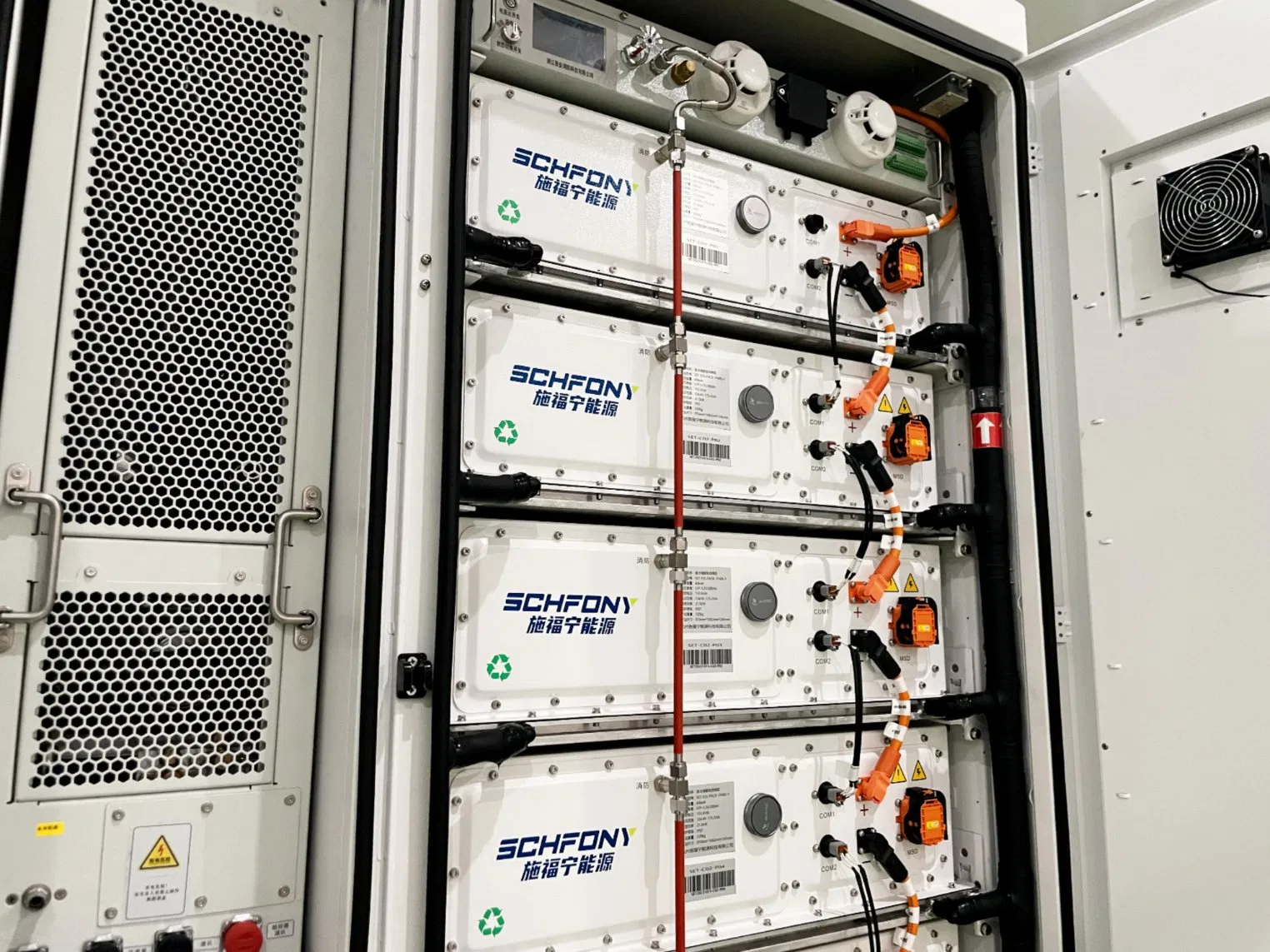

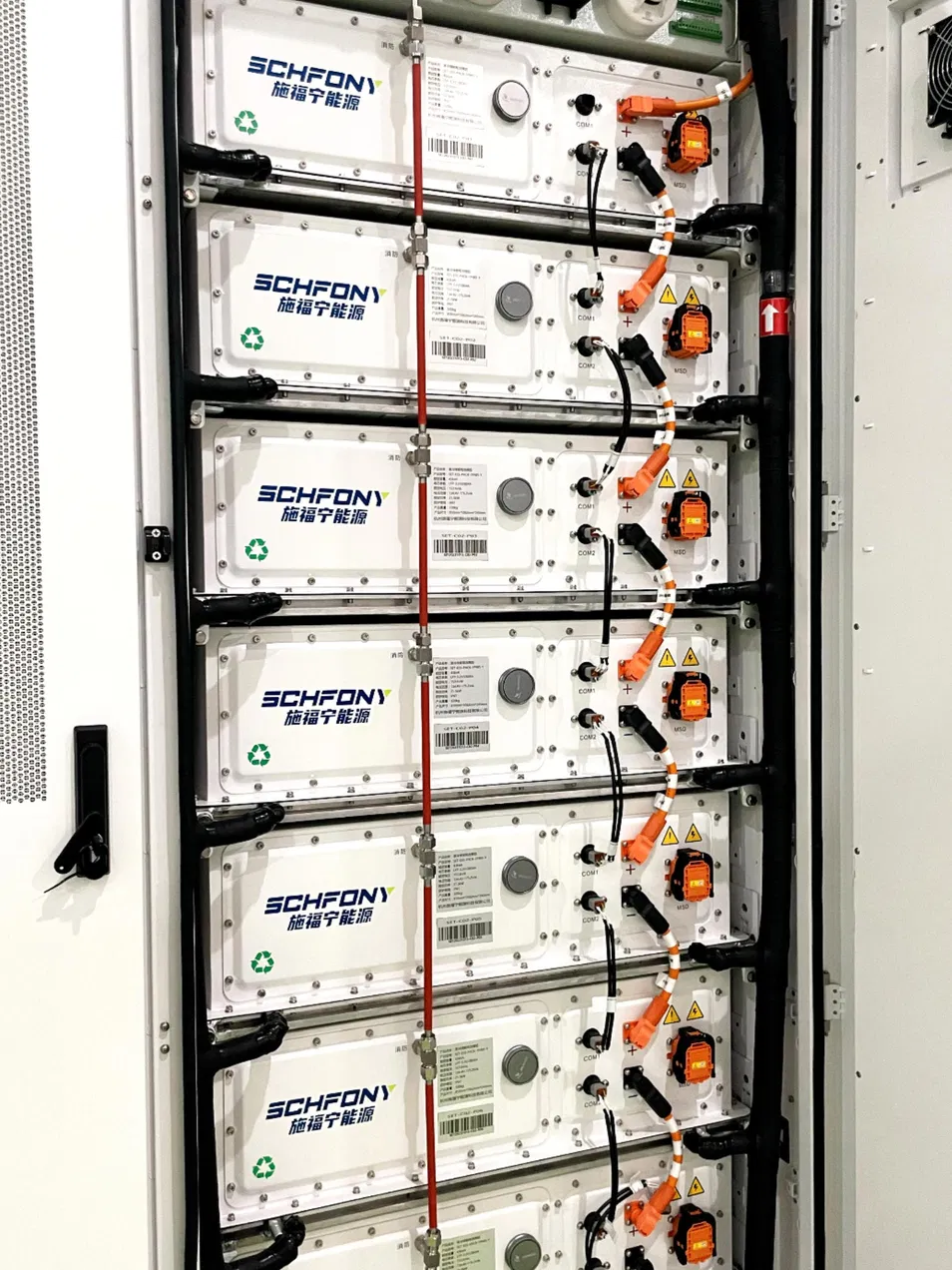

| Grouping Method | 1P48S * 8 | Sensor Detection | Temp, Smoke, Combustible Gas |
Three-level circuit breaker protection and integrated firefighting system establish multiple safety barriers.
High integrated modular design improves system economy and intelligent thermal management increases efficiency.
Plug and play deployment with minimalist operation and maintenance for the full life cycle.
