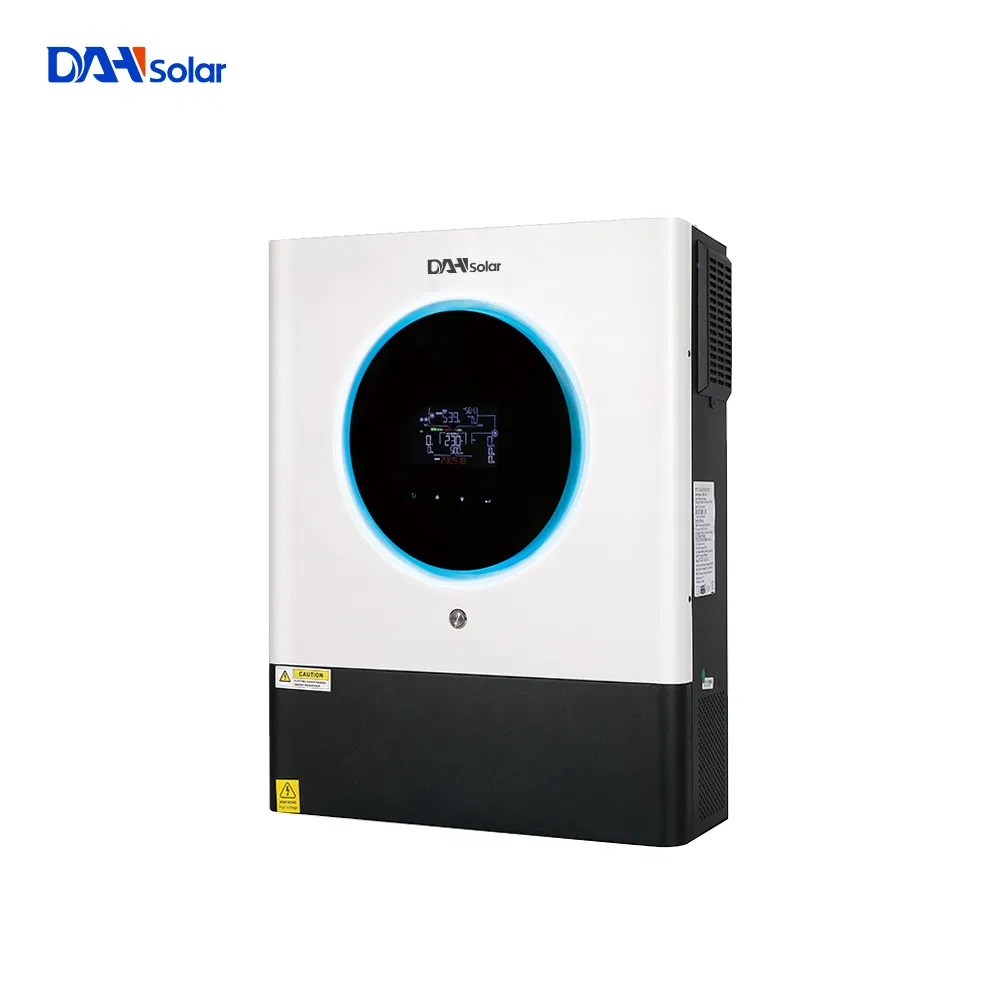

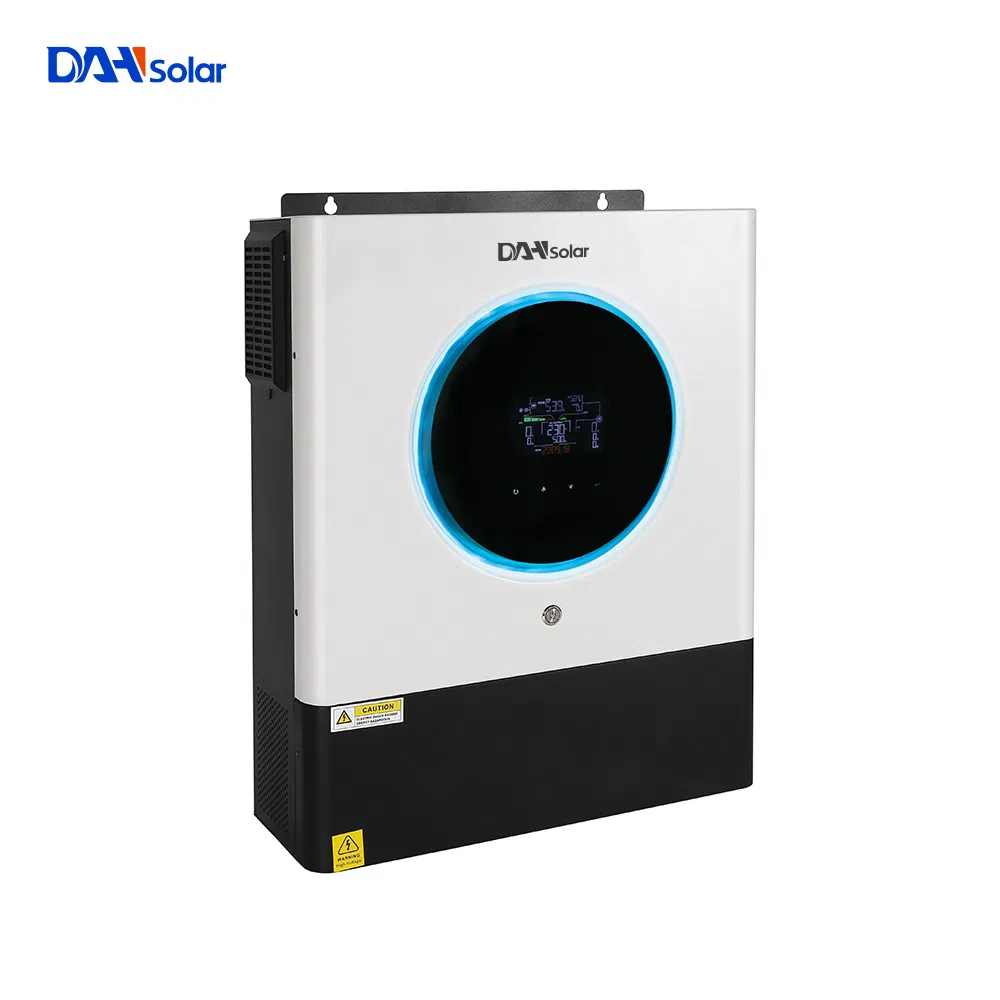

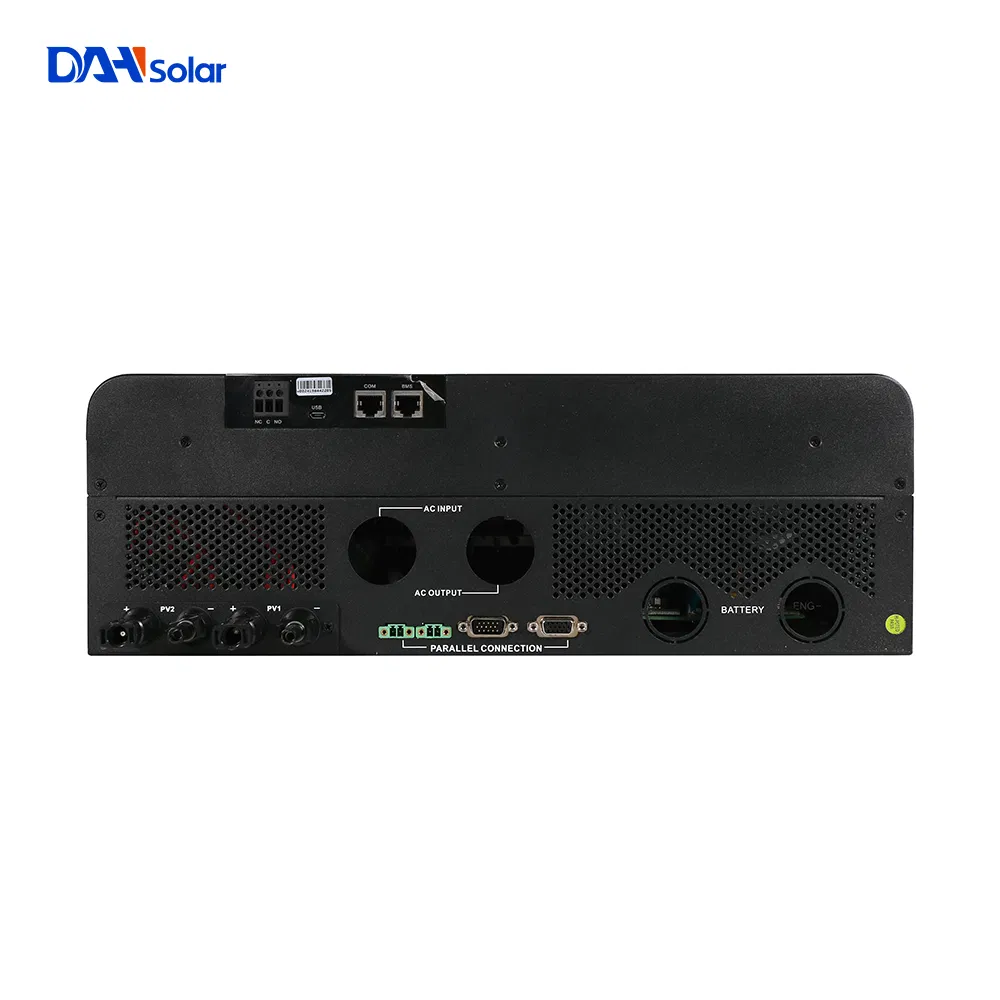

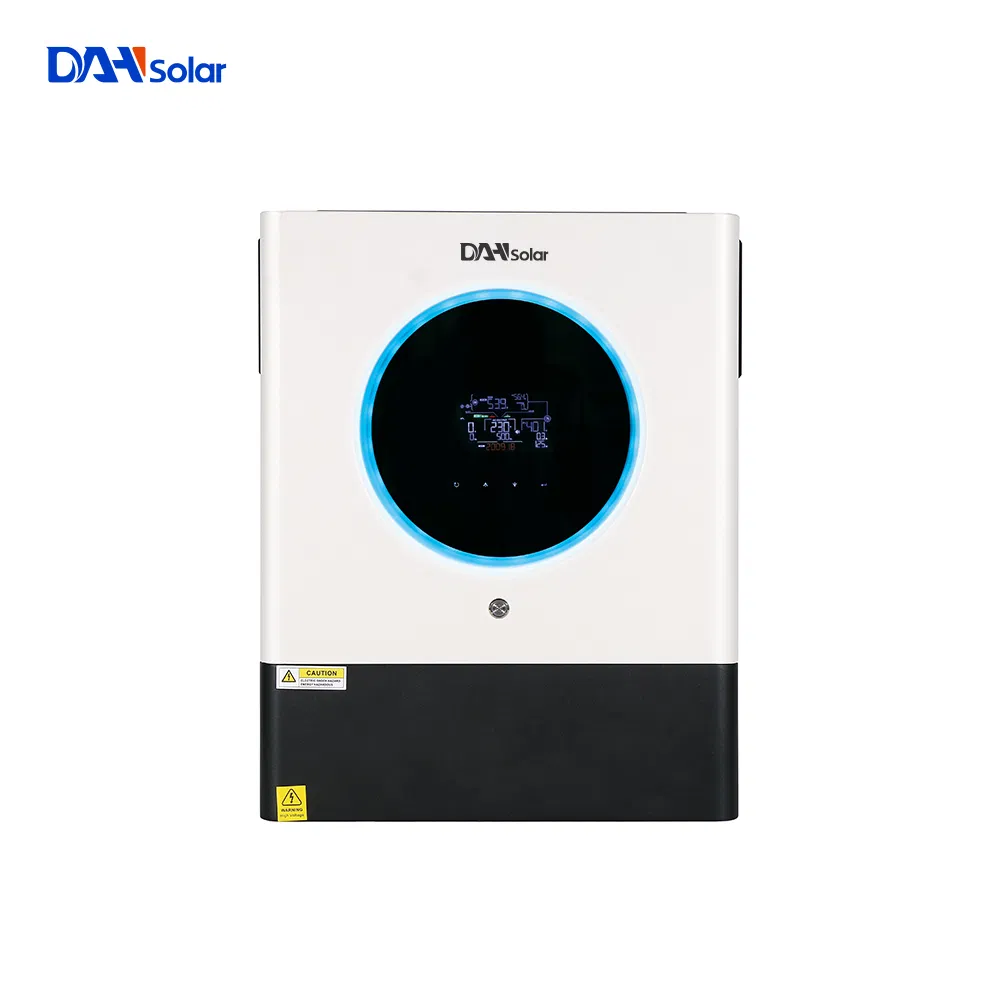

11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
1 / 5
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage
11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage

11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

📊

Basic Information

Model NO.
MAX/MAX II (8-11kw)
Nature of Source Flow
Pure Sine Wave
Phase
Single
Output Power
8-11kw
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Parallel Capacity
Yes, 6 Units
No Load Consumption
<70W
Transfer Time
15ms (PC) / 20ms (Home)
Solar Charger Type
MPPT
Operating Temp.
-10°C to 50°C
📦

Packaging & Delivery

Package Size
15.00cm * 50.00cm * 53.00cm
Package Gross Weight
21.000kg
📝

Product Description

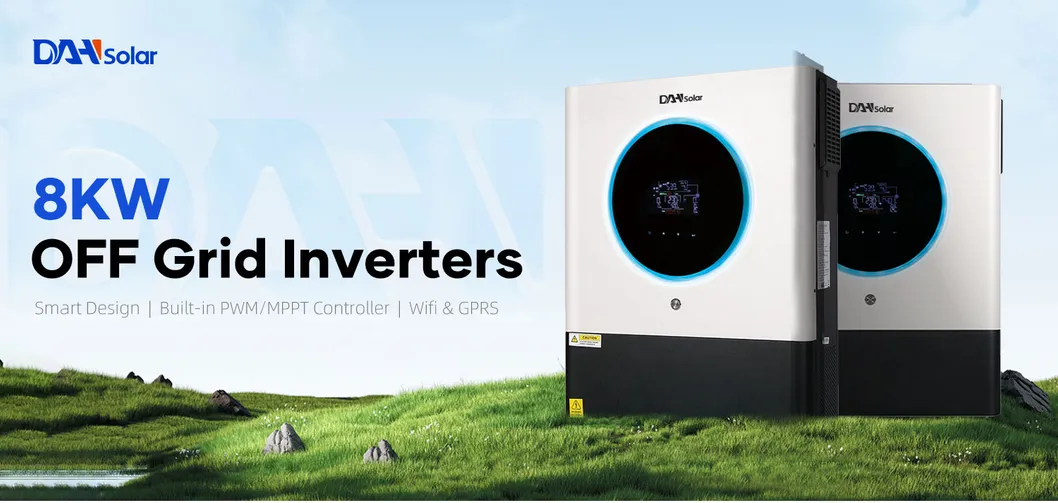

Solar Inverter Overview
Model MAX II 8000 MAX II 11000
Rated Power8000VA/8000W11000VA/11000W
Parallel CapabilityYes, 6 units
INPUT
Voltage230 VAC
Voltage Range170-280VAC (PC), 90-280VAC (Home)
OUTPUT
AC Voltage Regulation230 VAC ± 5%
Surge Power16000VA22000VA
Efficiency (Peak)93%
WaveformPure sine wave
BATTERY
Battery Voltage48 VDC
Overcharge Protection66 VDC
SOLAR CHARGER & AC CHARGER
Max PV Array Power8000W (4000Wx2)11000W (5500Wx2)
MPP Range90-450VDC
Max Solar Charge Current150A
PHYSICAL
Dimension (mm)158.4 x 502.5 x 530.8
Net Weight (kgs)1921

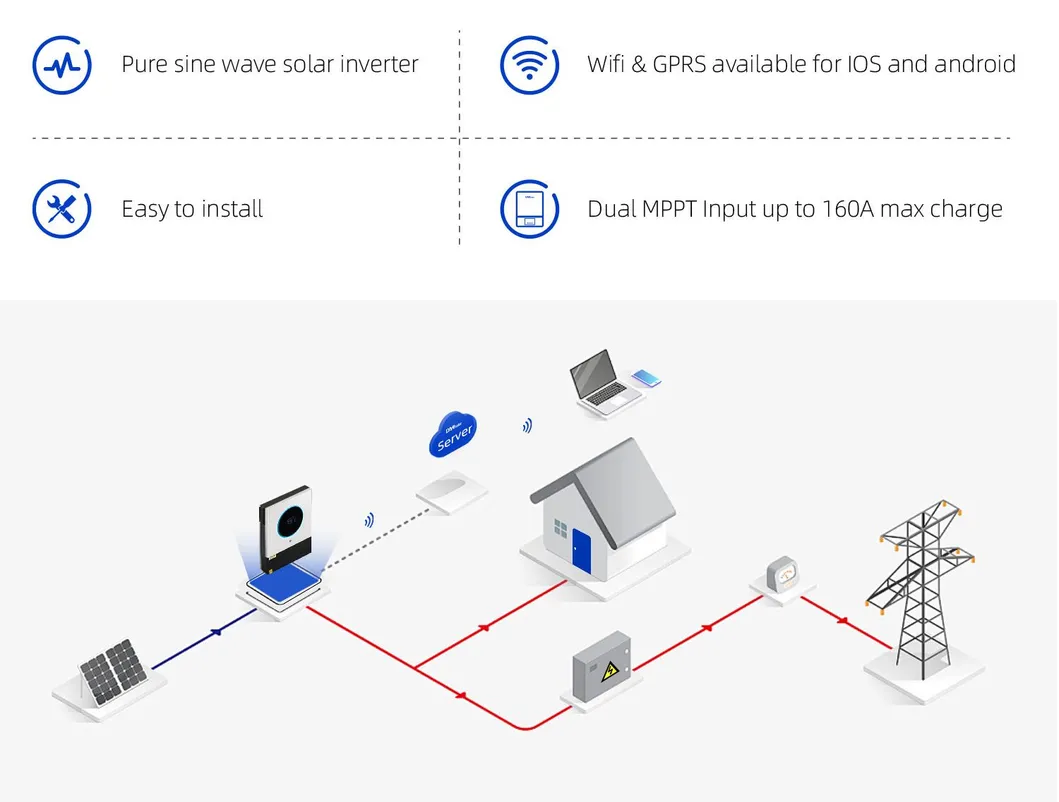

Inverter Detail 1

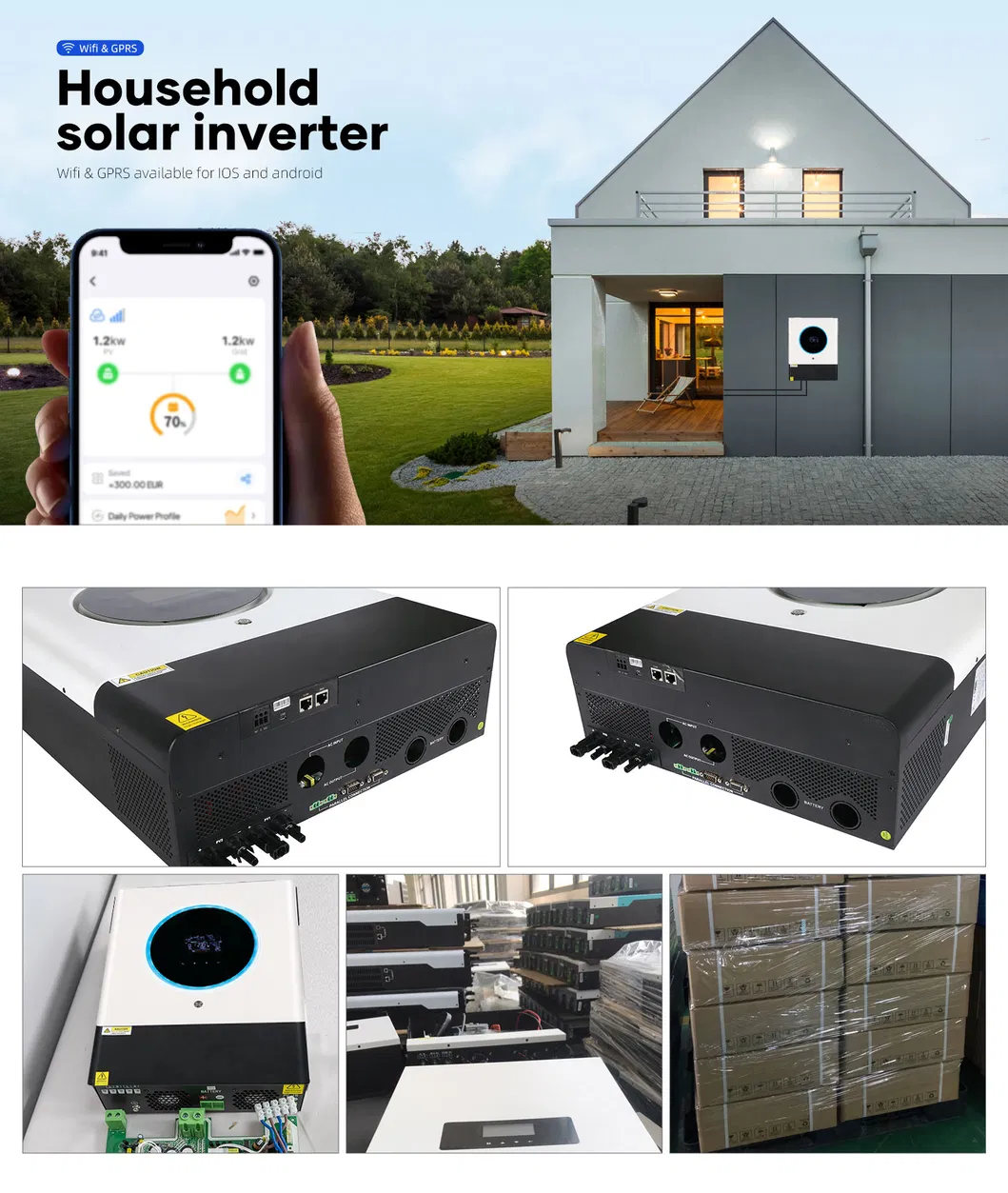

Inverter Detail 2
📜

Technical Certification

Certifications
Products have a full line of international authoritative certificates such as CE, TUV, SGS, IEC, MCS, INMETRO, etc. The Full Screen PV Module is developed by the R&D team and has global patents in more than 18 countries.
🛡️

Quality Control

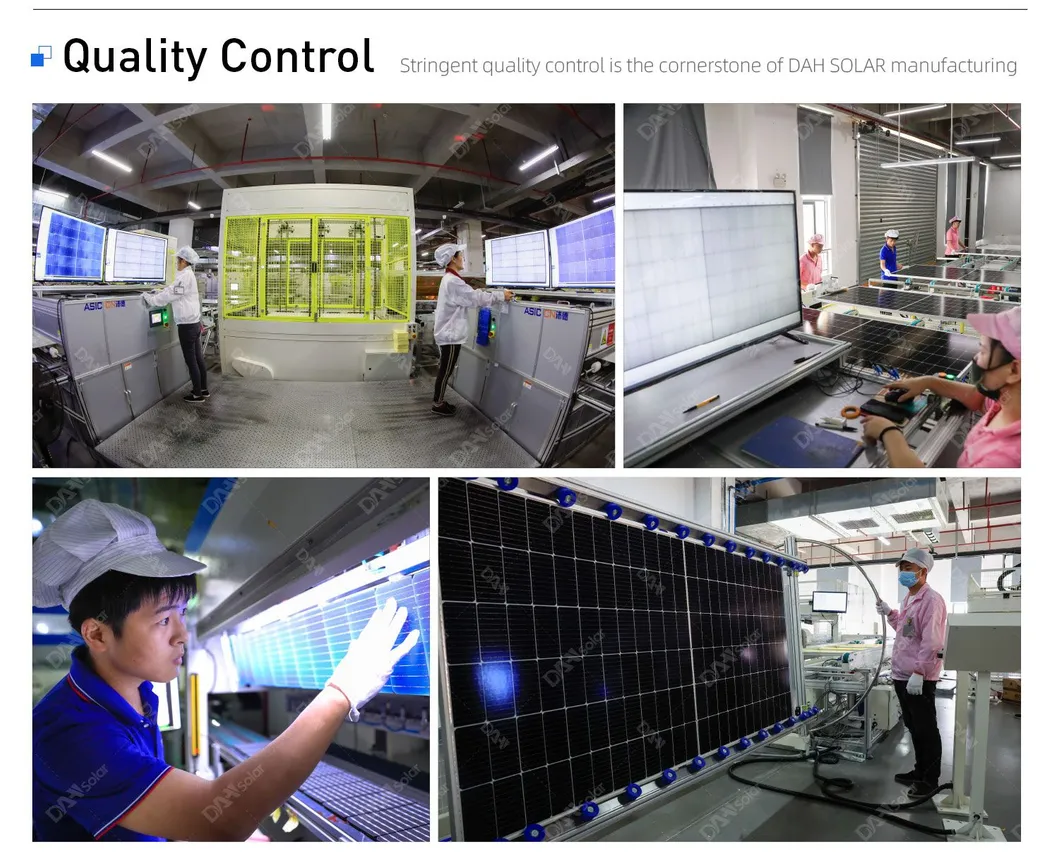

Quality Control Process
During more than 20 production processes, each unit is quality tested and inspected with 2 times EL tests by professional and precise instruments to ensure perfect delivery.
🌍

Projects & Exhibitions

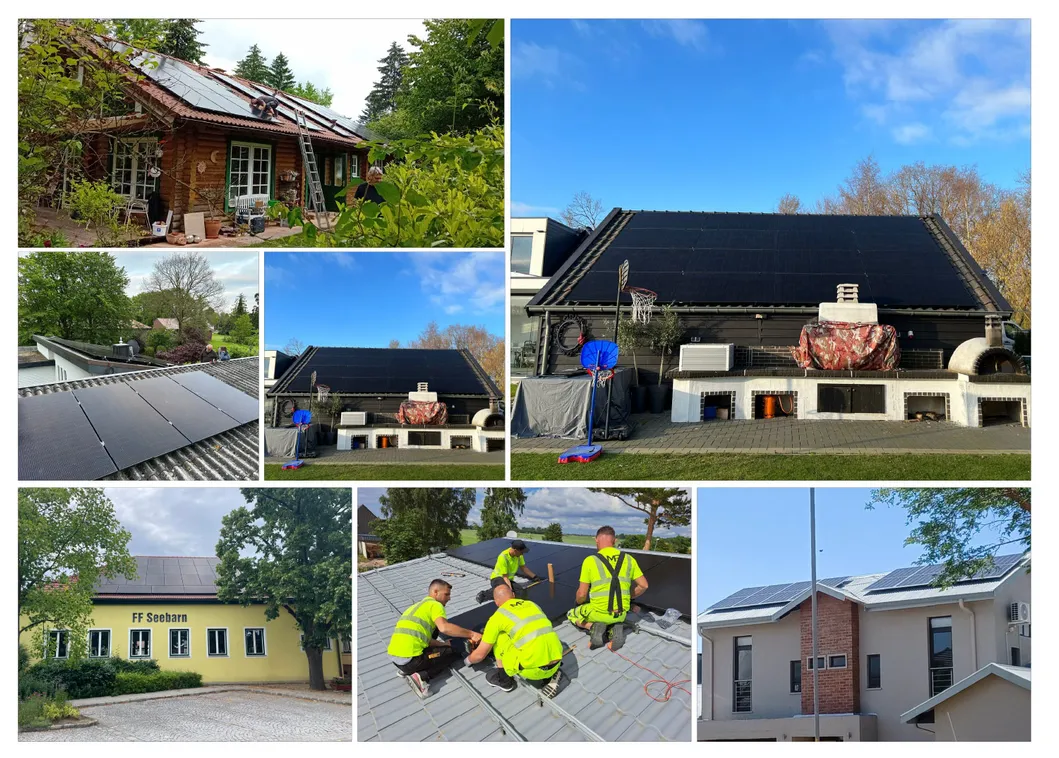

Global Project 1
Global Project 2
Solar systems have been exported to more than 100 countries, with rich experience in design, export, and installation. Local engineering teams provide timely after-sales service and project visits.

Frequently Asked Questions

What is the maximum parallel capacity of this inverter?
This model supports parallel operation with up to 6 units, allowing for significant power expansion.
Does the inverter produce a pure sine wave?
Yes, it produces a Pure Sine Wave, which is essential for the stable operation of sensitive electronic equipment and home appliances.
What is the peak efficiency of the system?
The inverter reaches a peak efficiency of 93%, ensuring minimal energy loss during DC to AC conversion.
What type of solar charger is built into the unit?
It features an integrated MPPT (Maximum Power Point Tracking) solar charger for optimized solar energy harvesting.
What are the communication options available?
The inverter is equipped with multiple communication interfaces, including USB, RS232, RS485, WiFi, and Dry-Contact.
What is the transfer time between power sources?
The transfer time is 15ms for personal computers and 20ms for standard home appliances, ensuring uninterrupted power.
