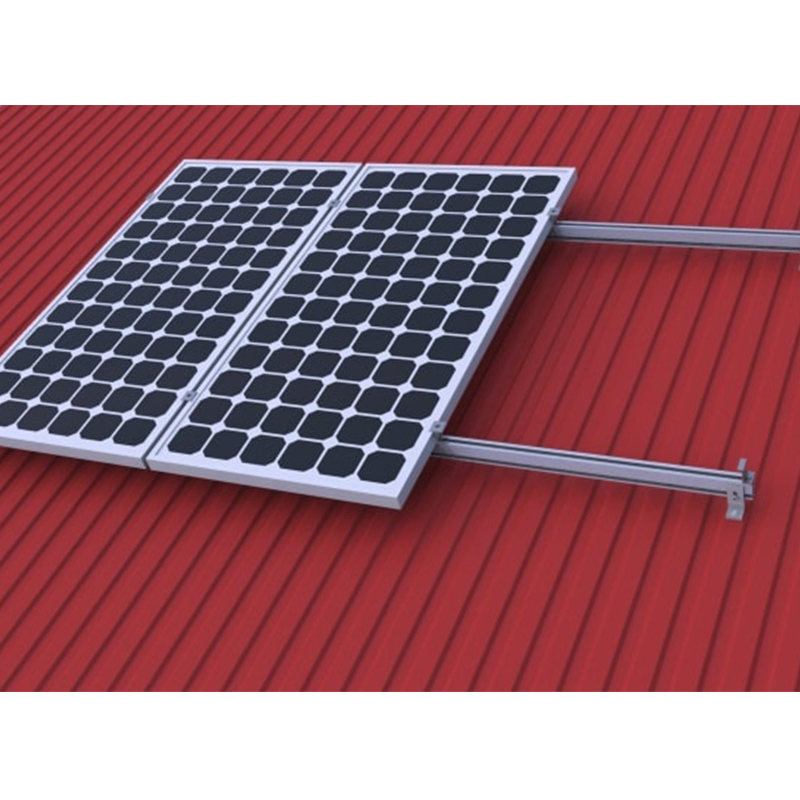

Solar Panel Roof Mounting Brackets Solar Roof Mounting for Metal Roof

1 / 5

Solar Panel Roof Mounting Brackets Solar Roof Mounting for Metal Roof

Customization:	Available
After-sales Service:	Yes
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model NO.

SF-RM02

Certification

ISO, TUV, CE

Application

Commercial / Residential

Material

Metal / Aluminum 6005-T5

Type

Roof Bracket

Product Name

Metal Roof Solar Mounting

Installation Site

Rooftop

Color

Natural

Product Description

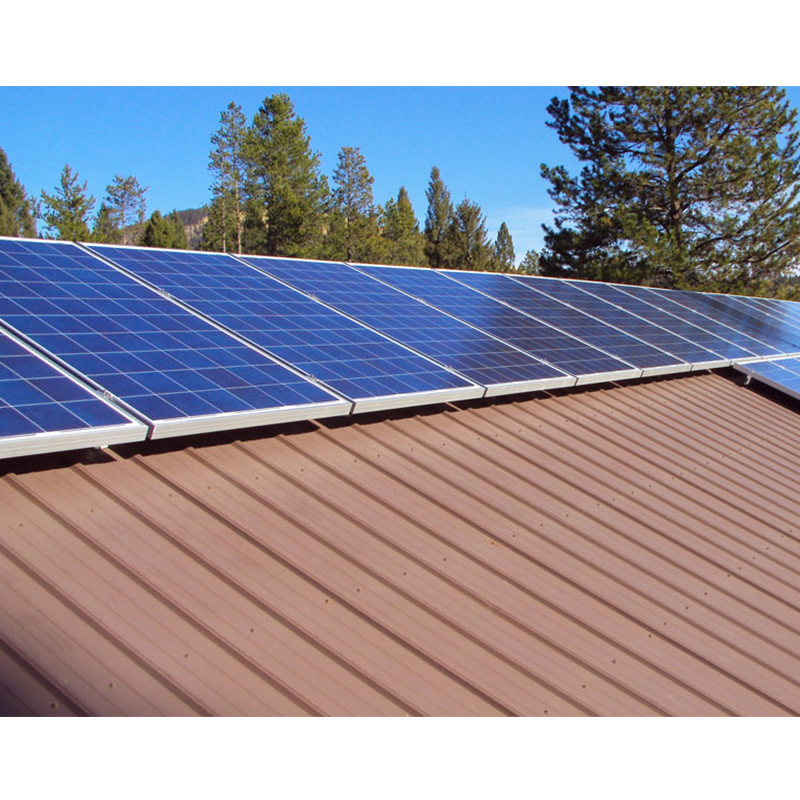

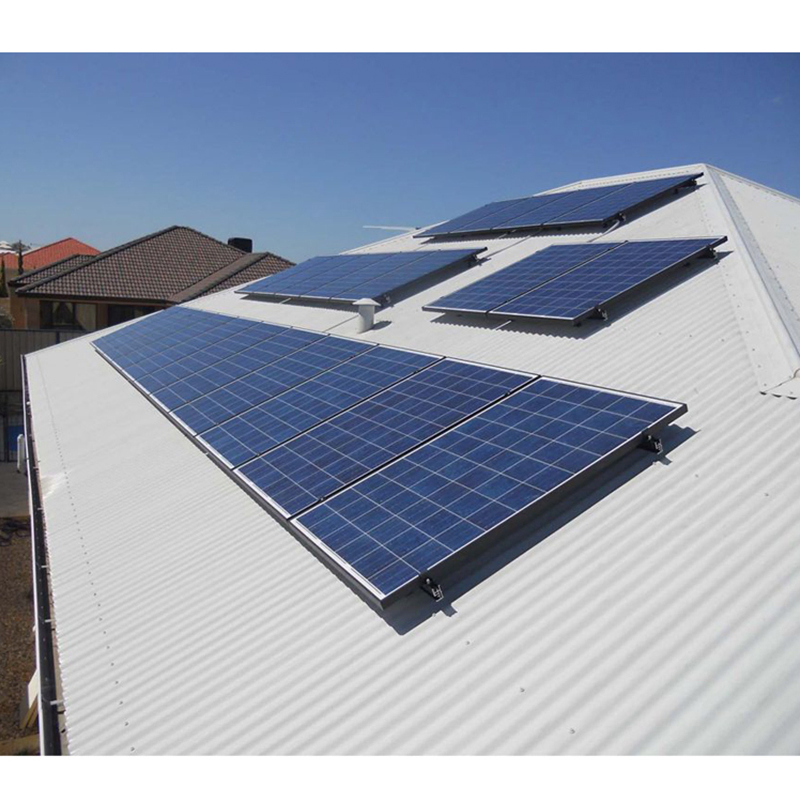

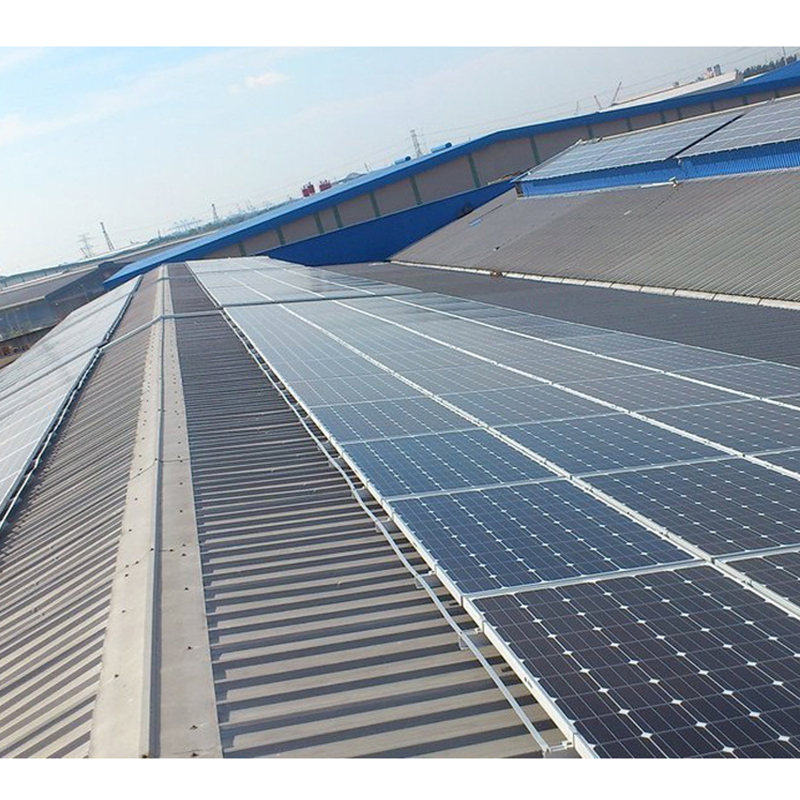

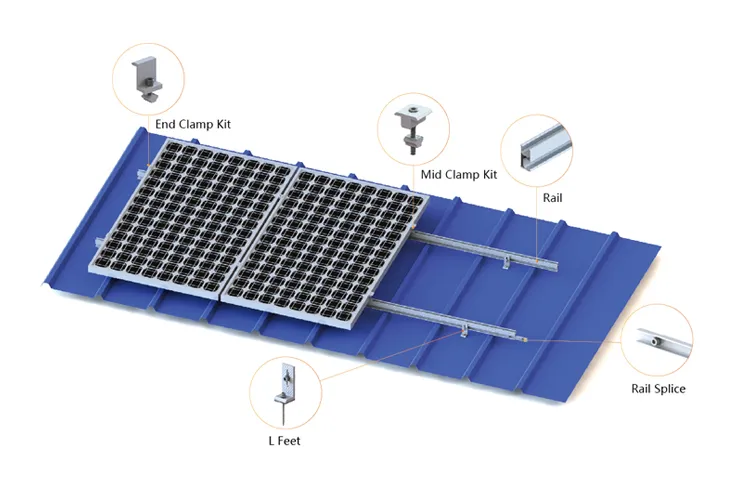

Metal Roof Mounting System

Our standing seam clamps mounting structure is widely applied for commercial and residential roof projects. The system is designed for pitch tin roofs, which is very popular with customers. The wide range of different components makes it possible to fasten almost all sorts of modules.

High module compatibility

Safety and reliability

Easy installation

Rust-resistance

Technical Details

Installation site	Tin roof
Applicable module	Framed or frameless panels
Material	Aluminum 6005-T5, SUS304
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	Parallel to roof surface
Warranty	10 Years warranty and 25 years service life
Standards	AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006

Installation Components

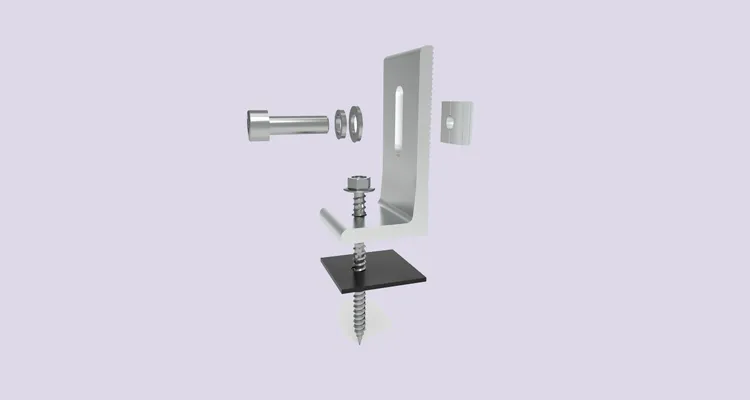

L Foot

Material: AL6005-T5, SUS 304
Function: Fix rails to rooftop

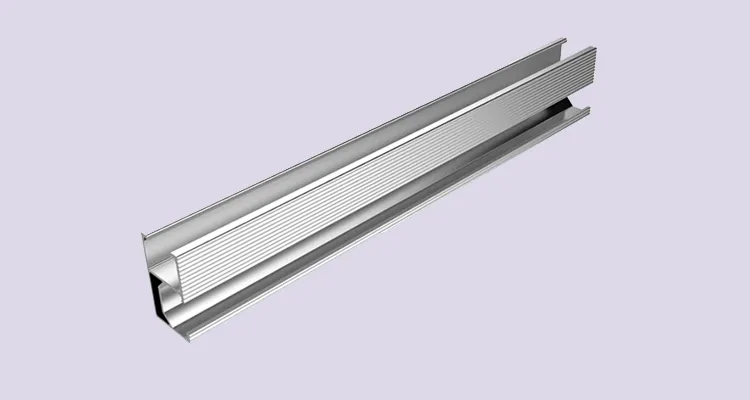

Aluminum Rail

Material: AL6005-T5
Function: Fix panels with clamps to rooftop

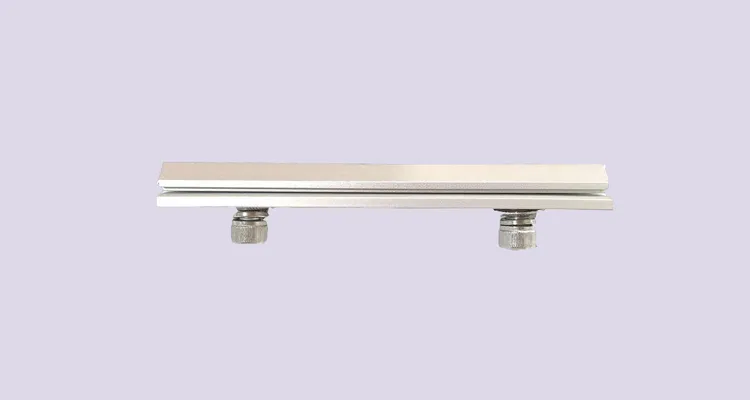

Rail Splice

Material: AL6005-T5, SUS304
Function: Connect rails

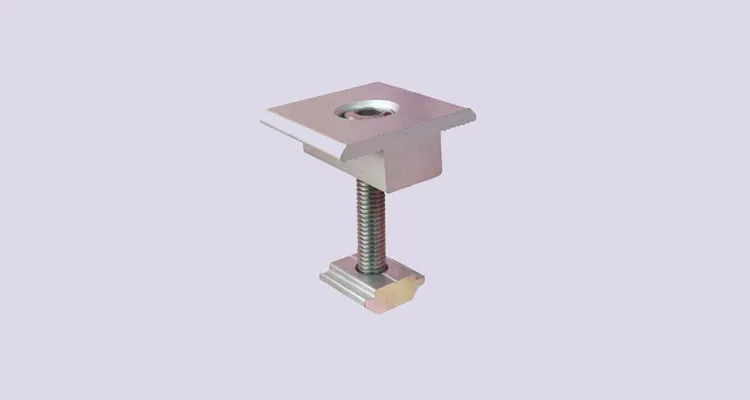

Mid Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails in the middle

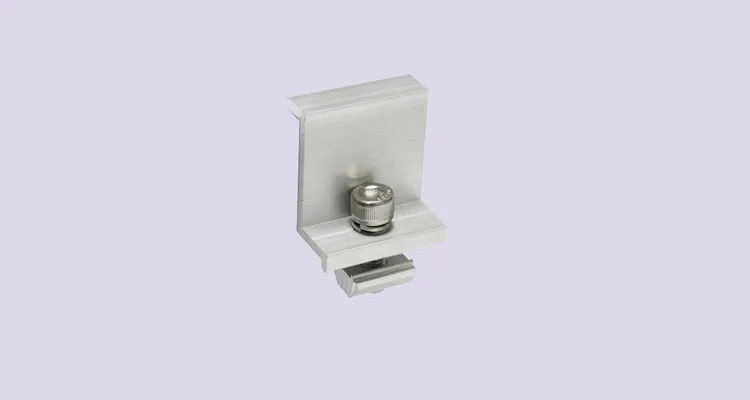

End Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails at the ends

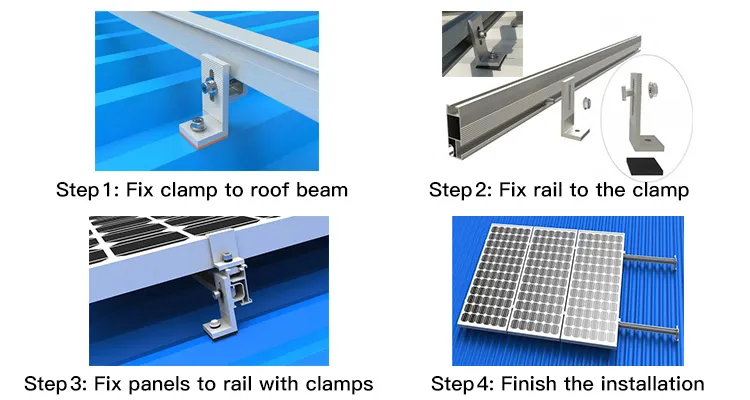

Installation & Packaging

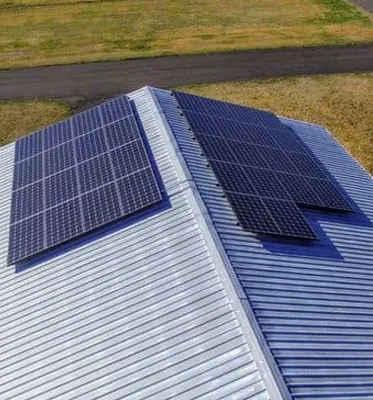

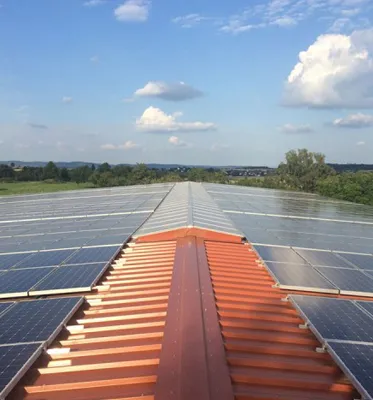

Projects & Certifications

Frequently Asked Questions

● What types of metal roofs are compatible with these brackets?

These brackets are primarily designed for tin roofs and various standing seam metal roofs, offering high compatibility with most commercial and residential roof structures.

● What materials are used to ensure durability?

We use high-grade Aluminum 6005-T5 and Stainless Steel (SUS304) to provide excellent strength and superior rust resistance.

● Can the system withstand extreme weather conditions?

Yes, the system is engineered to handle wind loads up to 60m/s and snow loads up to 1.4kn/m2, meeting international standards like AS/NZS 1170.

● What is the typical lifespan and warranty of the mounting system?

The mounting structure comes with a 10-year warranty and is designed for a service life of at least 25 years.

● Is the installation process complicated?

No, the system is designed for quick and easy installation with pre-assembled components like L-feet and clamps to minimize labor time on the roof.

● Are the components adjustable for different panel sizes?

Yes, the mid clamps and end clamps are designed to accommodate various panel thicknesses, suitable for both framed and frameless modules.
