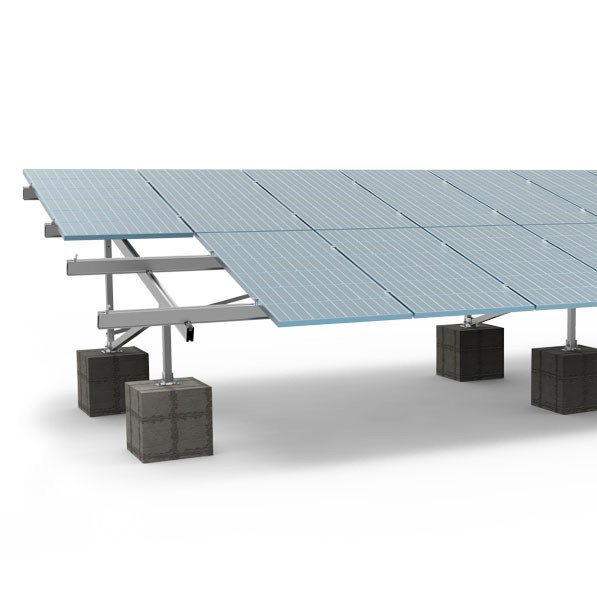

Solar Panel Rack PV Panels Array Mounting by Aluminum or Steel

1 / 5

Solar Panel Rack PV Panels Array Mounting by Aluminum or Steel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊Basic Information

Model NO.

APV997

Certification

Application

Industrial

Material

Aluminum Alloy

Type

Ground Bracket

Thickness of Module

30-50 mm

Wind Load

60 M/S

Snow Load

1.4 Kn/M2

Adjustable Angle

15~50 Degree

Foundation

Ground, Balcony, Roof, Wall

Finishing

Clear Anodized/Mill Finish

Production Capacity

33, 000 Tons / Year

☀️Product Description

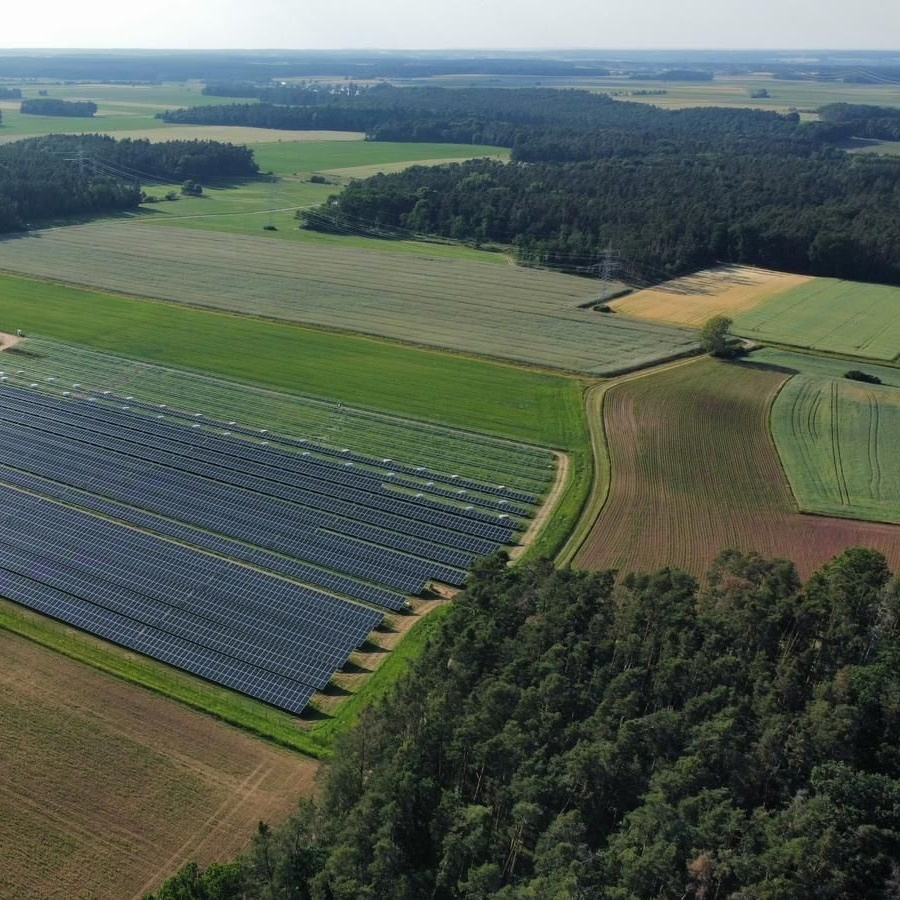

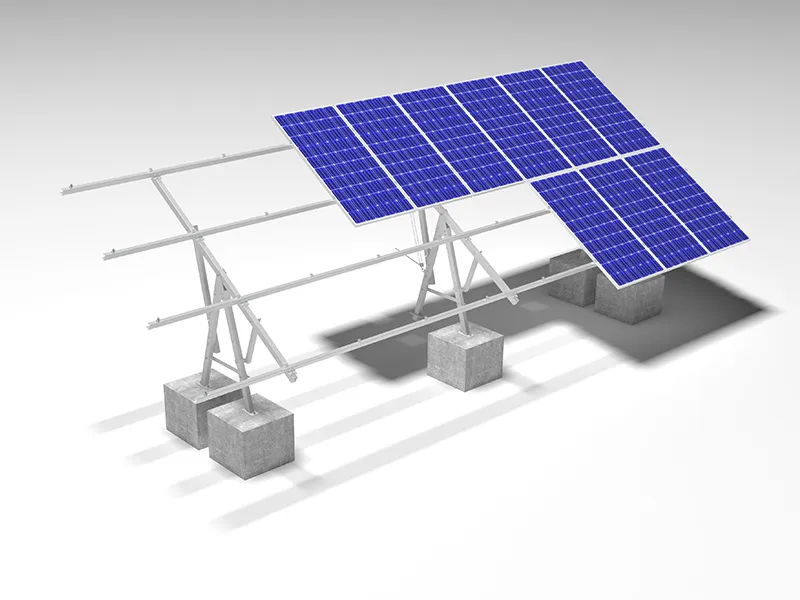

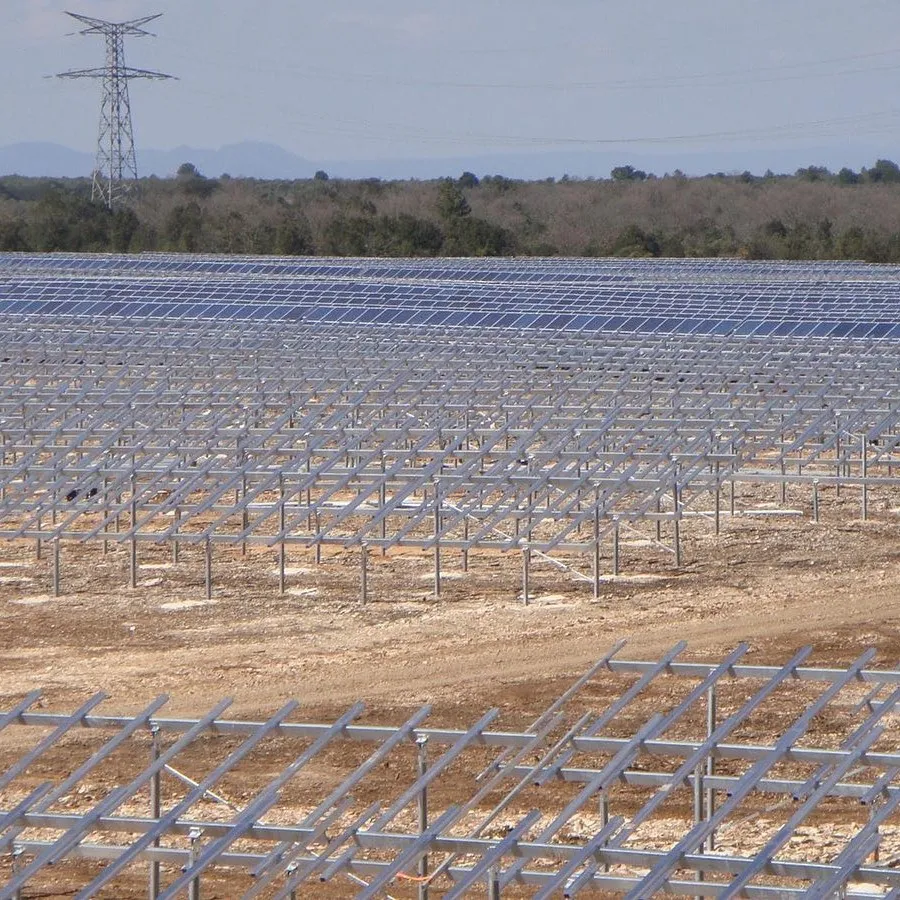

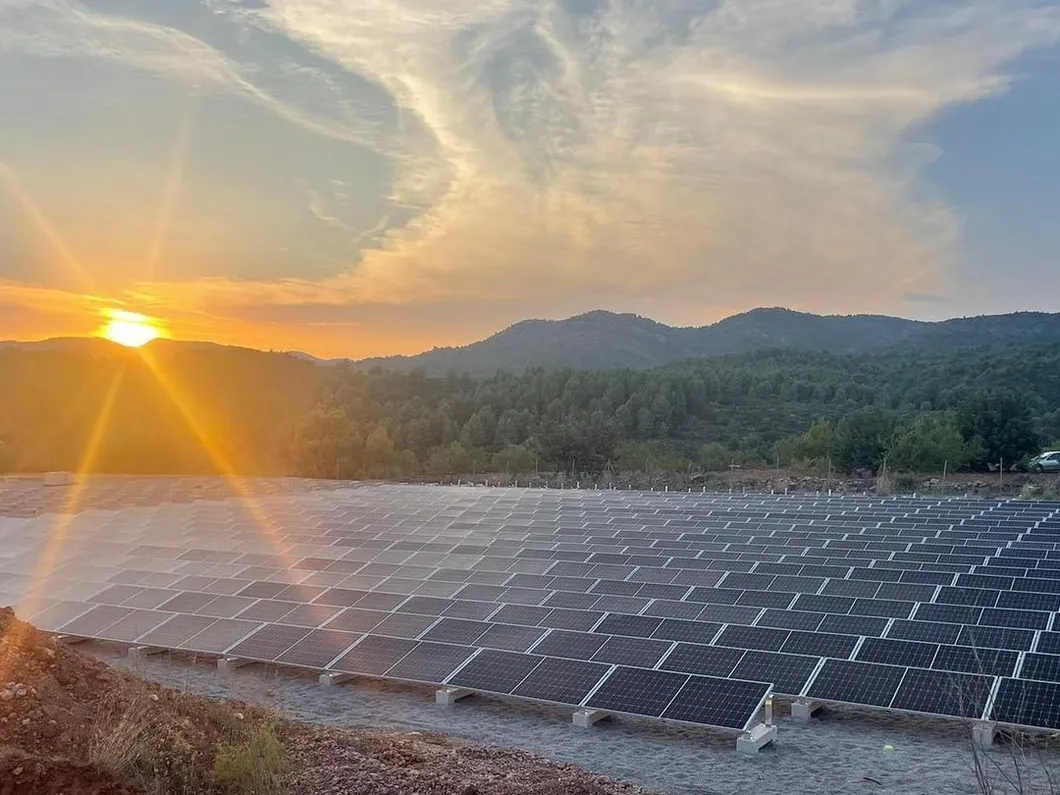

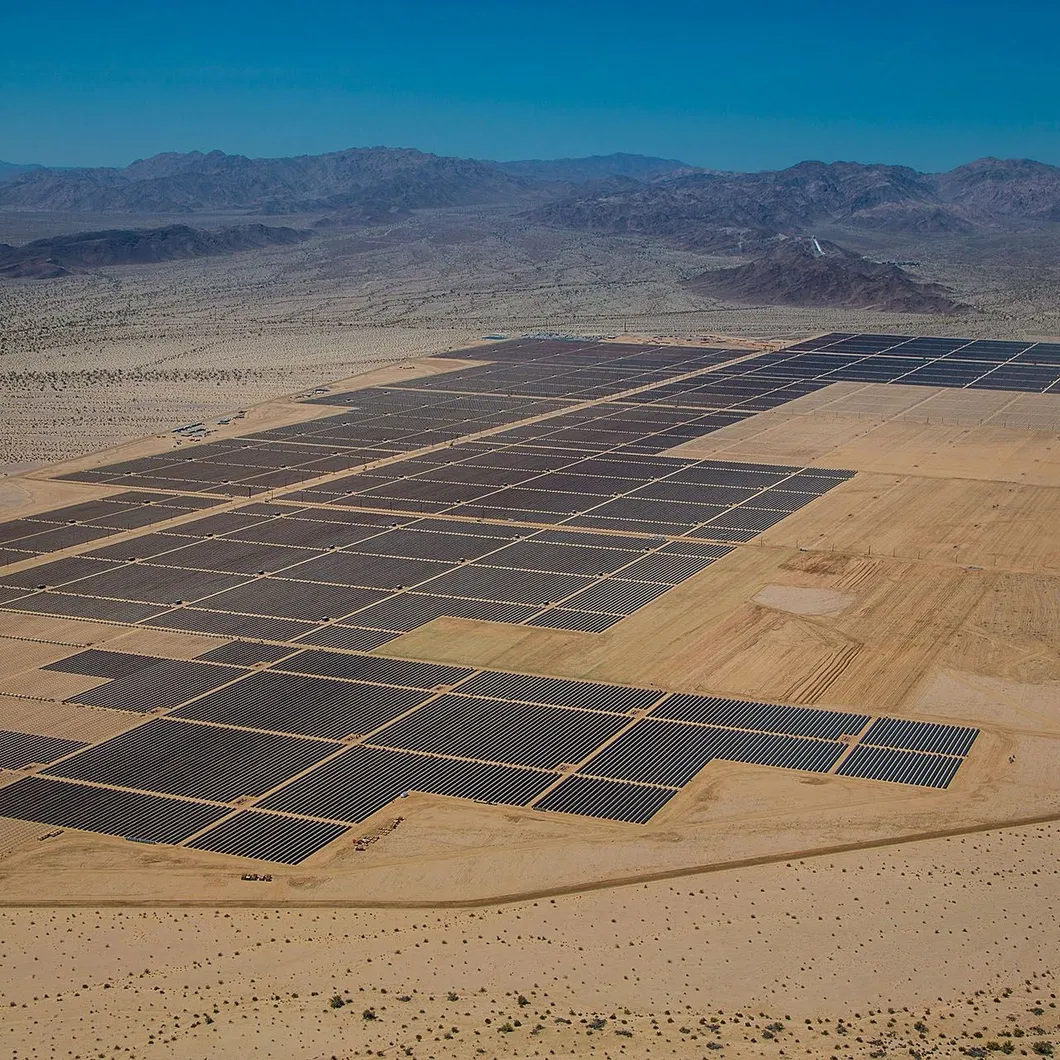

Solar ground mount system usually consists of metal structure, concrete base and other spare parts to fix the solar panels on a rack. It is suitable for big projects such as commercial PV plant power stations. According to the location, geographic and weather situations, and the target power output, ground solar mounting systems can be classified into 3 kinds:

Fixed tilt system: The simplest and most economic one. Fixed structure, fixed panels, requiring minimal maintenance.

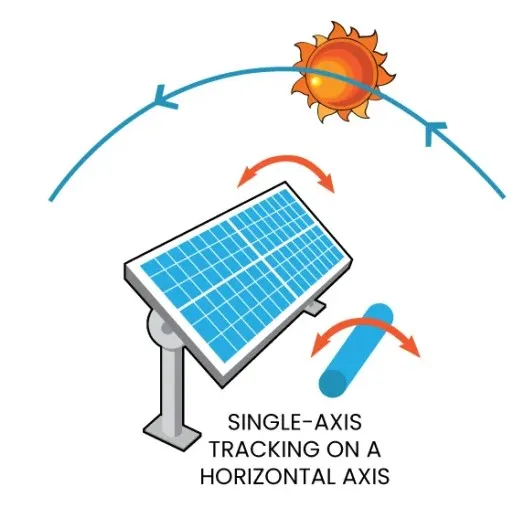

Single axis tracking system: Uses an electric motor to move panels in one direction to track the sun's movement throughout the day.

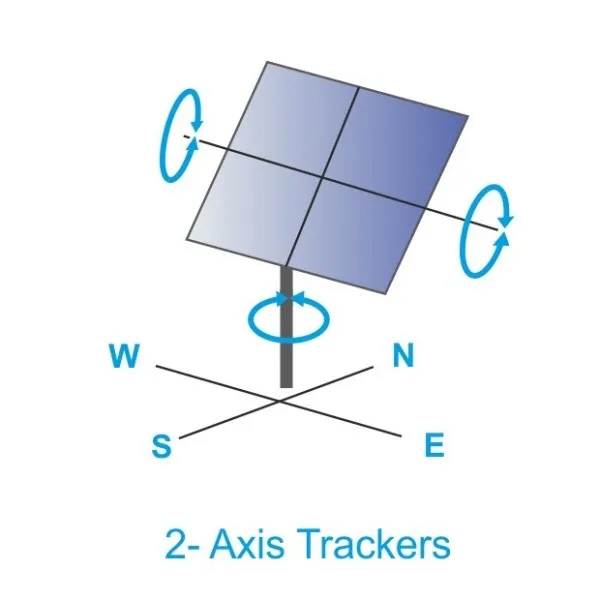

Dual-axis tracking systems: Uses two axes to track the sun's movement both horizontally and vertically, maximizing PV power production.

Solar Panel Rack PV Panels Array Mounting

Our team, with 16 years of aluminum extrusion experience and many years of providing solutions for solar ground mounting systems, offers:
• Fast and scientific designs
• Competitive price with fast delivery
• Professional consultant service

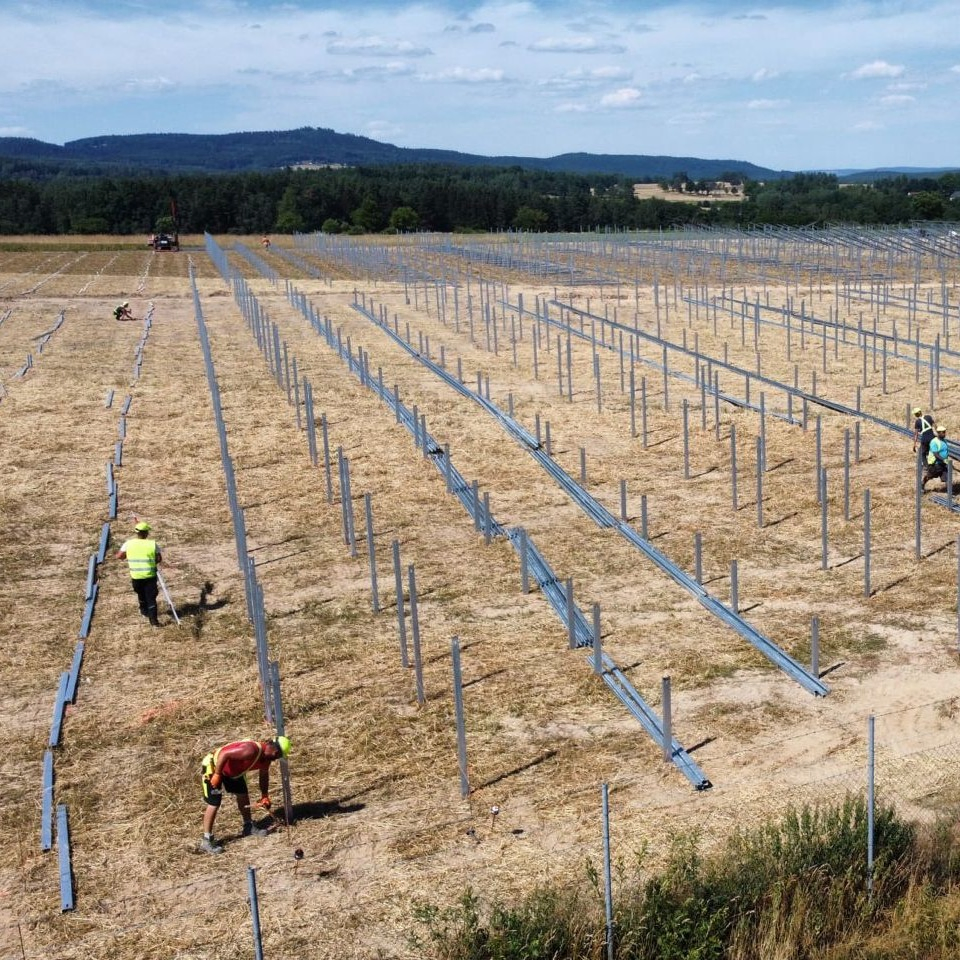

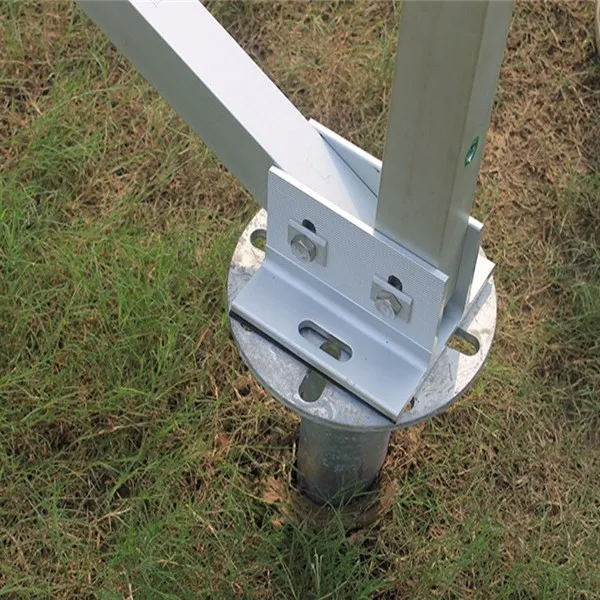

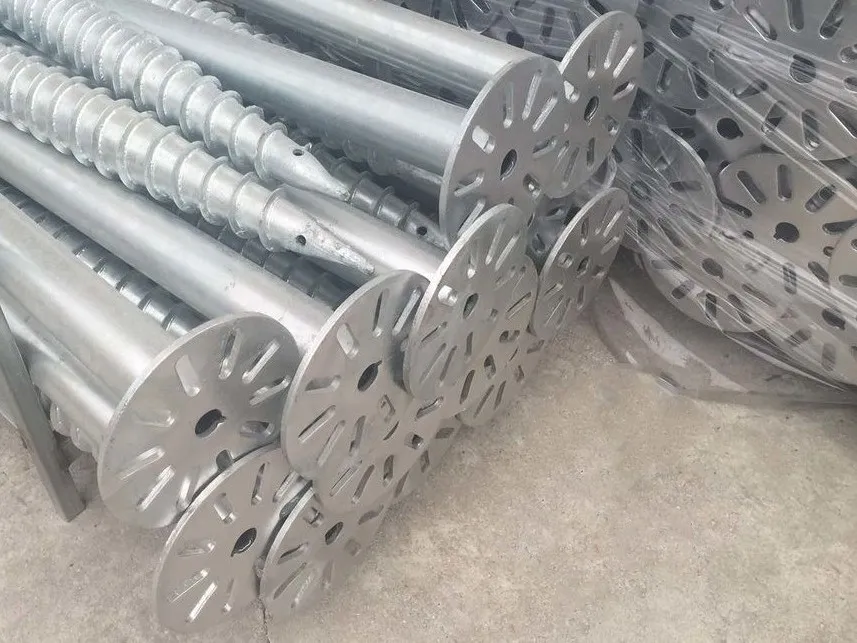

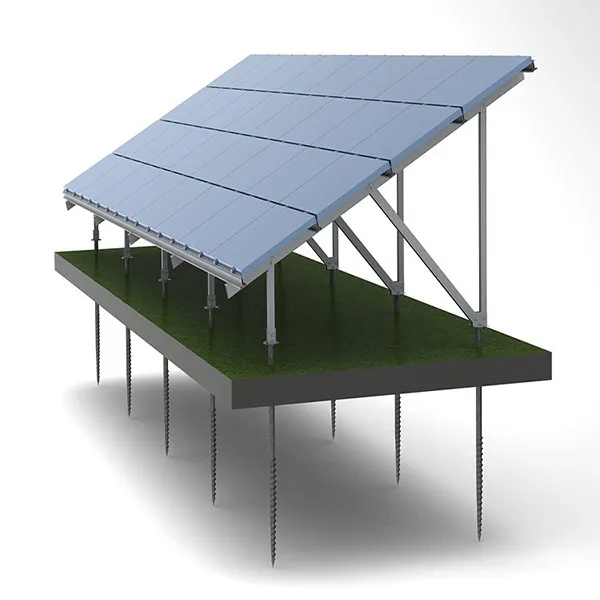

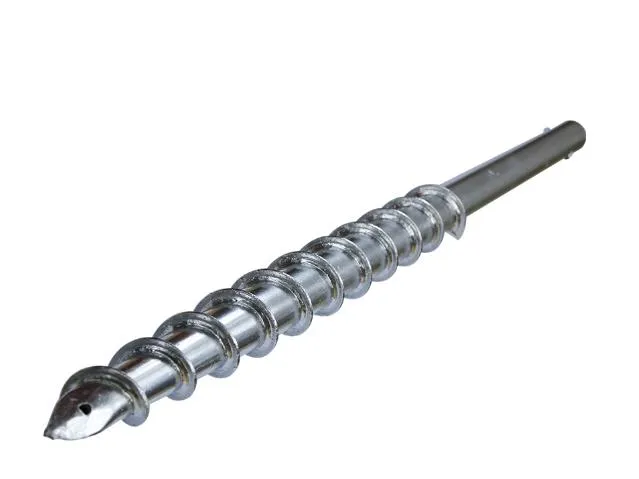

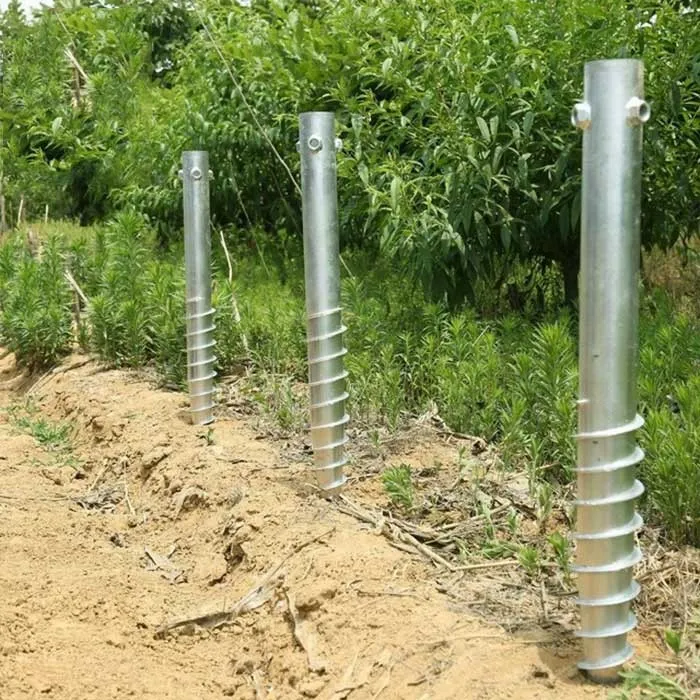

Screw Anchor/Pile Systems: Also known as a ground screw or helical pile system, it provides a stable foundation. These are usually made of galvanized steel or aluminum and feature a helical shape for easy installation by twisting into the ground.

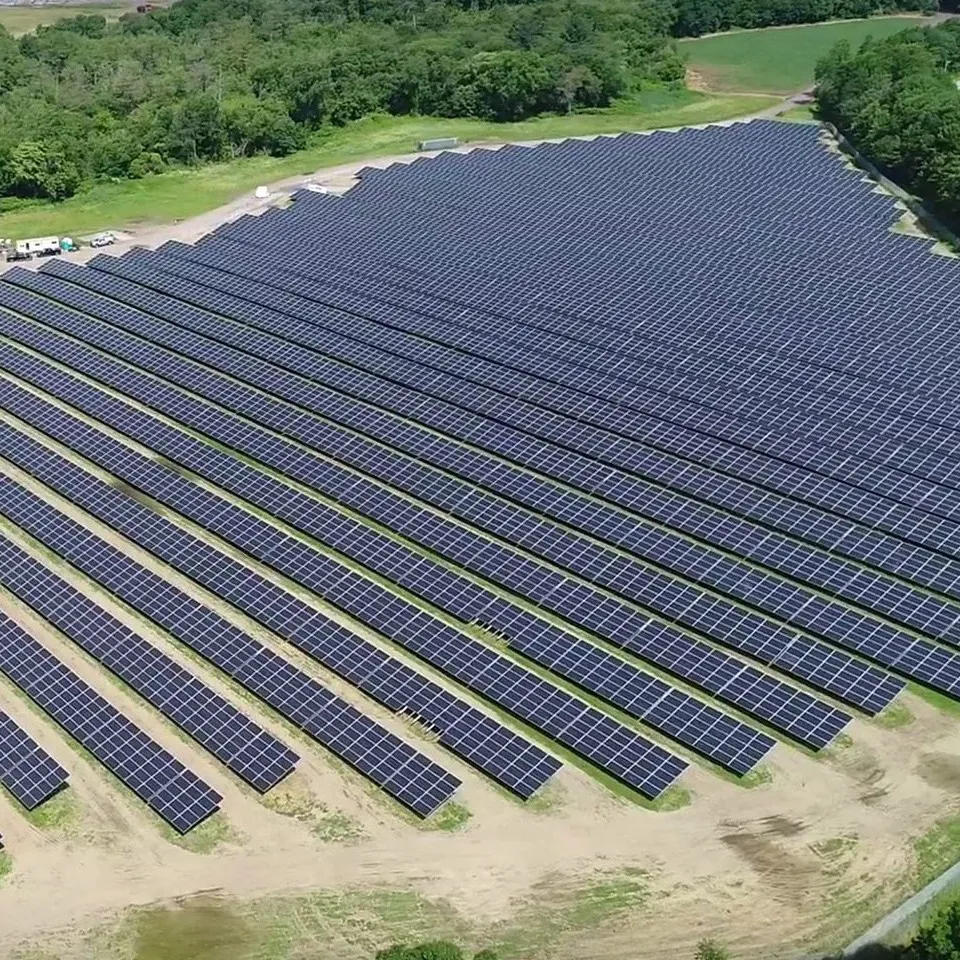

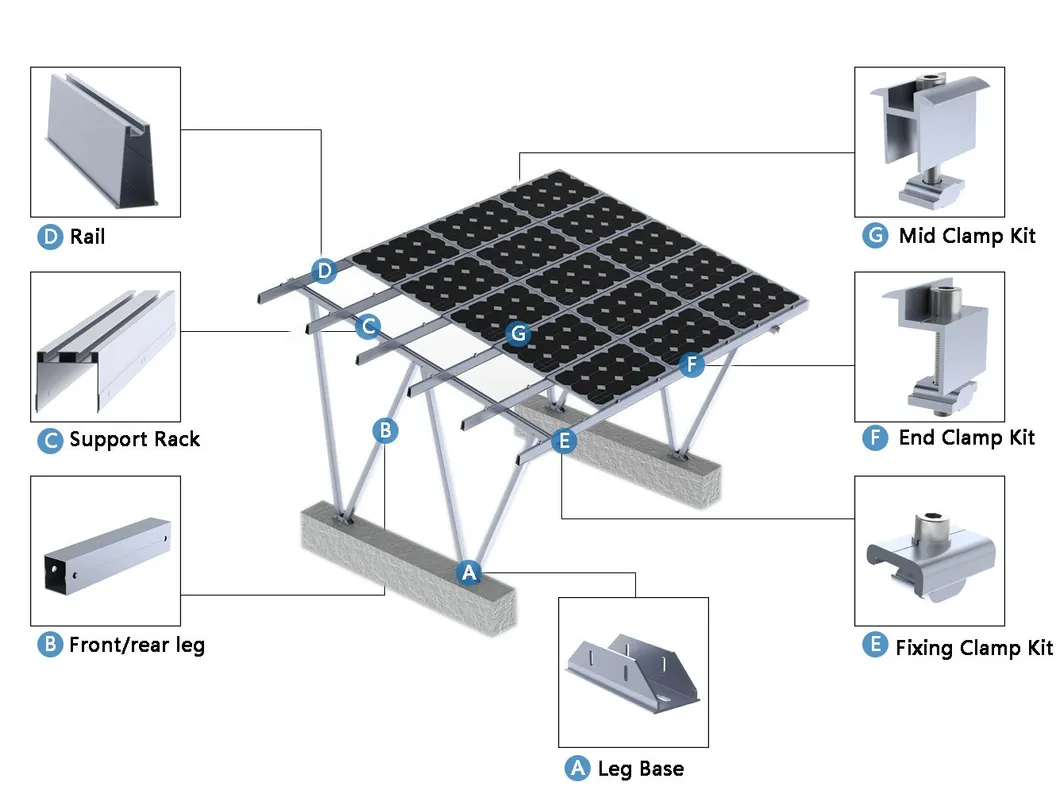

Mounting Rails & Clamps: Once anchors are installed, mounting rails (aluminum or galvanized steel) are attached to provide the framework. Panel clamps then fasten the panels securely, allowing for thermal expansion and contraction.

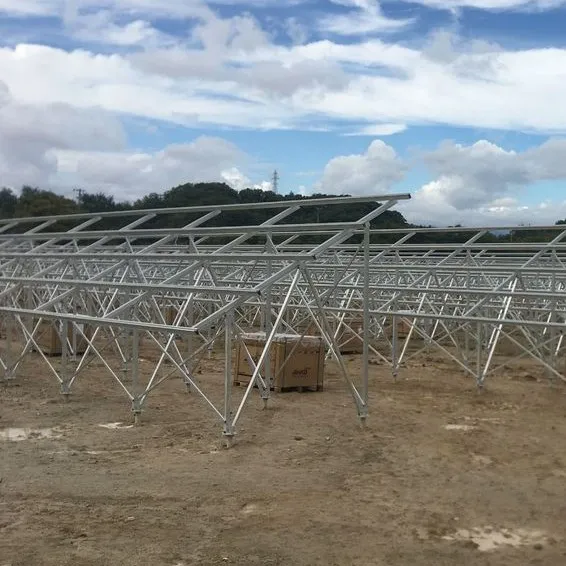

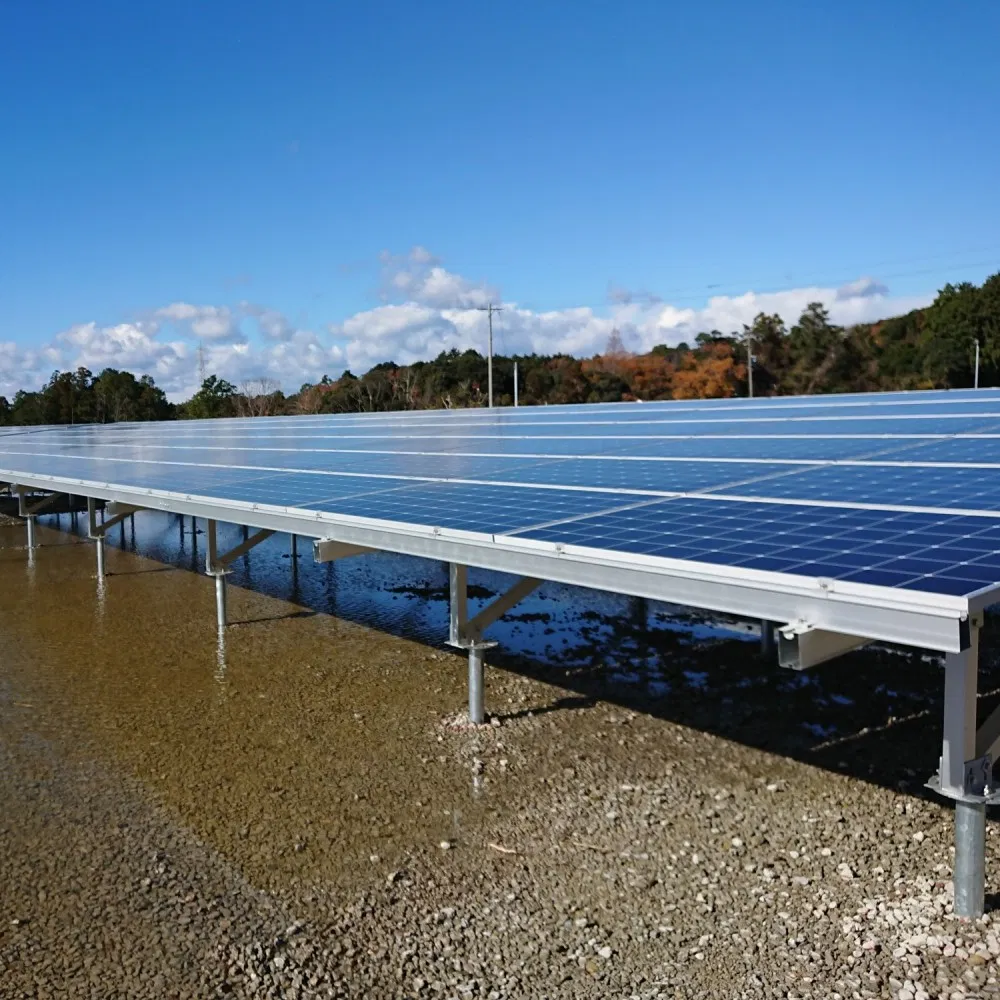

✅Benefits of Ground Screw

Easy Installation: Quick insertion into the ground without extensive excavation or concrete foundations.

Versatility: Adaptable to various soil conditions, including rocky or uneven terrain.

Stability and Durability: High load-bearing capacity and resistance to uplift forces and high wind speeds.

Environmental Impact: Minimizes soil disruption and preserves the natural landscape.

Maintenance: Elevated design allows for easy access for cleaning and maintenance.

⚙️Product Parameters & Production

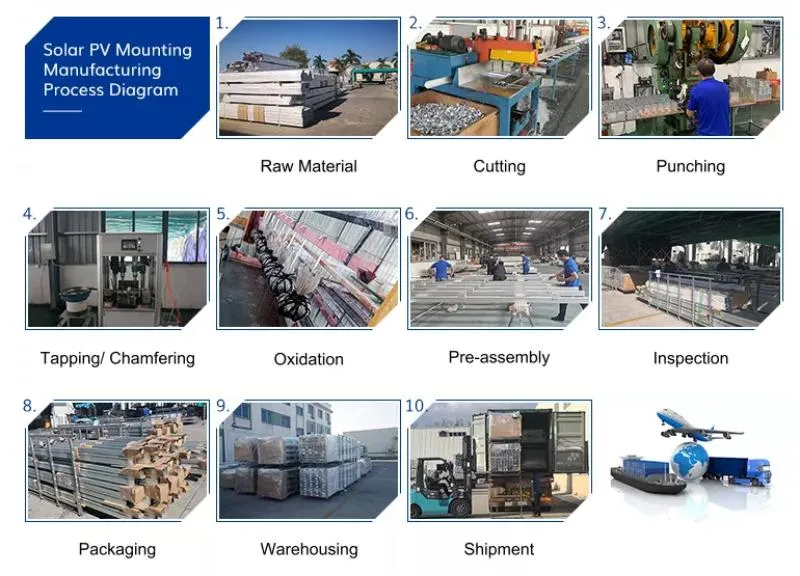

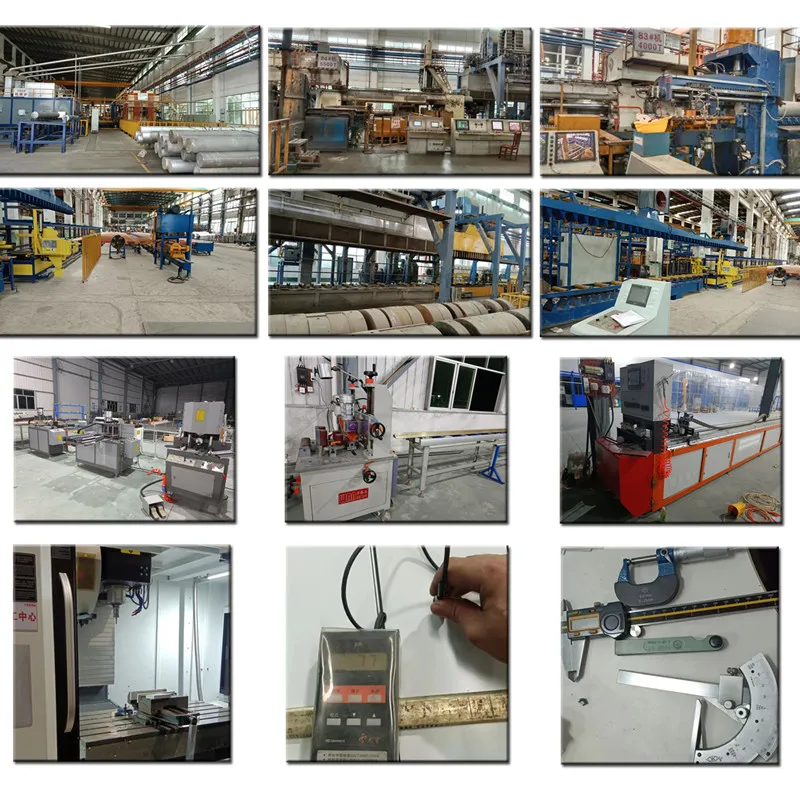

We maintain a strict quality control system through the following procedures:

Selection of high-standard steel.
Precision cutting and forming.
Welding parts with screw tubes.
Hot-dip galvanizing for long-term corrosion resistance.
QC inspection for strength and durability.

Standard	AS/NZS 1170
Applicable Module	Framed or frameless panel
Wind load	Up to 218Kmph (60m/s)
Snow load	Up to 30psf (1.4KN/m2)
Adjustable angle	15~50°
Material	Aluminum alloy 6063 T5 / Steel
Warranty	10 years

📦Packaging & Shipping

🏢Why Choose Our Solutions

1. Experienced: Years of expertise in solar mounting generation, understanding global market needs.
2. High Quality: Made from SS304 stainless steel and high-grade aluminum with advanced technology.
3. Professional Service: Comprehensive support including technical consultation and installation guidance.
4. Global Network: Proven track record in the US, Europe, Australia, and Asia.

❓Frequently Asked Questions

1. How to install a solar ground screw?

It can be installed using a portable or hydraulic pile driver by pressing the screw into the soil. Usually, a depth of 1.5 to 1.6 meters is sufficient for a stable base.

2. What are the advantages of solar ground screws?

Compared to concrete supports, they offer easy installation, cost-effectiveness, high efficiency, and are easy to dismantle.

3. What kinds of ground are suitable for solar earth screws?

They are suitable for clay, sand, and gravel. The soil must be strong enough to support the panels against wind and snow loads.

4. Does this screw suit areas with high wind and heavy snow?

Yes, it is designed to withstand wind speeds up to 60m/s and snow loads up to 1.4 KN/m2.

5. How long will the mounting system last?

The system is highly durable, with a usage life of 30 years or more, depending on soil and weather conditions.

6. Is the solar ground screw reusable?

Yes. If the screws are not damaged during removal, they can be reused, making the system highly sustainable.
