Qbh Customized 20 Years Life 10 Years Quality Assurance Home/Civil/Industrial/Commercial Photovoltaic PV Solar Power Energy System Panel Roof Solar Mounting

1 / 5

Qbh Customized 20 Years Life 10 Years Quality Assurance Home/Civil/Industrial/Commercial Photovoltaic PV Solar Power Energy System Panel Roof Solar Mounting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

QBH-Solar Panel Bracket System

Material

Metal / Aluminum Alloy

Type

Roof Bracket

Guide Rail

Aluminum Alloy Extrusion

Package

Carbon and Pallet

Specification

M6-M20

Capacity

300 Tons/Month

HS Code

73261990

Product Description

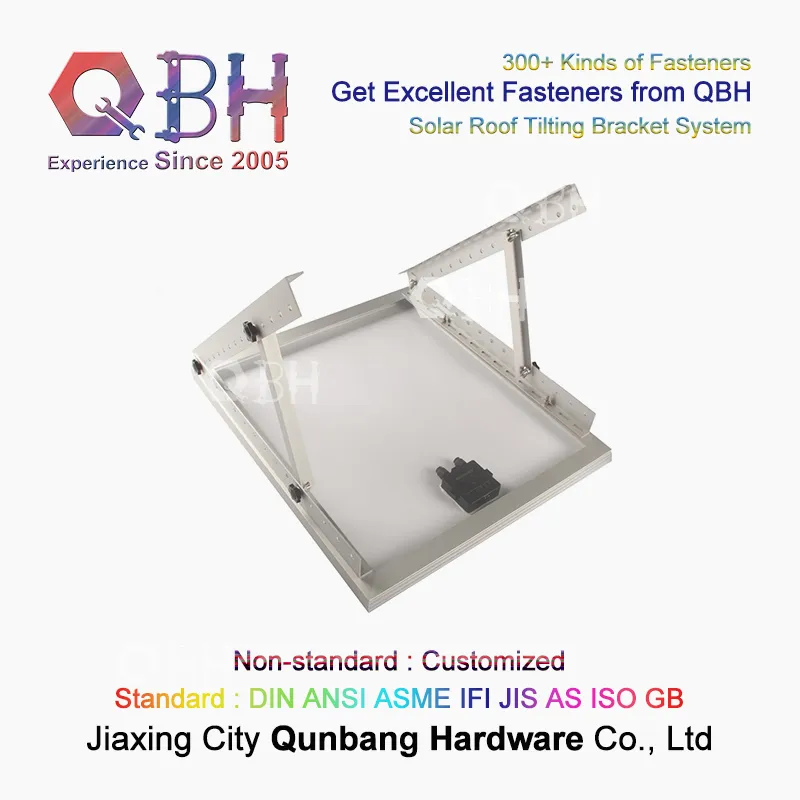

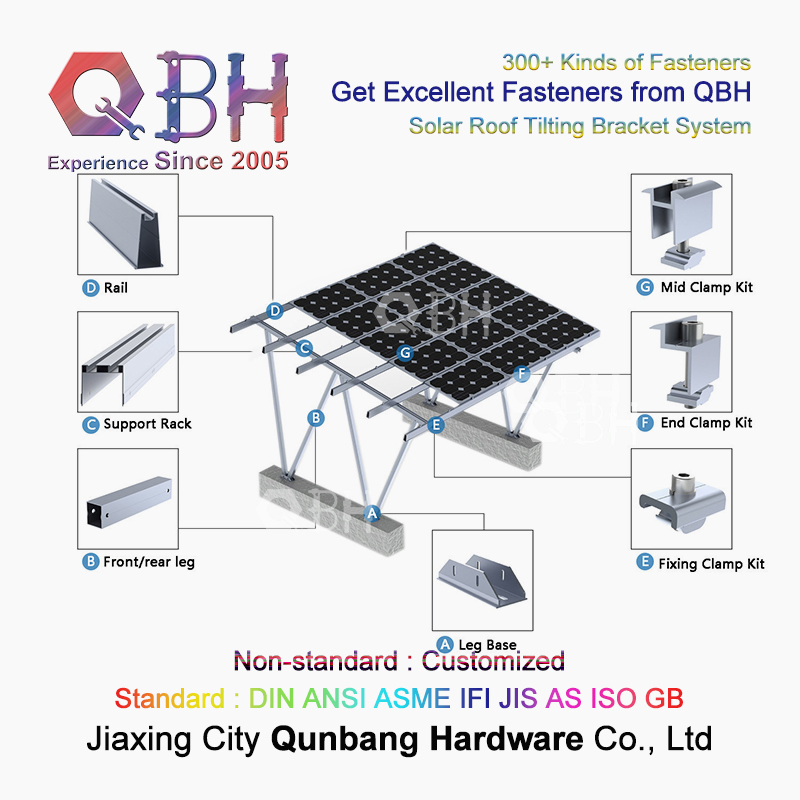

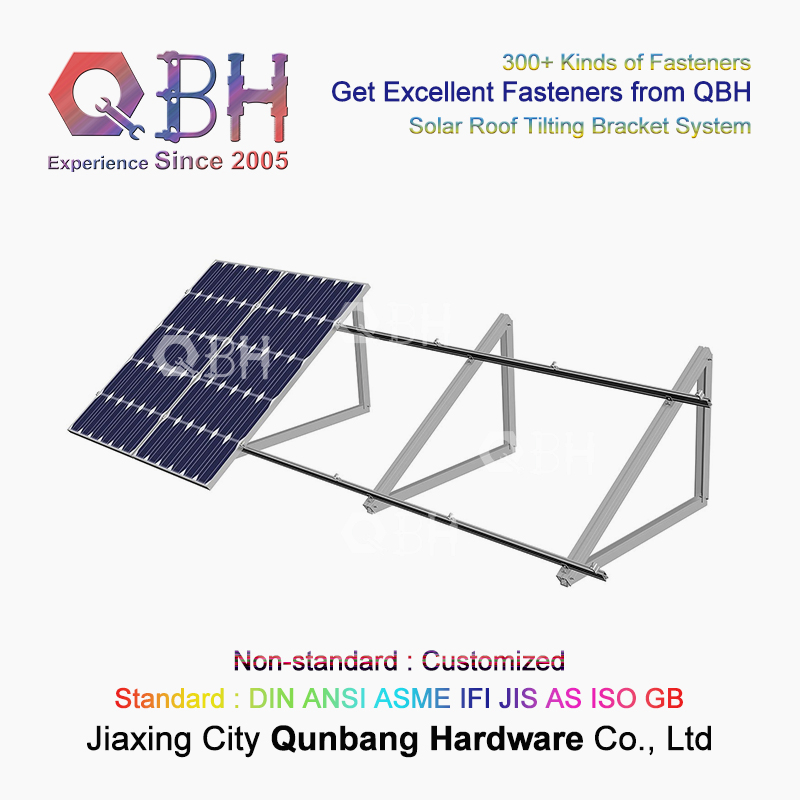

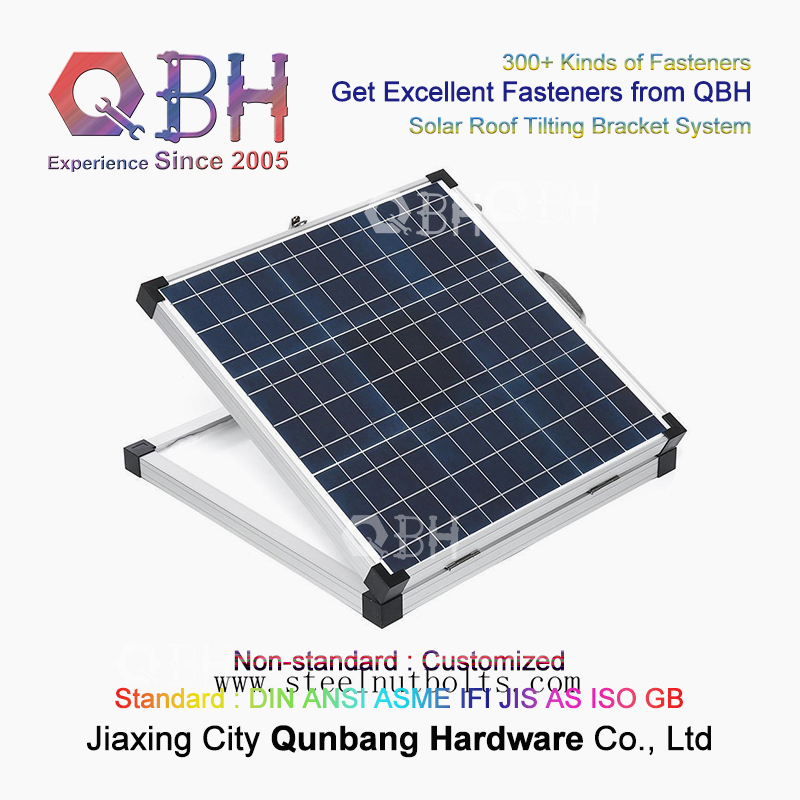

QBH Solar Roof Tilting Bracket System offers exceptional flexibility for Commercial or Civil Roof Solar Systems. Designed for parallel installation of common framed solar panels on sloping roofs.

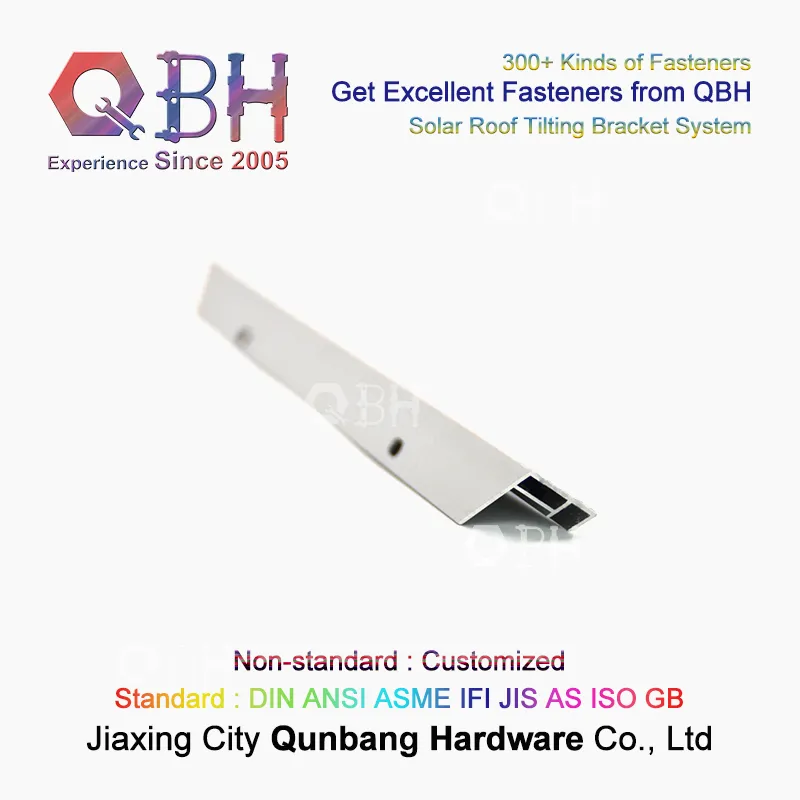

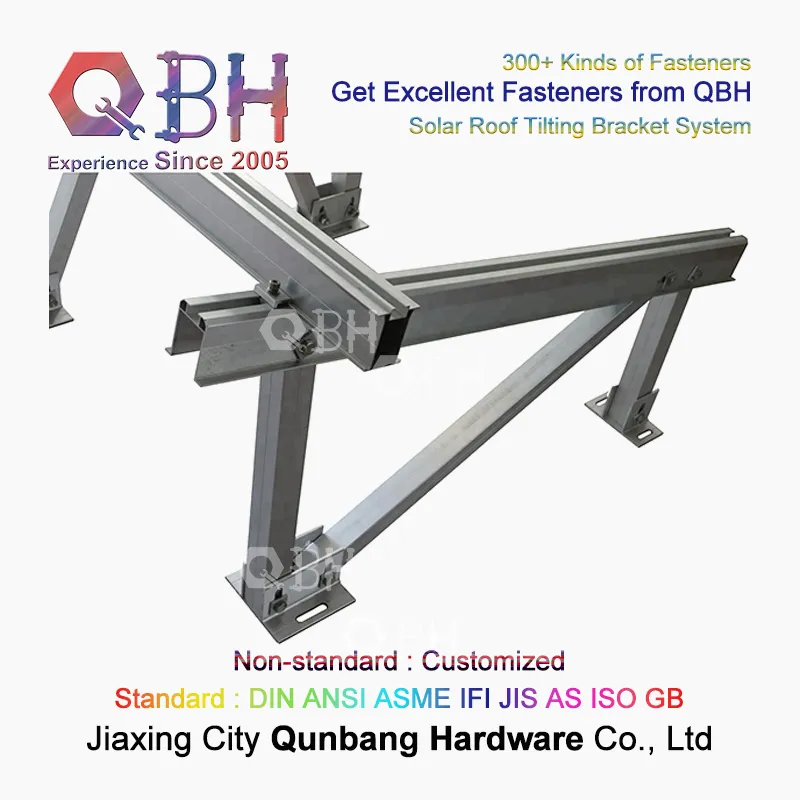

The unique aluminum extrusion guide rail and inclined mounting parts can be pre-installed, significantly saving labor costs and installation time. Customized lengths eliminate the need for on-site welding and cutting.

Core Features & Advantages

✦

Easy Installation: Parts can be installed from any position on the Aluminum Alloy Extrusion Guide Rail, minimizing on-site time.

✦

High Durability: Designed for 20 years' service life with 10 years' quality assurance using high-strength stainless steel and anodized aluminum.

✦

Extreme Weather Resistance: Engineered to meet AS/NZS 1170 and international standards for structural bearing capacity.

✦

Universal Compatibility: Applicable to all framed solar panels and various roof types, from small residential to large megawatt systems.

Material Chemical Composition

Type	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Ni ≥	Cr ≥	Mo ≥	Cu ≈
304	0.07	1.00	2.00	0.035	0.03	8.0-10.0	18.0-20.0	-	-
316	0.08	1.00	2.00	0.045	0.03	10.0-14.0	16.0-18.0	2.0-3.0	-
316L	0.03	1.00	2.00	0.045	0.03	12.0-15.0	16.0-18.0	2.0-3.0	-
201Cu	0.08	1.00	7.5-10	0.06	0.03	4.0-6.0	14.0-17.0	-	2.0-3.0

Packing & Delivery

Bulk Packing

20-25KG/CTN, 36CTNS/PALLET

Iron Drum

50KG/DRUM, 12 DRUMS/PALLET

Pallet Types

Solid Wood Fumigation, EURO Pallet

Why Choose Us

Professional Manufacturer with 15+ years of experience.
Working with TUV for quality assurance and escort.
Customization of non-standard parts based on drawings.
Competitive factory-direct pricing.
Rapid response and the shortest delivery times.

Certifications

Frequently Asked Questions

What is the expected service life of the mounting system?

The system is designed with a 20-year service life and comes with a 10-year quality assurance.

Can these brackets withstand extreme weather conditions?

Yes, our systems are designed according to AS/NZS 1170 and other international standards to withstand extreme wind and snow loads.

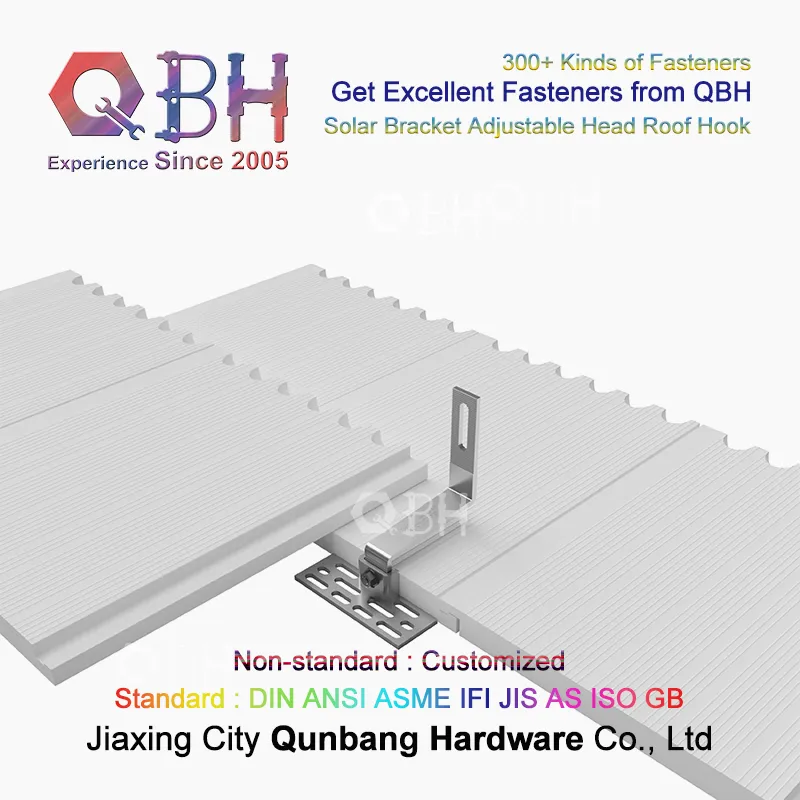

What materials are used for the roof hooks and rails?

We primarily use high-strength Stainless Steel 304 and Anodized Aluminum Alloy to ensure high corrosion resistance and durability.

Is the system compatible with all roof types?

Our brackets are suitable for tiled roofs, slate roofs, and metal roofs. We offer different versions to match your specific roof structure.

Do you provide samples before mass orders?

Yes, we provide free samples for standard fasteners to ensure they meet your performance specifications.

What is your typical delivery time for large orders?

For standard stock items, we delivery within 2-5 days. For 1-2 container quantities, the typical lead time is 18-25 days.
