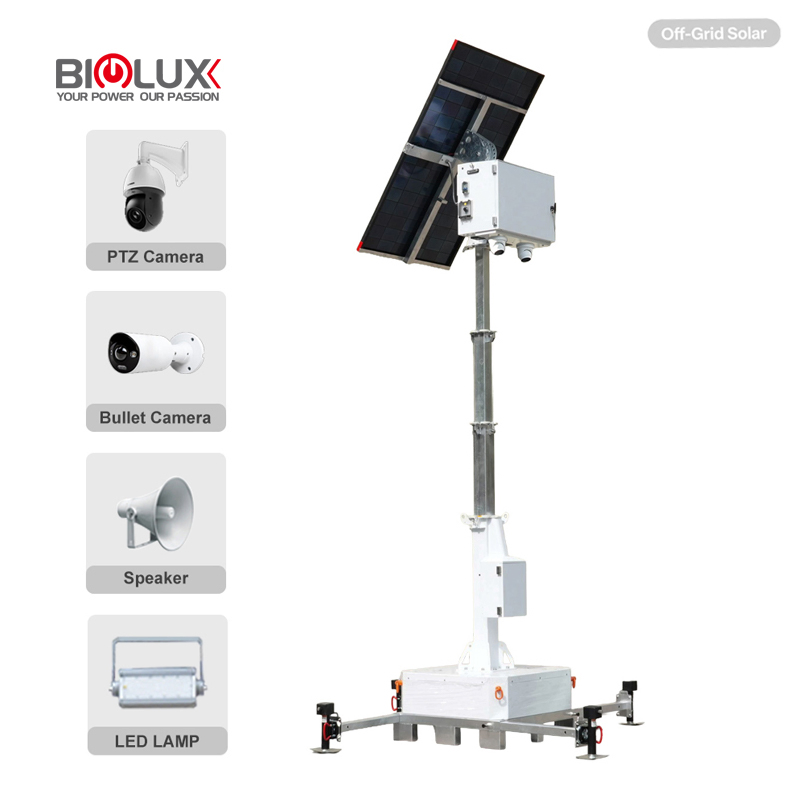

The HiGUARD Mobile Solar Surveillance Tower is a flagship compact off-grid security solution, engineered for temporary, rapid-deployment surveillance scenarios where grid power is unavailable or impractical. Designed with rental fleets and short-term projects in mind, this tower combines a 450W bifacial solar panel, high-capacity LFP battery, and 3.5m telescopic mast into a single, portable unit—enabling instant security monitoring without fixed infrastructure.

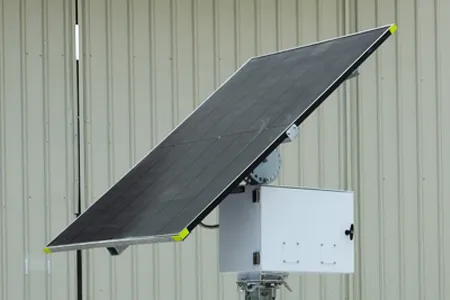

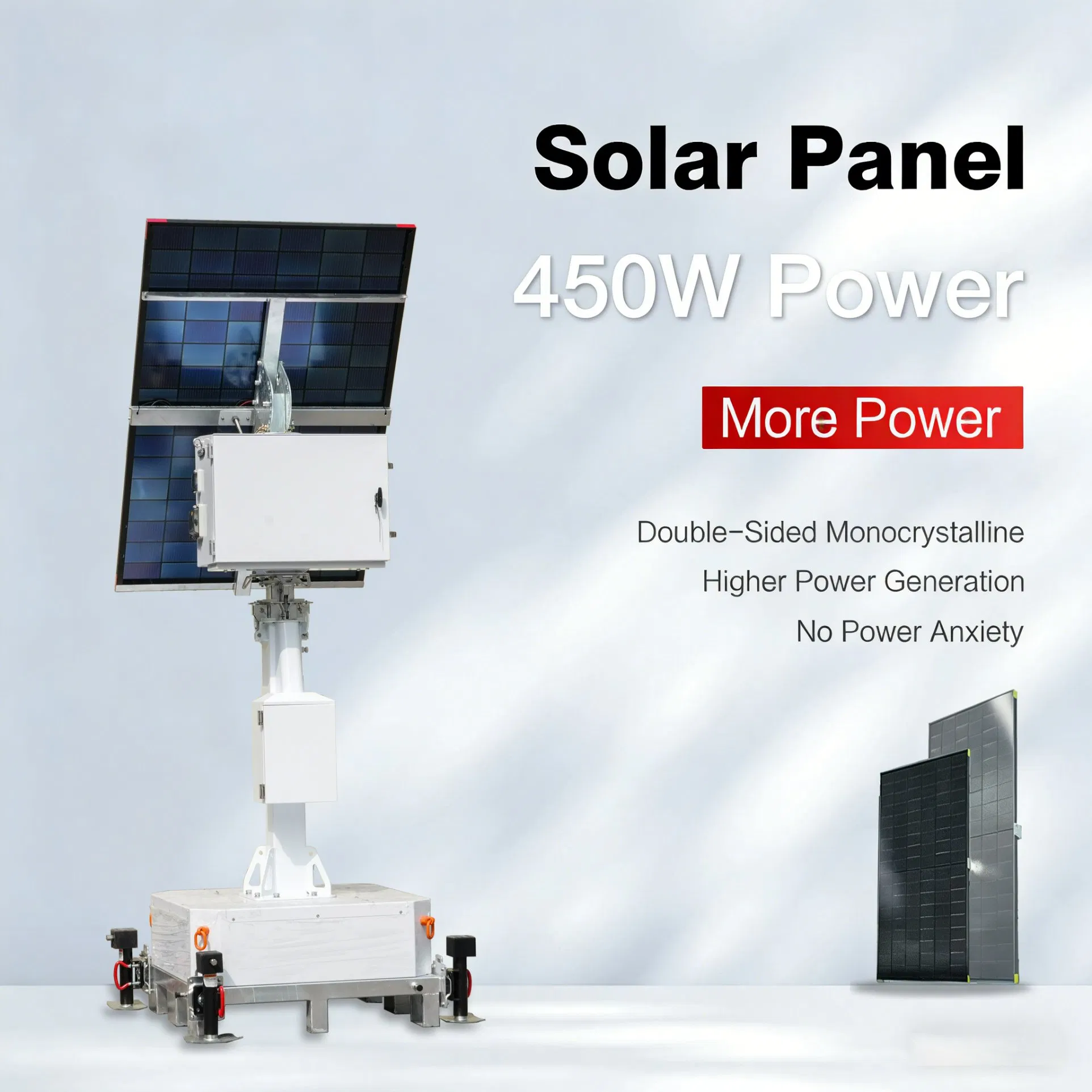

450W Power, Double-Sided Monocrystalline for higher generation and no power anxiety.

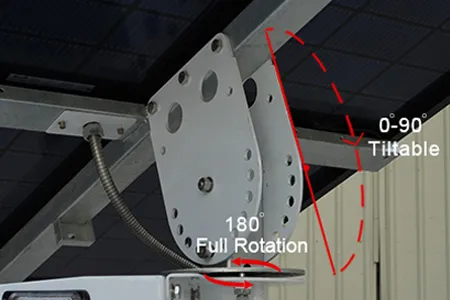

180° Rotation & 90° Tilt for maximum sunshine exposure and flexible deployment.

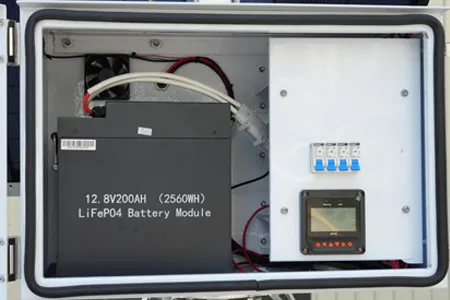

2560Wh Lithium Battery with integrated MPPT Controller and temperature-controlled cooling.

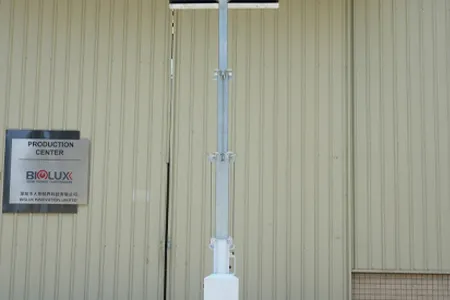

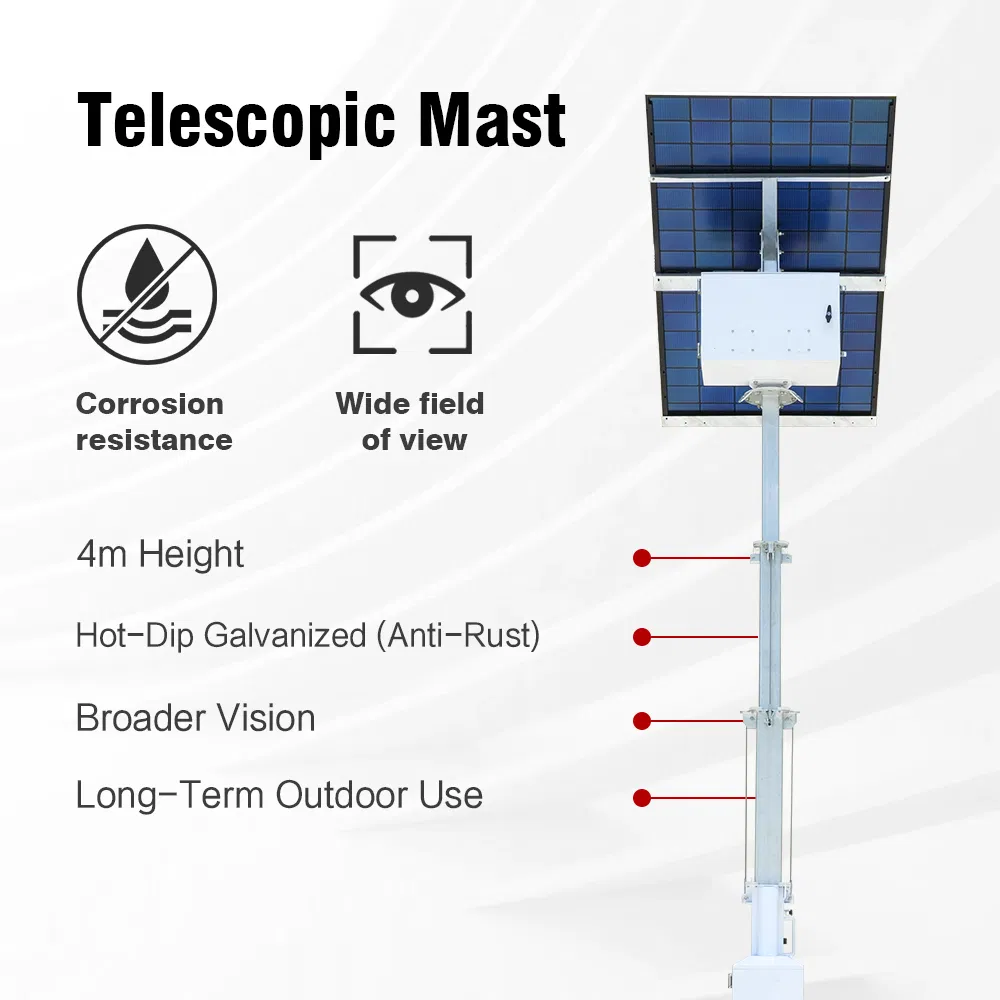

4m height, hot-dip galvanized for anti-rust and long-term outdoor vision.

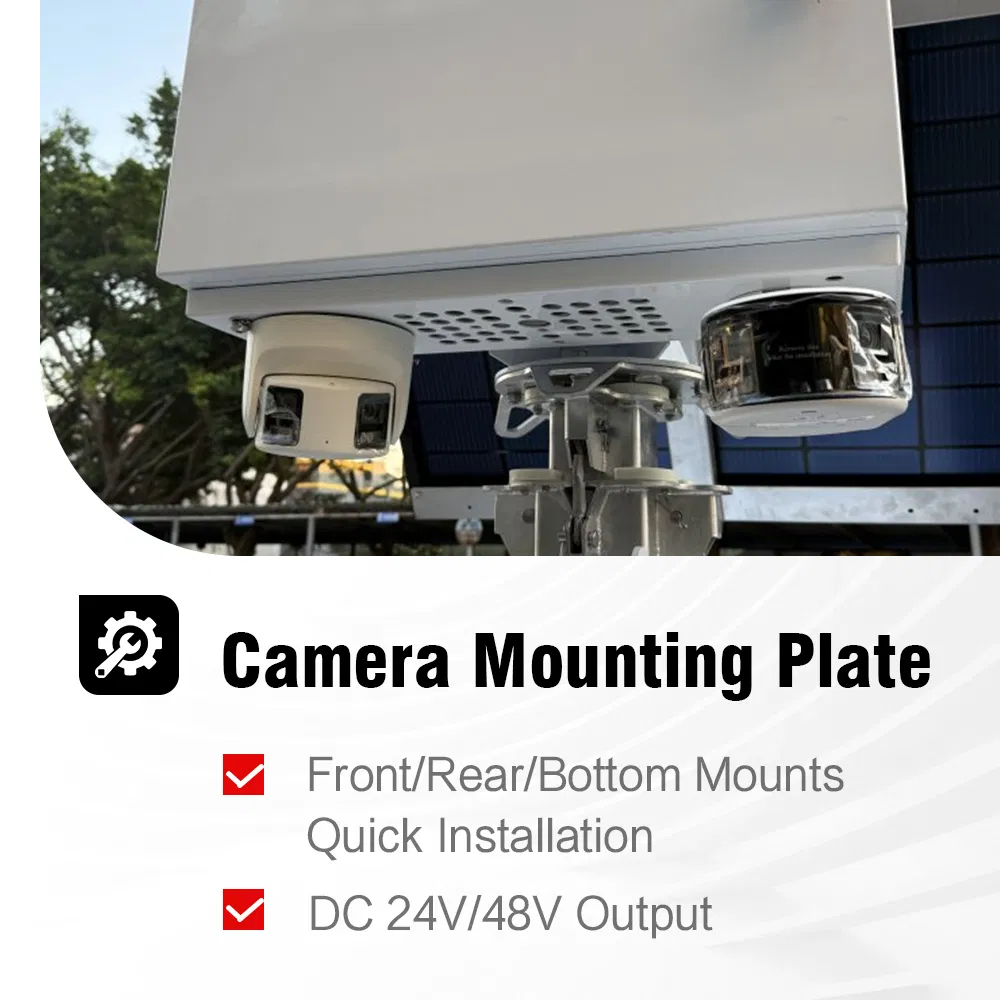

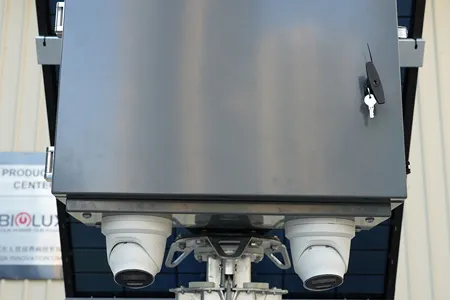

Front/Rear/Bottom mounts with DC 24V/48V output for quick installation.

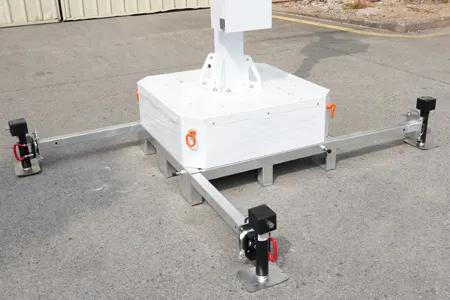

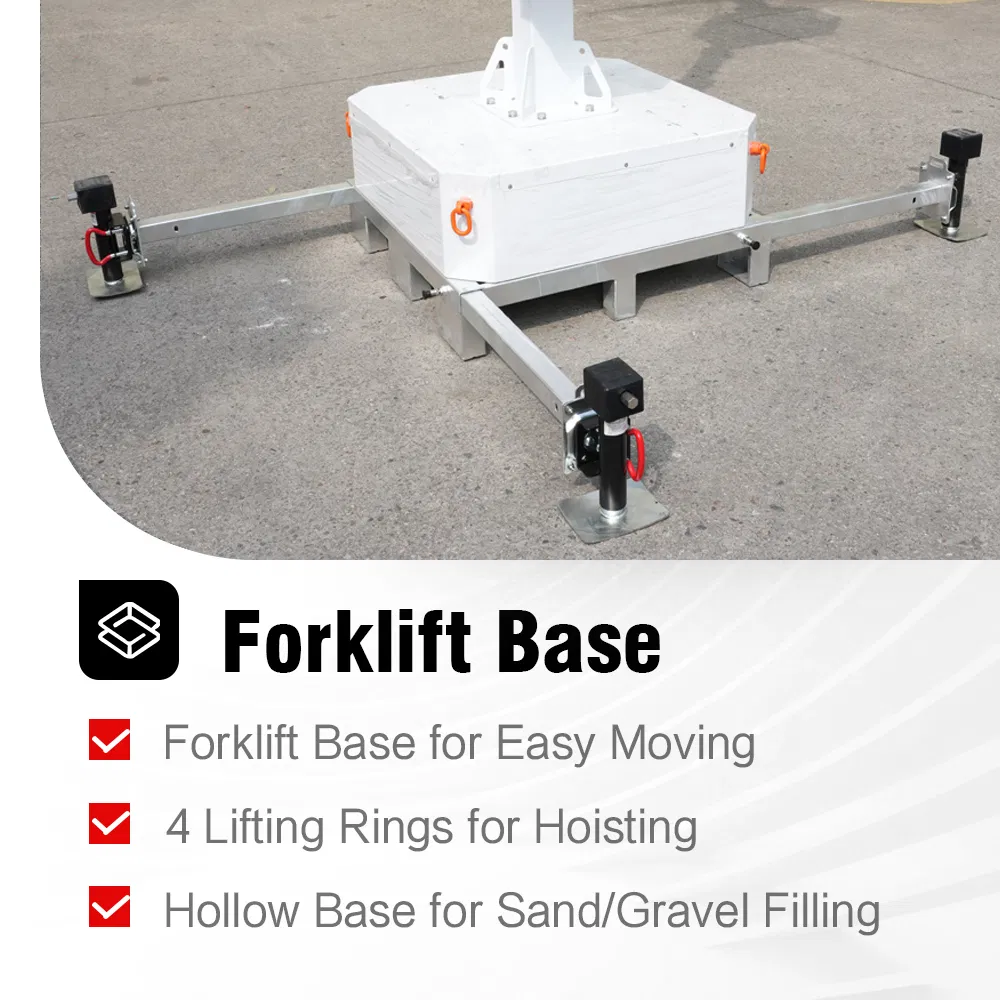

Easy moving with 4 lifting rings and hollow base for sand/gravel filling stabilization.
| Feature | BL1P-L4MHGS0B | BL1P-L4MHGS0P |
|---|---|---|
| Solar Panel | 1×450W Bifacial Monocrystalline, 180° Rotatable | |
| Controller | 20A MPPT | 150/35A (Remote Monitoring) |
| Battery | LFP 2560Wh, DC24V/48V | LFP 4019Wh, DC24V/48V |
| Charging Time | 4.8 hours (Estimated) | 6 hours (Estimated) |
| Runtime | 72 hours (28W Load) | 72 hours (44W Load) |
| Telescopic Mast | 3.5m Manual Winch, Galvanized Steel | |
| Base Design | Hollow Metal, Forklift Holes & Lifting Rings | |
| Certifications | ISO9001, CE, FCC, ECM | |
Packaging: Samples are packed in custom solid wooden boxes with shockproof foam. Bulk shipments utilize standard container packaging with internal reinforcement, increasing loading efficiency to 12 units/20GP and 28 units/40HQ.
