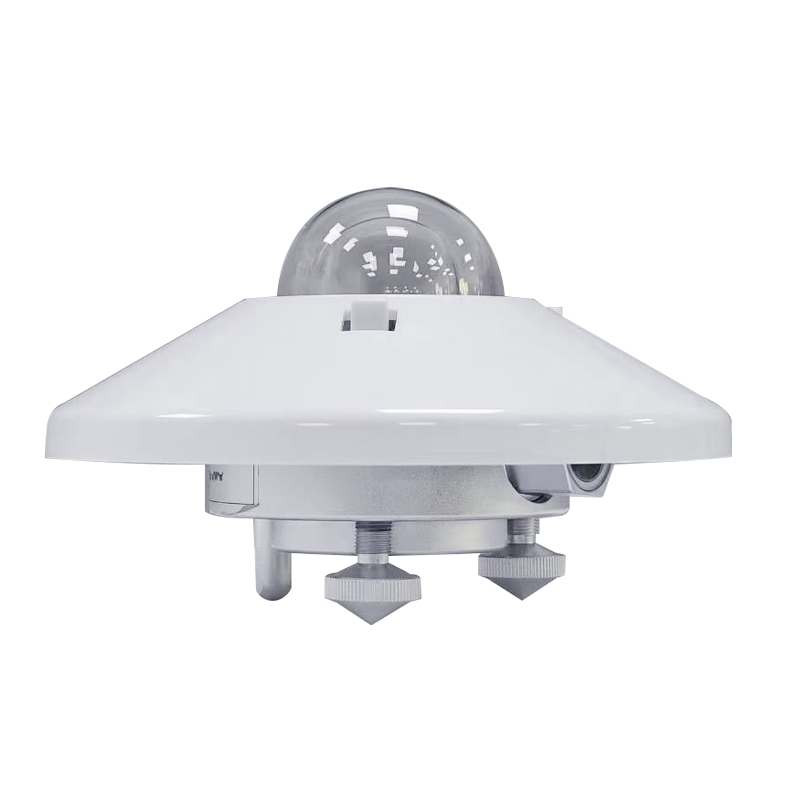

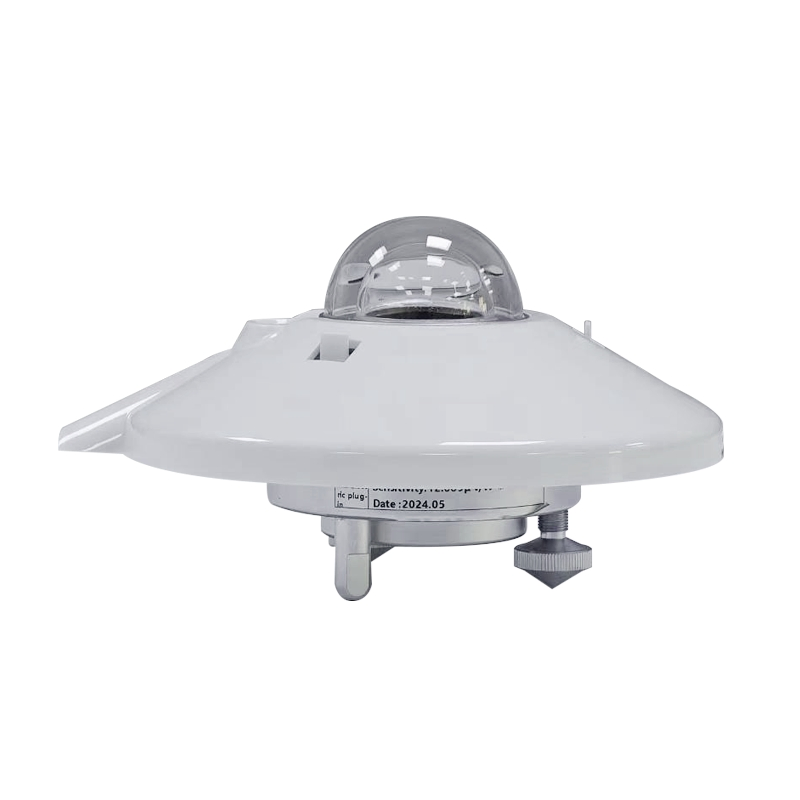

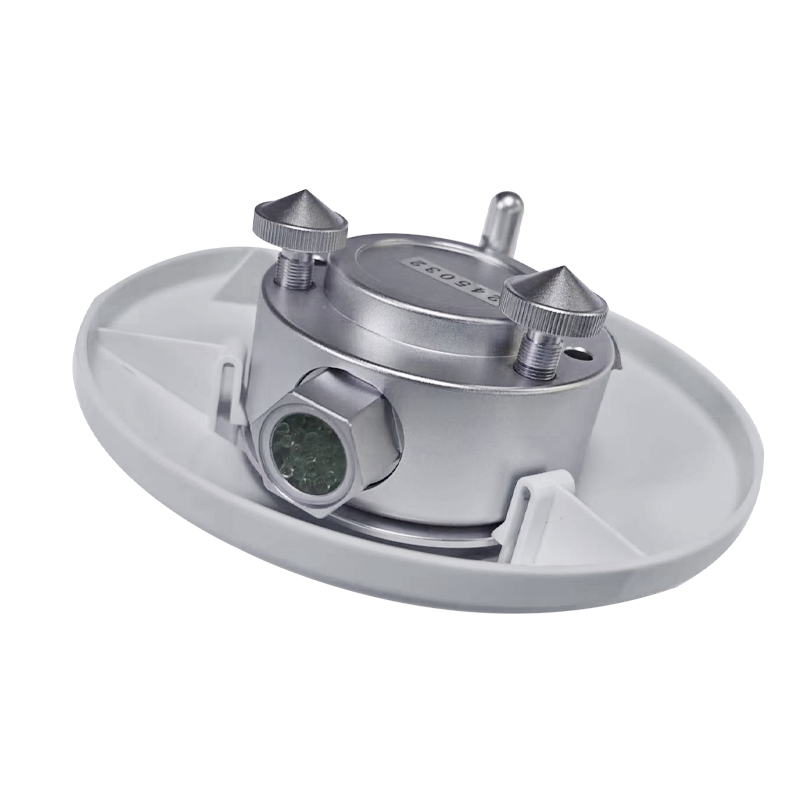

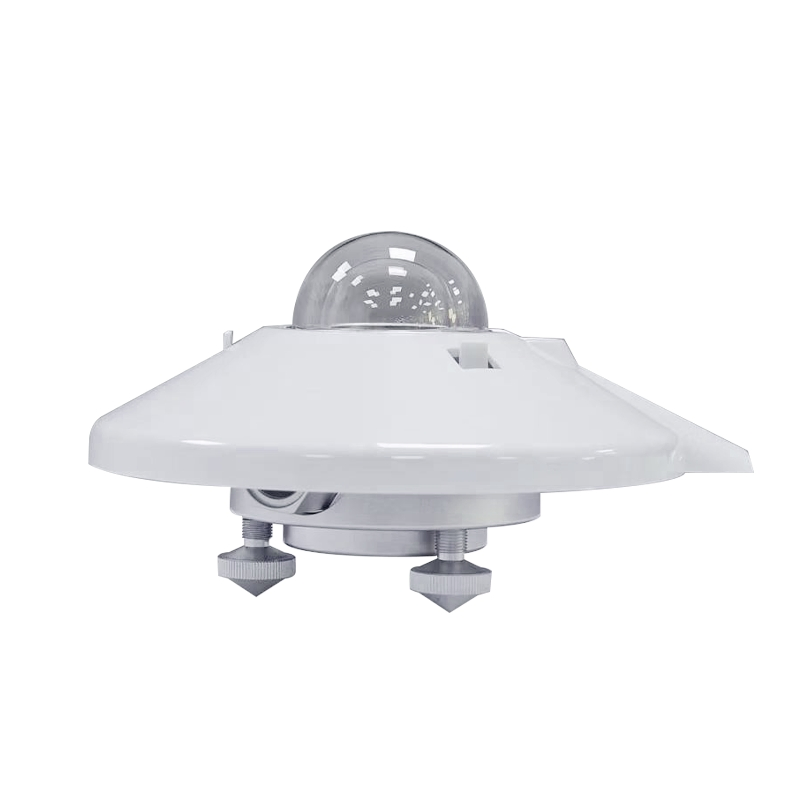

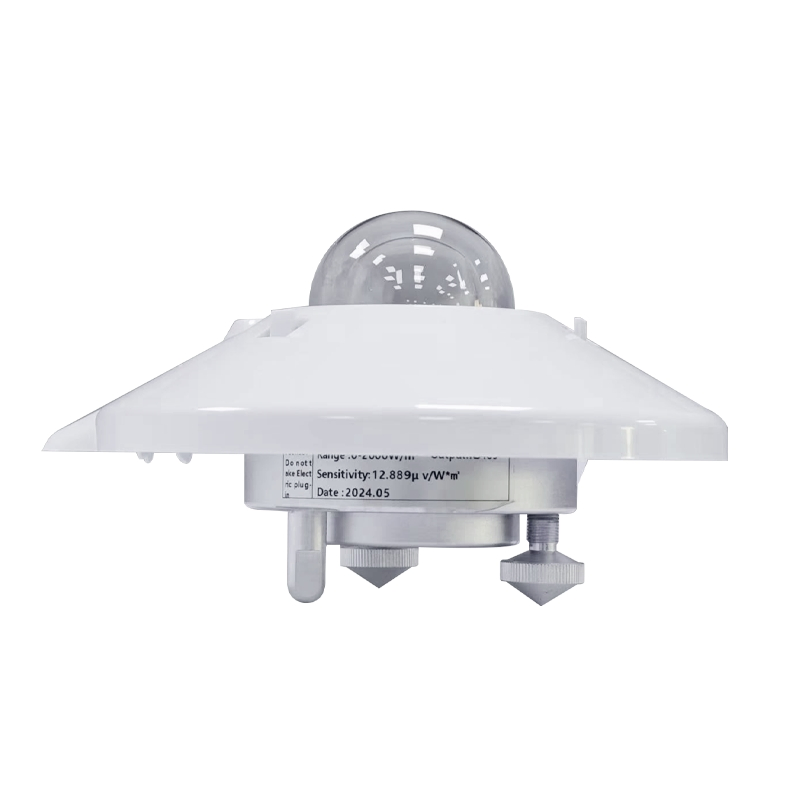

New Pyranometer Total Solar Irradiance Sensor for global measurement. This short-wave total radiation sensor is used for solar radiation observation, complying with the latest ISO9060 and WMO technical standards.

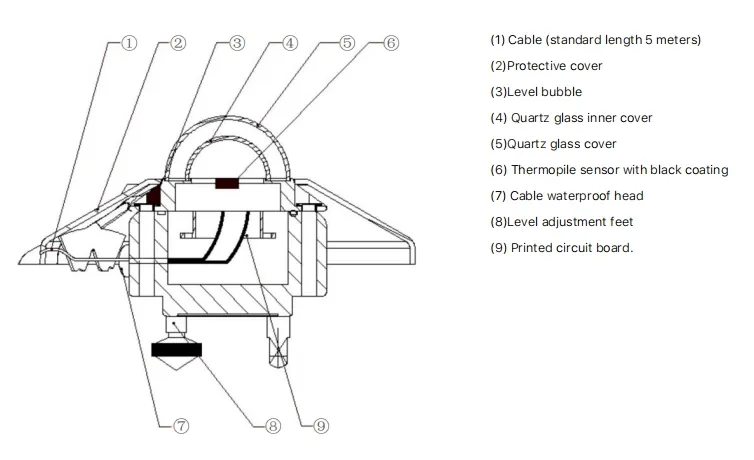

It measures the solar radiation received by the horizontal plane from a solid angle of 2π steradians. Operating passively, it uses a thermopile sensor to generate an output voltage proportional to the incident radiation flux. The dual spherical glass covers reduce thermal offset, ensuring high measurement accuracy.
| ISO 9060/WMO Standard | Second class |
| Response Time (95%) | <10s |
| Stability (Change/Year) | ±1.5% |
| Nonlinear | ±1% (100~1000 W/m²) |
| Temperature Response | <4% (-10~40ºC) |
| Sensitivity Range | 7-14μV/(W/m²) |
| Working Temperature | -40~+80ºC |
| Measuring Range | 0~2000 W/m² |
| Spectral Range | 280~3000 nm |
| Weight (Excl. Cable) | 0.8kg |
