Free Design Flat Roof Photovoltaic Solar Ballasted Panel Mounting System

Basic Information

Model NO.

YL-F1

Application

Commercial

Material

Aluminum Alloy

Type

Roof Ballast Bracket

Wind Load

up to 60 M/S

Snow Load

up to 1.4 Kn/M2

Mounting Type

Solar Ground Mounting

Angle

5-15 degree

Product Details

Flat Roof Ballasted Mounting System
Material	Aluminum
Adjustable Angle	5-15°
Solar Panel Orientation	East-West or South
OEM / ODM	Allowed

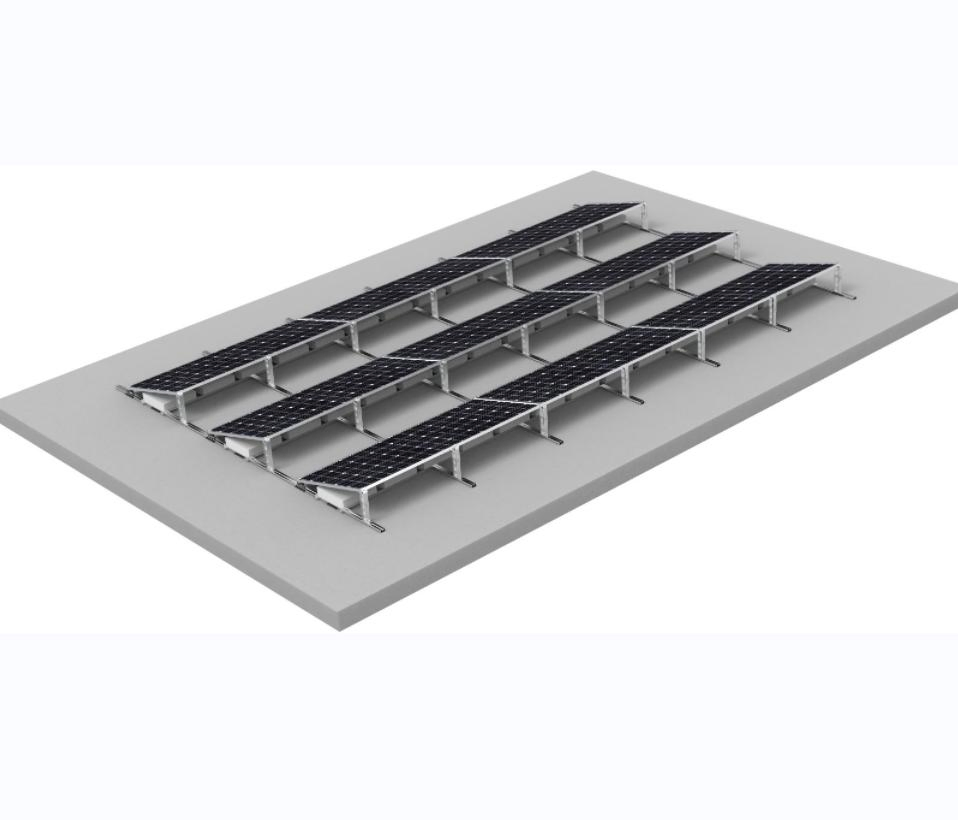

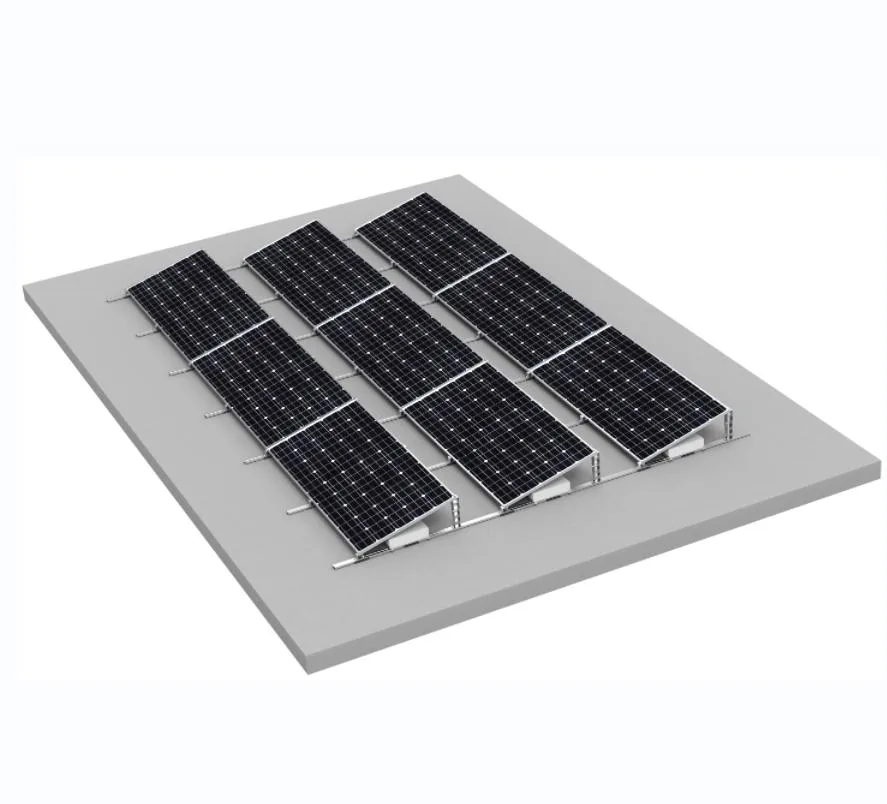

Single Orientation (5-15°)

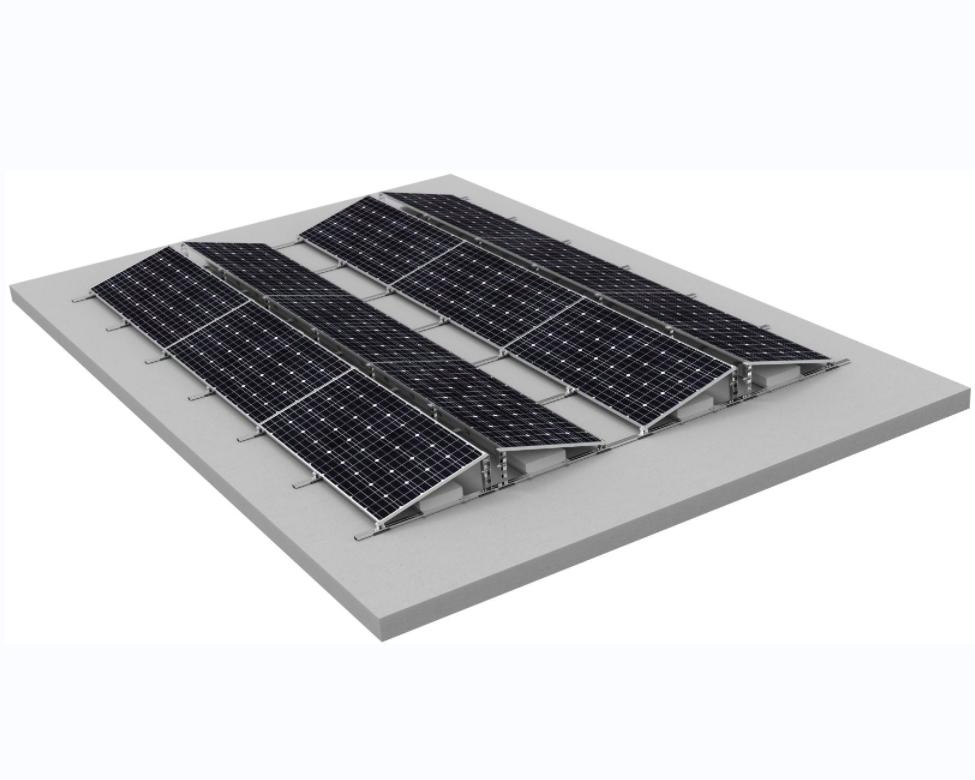

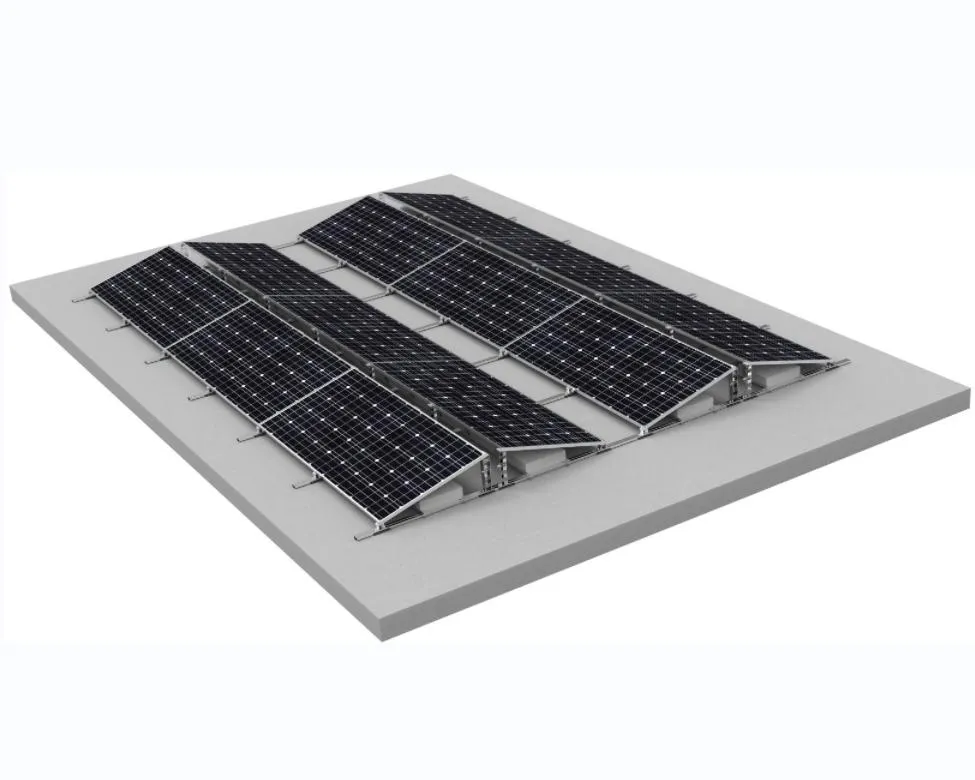

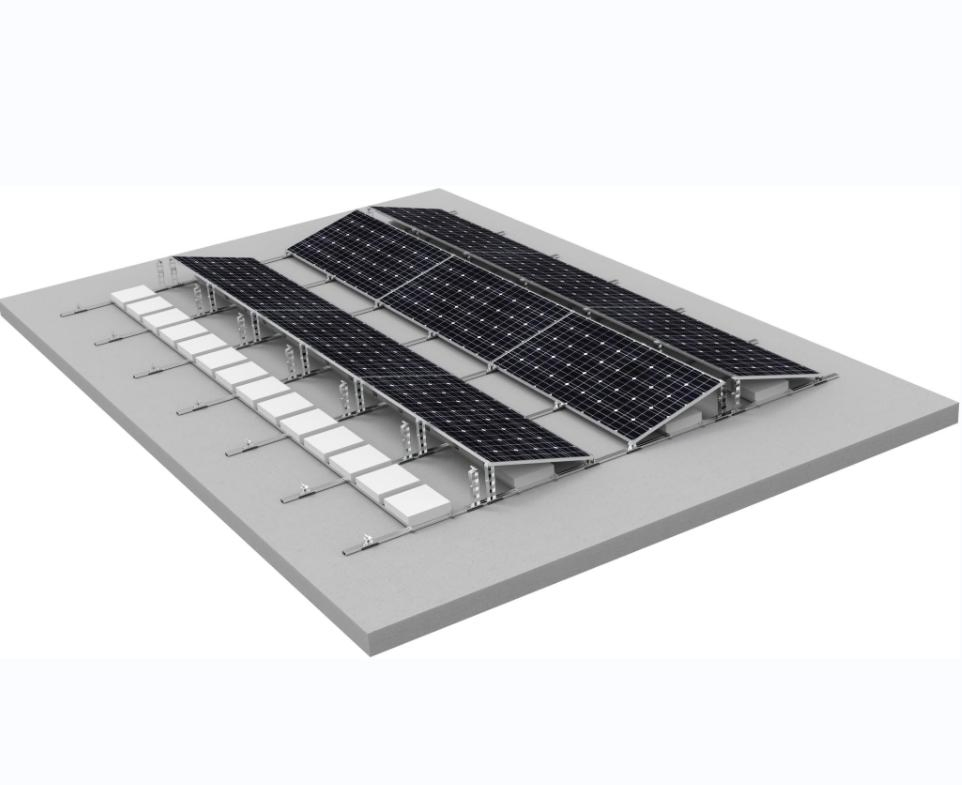

Double Orientation (5-15°)

Design Requirements

To provide a precise design and quotation, please provide:

Solar Panel Dimensions: Length, Width, Thickness, and Power (W)
Panel Layout: Number of rows and columns
Orientation: Portrait or Landscape
Tilt Angle: Preferred angle for the structure (5-15°)
Environmental Data: Max wind speed (m/s) and Snow load (kn/m²)

Packaging & Shipping

Service Highlights

Expert R&D: 6-person R&D team with 10 years of customized experience on PV structures.

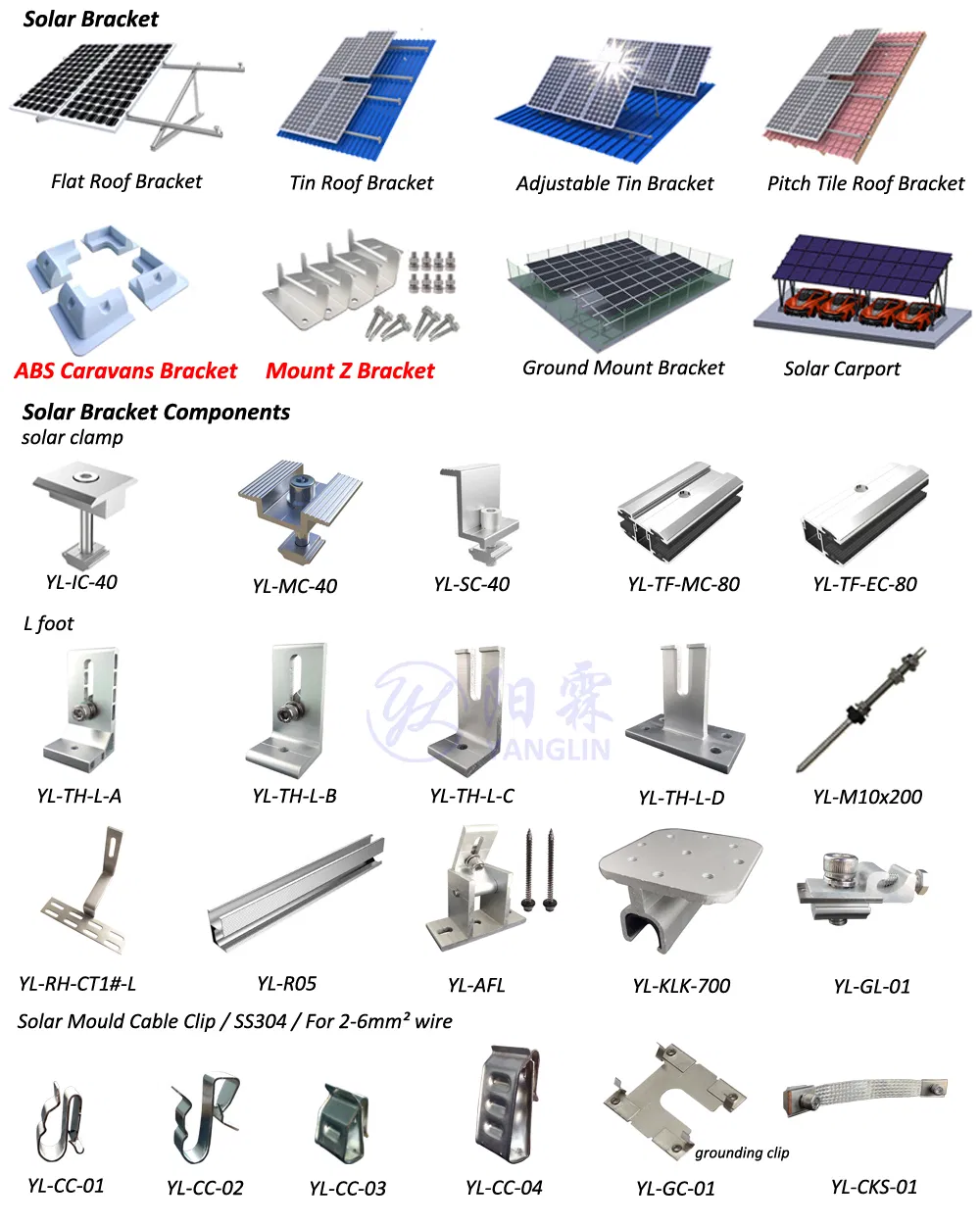

Broad Category: Including Flat Roof Mount, Pitch Tile Roof Mount, Ground Mount, Solar Carport, and Ground Screws.
Direct Factory Savings: Purchase directly from the factory and save 15% - 40% compared to trading companies.
Quick Delivery: Efficient production with 5-15 days delivery time after deposit.
Quality Assurance: Casually inspection on each procedure with final QQC.

Frequently Asked Questions

Are you a factory or trading company?

We are one of the largest factories specializing in solar racking production in China. Our product range includes ground mounts, all types of roof mounting systems, solar carports, and customized OEM solutions.

How do you ensure product quality?

Quality is our core culture. We perform inspections during each production procedure and conduct a final QQC once products are finished.

Can I request samples for testing?

Yes, we are honored to offer you samples based on your specific request for quality evaluation.

What information is needed for a quotation?

Please provide: 1. Solar panel quantity and dimensions. 2. Panel tilt angle. 3. Max wind and snow loads. 4. Ground clearance. 5. Planned layout or ground size.

What is your typical delivery time?

Our standard delivery time is 5-15 days after receiving the deposit, depending on the order volume and customization requirements.

Where is your production facility located?

Our manufacturing facility is located in a major industrial hub in China, easily accessible for international visits and shipping logistics.
