Solar Panel Floating Mounting Structure Floating Solar System

Customization:	Available
Certification:	TUV
Application:	Commercial

Send Inquiry

Product Description

Basic Info.

Model NO.

SF-FM001

Material

HDPE

Type

Floating Mounting

Product Name

Floating Solar Mounting

Installation Site

Lake, River or Sea

Tilt Angle

10, 15 Degree or Other

Max Wind Load

60m/S

Max Snow Load

1.4kN/M2

Origin

China

Product Description

Floating Solar Mounting System

This floating solar mounting system can reduce water evaporation, and utilize the cooling effect of water to increase the power generation.

The bracket for installing solar panel is made of aluminum alloy for fireproof, to prevent fire on any one solar panel to spread to main floaters then to other floaters and solar panel.

It is easy to install without heavy equipment, and also safe and convenient to maintain. The tilt angle can be customized to any angle from 0 to 25°, don't need to make new mould.

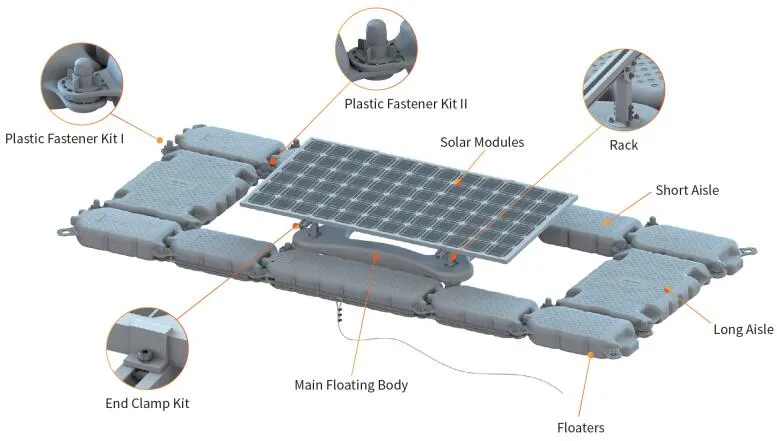

Component

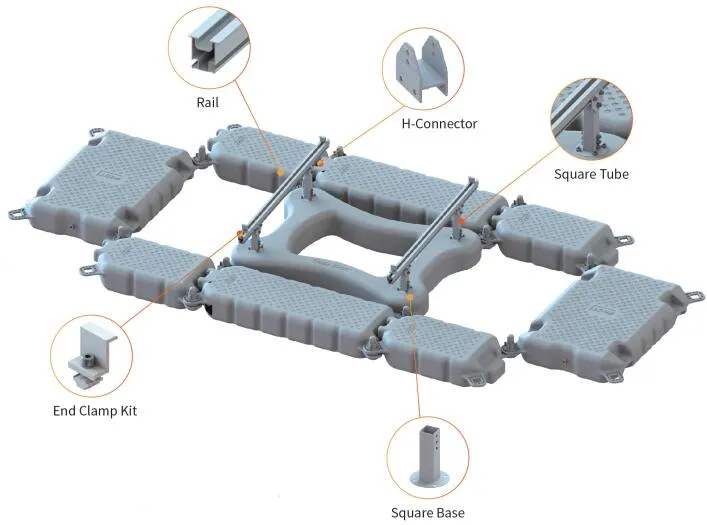

Aluminum Bracket

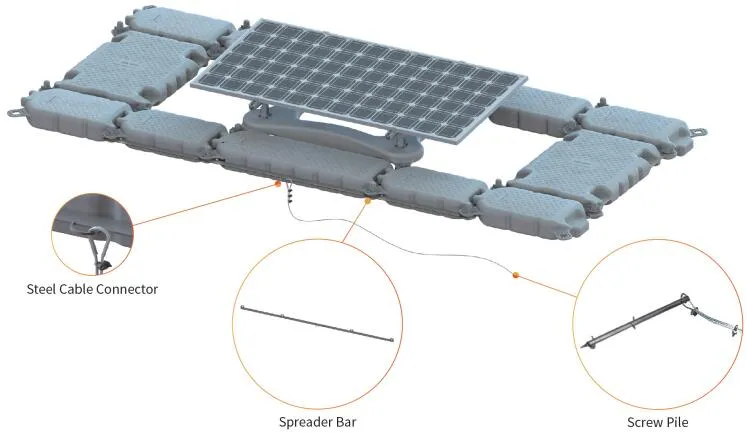

Anchoring System

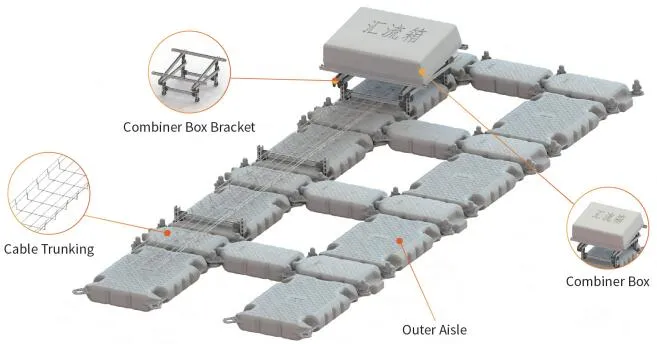

Mounting Solution for Combiner Box, Cable Trunking, and Aisle to Bank

Types of Trunking

Technical Details

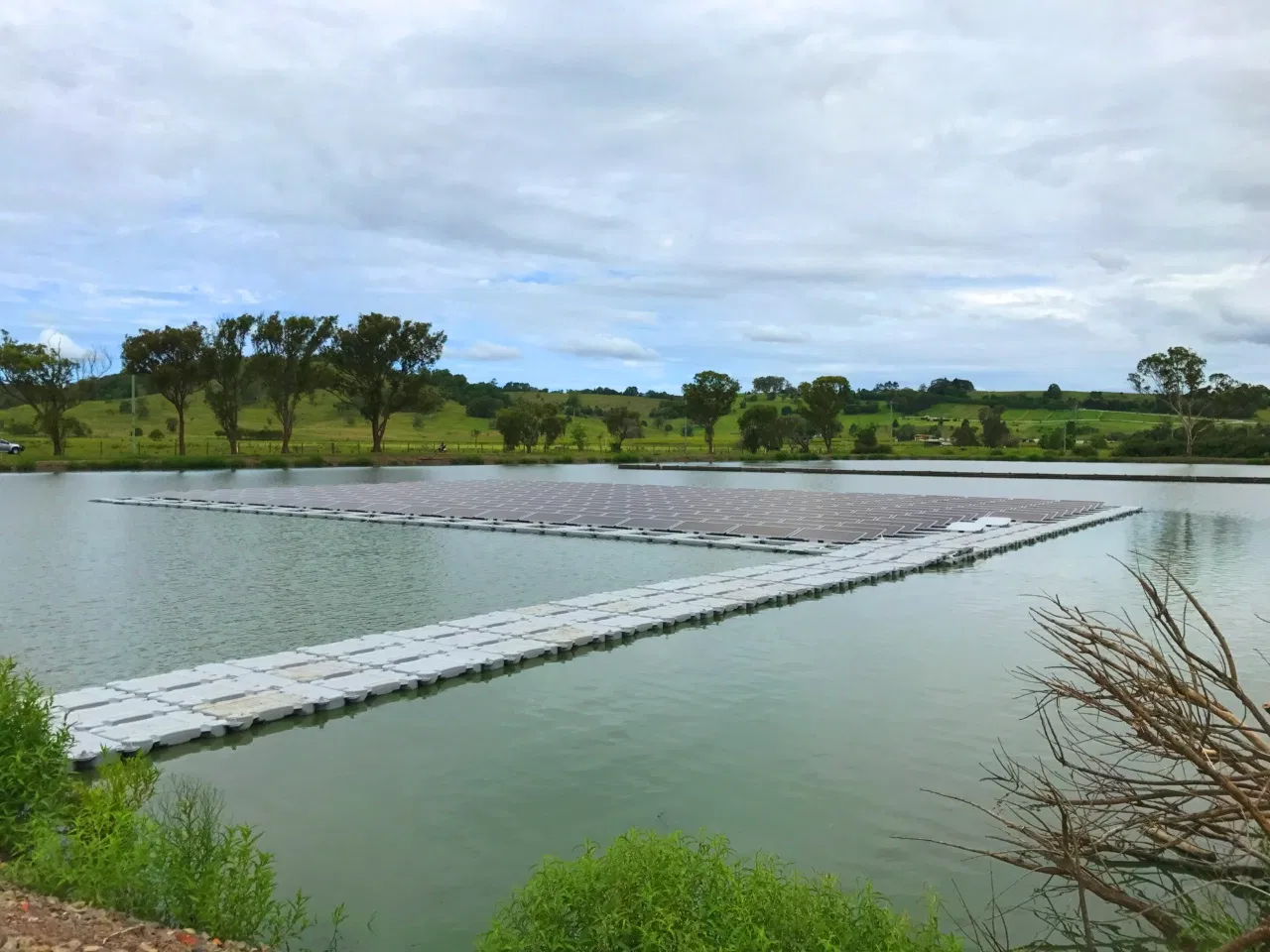

Installation Site	On Water Surface (lake, reservoir, dam, pond, etc.)
Wave Height	≤0.5m
Water Flow Rate	≤0.51m/s
Wind Load	≤36m/s
Snow Load	≤0.45kN/mm²
Tilt Angle	0~25°
Standards	BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992
Material	HDPE, Al6005-T5, SUS304
Warranty	10-Year Warranty and 25-Year Service Life

Frequently Asked Questions

What are the primary benefits of using a floating solar mounting system?

The system significantly reduces water evaporation and leverages the natural cooling effect of water to improve the efficiency and power generation of solar panels.

What materials are used for the brackets and floaters?

The floaters are made of high-density polyethylene (HDPE), while the brackets are constructed from fireproof aluminum alloy (Al6005-T5) and stainless steel (SUS304) for maximum durability.

Can the tilt angle be adjusted for different locations?

Yes, the tilt angle is fully customizable between 0° and 25° without the need for new moulds, allowing for optimized sunlight exposure based on your specific site.

Is the system resistant to extreme weather conditions?

Absolutely. The system is designed to withstand wind loads up to 60m/s and snow loads up to 1.4kN/M2, making it suitable for various challenging environments.

What is the expected lifespan and warranty of the system?

The floating solar mounting system comes with a 10-year warranty and is engineered for a service life of 25 years.

Is the installation process complicated?

No, the system is designed for easy installation without the need for heavy equipment, and it is also safe and convenient for long-term maintenance.
