Basic Specifications
ApplicationLight Industry
ConditionNew
CertificationCE
MaterialMonocrystalline Silicon
TrademarkOEM
HS Code8504401400
Capacity10M PCS/Month
Package Size10x10x10cm
Product Description
Custom Mini Solar Panel Manufacturing & Design
Usage/Function: Ideal for solar lighting, garden lamps, lanterns, chargers, LED lights, toys, marine equipment, drones, cameras, IOT devices, and GPS applications.
Custom Shapes & Dimensions: Available in square, rectangle, triangle, tetragonum, round, fan-shaped, arch, circle, and polygon shapes.
High Efficiency: Utilizing solar cells with 19%-23% high efficiency options.
Surface Options: Supports ETFE film (embossed), PET (frosting/transparent), and glass surfaces.
| • Power watts of the panel |
| • Voltage and current requirements |
| • Specific dimension and shape requirements |
| • Application details and assembly methods |
| • Any other special requirements |
Technical Reference: Custom Shapes

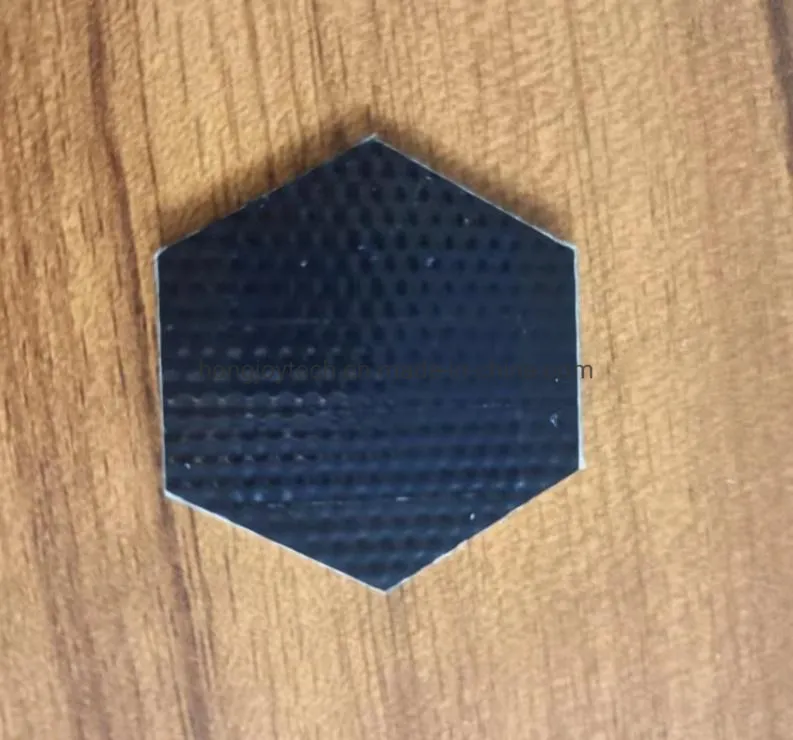

Hexagon Shape ETFE Embossed Solar Panel
- Rated Power: 0.11W
- Working Voltage (Vm): 4.5V
- Working Current (Im): 24.5mA
- Dimension: Diagonal 40mm x 1.8mm
- Water Protection: IPX6

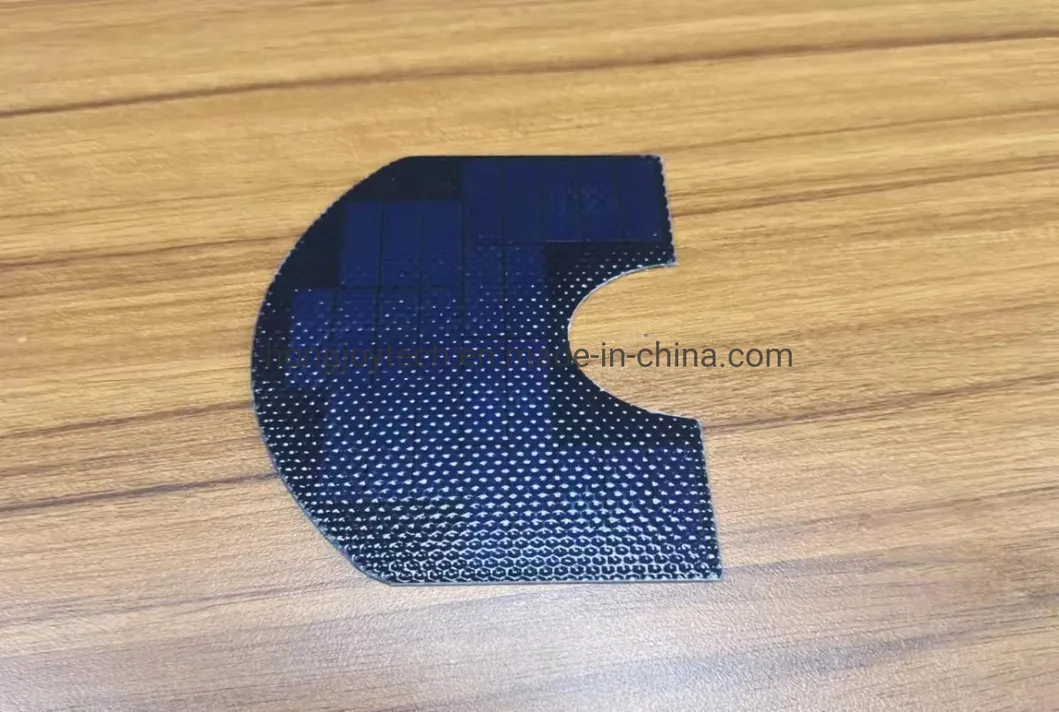

Abnormal Shape ETFE Embossed Solar Panel
- Rated Power: 1.1W
- Working Voltage (Vm): 12V
- Working Current (Im): 92mA
- Dimension: 130mm * 80mm * 2mm
- Weight: 25.7g

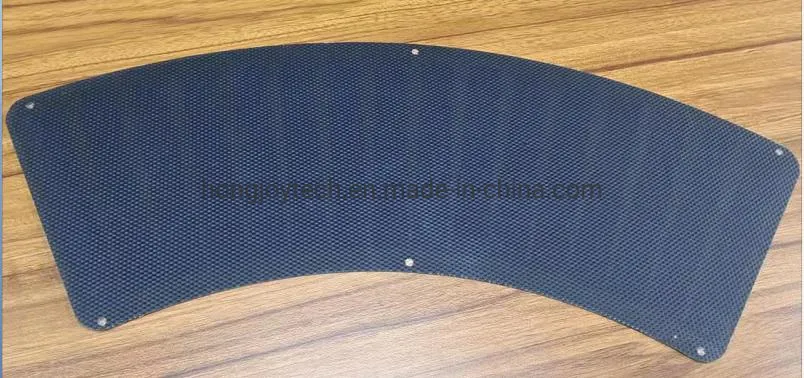

Fan Shape ETFE Embossed Solar Panel
- Rated Power: 8.2W
- Working Voltage (Vm): 20V
- Working Current (Im): 410mA
- Dimension: 473mm * 150mm * 2mm
- Weight: 140g

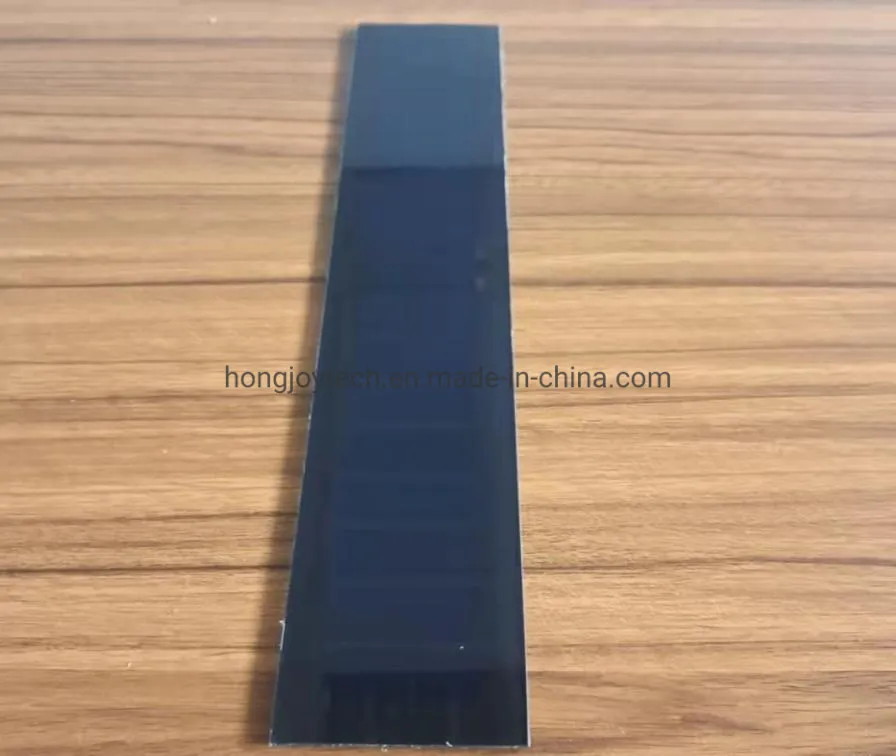

Glass Plane Shape Solar Panel
- Rated Power: 2.8W
- Working Voltage (Vm): 17V
- Working Current (Im): 165mA
- Dimension: 380mm * 70mm * 5mm
- Water Protection: IPX6

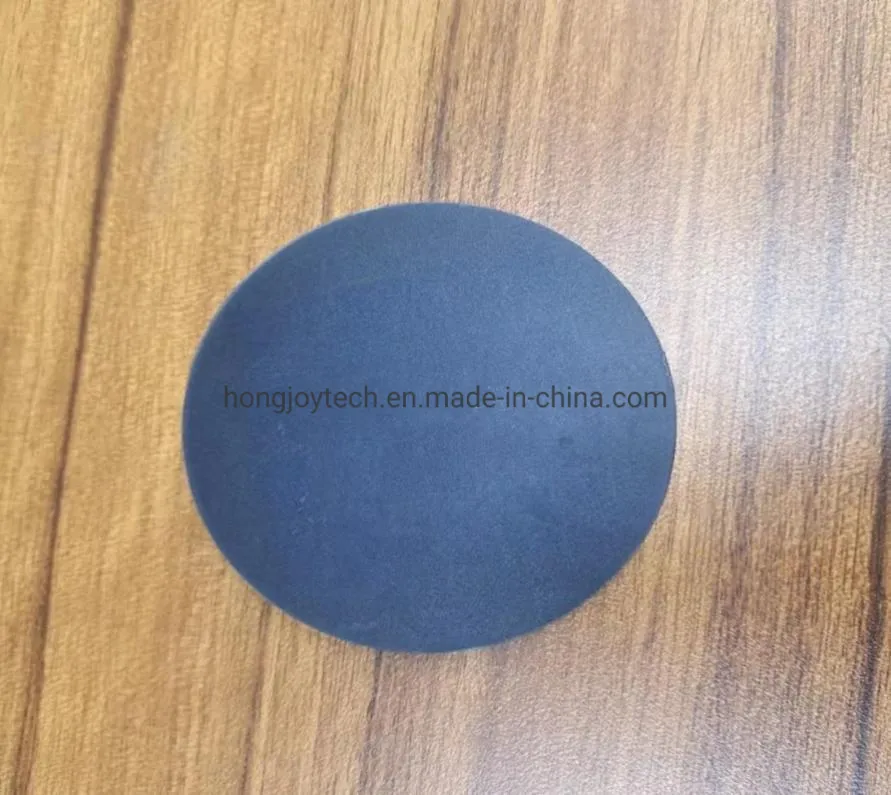

Round Shape Frosting PET Solar Panel
- Rated Power: 1W
- Working Voltage (Vm): 12V
- Working Current (Im): 84mA
- Dimension: Diameter 100mm * 2mm
- Weight: 24.2g

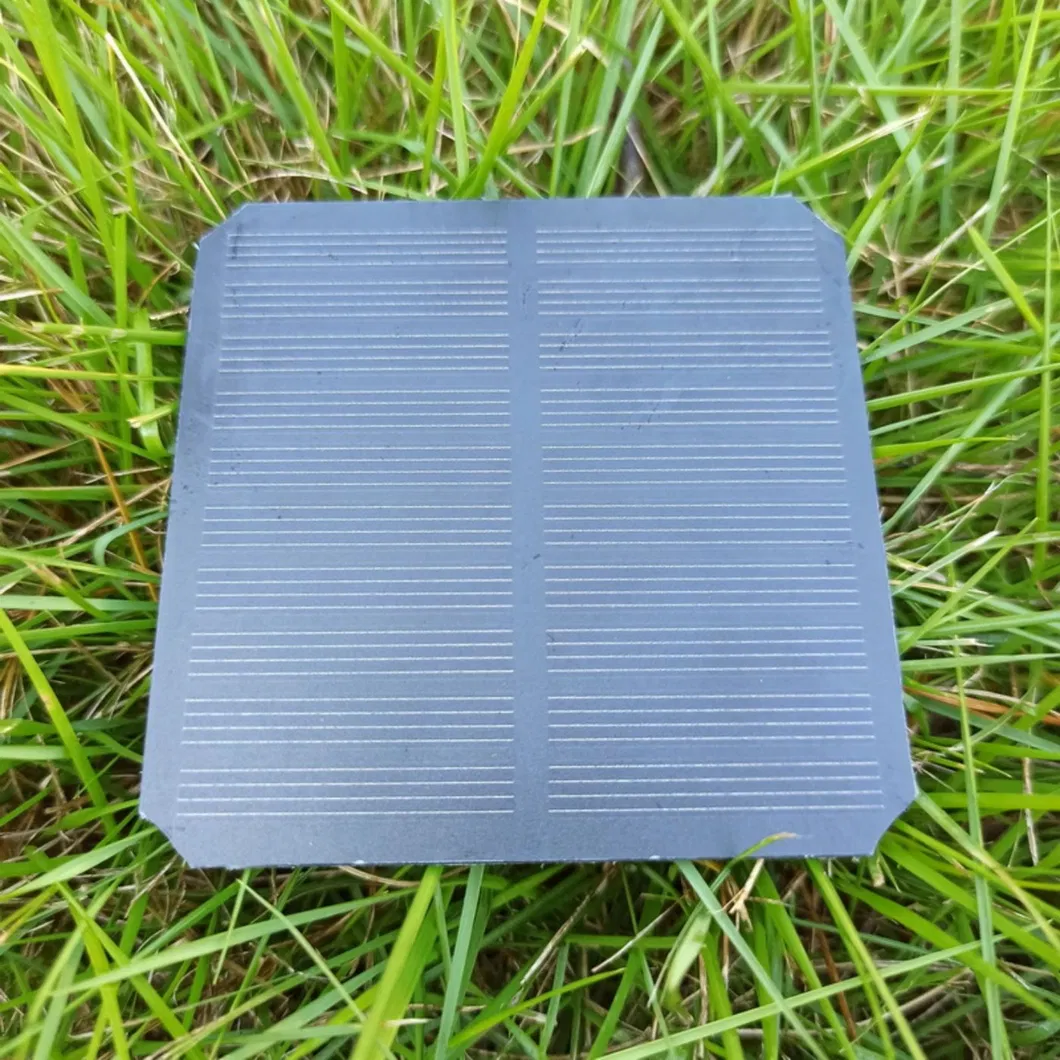

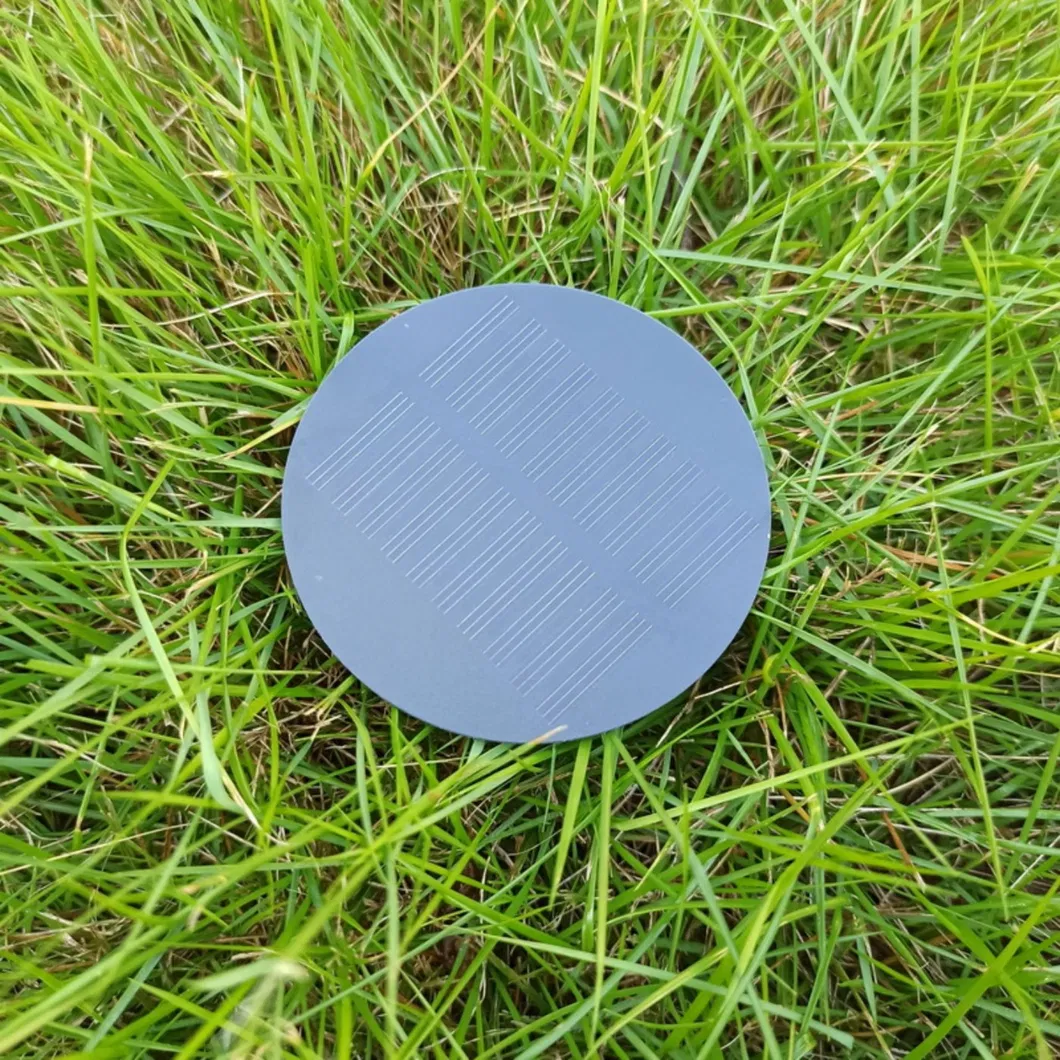

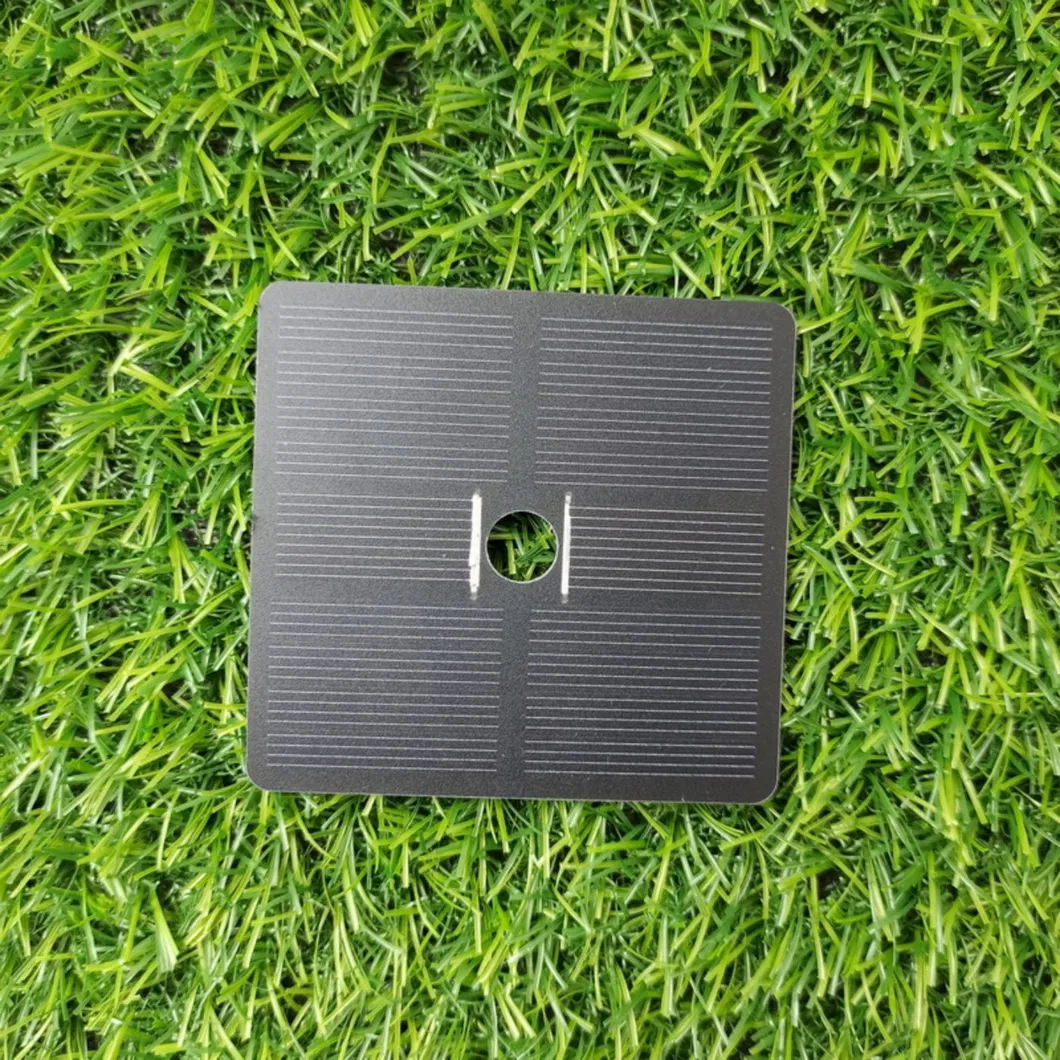

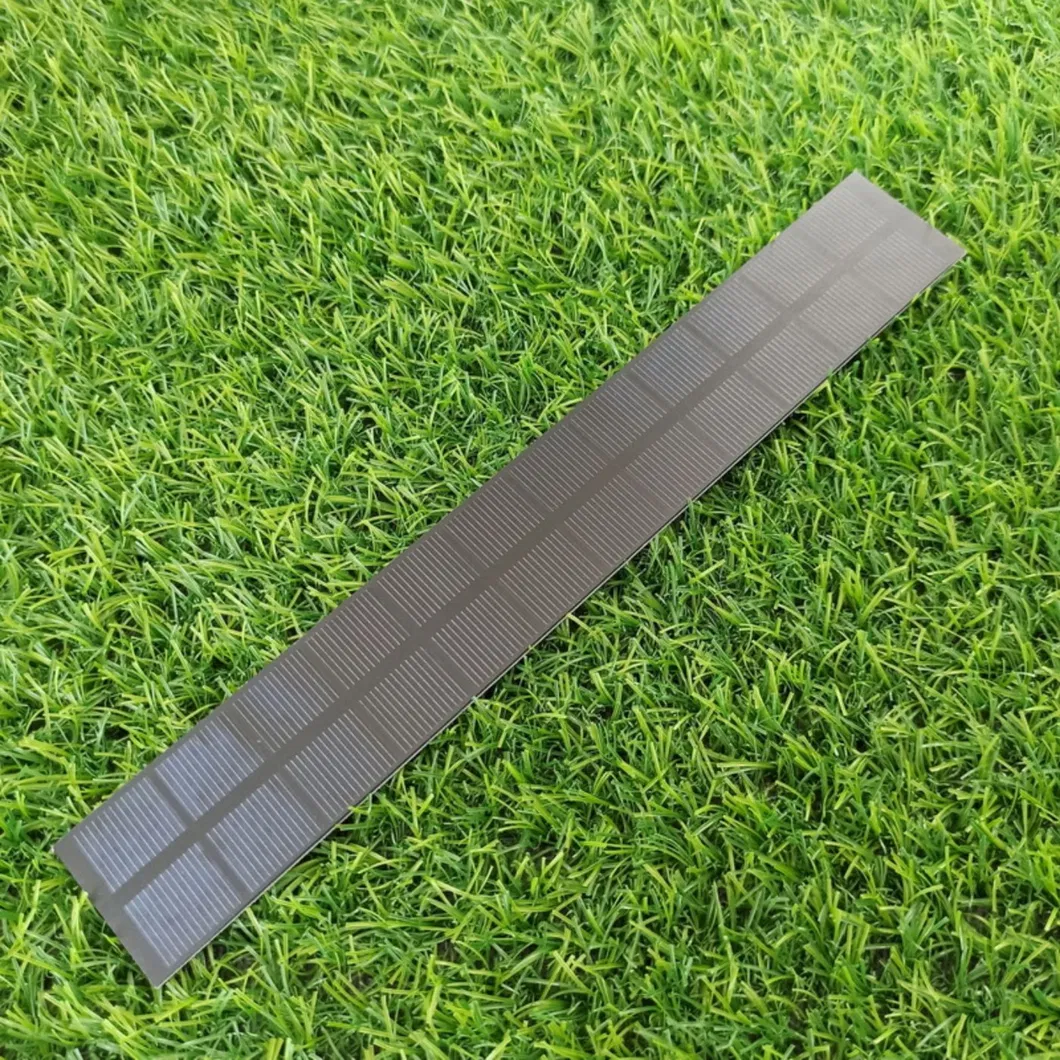

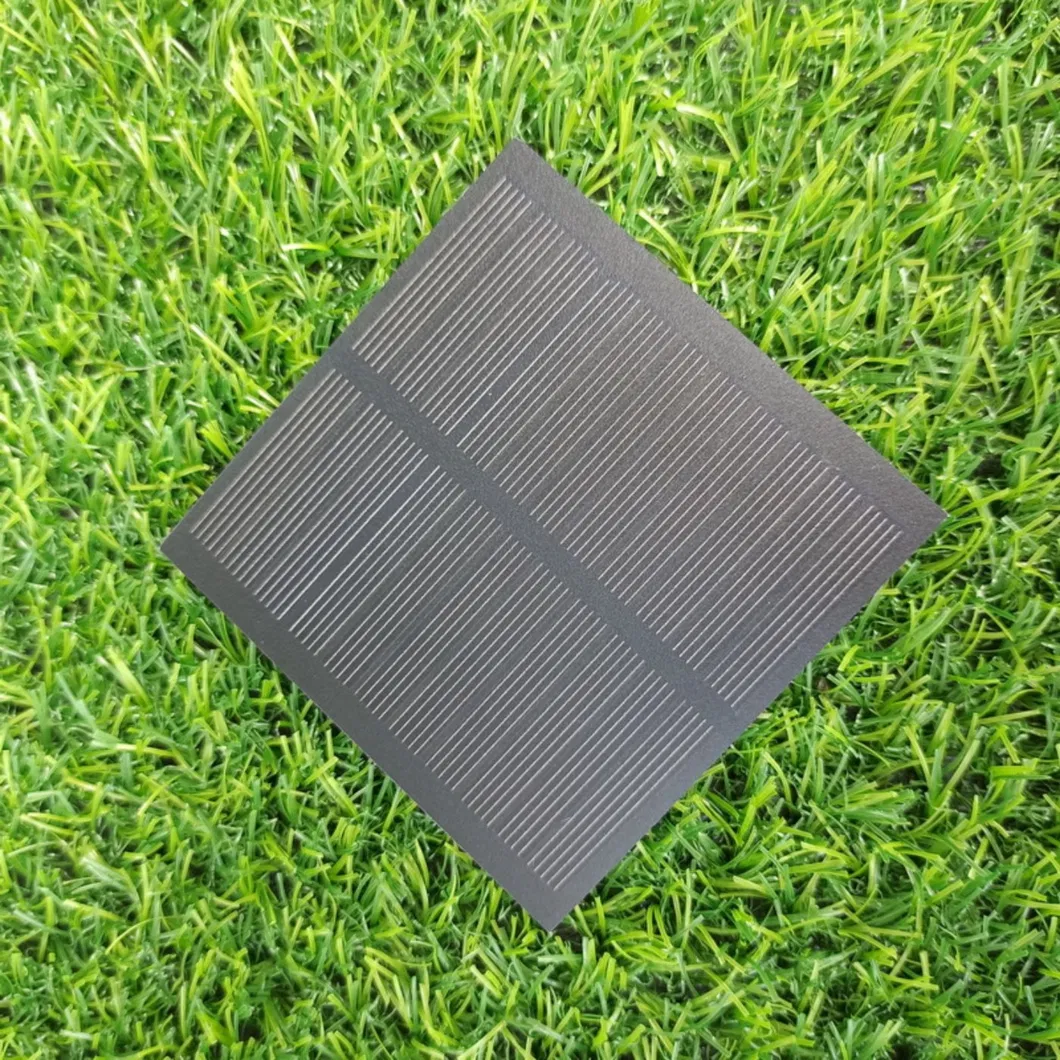

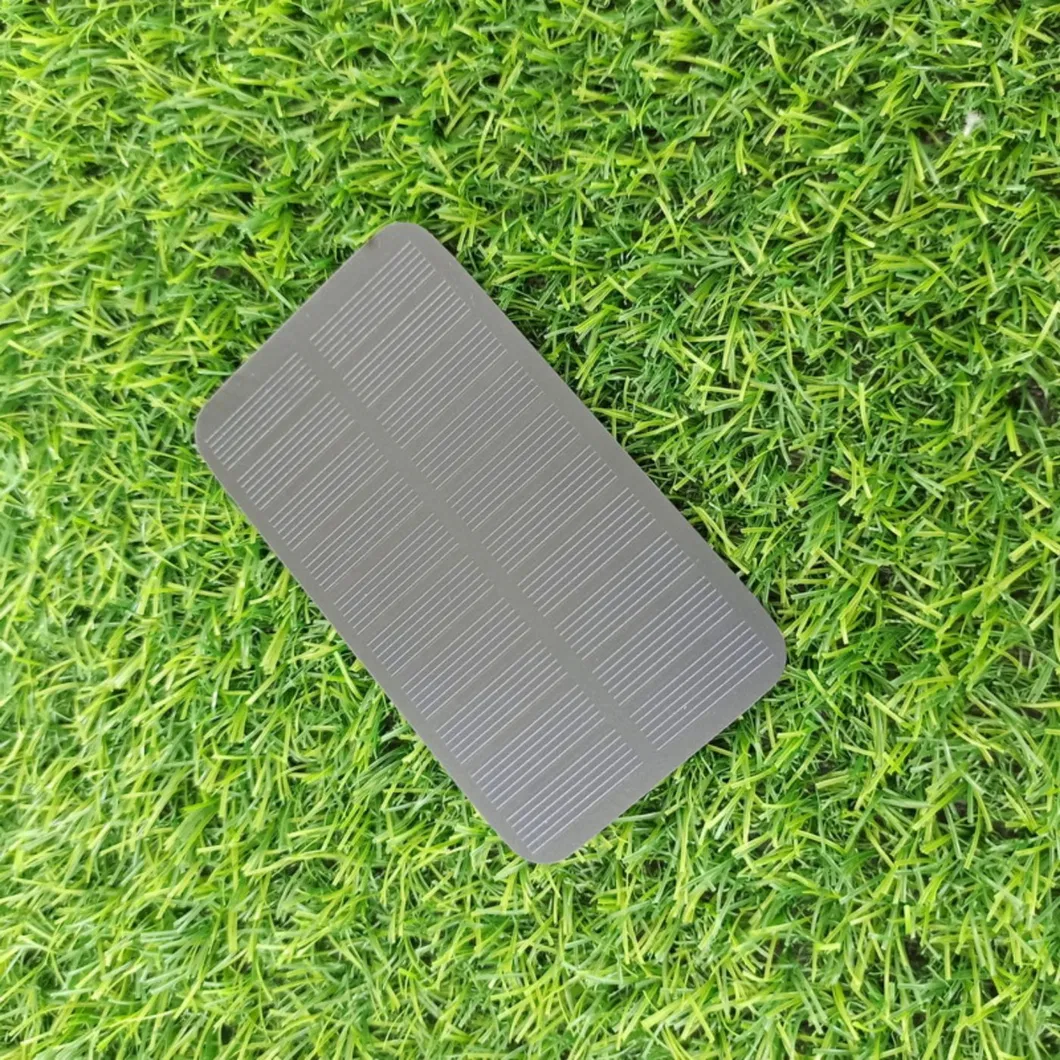

Custom Mono Silicon Cell Variations
Frequently Asked Questions
Q1: Can I order samples for testing?
Yes! Sample orders are welcome to test the quality and performance of our mini solar panels.
Q2: Do you support OEM services?
Yes, we provide full OEM support and can manufacture products according to your specific requirements and branding.
Q3: How are the goods delivered?
We usually adopt sea transportation. Air cargo, direct lines, and air mail are also available based on client requests.
Q4: What is the typical lead time for production?
Our standard lead time is 10-15 days, excluding peak seasonal demands.
Q5: What is the warranty period for your products?
All solar panel products come with a 12-month standard warranty.
Q6: Can you customize the shape and size of the panels?
Absolutely. We specialize in custom shapes including hexagons, circles, triangles, and other irregular designs to fit your specific device.
