| Model NO. | KK-HQ |
| Buoy Shape | Hexagonal Oval Ball |
| Buoy Diameter | 500mm |
| Buoy Material | Polymer Polyethylene (PE) |
| Manufacturing Process | Mold Rolling |
| Net Buoyancy | >70kg |
| Buoy Weight | 20kg |
| Anchor Weight | 10.5kg |
| Sealing Method | Buoy Gland O-Ring |
| Specification | Buoy diameter: 500mm; Buoy material: PE |

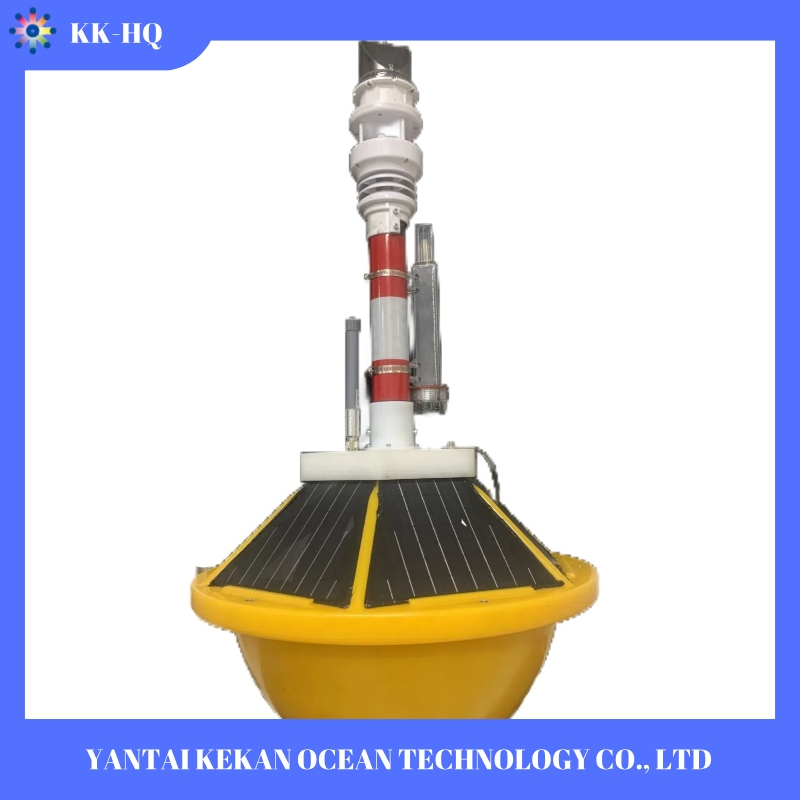

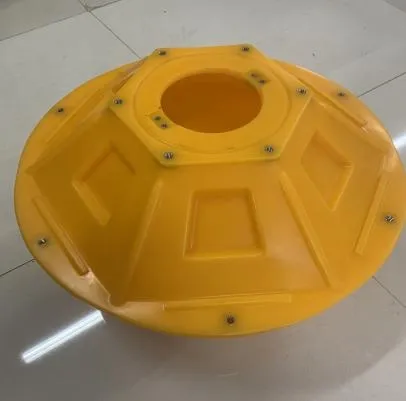

1. The buoy body features a diameter of 500mm and a wall thickness of 8mm. Designed in a hexagonal oval ball shape, it is constructed entirely from high-grade PE using a one-time molding process. This ensures high rigidity, high strength, and a reliable structure that eliminates the risk of seawater leakage.

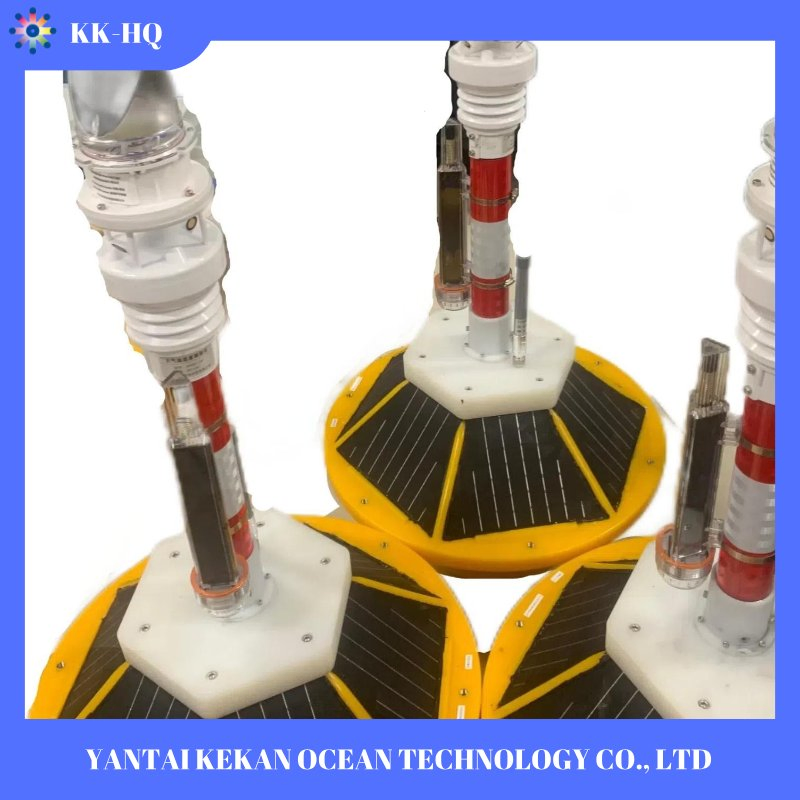

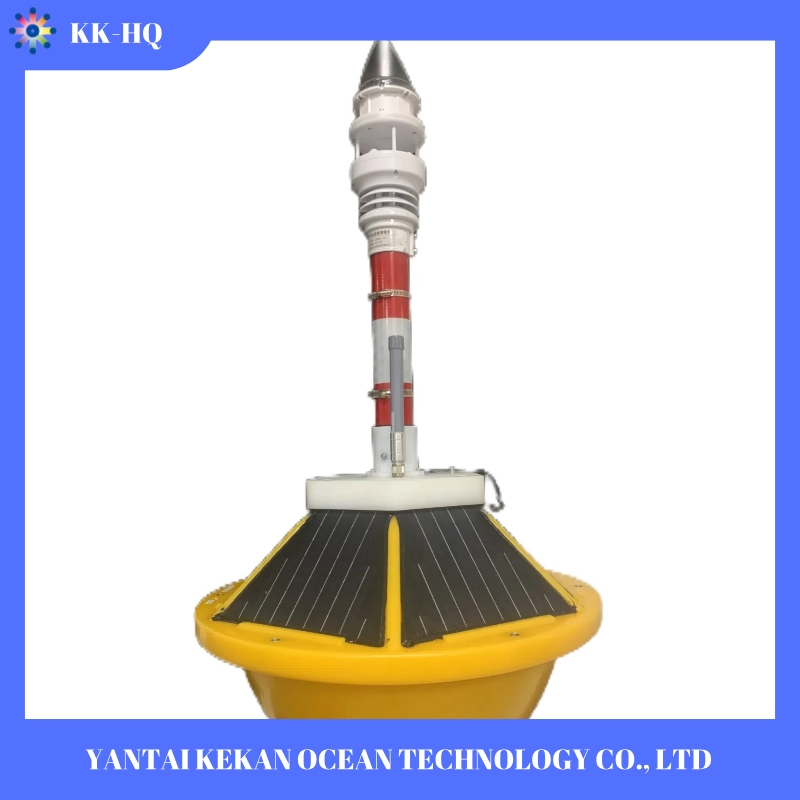

2. Solar panels are integrated into six uniform planes on the upper half of the housing, providing a total power output of 24W (6 x 4W). A mere 2 hours of normal light can fully charge the internal lithium battery pack, supporting over 220 hours of continuous operation during rainy days.
3. The top flat gland plate allows for the installation of multi-parameter weather sensors, antennas, warning lights, and signal devices. The buoy material is resistant to corrosion, aging, and biological adhesion.

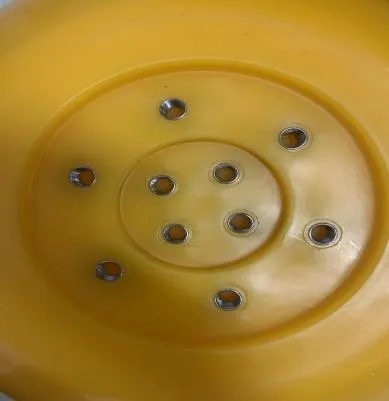

4. The bottom is equipped with a watertight temperature sensor and can accommodate water quality multi-parameter sensors. The structure is designed for a service life of 15 years, featuring a stainless steel O-ring with a tension capacity of no less than 300KG for secure anchor chain connection.
| Ultrasonic Gas Station |
Wind speed: (0 ~ 60) m/s; Accuracy: ± (0.5+5%× reading) m/s. Wind direction: (0 ~ 360) °; Accuracy: ±2°. Air pressure: (300 ~ 1200)hPa; Accuracy: ±0.3hPa. |
| Atmospheric Temp & Humidity |
Temperature: (-45 ~ 85)ºC; Accuracy: ±0.3ºC. Relative humidity: (0 ~ 100) %; Accuracy: ± 3%. |
| Data Acquisition & Power |
Voltage: 9 ~ 16V; Power consumption: ≤2w. Battery capacity: ≥160Ah. |
| Communication Systems |
Beidou System: RDSS communication, 130 Chinese characters capability, standby power ≤1W. 4G System: Supports TCP, UDP, FTP, HTTP, RJ45/SMA interfaces. Shore-based Terminal: 8GB Memory, 1TB Hard disk, supports 24/7 operation. |
| Warning & Safety |
Solar Warning Light: Visual distance ≥2nm, IP68. AIS: Visual distance ≥1nm, IP68. Anchor System: Stainless steel chain, shackle, gravity/gripping anchor. |
Our company is a technology-based small and medium-sized enterprise that integrates the research and production of marine observation and monitoring equipment, marine environmental services, and the development of key supporting systems for marine engineering. Adhering to the spirit of "scientific management and exploration of the deep sea", we focus on intelligent marine observation equipment and offshore safety.
The R&D team is led by an academician of the European Academy of Sciences and includes multiple doctoral and high-end management talents. With more than 30 applied patents and 13 authorized intellectual property rights, we maintain strong technical barriers in product design, manufacturing, and sales.
Main products include intelligent marine element monitoring equipment with self-positioning functions, submarine winches, and high-precision hydrological early warning systems that provide critical data on waves, tides, storm surges, and sediment transport.
A: Yes, our company independently researches, develops, and manufactures a wide variety of technical marine products.
A: Yes, we provide a variety of products and parameters tailored to the specific needs and sea conditions of our customers.
A: The minimum order quantity is one set.
A: Delivery times vary by product type. Stock items are available immediately, while custom orders take 35-45 working days on average.
A: The buoy is equipped with high-efficiency solar panels and a high-capacity lithium battery pack, providing over 220 hours of continuous operation during rainy or cloudy days.
A: The buoy is made of polymer polyethylene (PE) and designed according to a service life of 15 years, resistant to corrosion and biological adhesion.
