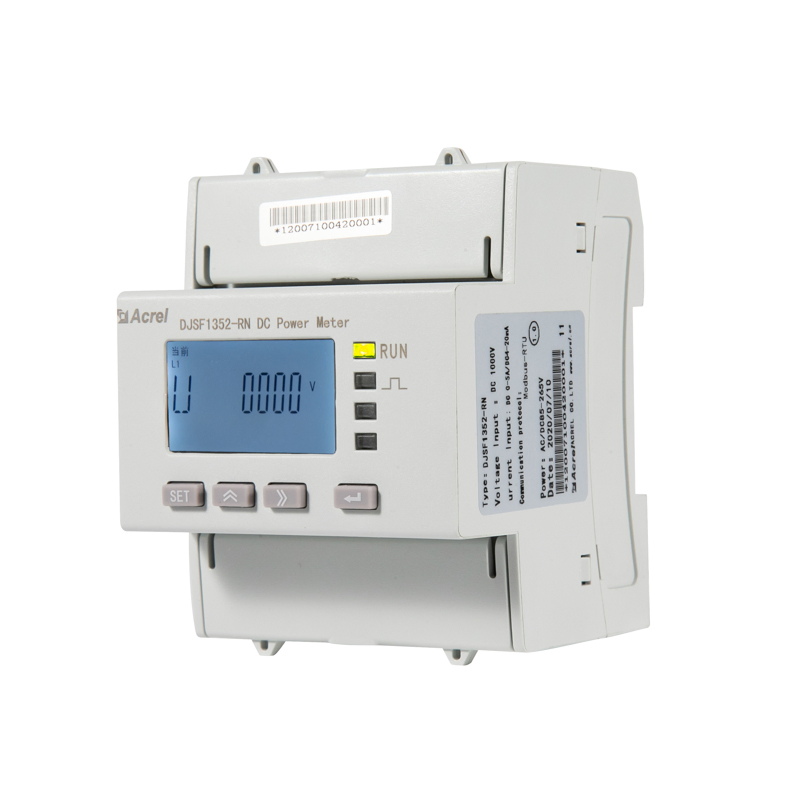

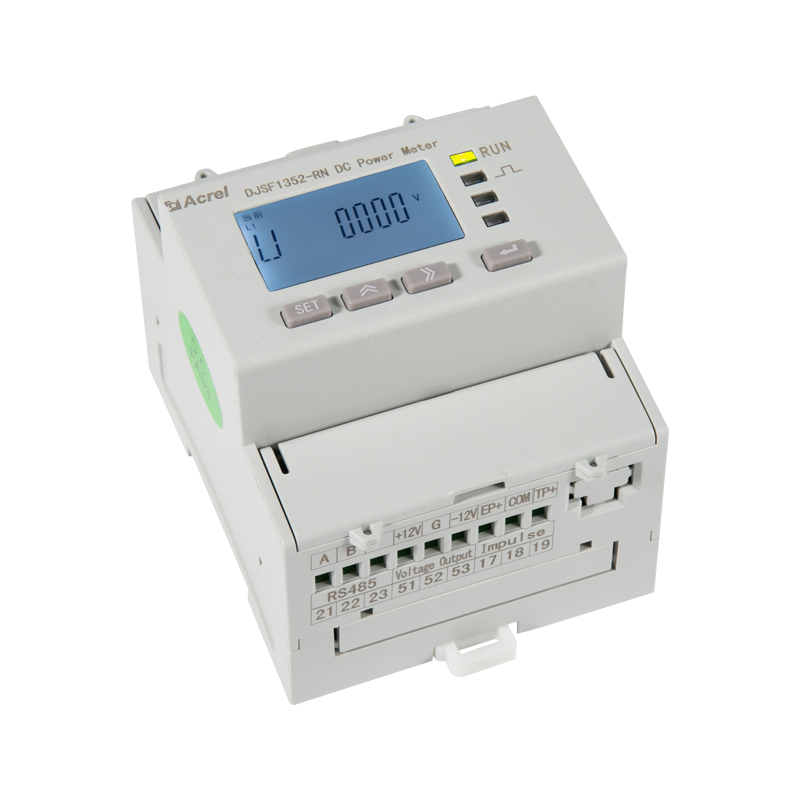

Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
1 / 5
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring
Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring

Acrel Djsf1352-Rn DC Energy Meter with RS485 Modbus-RTU for Solar Power Monitoring

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DJSF1352-RN
Display
LCD
Installation
35mm DIN Rail
Voltage Input
DC 0-1000V
Current Input
Shunt 0-75mV / Hall Sensor 0-5V, 100mA
Accuracy Class
Class 1 or Class 0.5
Power Consumption
≤ 3W
Communication
RS485 (Modbus-RTU)
Dimensions
71*72*87.2mm
Measured Signal
DC
Product Overview
✓
Measurement: Comprehensive tracking of kWh, kVarh, Power, Current, and Voltage.
✓
Dual-Circuit Monitoring: Specifically designed for telecommunications base stations, DC charging piles, and solar photovoltaic systems.
✓
Versatile Application: Suitable for DC Battery systems, EV chargers, and Energy Storage Systems (ESS).

The DJSF1352-RN is a high-precision DC energy meter featuring dual DC input channels. It supports bidirectional energy monitoring (both forward and reverse) and ensures reliable data transmission through dual RS485 communication interfaces. It includes built-in bipolar power sources for Hall sensors and 2DI/2DO functions.

Technical Parameters
Parameter Index
Input Range Voltage DC 0-1000V
Current Shunt: 0-75mV; Hall sensor: 0-5V, 100mA
Overload 1.2 times rated (continuous); 2 times rated/1 second
Accuracy Class 1 or Class 0.5
Impulse Voltage ± 6.5KV
Insulation Resistance ≥ 40MΩ
Product Presentation

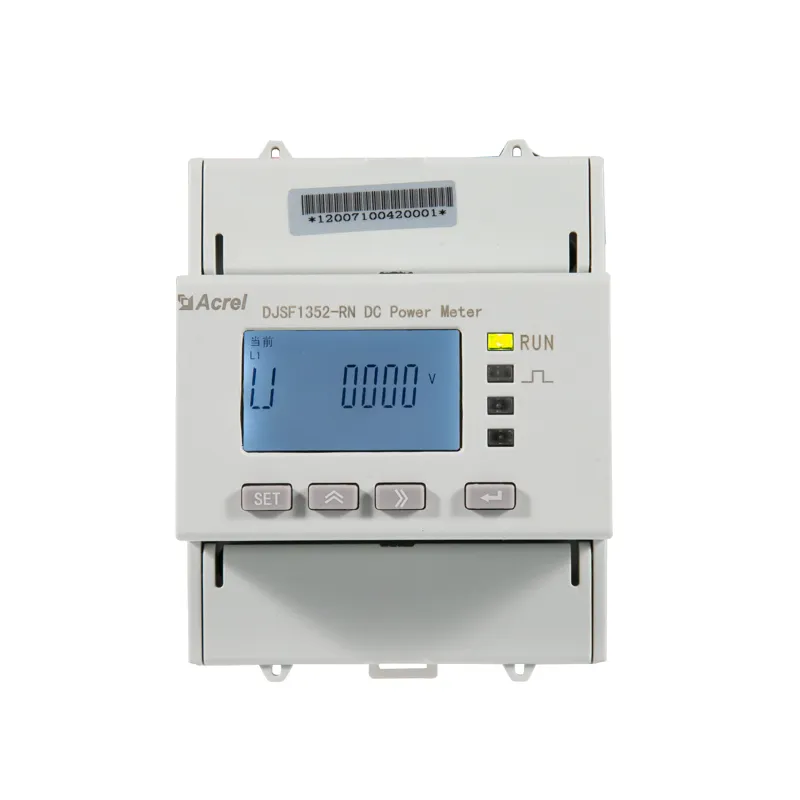

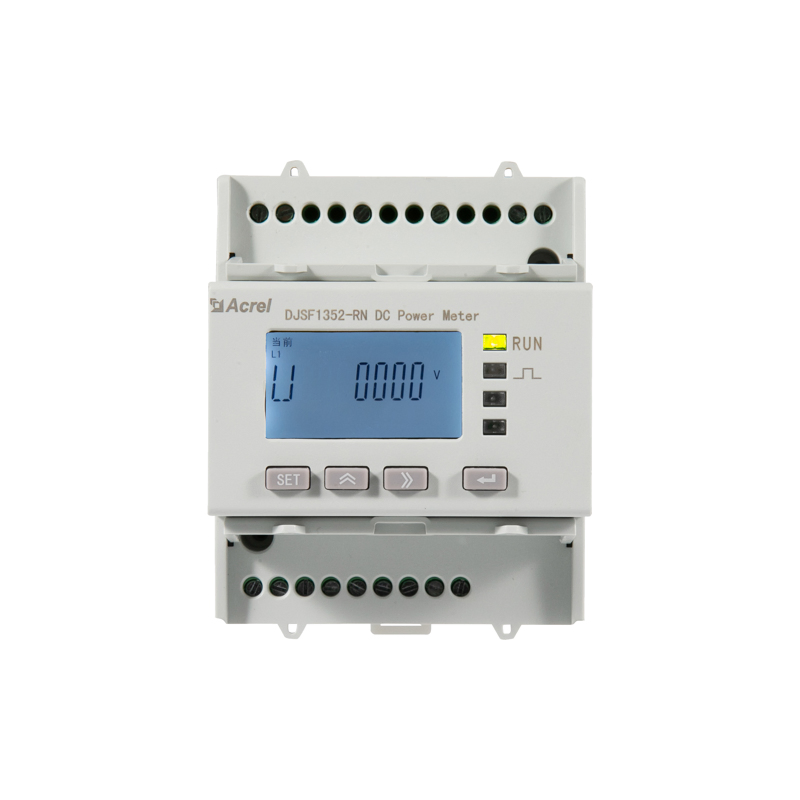

DC Energy Meter

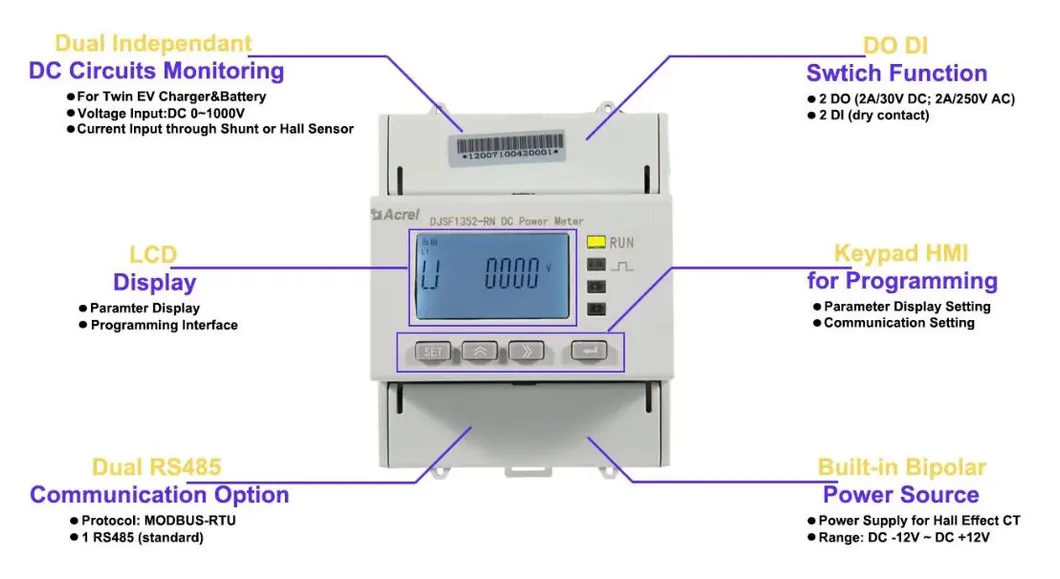

Monitoring System

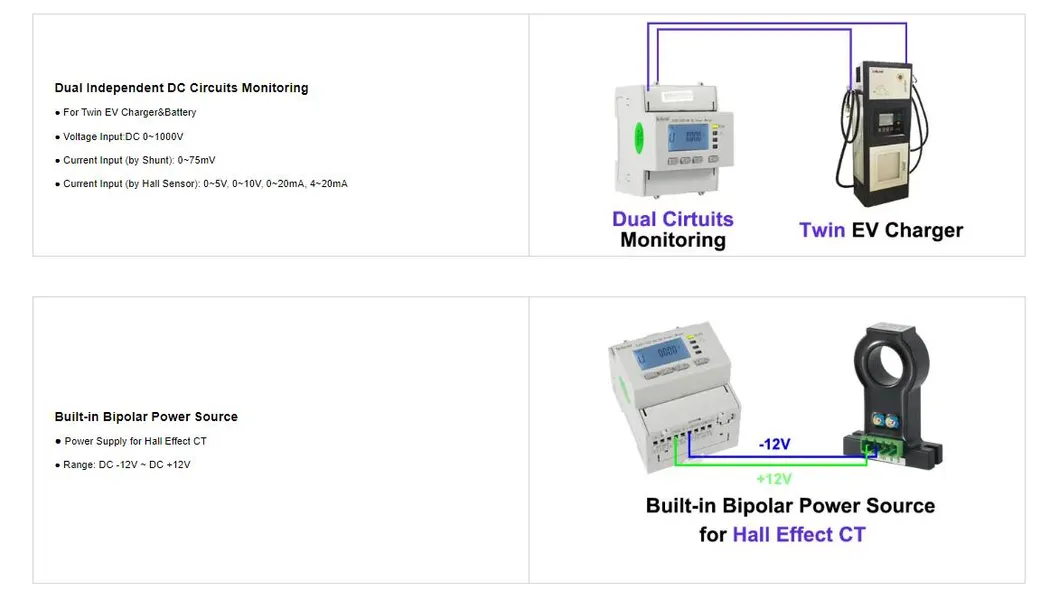

Technical Specs

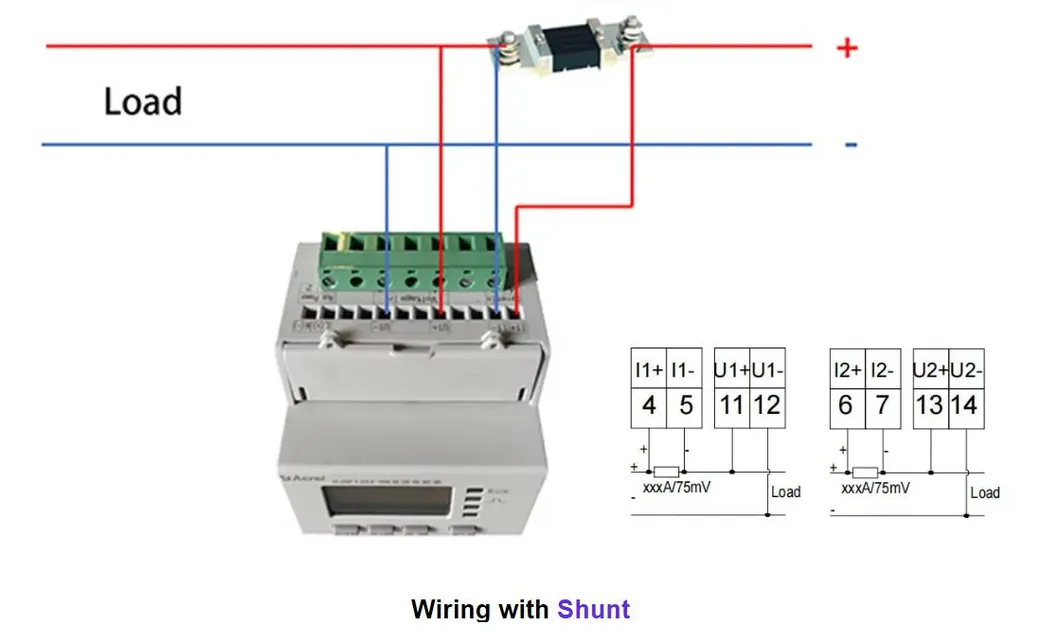

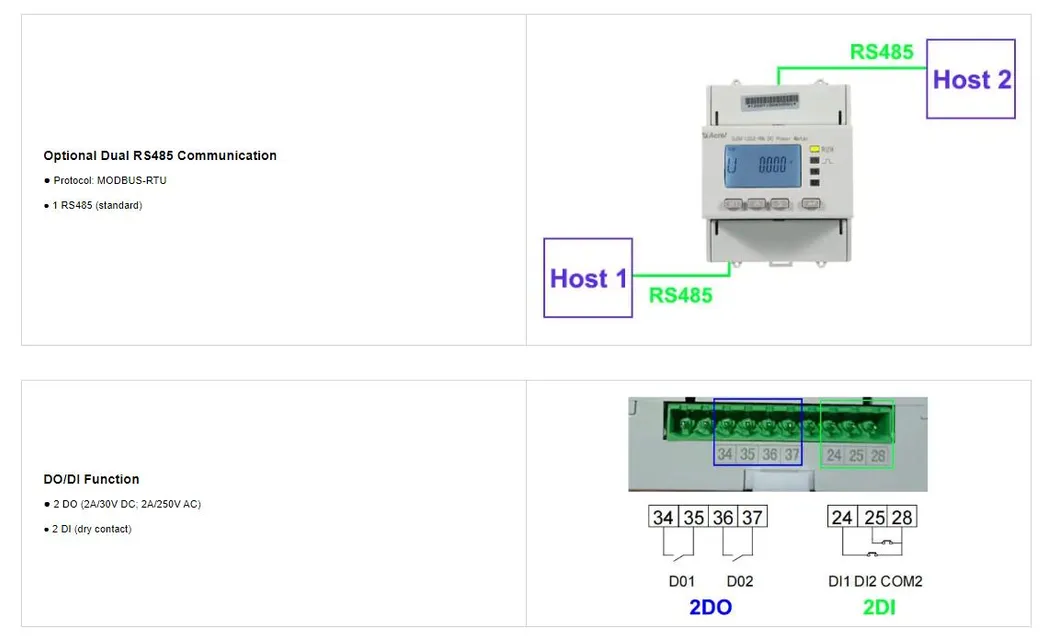

Wiring Diagram

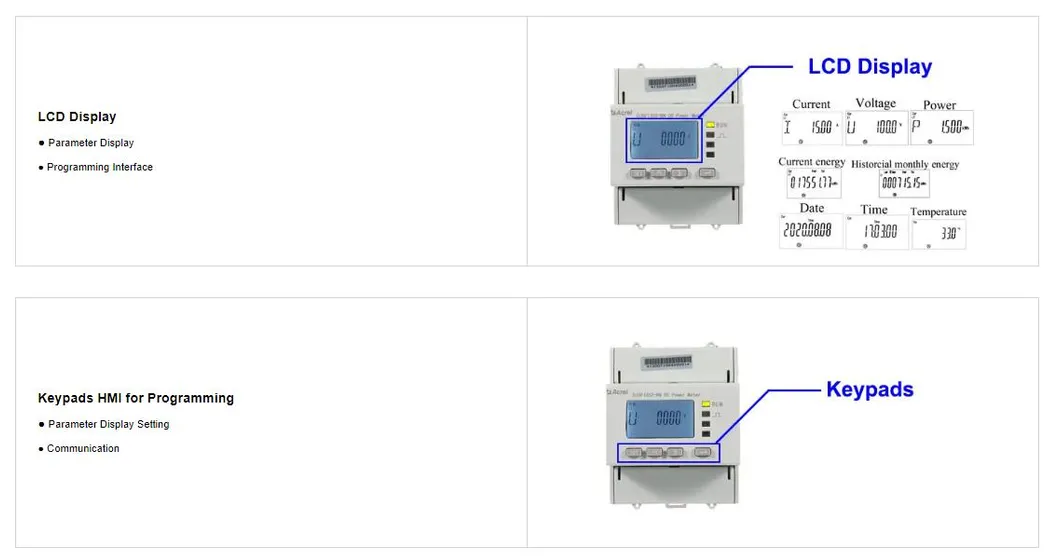

Installation Guide

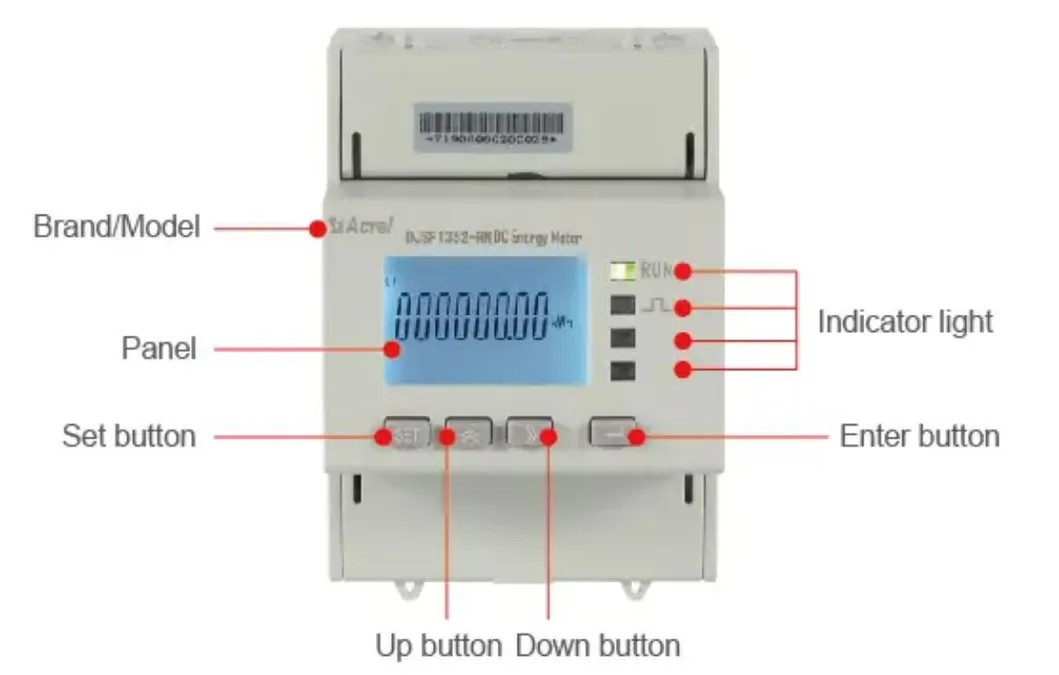

Product Dimensions
Internal Structure

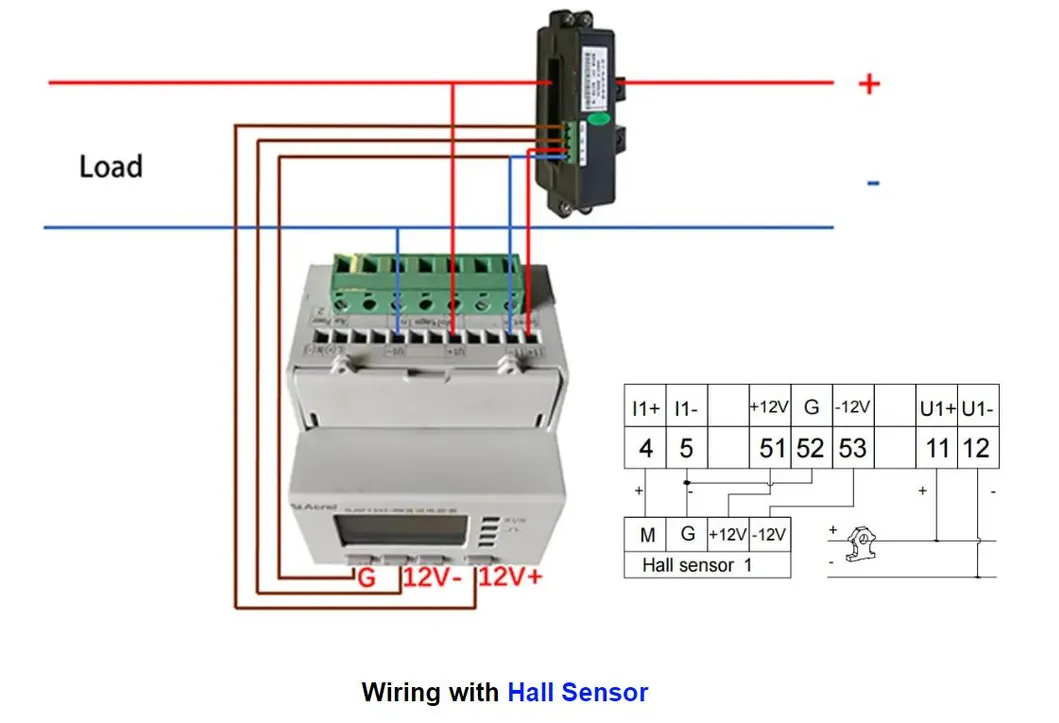

Communication Ports

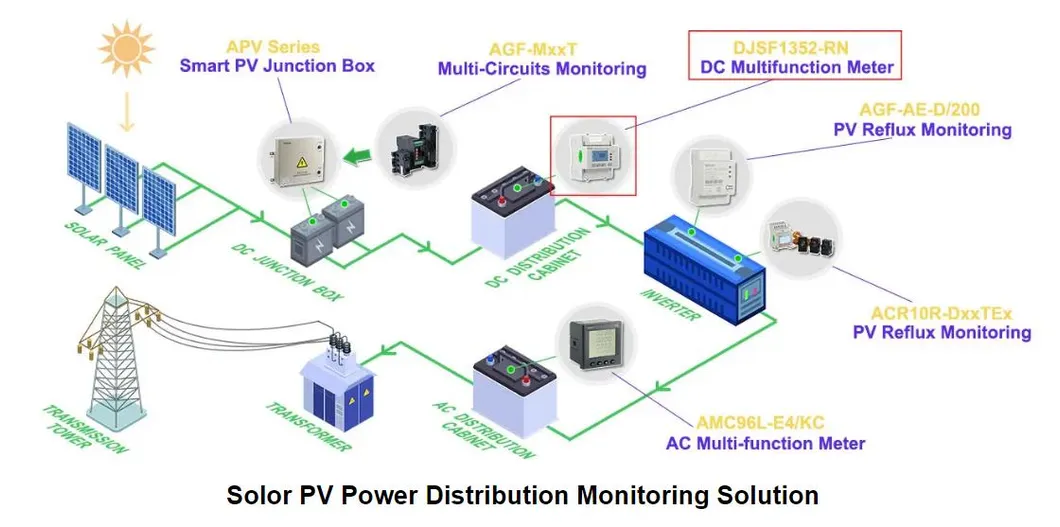

Application Scenario

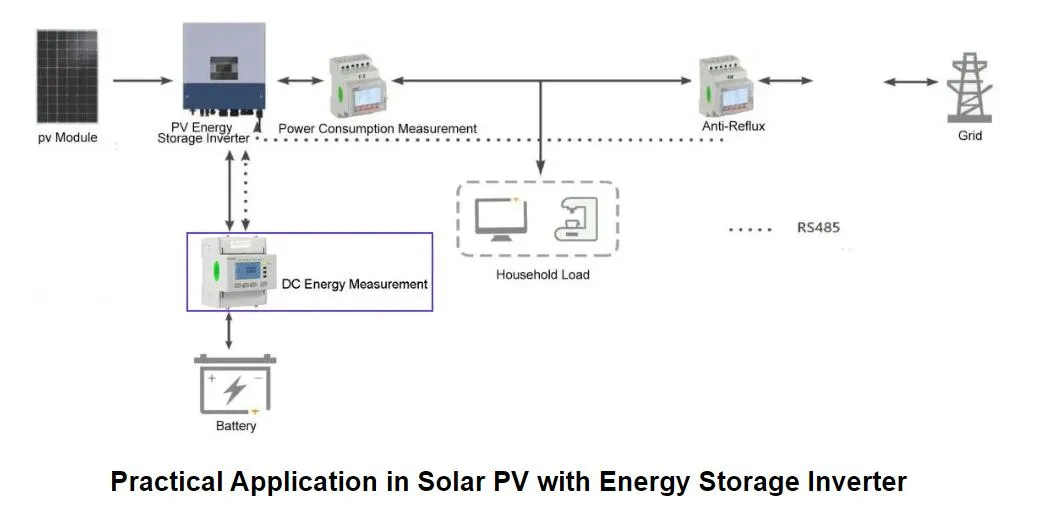

LCD Display Info

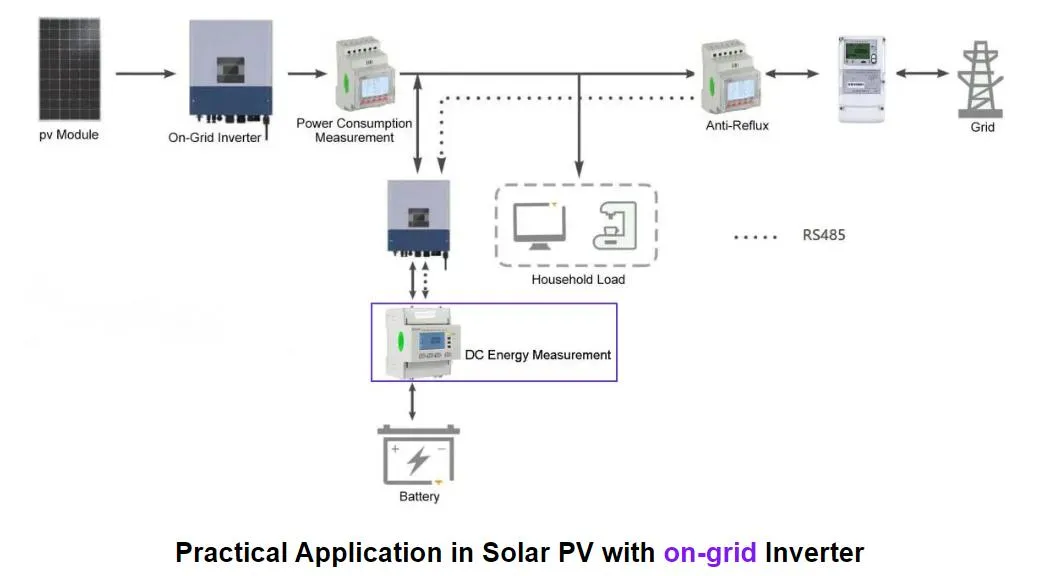

Power Monitoring

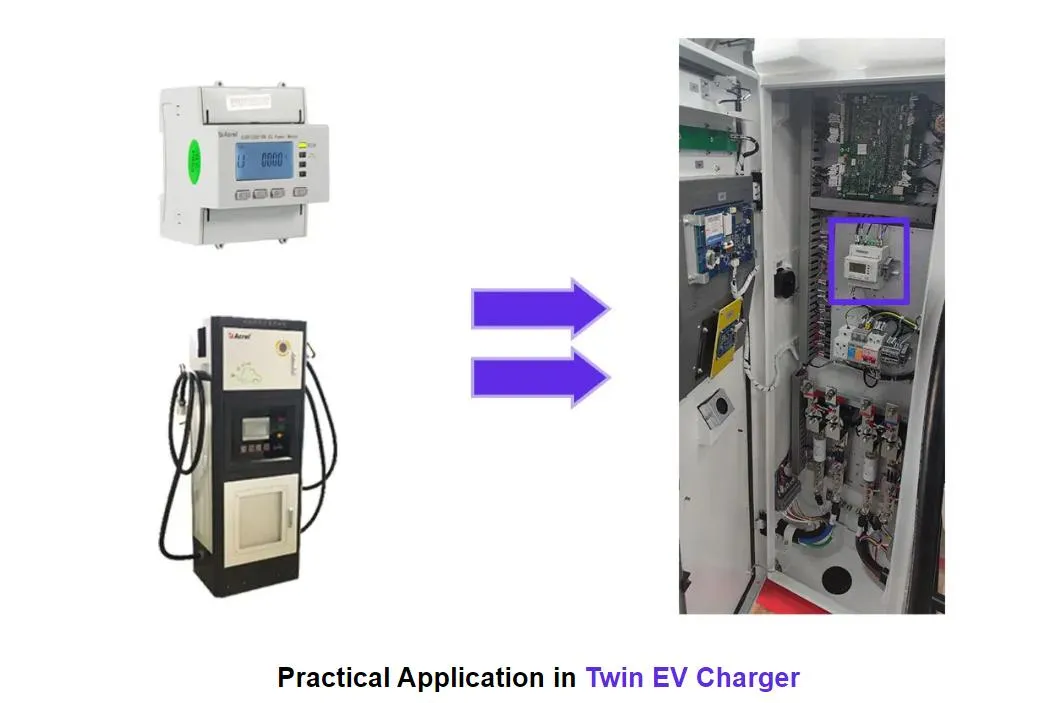

Safety Features

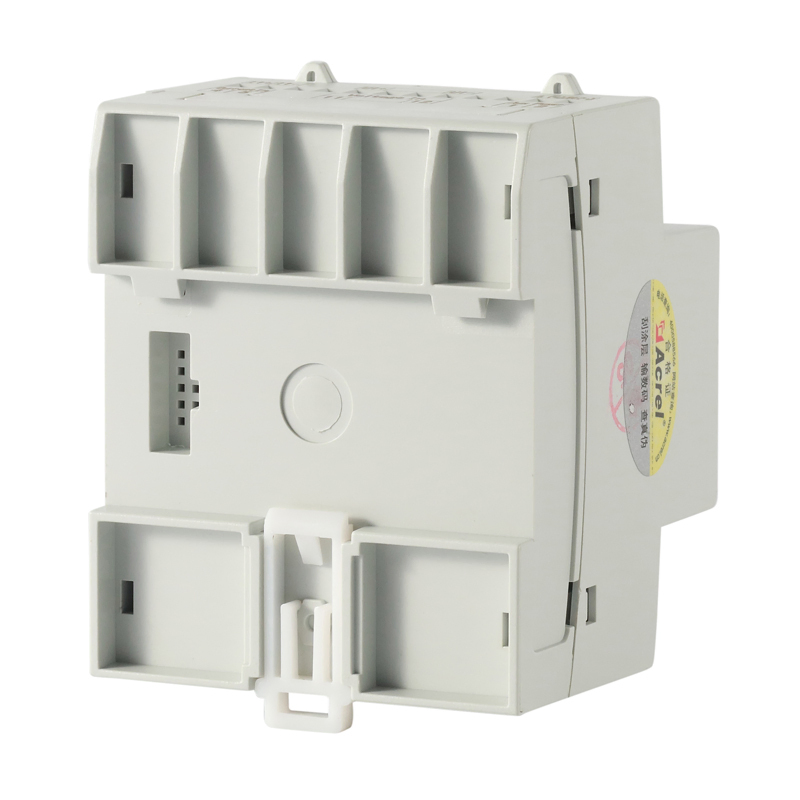

Back View
Side View
Package Details
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized factory. You are warmly welcome to visit and investigate our production facilities.
How long is the typical delivery time?
Generally, it takes 3-10 days if the goods are in stock. For non-stock items, it is typically 10-20 days depending on the order quantity.
Do you provide samples for testing?
Yes, we offer samples. If you subsequently place a bulk order, all or part of the sample charge can be deducted from the final amount.
What is the warranty period for the DC meter?
We provide a 2-year warranty period for this product.
What voltage ranges can this meter monitor?
The DJSF1352-RN supports a wide DC voltage input range from 0V up to 1000V DC.
How is the device installed?
The meter is designed for standard 35mm DIN rail installation, making it compatible with most industrial control panels.
