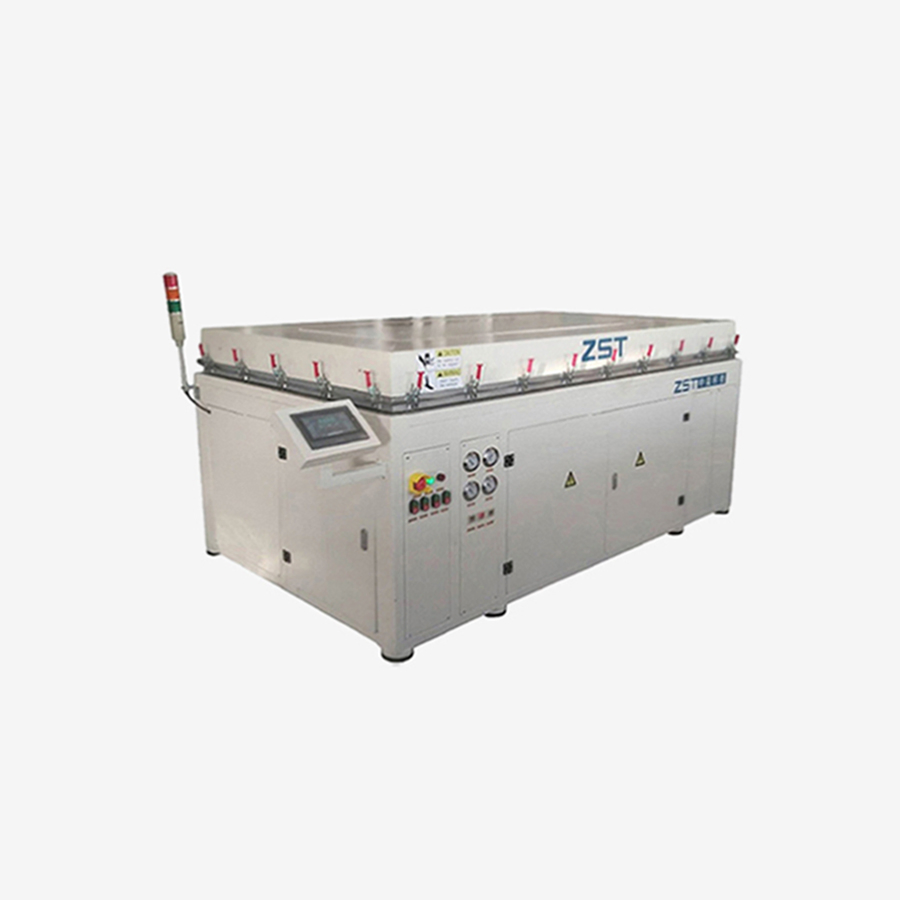

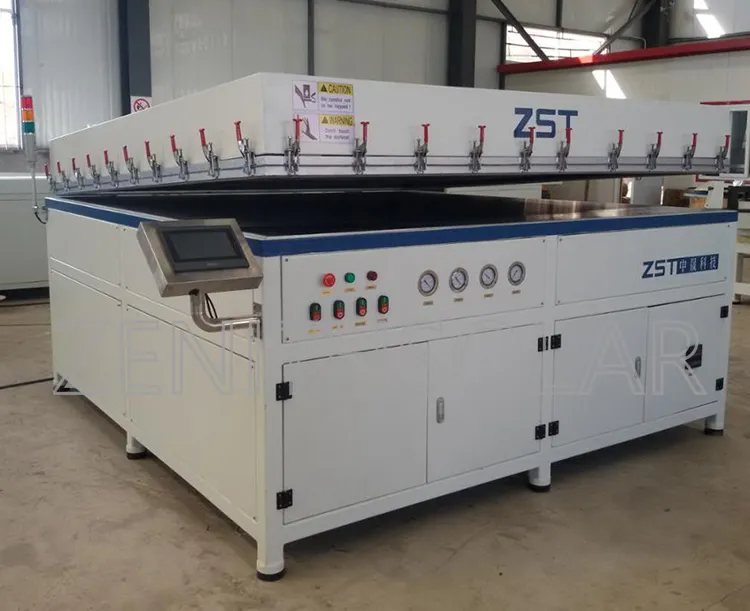

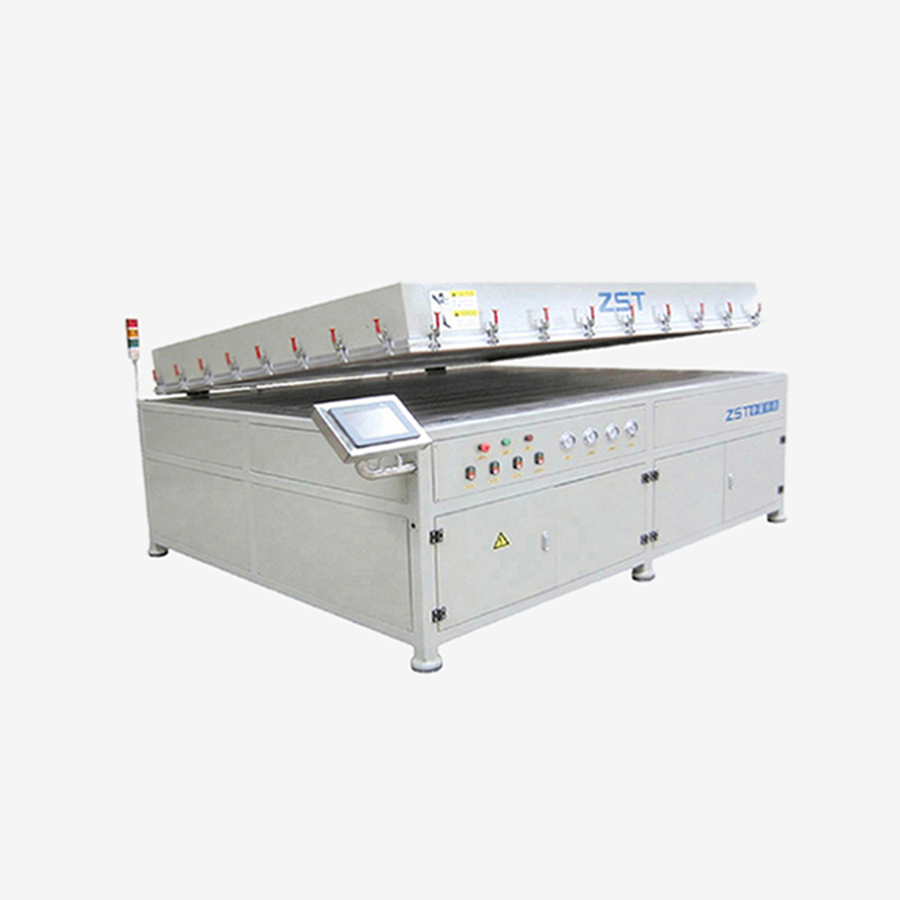

Zst Small PV Line Solar Module Laminating Machine
Zst Small PV Line Solar Module Laminating Machine
1 / 2
Zst Small PV Line Solar Module Laminating Machine
Zst Small PV Line Solar Module Laminating Machine

Zst Small PV Line Solar Module Laminating Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Production Scope
Parts Production Line
Automation
Automation
Transmission Type
Flexible
Production Line
Comprehensive Automatic
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
7700*2620*1350mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year
P

Product Overview

Zst Small PV line Solar Module Laminating Machine

Zst Small PV Line Solar Module Laminating Machine

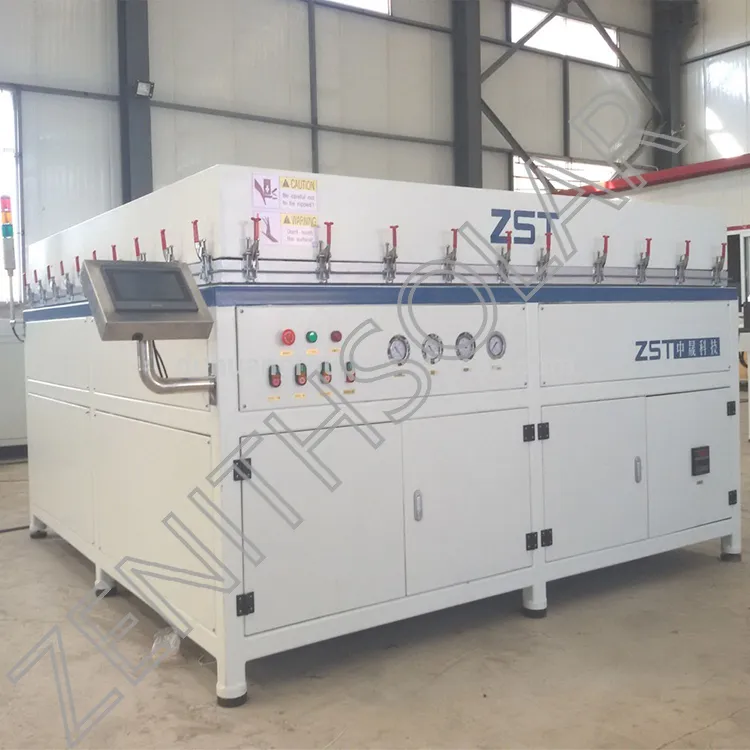

Solar Module Laminating Machine Detail

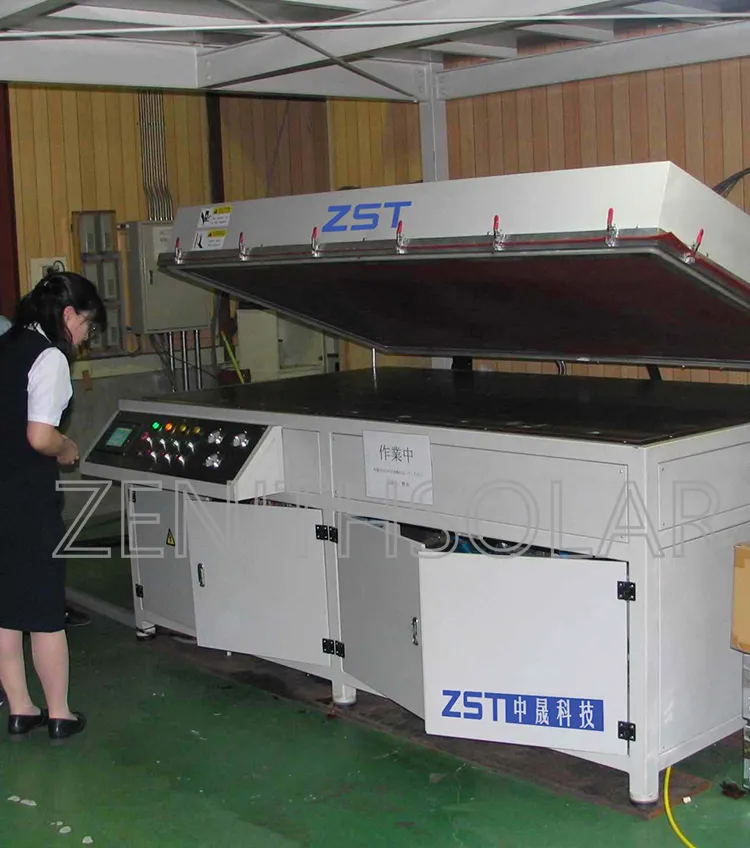

PV Line Equipment
T

Technical Parameters

Power AC380v/3phases/4Lines Capacity 3-9(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 100m³/H
Normal Power 9.5KW Max.Power 26KW
Compressed air flux 2500L/min Lamination Area 1100*2200mm
Compressed air pressure 0.6-0.8Mpa Temperature Uniformity ≤±2ºC
Dimension 2650*1800*1400mm Weight 3.8T
C

Key Characteristics

Integrated Design

Features a patented design where the vacuum pump and oil pump are placed inside the machine, significantly saving plant space.

Lower Noise Operation

Utilizes high-quality imported vacuum pumps to reduce operational noise to below 65dB for a better working environment.

Smoke-Free Technology

The unique smokeless pump design eliminates the need for a complex exhausting system configuration.

Energy Efficiency

Engineered to provide approximately 30% energy savings compared to standard industry alternatives.

Certified Quality

All machines in the PV line have successfully passed CE certification, ensuring international safety standards.

Production Line View
Machine Structure
Laminating Process
Finished Module Quality
?

Frequently Asked Questions

What is the maximum lamination area for this machine?
The Zst Small PV line laminating machine offers a lamination area of 1100*2200mm.
How does the integrated design benefit my factory?
The integrated design places the vacuum and oil pumps inside the machine, which saves floor space and simplifies the installation layout.
Is the machine noisy during operation?
No, by using imported vacuum pumps, the noise level is kept below 65dB, ensuring a comfortable working environment.
Does the equipment require a special exhaust system?
No, the machine features a smokeless design, so you do not need to configure an additional exhausting system.
What is the annual production capacity?
The capacity ranges from 3 to 9 MW per year, depending on whether you run 1, 2, or 3 shifts.
What certifications does this solar laminating machine hold?
The equipment is fully certified with CE and ISO standards, ensuring high quality and safety compliance.
