| PHYSICAL & ELECTRICAL FEATURES | |||
|---|---|---|---|

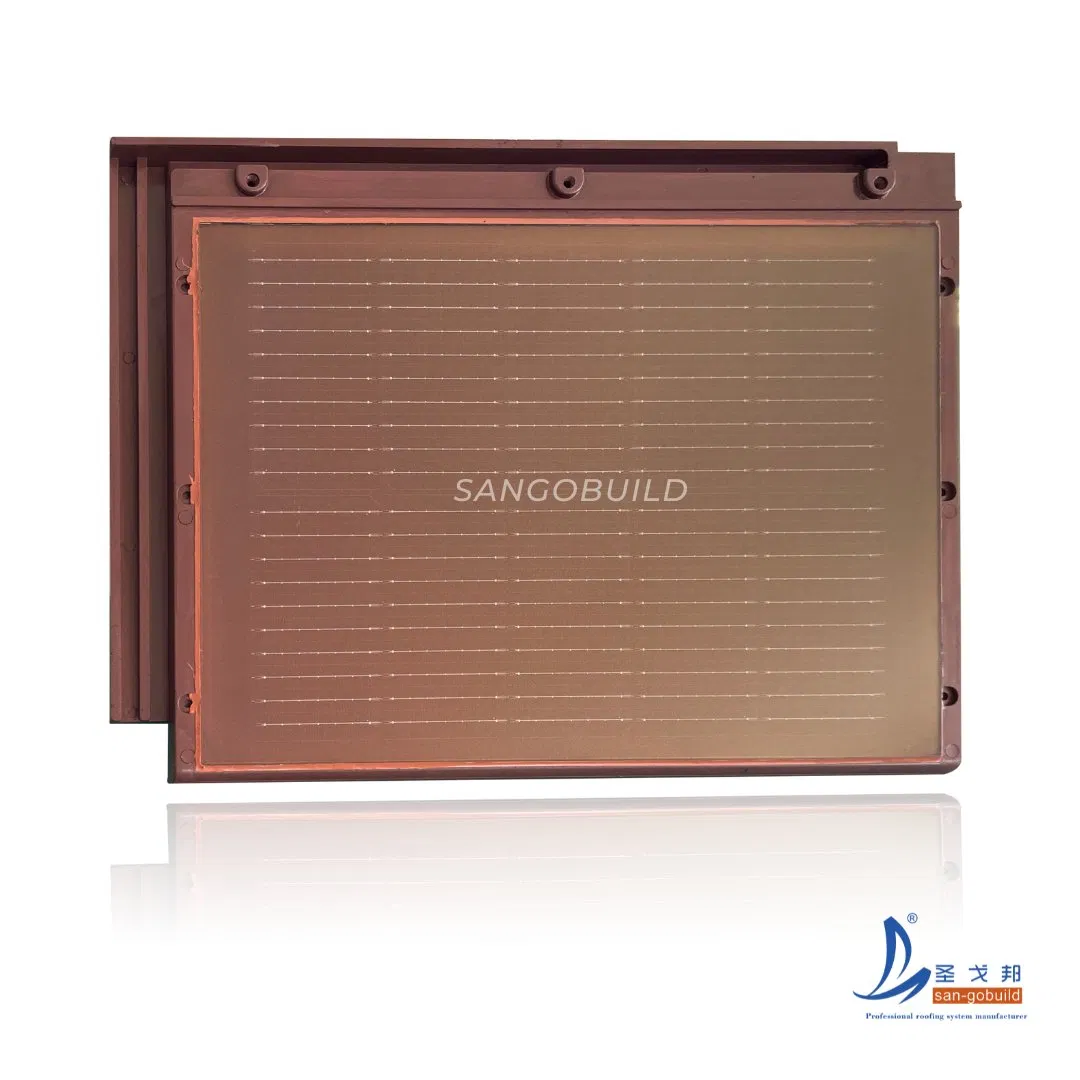

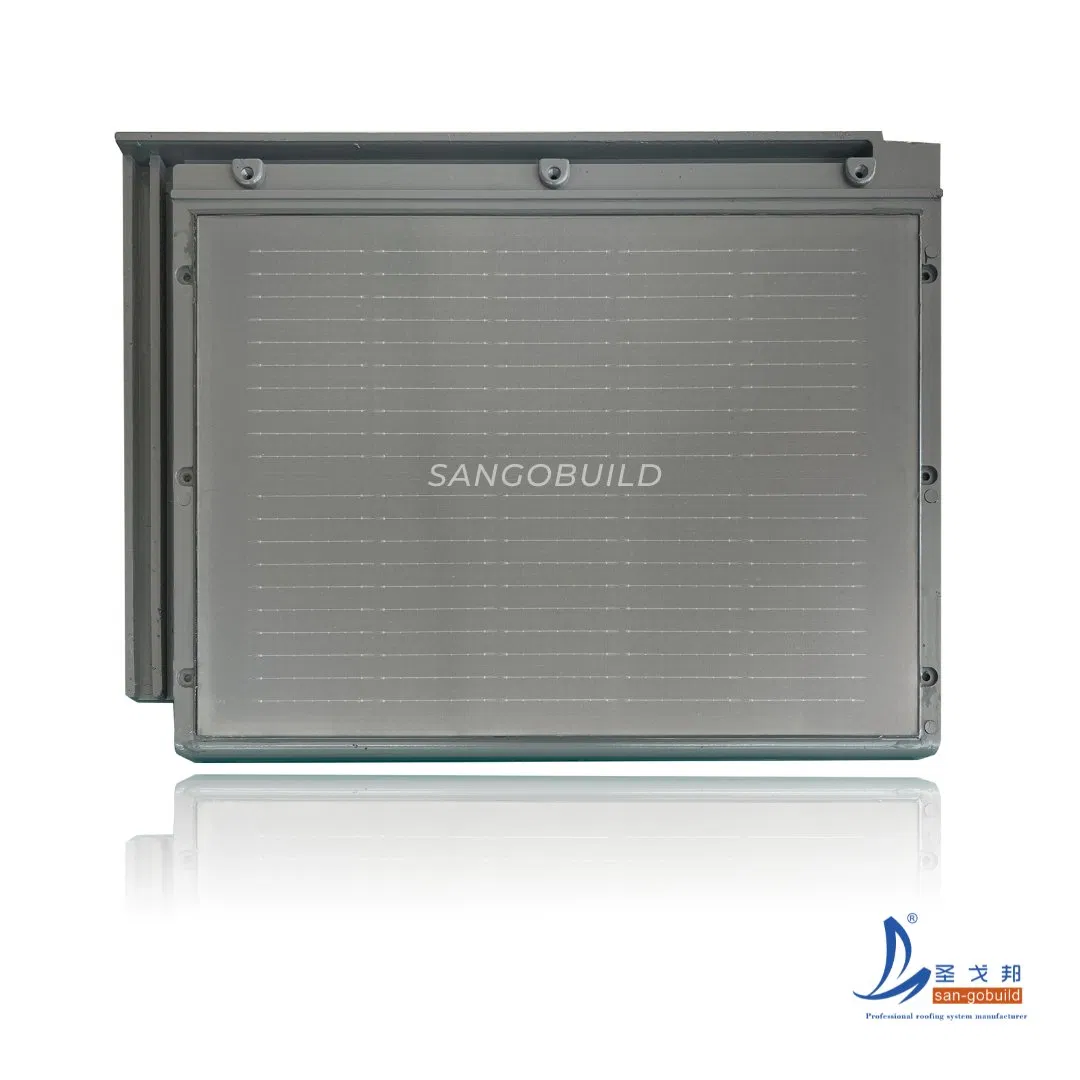

| Model | JS87DG | Tile Size | 1260*480 MM |
| Tile Weight | 16.5 KG | Cell Size | 182*91MM |
| Cell Efficiency | 23.10% | Max Power | 90W/PC |
| Voltage | 13.7V | Current | 6.35A |
| Fire-Proof Class | Class A | Load Class | 2400 PA |
| Working Temp | -40ºC ~ 85ºC | Hail Resistant | 25MM/23M/S |

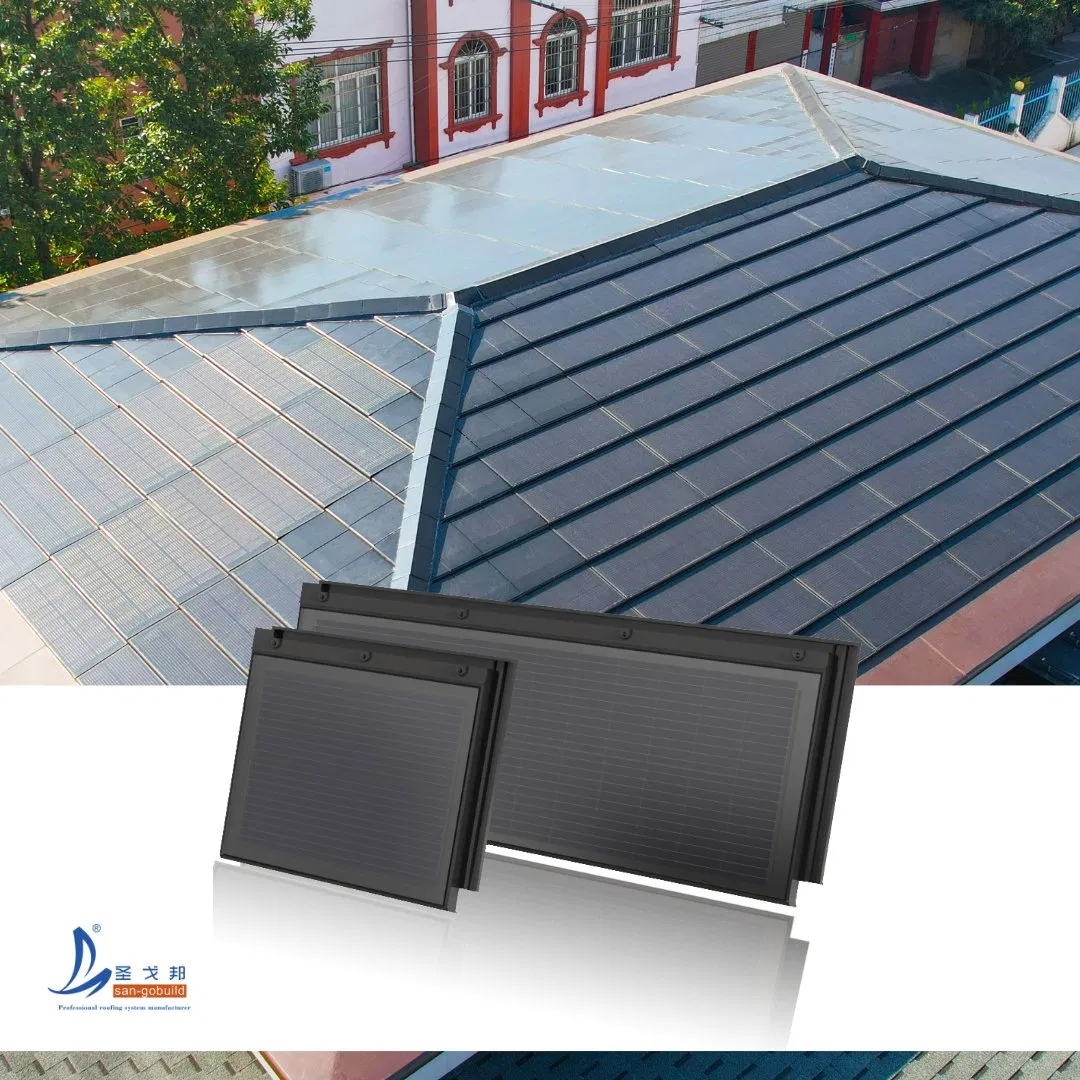

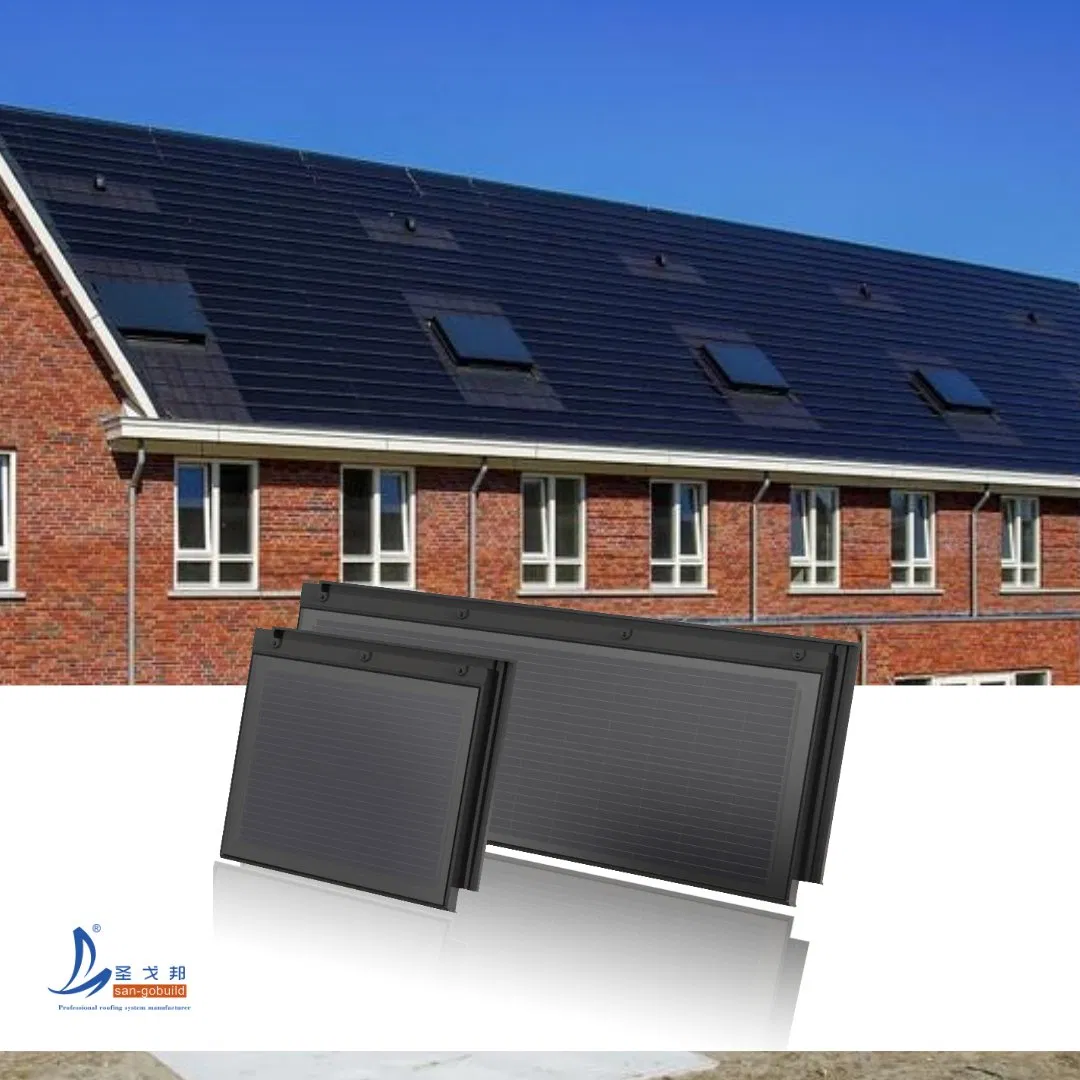

Installation: Integrated directly into the roof structure.
Aesthetics: Sleek, invisible design compared to bulky panels.

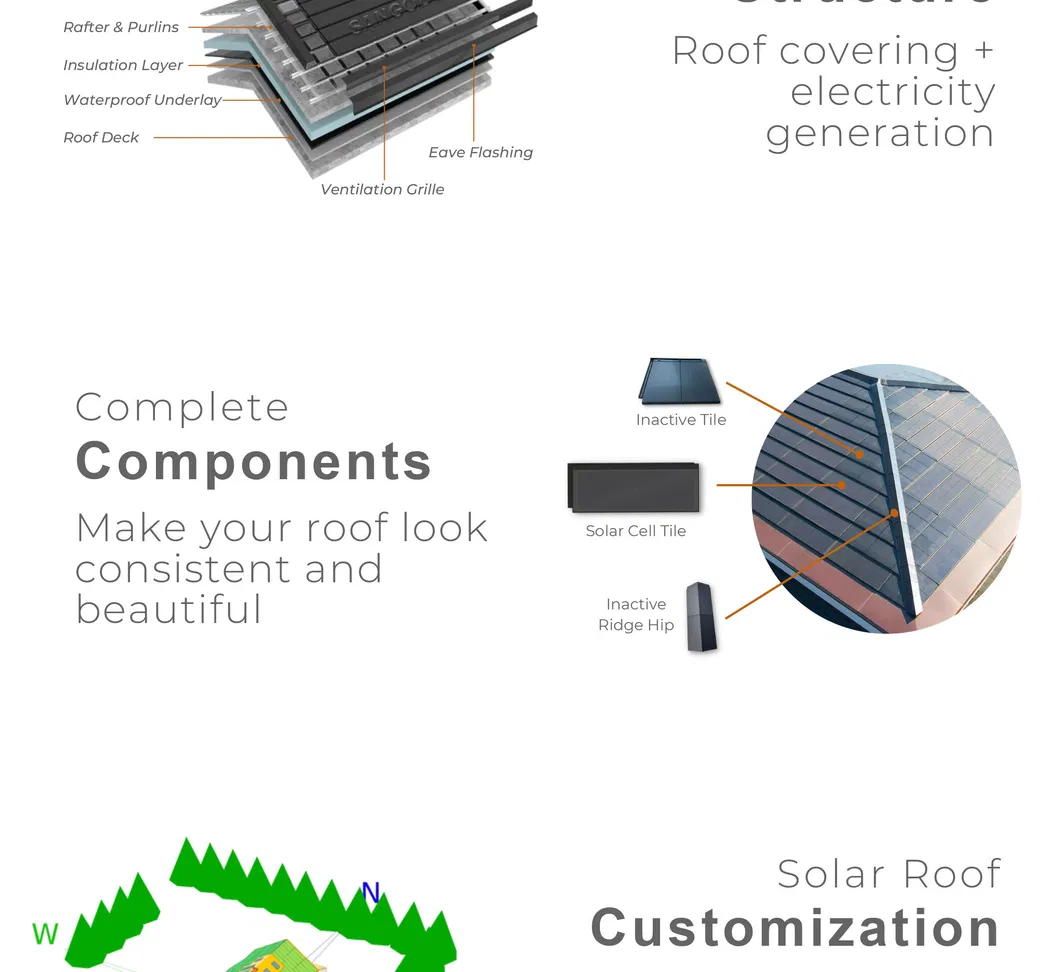

Durability: Functions as both energy generator and high-strength roofing material.
Functionality: Combines power generation with home protection from wind, rain, and hail.
A: Yes. Solar roof tiles are designed to be a 2-in-1 solution. They act as the primary protective layer for your home against weather while simultaneously generating clean electricity.
A: Our solar tiles are Class A fire-proof, wind-resistant, and hail-resistant (tested for 25mm hail at 23m/s). They are built to withstand harsh environmental conditions.
A: While they require professional installation, they eliminate the need for separate mounting racks used for traditional panels, often resulting in a cleaner and more integrated setup.
A: The solar roof tiles are designed with a lifespan of over 60 years, significantly outlasting many traditional roofing materials and standard solar panels.

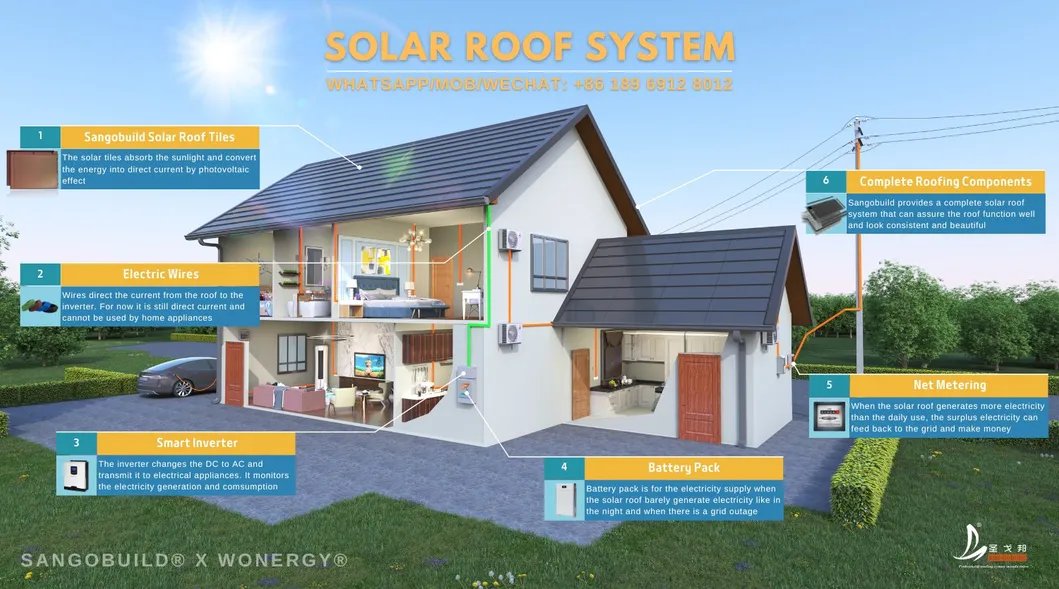

A: Yes, the system includes a mobile monitoring app that shows real-time data on energy creation, home usage, and total savings generated.
A: Often yes. Because they mimic the look of conventional roofing and maintain the building's architectural integrity, they are frequently approved for use on listed or historical properties.
