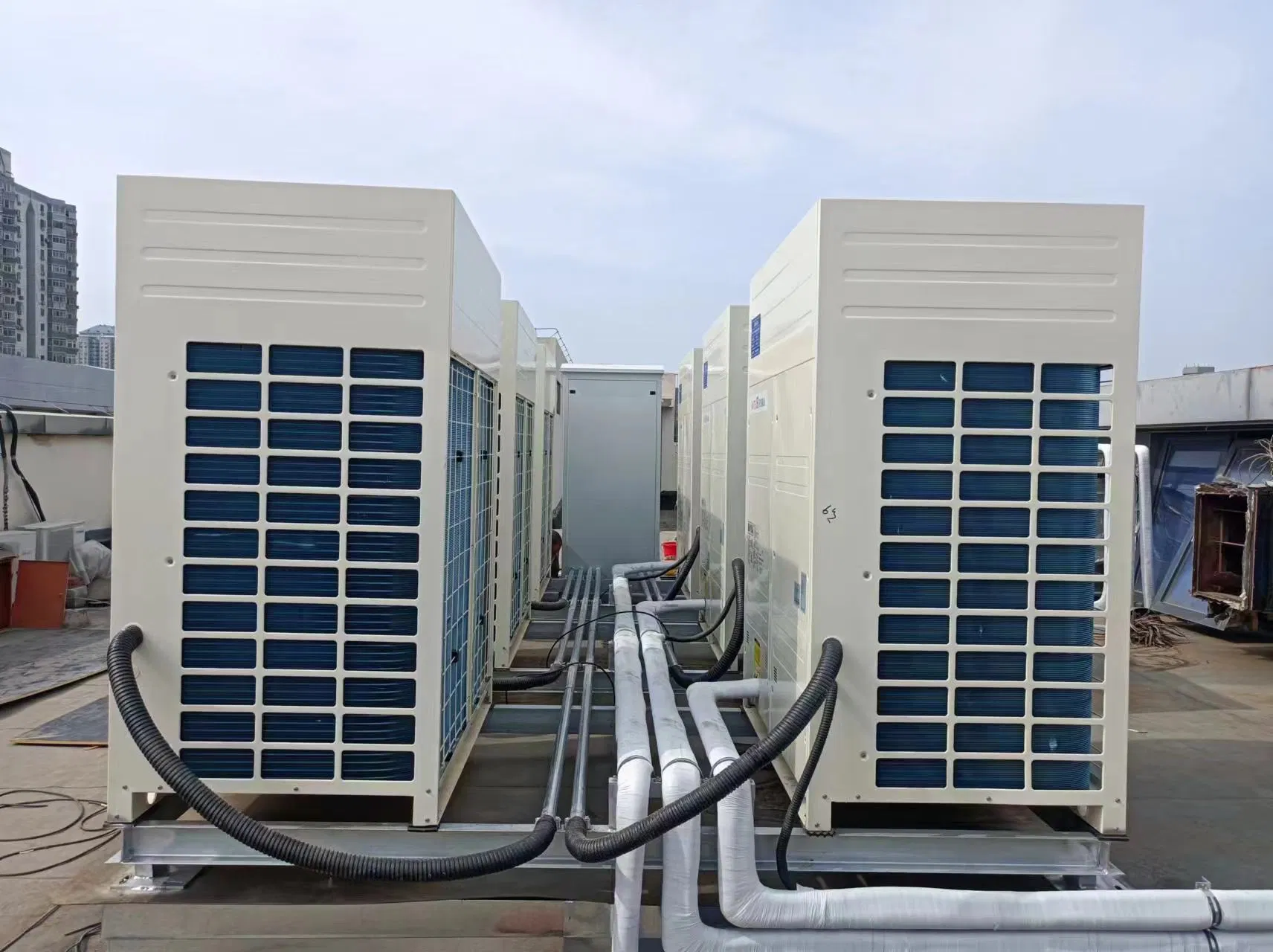

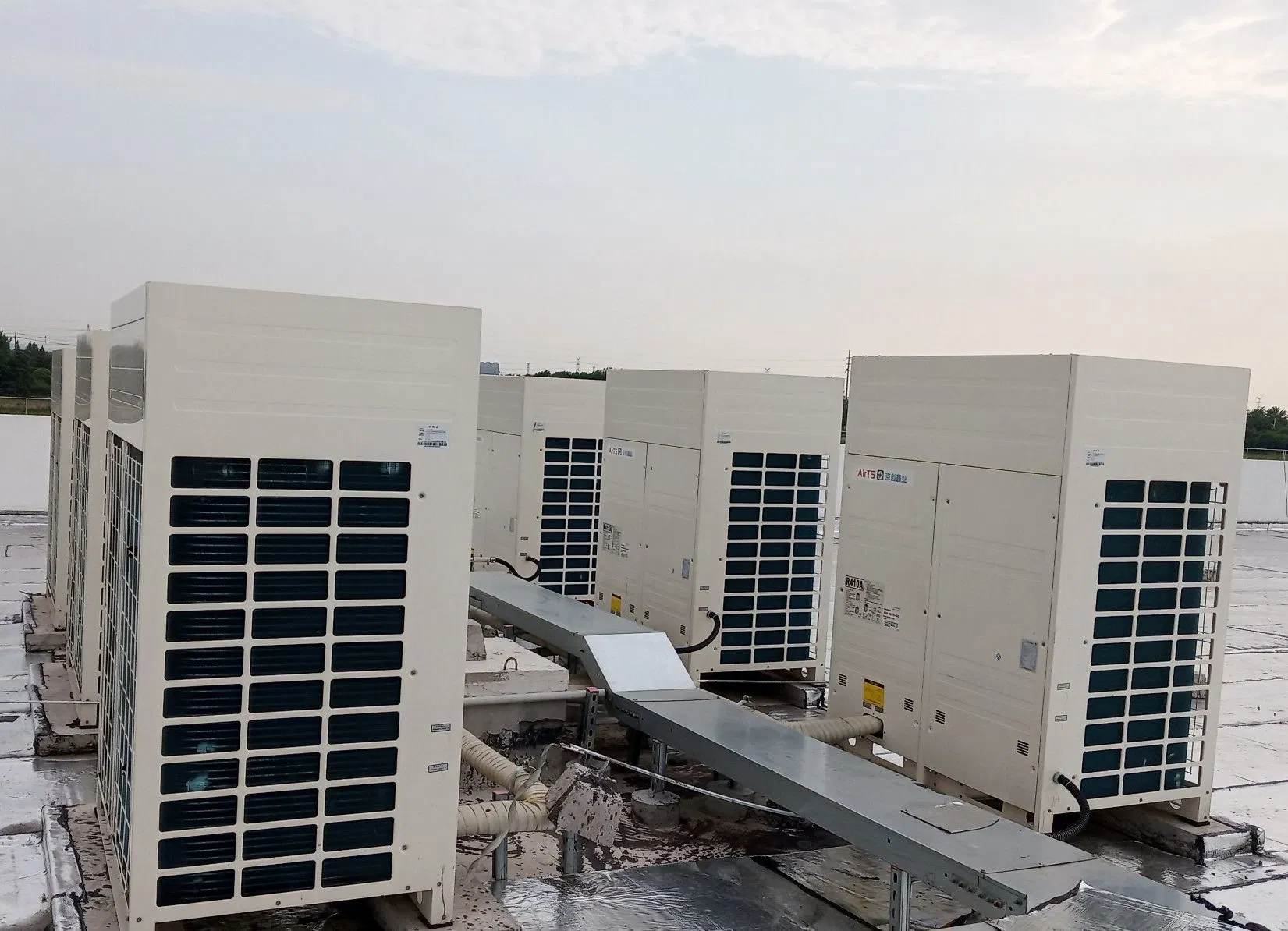

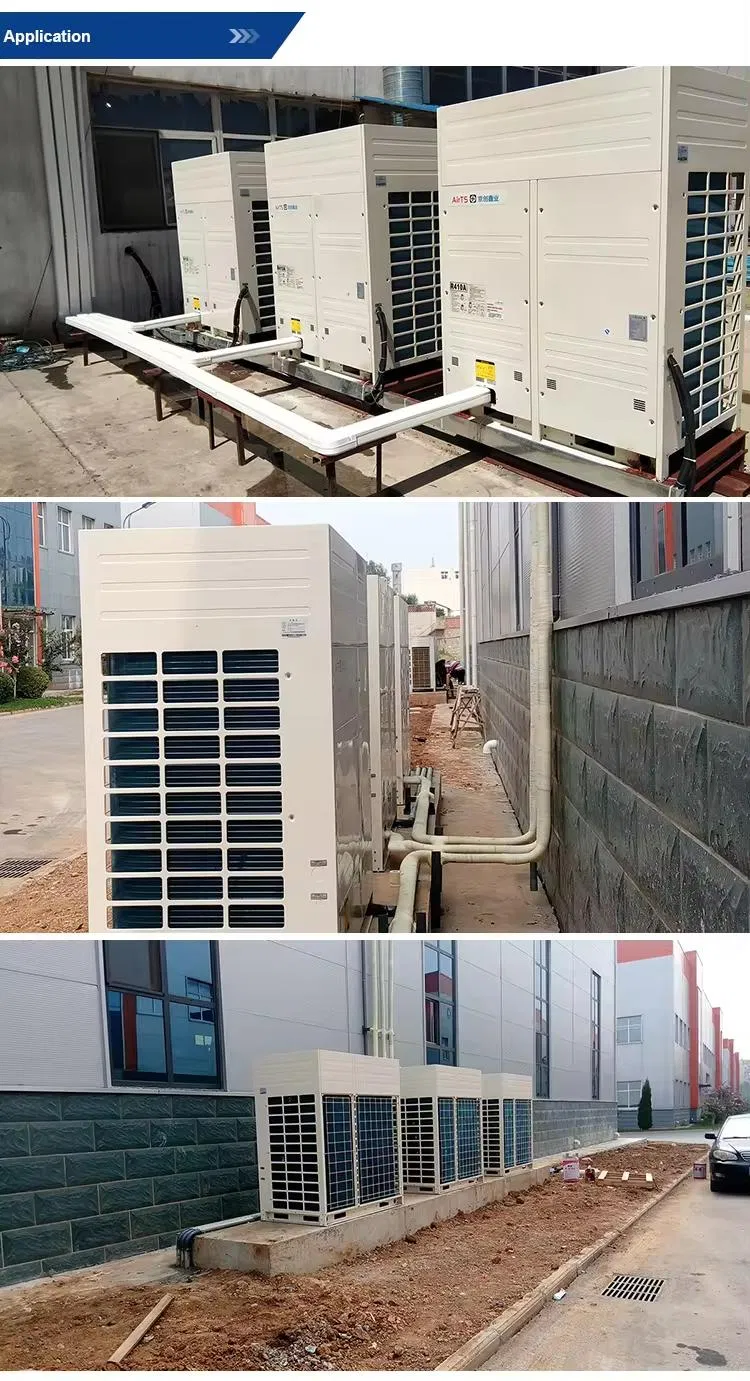

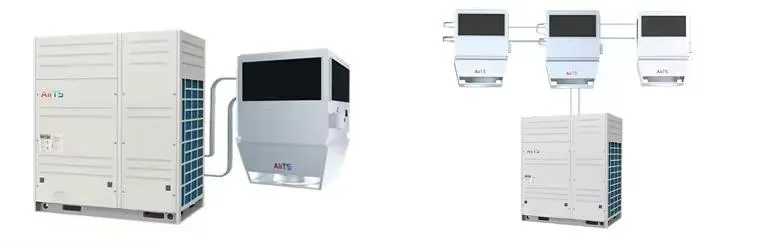

The VRF air conditioners, also known as "one-to-many," is a type of system where one outdoor unit is connected to several indoor units. Each indoor unit can operate independently or be controlled together. The system has an outdoor unit connected by pipes to indoor units that have components like outdoor heat exchangers, compressors, and other parts. The indoor units consist of fans and direct cooling elements. Using the pipes, the outdoor unit can supply cooling liquid to many indoor units.
| Outdoor Module Frequency | 250AX | 280AX | 335AX | 400AX | 450AX | 500AX | 560AX | 615AX | 670AX | 730AX | 785AX | 850AX | 900AX | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power | - | HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| Cooling Capacity | - | kW | 25.2 | 28.5 | 33.5 | 40 | 45 | 50.4 | 56 | 61.5 | 68.5 | 73.5 | 78.5 | 85 | 90 |
| Heating Capacity | - | kW | 27 | 31.5 | 37.5 | 45 | 50 | 56 | 63 | 69 | 75 | 81.5 | 87.5 | 95 | 100 |
| Power Input | Cooling | kW | 5.45 | 6.75 | 8.4 | 10.25 | 12.1 | 13.5 | 16 | 17.87 | 18.6 | 19.27 | 20.95 | 22.85 | 24.65 |
| Noise Level | - | dB | 56 | 56 | 57 | 59 | 60 | 61 | 62 | 62 | 62 | 62 | 63 | 64 | 64 |
| Weight | - | kg | 220 | 225 | 230 | 285 | 290 | 298 | 345 | 370 | 375 | 450 | 455 | 460 | 465 |
