10/12/14kw Three-Phase 400V Grid-Tied Solar Energy System for Residential Solar System

1 / 5

10/12/14kw Three-Phase 400V Grid-Tied Solar Energy System for Residential Solar System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

ES10K-ON

Certification

ISO, CE, TUV

Application

Home, Industrial, Commercial

Product Output Power

10kw

Output Voltage

220V/280V; 230V/300V; 240V/415V

Solar Panel Type

Mono Perc, Topcon, Hjt

Inverter Brand

Growatt, Solis, Deye, SMA, Sungrow, Huawei

Inverter Type

Grid-Tied

Design Life

30 Years

Monitoring

WiFi, Bluetooth, RS485, Can

Origin

China

Capacity

1,000,000W Per Day

💡 Product Description

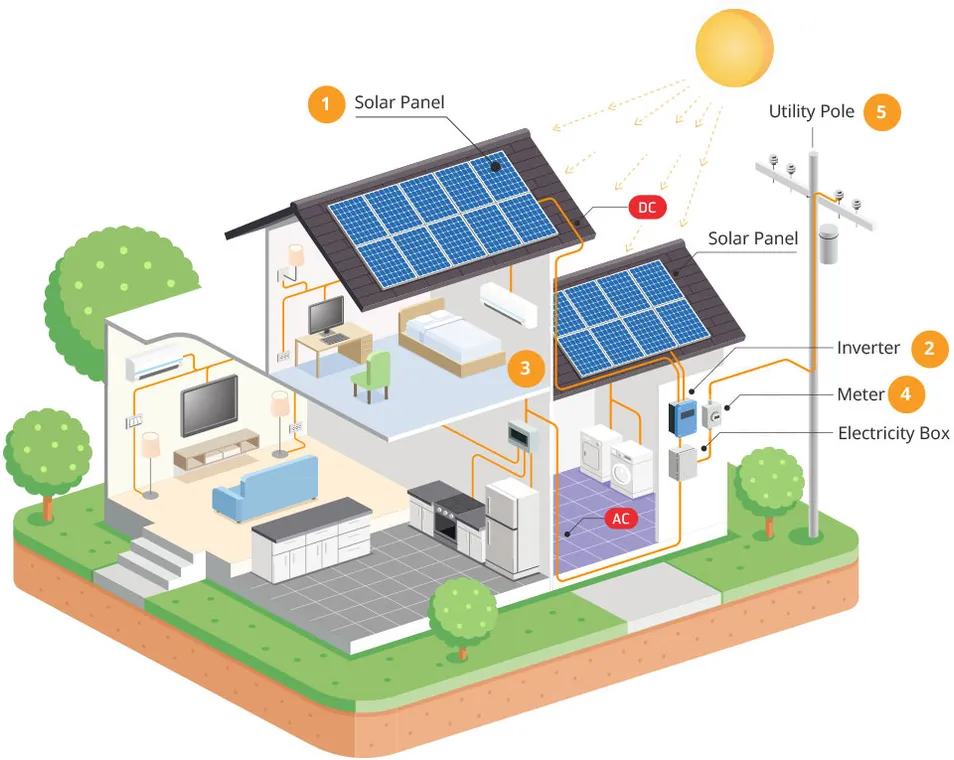

How an On-Grid Solar System Works?

Solar Panel Generation: Solar panels convert sunlight into direct current (DC) electricity.

Inverter: An inverter converts the DC electricity into alternating current (AC) for home and business use.

Grid Connection: AC electricity is fed into the electrical system; excess is sent back to the grid.

Net Metering: A net meter tracks usage and credits homeowners for excess energy generated.

📋 Specifications

System Configurations for 10KW-30KW Grid-Tie Solutions
System Model	ES10KW-ON	ES20KW-ON	ES30KW-ON
AC Output Power	10KW	20KW	30KW
Solar Panels	610W Panel * 18 Units	610W Panel * 34 Units	610W Panel * 50 Units
Grid-Tie Inverter	10KW 3P	20KW 3P	30KW 3P
PV Cables	100M 4mm2 * 2 units	100M 4mm2 * 4 units	100M 4mm2 * 6 units
PV Connectors	4 Pairs	8 Pairs	12 Pairs
Mounting Kits	Customized based on installation site

⚙️ System Components

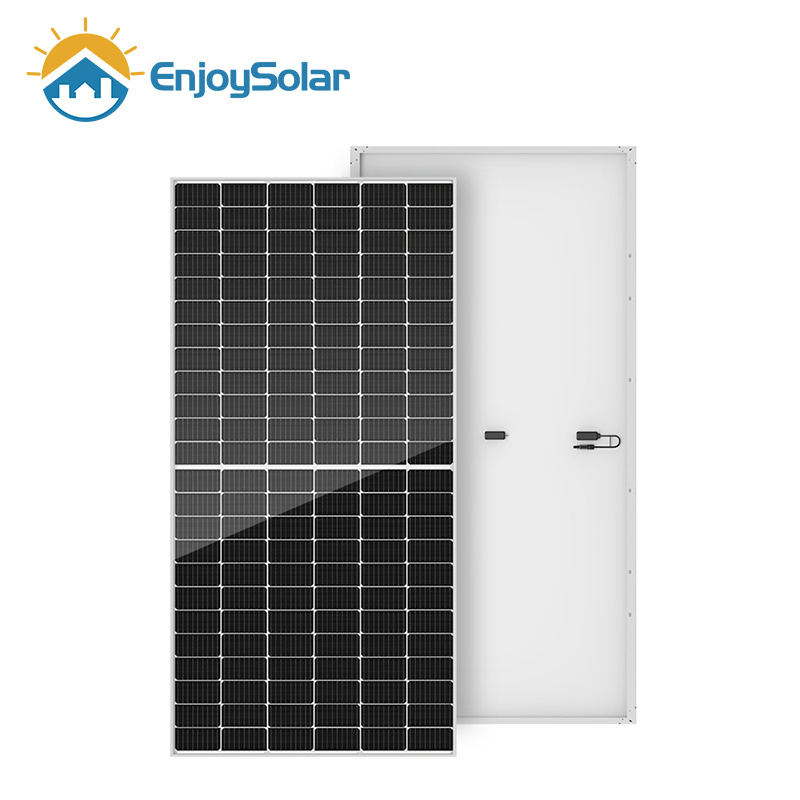

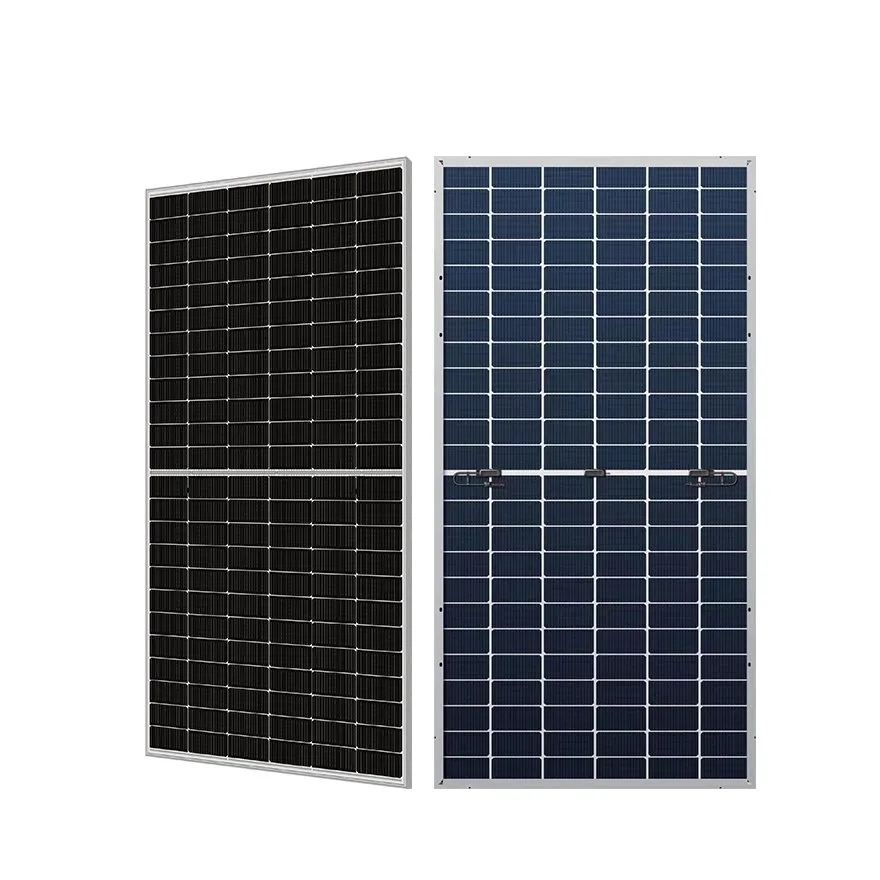

High-Efficiency Topcon Solar Panel

Model: ES610M-72PH
Peak Power: 610Wp
Voc: 51.32v | Isc: 15.86A
Vmp: 42.78v | Imp: 14.26A
Dimensions: 2278*1134*30mm | Weight: 31.5kg

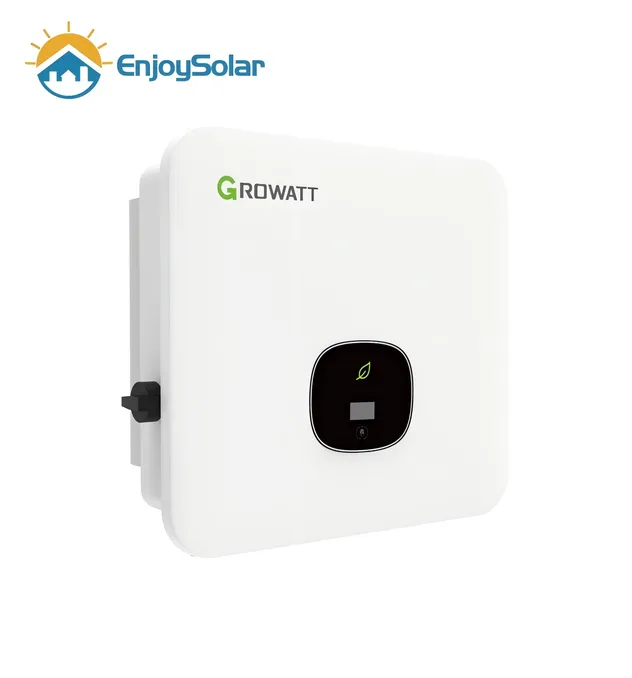

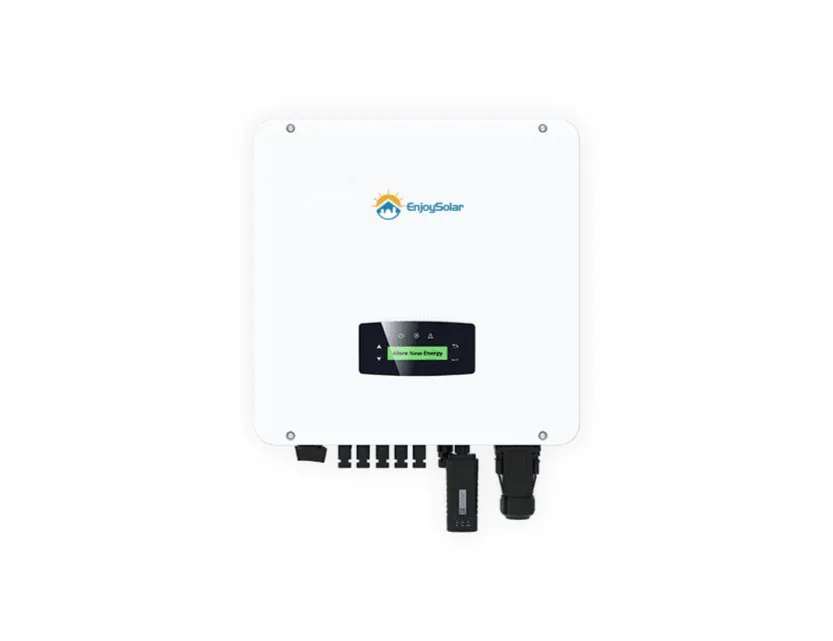

Grid-Tie Solar Inverter

• Max efficiency: 99.75%
• Up to 10 MPPTs
• Wide voltage range and low startup voltage
• Remote firmware upgrades
• Overvoltage load reduction and leakage current suppression

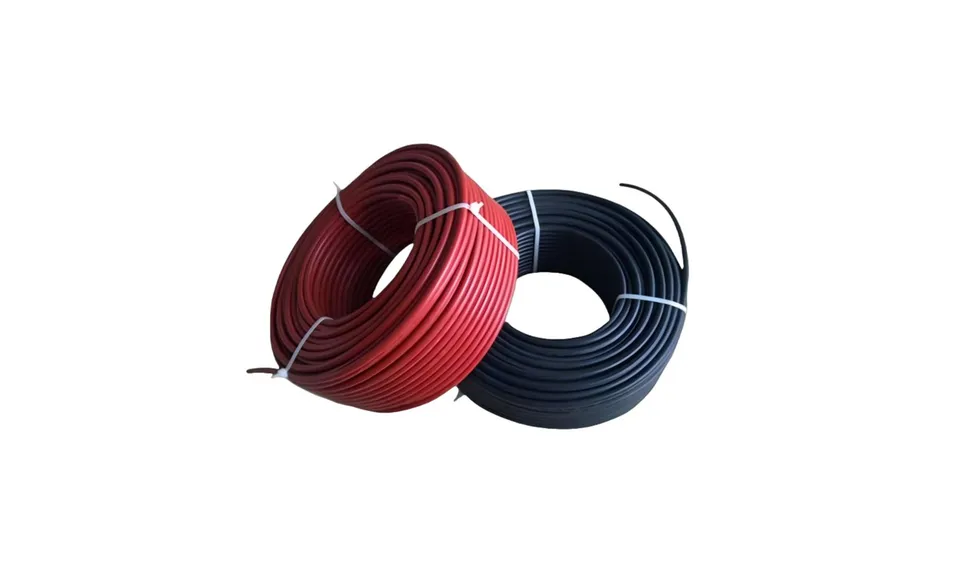

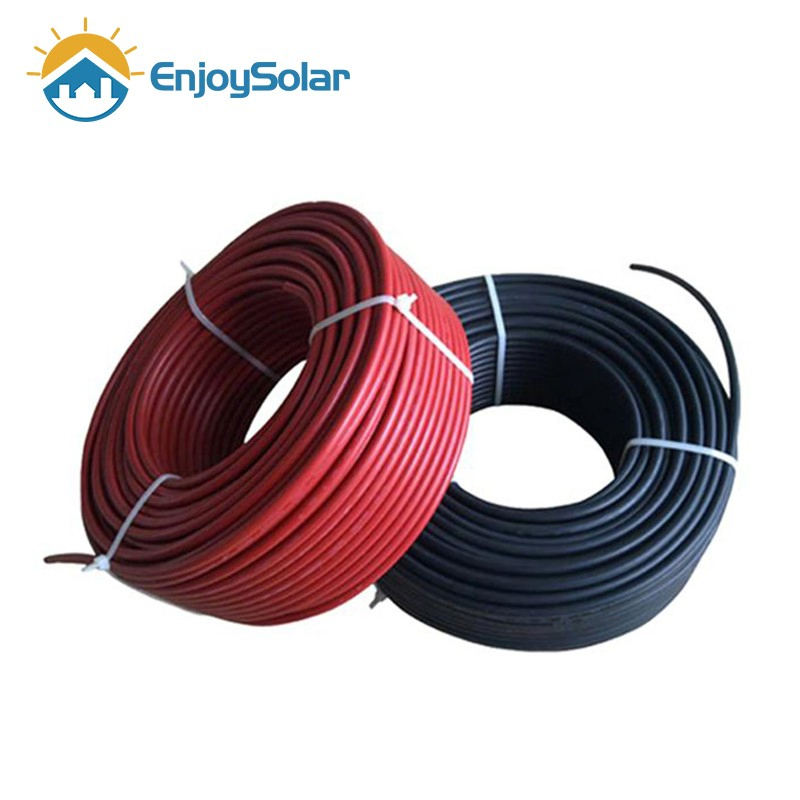

PV Cables & Mounting Kits

PV Cables: 4mm2/6mm2, TUV rated 600V/1000V DC, 25-year lifetime.

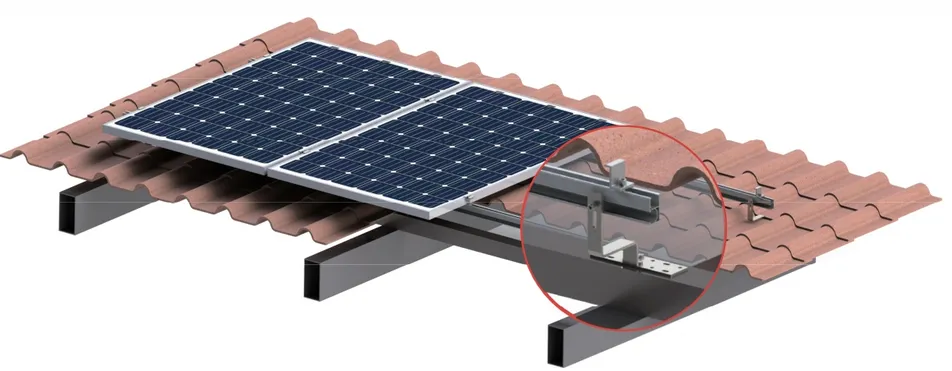

Mounting: AI6005 & SUS304 bolts, Mid/End clamps (30-40mm), L-Foot/Hanger bolts, Grounding clips included.

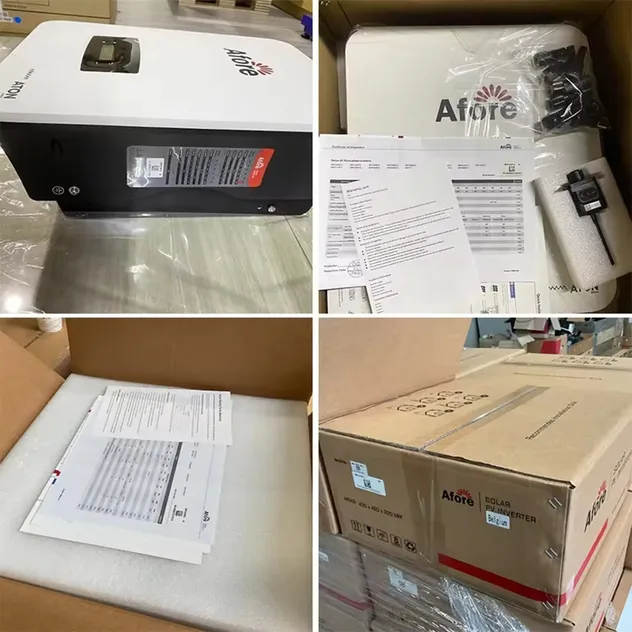

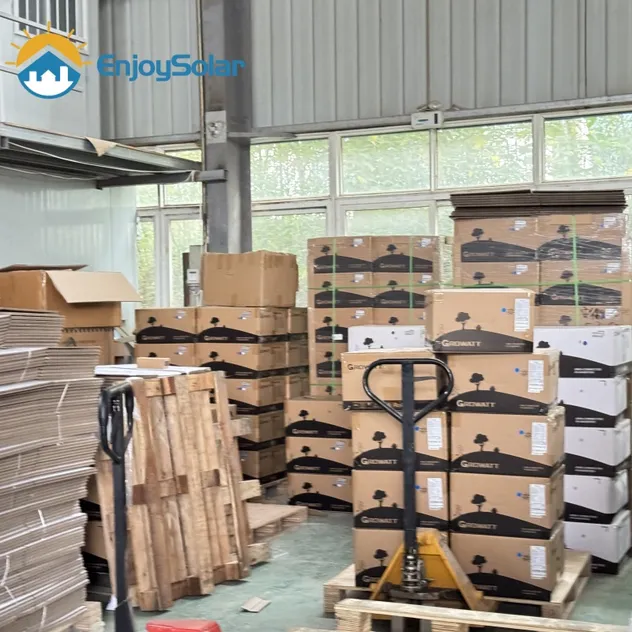

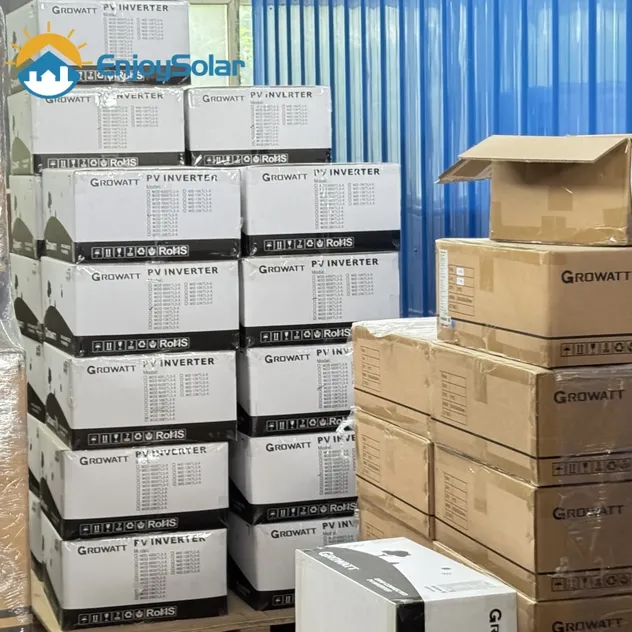

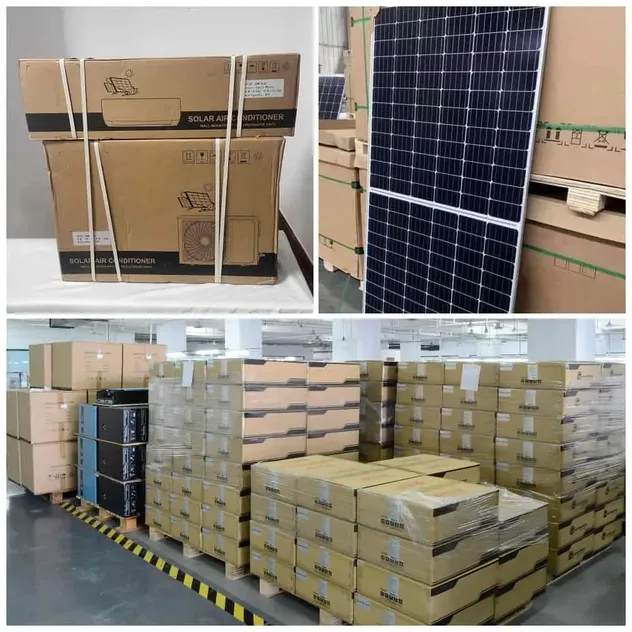

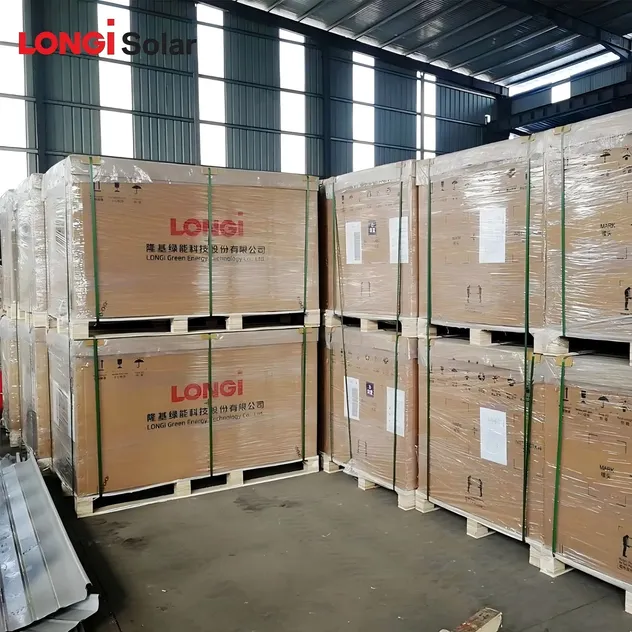

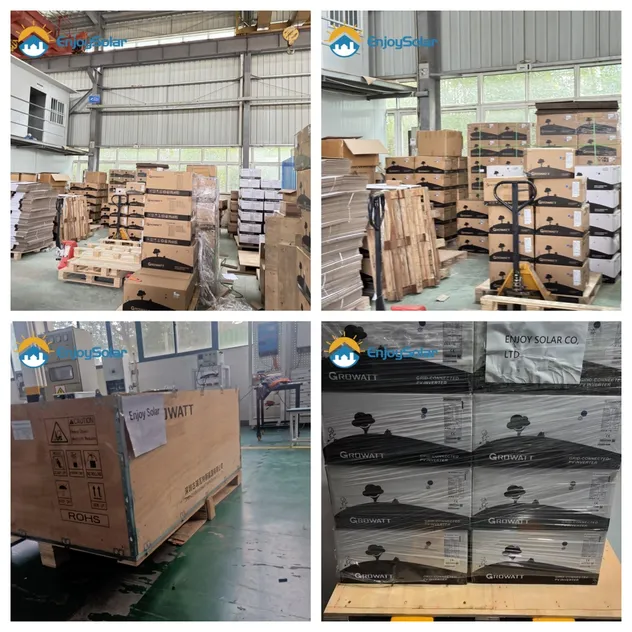

📦 Packaging & Shipping

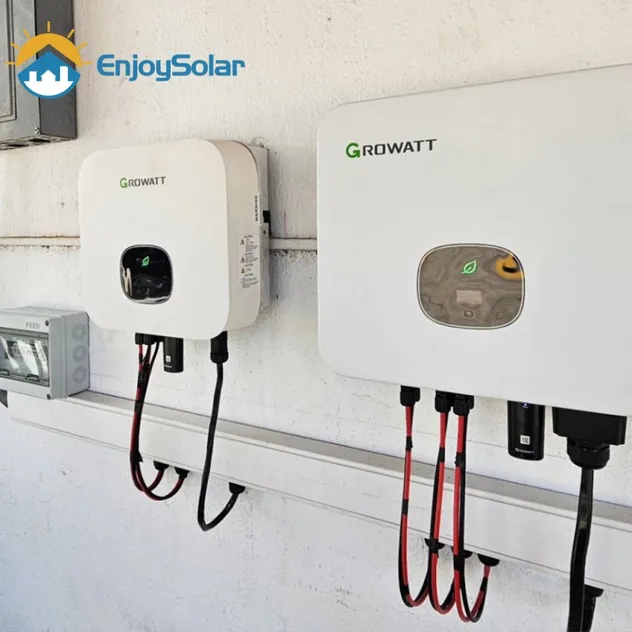

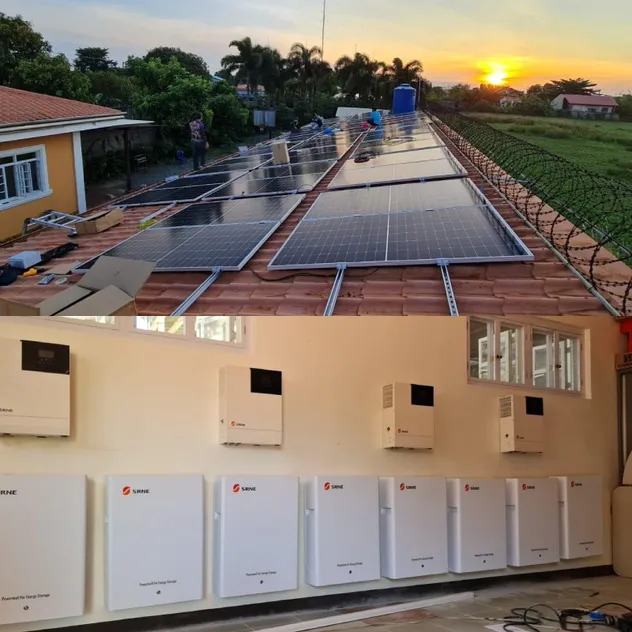

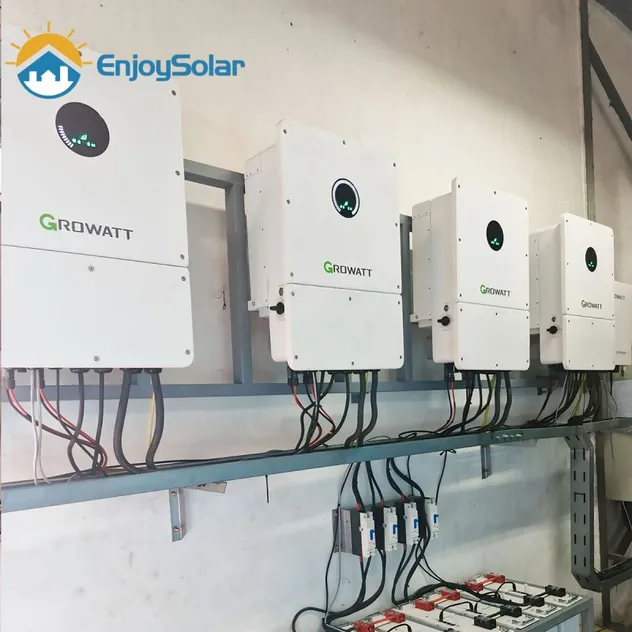

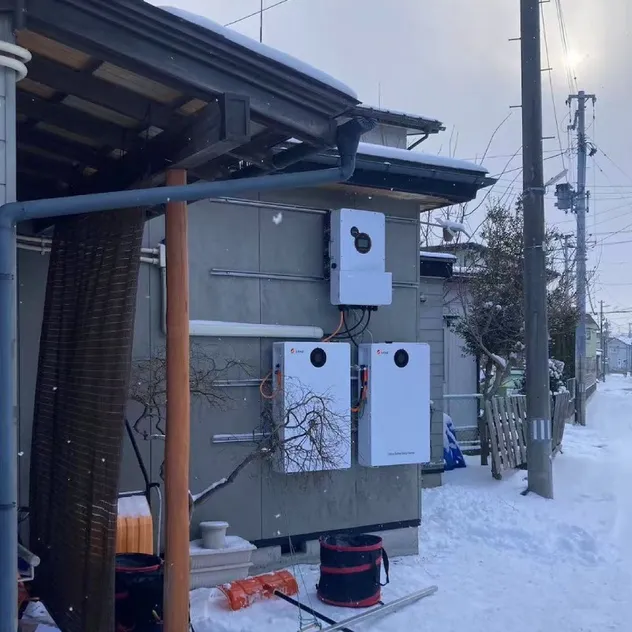

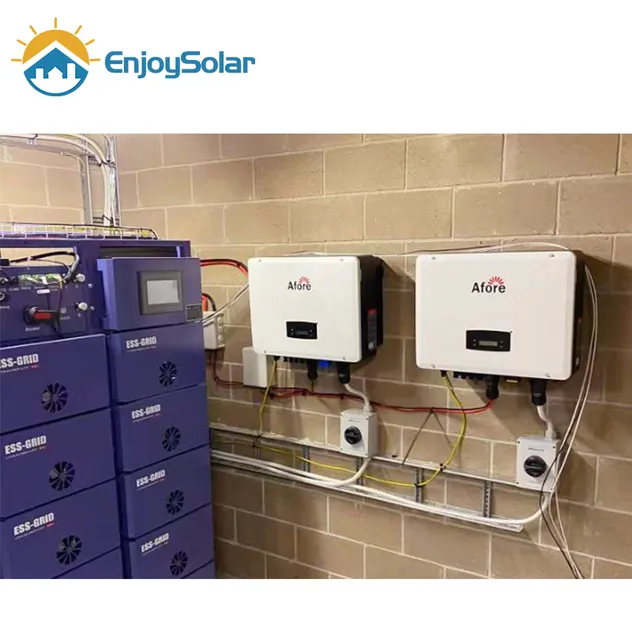

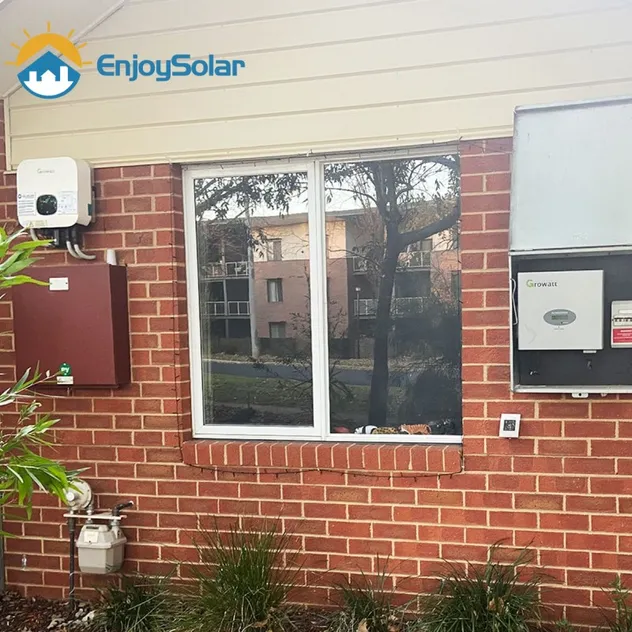

🏗️ Global Projects

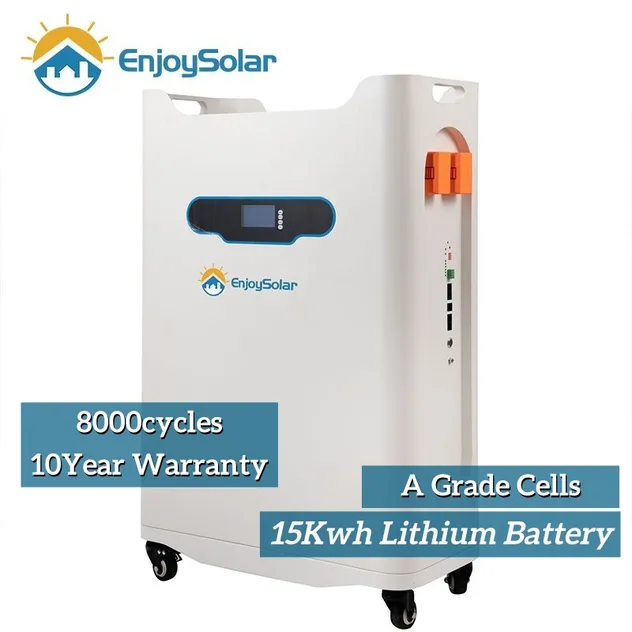

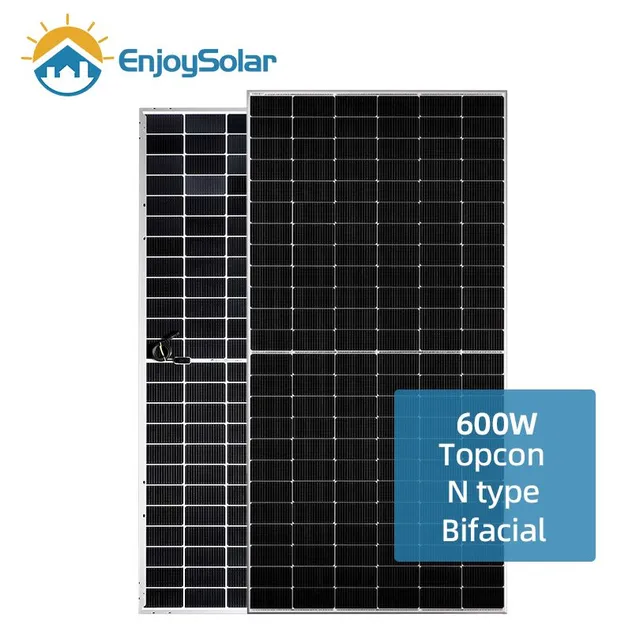

🔥 Hotsale Products

❓ Frequently Asked Questions

What are the main components of a 10kW grid-tied solar system?

A standard system includes high-efficiency solar panels (Topcon/Mono Perc), a grid-tied inverter (such as Growatt or Solis), PV cables, connectors, and a customized mounting structure.

What is the expected lifespan of this solar energy system?

The system is designed for a long-term service life of up to 30 years, with PV cables and mounting structures built to last 25+ years under normal conditions.

Can I monitor the power generation of my system remotely?

Yes, the system supports multiple monitoring methods, including WiFi, Bluetooth, RS485, and CAN, allowing you to track performance via smartphone or computer.

Does this system work for both residential and industrial applications?

Absolutely. This grid-tied solar system is versatile and can be applied to home, commercial, and industrial settings depending on the power requirements.

Is the mounting structure compatible with different roof types?

Yes, the mounting kits are customized based on the installation site, whether it is a flat roof, pitched tile roof, metal roof, or ground-mounted.

What certifications do your solar products hold?

Our products meet international quality standards and carry certifications including ISO, CE, and TUV to ensure safety and efficiency.
