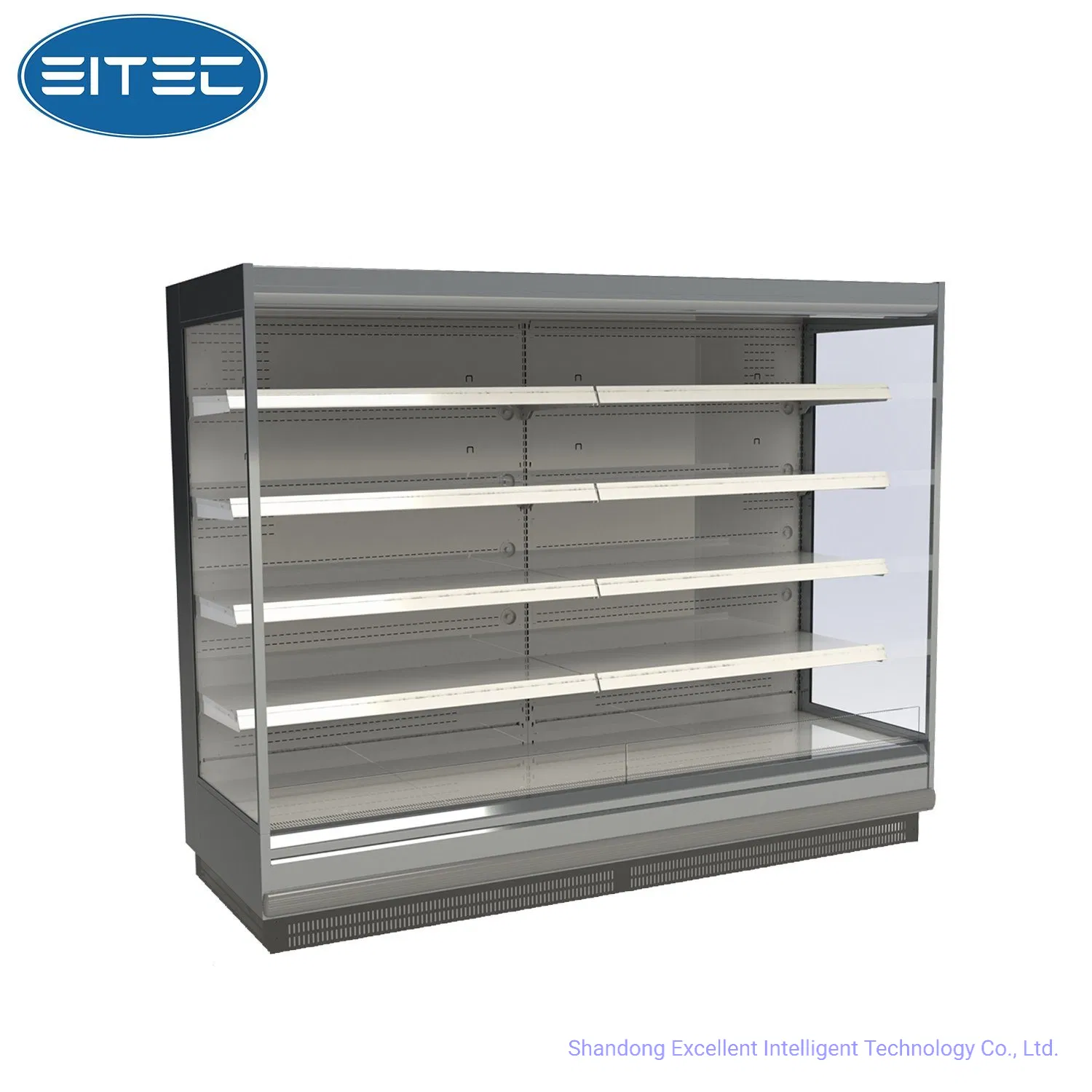

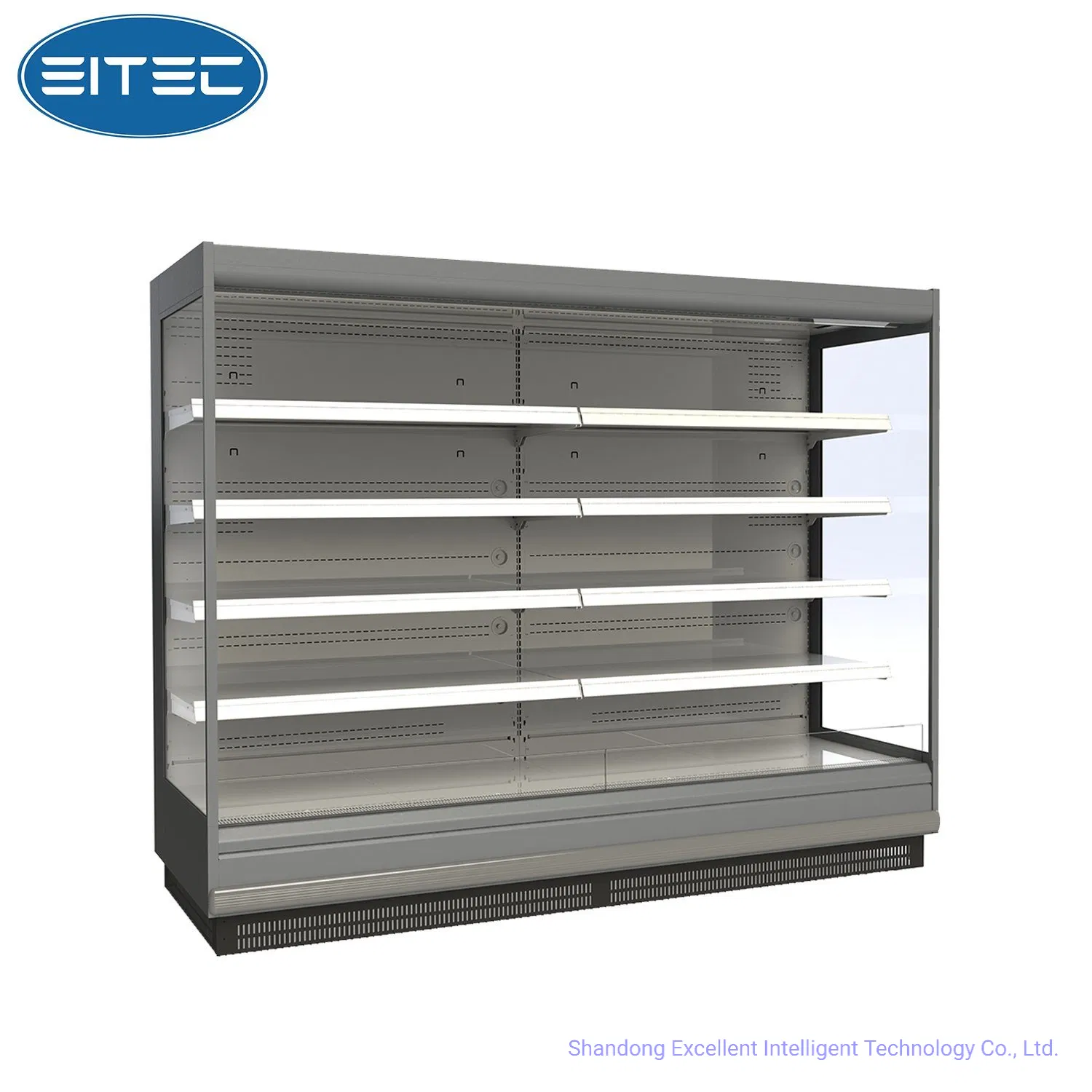

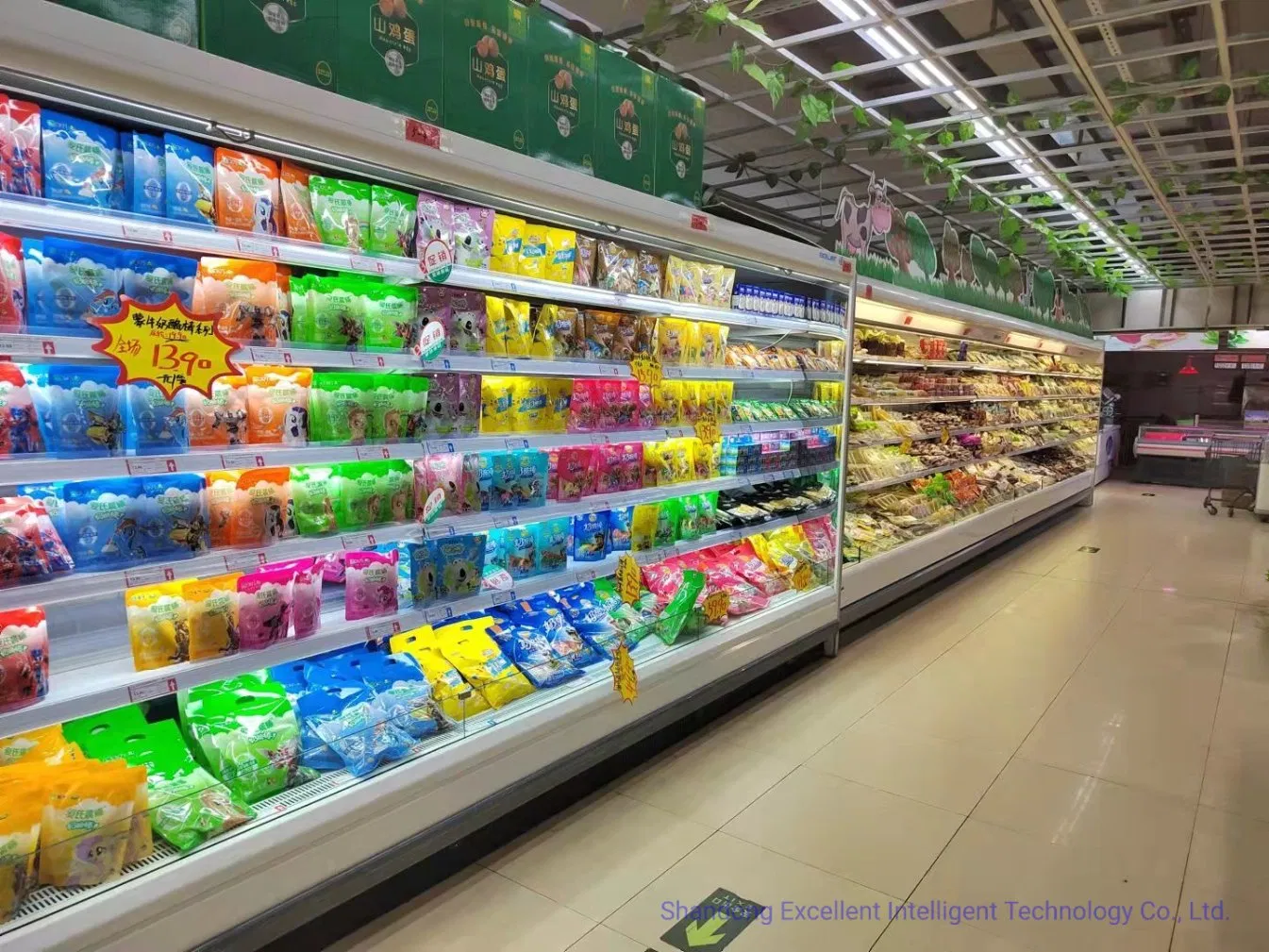

Supermarket Remote Type Multideck Display Cabinet Upright Carel Controller Commercial Refrigerator Freezer

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.DMM/DML/DMW
Capacity741-4140 L
TypeChest/Deep Freezer
Temperature ControlSmart Thermostat
Defrost TypeAuto Defrost
CertificationCE, ISO, CCC, BSCI
CompressorSecop/Emerson/SANYO
ControllerCarel
RefrigerantR404A/R744 etc
OriginChina
Product Description

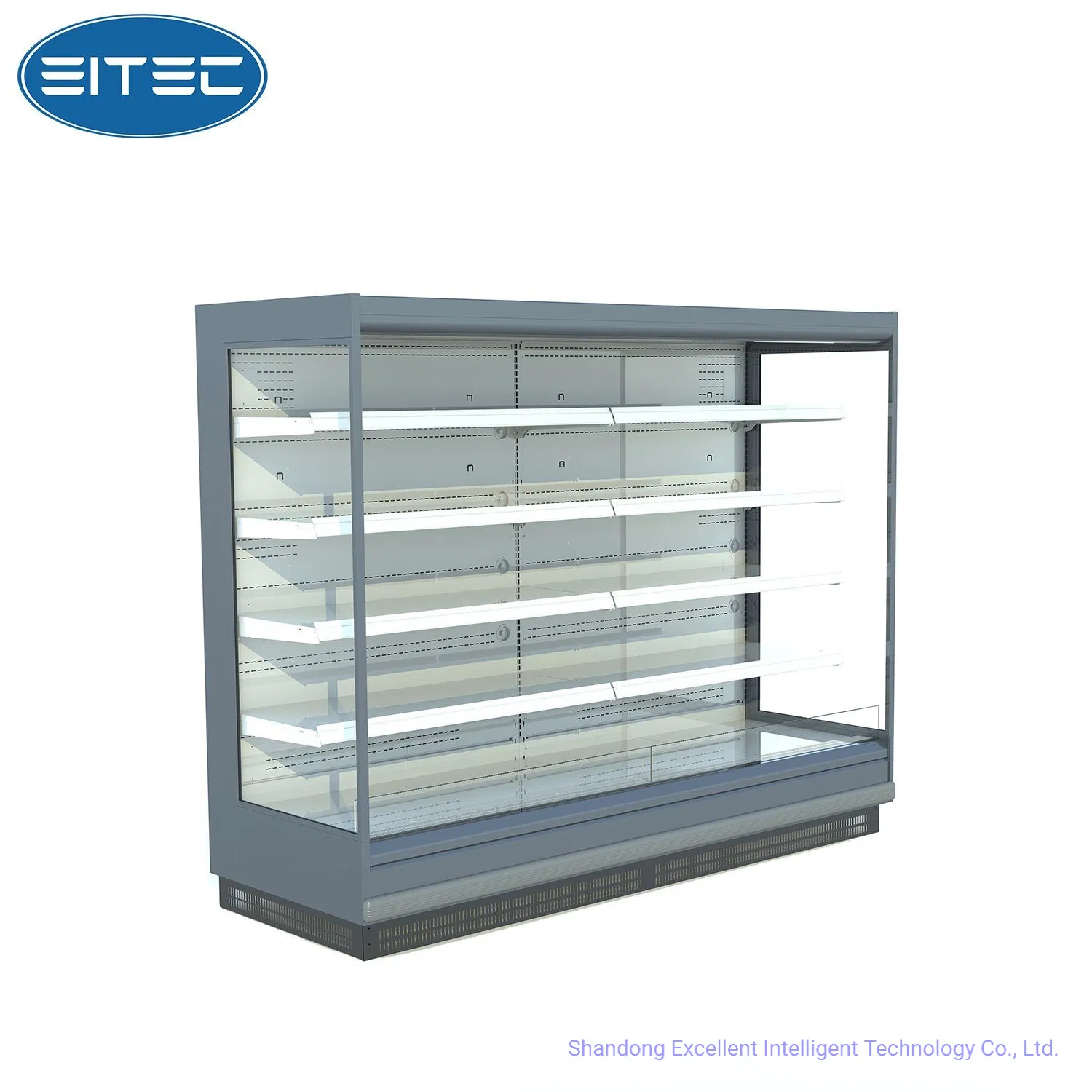

Remote Type Multideck Display Cabinet Upright Carel Controller Commercial Refrigerator

  • Adopt R404a/R744/glycol secondary refrigerant.
  • Low energy consumption and high cooling capacity achieved by increasing evaporation temperature.
  • Equipped with solenoid valve for each cabinet to limit the risk of dirt blockage and simplify installation.
  • Low front edge with huge open space to maximize food display effect.
  • Maximum shelf depth to provide more effective volume within limited cabinet space.
  • Standard LED lighting and optional energy-saving fans.
  • Top tubing design for easier construction and installation.
  • New ultra-wide high-quality night curtains (fiber cloth or PET) to reduce energy consumption.
  • Off-cycle defrost system for enhanced efficiency.

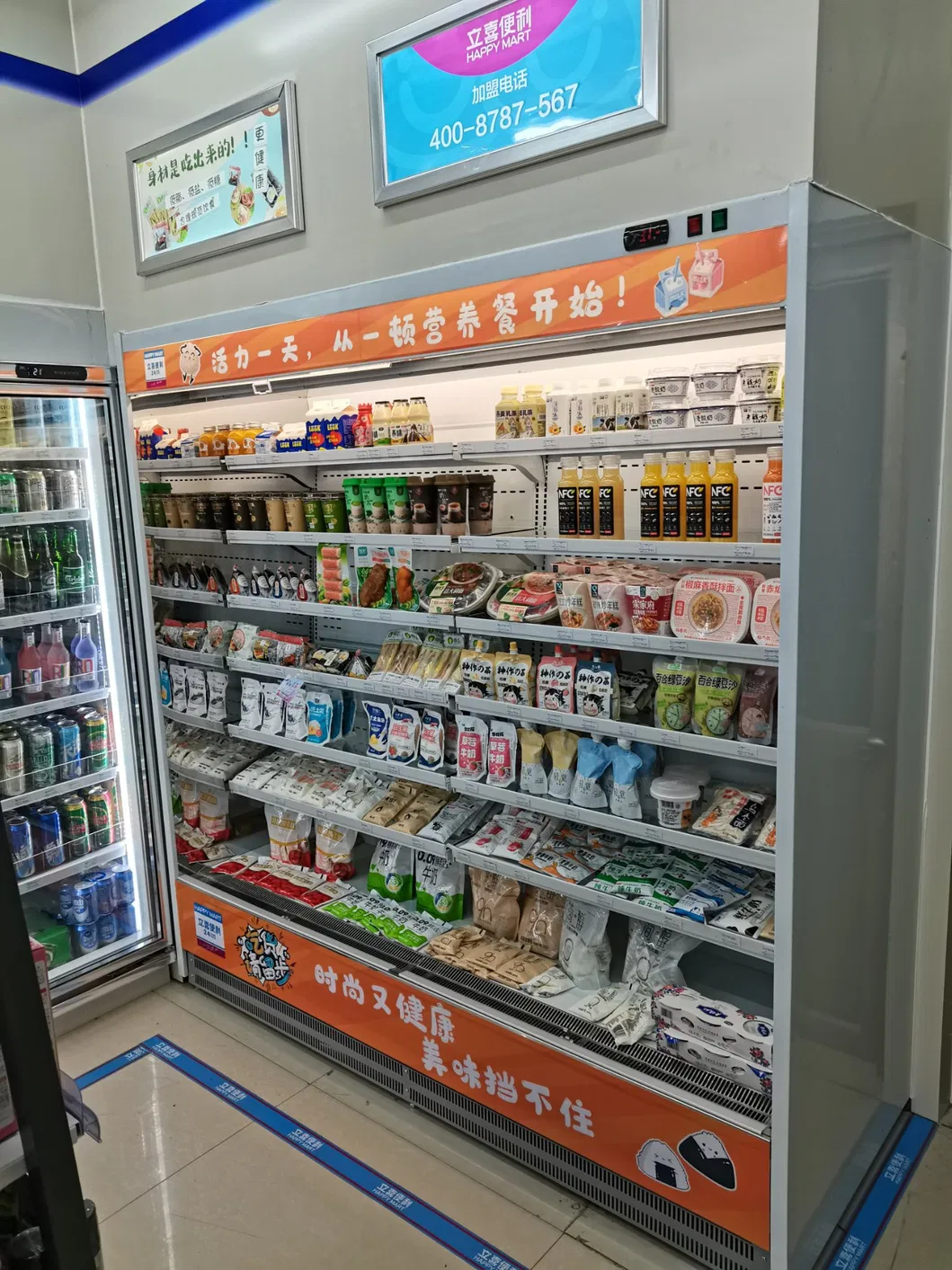

Remote Type Multideck Display Cabinet

Operation Temperature:

  • 3M1: For display and sales of seafood and fresh meat.
  • 3M2: For beverage, milk products, sausages, and other dairy products.
  • 3H1: For all kinds of fruits and vegetables.
Technical Specifications
Model Dimension(mm) Display Area(m²) Volume(L) Temperature Range(ºC)
DMW1220O31250*1097*20302.1512603M1(-1~+5ºC)
3M2(-1~+7ºC)
3H1(+1~+10ºC)
DMW1820O31875*1097*20303.221890
DMW2520O32500*1097*20304.292520
DMW3720O33750*1097*20306.443780
Model Dimension(mm) Display Area(m²) Volume(L) Temperature Range(ºC)
DMM1220O31250*900*20302.0210243M1(-1~+5ºC)
3M2(-1~+7ºC)
3H1(+1~+10ºC)
DMM1820O31875*900*20303.031536
DMM2520O32500*900*20304.042048
DMM3720O33750*900*20306.063072

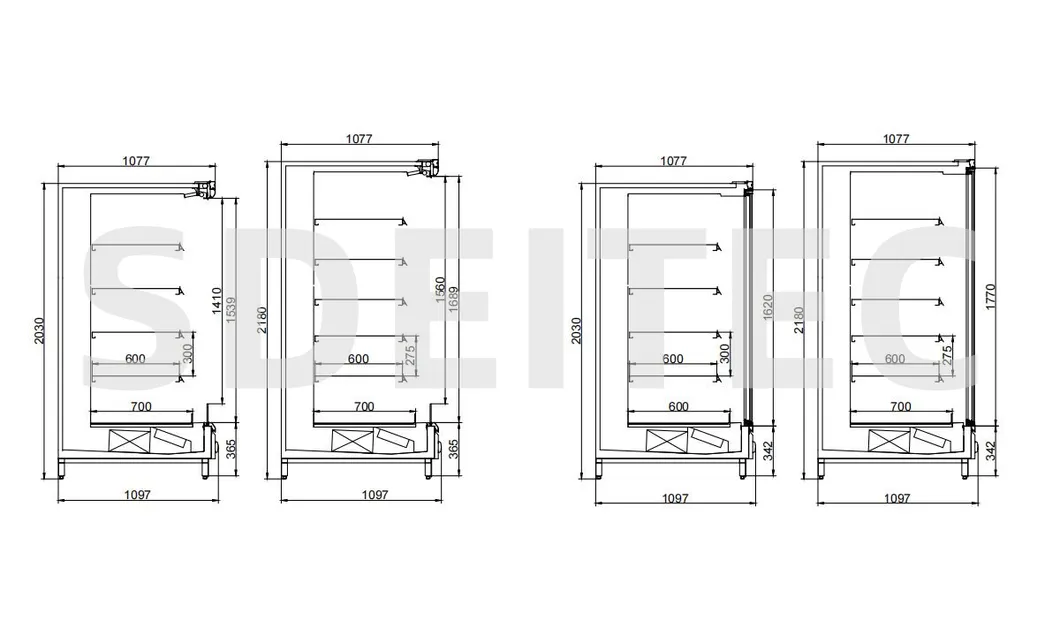

Product View 1

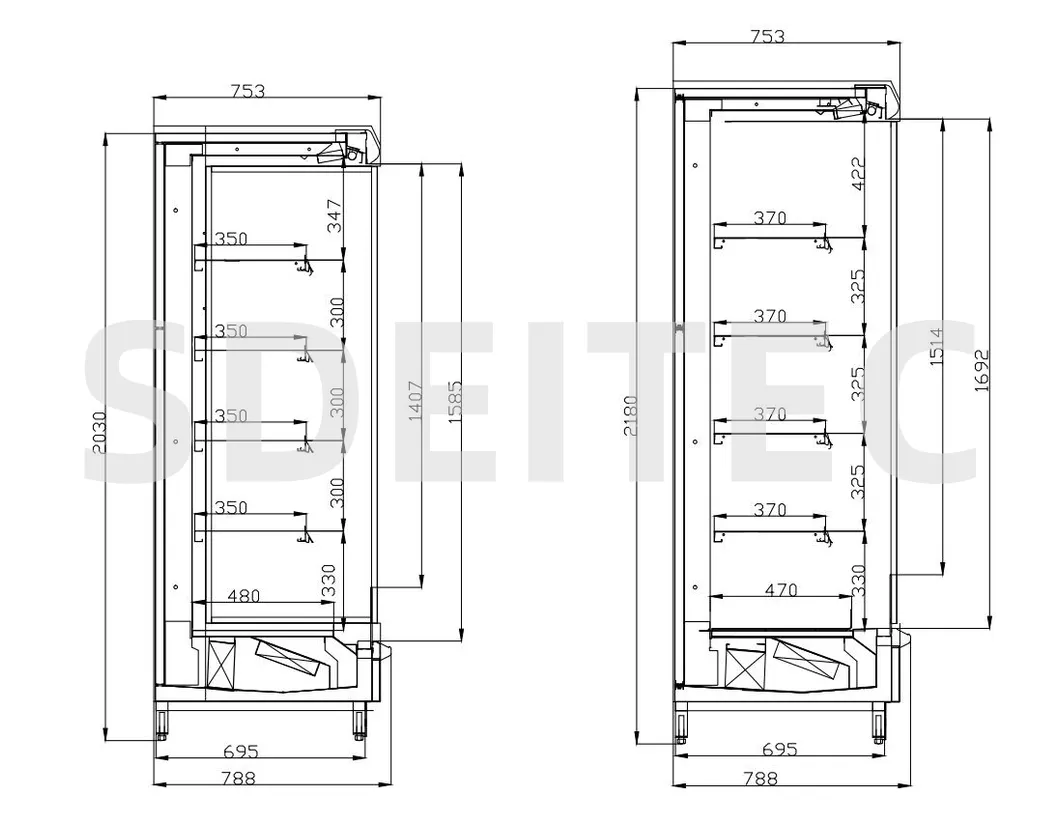

Product View 2

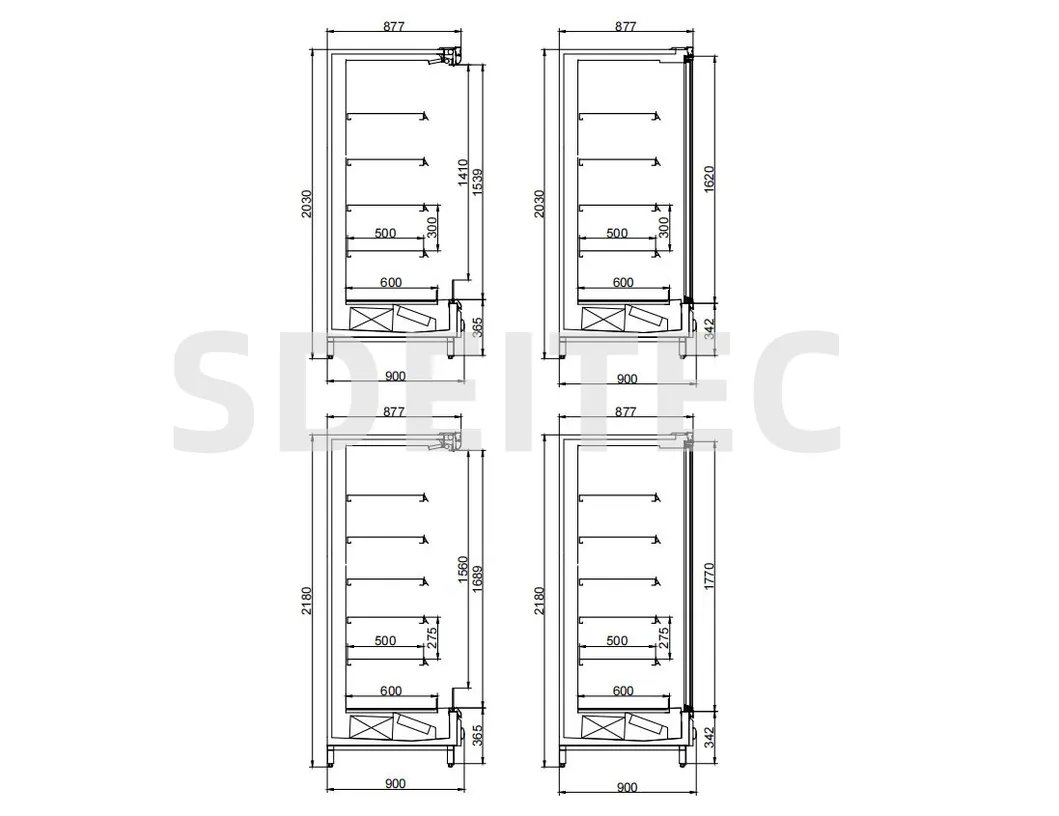

Product View 3
Detailed Photos

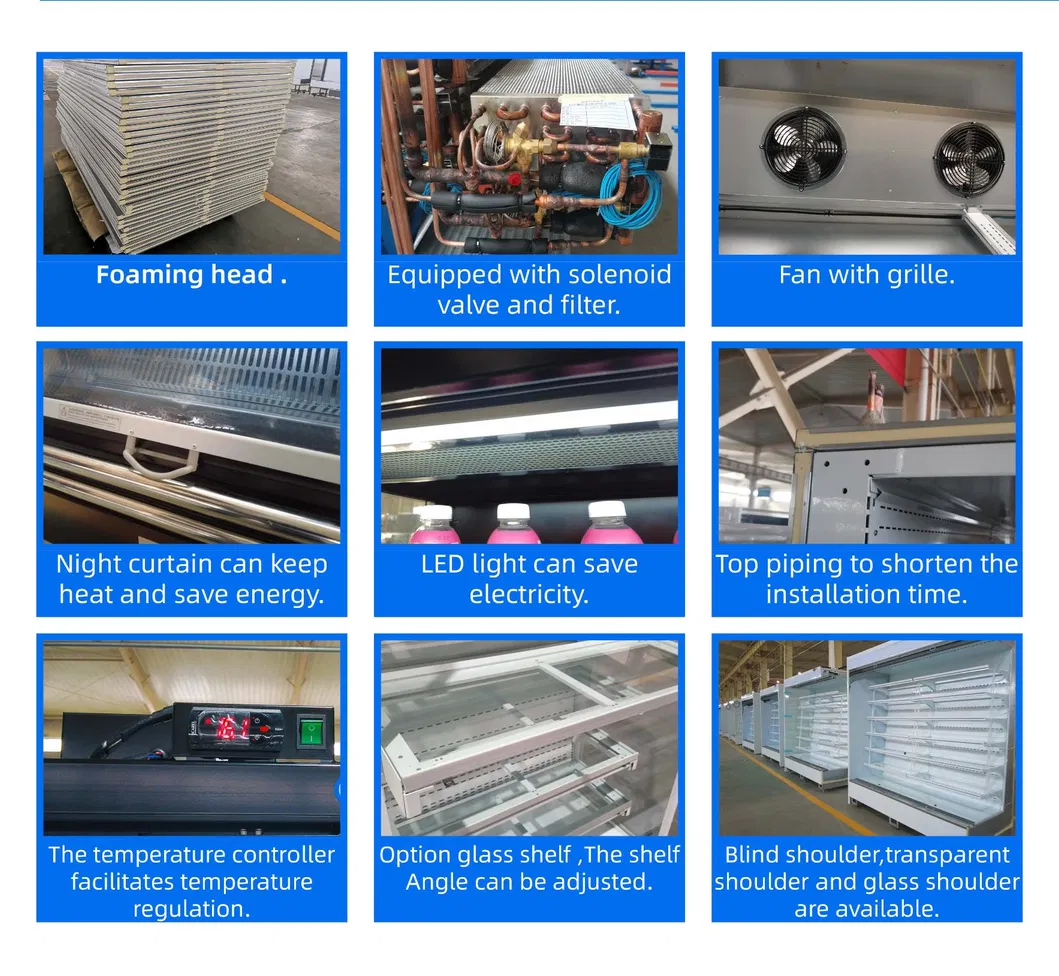

Details 1

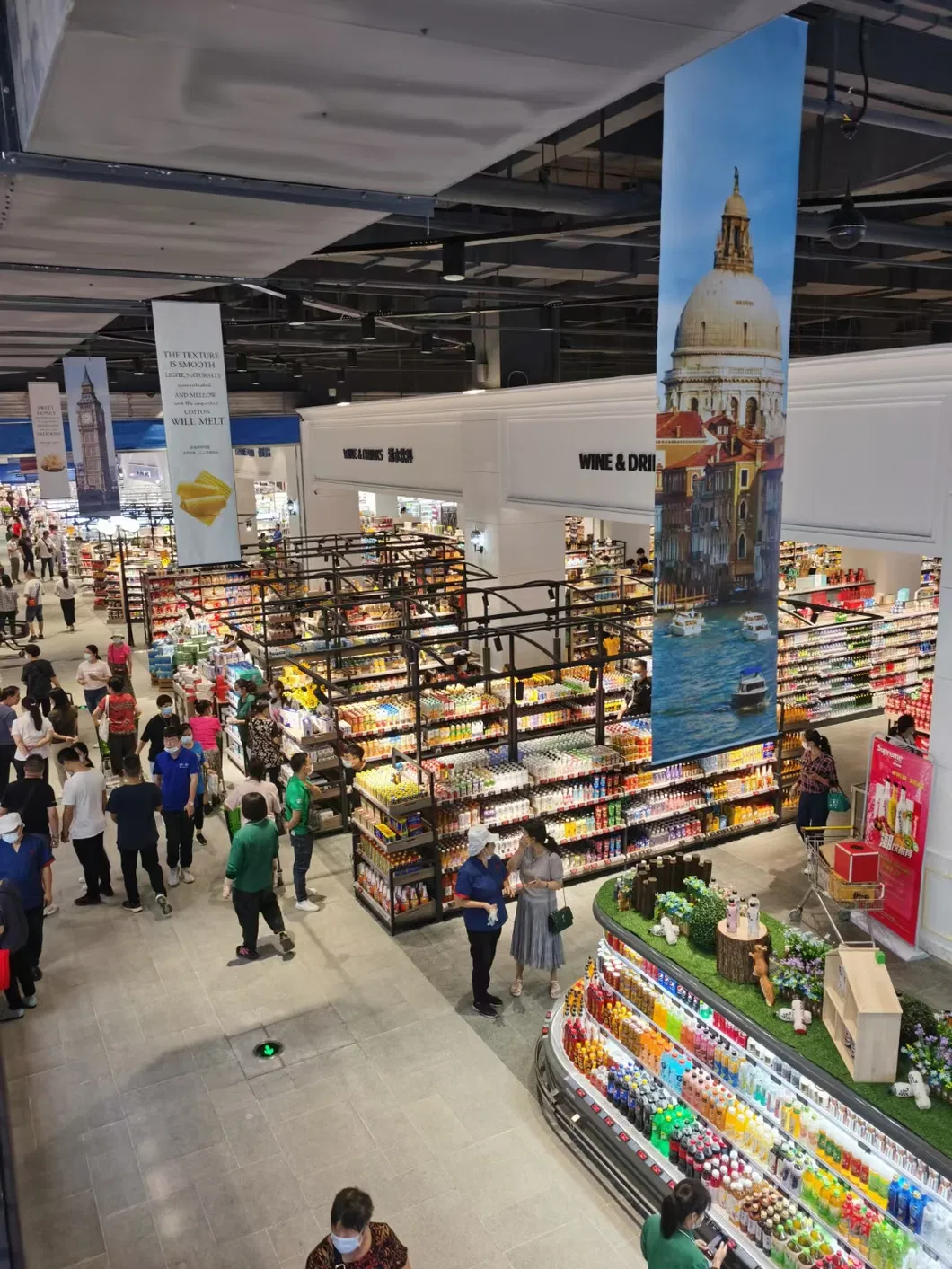

Details 2

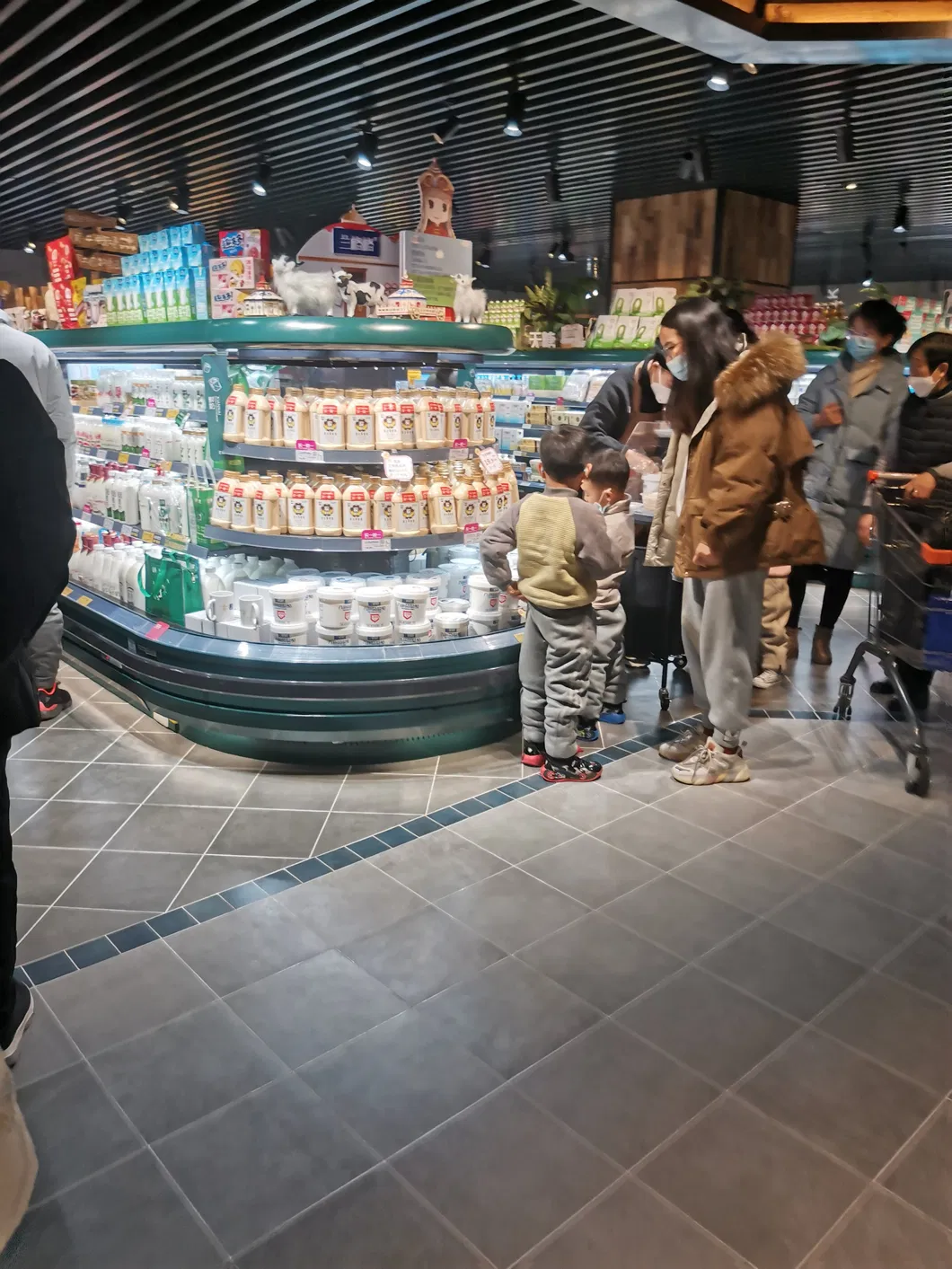

Details 3
Packaging & Shipping

Package: Standard export wooden case for commercial refrigerators and display showcases.

Port: Qingdao

Packaging Details
Company Profile
Factory Overview

We are specialized in the development, production, installation, and trade of professional refrigeration equipment. Our product range includes refrigerated display cabinets for hypermarkets, supermarkets, and convenience stores, as well as conventional cold chain storage solutions and energy-saving refrigeration equipment.

The company has achieved ISO9001, ISO14001, and ISO45001 system certifications. Our products have been exported to over 30 countries and have received high praise for quality and efficiency.

Production Line
Testing Lab
Warehouse
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
We accept 1 unit as a trial order to help you test our quality.
What are the available payment methods?
We accept LC, T/T (50% in advance and the balance 50% before delivery).
What is the typical delivery time for orders?
It usually takes about 10-25 working days after receipt of your deposit. Please contact us to check current stock availability.
Do you offer customization or OEM services?
Yes, ODM/OEM business partnerships are warmly welcomed. Please contact us with your specific requirements.
What is the warranty policy for your equipment?
Our warranty period is 12 months. During this time, our technicians are available 24/7 online to help solve problems and provide necessary spare parts.
Where is your facility located for a visit?
Our factory and office are located in Shandong Province. You can fly to the nearest international airport, and we will arrange to pick you up.
