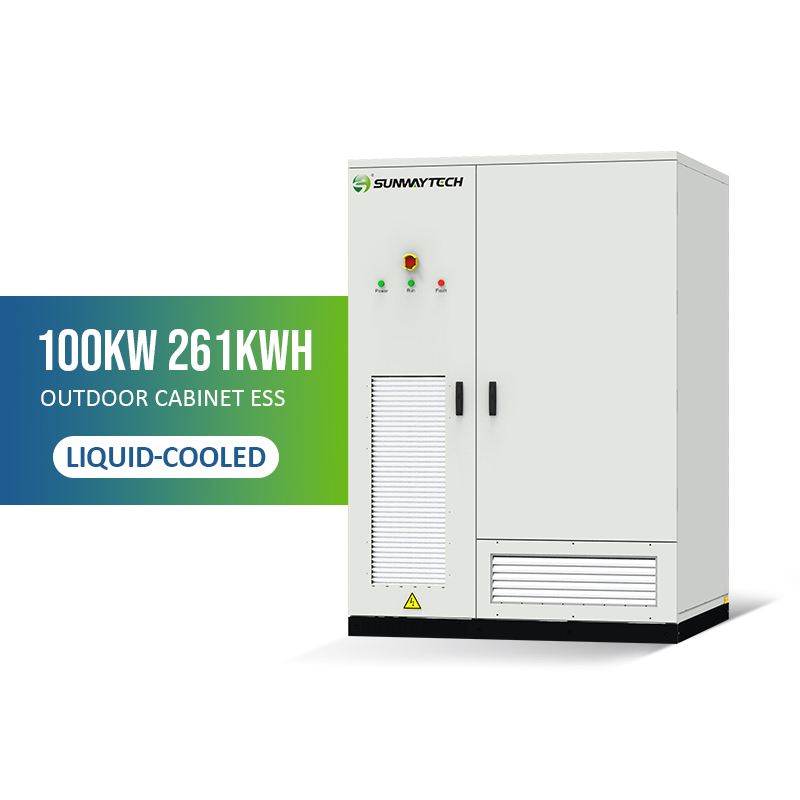

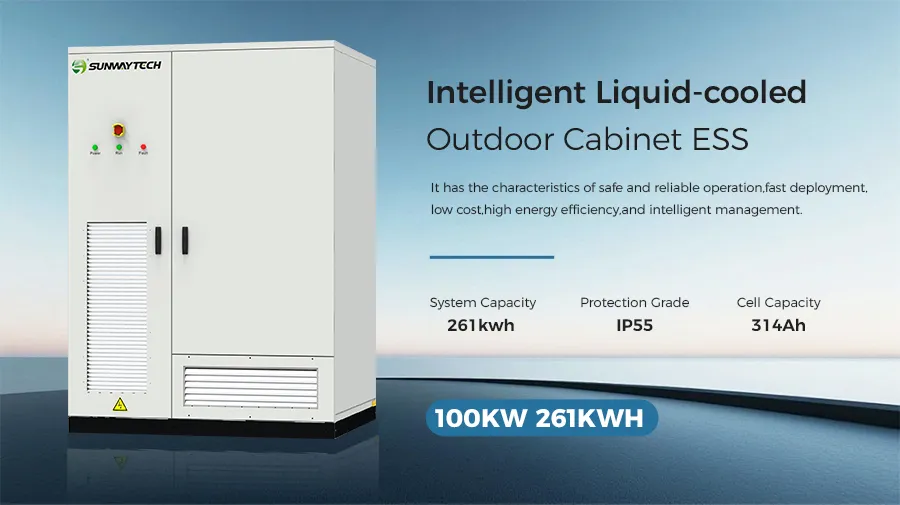

Intelligent Liquid-cooled Outdoor Cabinet ESS (100KW 261KWH)
This intelligent energy storage system can be configured according to specific requirements to provide an exclusive energy solution. It is designed to handle various industrial and commercial needs with high efficiency.
Key Remarks:

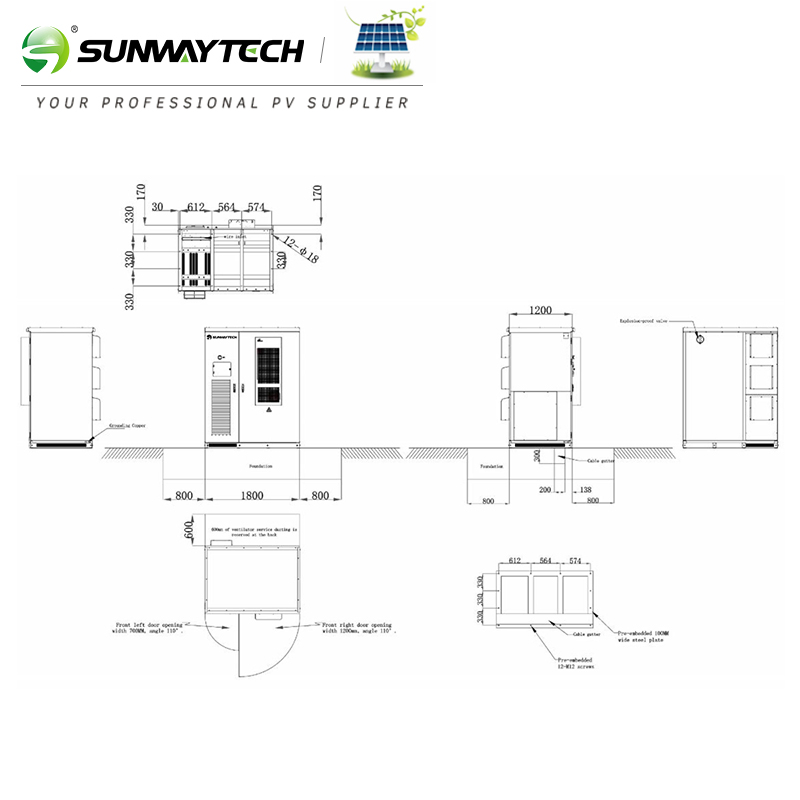

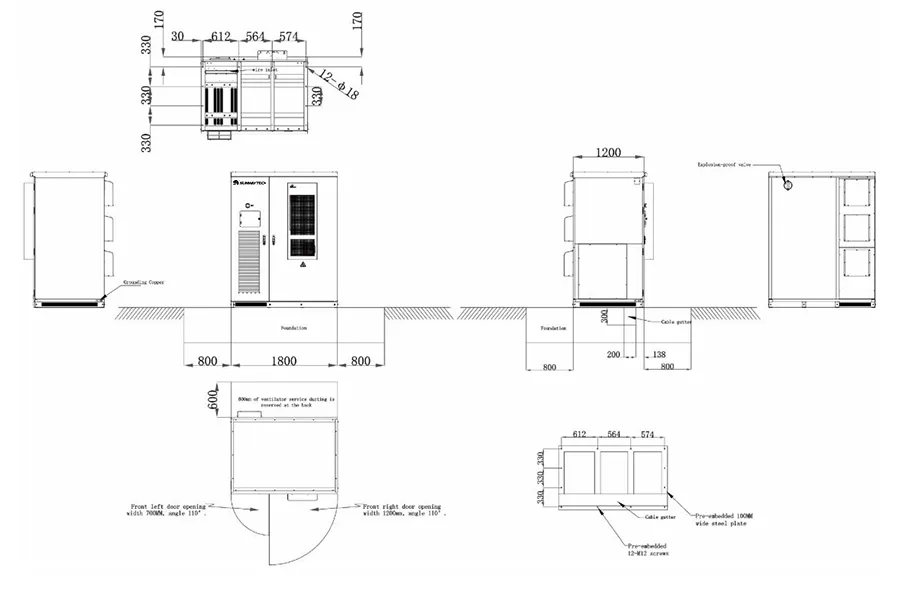

1. Mounting structures are available for different roof materials.
2. The entire system can be customized as per specific requests.
| Battery Parameters | |
|---|---|
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Cell Capacity | 314Ah |
| Photovoltaic Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V (MPPT) |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 125kw |
| Rated AC Voltage | 400V, 3W+N+PE |
| Cooling Mode | Intelligent liquid-cooled |
| Relative Humidity | 0~95% (No condensation) |

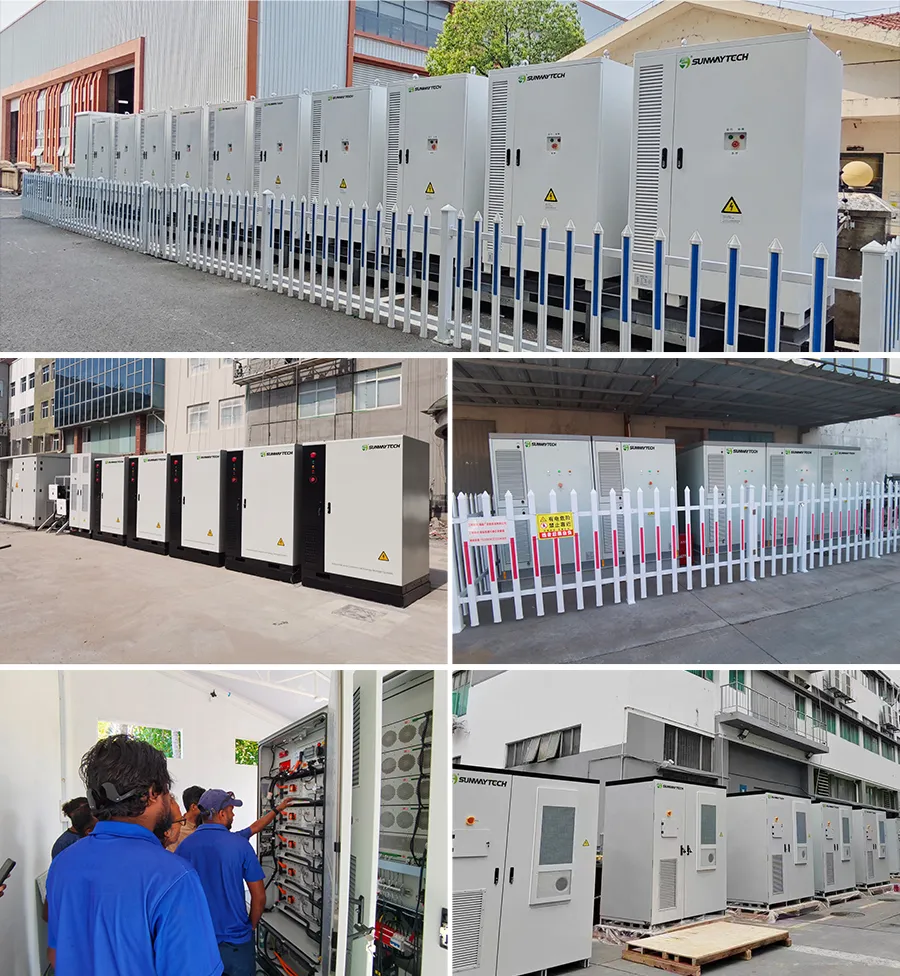

Commercial and Industrial Energy Storage:
Ideal for Households, Schools, factories, gas stations, and other commercial buildings with high energy demands. This system maximizes energy use and reduces grid power dependency through solar PV and battery storage. It helps facilities save on electricity bills and reduce environmental impact.

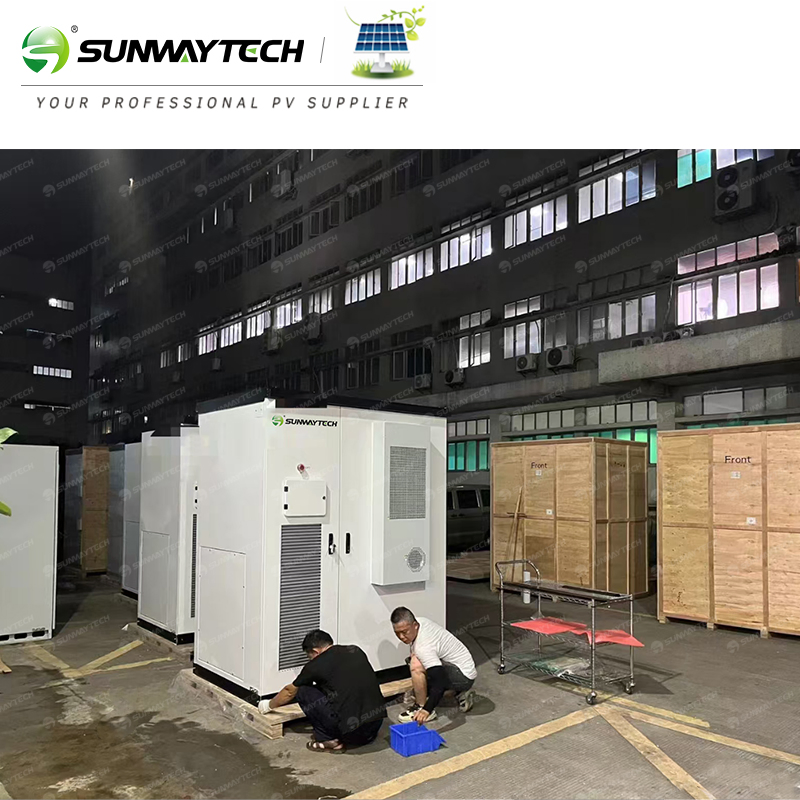

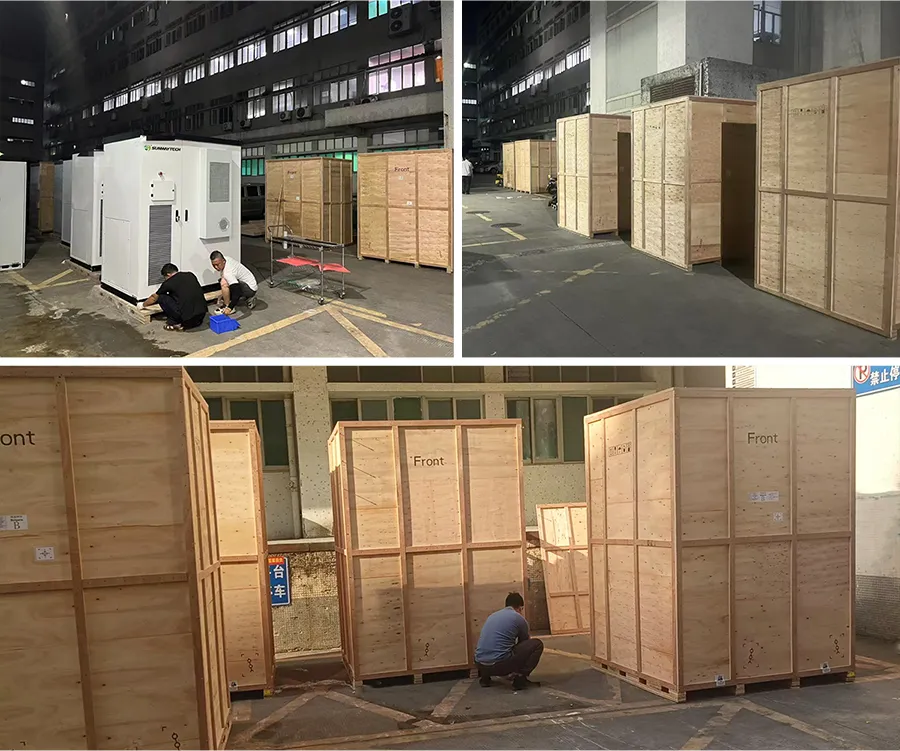

Packaging Advantages:
Wooden box packaging enables high-strength stacking and cost-effectiveness. The design allows for front loading/unloading and easy assembly at the site. Kits can be transported flat to maximize space efficiency.
