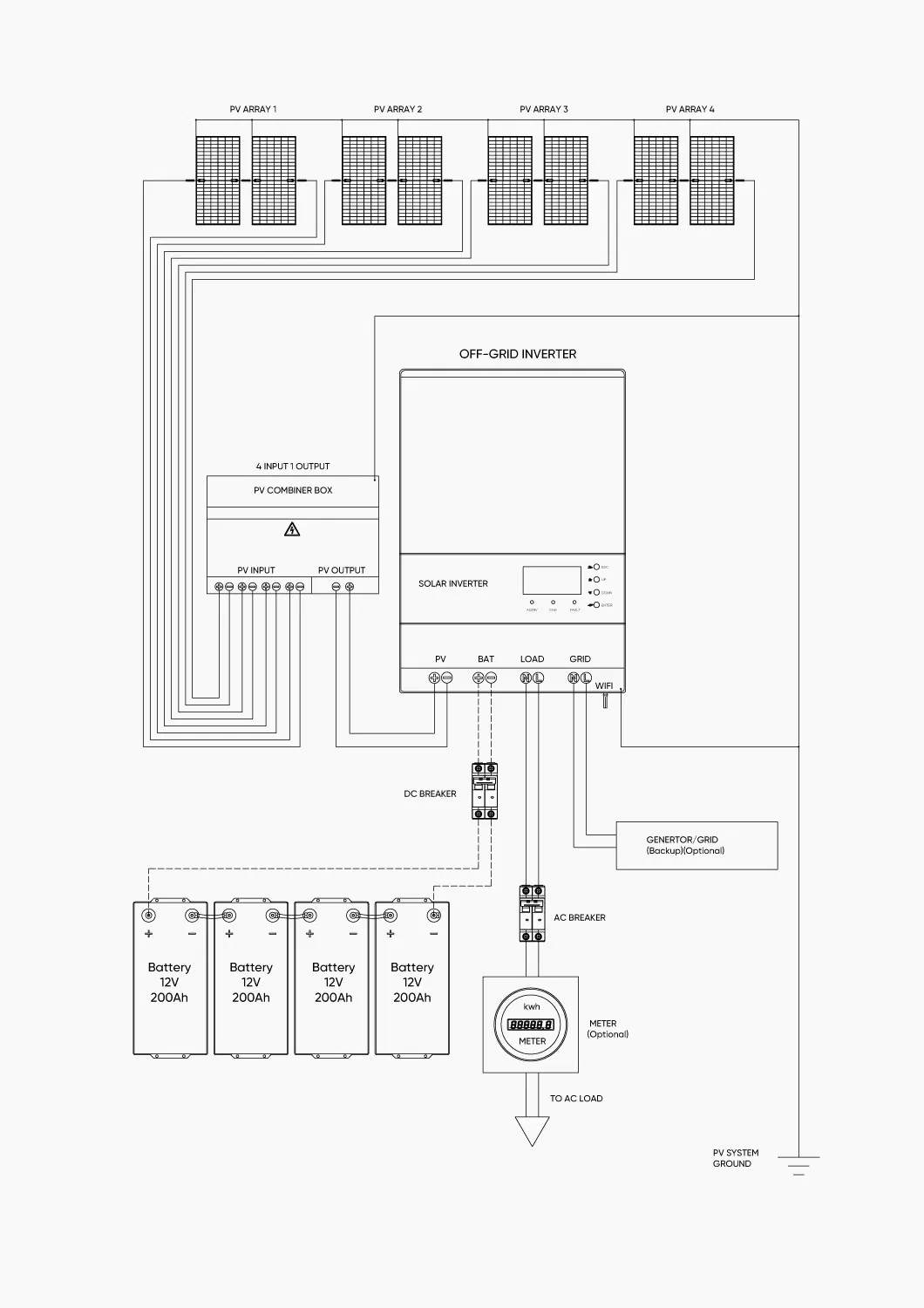

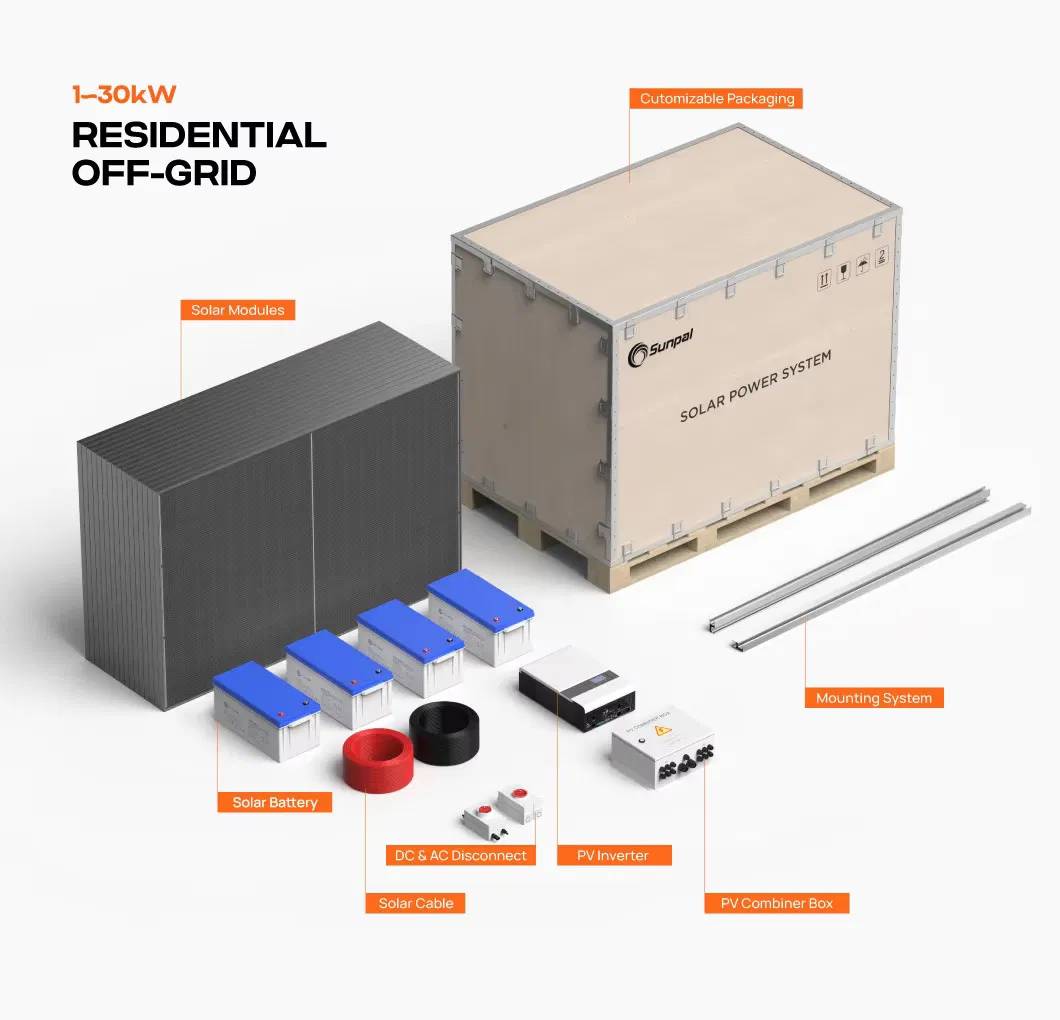

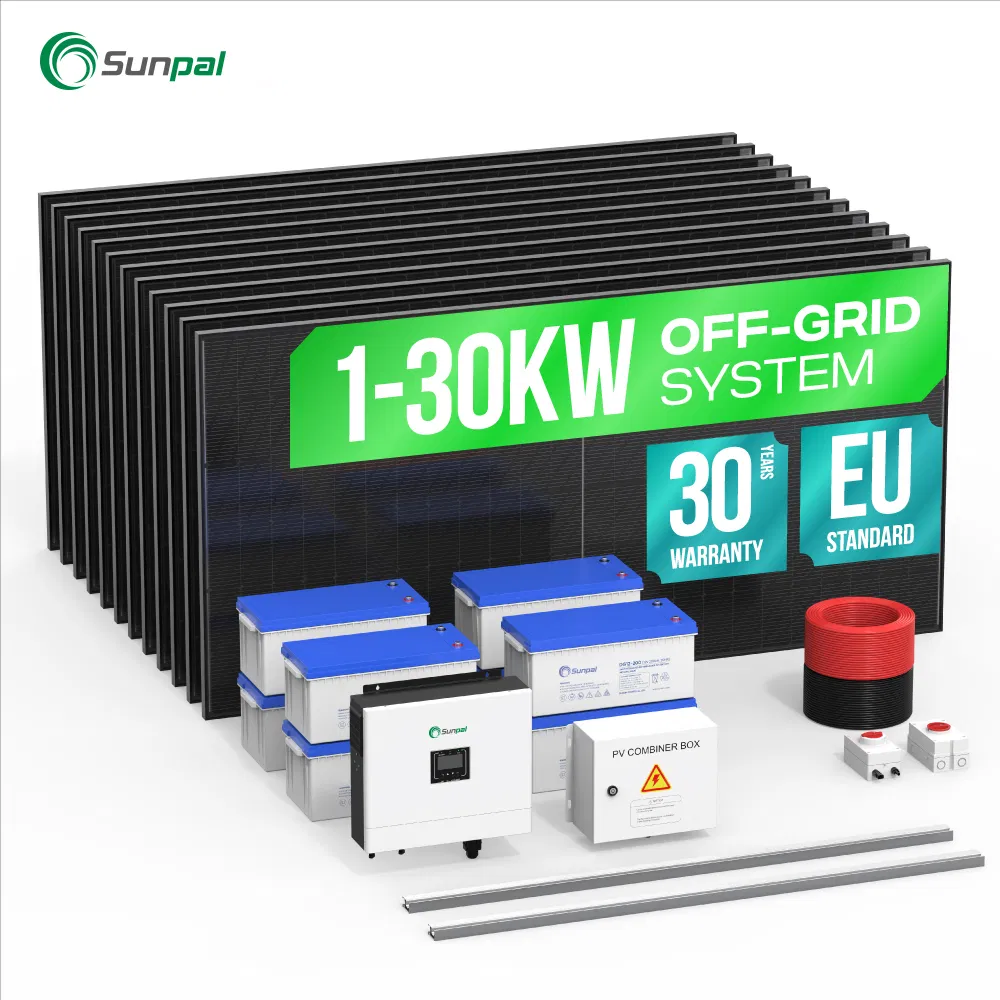

| Model | SE-3KW-OFF | SE-5KW-OFF | SE-10KW-OFF |
|---|---|---|---|
| Half Cut Mono 550W Panels | 6 pcs | 8 pcs | 16 pcs |
| PV Combiner Box | 1 pc | 1 pc | 1 pc |
| Off Grid Solar Inverter | 1 pc | 1 pc | 1 pc |

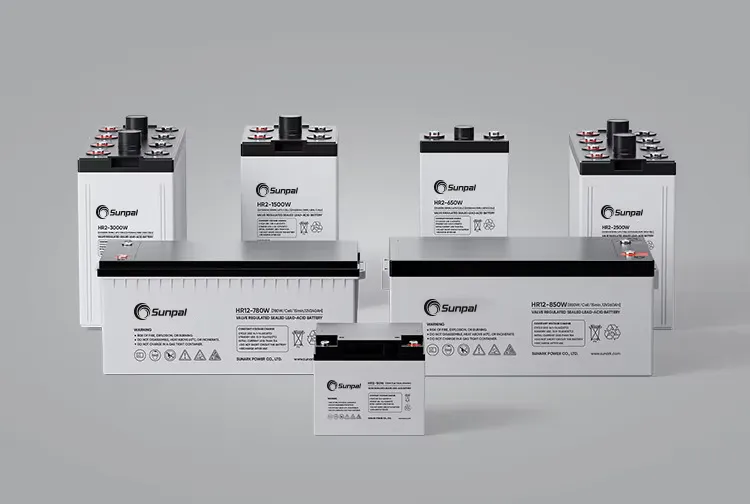

| Gel Batteries 12V 200Ah | 2 pcs | 4 pcs | 4 pcs |
| PV Cable 4mm2 | 100m | 100m | 200m |
| MC4 Connector | 20 pcs | 20 pcs | 20 pcs |
| Roof Mounting System | 1 set | 1 set | 1 set |
| Model | SE-20KW3-OFF | SE-30KW3-OFF | SE-50KW3-OFF |
|---|---|---|---|
| Half Cut Mono 550W Panels | 32 pcs | 48 pcs | 80 pcs |
| Off Grid Solar Inverter | 1 pc | 1 pc | 1 pc |
| Gel Batteries 12V 200Ah | 8 pcs | 12 pcs | 20 pcs |
| PV Cable 4mm2 | 300m | 500m | 1000m |
| MC4 Connector | 30 pcs | 50 pcs | 100 pcs |

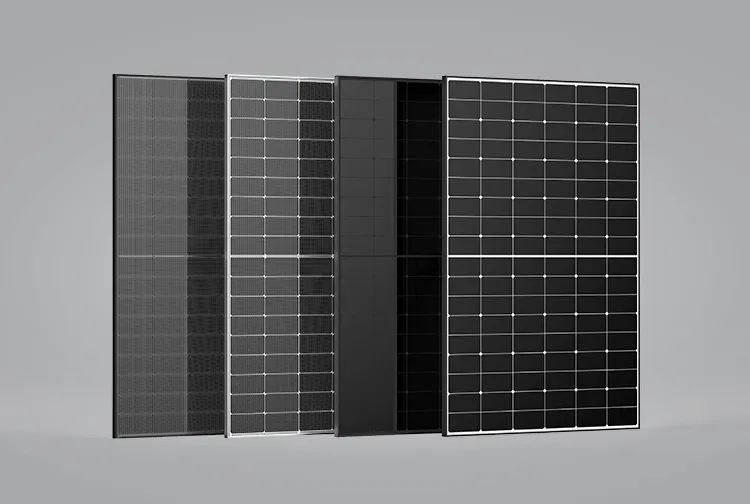

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

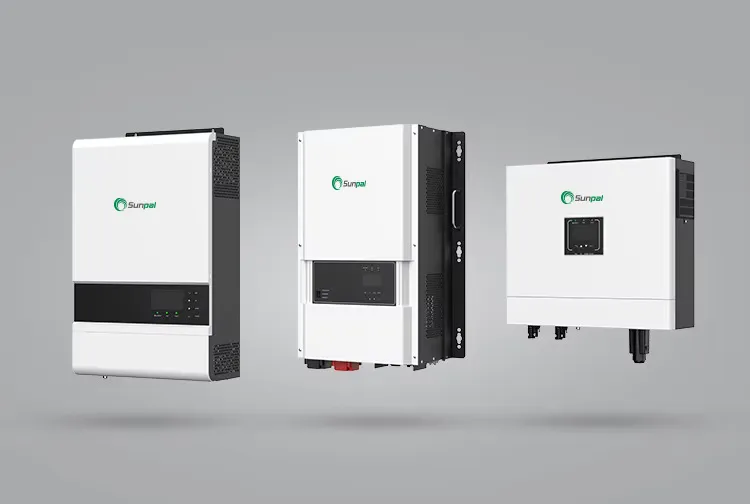

Support both single phase and three phase
Transformer isolation design
Different working mode
Charging/discharging current of 240A
Max.6pcs parallel
DC couple and AC couple to retrofit existing solar system
8-10 years design life. Up to 1500+ cycle life
Ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system
Protect battery cells all the way
Lithium iron phosphate battery cell available

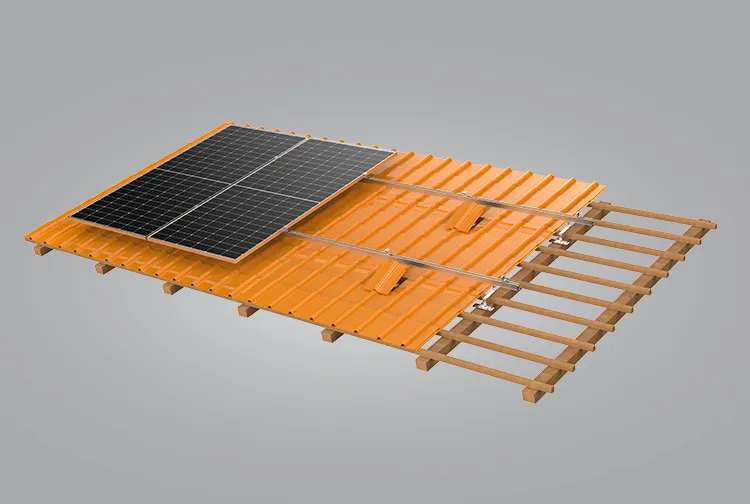

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

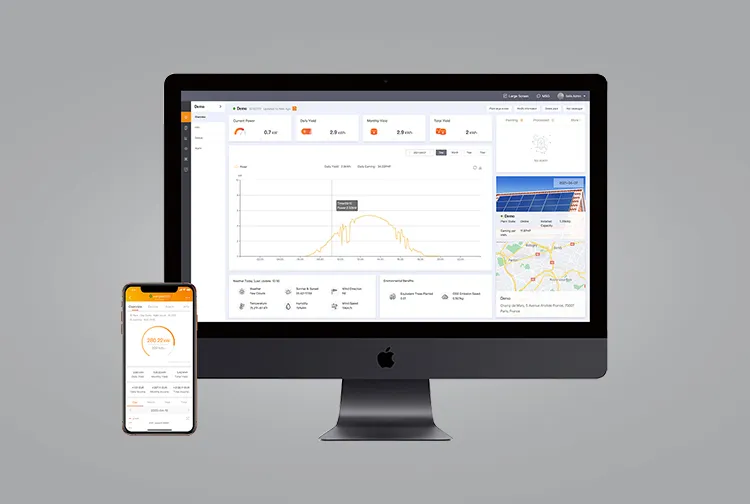

Open station supports one-click installation and registration
Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
