Automatic Solar Street Lighting Controller Precision Solution for Green Energy-Saving Lighting
Microwave sensor default setting: Someone brightness 100%, microwave sensitivity 75%, hold time 5 minutes, start illumination 50 LUX, continuous brightness 30%, the duration of 30 minutes.

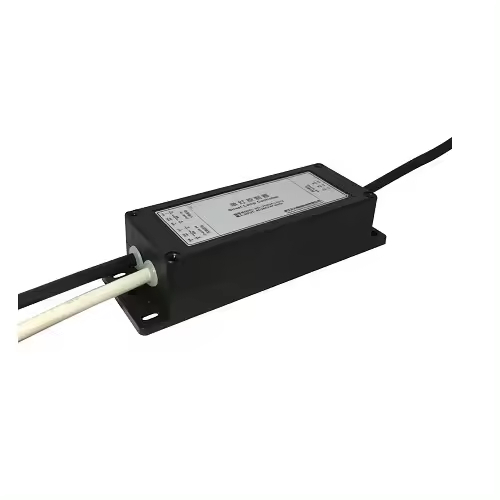

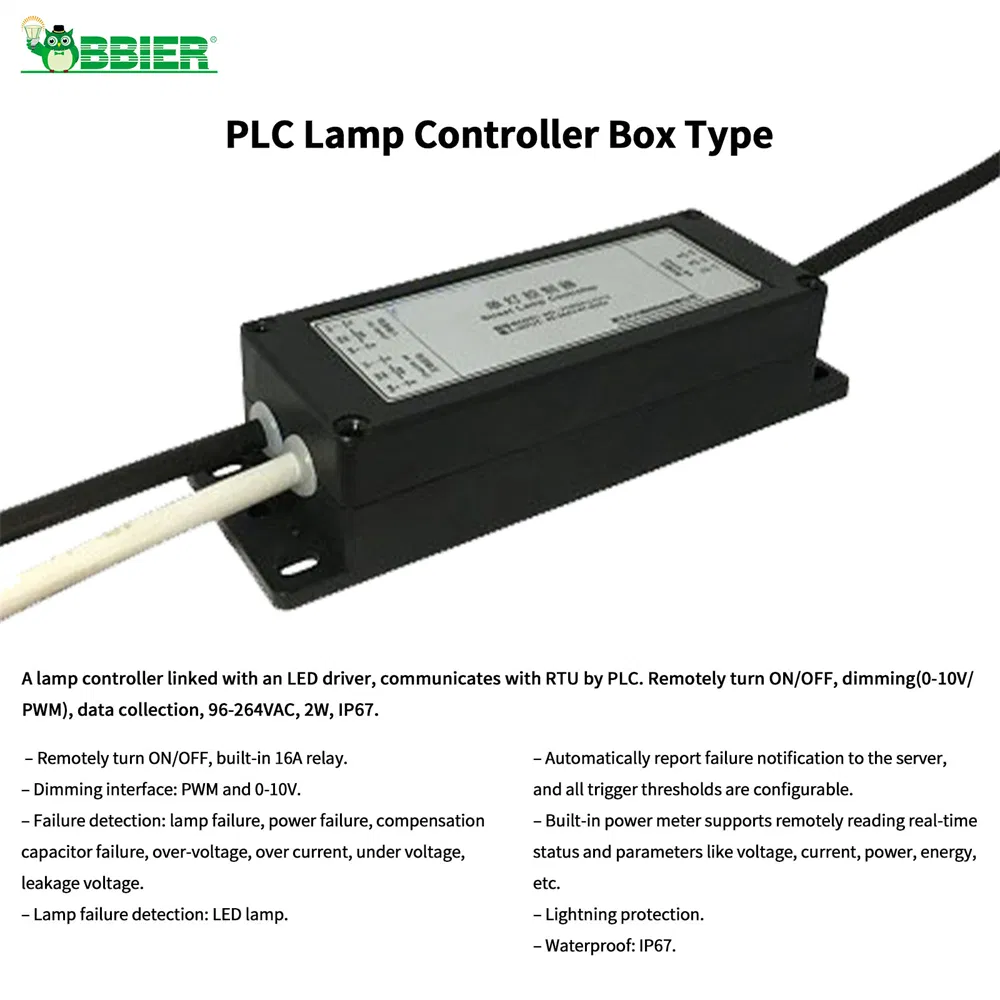

A lamp controller linked with an LED driver, communicates with RTU by PLC, 7-pin Nema interface. Remotely turn ON/OFF, dimming(0-10V/PWM), data collection, 96-264VAC, 2W, IP65.
Remotely turn ON/OFF.
With double circuit dimming interface: PWM and 0-10V.
With LED lamp failure detection function.
With compensation capacitor damage detection.
With active fault information reporting functions.
Accumulated electric energy, lighting time, and failure time monitoring.
Status query, dimming, and electrical parameter collection function.
Alarms for over voltage, under voltage, and over current.

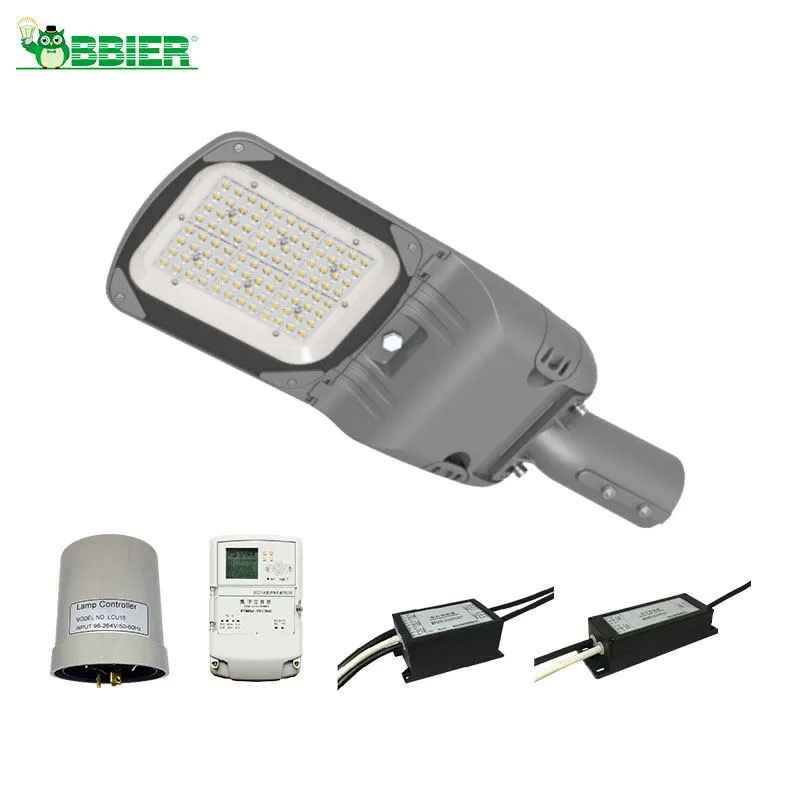

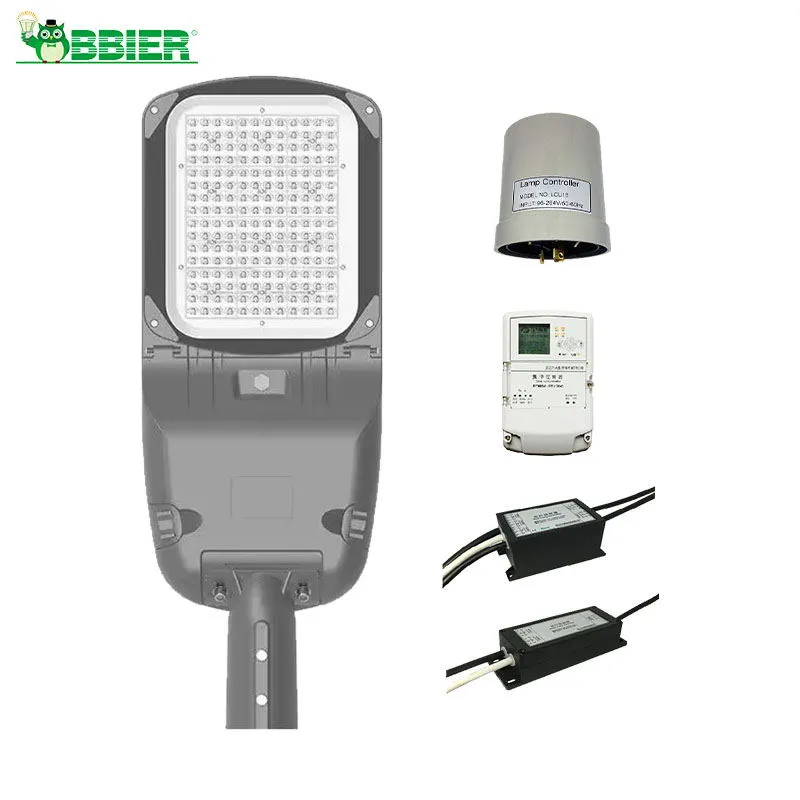

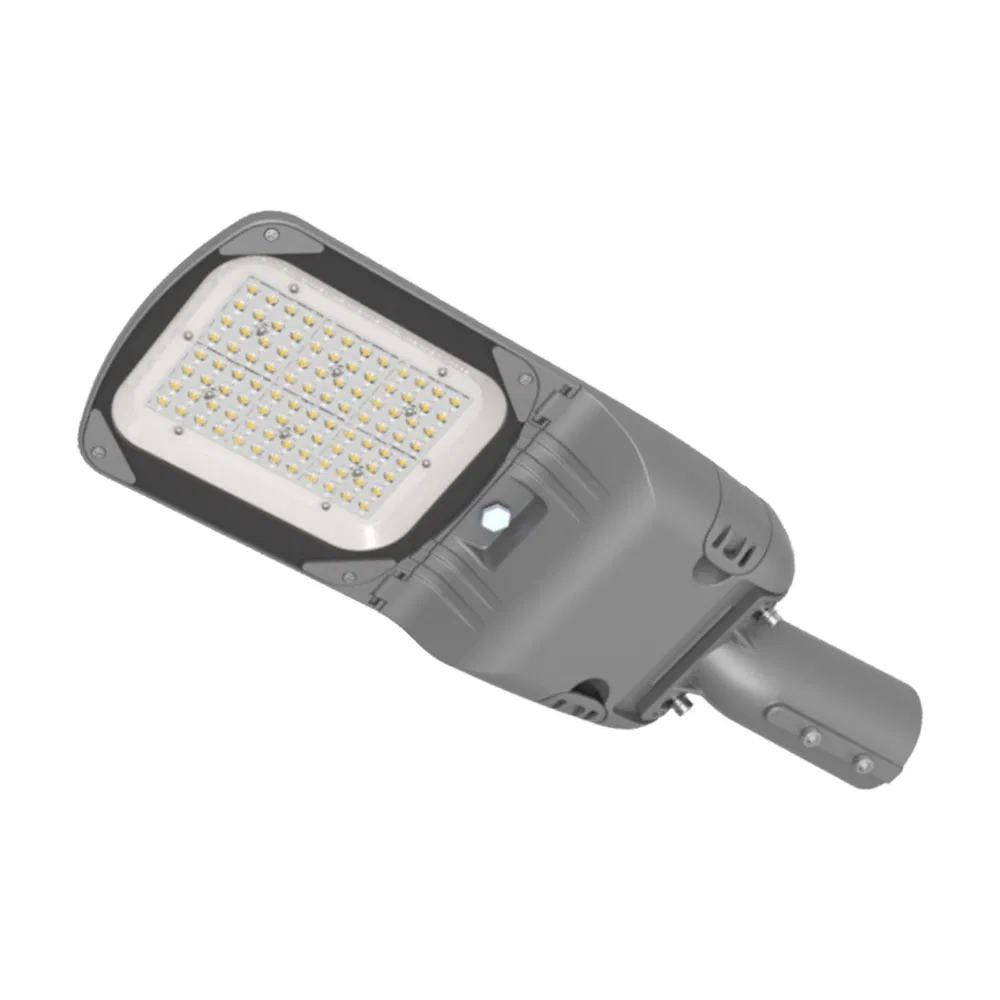

Detailed Photos
Product Parameters
Application
Indoor & Outdoor
Color Temperature (CCT)
5000K (Daylight)
Lamp Body Material
Aluminum
Working Temperature (ºC)
-40 to 45 ºC
Color Rendering Index (Ra)
80

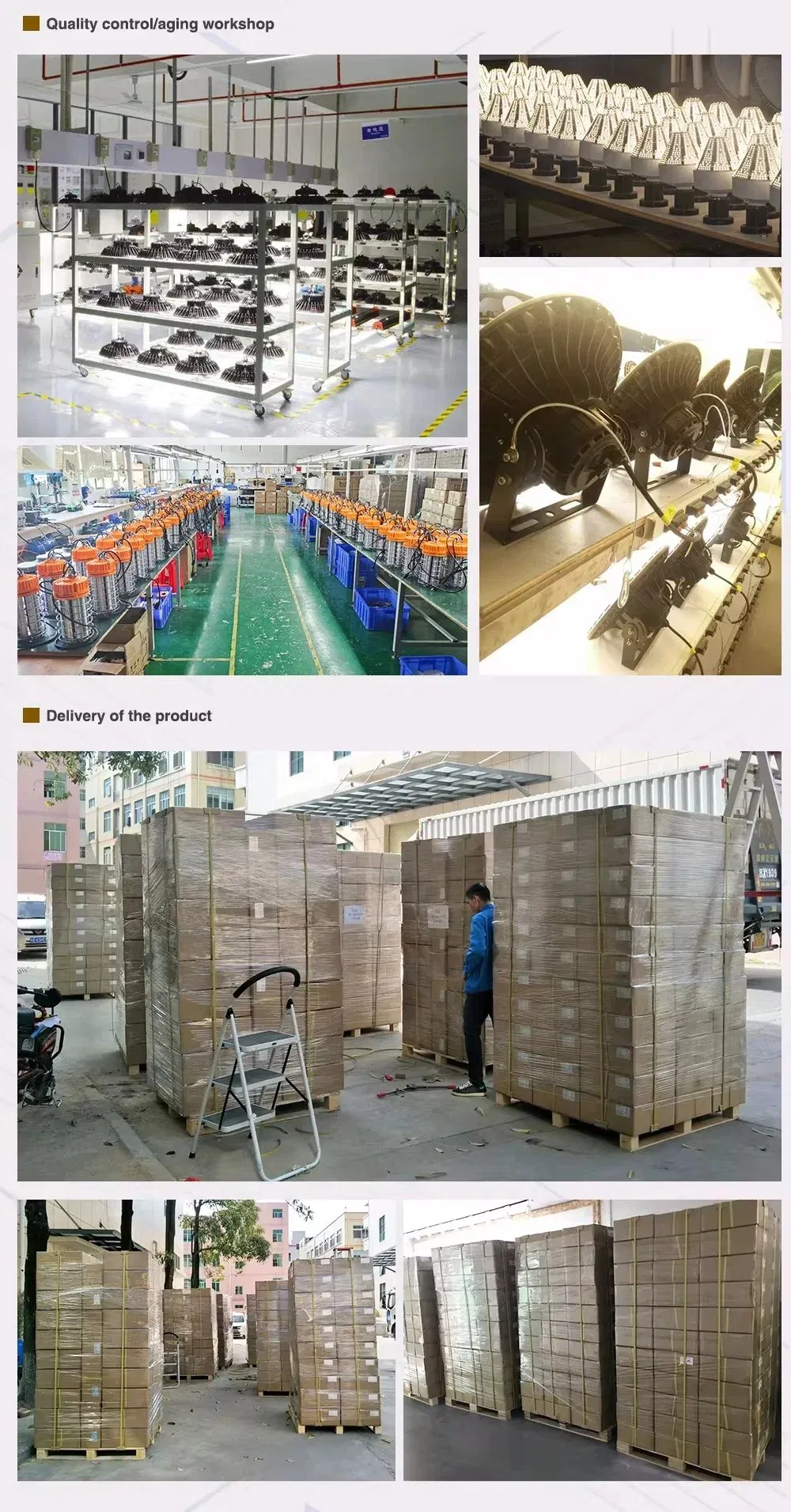

Certifications & Packaging
Frequently Asked Questions
1. What are the core functions of this lighting controller?
The controller supports remote ON/OFF switching, 0-10V/PWM dimming, real-time data collection, and active fault reporting for LED lamp failures.
2. Does it support smart sensing technology?
Yes, it features a microwave sensor with adjustable sensitivity and hold times, as well as optional GPS and tilt detection for advanced monitoring.
3. What is the waterproof rating and suitable environment?
The product is IP67 rated, making it highly resistant to water and dust. It is designed for highway, square, and garden applications with working temperatures from -40 to 45 ºC.
4. What type of communication interface does it use?

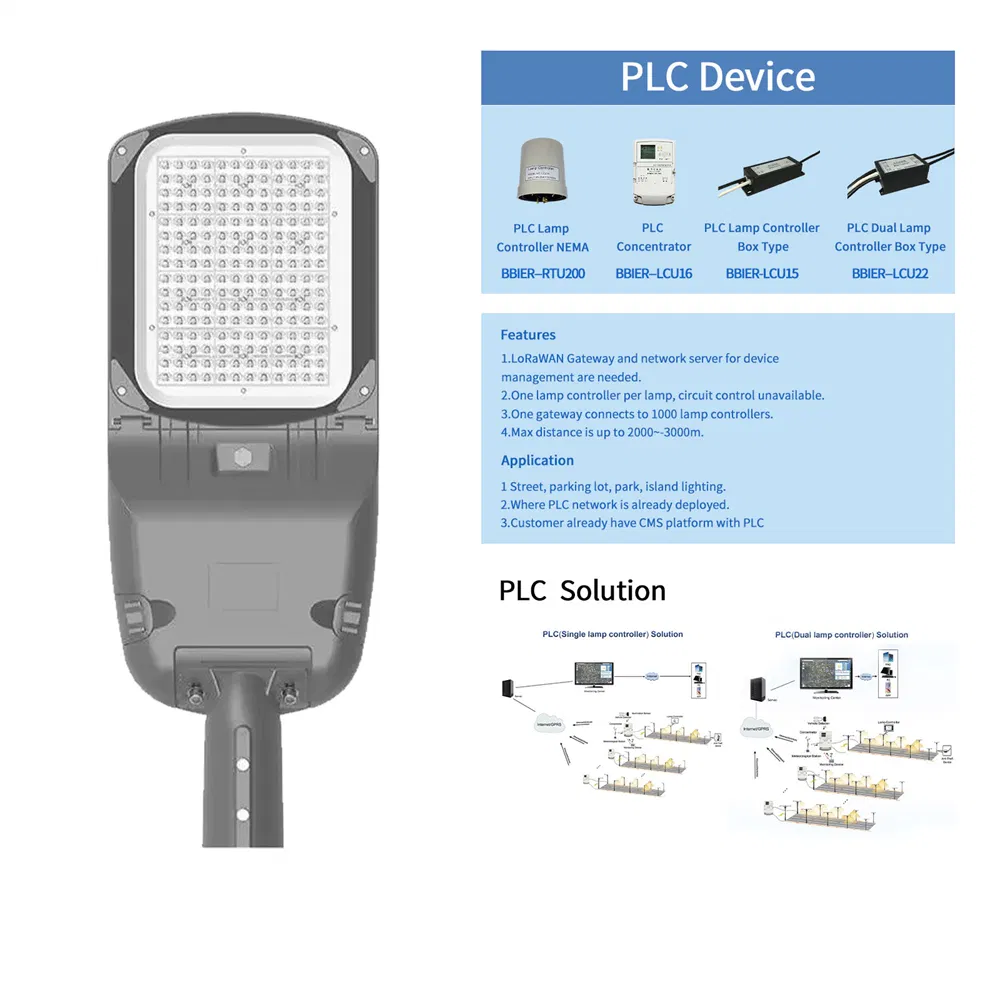

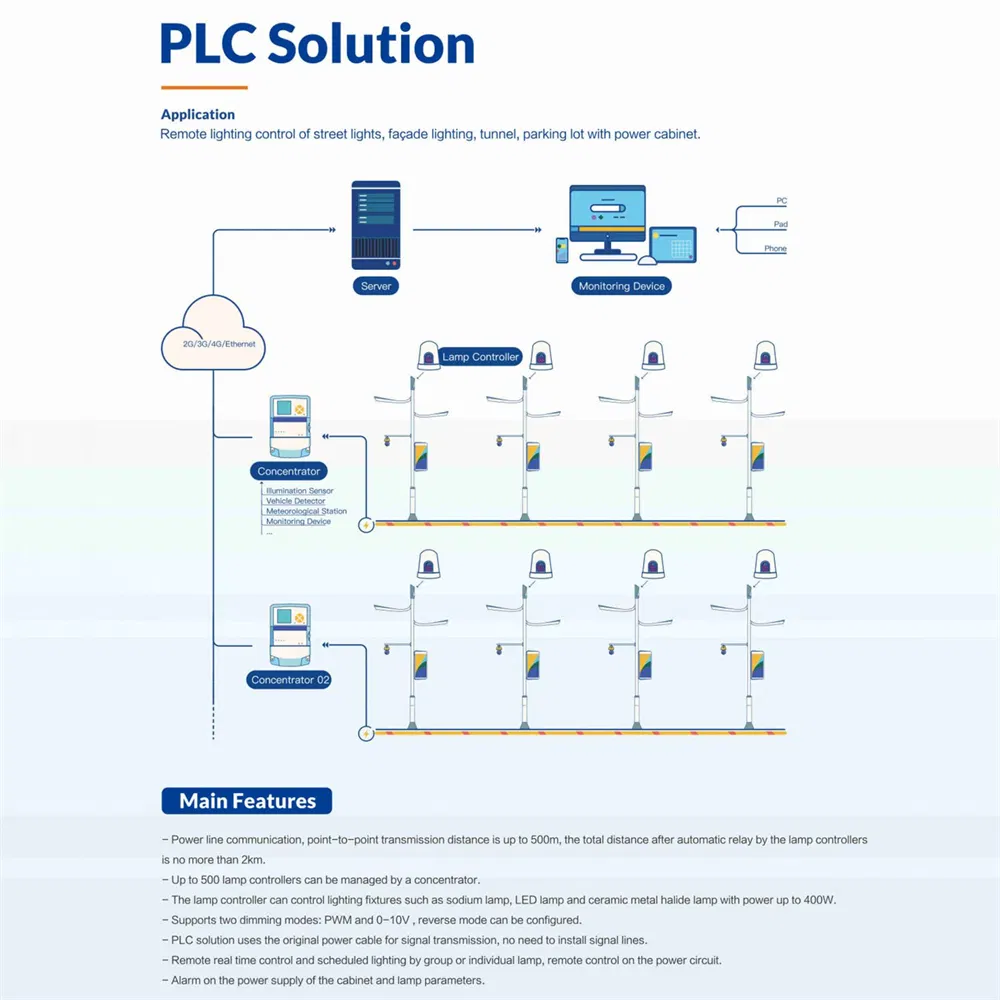

It utilizes a standard 7-pin Nema interface and communicates via PLC (Power Line Communication) with the RTU.
5. What kind of alarms and protections are included?
The system provides automated alarms for over voltage, under voltage, and over current conditions to protect the lighting infrastructure.
6. What certifications does this product hold?
This controller is certified by CE, RoHS, ETL, FCC, and SAA, ensuring compliance with international safety and quality standards.
