Solar PV Module Laminator Solar Panel Laminating Machine Price Good
1 / 1
Solar PV Module Laminator Solar Panel Laminating Machine Price Good

Solar PV Module Laminator Solar Panel Laminating Machine Price Good

Customization: Available
Production Scope: Parts Production Line
Automation: Automation
Send Inquiry

Product Description

Basic Info.

Transmission Type
Flexible
Automatic Production Line
Comprehensive
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Trademark
ZENITH SOLAR
Origin
Hebei, China (Mainland)
HS Code
848640
Production Capacity
100 Set/Sets Per Year

Product Description

Negotiate the price according to specific circumstances

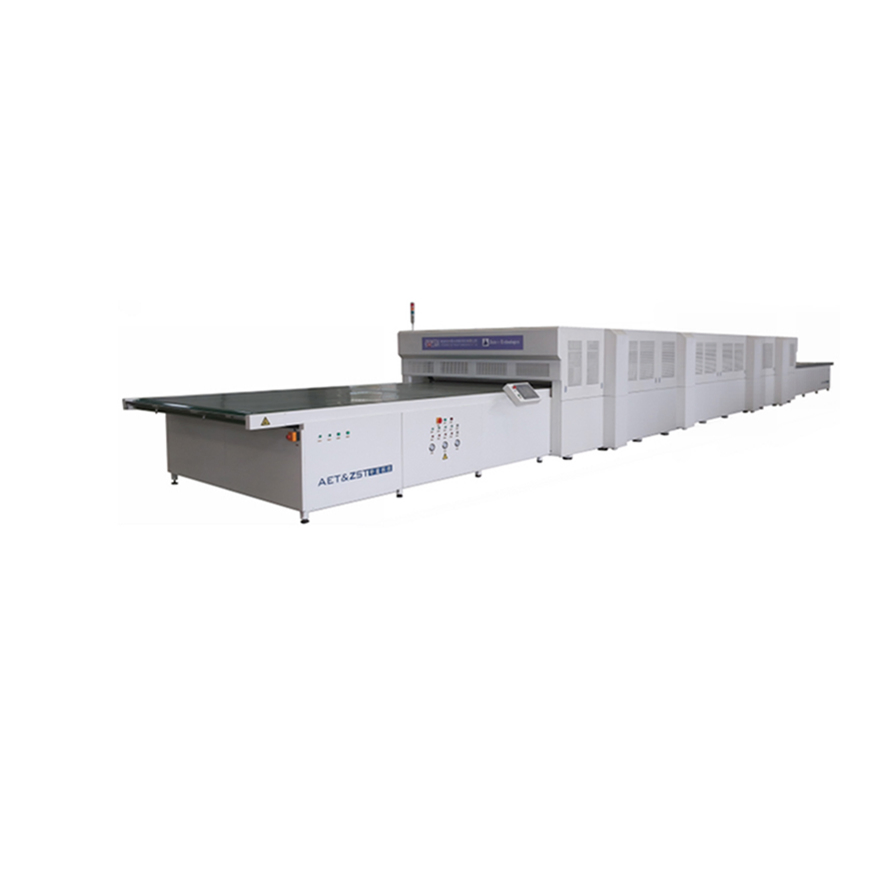

Solar PV Module Laminator Solar Panel Laminating Machine

Solar PV Module Laminator

Parameters

PowerAC380V/50HZ/3Phases/5Lines Capacity25-75(1-3shift)MW/year
Noise at Work<65dB Vacuum Rate606m³/H
Normal power36KW Max.Power110KW
Laminated cavity height25mm Lamination Area2200*4500mm*2
Temperature range30ºC~180ºC Temperature Uniformity≤±2ºC
Working Temperature100ºC~160ºC Temperature Accuracy±1ºC
Max. setting temperature180ºC Heating PlatformPer square meter of non-flatness ≤ 300μm
Dimensions20400*3200*1850mm Weight32T

Characteristics

⚙️
Integrated Design It is the one of the patents. The vacuum pump and oil pump place inside the laminating machine, helping you to save plant space.
🔇
Lower Noise Using Germany imported vacuum pump, it can reduce the noise to 65dB, serving a more comfortable environment.
🌬️
Free Smoke The pump is smokeless with unique design. You do not need to configure an exhausting system.
⚡
Energy Saving It is about 30% energy saving compared with other brands.
📜
CE Certificate All machines of the PV line have passed CE certification.

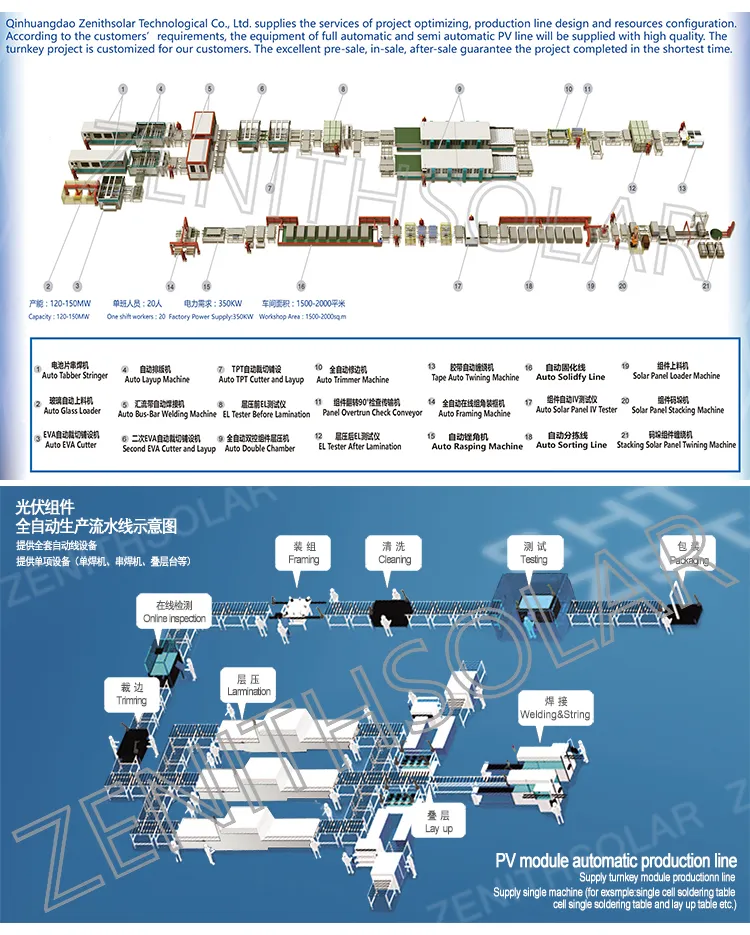

About Production Line

We can supply the customized complete production line. The engineer can adjust the layout and performance of the production line according to different requirements of customers.

Production Line 1
Production Line 2
Production Line 3
Production Line 4
Production Line 5

Frequently Asked Questions

What is the annual production capacity of this laminating machine?
The machine has a production capacity of approximately 25-75 MW per year, depending on the number of shifts (1-3 shifts).
What certifications does the equipment hold?
All machines in our PV production line have passed CE and ISO certifications, ensuring international quality and safety standards.
How does the integrated design benefit the user?
The vacuum and oil pumps are placed inside the machine, which significantly saves factory floor space and simplifies the installation layout.
Is the production line customizable for specific needs?
Yes, we provide customized complete production lines. Our engineers can adjust the layout and performance based on specific customer requirements.
What is the noise level during operation?
By using high-quality imported vacuum pumps, the working noise is kept below 65dB, providing a more comfortable working environment.
How energy-efficient is this solar laminator?
This model is designed for high efficiency, offering approximately 30% energy savings compared to other standard brands in the market.
