Basic Information
Transmission Type
Flexible
Production Line
Comprehensive Automatic
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
Production Capacity
100 Sets Per Year
Product Overview

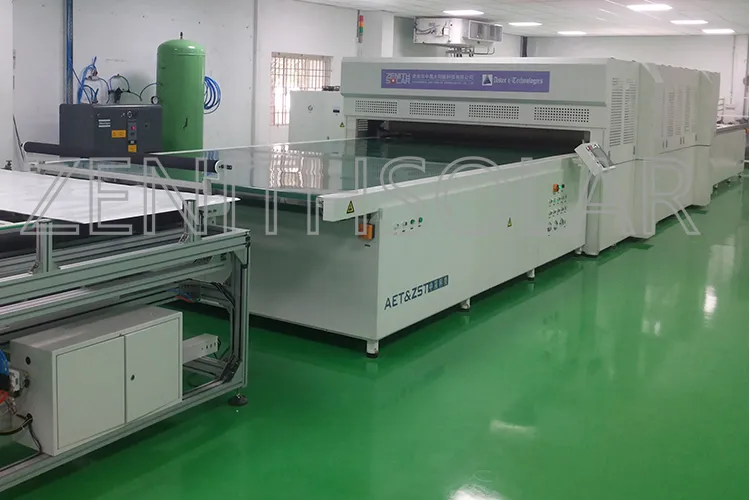

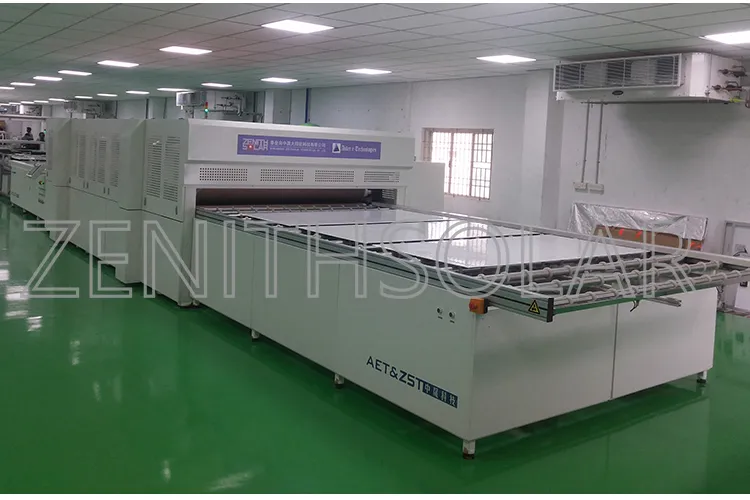

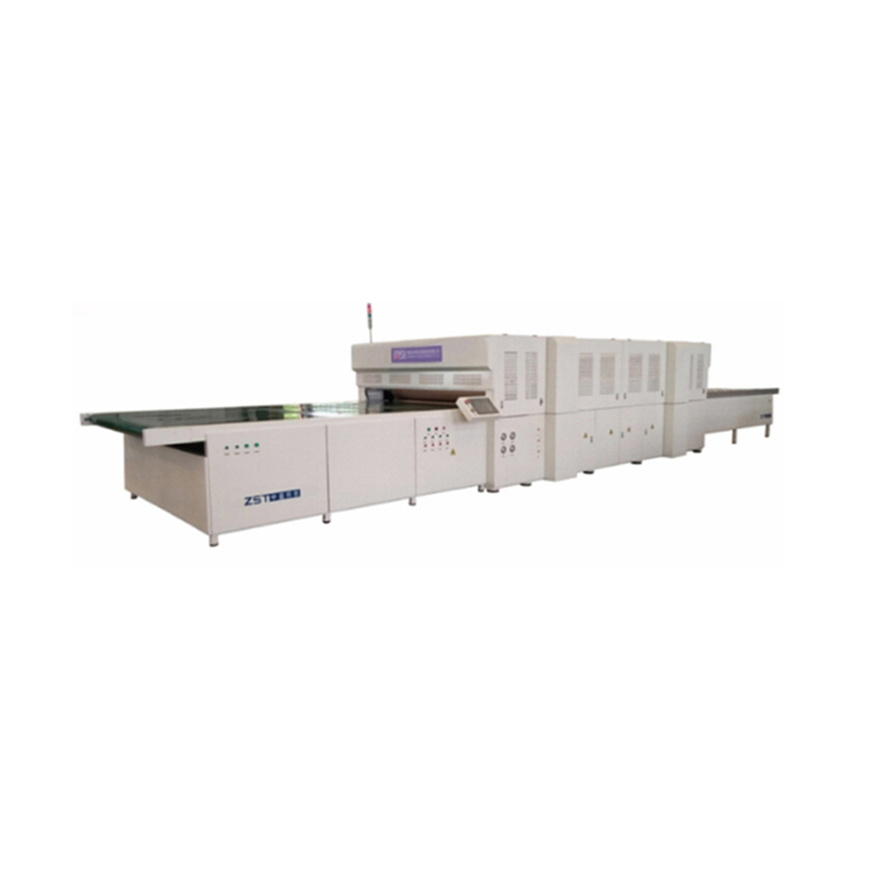

Solar PV module laminator glass laminating machine designed for high-efficiency solar panel production.
Technical Parameters
| Power |
AC380v/50HZ/3phases/5Lines |
Capacity |
10-30(1-3shift)MW/year |
| Noise Level |
<65dB |
Vacuum Rate |
200m³/H |
| Normal Power |
15KW |
Max. Power |
52KW |
| Max Temperature |
180ºC |
Lamination Area |
2200*3600mm |
| Heating Platform |
Non-flatness ≤300μm/m² |
Temp Uniformity |
≤±2ºC |
| Dimension |
11800*3200*1800mm |
Weight |
12.8T |
Key Characteristics
🏗️
Integrated Design
Patented design with vacuum and oil pumps placed inside the machine to maximize plant space efficiency.
🔇
Lower Noise
Equipped with Germany imported vacuum pumps, reducing operational noise to 65dB for a better work environment.
🌫️
Free Smoke
Unique smokeless pump design eliminates the need for complex external exhausting systems.
⚡
Energy Saving
Highly efficient system providing approximately 30% energy savings compared to other industry brands.
Frequently Asked Questions
What are the certifications for this laminating machine?
The solar PV module laminator has successfully passed both CE and ISO certifications, ensuring compliance with international quality and safety standards.
How much space can I save with the integrated design?
The patented integrated design houses the vacuum and oil pumps inside the machine frame, significantly reducing the footprint compared to traditional setups with external components.
What is the noise level during operation?
By utilizing a high-quality Germany-imported vacuum pump, the noise level is maintained below 65dB, providing a much quieter and more comfortable working environment.
Does this machine require an exhaust system?
No, thanks to the unique smokeless design of the pump system, there is no need to configure or install an additional exhausting system for smoke removal.
How energy-efficient is this laminator compared to other brands?
This machine is engineered for high efficiency, offering approximately 30% energy savings compared to standard models from other brands.
What is the maximum lamination area and temperature?
The machine features a large lamination area of 2200*3600mm and can reach a maximum setting temperature of 180ºC with excellent uniformity of ≤±2ºC.
