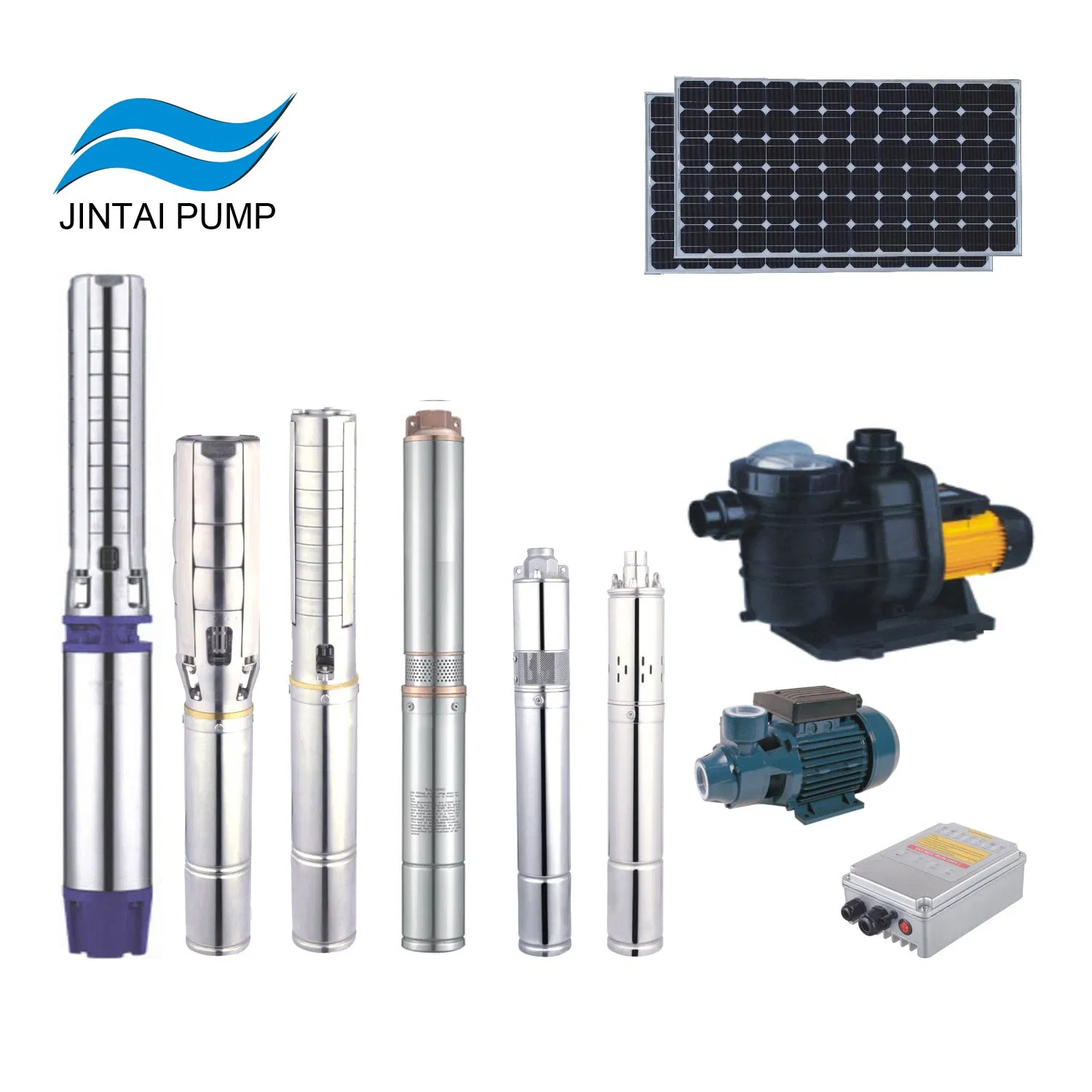

1HP, 2HP, 3HP, 5HP Solar Powered DC Submersible Deep Well Water Pumps

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

📊 Basic Specification

Model NO.JS, JC, JCS, JQB, JP, JETS

Max. Head>150m

Max. Capacity>400 L/min

Driving TypeMotor

MaterialStainless Steel

StructureMultistage Pump

Power SourceSolar Energy

Voltage Range24V to 540VDC

Motor Power100W to 30kw

Rotation Speed3000rpm

CoolingOil Filled

Pump Diameter2", 3", 4", 5", 6"

CertificateCE, ISO9001

Delivery Time3 Days (Sample), 15 Days (Bulk)

💧 0.5HP to 40HP Solar Submersible Pump

🛡️ Warranty Coverage

Solar Water Pump: 3 years
MPPT Controller: 3 years
Solar Panels: 25 years
Free Replacements: If controller, motor, or impeller are damaged within 3 years, new parts are provided with free shipping.

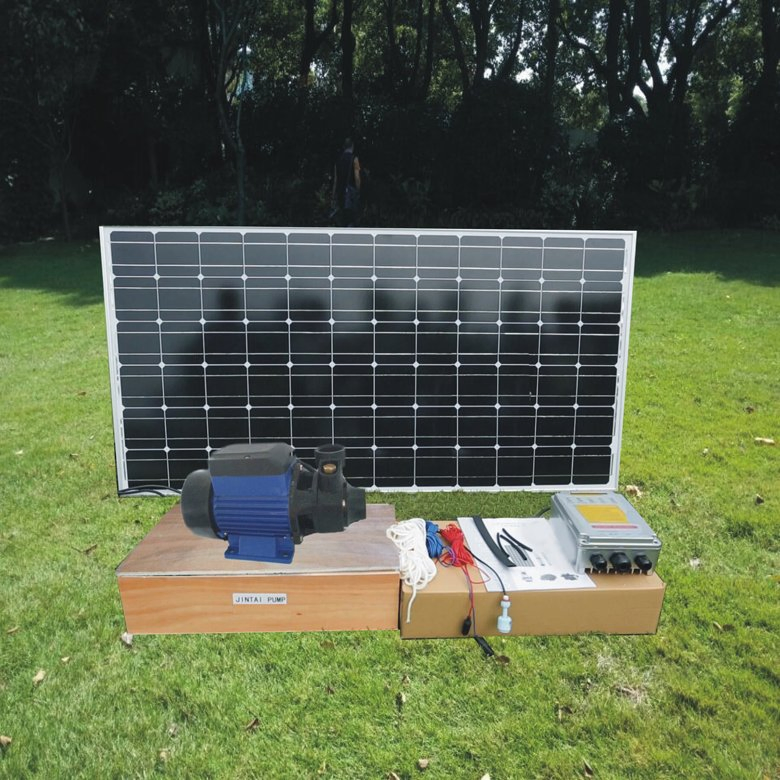

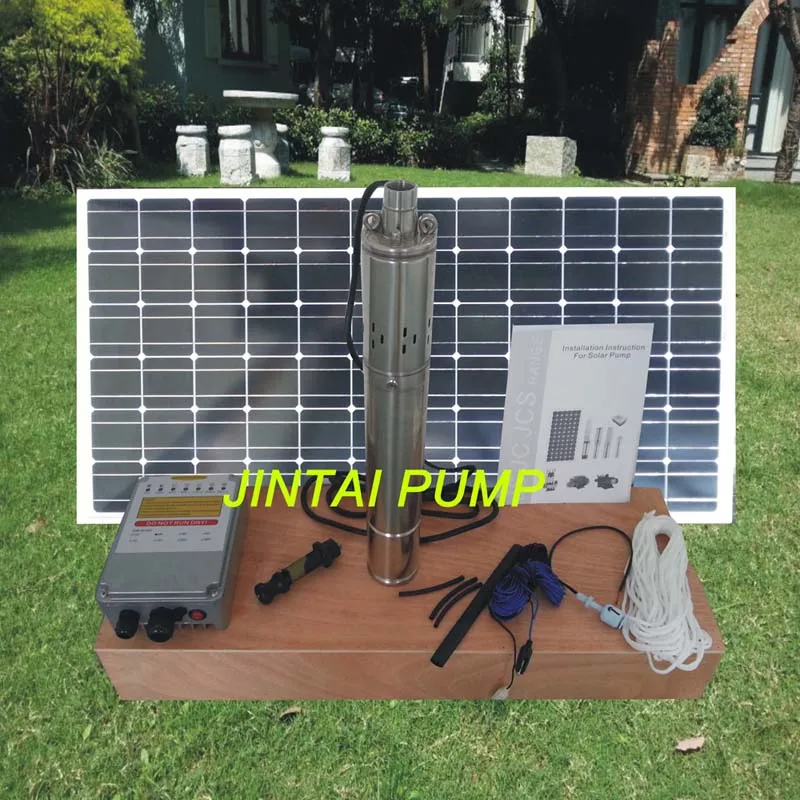

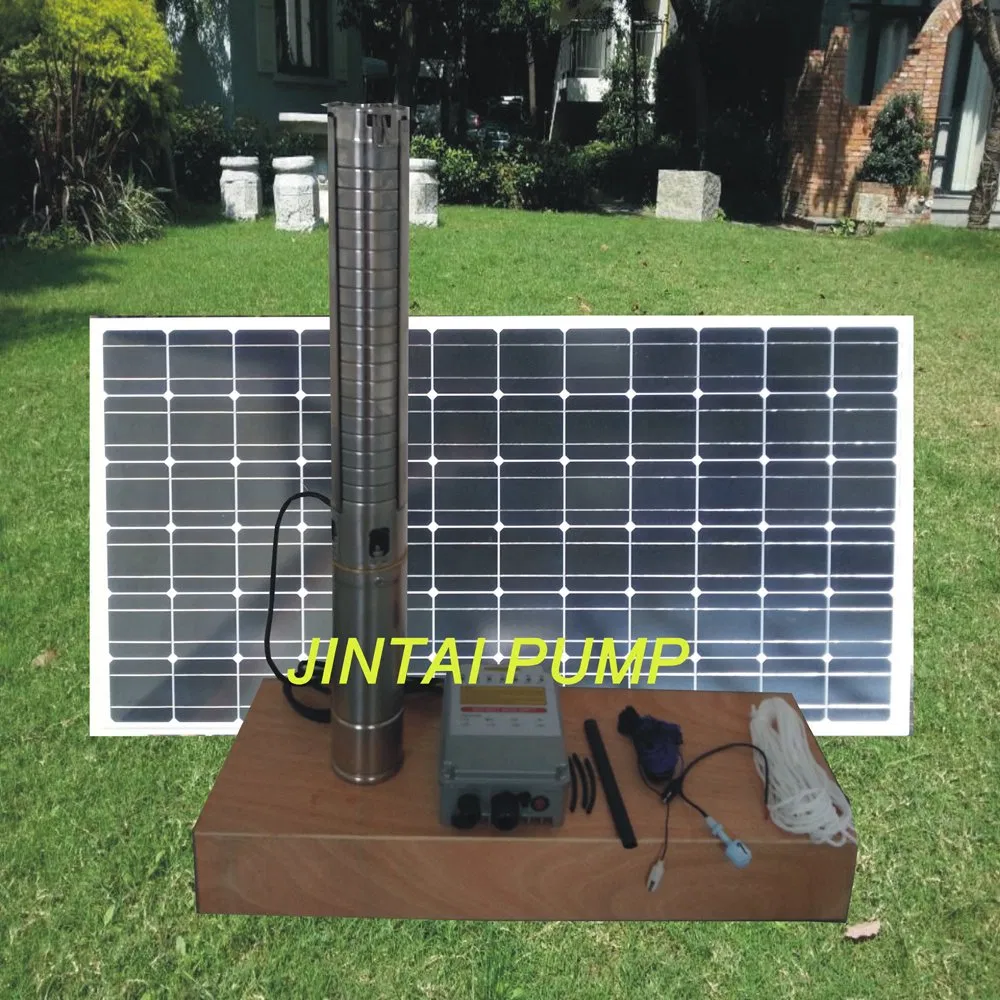

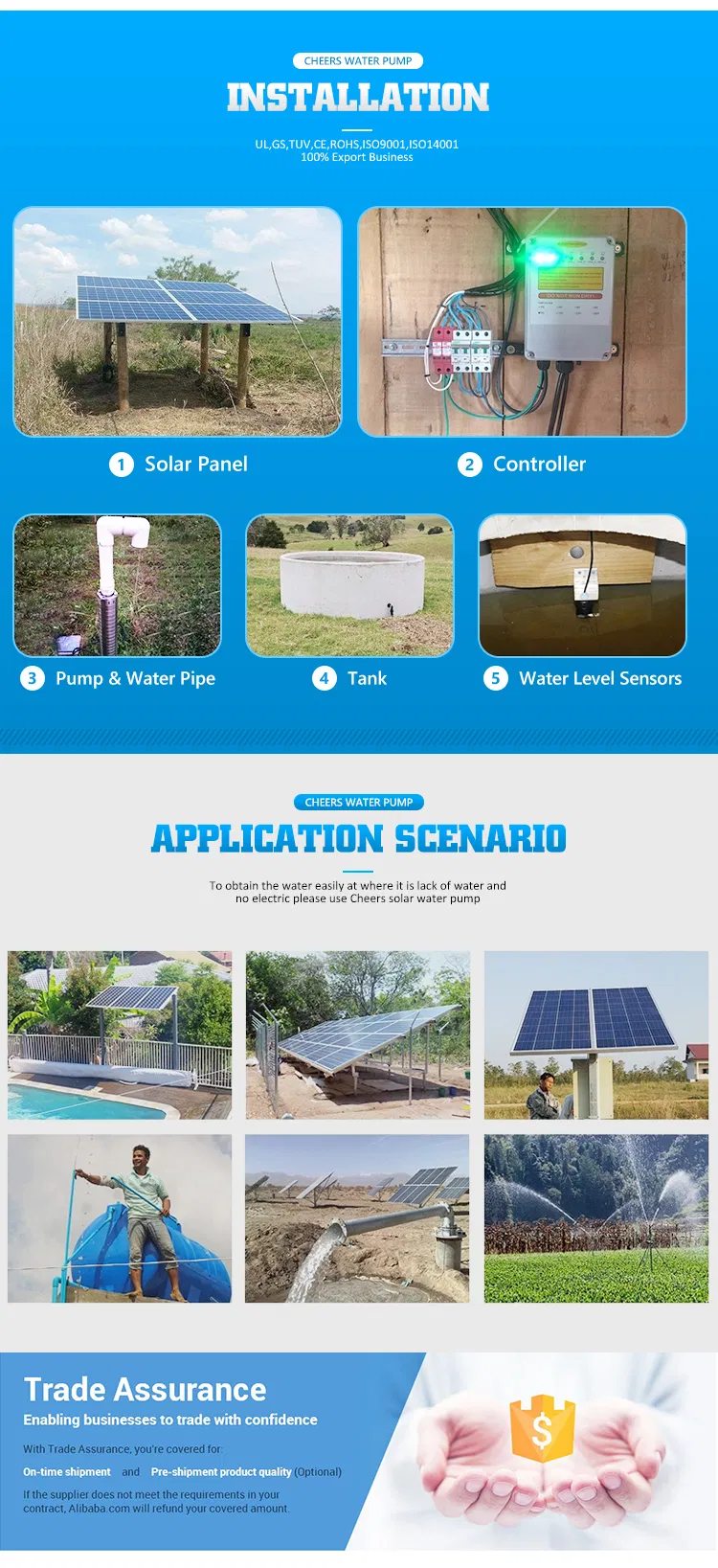

📦 Solar Water Pump System Complete Set

#	Component Description
1	Solar pump with 3m cable (longer available)
2	Advanced Controller
3	Water level sensor / float switch (10m cable)
4	Solar panel cable (6m)
5	Cable connectors
6	Solar panels (Optional)
7	Installation Manual

🌍 Wide Applications

Agricultural Irrigation
Drinking and Living Water supply
Remote area farming
Decorative Fountains

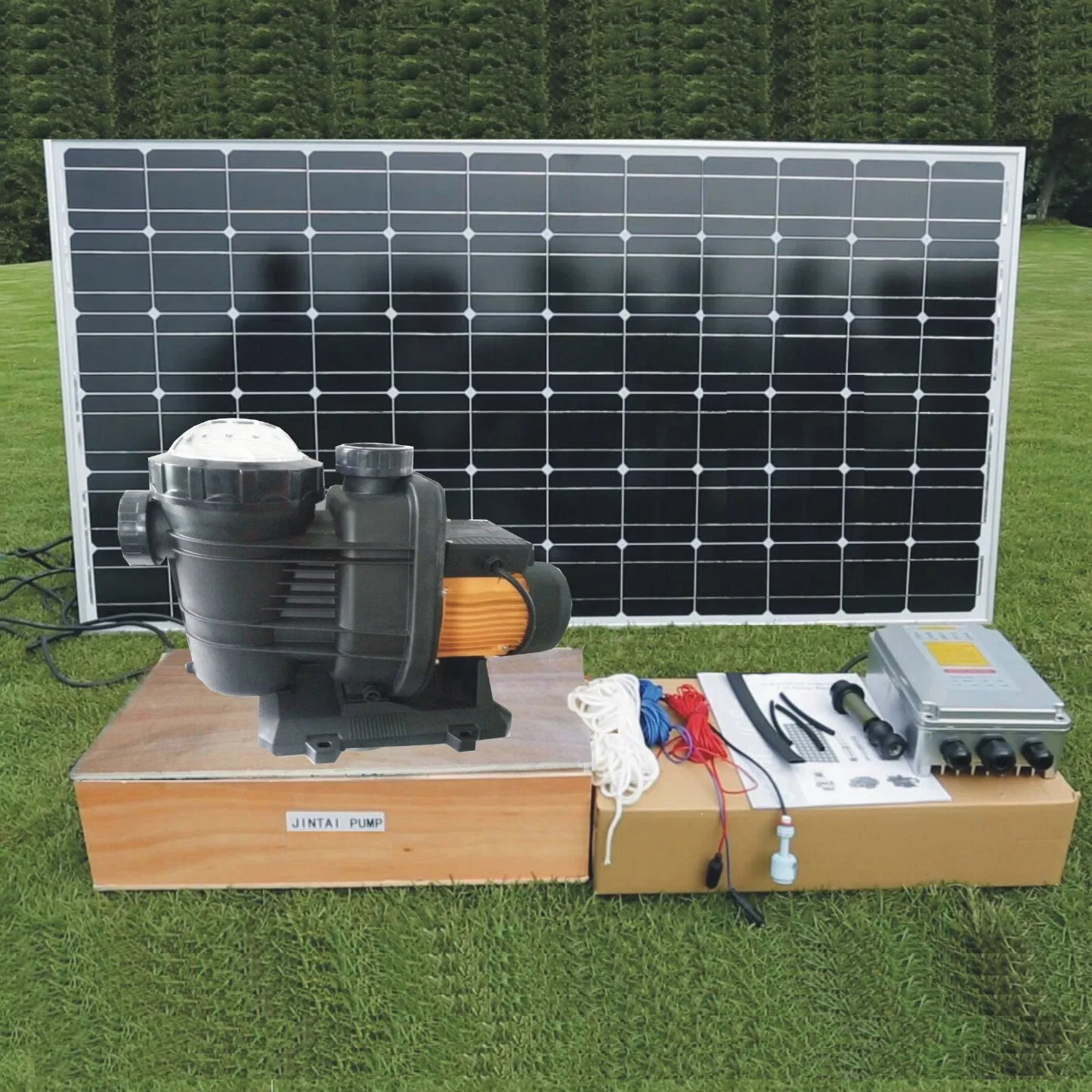

Swimming pool circulation and filtration

⚙️ Material & Advanced Technology

Material of Parts:

Outlet: Brass or Stainless Steel
Pump Body: Stainless Steel
Impeller: Stainless Steel or PPO Plastic
Bearing: NSK

Advanced Features:

25% Higher Efficiency: Permanent magnetism DC brushless motor.
Safety: Double plastic package for rotor/stator, Insulation ≥300MΩ.
Eco-Friendly: Oil filling for convenient installation.

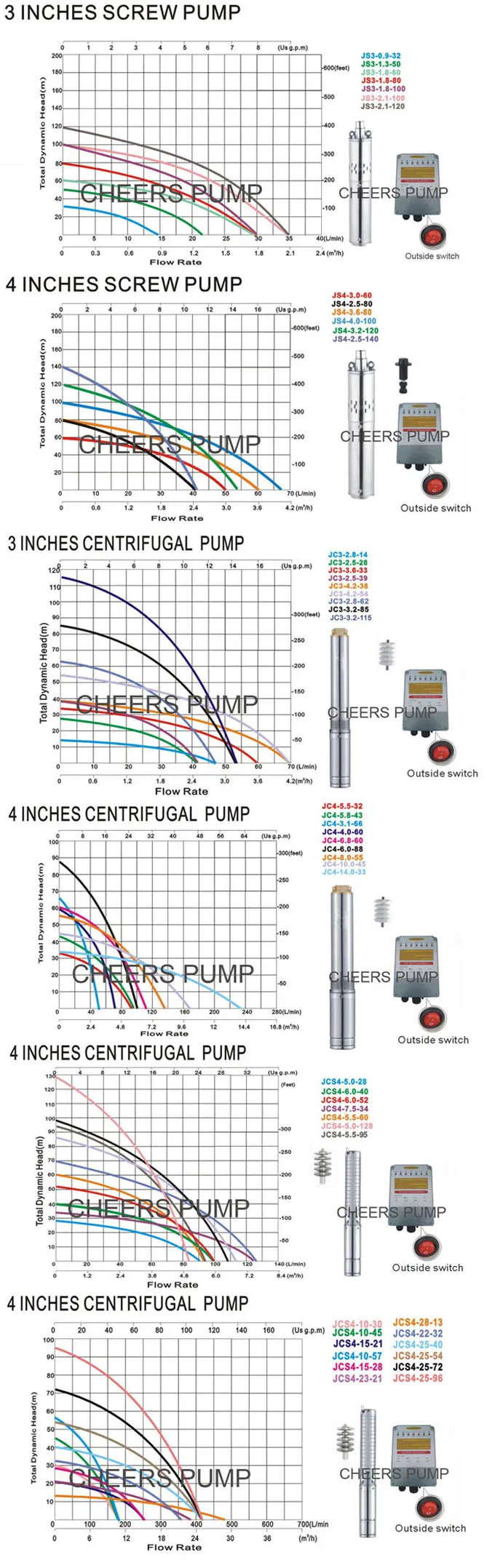

📈 Selection Guide & Performance Data

TYPE	VOLTAGE (V)	POWER (W)	MAX FLOW (m3/h)	MAX HEAD (M)	OUTLET	DIAMETER
JS3-0.9-32	24	100	0.9	32	3/4"	76mm
JS3-1.8-100	24	270	1.8	100	3/4"	76mm
JC3-4.2-54	48	600	4.2	54	1"	76mm
JS4-4.0-100	72	1000	4	100	1"	100mm
JC4-14.0-33	72	1000	14	33	2"	100mm
JCS4-25-96	288	4000	25	96	2"	100mm
JCS6-50-45	288V	4000	50	45	4"	150mm
JETS-4.2-60	72	750	4.2	60	1"*1"	Surface

❓ Frequently Asked Questions

What is the warranty period for this solar water pump system?

The solar water pump and MPPT controller both come with a 3-year warranty. Solar panels are covered for 25 years.

What happens if a part is damaged during the warranty period?

If the controller, motor, or impeller are damaged within the 3-year period, we provide new replacement parts and ship them free of charge.

How does the efficiency compare to traditional AC pumps?

Our DC brushless motors utilize permanent magnetism technology, which improves efficiency by approximately 25% compared to traditional alternating current machines.

What information is needed to select the correct pump model?

You should provide: 1. Application location 2. Daily water volume required 3. Pump type (submersible or surface) 4. Borehole depth 5. Pipeline distance and 6. Tank height.

What are the primary materials used in the pump construction?

The pump and motor bodies are made of high-grade stainless steel. We use premium NSK bearings and outlets made of brass or stainless steel for maximum durability.

What is included in the complete solar pump set?

A complete set includes the solar pump (with 3m cable), the MPPT controller, water level sensors with 10m cable, solar panel cables (6m), connectors, and an installation manual.
