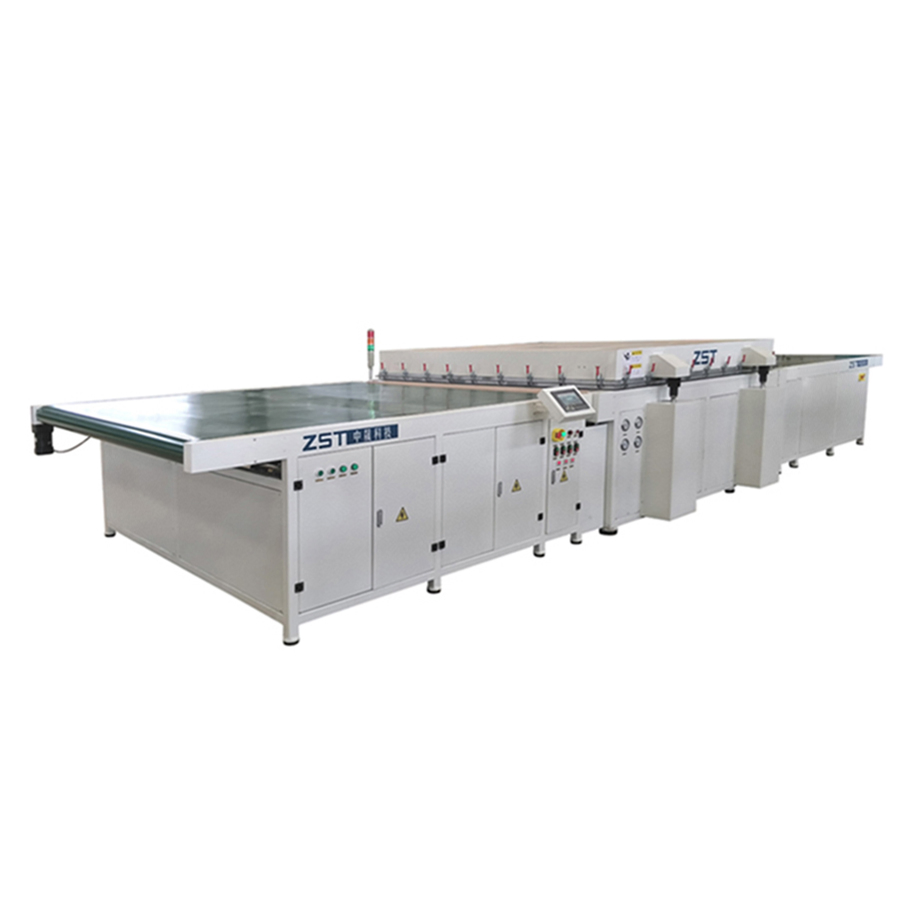

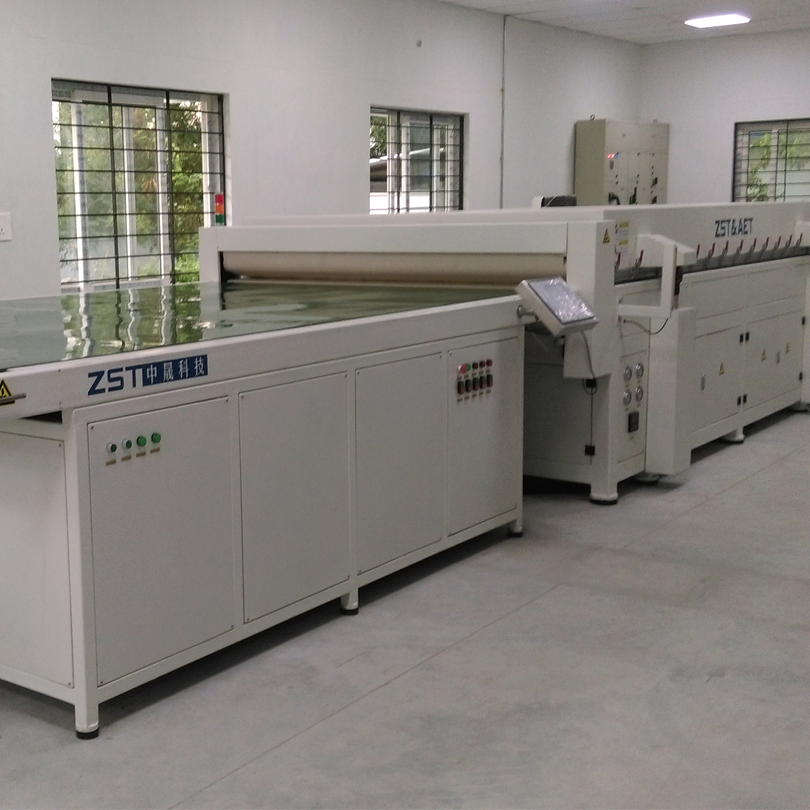

Equipment for Manufacture Solar Panel Solar PV Module Laminator
Equipment for Manufacture Solar Panel Solar PV Module Laminator
1 / 2
Equipment for Manufacture Solar Panel Solar PV Module Laminator
Equipment for Manufacture Solar Panel Solar PV Module Laminator

Equipment for Manufacture Solar Panel Solar PV Module Laminator

Customization: Available
Production Scope: Parts Production Line
Automation: Automation
Send Inquiry

Product Description

Basic Specifications
Transmission Type
Flexible
Production Line
Comprehensive Automatic
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
7700*2620*1350mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year
Product Description

Equipment for Manufacture Solar Panel & Solar PV Module Laminator

Negotiate the price according to specific circumstances.

Solar PV Module Laminator 1
Solar PV Module Laminator 2
Solar PV Module Laminator 3
Technical Parameters
Power AC380V/50HZ/3Phases/5Lines Capacity 5-15(1-3shift)MW/year
Compressed Air Flow 0.25m³/min Vacuum Rate 100m³/H
Normal Power 10KW Max.Power 34KW
Lamination Time PVB/EVA: 12-15min Lamination Area 2200*2140mm
Working Temperature 100-160ºC Temperature Uniformity ≤±2ºC
Dimension 7700*2620*1350mm Weight 7.5T
Key Characteristics
Integrated Design

Patented design with vacuum and oil pumps placed inside the machine to save plant space.

Lower Noise

Equipped with high-quality imported vacuum pumps, reducing noise levels to 65dB for a better environment.

Free Smoke

Smokeless pump design eliminates the need for an additional exhausting system.

Energy Saving

Achieves approximately 30% energy savings compared to other standard brands.

CE Certified

The entire PV production line equipment has passed rigorous CE certification standards.

About Production Line

We provide customized complete production lines. Engineers can adjust the layout and performance based on specific customer requirements.

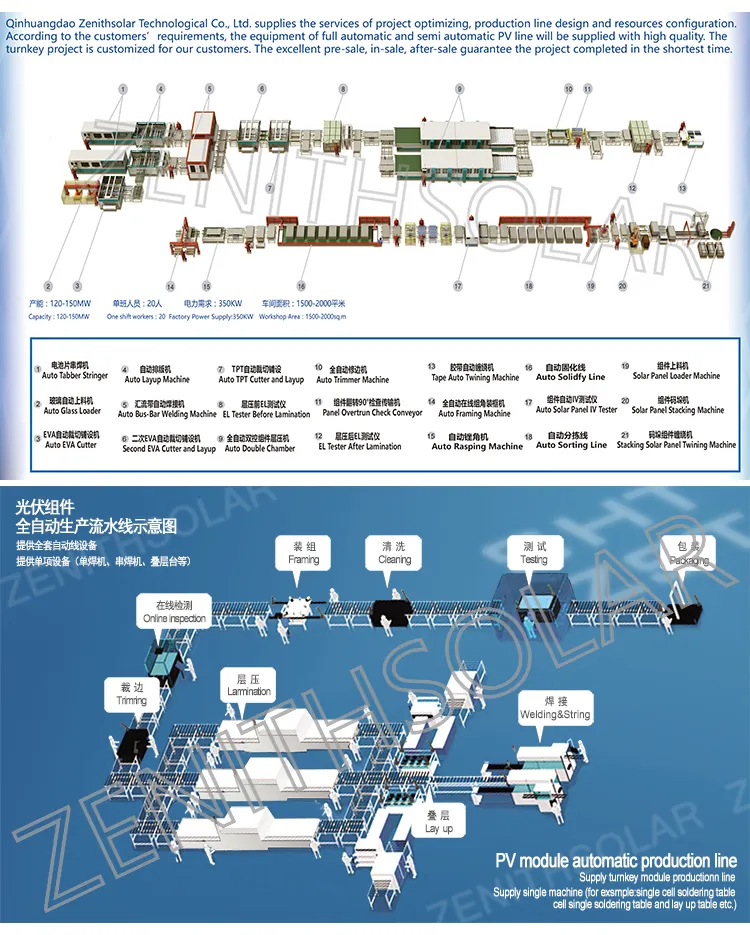

Production Line Layout
Production Line View
Equipment Detail 1
Equipment Detail 2
Equipment Detail 3
Frequently Asked Questions
What is the effective lamination area of this machine?
The lamination area is 2200*2140mm, suitable for standard solar module sizes.
How long does the lamination process take?
For PVB or EVA materials, the typical lamination time is between 12 to 15 minutes.
What is the temperature range and uniformity?
The working temperature ranges from 100-160ºC with a high uniformity of ≤±2ºC.
Does the equipment require a special exhaust system?
No, thanks to the unique smokeless design of the pump, an external exhausting system is not required.
What is the annual production capacity of this line?
The capacity is approximately 5-15 MW per year depending on the number of shifts (1-3 shifts).
Is the production line customizable?
Yes, we can supply customized complete production lines where engineers adjust the layout to meet specific needs.
