Solar Panel Laminating Machine Price Best PV Module Vacuum Laminator

1 / 1

Solar Panel Laminating Machine Price Best PV Module Vacuum Laminator

Customization:	Available
Production Scope:	Parts Production Line
Automation:	Automation

Send Inquiry

Product Description

Basic Information

Transmission Type

Flexible

Production Line

Comprehensive Automatic

Certification

CE, ISO

Flexible Production

Intelligent Manufacturing

Rhythm

Flow Production Line

Transport Package

Frame Container

HS Code

848640

Production Capacity

100 Set/Sets Per Year

Product Description

Negotiate the price according to specific circumstances

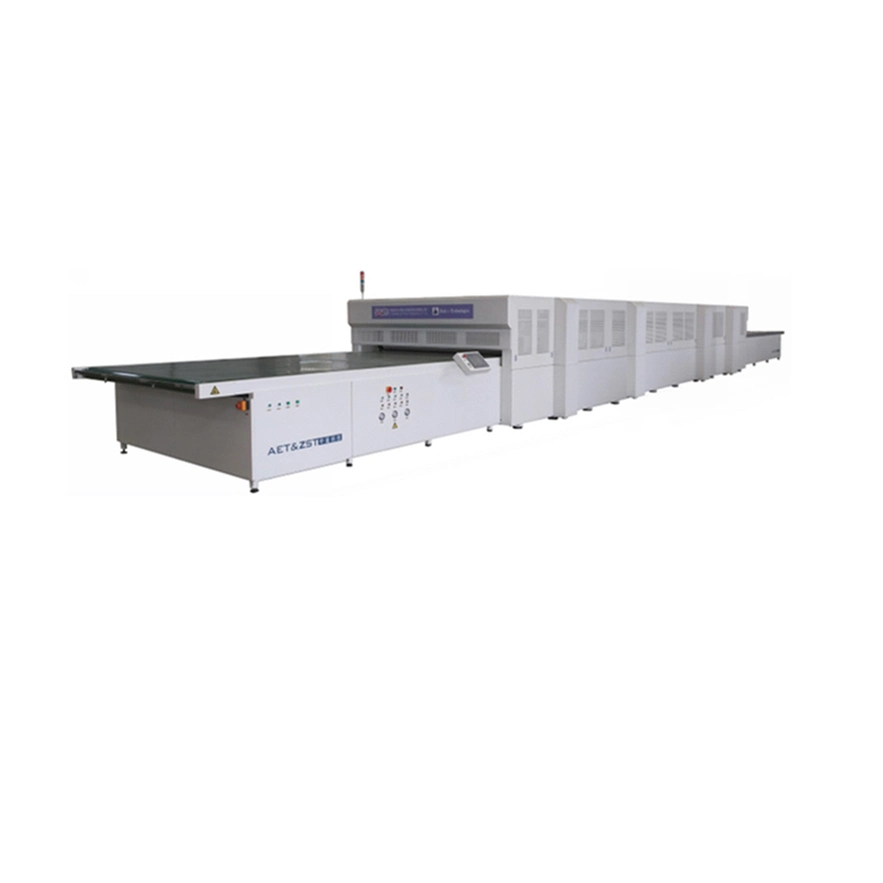

Solar Panel Laminating Machine & Best PV Module Vacuum Laminator

Technical Parameters

Power	AC380V/50HZ/3Phases/5Lines	Capacity	25-75(1-3shift)MW/year
Noise at Work	<65dB	Vacuum Rate	606m³/H
Normal power	36KW	Max.Power	110KW
Laminated cavity height	25mm	Lamination Area	22004500mm2
Temperature range	30ºC~180ºC	Temperature Uniformity	≤±2ºC
Working Temperature	100ºC~160ºC	Temperature Accuracy	±1ºC
Max. setting temperature	180ºC	Heating Platform	Per square meter of non-flatness ≤ 300μm
Dimensions	2040032001850mm	Weight	32T

Key Characteristics

⚙️ Integrated Design

Patented design where the vacuum pump and oil pump are placed inside the machine to save plant space.

🔇 Lower Noise

Equipped with imported vacuum pumps, reducing noise to 65dB for a more comfortable environment.

🌬️ Free Smoke

Unique smokeless pump design eliminates the need for an additional exhausting system.

⚡ Energy Saving

Achieves approximately 30% energy savings compared to other standard brands.

🛡️ CE Certificate

All machines in the PV line have passed rigorous CE certification standards.

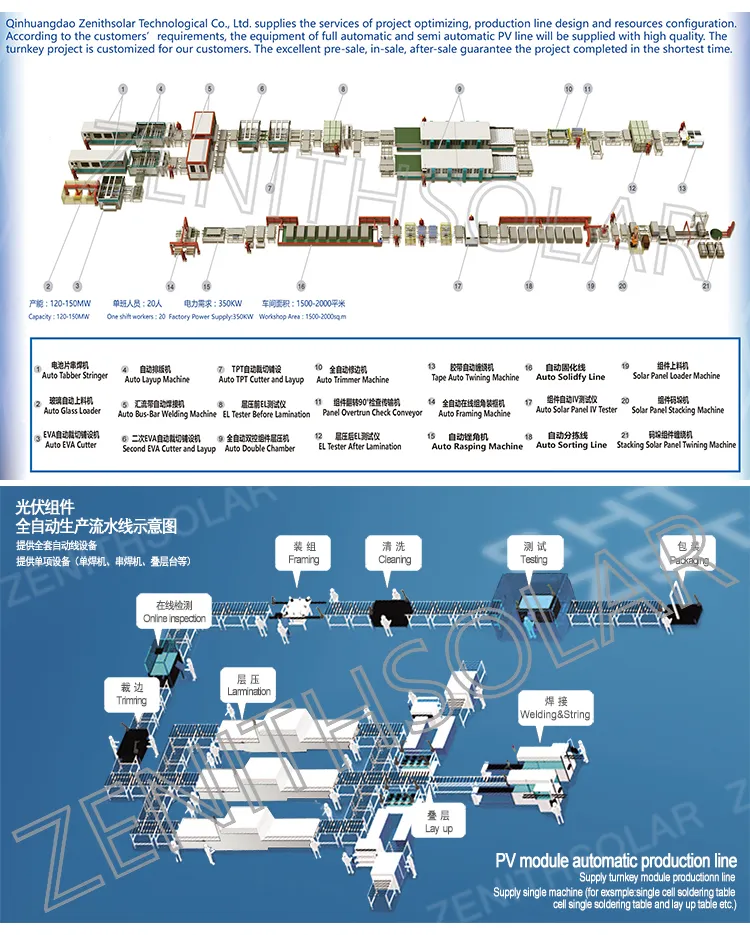

Customized Production Line

We supply customized complete production lines. Engineers can adjust the layout and performance according to specific customer requirements.

Frequently Asked Questions

Q1: What is the annual production capacity of this laminating machine? A: The machine supports a capacity of 25-75 MW per year, depending on the number of shifts (1-3 shifts).

Q2: How does the integrated design benefit my factory? A: By placing the vacuum and oil pumps inside the machine, it significantly saves floor space and simplifies the installation layout.

Q3: Is the machine noisy during operation? A: No, the machine uses high-quality imported pumps that keep the noise level below 65dB, ensuring a better working environment.

Q4: Can the production line be customized for specific plant layouts? A: Yes, we provide complete customized production lines where engineers adjust the layout and performance to meet your specific needs.

Q5: What certifications does the equipment hold? A: All machines in our PV production line have passed CE and ISO certifications, ensuring international quality and safety standards.

Q6: How much energy can be saved with this laminator? A: Our unique design allows for approximately 30% energy savings compared to other standard brands in the market.
