Solar Module Production Line Laminating Machine for PV
1 / 1

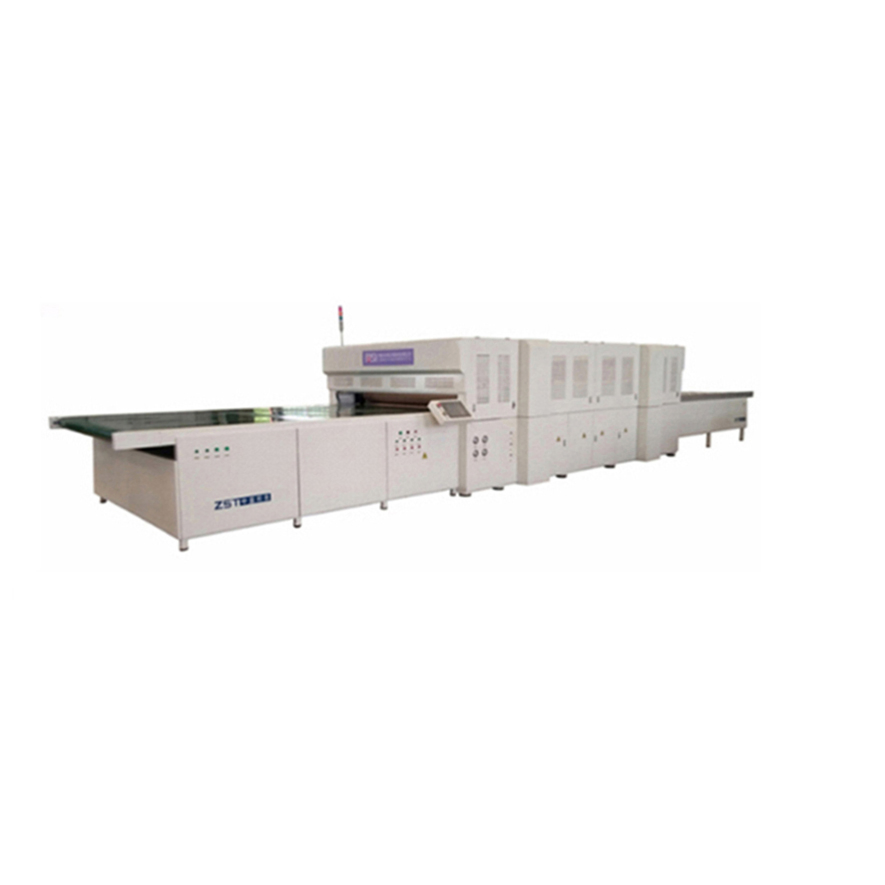

Solar Module Production Line Laminating Machine for PV

Solar Module Production Line Laminating Machine for PV

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Production Scope
Parts Production Line
Automation
Automation
Transmission Type
Flexible
Automatic Line
Comprehensive
Certification
CE, ISO
Manufacturing
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year

Product Description

Solar Module Production Line Laminating Machine for PV

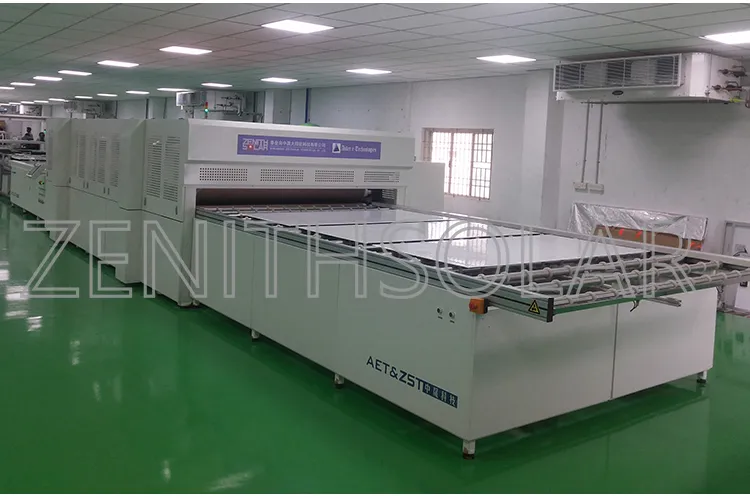

Solar Module Production Line 1

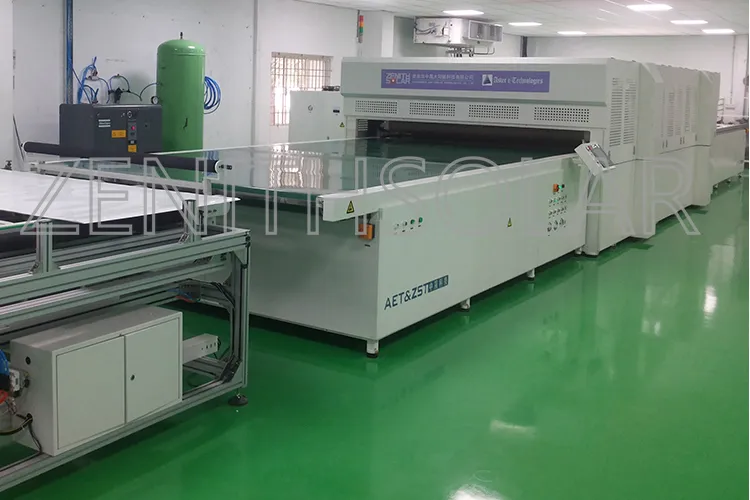

Solar Module Production Line 2

Technical Parameters

Power AC380v/50HZ/3phases/5Lines Capacity 10-30(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 200m³/H
Normal Power 15KW Max. Power 52KW
MAX. Setting Temp 180ºC Lamination Area 2200*3600mm
Heating Platform Per square meter non-flatness ≤300μm Temp Uniformity ≤±2ºC
Dimension 11800*3200*1800mm Weight 12.8T

Key Characteristics

  • Integrated Design: Featuring patented technology where the vacuum pump and oil pump are placed inside the machine to save plant space.
  • Lower Noise: Equipped with imported vacuum pumps, reducing operational noise to 65dB for a more comfortable environment.
  • Smokeless Operation: Unique smokeless design eliminates the need for complex exhausting systems.
  • Energy Saving: Advanced engineering provides approximately 30% energy savings compared to standard models.
  • CE Certified: All machines in the PV production line have successfully passed CE certification.
PV Laminating Machine Detail 1
PV Laminating Machine Detail 2
PV Laminating Machine Detail 3

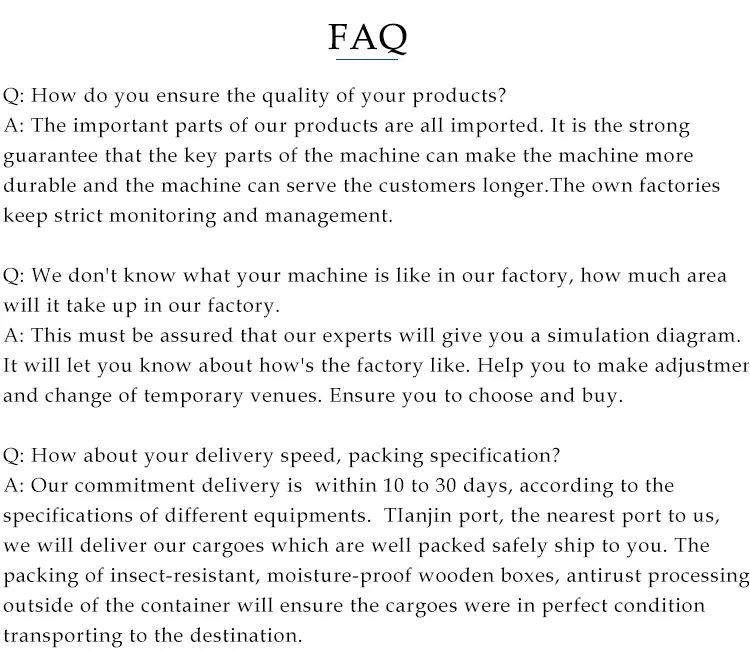

PV Laminating Machine Detail 4

Frequently Asked Questions

What is the annual production capacity of this laminating machine?
The machine offers a capacity of 10-30 MW per year, depending on the number of shifts (1-3 shifts) operated.
How does the integrated design benefit my facility?
The integrated design places the vacuum and oil pumps inside the machine, significantly saving floor space in your production plant.
Is the machine loud during operation?
No, it utilizes high-quality imported vacuum pumps that maintain noise levels below 65dB, ensuring a quieter working environment.
Does the laminating machine require a specialized exhaust system?
Thanks to its unique smokeless pump design, you do not need to configure an external exhausting system.
What kind of energy efficiency can I expect?
This model is designed for high efficiency, providing approximately 30% energy savings compared to other standard brands in the market.
What are the maximum lamination area and temperature settings?
The machine supports a maximum lamination area of 2200*3600mm and a maximum temperature setting of 180ºC with high uniformity.
