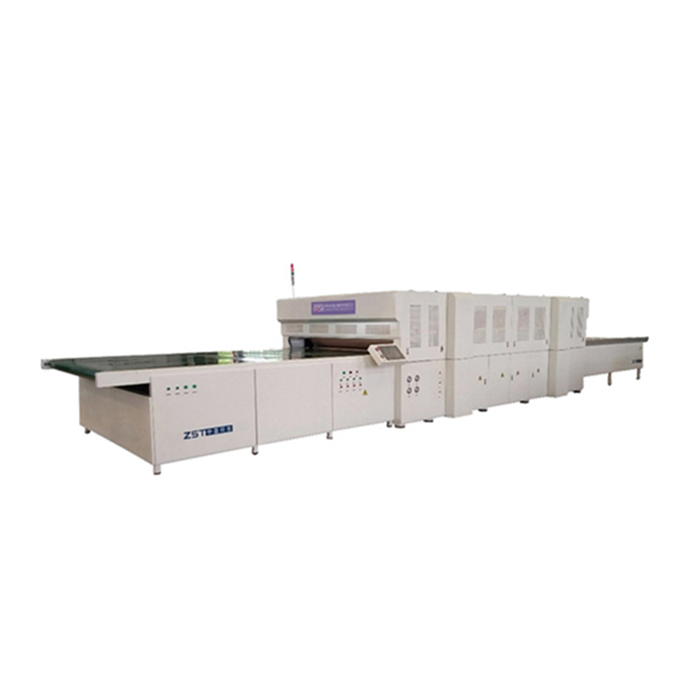

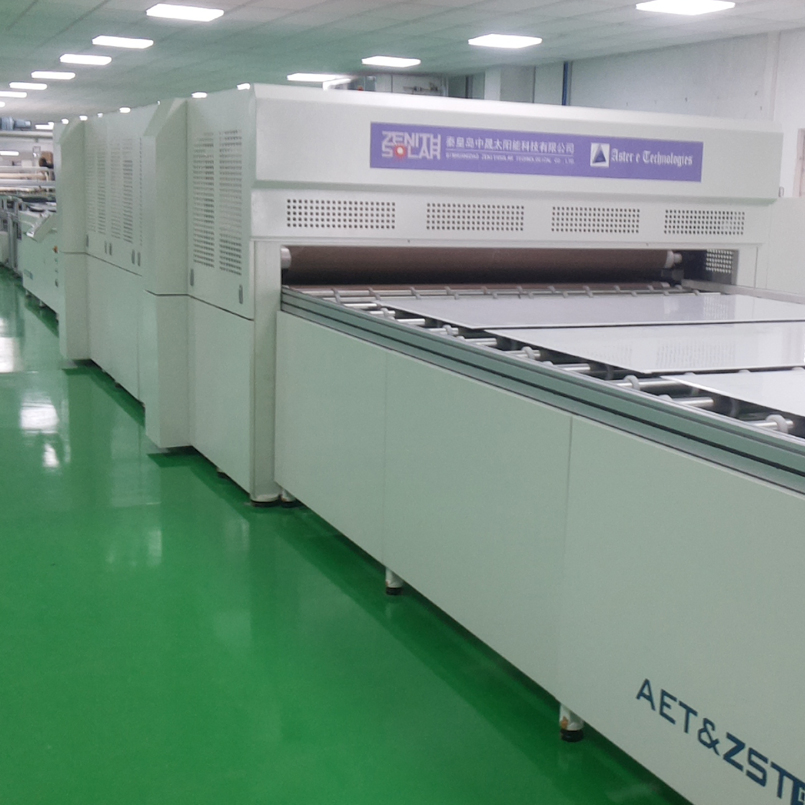

Solar Panel Assembly Equipment Solar Module Laminating Machine in PV Line
Solar Panel Assembly Equipment Solar Module Laminating Machine in PV Line
1 / 2
Solar Panel Assembly Equipment Solar Module Laminating Machine in PV Line
Solar Panel Assembly Equipment Solar Module Laminating Machine in PV Line

Solar Panel Assembly Equipment Solar Module Laminating Machine in PV Line

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Automation
Automation
Transmission Type
Flexible
Automatic Production Line
Comprehensive
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Production Scope
Parts Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year
Product Description

Solar Panel Assembly Equipment - Solar Module Laminating Machine in PV Line

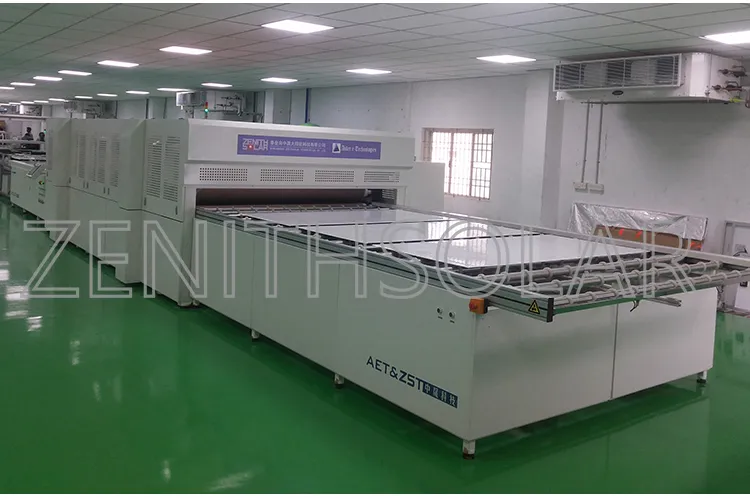

Solar Module Laminating Machine

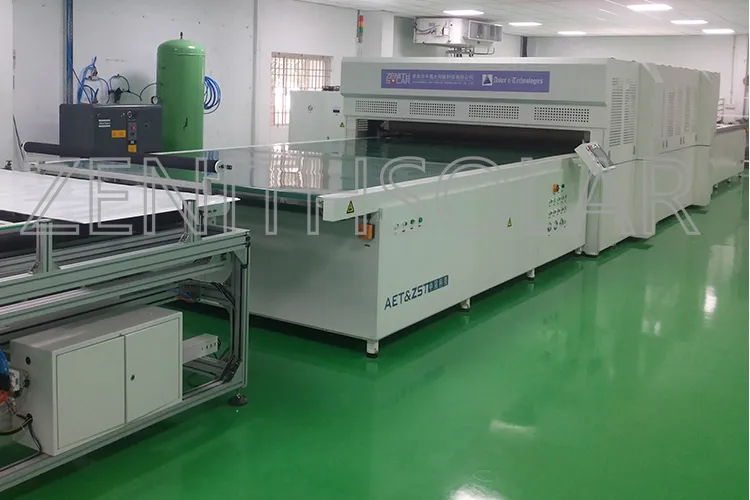

Solar Module Laminating Machine Detail
Technical Parameters
Power AC380v/50HZ/3phases/5Lines Capacity 10-30(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 200m³/H
Normal Power 15KW Max.Power 52KW
MAX.setting temperature 180ºC Lamination Area 2200*3600mm
Heating Platform Per square meter of non-flatness ≤300μm Temperature Uniformity ≤±2ºC
Dimension 11800*3200*1800mm Weight 12.8T
Key Characteristics
⚙️ Integrated Design

Patented design where the vacuum pump and oil pump are placed inside the machine to save plant space.

🔇 Lower Noise

Equipped with imported vacuum pumps, reducing operational noise to 65dB for a comfortable environment.

🌬️ Free Smoke

Unique smokeless pump design eliminates the need for an external exhausting system.

⚡ Energy Saving

Highly efficient system providing approximately 30% energy savings compared to standard brands.

📜 CE Certificate

All machines in the PV production line have fully passed CE certification standards.

PV Line Equipment
PV Line Equipment
PV Line Equipment
PV Line Equipment
PV Line Equipment
Frequently Asked Questions
What is the maximum lamination area of this machine?
The machine provides a large lamination area of 2200*3600mm, suitable for various solar module sizes.
How does the integrated design benefit my factory layout?
By placing the vacuum and oil pumps inside the machine, it significantly reduces the footprint, allowing for more efficient use of your plant space.
Is the machine energy efficient?
Yes, this model is designed to save approximately 30% more energy compared to other standard laminating machines on the market.
What certifications does the equipment hold?
The equipment is fully certified with CE and ISO standards, ensuring compliance with international safety and quality regulations.
Does the machine require a special exhaust system?
No, thanks to the unique smokeless pump design, you do not need to configure an additional exhausting system for smoke removal.
What is the annual production capacity?
The capacity ranges from 10-30 MW per year, depending on whether the operation runs on 1, 2, or 3 shifts.
