Product Description

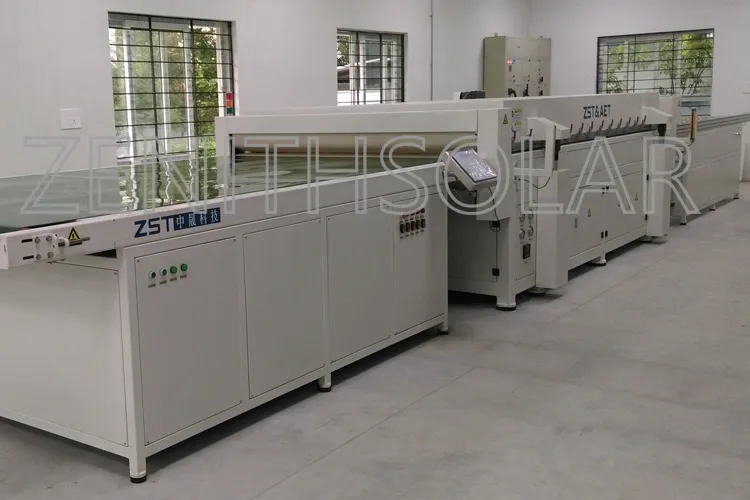

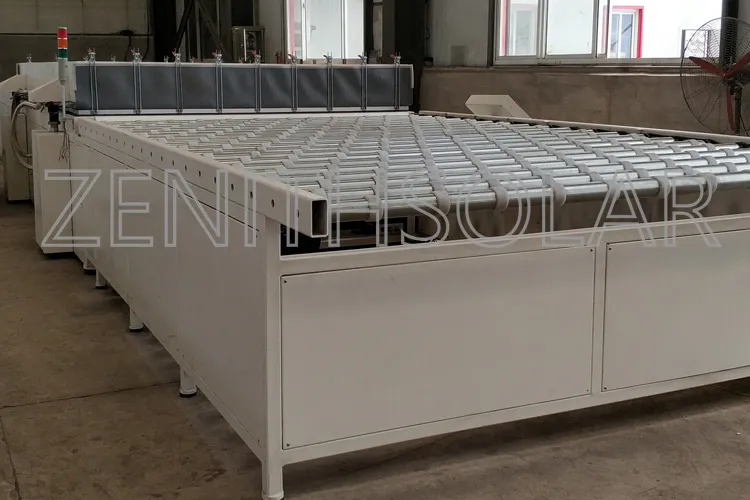

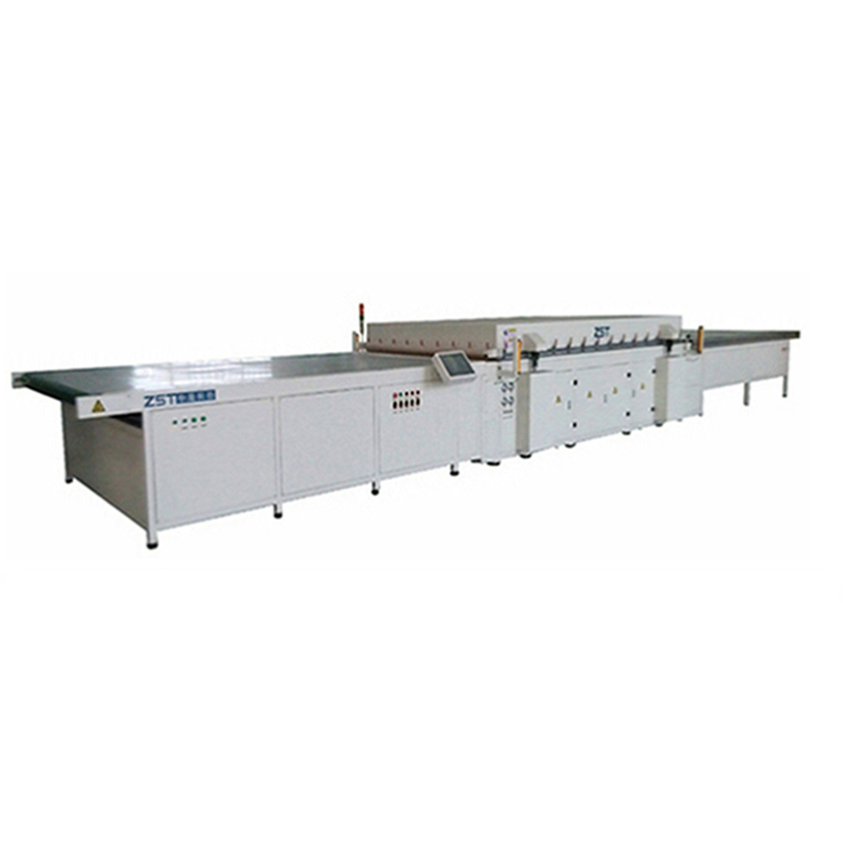

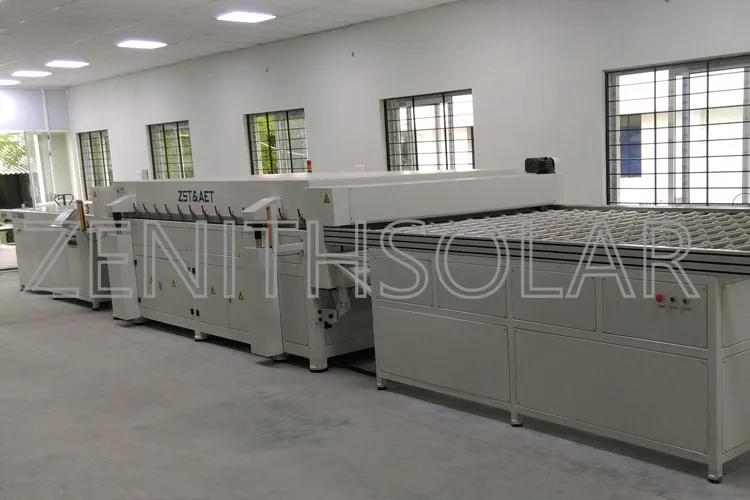

Solar Module Manufacturing Machines - EVA PV Module Lamination Machine
📊
Technical Parameters
| Power |
AC380V/50HZ/3Phases/5Lines |
Capacity |
5-15(1-3shift)MW/year |
| Compressed Air Flow |
0.25m³/min |
Vacuum Rate |
100m³/H |
| Normal Power |
10KW |
Max. Power |
34KW |
| Lamination Time |
PVB/EVA: 12-15min |
Lamination Area |
2200*2140mm |
| Working Temperature |
100-160ºC |
Temp. Uniformity |
≤±2ºC |
| Dimension |
7700*2620*1350mm |
Weight |
7.5T |
💡
Key Characteristics
Integrated Design
Patented design where the vacuum pump and oil pump are placed inside the machine to save plant space.
Lower Noise
Equipped with a German imported vacuum pump, reducing noise levels to 65dB for a more comfortable environment.
Smoke-Free Operation
Unique smokeless pump design eliminates the need for a separate exhausting system.
Energy Saving
Achieves approximately 30% energy savings compared to other leading brands.
Safety Certified
All machines in the PV production line have passed full CE certification requirements.
❓
Frequently Asked Questions
What is the effective lamination area of this machine?
The machine provides a generous lamination area of 2200*2140mm, suitable for various solar module sizes.
How much energy can I save using this PV module laminator?
Due to its optimized engineering, this machine is approximately 30% more energy-efficient compared to other standard industry brands.
Is the machine suitable for indoor installation in terms of noise and emissions?
Yes. It features a German vacuum pump that keeps noise levels at 65dB and a smokeless design, making it ideal for a clean work environment without extra exhaust systems.
What certifications does the machine hold?
The entire production line equipment is fully CE and ISO certified, ensuring compliance with international safety and quality standards.
What materials can be laminated with this equipment?
The machine is designed for efficient lamination of both PVB and EVA materials, with a typical cycle time of 12-15 minutes.
What is the annual production capacity?
Depending on the shift configuration (1-3 shifts), the machine can support a production capacity of 5-15 MW per year.
