Negotiate the price according to specific circumstances

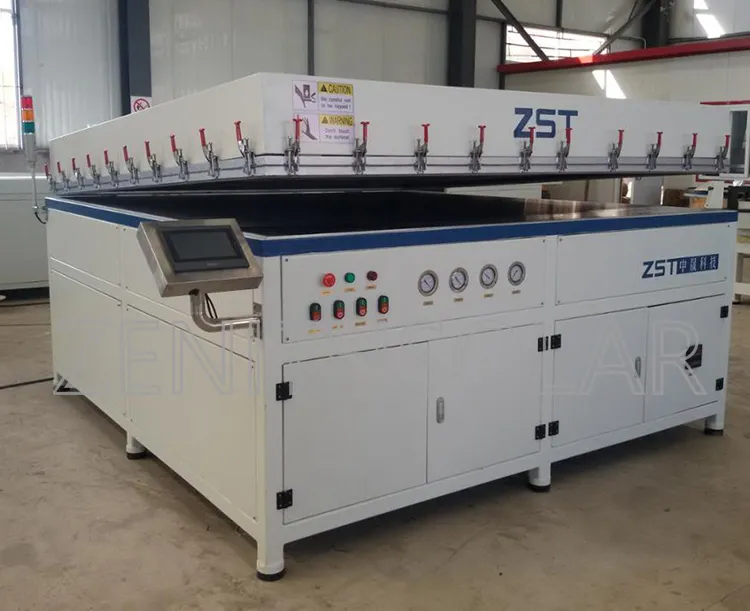

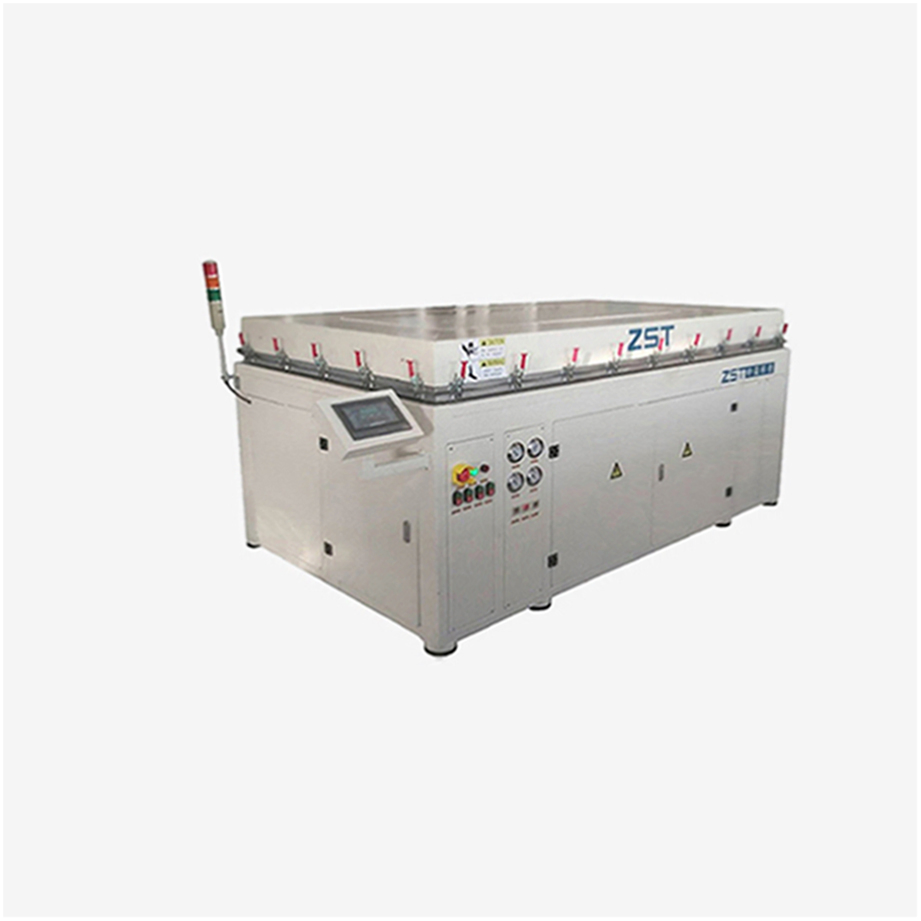

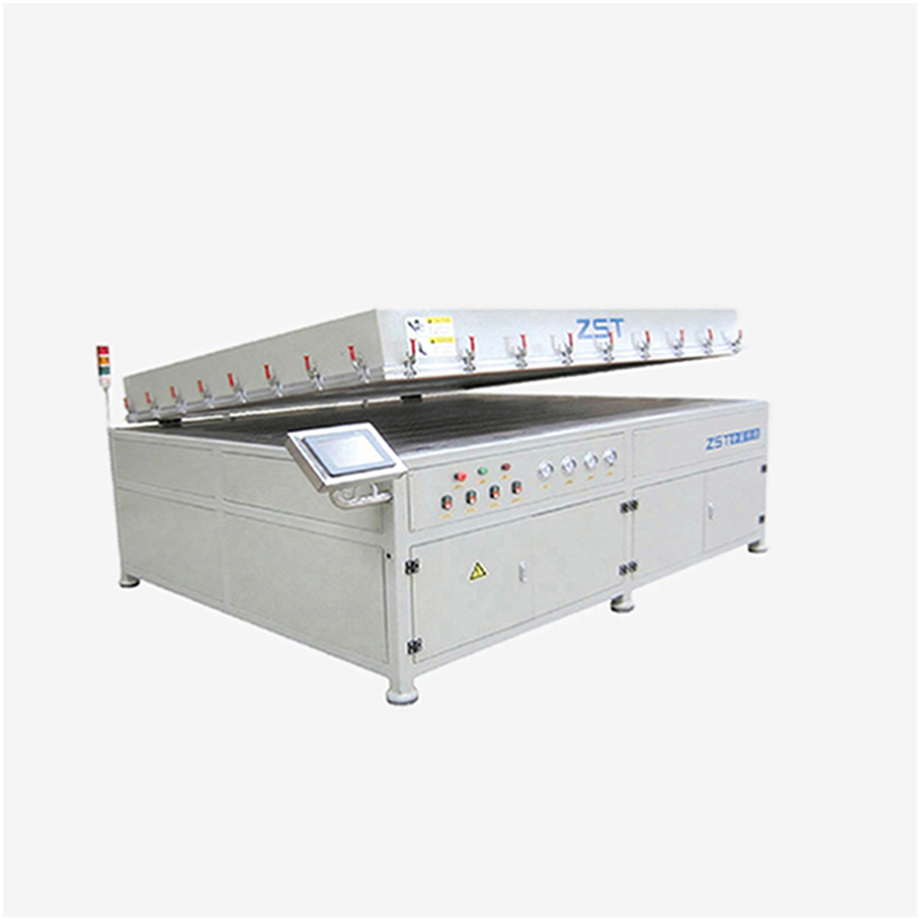

Machine of Laminating PV Solar Module Semi-Auto Solar Panel Laminator
| Power |
AC380v/3phases/4Lines |
Capacity |
3-9(1-3shift)MW/year |
| Noise at work |
<65dB |
Vacuum Rate |
100m³/H |
| Normal Power |
9.5KW |
Max.Power |
26KW |
| Compressed Air Flux |
2500L/min |
Lamination Area |
1100*2200mm |
| Air Pressure |
0.6-0.8Mpa |
Temp Uniformity |
≤±2ºC |
| Dimension |
2650*1800*1400mm |
Weight |
3.8T |
✓
Integrated Design: It is one of the patents. The vacuum pump and oil pump are placed inside the laminating machine, saving plant space.
✓
Lower Noise: Using an imported vacuum pump, noise is reduced to 65dB for a more comfortable working environment.
✓
Free Smoke: The smokeless pump design eliminates the need for a separate exhausting system.
✓
Energy Saving: Approximately 30% more energy-efficient compared to other brands.
✓
CE Certificate: All machines in the PV line have passed CE certification.
Frequently Asked Questions
What is the annual production capacity of this solar laminator?
The machine offers a capacity of 3-9 MW per year, depending on the number of shifts (1-3 shifts).
How does the integrated design benefit the manufacturing facility?
By housing the vacuum and oil pumps internally, the machine minimizes its footprint, allowing you to save significant floor space in your plant.
Does this machine require an external exhaust system?
No, the unique smokeless design of the pump means you do not need to configure an additional exhausting system.
What certifications does the PV production line have?
All machines in this production line are CE and ISO certified, ensuring compliance with international safety and quality standards.
How quiet is the machine during operation?
The machine uses high-quality imported vacuum pumps that maintain noise levels below 65dB for a comfortable workspace.
What is the energy efficiency rating of this laminator?
This semi-auto laminator is designed for energy efficiency, saving approximately 30% more energy compared to other industry standard brands.
