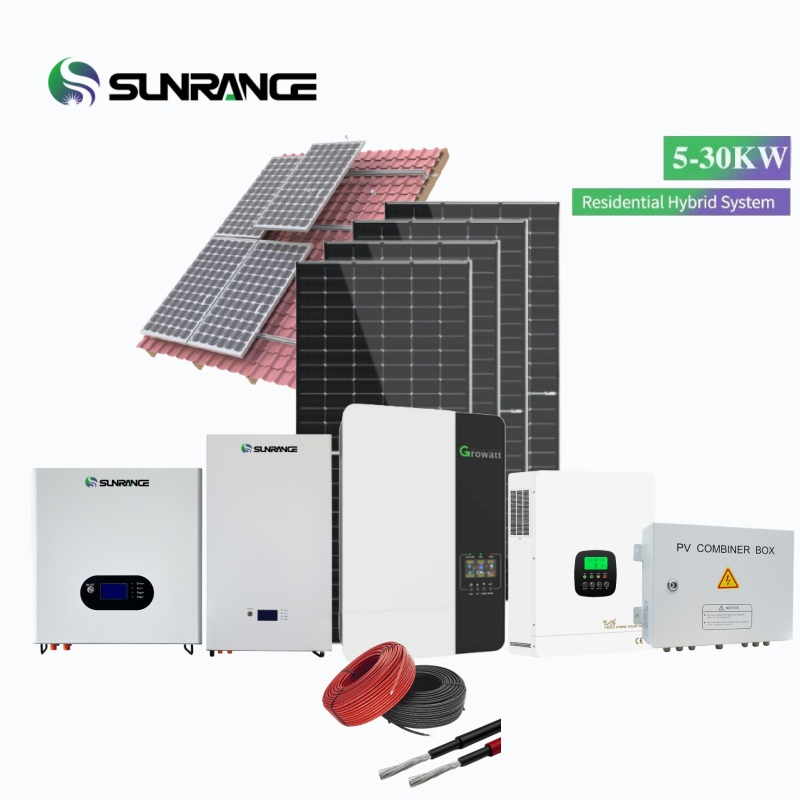

| Model | SR-5KW-ON | SR-10KW-ON | SR-20KW-ON | SR-30KW-ON |
|---|---|---|---|---|
| Half Cut Mono 580W Panel | 9 Pieces | 18 Pieces | 40 Pieces | 56 Pieces |
| DC Combiner Box | 1 Piece | 1 Piece | 1 Piece | 1 Piece |

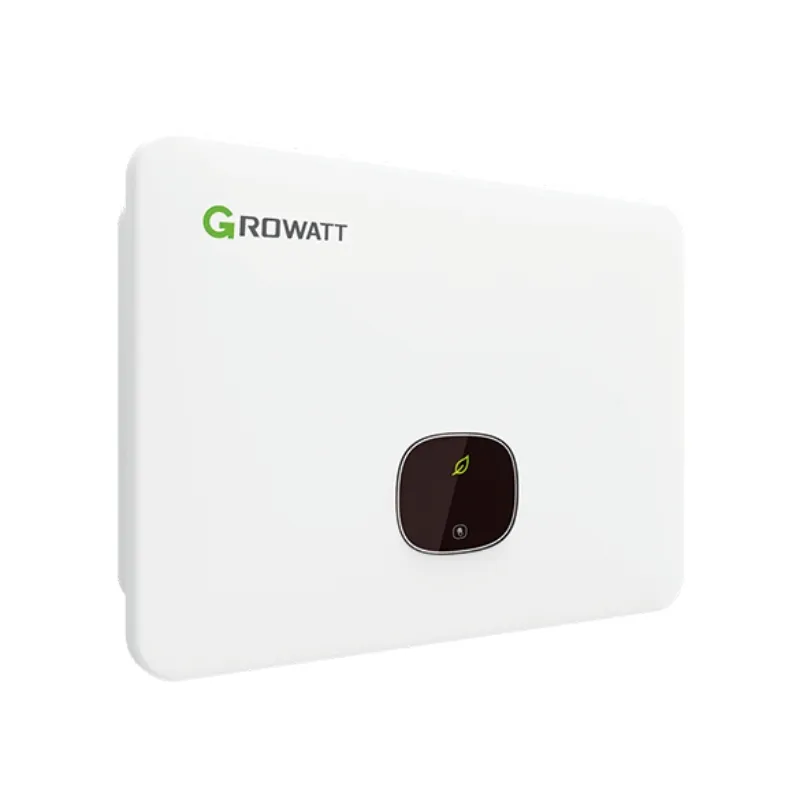

| On Grid Inverter | MIN5000TL-X | MIN10000TL-X | MID 20KTL3-X | MID 30KTL3-X |
| DC Cable 4mm2 | 200 meter | 200 meter | 400 meter | 400 meter |
| MC4 Connector | 10 Pairs | 10 Pairs | 20 Pairs | 30 Pairs |

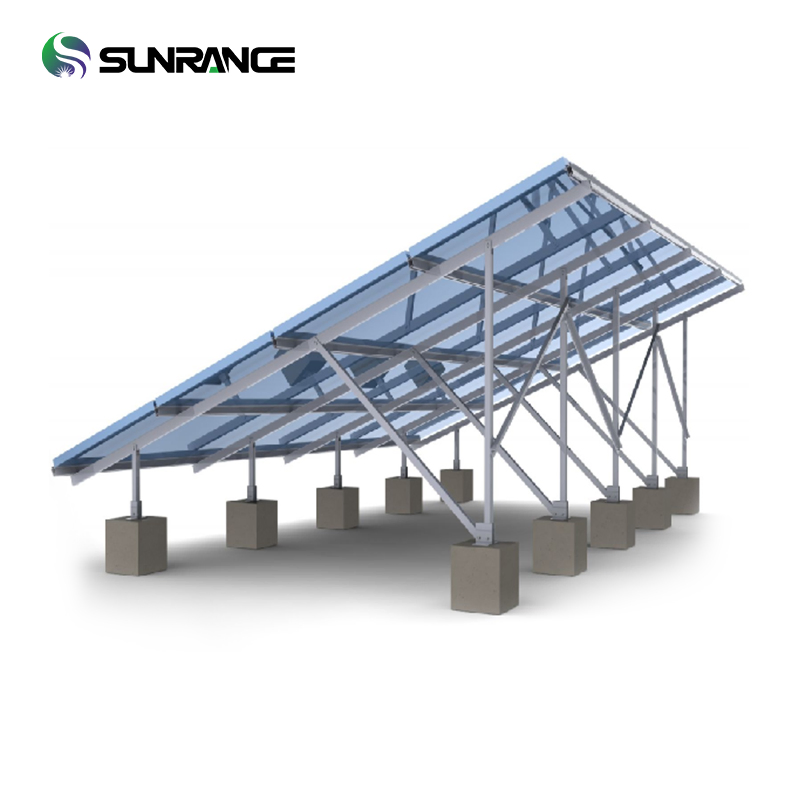

| Mounting System | Customized Product Based On Installation Roof/Ground | |||

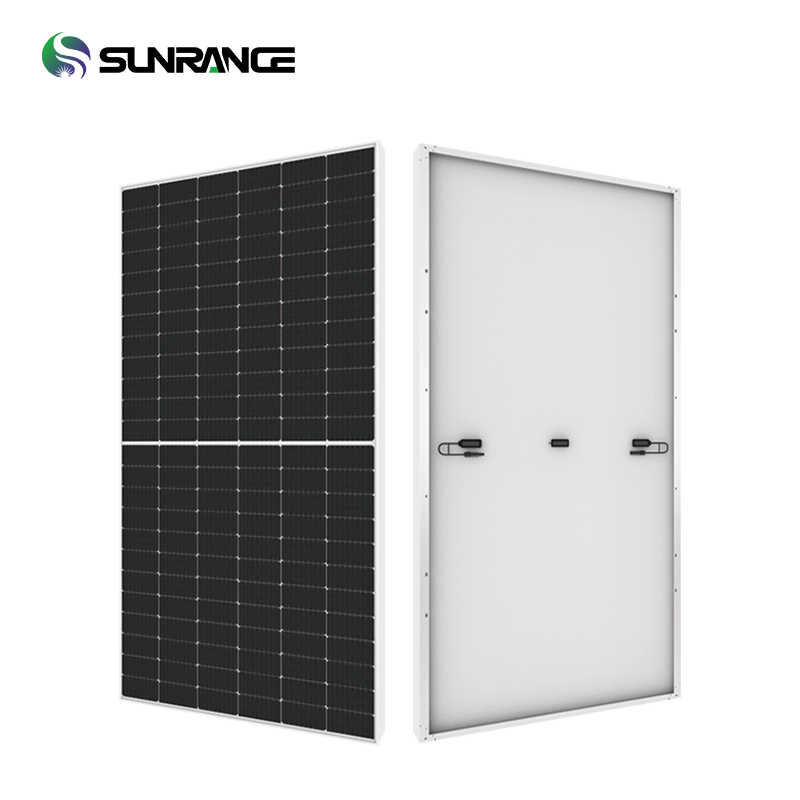

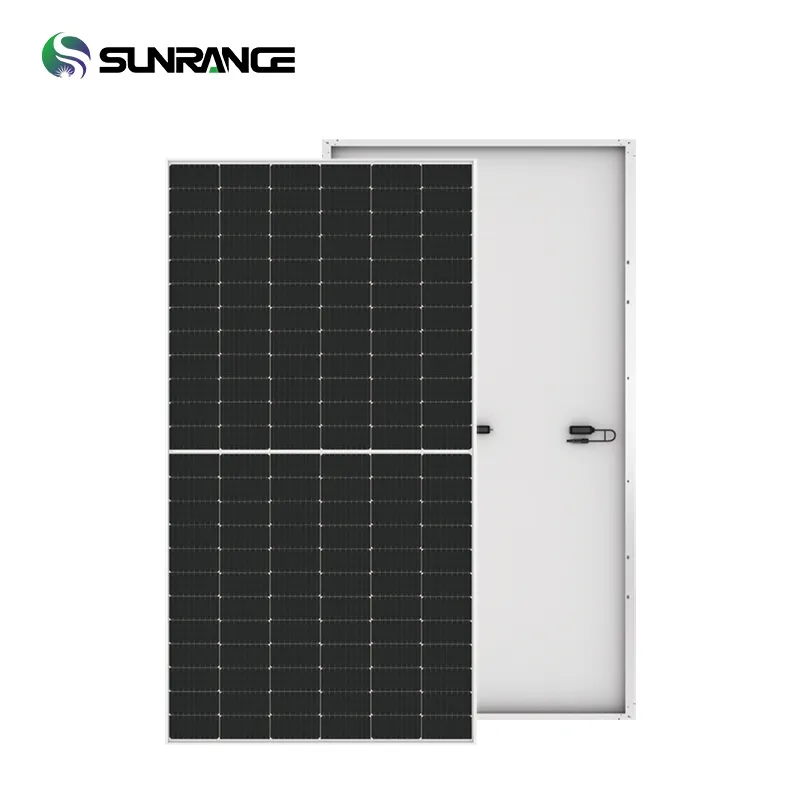

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

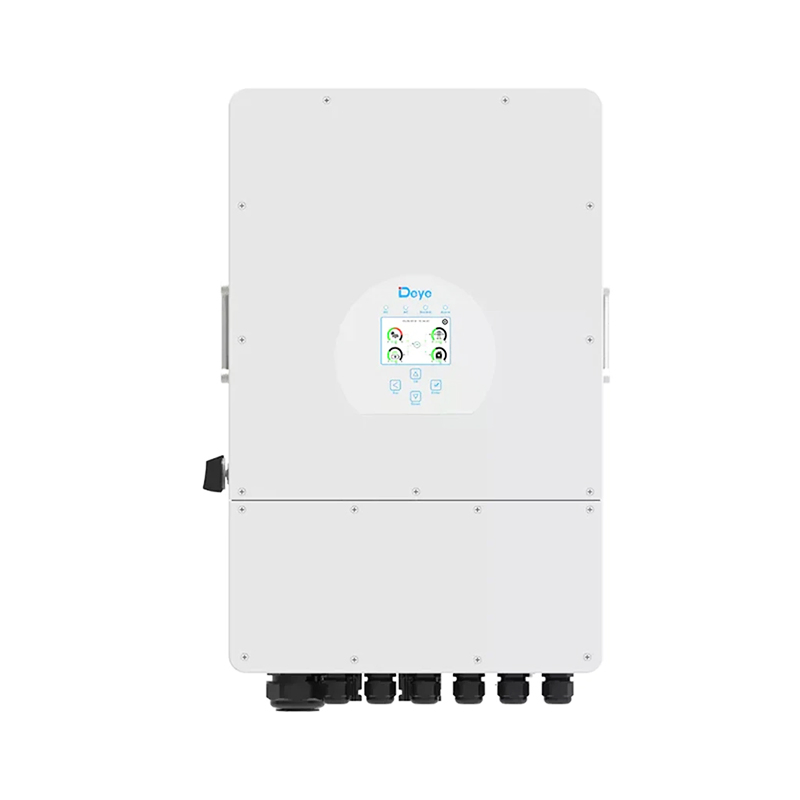

• Support PV, DG, grid, and load connections
• Easily expanded system capacity
• Dynamic power distribution for load demand

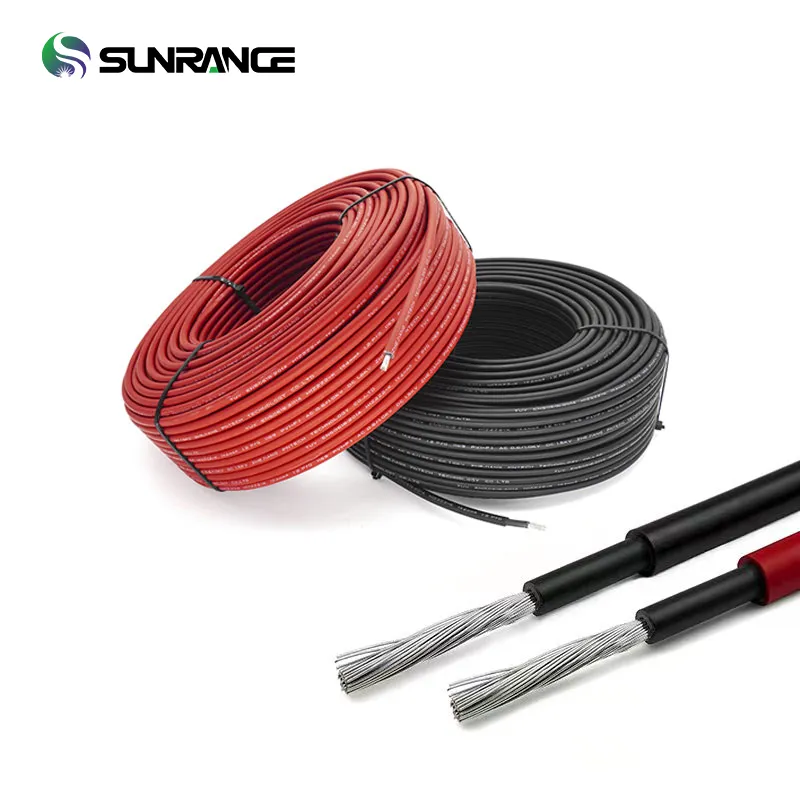

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600VDC/1000VDC (TUV)
Lifetime: ≤25 Years
Colors: Black / Red

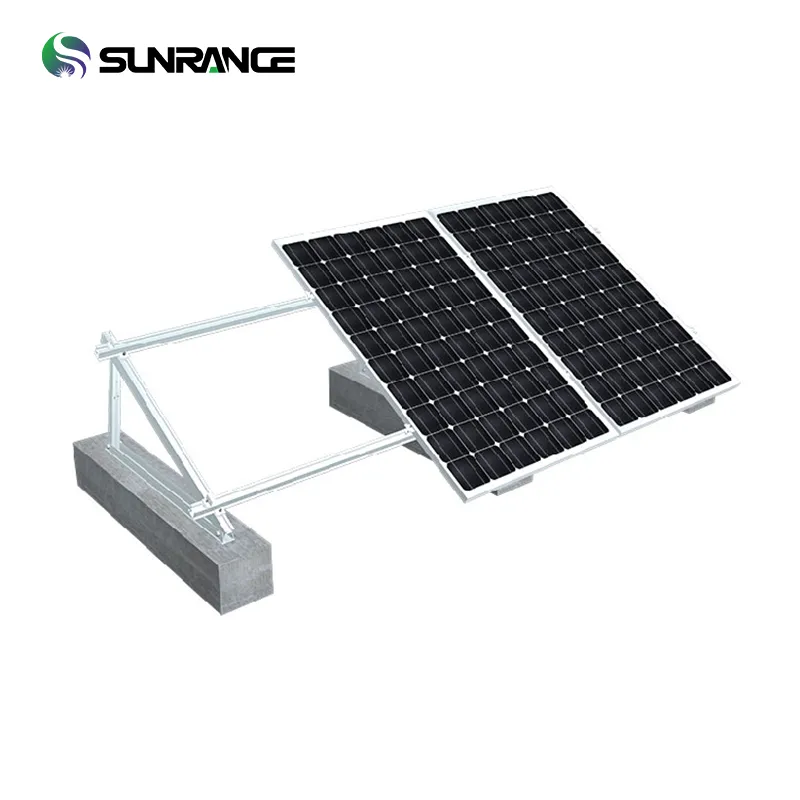

• Mounting Rail & Rail Splice Kit: Ai6005 & Sus304
• Boltmid & End Clamps: 30, 35, 40mm
• Optional L Foot, Cable Clips, and Ground Lugs
Sunrange is an emerging brand in the photovoltaic industry with customers located on all continents. We provide high-quality products and professional services, offering diverse design solutions for large, medium, and small-scale requirements. We continuously improve our technology to bring a superior experience to our global users.
