Compact structure, high-lift, noiseless, and pollution-free. Features a complete electrical protecting controller device against under-voltage, over-voltage, over-flow, and overload. Includes automatic recovery and intelligent water level control.
Ideal for distance irrigation, aquaculture oxygenation, deep well pumping, gardening, and decorative fountains. Highly efficient with a wide high-efficiency zone.
Designed for non-corrosive water; sand content ratio ≤ 3‰; particle size < 0.5mm. Suitable for temperatures up to +40°C and PH values between 5-10. Must be fully immersed during operation.

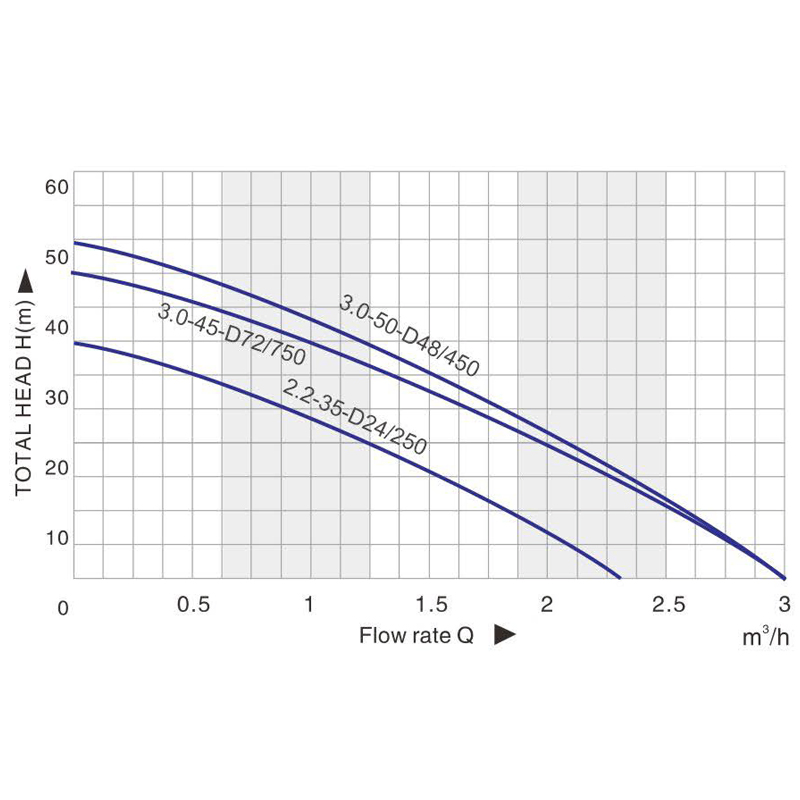

| Model | Impeller | Solar array Voltage(V) | Solar array Power(W) | Best input voltage(DC) | Max Flow (m³/h) | Max Head (m) | Max Suct (m) | Outlet (inch) | VOC |
|---|---|---|---|---|---|---|---|---|---|
| SQB2.2/35-D24/250 | Brass | 36 | 360 | 30-48 | 2.2 | 35 | 8 | 1"×1" | <100V |
| SQB3.0/50-D48/450 | 72 | 660 | 30-48 | 2.5 | 50 | 8 | 1"x1" | <100V | |
| SQB4.0/55-D72/750 | 108 | 960 | 90-120 | 4 | 55 | 8 | 1"x1" | <150V | |
| SQB4.0/85-D72/1300 | 108 | 1650 | 90-120 | 4 | 85 | 8 | 1"x1" | <150V | |
| SQB6.0/140-D168/1800 | 288 | 2400 | 188-324 | 6 | 140 | 8 | 1"x1" | <400V |
Our organization currently operates with more than 20 wholly-owned subsidiaries and over 100 specialized business divisions. We are supported by a refined service team of approximately 1,500 professionals dedicated to excellence.
Our extensive service network covers major domestic cities and has successfully expanded into international markets, particularly along the "Belt and Road" initiative regions.
