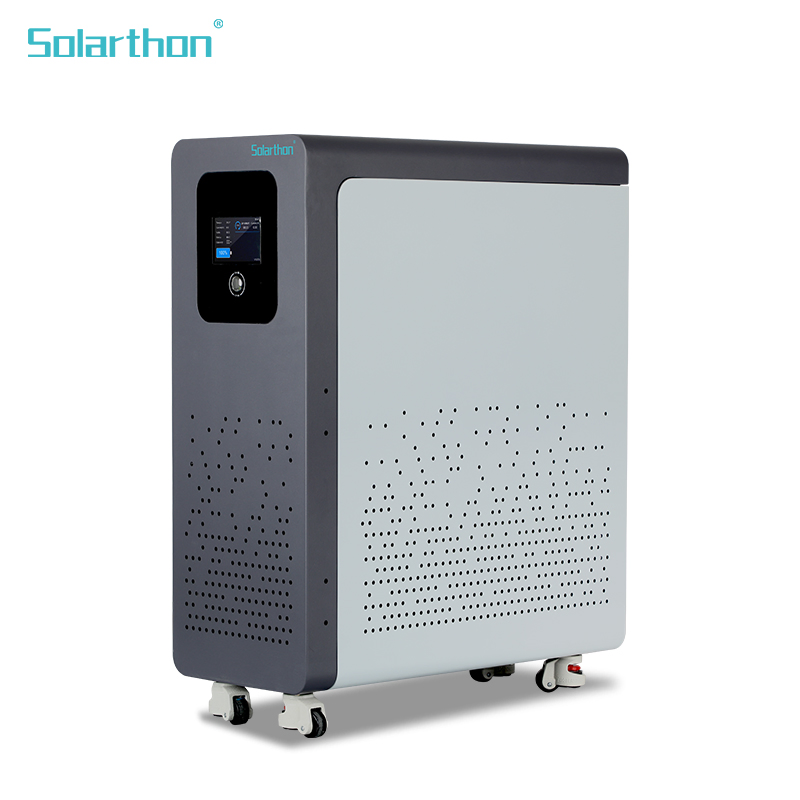

Reliable off-Grid Solar Energy Storage Solution for Remote Areas

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.LF52230-10
Nominal Capacity460ah
Cycle Life500,000h
Battery TypeLiFePO4
Nominal Voltage51.2V
Capacity Options230ah / 300ah
Charging Cut-off Voltage58.4V
Discharging Cut-off Voltage40V
Max. Cont. Charging Current300A
Max. Cont. Discharging Current200A

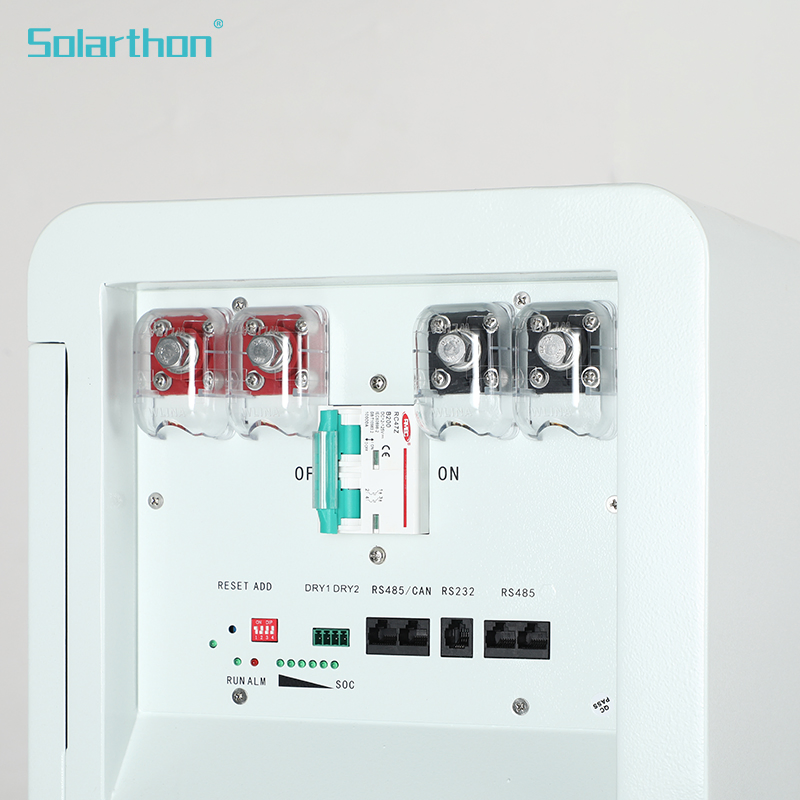

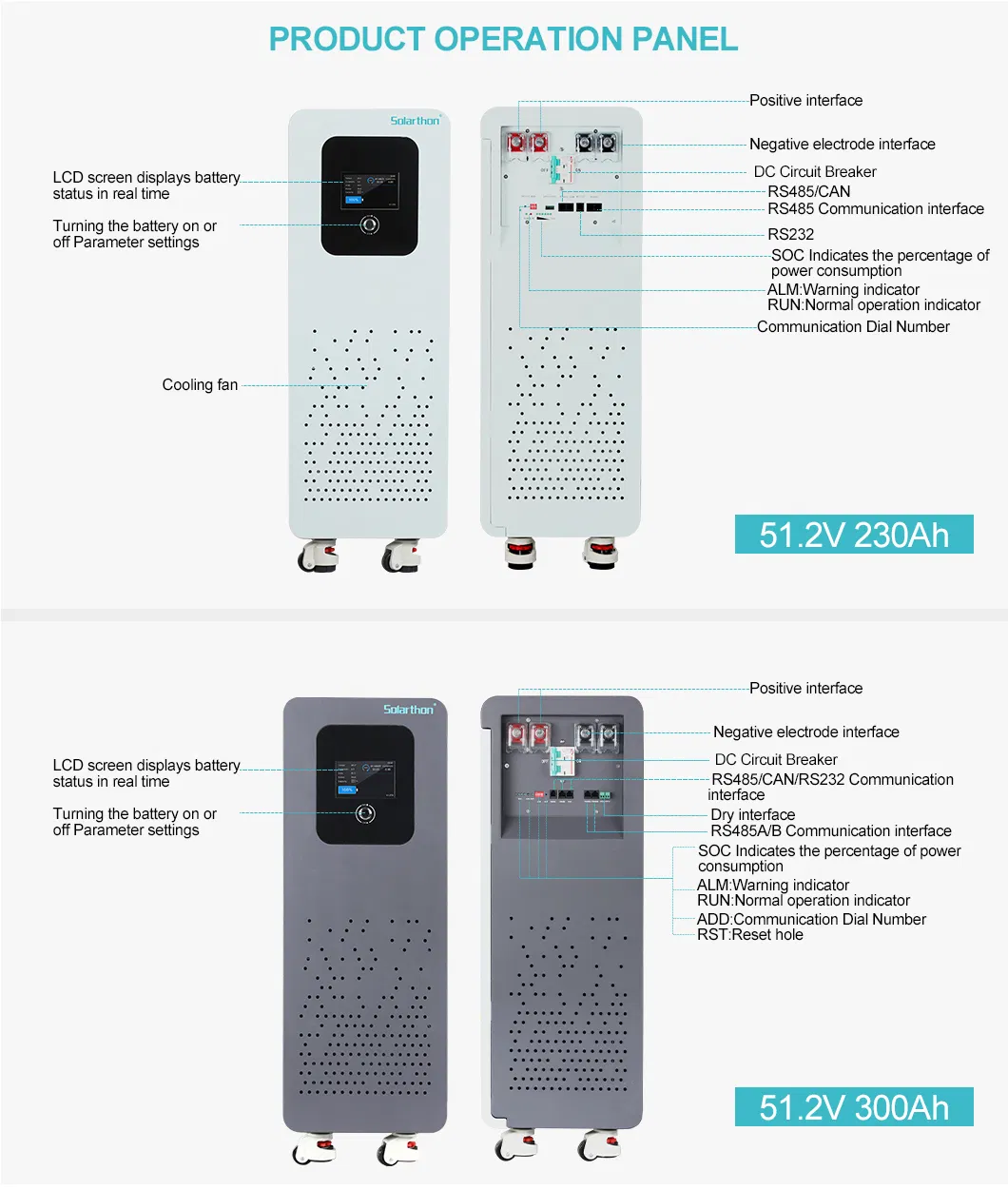

CommunicationRS485 / RS232 / CAN
InstallationCabinet / Floor Mount
System TypeRack-Mounted
Package Size58.00cm * 50.00cm * 31.00cm
Product Description

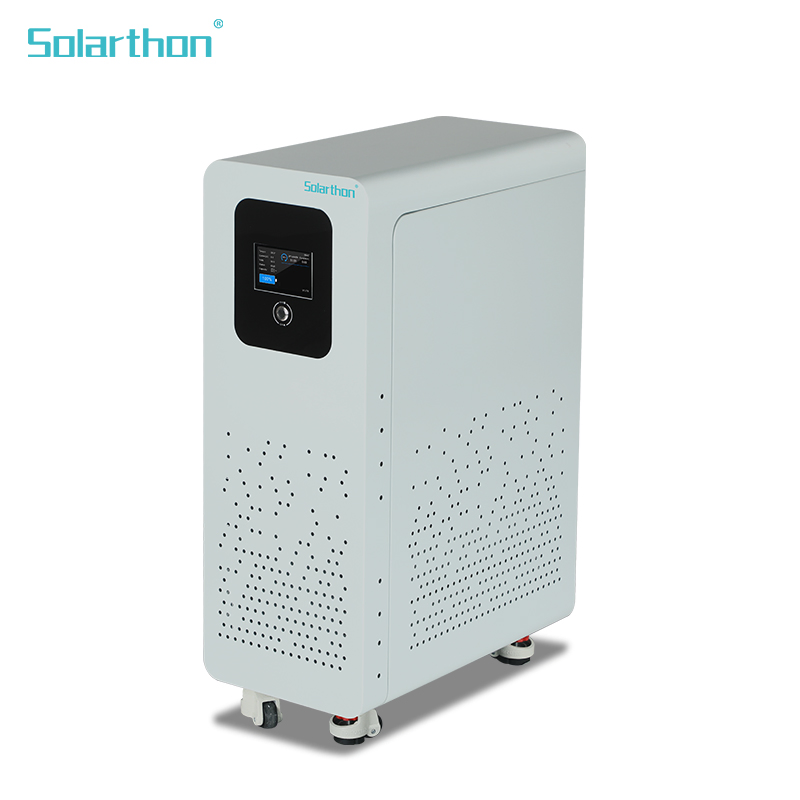

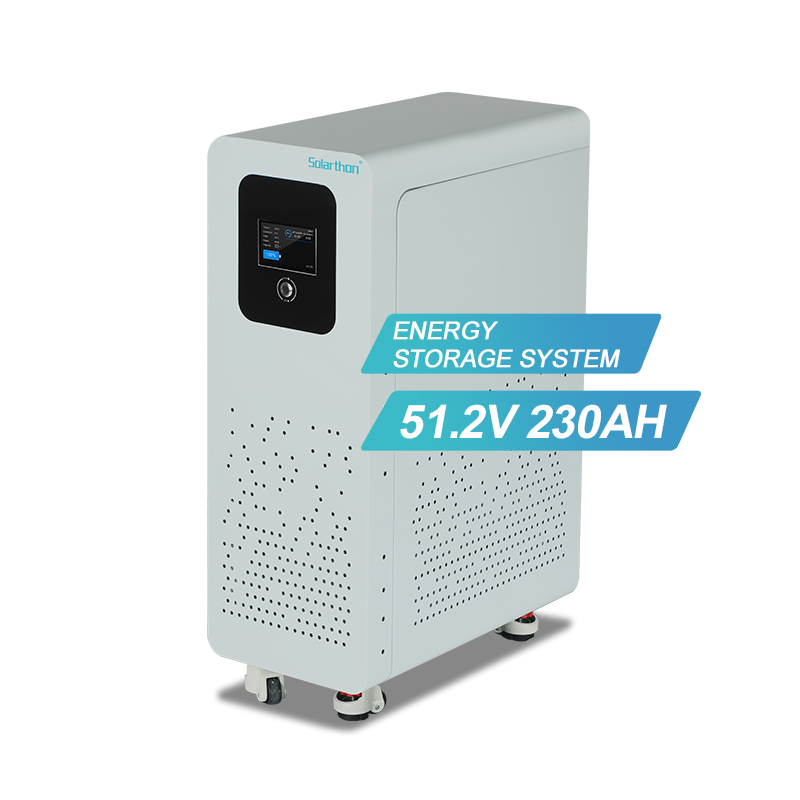

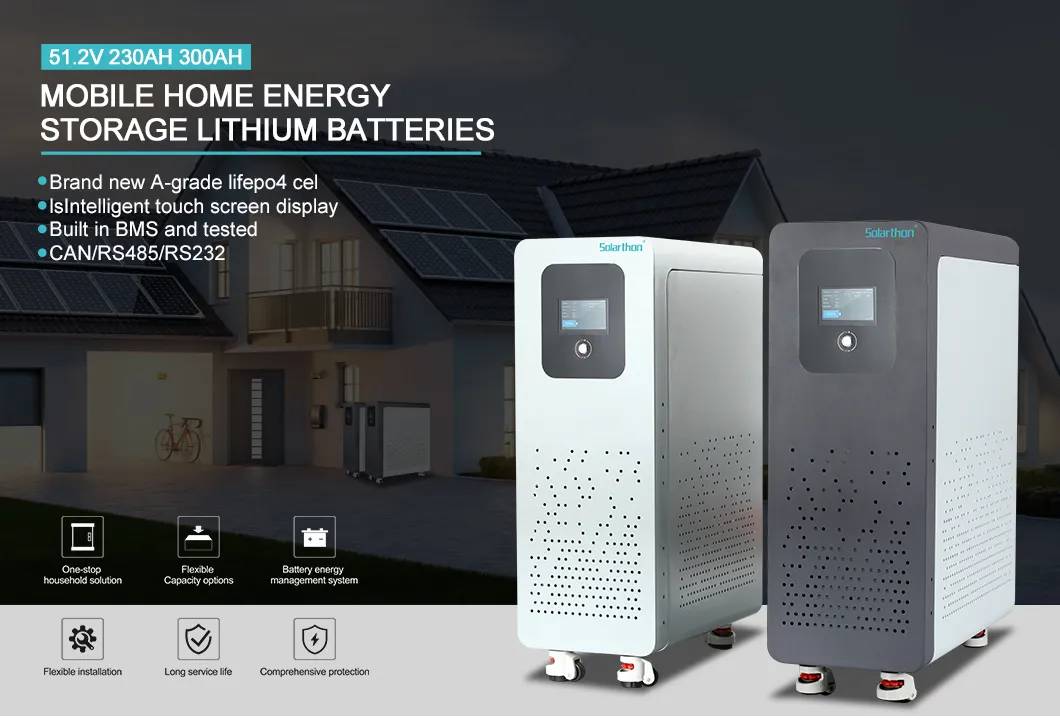

Explore the 51.2V 230AH/300AH lithium battery for mobile home energy storage. A reliable and efficient solution for sustainable solar power backup. This household energy storage product is designed to provide energy storage and supply to a wide range of electrical equipment, including household, commercial, and UPS systems.
🛡️
With its long cycle life and high safety standards, this battery pack offers peace of mind. From software protection to a strong housing, every detail has been carefully considered. Compatible with off-grid inverters, grid-connected inverters, and hybrid inverters.
Key Features
  • BUILT IN BMS: Modular battery with quality BMS, ensuring full cell protection
  • SAFETY: Using LiFePO4 batteries for safe home energy storage
  • SCALABLE: Modular battery scales for larger storage
  • LONG LIFE: Designed for 15-20 years, over 4000 cycles
  • EASY INSTALL: Wall mount or ground stack, easy connection to inverters
Technical Parameters
Parameter LF52230-10 LF52300-10
Battery TypeLiFePO4LiFePO4
Nominal Voltage51.2V51.2V
Nominal Capacity230Ah300Ah
Max. Charging Voltage58.4V58.4V
Working Temperature (Charge)-3ºC ~ 65ºC-3ºC ~ 65ºC
Cycle Life>4000>4000
Weight100kg126kg

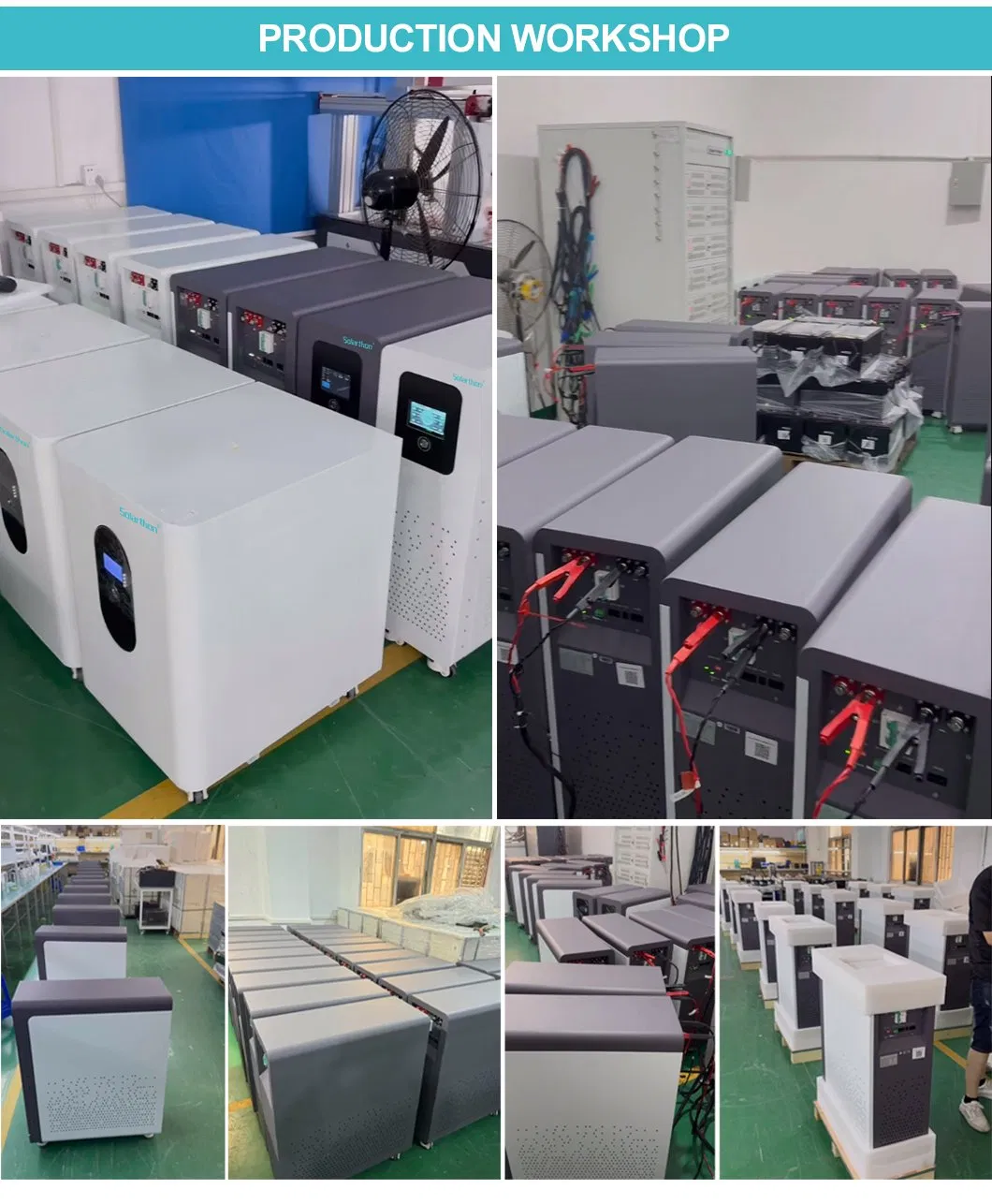

Quality Assurance & Shipping
📦
  • Thorough inspection to ensure batteries are in good condition before delivery.
  • Protection with thick custom sponge during shipping.
  • Secure packaging in multi-layer dangerous goods export corrugated cartons.
  • Each battery is equipped with a unique QR code for origin verification.
Certifications & Advantages
Frequently Asked Questions
What type of battery cells are used?
We use high-quality LiFePO4 (Lithium Iron Phosphate) cells, which are known for their safety, stability, and long cycle life in energy storage applications.
What is the expected lifespan of the battery pack?
The battery is designed for a service life of 15-20 years with more than 4,000 deep cycles.
Is the battery compatible with my existing inverter?
Our battery system is highly versatile and compatible with most off-grid, grid-connected, and hybrid inverters on the market.
How does the built-in BMS protect the battery?
The modular BMS (Battery Management System) provides full protection against overcharging, over-discharging, over-current, and short circuits, ensuring the safety of your home energy storage.
Can I expand the storage capacity later?
Yes, the battery pack is scalable. Its modular design allows you to add more units to increase your total energy storage capacity as needed.
What output voltages are supported?
The system supports a wide range of output options including 110V, 115V, 120V, 220V, 230V, and 240V with self-adapting frequencies of 50/60Hz.
