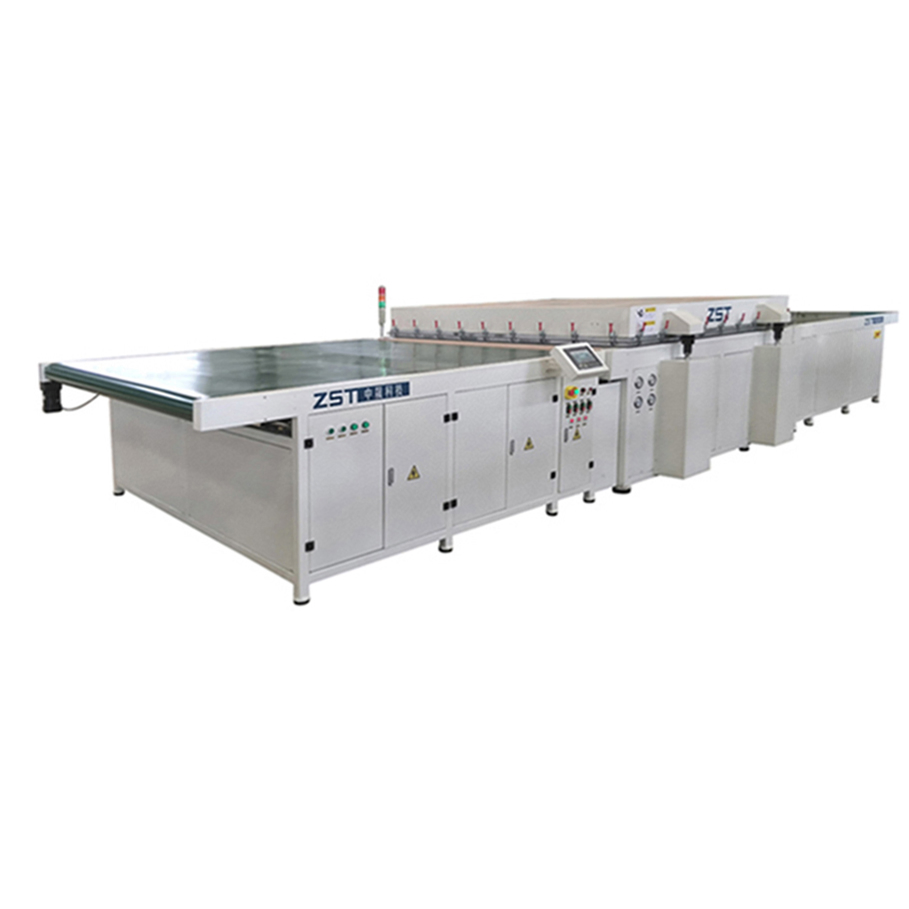

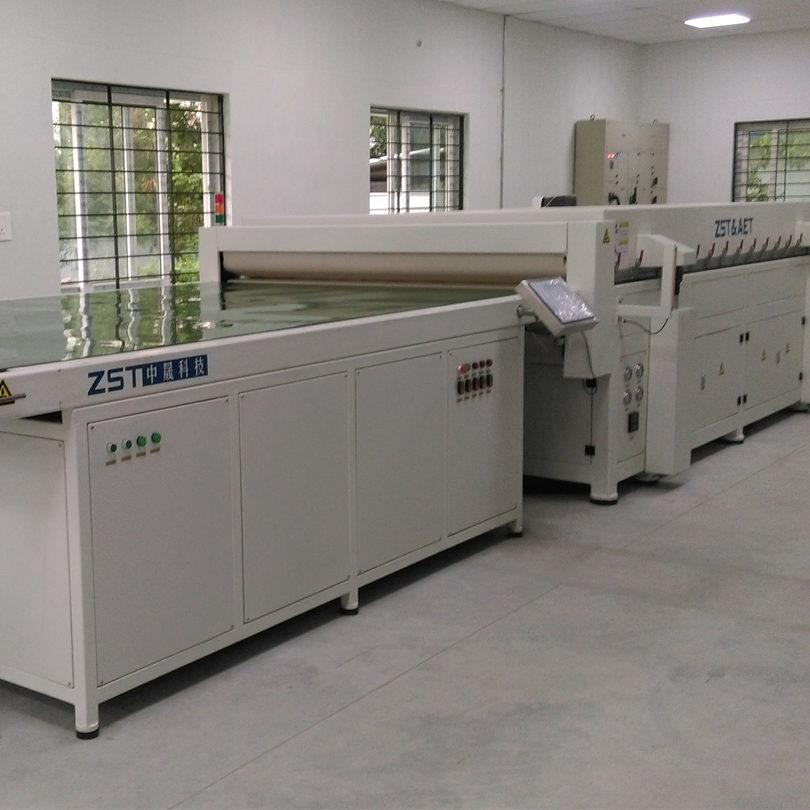

PV Lamination Machine Especially for Encapsulating Solar Module
PV Lamination Machine Especially for Encapsulating Solar Module
1 / 2
PV Lamination Machine Especially for Encapsulating Solar Module
PV Lamination Machine Especially for Encapsulating Solar Module

PV Lamination Machine Especially for Encapsulating Solar Module

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Production Scope:
Parts Production Line
Automation:
Full Automation
Transmission Type:
Flexible
Certification:
CE, ISO
Production Capacity:
100 Set/Sets Per Year
Specification:
7700*2620*1350mm
Origin:
Hebei, China
HS Code:
848640
Product Description

Negotiate the price according to specific circumstances

PV Lamination Machine Especially for Encapsulating Solar Module

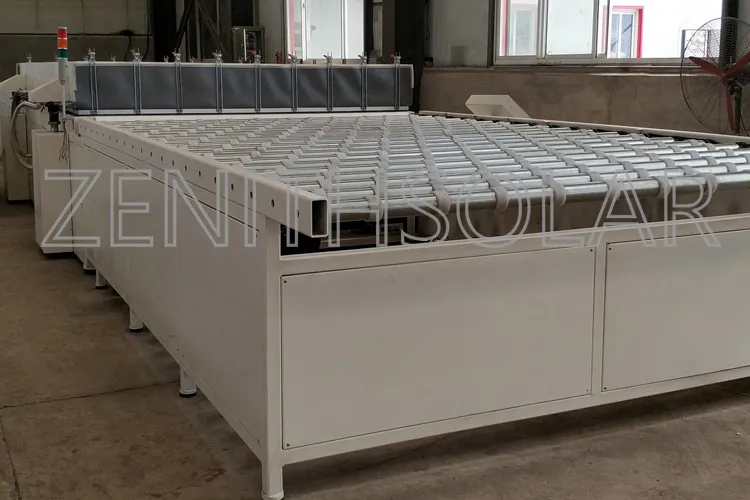

PV Lamination Machine 1

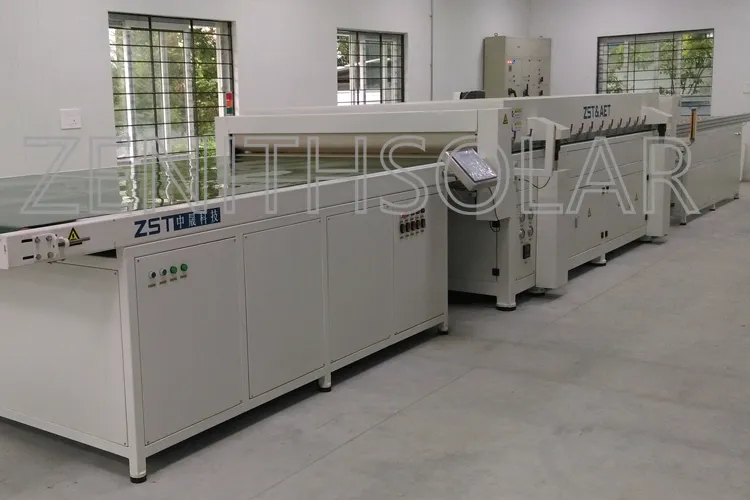

PV Lamination Machine 2
PV Lamination Machine 3
Technical Parameters
Power AC380V/50HZ/3Phases/5Lines Capacity 5-15(1-3shift)MW/year
Compressed Air Flow 0.25m³/min Vacuum Rate 100m³/H
Normal Power 10KW Max. Power 34KW
Lamination Time PVB/EVA: 12-15min Lamination Area 2200*2140mm
Working Temperature 100-160ºC Temp. Uniformity ≤±2ºC
Dimension 7700*2620*1350mm Weight 7.5T
Core Characteristics
⚙️ Integrated Design

Patented design where the vacuum and oil pumps are placed inside the machine to save floor space.

🔇 Lower Noise

Equipped with high-quality imported vacuum pumps, reducing noise levels to 65dB for a better environment.

☁️ Free Smoke

Unique smokeless design eliminates the need for complex external exhausting systems.

⚡ Energy Saving

Optimized power consumption achieves approximately 30% energy savings compared to other brands.

📜 CE Certificate

All machines in our PV production line have strictly passed CE certification standards.

Lamination Detail 1
Lamination Detail 2
Lamination Detail 3
Lamination Detail 4
Frequently Asked Questions
What is the production capacity of this PV lamination machine?
The machine has a production capacity of 5-15 MW per year, depending on whether it's operated in 1, 2, or 3 shifts.
What are the main certifications for this equipment?
This equipment is fully certified with both CE and ISO standards, ensuring compliance with international safety and quality regulations.
How does the "Integrated Design" benefit my facility?
The vacuum and oil pumps are built into the machine's frame. This patented design significantly saves plant space and simplifies the installation process.
Does this lamination machine produce smoke or noise during operation?
It features a low-noise design (65dB) using high-end pumps and a smokeless configuration, so you do not need to install an extra exhausting system.
What materials can be laminated with this machine?
It is specifically designed for solar module encapsulation using PVB or EVA materials, with a standard lamination cycle of 12-15 minutes.
What is the maximum working temperature and uniformity?
The machine operates between 100-160ºC with a temperature uniformity of ≤±2ºC to ensure high-quality module encapsulation.
