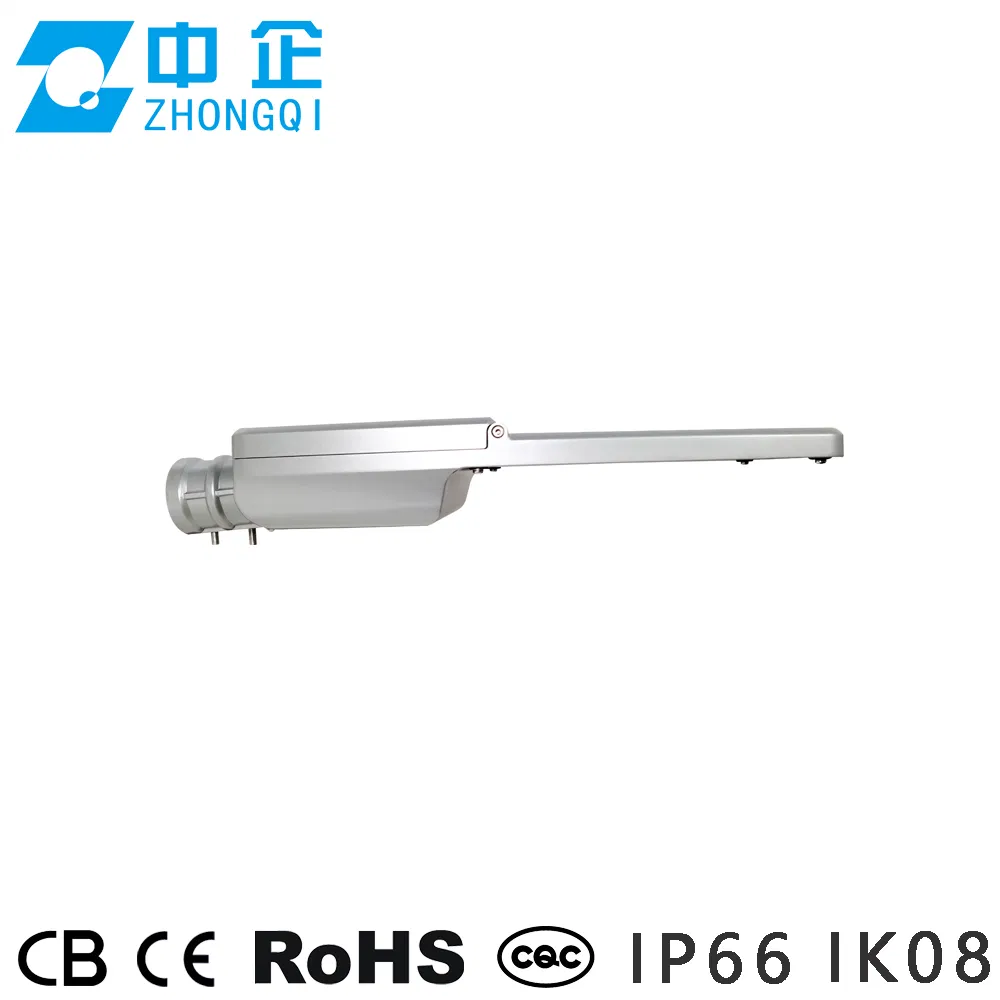

Factory Priceled Outdoor Light IoT LED Street Light with Smart LED Driver Motion Sensor IP66 Waterproof CE RoHS LED Solar Lamp

Basic Specifications

Model NO.:ZQL-L508A-S

Material:Die-Casting Aluminum

Power Range:30W - 240W

IP Rating:IP66 Waterproof

LED Chips:Osram 5050/3030

Input Voltage:90-305V AC

Luminous Efficacy:120lm/W - 200lm/W

Beam Angle:Type II, III, IV, V

Surge Protection:10kv / 20kv SPD

Certifications:CE, RoHS, CB, DLC, ETL, SAA

Key Product Features

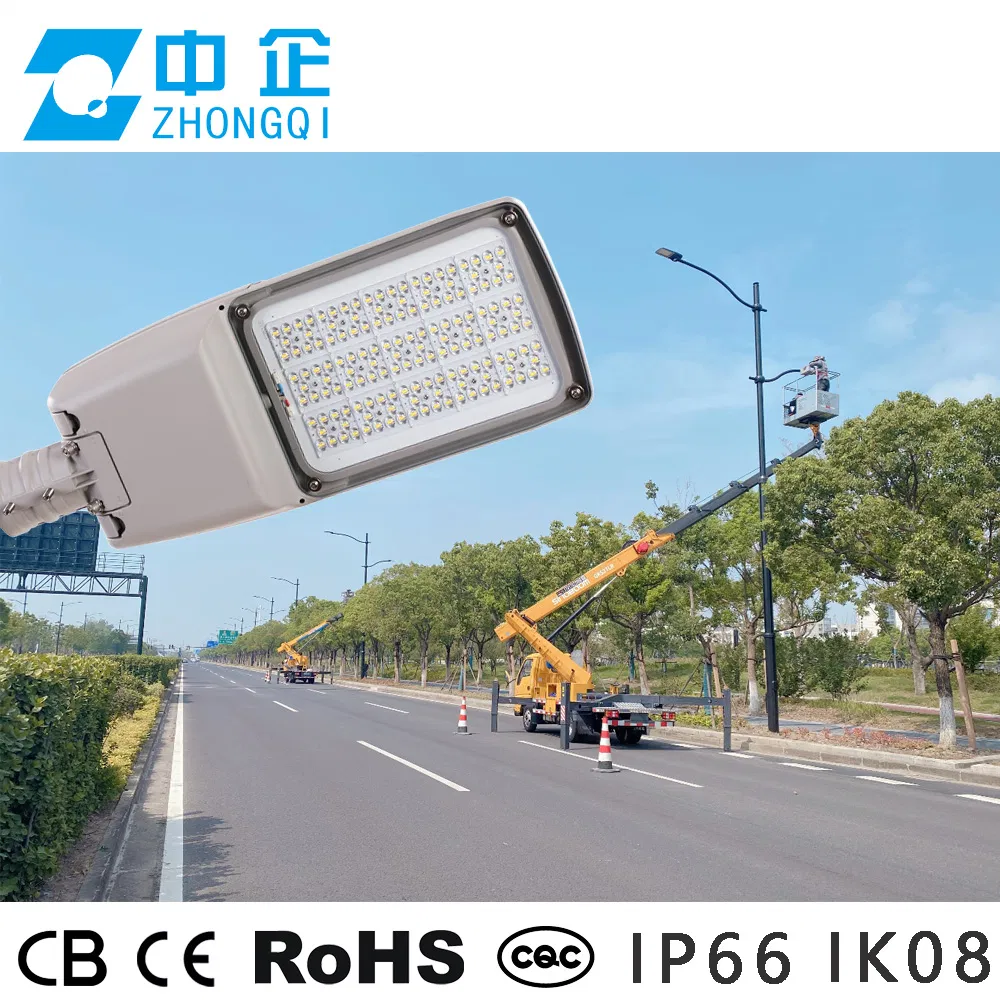

Designed for urban and street lighting with high architectural value.

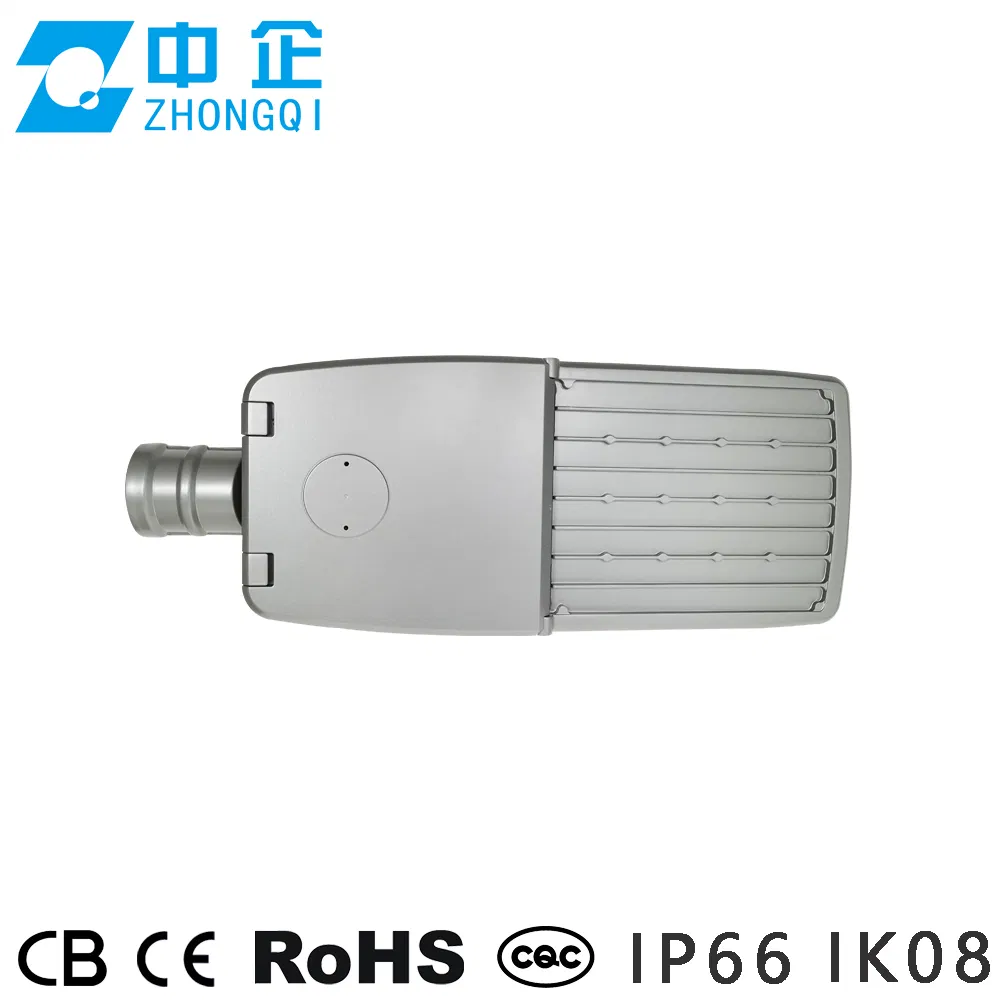

High-pressure die-casting housing for superior impact and corrosion resistance.
3G vibration test approved under American standard ANSI C136.31.
Luminous flux up to 180 lumens per watt; multiple CCT options available.
Tempered glass protection for PC lens against UV, moisture, and dust.

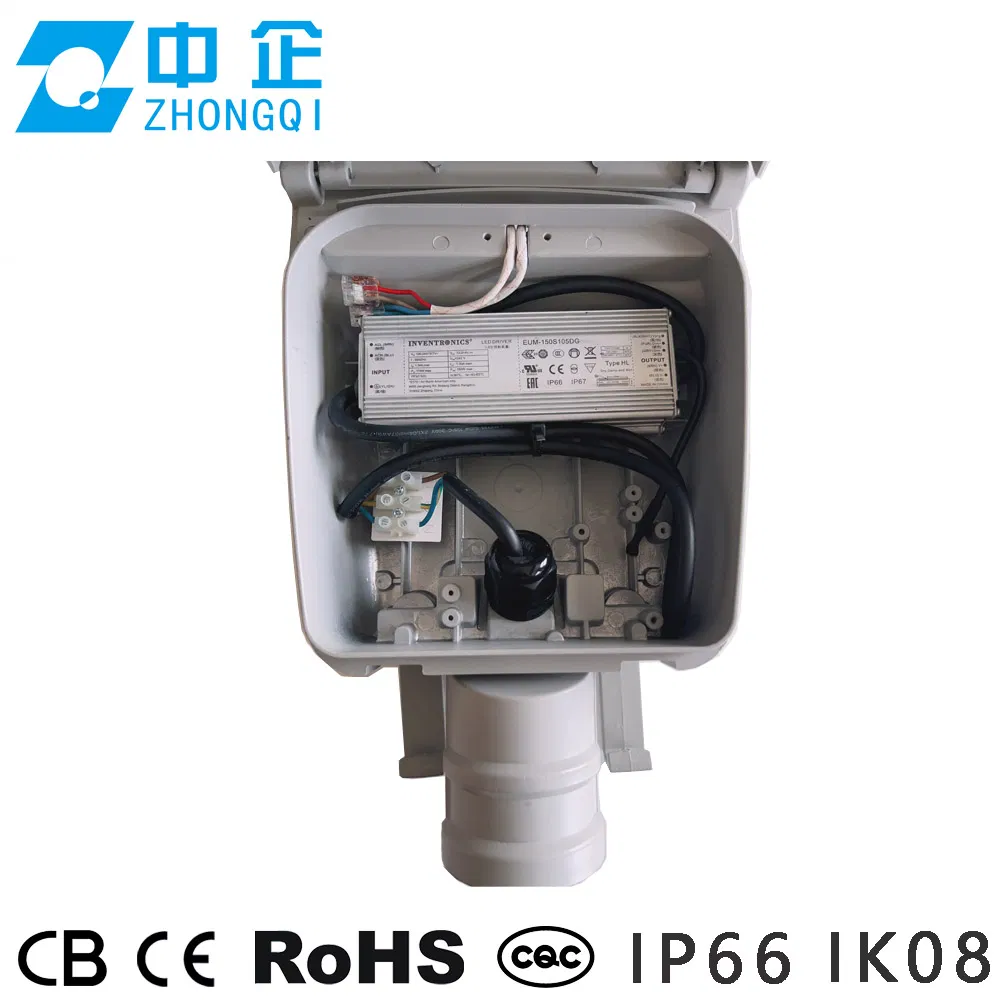

IP66 driver chamber compatible with IOT Smart City systems.

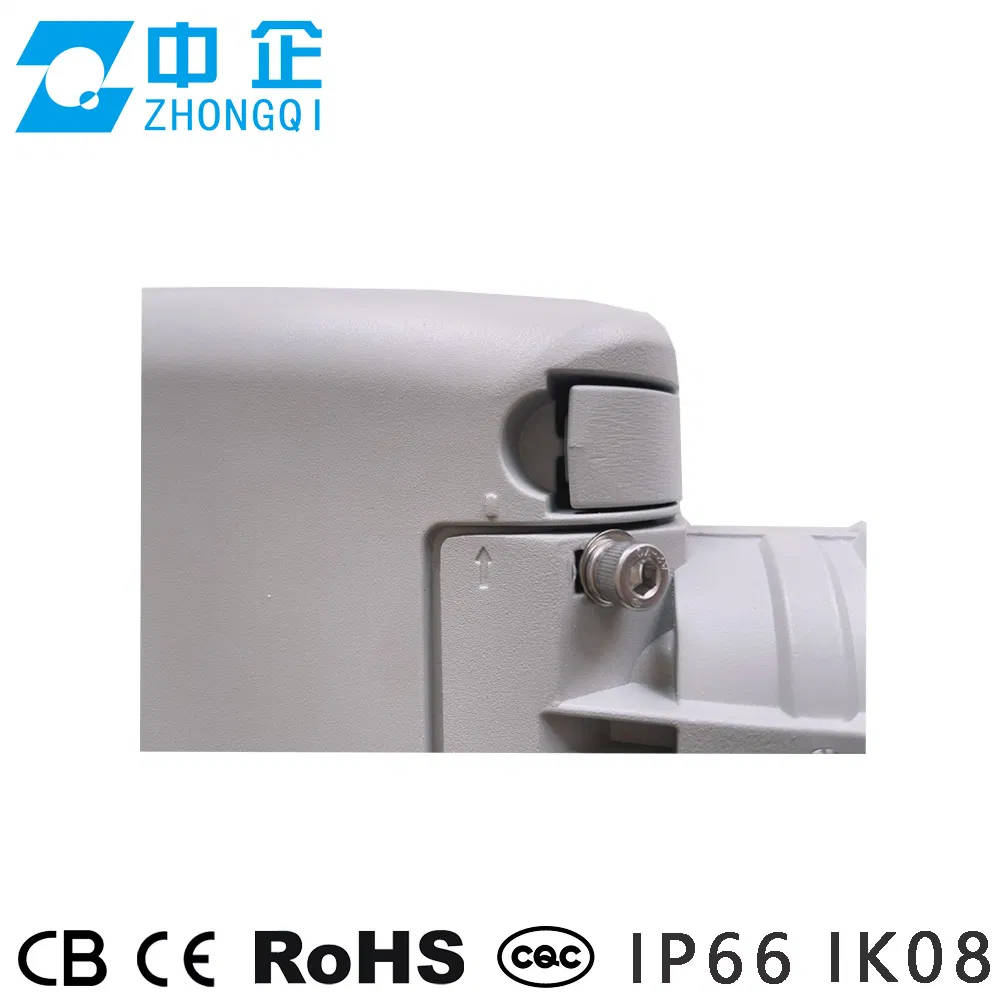

Toolless operation design for effortless installation and maintenance.
Flexible mounting: both horizontal and vertical options supported.

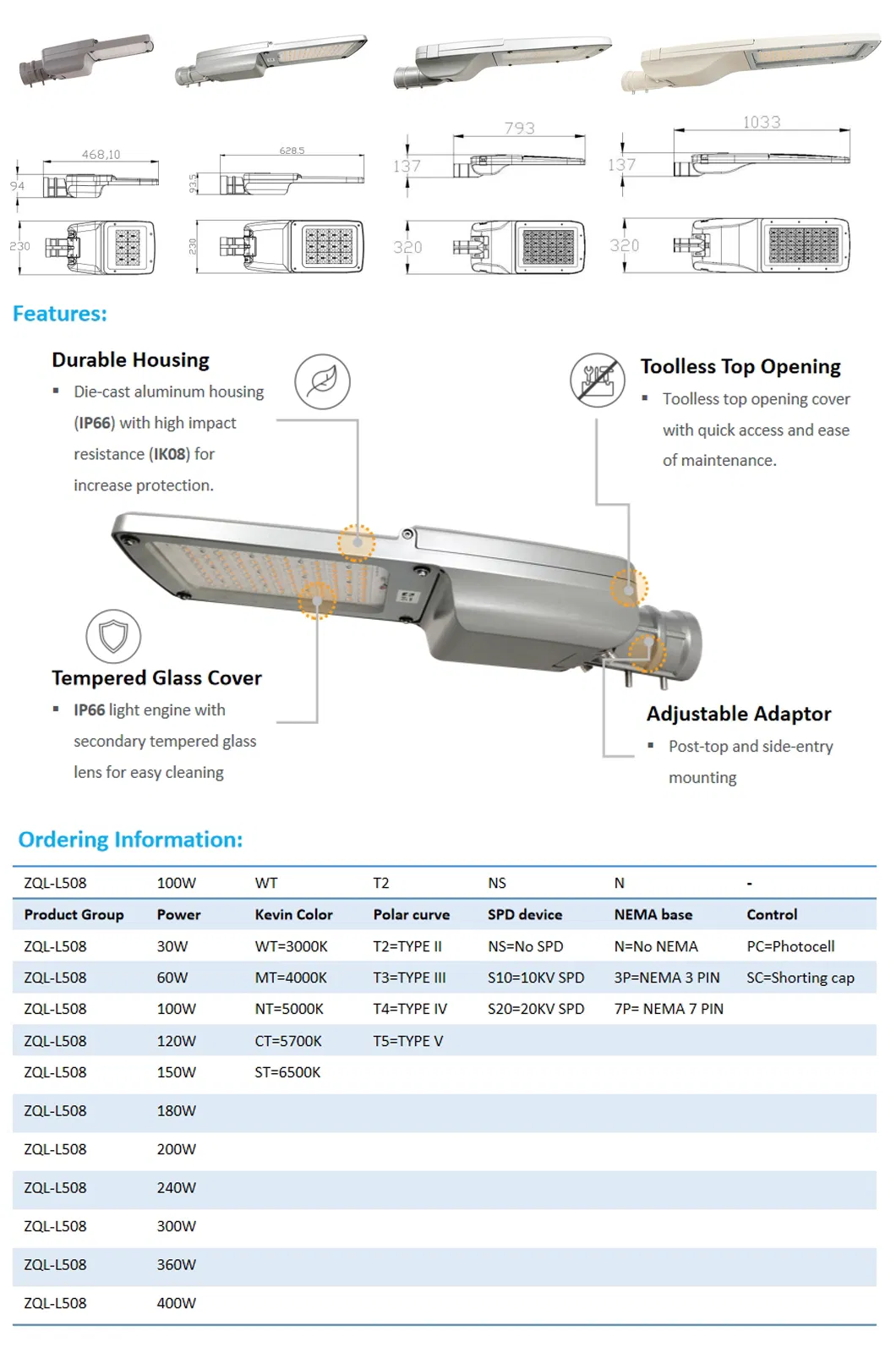

Technical Parameters

Product Model	Power (W)	Premium LPW	Standard LPW	N.W. (kg)	Product Size (mm)	Input Voltage	CCT Range
ZQL-L508	30W	150 lm/W	130 lm/W	3.40	46923094	AC90-305V	2700-6500K
ZQL-L508	50W	150 lm/W	130 lm/W	3.50	46923094	AC90-305V	2700-6500K
ZQL-L508	100W	150 lm/W	130 lm/W	4.50	62823094	AC90-305V	2700-6500K
ZQL-L508	150W	150 lm/W	130 lm/W	4.70	62823094	AC90-305V	2700-6500K
ZQL-L508	200W	150 lm/W	130 lm/W	4.90	62823094	AC90-305V	2700-6500K
ZQL-L508	300W	150 lm/W	130 lm/W	9.50	1035320140	AC90-305V	2700-6500K
ZQL-L508	500W	150 lm/W	130 lm/W	12.50	1035320140	AC90-305V	2700-6500K

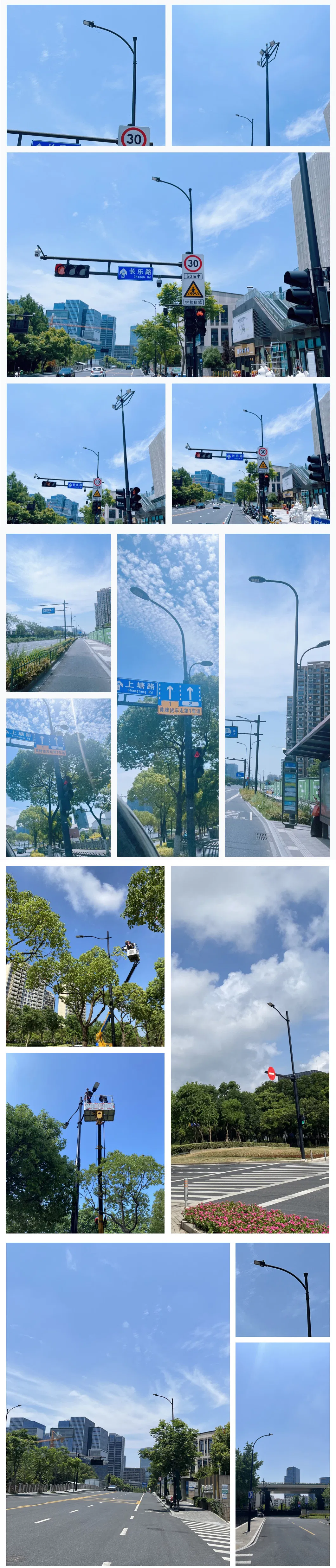

Applications & Details

Frequently Asked Questions

Q1: Can I request a sample before placing a bulk order?

Yes, we welcome sample orders for quality testing and approval before moving forward with quantity orders.

Q2: What is the typical lead time for orders?

Samples are usually ready within 3-5 days. For bulk quantity orders, the lead time typically ranges between 25-30 days.

Q3: Do you support ODM or OEM customization services?

Yes, we provide full ODM and OEM services to meet specific project requirements and branding needs.

Q4: How long is the warranty period for your lighting products?

We offer a comprehensive warranty of 2 to 5 years depending on the specific configuration and components selected.

Q5: What are the standard payment terms?

Our standard terms are a 30% TT deposit upfront, with the remaining 70% balance due prior to shipment.

Q6: Are your street lights compatible with Smart City IoT systems?

Yes, the IP66 driver chamber is designed to integrate seamlessly with various IoT smart drivers and motion sensors for modern urban infrastructure.
