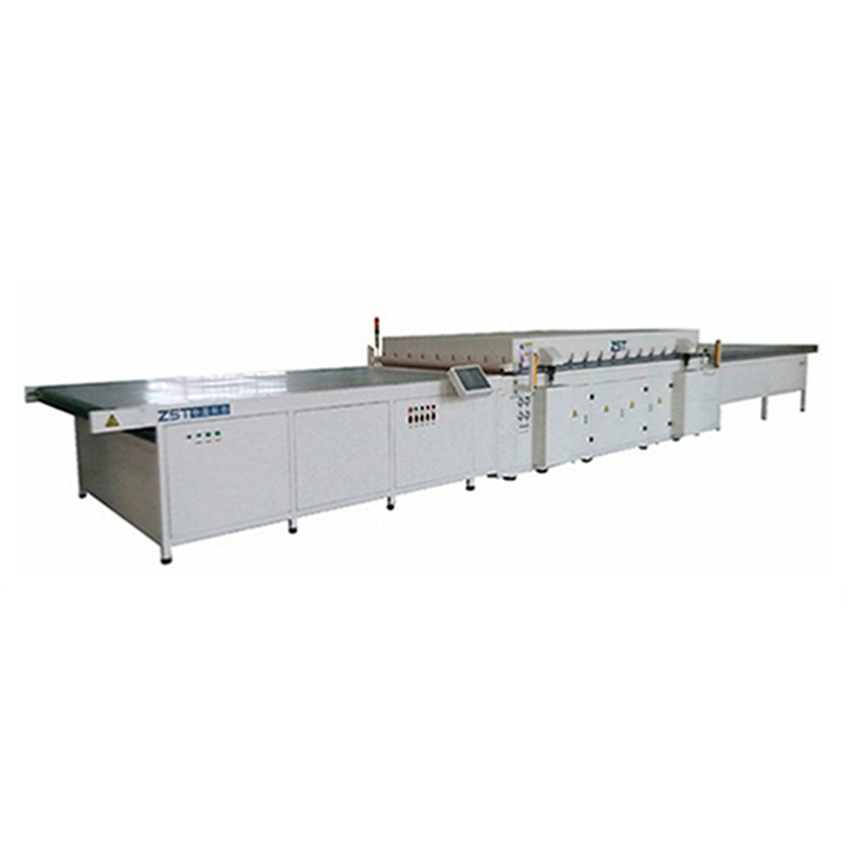

Oriental Laminator PV Module Assembly Line Lamination Machine China
1 / 1
Oriental Laminator PV Module Assembly Line Lamination Machine China

Oriental Laminator PV Module Assembly Line Lamination Machine China

Customization: Available
Automation: Automation
Transmission Type: Flexible
Send Inquiry

Product Description

Technical Specifications
Production Line
Automatic / Comprehensive
Certification
CE, ISO
Manufacturing
Intelligent Manufacturing
Production Scope
Parts Production Line
Dimensions
7700*2620*1350mm
HS Code
848640
Capacity
100 Set/Sets Per Year
Package
Frame Container
Product Description

Laminator PV Module Assembly Line Lamination Machine

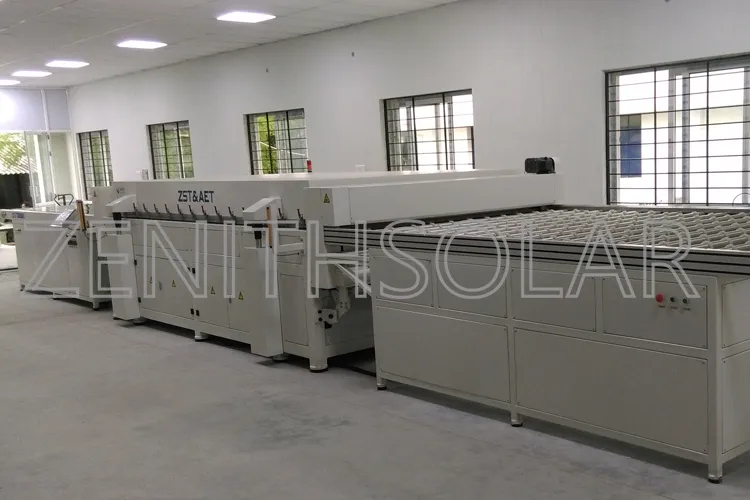

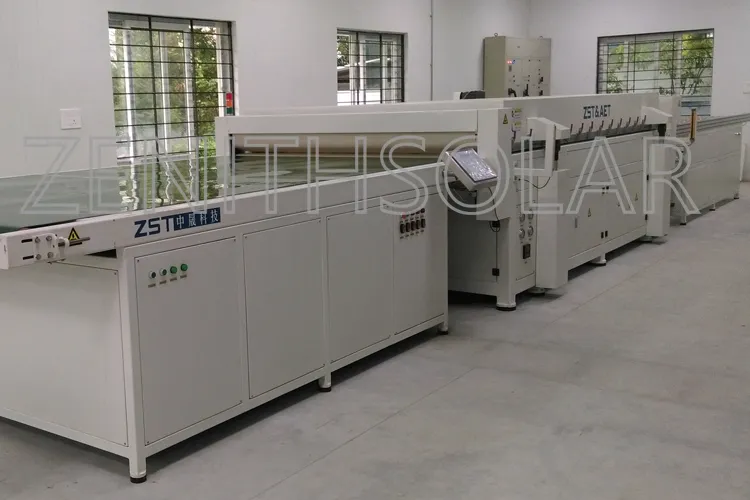

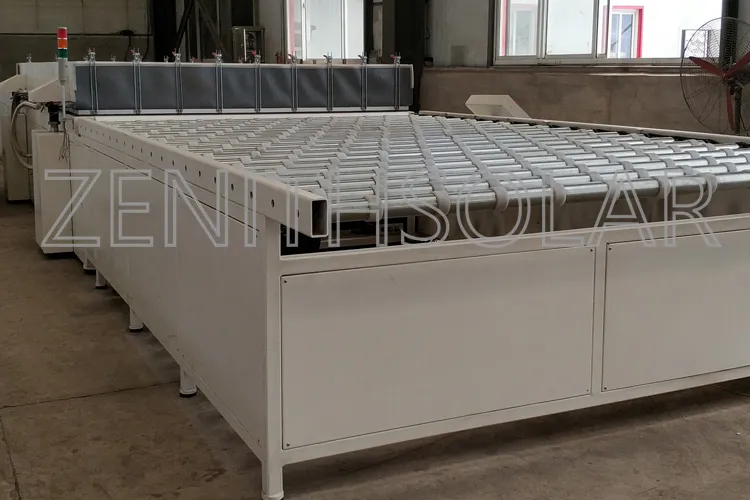

PV Module Lamination Machine Assembly Line View Laminator Details
Detailed Parameters
Power AC380V/50HZ/3Phases/5Lines Capacity 5-15(1-3shift)MW/year
Air Flow 0.25m³/min Vacuum Rate 100m³/H
Normal Power 10KW Max Power 34KW
Lamination Time PVB/EVA: 12-15min Lamination Area 2200*2140mm
Temperature 100-160ºC Uniformity ≤±2ºC
Dimension 7700*2620*1350mm Weight 7.5T
Key Characteristics
🔹 Integrated Design

Patented design with vacuum and oil pumps placed inside the machine to save plant space.

🔹 Lower Noise

Equipped with imported vacuum pumps, reducing noise to 65dB for a better environment.

🔹 Free Smoke

Smokeless pump design eliminates the need for an external exhausting system.

🔹 Energy Saving

Highly efficient system saving approximately 30% energy compared to other brands.

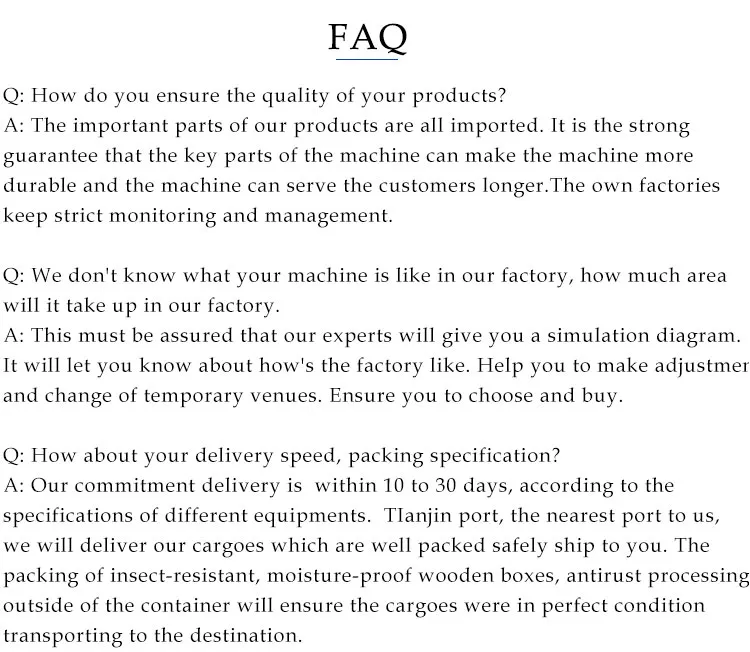

Machine Structure Processing Line Laminator Components Production Output
Frequently Asked Questions
What is the production capacity of this PV laminator?
The machine has an annual production capacity of 5-15 MW depending on the number of shifts (1-3 shifts) and a total manufacturing capacity of 100 sets per year.
Does the machine meet international safety standards?
Yes, all machines in this PV line have passed and carry the CE and ISO certifications, ensuring compliance with global safety and quality requirements.
How does the integrated design save factory space?
By housing the vacuum and oil pumps internally, the physical footprint is minimized, allowing for more flexible workshop layouts.
What is the typical lamination cycle for PV modules?
The lamination time for standard PVB/EVA materials ranges between 12 to 15 minutes per cycle.
Is special ventilation required for this machine?
Due to the unique smokeless design of the vacuum pumps, you do not need to configure an additional exhausting system for smoke removal.
How uniform is the heating during the lamination process?
The machine maintains high precision with a temperature uniformity of ≤±2ºC across the entire 2200*2140mm lamination area.
